Showing:

Annotations
Attributes
Diagrams
Facets
Instances
Model
Properties
Source
Used by

Table of Contents

Group by:

No namespace

Elements
Complex Types
Attributes
Attribute Groups

http://www.arinc424.com/xml/datatypes

Complex Types
Simple Types

http://www.arinc424.com/xml/enumerations

Simple Types

Resource hierarchy:

Main schema AeroPublication.xsd
Namespace No namespace
Annotations

The AeroPublication contains the root element.
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema Waypoint.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Imported schema DataTypes.xsd
Namespace http://www.arinc424.com/xml/datatypes
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Imported schema Enumerations.xsd
Namespace http://www.arinc424.com/xml/enumerations
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema BasicClasses.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema CruisingTable.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema FIRUIR.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema Airspace.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema PreferedRoute.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema Route.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema Legs.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema Airway.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema AirwaysRestriction.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema CompanyRoute.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema Communication.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema Alternate.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema GeographicalReferenceTable.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema SAA.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema Navaids.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema HoldingPattern.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema GridMora.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema Ports.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]

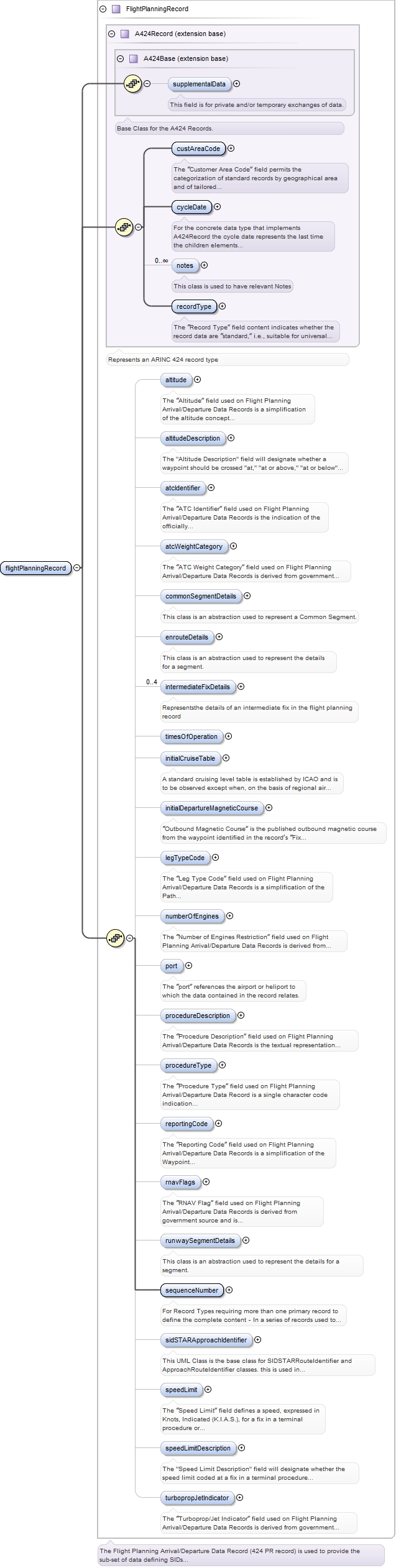

Included schema FlightPlanning.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema SIDSTARApproach.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema PathPoint.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema AirportHeliportLocalizerMarker.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema TAA.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema MSA.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema AirportGate.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Included schema MetaData.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default unqualified
[ top ]
Element AeroPublication
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#MetaData ARINC424_22_HTML.tmp#AeroPublication_airports ARINC424_22_HTML.tmp#AeroPublication_heliports ARINC424_22_HTML.tmp#AeroPublication_airways ARINC424_22_HTML.tmp#AeroPublication_enrouteWaypoints ARINC424_22_HTML.tmp#AeroPublication_vhfNavaids ARINC424_22_HTML.tmp#AeroPublication_ndbs ARINC424_22_HTML.tmp#AeroPublication_companyRoutes ARINC424_22_HTML.tmp#AeroPublication_airspaces ARINC424_22_HTML.tmp#AeroPublication_alternates ARINC424_22_HTML.tmp#AeroPublication_cruisingTables ARINC424_22_HTML.tmp#AeroPublication_preferedRoutes ARINC424_22_HTML.tmp#AeroPublication_enrouteCommunications ARINC424_22_HTML.tmp#AeroPublication_geographicalReferences ARINC424_22_HTML.tmp#AeroPublication_gridMoras ARINC424_22_HTML.tmp#AeroPublication_supplementalData ARINC424_22_HTML.tmp#AeroPublication_holdingPatterns
Properties
content complex
Model
Children airports, airspaces, airways, alternates, companyRoutes, cruisingTables, enrouteCommunications, enrouteWaypoints, geographicalReferences, gridMoras, heliports, holdingPatterns, ndbs, preferedRoutes, supplementalData, vhfNavaids
Instance

<AeroPublication codingRuleVersion="" creationDateTime="" cycleDate="" databasePartNumber="" dataSupplierIdent="" desupplierTextField="" endOfValidity="" fileCRC="" headerIdent="" language="" recordCount="" startOfValidity="" supplierTextField="" targetCustomerIdent="" uuid="" versionNumber="">
  <airports>{0,1}</airports>
  <heliports>{0,1}</heliports>
  <airways>{0,1}</airways>
  <enrouteWaypoints>{0,1}</enrouteWaypoints>
  <vhfNavaids>{0,1}</vhfNavaids>
  <ndbs>{0,1}</ndbs>
  <companyRoutes>{0,1}</companyRoutes>

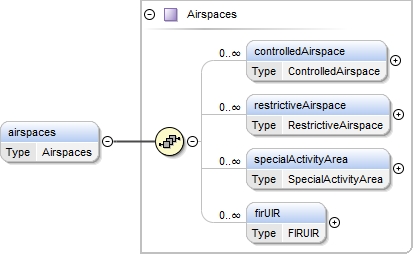

  <airspaces>{0,1}</airspaces>
  <alternates>{0,1}</alternates>
  <cruisingTables>{0,1}</cruisingTables>
  <preferedRoutes>{0,1}</preferedRoutes>
  <enrouteCommunications>{0,1}</enrouteCommunications>

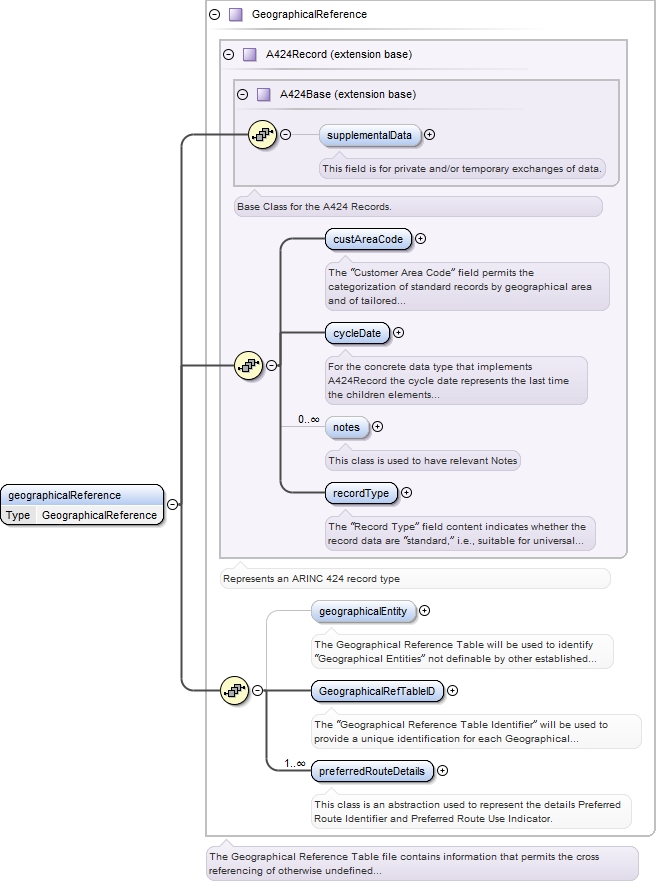

  <geographicalReferences>{0,1}</geographicalReferences>
  <gridMoras>{0,1}</gridMoras>

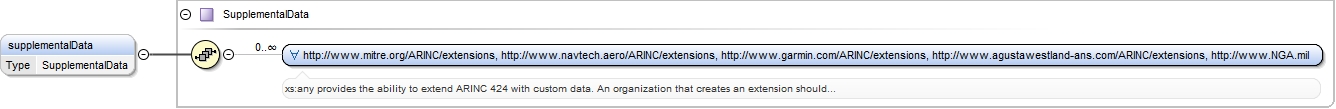

  <supplementalData>{0,1}</supplementalData>
  <holdingPatterns>{0,1}</holdingPatterns>
</AeroPublication>
Attributes
QName Type Use Annotation
codingRuleVersion type:UUID optional
This contains a version number of the coding rule specification used to capture this data set.
creationDateTime xs:dateTime required
Contains the date when the file was created. Format is DD-MMMYYYY. Where DD is the two-digit decimal day of month, MMM is a three-character month abbreviation, and YYYY is the four-digit decimal year. Contains the UTC time when the file was created. The format is two decimal digits each for hours, minutes, and seconds, separated by colons.
cycleDate xs:int optional
Contains Cycle Date
dataSupplierIdent xs:string optional
Contains information to identify the data supplier. Content defined by the data supplier.
databasePartNumber xs:string optional
Unique part number for database
desupplierTextField xs:string optional
Contains description of file contents, or other information agreed upon by data supplier and customer.
endOfValidity xs:dateTime required
This XML Attribute represents the end date of the validity of the data.
fileCRC xs:int optional
This field contains the 32 bit CRC value for the ARINC data file (including data and header records).ARINC Report 665, Loadable Software Standards, Section 4.0 defines the use of CRC codes.
The CRC Polynomial used to calculate the CRC of the ARINC 424 data file shall be the 32-bit CRC (0x04C11DB7), calculated as described in ARINC Report 665
headerIdent xs:string optional
Contains HDR
language xs:language optional
recordCount xs:int optional
Contains the decimal count of the number of XML data Elements in the file.
startOfValidity xs:dateTime required
This XML Attribute field is used to represent the effective date of the data.
supplierTextField xs:string optional
Contains information specific to data supplier, contents to be defined by data supplier
targetCustomerIdent xs:string optional
Contains information to identify the data user/customer (for example, the customer name(s), file codes). Content defined by the data supplier and/or customer.
uuid type:UUID optional
versionNumber xs:int optional
Contains 3 decimal numbers to uniquely identify revision of this file. Initially set to 001, but will be incremented if the file is created more than once in the same cycle.
Source

<xs:element name="AeroPublication">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="airports" type="Airports" minOccurs="0" maxOccurs="1"/>
      <xs:element name="heliports" type="Heliports" minOccurs="0" maxOccurs="1"/>
      <xs:element name="airways" type="Airways" minOccurs="0" maxOccurs="1"/>
      <xs:element name="enrouteWaypoints" type="EnrouteWaypoints" minOccurs="0" maxOccurs="1"/>
      <xs:element name="vhfNavaids" type="Navaids" minOccurs="0" maxOccurs="1"/>
      <xs:element name="ndbs" type="NDBs" minOccurs="0" maxOccurs="1"/>
      <xs:element name="companyRoutes" type="CompanyRoutes" minOccurs="0" maxOccurs="1"/>
      <xs:element name="airspaces" type="Airspaces" minOccurs="0" maxOccurs="1"/>
      <xs:element name="alternates" type="Alternates" minOccurs="0" maxOccurs="1"/>
      <xs:element name="cruisingTables" type="CruisingTables" minOccurs="0" maxOccurs="1"/>
      <xs:element name="preferedRoutes" type="PreferedRoutes" minOccurs="0" maxOccurs="1"/>
      <xs:element name="enrouteCommunications" type="EnrouteCommunications" minOccurs="0" maxOccurs="1"/>
      <xs:element name="geographicalReferences" type="GeographicalReferences" minOccurs="0" maxOccurs="1"/>
      <xs:element name="gridMoras" type="GridMoras" minOccurs="0" maxOccurs="1"/>
      <xs:element name="supplementalData" type="SupplementalData" minOccurs="0" maxOccurs="1"/>
      <xs:element name="holdingPatterns" type="HoldingPatterns" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
    <xs:attributeGroup ref="MetaData"/>
  </xs:complexType>
</xs:element>
[ top ]
Element AeroPublication / airports
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Airports_airport ARINC424_22_HTML.tmp#Airports
Type Airports
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children airport
Instance

<airports>
  <airport referenceID="">{1,unbounded}</airport>
</airports>
Source

<xs:element name="airports" type="Airports" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Airports / airport
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Port_elevation ARINC424_22_HTML.tmp#Port_ataIATADesignator ARINC424_22_HTML.tmp#Port_daylightIndicator ARINC424_22_HTML.tmp#Port_ifrCapability ARINC424_22_HTML.tmp#Port_magneticTrueIndicator ARINC424_22_HTML.tmp#Port_publicMilitaryIndicator ARINC424_22_HTML.tmp#Port_recommendedNavaid ARINC424_22_HTML.tmp#Port_speedLimit ARINC424_22_HTML.tmp#Port_speedLimitAltitude ARINC424_22_HTML.tmp#Port_timeZone ARINC424_22_HTML.tmp#Port_transitionAltitude ARINC424_22_HTML.tmp#Port_transitionLevel ARINC424_22_HTML.tmp#Port_terminalNDB ARINC424_22_HTML.tmp#Port_terminalProcedures ARINC424_22_HTML.tmp#Port_terminalWaypoint ARINC424_22_HTML.tmp#Port_taa ARINC424_22_HTML.tmp#Port_portCommunication ARINC424_22_HTML.tmp#Port_helipad ARINC424_22_HTML.tmp#Port_localizerMarker ARINC424_22_HTML.tmp#Port_localizerGlideslope ARINC424_22_HTML.tmp#Port_gls ARINC424_22_HTML.tmp#Port_mls ARINC424_22_HTML.tmp#Port_msa ARINC424_22_HTML.tmp#Port_flightPlanningArrivalDepartureRecords ARINC424_22_HTML.tmp#Port_categoryDistance ARINC424_22_HTML.tmp#Port_maxHelicopterWeight ARINC424_22_HTML.tmp#Port ARINC424_22_HTML.tmp#Airport_controlledASArptIndicator ARINC424_22_HTML.tmp#Airport_controlledASIndicator ARINC424_22_HTML.tmp#Airport_longestRunway ARINC424_22_HTML.tmp#Airport_longestRunwaySurfaceCode ARINC424_22_HTML.tmp#Airport_runway ARINC424_22_HTML.tmp#Airport_airportGate ARINC424_22_HTML.tmp#Airport
Type Airport
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model

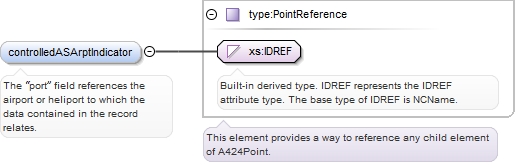

Children airportGate, ataIATADesignator, categoryDistance, controlledASArptIndicator, controlledASIndicator, custAreaCode, cycleDate, datumCode, daylightIndicator, elevation, firRef, flightPlanningArrivalDepartureRecords, gls, helipad, icaoCode, identifier, ifrCapability, localizerGlideslope, localizerMarker, location, longestRunway, longestRunwaySurfaceCode, magneticTrueIndicator, magneticVariation, maxHelicopterWeight, mls, msa, name, notes, portCommunication, publicMilitaryIndicator, recommendedNavaid, recordType, runway, speedLimit, speedLimitAltitude, supplementalData, taa, terminalNDB, terminalProcedures, terminalWaypoint, timeZone, transitionAltitude, transitionLevel, uirRef
Instance

<airport referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>

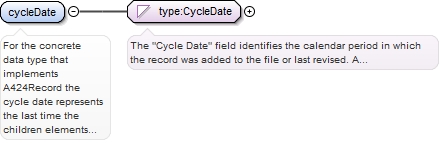

  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>

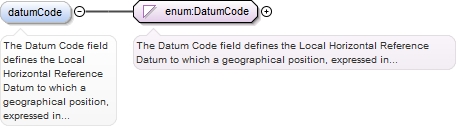

  <datumCode>{0,1}</datumCode>

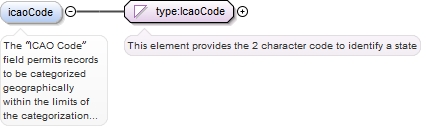

  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>

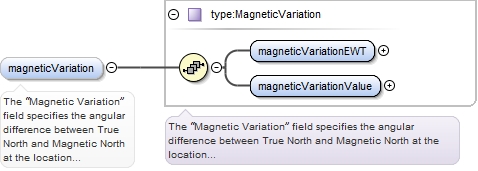

  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>

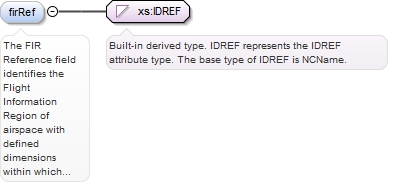

  <firRef>{0,1}</firRef>

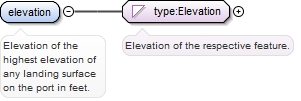

  <elevation>{1,1}</elevation>
  <ataIATADesignator>{0,1}</ataIATADesignator>
  <daylightIndicator>{0,1}</daylightIndicator>

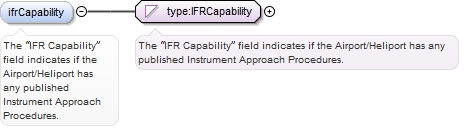

  <ifrCapability>{0,1}</ifrCapability>
  <magneticTrueIndicator>{0,1}</magneticTrueIndicator>
  <publicMilitaryIndicator>{0,1}</publicMilitaryIndicator>
  <recommendedNavaid>{0,1}</recommendedNavaid>

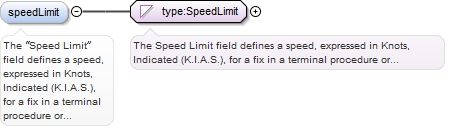

  <speedLimit>{0,1}</speedLimit>
  <speedLimitAltitude>{0,1}</speedLimitAltitude>
  <timeZone>{0,1}</timeZone>
  <transitionAltitude>{0,1}</transitionAltitude>

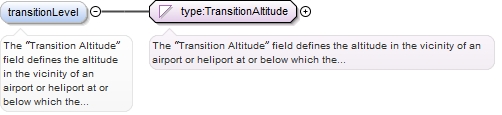

  <transitionLevel>{0,1}</transitionLevel>

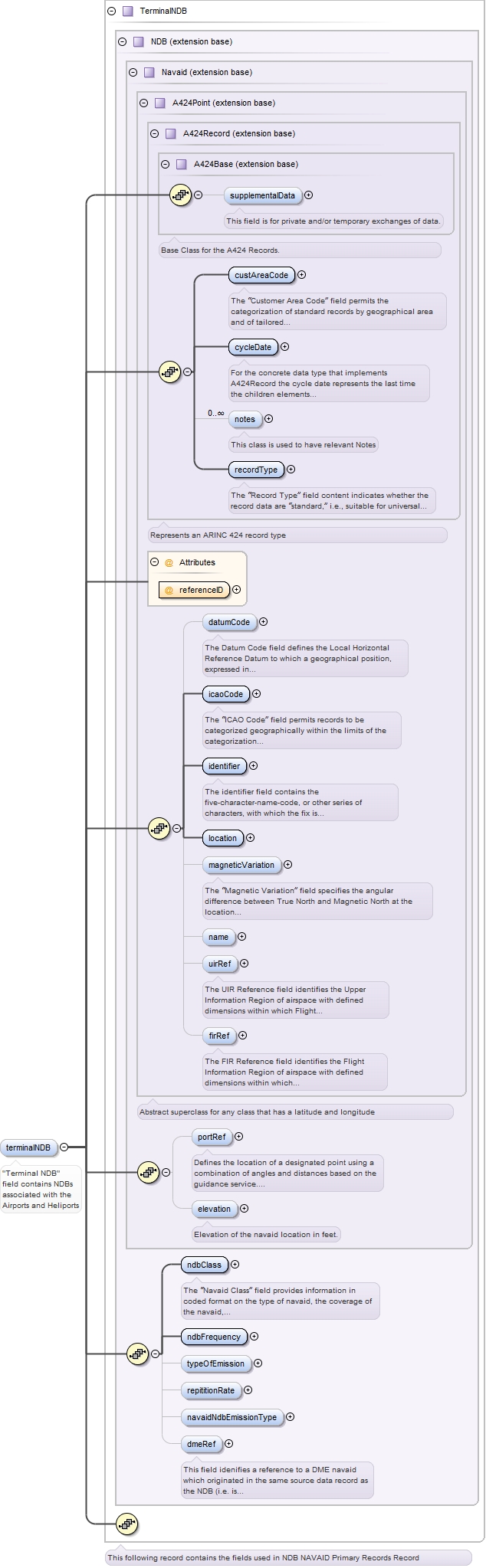

  <terminalNDB referenceID="">{0,unbounded}</terminalNDB>

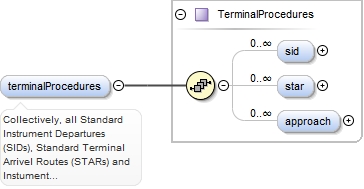

  <terminalProcedures>{0,1}</terminalProcedures>
  <terminalWaypoint referenceID="">{0,unbounded}</terminalWaypoint>
  <taa referenceID="">{0,unbounded}</taa>
  <portCommunication>{0,unbounded}</portCommunication>
  <helipad referenceID="">{0,unbounded}</helipad>
  <localizerMarker referenceID="">{0,unbounded}</localizerMarker>
  <localizerGlideslope referenceID="">{0,unbounded}</localizerGlideslope>
  <gls referenceID="">{0,unbounded}</gls>

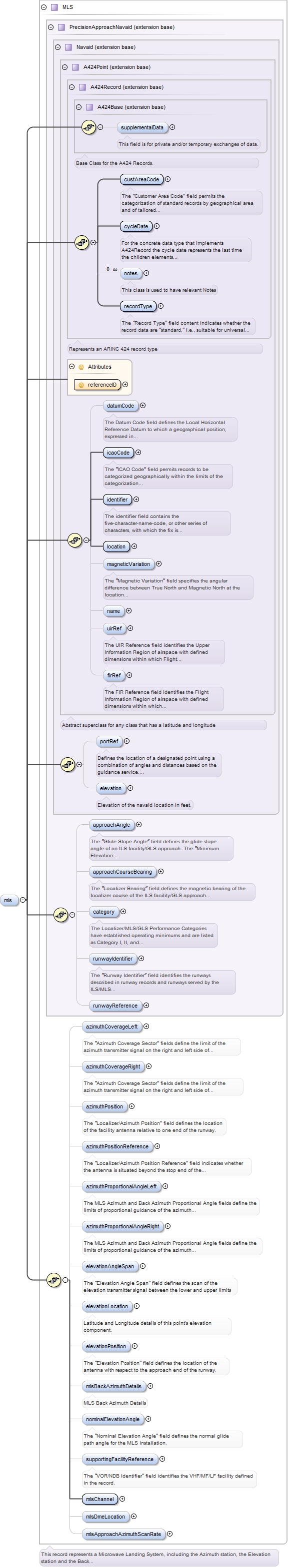

  <mls referenceID="">{0,unbounded}</mls>

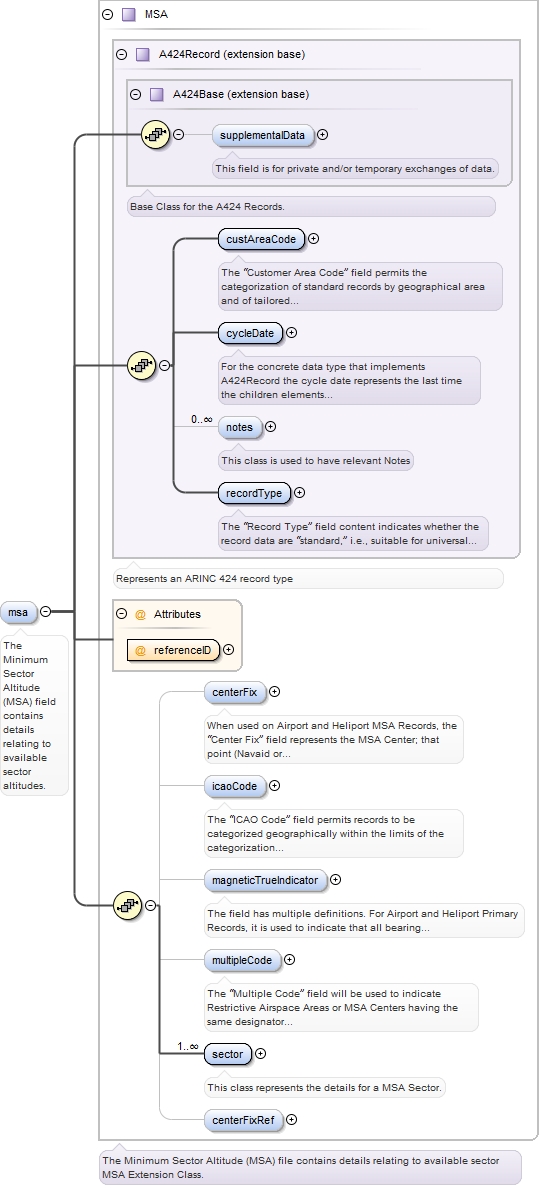

  <msa referenceID="">{0,unbounded}</msa>

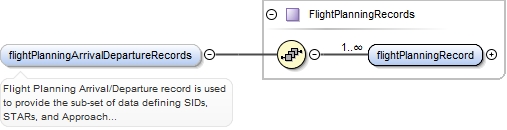

  <flightPlanningArrivalDepartureRecords>{0,unbounded}</flightPlanningArrivalDepartureRecords>

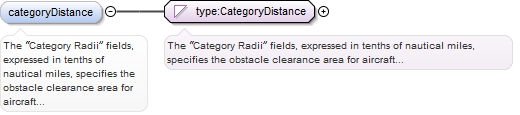

  <categoryDistance>{0,1}</categoryDistance>
  <maxHelicopterWeight>{0,1}</maxHelicopterWeight>
  <controlledASArptIndicator>{0,1}</controlledASArptIndicator>
  <controlledASIndicator>{0,1}</controlledASIndicator>
  <longestRunway>{0,1}</longestRunway>
  <longestRunwaySurfaceCode>{0,1}</longestRunwaySurfaceCode>
  <runway referenceID="">{0,unbounded}</runway>
  <airportGate referenceID="">{0,unbounded}</airportGate>
</airport>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="airport" type="Airport" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element A424Base / supplementalData
Namespace No namespace
Annotations

This field is for private and/or temporary exchanges of data.
Diagram
Diagram ARINC424_22_HTML.tmp#SupplementalData
Type SupplementalData
Properties
content complex
minOccurs 0
maxOccurs 1
Model
ANY element from namespace(s) 'http://www.mitre.org/ARINC/extensions, http://www.navtech.aero/ARINC/extensions, http://www.garmin.com/ARINC/extensions, http://www.agustawestland-ans.com/ARINC/extensions, http://www.NGA.mil'
Source

<xs:element name="supplementalData" type="SupplementalData" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field is for private and/or temporary exchanges of data.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element A424Record / custAreaCode
Namespace No namespace
Annotations

The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#CustAreaCode_areaCode ARINC424_22_HTML.tmp#CustAreaCode_customerCode ARINC424_22_HTML.tmp#CustAreaCode
Type type:CustAreaCode
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children areaCode, customerCode
Instance

<custAreaCode>
  <areaCode>{1,1}</areaCode>
  <customerCode>{1,1}</customerCode>
</custAreaCode>
Source

<xs:element name="custAreaCode" type="type:CustAreaCode" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:CustAreaCode / areaCode
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AreaCode
Type enum:AreaCode
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration AFR
Africa
enumeration CAN
Canada
enumeration EEU
Eastern Europe and Asia
enumeration EUR
Europe
enumeration LAM
Latin America
enumeration MES
Middle East
enumeration PAC
Pacific
enumeration SAM
South America
enumeration SPA
South Pacific
enumeration USA
United States
Source

<xs:element name="areaCode" type="enum:AreaCode" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:CustAreaCode / customerCode
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CustomerCode
Type type:CustomerCode
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
pattern [a-zA-Z0-9]{2,3}
Source

<xs:element name="customerCode" type="type:CustomerCode" minOccurs="1" maxOccurs="1"/>
[ top ]
Element A424Record / cycleDate
Namespace No namespace
Annotations

For the concrete data type that implements A424Record the cycle date represents the last time the children elements changed.  This only applies to elements with the same arity as this cycle date element.   For example the cycle date that is a first child of a Procedure does not indicate if children of a Leg changed.
Diagram
Diagram ARINC424_22_HTML.tmp#CycleDate
Type type:CycleDate
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
minLength 4
maxLength 4
Source

<xs:element name="cycleDate" type="type:CycleDate" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>For the concrete data type that implements A424Record the cycle date represents the last time the children elements changed. This only applies to elements with the same arity as this cycle date element. For example the cycle date that is a first child of a Procedure does not indicate if children of a Leg changed.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element A424Record / notes
Namespace No namespace
Annotations

This class is used to have relevant Notes
Diagram
Diagram ARINC424_22_HTML.tmp#NotesText
Type type:NotesText
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<xs:element name="notes" type="type:NotesText" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>This class is used to have relevant Notes</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element A424Record / recordType
Namespace No namespace
Annotations

The “Record Type” field content indicates whether the record data are “standard,” i.e., suitable for universal application, or “tailored,” i.e. included  for a single user’s specific purpose .  Record type is set to tailored if any extension points are included in the record or if any content of the ARINC 424 XML schemas are altered in any way.
Diagram
Diagram ARINC424_22_HTML.tmp#RecordType
Type enum:RecordType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Standard
Standard
enumeration Tailored
Tailored
Source

<xs:element name="recordType" type="enum:RecordType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Record Type” field content indicates whether the record data are “standard,” i.e., suitable for universal application, or “tailored,” i.e. included for a single user’s specific purpose . Record type is set to tailored if any extension points are included in the record or if any content of the ARINC 424 XML schemas are altered in any way.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element A424Point / datumCode
Namespace No namespace
Annotations

The Datum Code field defines the Local Horizontal Reference Datum to which a geographical position, expressed in latitude and longitude, is associated.
Diagram
Diagram ARINC424_22_HTML.tmp#DatumCode
Type enum:DatumCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 3
enumeration ADI
Adindan
enumeration AFG
Afgooye
enumeration AIA
Antigua Island Astro 1943
enumeration AIN
Ain El Abd 1970
enumeration AMA
American Samoa 1962
enumeration ANO
Anna 1 Astro 1965
enumeration ANS
Austria NS
enumeration ARF
Arc 1950
enumeration ARS
Arc 1960
enumeration ASC
Ascension Island 1958
enumeration ASM
Montserrat Island Astro 1958
enumeration ASQ
Astronomical Station 1952
enumeration ATF
Astro Beacon “E� 1945
enumeration AUA
Australian Geodetic 1966
enumeration AUG
Australian Geodetic 1984
enumeration BAT
Djakarta (Batavia)
enumeration BER
Bermuda 1957
enumeration BID
Bissau
enumeration BOO
Bogota Observatory
enumeration BUR
Bukit Rimpah
enumeration CAC
Cape Canaveral
enumeration CAI
Campo Inchauspe 1969
enumeration CAO
Canton Astro 1966
enumeration CAP
Cape
enumeration CAZ
Camp Area Astro
enumeration CCD
S-JTSK
enumeration CGE
Carthage
enumeration CHI
Chatham Island Astro 1971
enumeration CHU
Chua Astro
enumeration COA
Corrego Alegre
enumeration DAL
Dabola
enumeration DAN
Danish Geodetic Institute 1934 System
enumeration DID
Deception Island
enumeration DOB
GUX 1 Astro
enumeration EAS
Easter Island 1967
enumeration ENW
Wake-Eniwetok, 1960
enumeration EST
Co-Ordinate System 1937 of Estonia
enumeration EUR
European 1950
enumeration EUS
European 1979
enumeration FAH
Oman
enumeration FLO
Observatorio Meteorologico 1939
enumeration FOT
Fort Thomas 1955
enumeration GAA
Gan 1970
enumeration GAN
Gandajika Base
enumeration GEO
Geodetic Datum 1949
enumeration GIZ
DOS 1968
enumeration GRA
Graciosa Base SW 1948
enumeration GRX
Greek Geodetic Reference System 1987
enumeration GSE
Gunuung Segara
enumeration GUA
Guam 1963
enumeration HEN
Herat North
enumeration HER
Hermannskogel
enumeration HIT
Provisional South Chilean 1963 (also known as Hito XVIII 1963)
enumeration HJO
Hjorsey 1955
enumeration HKD
Hong Kong 1963
enumeration HTN
Hu-Tzu-Shan
enumeration IBE
Bellevue (IGN)
enumeration IDN
Indonesian 1974
enumeration IGF
Nouvelle Triangulation de France (FRANCE)
enumeration IND
Indian
enumeration INF
Indian 1954
enumeration ING
Indian 1960
enumeration INH
Indian 1975
enumeration IRL
Ireland 1965
enumeration ISG
ISTS 061 Astro 1968
enumeration IST
ISTS 073 Astro 1969
enumeration JOH
Johnston Island 1961
enumeration KAN
Kandawala
enumeration KEA
Kertau 1948
enumeration KEG
Kerguelen Island 1949
enumeration KUS
Kusaie Astro 1951
enumeration LCF
L.C. 5 Astro 1961
enumeration LEH
Leigon
enumeration LIB
Liberia 1964
enumeration LUZ
Luzon
enumeration MAS
Massawa
enumeration MCN
Manchurian Principal System
enumeration MER
Merchich
enumeration MID
Midway Astro 1961
enumeration MIK
Mahe 1971
enumeration MIN
Minna
enumeration MOD
Rome 1940
enumeration MOL
Montjong Lowe
enumeration MPO
M'Poraloko
enumeration MVS
Viti Levu 1916
enumeration NAH
Nahrwan
enumeration NAN
Nanking 1960
enumeration NAP
Naparima, BWI
enumeration NAR
North American 1983
enumeration NAS
North American 1927
enumeration NSD
North Sahara 1959
enumeration OEG
Old Egyptian 1907
enumeration OGB
Ordnance Survey of Great Britain 1936
enumeration OHA
Old Hawaiian
enumeration PAM
Palmer Astro
enumeration PDM
Potsdam
enumeration PHA
Ayabelle Lighthouse
enumeration PIT
Pitcairn Astro 1967
enumeration PLN
Pico de las Nieves
enumeration POS
Porto Santo 1936
enumeration PRD
Portuguese Datum 1973
enumeration PRP
Provisional South American 1956
enumeration PTB
Point 58
enumeration PTN
Point Noire 1948
enumeration PUK
Pulkovo 1942
enumeration PUR
Puerto Rico
enumeration QAT
Qatar National
enumeration QUO
Qornoq
enumeration REU
Reunion
enumeration RPE
Parametrop Zemp 1990 (English translation) The Parameters of the Earth 1990
enumeration RTS
RT90
enumeration SAE
Santo (DOS) 1965
enumeration SAN
South American 1969
enumeration SAO
Sao Braz
enumeration SAP
Sapper Hill 1943
enumeration SCK
Schwarzeck
enumeration SGM
Selvagem Grande 1938
enumeration SHB
Astro DOS 71/4
enumeration SOA
South Asia
enumeration SPK
S-42 (Pulkovo 1942)
enumeration SRL
Sierra Leone 1960
enumeration STO
Stockholm 1938 (RT38)
enumeration SYO
Sydney Observatory
enumeration TAN
Tananarive Observatory 1925
enumeration TDC
Tristan Astro 1968
enumeration TIL
Timbalai 1948
enumeration TOY
Tokyo
enumeration TRI
Trinidad Trigonometrical Survey
enumeration TRN
Astro Tern Island (Frig) 1961
enumeration UNK
Unknown
enumeration VOI
Voirol 1874
enumeration VOR
Voirol 1960
enumeration WAK
Wake Island Astro 1952
enumeration WGA
World Geodetic System 1960
enumeration WGB
World Geodetic System 1966
enumeration WGC
World Geodetic System 1972
enumeration WGE
World Geodetic System 1984
enumeration YAC
Yacare
enumeration ZAN
Zanderij
Source

<xs:element name="datumCode" type="enum:DatumCode" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Datum Code field defines the Local Horizontal Reference Datum to which a geographical position, expressed in latitude and longitude, is associated.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element A424Point / icaoCode
Namespace No namespace
Annotations

The “ICAO Code” field permits records to be categorized geographically within the limits of the categorization performed by the “Area Code” field.
Diagram
Diagram ARINC424_22_HTML.tmp#IcaoCode
Type type:IcaoCode
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
pattern [a-zA-Z0-9]{2}
Source

<xs:element name="icaoCode" type="type:IcaoCode" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “ICAO Code” field permits records to be categorized geographically within the limits of the categorization performed by the “Area Code” field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element A424Point / identifier
Namespace No namespace
Annotations

The identifier field contains the five-character-name-code, or other series of characters, with which the fix is identified. This includes Waypoint Identifiers, VHF NAVAID Identifiers, NDB NAVAID identifier, and Airport Identifiers
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="identifier" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The identifier field contains the five-character-name-code, or other series of characters, with which the fix is identified. This includes Waypoint Identifiers, VHF NAVAID Identifiers, NDB NAVAID identifier, and Airport Identifiers</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element A424Point / location
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Location_latitude ARINC424_22_HTML.tmp#Location_longitude ARINC424_22_HTML.tmp#Location
Type type:Location
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children latitude, longitude
Instance

<location>
  <latitude>{1,1}</latitude>
  <longitude>{1,1}</longitude>
</location>
Source

<xs:element name="location" type="type:Location" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Location / latitude
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Latitude_deg ARINC424_22_HTML.tmp#Latitude_min ARINC424_22_HTML.tmp#Latitude_sec ARINC424_22_HTML.tmp#Latitude_hSec ARINC424_22_HTML.tmp#Latitude_northSouth ARINC424_22_HTML.tmp#Latitude_decimalDegreesLatitude ARINC424_22_HTML.tmp#Latitude
Type type:Latitude
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children decimalDegreesLatitude, deg, hSec, min, northSouth, sec
Instance

<latitude>
  <deg>{1,1}</deg>
  <min>{1,1}</min>
  <sec>{1,1}</sec>
  <hSec>{1,1}</hSec>
  <northSouth>{1,1}</northSouth>
  <decimalDegreesLatitude>{0,1}</decimalDegreesLatitude>
</latitude>
Source

<xs:element name="latitude" type="type:Latitude" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Latitude / deg
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#LatDegree
Type type:LatDegree
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxInclusive 90
minInclusive 0
Source

<xs:element name="deg" type="type:LatDegree" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Latitude / min
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Minute
Type type:Minute
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxExclusive 60
minInclusive 0
Source

<xs:element name="min" type="type:Minute" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Latitude / sec
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Second
Type type:Second
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxExclusive 60
minInclusive 0
Source

<xs:element name="sec" type="type:Second" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Latitude / hSec
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#HundredthSecond
Type type:HundredthSecond
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxInclusive 99
minInclusive 0
Source

<xs:element name="hSec" type="type:HundredthSecond" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Latitude / northSouth
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#NorthSouth
Type enum:NorthSouth
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration North
North
enumeration South
South
Source

<xs:element name="northSouth" type="enum:NorthSouth" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Latitude / decimalDegreesLatitude
Namespace No namespace
Annotations

This field is optional for convenience in data processing.  The value of this field is not authoritative.
Diagram
Diagram
Type xs:decimal
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="decimalDegreesLatitude" type="xs:decimal" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field is optional for convenience in data processing. The value of this field is not authoritative.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:Location / longitude
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Longitude_deg ARINC424_22_HTML.tmp#Longitude_min ARINC424_22_HTML.tmp#Longitude_sec ARINC424_22_HTML.tmp#Longitude_hSec ARINC424_22_HTML.tmp#Longitude_eastWest ARINC424_22_HTML.tmp#Longitude_decimalDegreesLongitude ARINC424_22_HTML.tmp#Longitude
Type type:Longitude
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children decimalDegreesLongitude, deg, eastWest, hSec, min, sec
Instance

<longitude>
  <deg>{1,1}</deg>
  <min>{1,1}</min>
  <sec>{1,1}</sec>
  <hSec>{1,1}</hSec>
  <eastWest>{1,1}</eastWest>
  <decimalDegreesLongitude>{0,1}</decimalDegreesLongitude>
</longitude>
Source

<xs:element name="longitude" type="type:Longitude" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Longitude / deg
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#longDegree
Type type:longDegree
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxInclusive 180
minInclusive 0
Source

<xs:element name="deg" type="type:longDegree" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Longitude / min
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Minute
Type type:Minute
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxExclusive 60
minInclusive 0
Source

<xs:element name="min" type="type:Minute" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Longitude / sec
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Second
Type type:Second
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxExclusive 60
minInclusive 0
Source

<xs:element name="sec" type="type:Second" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Longitude / hSec
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#HundredthSecond
Type type:HundredthSecond
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxInclusive 99
minInclusive 0
Source

<xs:element name="hSec" type="type:HundredthSecond" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Longitude / eastWest
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#EastWest
Type enum:EastWest
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration East
East
enumeration West
West
Source

<xs:element name="eastWest" type="enum:EastWest" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Longitude / decimalDegreesLongitude
Namespace No namespace
Annotations

This field is optional for convenience in data processing.  The value of this field is not authoritative.
Diagram
Diagram
Type xs:decimal
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="decimalDegreesLongitude" type="xs:decimal" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field is optional for convenience in data processing. The value of this field is not authoritative.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element A424Point / magneticVariation
Namespace No namespace
Annotations

The “Magnetic Variation” field specifies the angular difference between True North and Magnetic North at the location defined in the record. “Dynamic Magnetic Variation” is a computer model derived value and takes location and date into consideration. For the “Station Declination” used in some record types, refer to Section 5.66.
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticVariation_magneticVariationEWT ARINC424_22_HTML.tmp#MagneticVariation_magneticVariationValue ARINC424_22_HTML.tmp#MagneticVariation
Type type:MagneticVariation
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children magneticVariationEWT, magneticVariationValue
Instance

<magneticVariation>
  <magneticVariationEWT>{1,1}</magneticVariationEWT>
  <magneticVariationValue>{1,1}</magneticVariationValue>
</magneticVariation>
Source

<xs:element name="magneticVariation" type="type:MagneticVariation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Magnetic Variation” field specifies the angular difference between True North and Magnetic North at the location defined in the record. “Dynamic Magnetic Variation” is a computer model derived value and takes location and date into consideration. For the “Station Declination” used in some record types, refer to Section 5.66.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:MagneticVariation / magneticVariationEWT
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticVariationEWT
Type enum:MagneticVariationEWT
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration East
Magnetic variation is East of TRUE North
enumeration West
Magnetic variation is West of TRUE North
enumeration True
The element defined in the current record is provided TRUE.
Source

<xs:element name="magneticVariationEWT" type="enum:MagneticVariationEWT" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:MagneticVariation / magneticVariationValue
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticVariationValue
Type type:MagneticVariationValue
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
maxInclusive 180
minInclusive 0
Source

<xs:element name="magneticVariationValue" type="type:MagneticVariationValue" minOccurs="1" maxOccurs="1"/>
[ top ]
Element A424Point / name
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Name
Type type:Name
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 50
Source

<xs:element name="name" type="type:Name" minOccurs="0" maxOccurs="1"/>
[ top ]
Element A424Point / uirRef
Namespace No namespace
Annotations

The UIR Reference field identifies the Upper Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The reference is for the controlling Area Control Center or Flight Information Center.
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="uirRef" type="xs:IDREF" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The UIR Reference field identifies the Upper Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The reference is for the controlling Area Control Center or Flight Information Center.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element A424Point / firRef
Namespace No namespace
Annotations

The FIR Reference field identifies the Flight Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The reference is for the controlling Area Control Center or Flight Information Center.
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="firRef" type="xs:IDREF" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The FIR Reference field identifies the Flight Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The reference is for the controlling Area Control Center or Flight Information Center.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / elevation
Namespace No namespace
Annotations

Elevation of the highest elevation of any landing surface on the port in feet.
Diagram
Diagram ARINC424_22_HTML.tmp#Elevation
Type type:Elevation
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxInclusive 20000
minInclusive -1500
Source

<xs:element name="elevation" type="type:Elevation" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Elevation of the highest elevation of any landing surface on the port in feet.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / ataIATADesignator
Namespace No namespace
Annotations

The ATA/IATA field contains the Airport/Heliport ATA/IATA designator code to which the data contained in the record relates.
Diagram
Diagram ARINC424_22_HTML.tmp#ATAIATADesignator
Type type:ATAIATADesignator
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="ataIATADesignator" type="type:ATAIATADesignator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The ATA/IATA field contains the Airport/Heliport ATA/IATA designator code to which the data contained in the record relates.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / daylightIndicator
Namespace No namespace
Annotations

The “Daylight” Time Indicator” field is used to indicate if the airport observes Daylight or Summer time when such time changes are in effect for the country or state the airport resides in.
Diagram
Diagram ARINC424_22_HTML.tmp#DaylightIndicator
Type type:DaylightIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="daylightIndicator" type="type:DaylightIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Daylight” Time Indicator” field is used to indicate if the airport observes Daylight or Summer time when such time changes are in effect for the country or state the airport resides in.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / ifrCapability
Namespace No namespace
Annotations

The “IFR Capability” field indicates if the Airport/Heliport has any published Instrument Approach Procedures.
Diagram
Diagram ARINC424_22_HTML.tmp#IFRCapability
Type type:IFRCapability
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="ifrCapability" type="type:IFRCapability" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “IFR Capability” field indicates if the Airport/Heliport has any published Instrument Approach Procedures.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / magneticTrueIndicator
Namespace No namespace
Annotations

The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticTrueIndicator
Type enum:MagneticTrueIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Both
The field will be blank if details and procedures are provided in both magnetic and true for the airport. In such cases the individual detail or procedure records will contain the magnetic or true information
enumeration True
if all detail and procedure for the airport are reported in true bearing
enumeration Magnetic
if all detail and procedure for the airport are reported in magnetic bearing,
Source

<xs:element name="magneticTrueIndicator" type="enum:MagneticTrueIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / publicMilitaryIndicator
Namespace No namespace
Annotations

Airports can be classified into four categories, airports open to the general public, military airports, joint use civil and military, and airports closed to the public. This field permits these airports to be categorized by their use.
Diagram
Diagram ARINC424_22_HTML.tmp#PublicMilitaryIndicator
Type enum:PublicMilitaryIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Private
Airport/Heliport is not open to the public (private)
enumeration Civil
Airport/Heliport is open to the public (civil)
enumeration Military
Airport/Heliport is military airport
enumeration Joint
Airport is joint Civil and Military
Source

<xs:element name="publicMilitaryIndicator" type="enum:PublicMilitaryIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Airports can be classified into four categories, airports open to the general public, military airports, joint use civil and military, and airports closed to the public. This field permits these airports to be categorized by their use.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / recommendedNavaid
Namespace No namespace
Annotations

The “Recommended Navaid” field allows the reference facility for the waypoint in a given record “Fix Ident” field or for an Airport or Heliport to be specified. VHF, NDB (Enroute and Terminal), Localizer, TACAN, GLS and MLS Navaids may be referenced.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="recommendedNavaid" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Recommended Navaid” field allows the reference facility for the waypoint in a given record “Fix Ident” field or for an Airport or Heliport to be specified. VHF, NDB (Enroute and Terminal), Localizer, TACAN, GLS and MLS Navaids may be referenced.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / speedLimit
Namespace No namespace
Annotations

The Speed Limit field defines a speed, expressed in Knots, Indicated (K.I.A.S.), for a fix in a terminal procedure or for an airport or heliport terminal environment.
Diagram
Diagram ARINC424_22_HTML.tmp#SpeedLimit
Type type:SpeedLimit
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxExclusive 1000
Source

<xs:element name="speedLimit" type="type:SpeedLimit" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Speed Limit field defines a speed, expressed in Knots, Indicated (K.I.A.S.), for a fix in a terminal procedure or for an airport or heliport terminal environment.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / speedLimitAltitude
Namespace No namespace
Annotations

“Speed Limit Altitude” is the altitude below which speed limits may be imposed.
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<speedLimitAltitude>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</speedLimitAltitude>
Source

<xs:element name="speedLimitAltitude" type="type:Altitude" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>“Speed Limit Altitude” is the altitude below which speed limits may be imposed.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:Altitude / isNotDefined
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isNotDefined" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:Altitude / isUnknown
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isUnknown" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:Altitude / isFlightLevel
Namespace No namespace
Annotations

If this field is true, then the numerical value in the altitude element is populated with a flight level.  Therefore, the sibling altitude element represents the altitude in hundreds of feet, else the altitude element represents altitude in feet.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFlightLevel" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>If this field is true, then the numerical value in the altitude element is populated with a flight level. Therefore, the sibling altitude element represents the altitude in hundreds of feet, else the altitude element represents altitude in feet.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:Altitude / altitude
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AltitudeValue
Type type:AltitudeValue
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxInclusive 99999
minInclusive -2000
Source

<xs:element name="altitude" type="type:AltitudeValue" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Port / timeZone
Namespace No namespace
Annotations

The standard time zone system is based on the division of world into 24 zones, each of 15 degrees longitude. The “zero” time zone is entered at Greenwich meridian with longitudes 7 degrees, 30 minutes West and 7 degrees, 30 minutes east, and there is no difference in the standard time of this time zone and Greenwich Mean Time. Time zones are designated by letters of the alphabet and numbers by which the standard time of each zone differs from that at Greenwich.
Diagram
Diagram ARINC424_22_HTML.tmp#TimeZone_hourOffset ARINC424_22_HTML.tmp#TimeZone_minuteOffset ARINC424_22_HTML.tmp#TimeZone
Type type:TimeZone
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children hourOffset, minuteOffset
Instance

<timeZone>
  <hourOffset>{1,1}</hourOffset>
  <minuteOffset>{1,1}</minuteOffset>
</timeZone>
Source

<xs:element name="timeZone" type="type:TimeZone" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The standard time zone system is based on the division of world into 24 zones, each of 15 degrees longitude. The “zero” time zone is entered at Greenwich meridian with longitudes 7 degrees, 30 minutes West and 7 degrees, 30 minutes east, and there is no difference in the standard time of this time zone and Greenwich Mean Time. Time zones are designated by letters of the alphabet and numbers by which the standard time of each zone differs from that at Greenwich.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:TimeZone / hourOffset
Namespace No namespace
Diagram
Diagram
Type restriction of xs:int
Properties
content simple
Facets
maxInclusive 12
minInclusive -14
Source

<xs:element name="hourOffset">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-14"/>
      <xs:maxInclusive value="12"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
[ top ]
Element type:TimeZone / minuteOffset
Namespace No namespace
Diagram
Diagram
Type xs:int
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="minuteOffset" type="xs:int" minOccurs="1" maxOccurs="1"/>
[ top ]
Element Port / transitionAltitude
Namespace No namespace
Annotations

The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.
Diagram
Diagram ARINC424_22_HTML.tmp#TransitionAltitude
Type type:TransitionAltitude
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
maxInclusive 99999
minInclusive -2000
Source

<xs:element name="transitionAltitude" type="type:TransitionAltitude" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / transitionLevel
Namespace No namespace
Annotations

The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.
Diagram
Diagram ARINC424_22_HTML.tmp#TransitionAltitude
Type type:TransitionAltitude
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
maxInclusive 99999
minInclusive -2000
Source

<xs:element name="transitionLevel" type="type:TransitionAltitude" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / terminalNDB
Namespace No namespace
Annotations

"Terminal NDB" field contains NDBs associated with the Airports and Heliports
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#NDB_ndbClass ARINC424_22_HTML.tmp#NDB_ndbFrequency ARINC424_22_HTML.tmp#NDB_typeOfEmission ARINC424_22_HTML.tmp#NDB_repititionRate ARINC424_22_HTML.tmp#NDB_navaidNdbEmissionType ARINC424_22_HTML.tmp#NDB_dmeRef ARINC424_22_HTML.tmp#NDB ARINC424_22_HTML.tmp#TerminalNDB
Type TerminalNDB
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children custAreaCode, cycleDate, datumCode, dmeRef, elevation, firRef, icaoCode, identifier, location, magneticVariation, name, navaidNdbEmissionType, ndbClass, ndbFrequency, notes, portRef, recordType, repititionRate, supplementalData, typeOfEmission, uirRef
Instance

<terminalNDB referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <portRef>{0,1}</portRef>
  <elevation>{0,1}</elevation>
  <ndbClass>{1,1}</ndbClass>
  <ndbFrequency>{1,1}</ndbFrequency>
  <typeOfEmission>{0,1}</typeOfEmission>
  <repititionRate>{0,1}</repititionRate>
  <navaidNdbEmissionType>{0,1}</navaidNdbEmissionType>
  <dmeRef>{0,1}</dmeRef>
</terminalNDB>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="terminalNDB" type="TerminalNDB" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>"Terminal NDB" field contains NDBs associated with the Airports and Heliports</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Navaid / portRef
Namespace No namespace
Annotations

Defines the location of a designated point using a combination of angles and distances based on the guidance service. The set of angles and distances must not under specify the location.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="portRef" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Defines the location of a designated point using a combination of angles and distances based on the guidance service. The set of angles and distances must not under specify the location.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Navaid / elevation
Namespace No namespace
Annotations

Elevation of the navaid location in feet.
Diagram
Diagram ARINC424_22_HTML.tmp#Elevation
Type type:Elevation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxInclusive 20000
minInclusive -1500
Source

<xs:element name="elevation" type="type:Elevation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Elevation of the navaid location in feet.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element NDB / ndbClass
Namespace No namespace
Annotations

The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense. The field is made up of five columns of codes that define this information.
Diagram
Diagram ARINC424_22_HTML.tmp#NdbNavaidClass_isBFORequired ARINC424_22_HTML.tmp#NdbNavaidClass_ndbNavaidCoverage ARINC424_22_HTML.tmp#NdbNavaidClass_ndbNavaidIfMarker ARINC424_22_HTML.tmp#NdbNavaidClass_ndbNavaidType ARINC424_22_HTML.tmp#NdbNavaidClass_ndbNavaidWeatherInfo ARINC424_22_HTML.tmp#NdbNavaidClass_isNoVoice ARINC424_22_HTML.tmp#NdbNavaidClass
Type type:NdbNavaidClass
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children isBFORequired, isNoVoice, ndbNavaidCoverage, ndbNavaidIfMarker, ndbNavaidType, ndbNavaidWeatherInfo
Instance

<ndbClass>
  <isBFORequired>{0,1}</isBFORequired>
  <ndbNavaidCoverage>{0,1}</ndbNavaidCoverage>
  <ndbNavaidIfMarker>{0,1}</ndbNavaidIfMarker>
  <ndbNavaidType>{1,1}</ndbNavaidType>
  <ndbNavaidWeatherInfo>{0,1}</ndbNavaidWeatherInfo>
  <isNoVoice>{0,1}</isNoVoice>
</ndbClass>
Source

<xs:element name="ndbClass" type="type:NdbNavaidClass" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense. The field is made up of five columns of codes that define this information.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:NdbNavaidClass / isBFORequired
Namespace No namespace
Annotations

BFO Operation.  Use of Beat Frequency Oscillator type of equipment is required to received an aural identification signal.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isBFORequired" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>BFO Operation. Use of Beat Frequency Oscillator type of equipment is required to received an aural identification signal.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:NdbNavaidClass / ndbNavaidCoverage
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#NdbNavaidCoverage
Type enum:NdbNavaidCoverage
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration HighPowerNdb
High-powered NDB. Generally usable within 75NM of the facility at all altitudes.
enumeration LowPowerNdb
Low-powered NDB. Generally usable within 25NM of the facility at all altitude.
enumeration Locator
Locator. Generally usable within 15NM of the facility at all altitudes.
enumeration NDB
NDB. Generally usable within 50NM of the facility at all altitude.
Source

<xs:element name="ndbNavaidCoverage" type="enum:NdbNavaidCoverage" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:NdbNavaidClass / ndbNavaidIfMarker
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#NdbNavaidIfMarkerInfo
Type enum:NdbNavaidIfMarkerInfo
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration InnerMarker
Inner Marker. There is an Inner Marker beacon at this location.
enumeration MiddleMarker
Middle Marker. There is a Middle Marker beacon at this location.
enumeration OuterMarker
Outer Marker. There is an Outer Marker beacon at this location.
enumeration BackMarker
Back Marker. There is a Backcourse Marker at this location.
Source

<xs:element name="ndbNavaidIfMarker" type="enum:NdbNavaidIfMarkerInfo" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:NdbNavaidClass / ndbNavaidType
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#NdbNavaidType
Type enum:NdbNavaidType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Ndb
NDB
enumeration Sabh
SABH
enumeration MarineBeacon
Marine Beacon.
Source

<xs:element name="ndbNavaidType" type="enum:NdbNavaidType" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:NdbNavaidClass / ndbNavaidWeatherInfo
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#NavaidWeatherInfo
Type enum:NavaidWeatherInfo
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AUTOMATED
Automatic Transcribed Weather.The frequency of this Navaid is used for the continuous broadcast of some sort of automated weather system such as AWOS, ASOS, TWEB, AWIB, AWIS.
enumeration SCHEDULED
Broadcast Scheduled Weather.The frequency of this Navaid is used for the scheduled, noncontinuous broadcast of some sort of automated weather system such as VOLMET.
Source

<xs:element name="ndbNavaidWeatherInfo" type="enum:NavaidWeatherInfo" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:NdbNavaidClass / isNoVoice
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isNoVoice" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element NDB / ndbFrequency
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Frequency_freqUnitOfMeasure ARINC424_22_HTML.tmp#Frequency_frequencyValue ARINC424_22_HTML.tmp#Frequency
Type type:Frequency
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children freqUnitOfMeasure, frequencyValue
Instance

<ndbFrequency>
  <freqUnitOfMeasure>{1,1}</freqUnitOfMeasure>
  <frequencyValue>{1,1}</frequencyValue>
</ndbFrequency>
Source

<xs:element name="ndbFrequency" type="type:Frequency" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Frequency / freqUnitOfMeasure
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#FreqUnitOfMeasure
Type enum:FreqUnitOfMeasure
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration megaHertz
megaHertz
enumeration kiloHertz
kiloHertz
Source

<xs:element name="freqUnitOfMeasure" type="enum:FreqUnitOfMeasure" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Frequency / frequencyValue
Namespace No namespace
Diagram
Diagram
Type xs:decimal
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="frequencyValue" type="xs:decimal" minOccurs="1" maxOccurs="1"/>
[ top ]
Element NDB / typeOfEmission
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#TypeOfEmission
Type enum:TypeOfEmission
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration 400
400 Hertz
enumeration 1020
1020 Hertz
Source

<xs:element name="typeOfEmission" type="enum:TypeOfEmission" minOccurs="0" maxOccurs="1"/>
[ top ]
Element NDB / repititionRate
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RepetitionRate
Type type:RepetitionRate
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxExclusive 10
minInclusive 0
Source

<xs:element name="repititionRate" type="type:RepetitionRate" minOccurs="0" maxOccurs="1"/>
[ top ]
Element NDB / navaidNdbEmissionType
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#NavaidNDBEmissionType
Type enum:NavaidNDBEmissionType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration UnmodulatedCarrier
Unmodulated carrier
enumeration CarrierKeyed
Carrier keyed, bandwidth less than .1 kHz and/or carrier keyed, bandwidth greater than .1 kHz
enumeration ToneKeyModulation
Tone keyed modulation
Source

<xs:element name="navaidNdbEmissionType" type="enum:NavaidNDBEmissionType" minOccurs="0" maxOccurs="1"/>
[ top ]
Element NDB / dmeRef
Namespace No namespace
Annotations

This field idenifies a reference to a DME navaid which originated in the same source data record as the NDB (i.e. is paired with the NDB)
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="dmeRef" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field idenifies a reference to a DME navaid which originated in the same source data record as the NDB (i.e. is paired with the NDB)</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / terminalProcedures
Namespace No namespace
Annotations

Collectively, all Standard Instrument Departures (SIDs), Standard Terminal Arrivel Routes (STARs) and Instument Approach Procedures (IAPs) coded to the standards in this specification are referred to as Terminal Procedure.
Diagram
Diagram ARINC424_22_HTML.tmp#TerminalProcedures_sid ARINC424_22_HTML.tmp#TerminalProcedures_star ARINC424_22_HTML.tmp#TerminalProcedures_approach ARINC424_22_HTML.tmp#TerminalProcedures
Type TerminalProcedures
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children approach, sid, star
Instance

<terminalProcedures>
  <sid referenceID="">{0,unbounded}</sid>
  <star referenceID="">{0,unbounded}</star>
  <approach referenceID="">{0,unbounded}</approach>
</terminalProcedures>
Source

<xs:element name="terminalProcedures" type="TerminalProcedures" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Collectively, all Standard Instrument Departures (SIDs), Standard Terminal Arrivel Routes (STARs) and Instument Approach Procedures (IAPs) coded to the standards in this specification are referred to as Terminal Procedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element TerminalProcedures / sid
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Procedure_referenceID ARINC424_22_HTML.tmp#Procedure_isRnav ARINC424_22_HTML.tmp#Procedure_isHelicopterOnlyProcedure ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftCategories ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftTypes ARINC424_22_HTML.tmp#Procedure_isSpecial ARINC424_22_HTML.tmp#Procedure_procedureDesignMagVar ARINC424_22_HTML.tmp#Procedure ARINC424_22_HTML.tmp#SIDSTAR_isVorDmeRnav ARINC424_22_HTML.tmp#SIDSTAR_rnavPbnNavSpec ARINC424_22_HTML.tmp#SIDSTAR_rnpPbnNavSpec ARINC424_22_HTML.tmp#SIDSTAR ARINC424_22_HTML.tmp#SID_sidRunwayTransition ARINC424_22_HTML.tmp#SID_sidCommonRoute ARINC424_22_HTML.tmp#SID_sidEnrouteTransition ARINC424_22_HTML.tmp#SID_isEngineOut ARINC424_22_HTML.tmp#SID_isVector ARINC424_22_HTML.tmp#SID_isPInS ARINC424_22_HTML.tmp#SID_isPInSProceedVisually ARINC424_22_HTML.tmp#SID_isPInSProceedVfr ARINC424_22_HTML.tmp#SID
Type SID
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children identifier, isEngineOut, isHelicopterOnlyProcedure, isPInS, isPInSProceedVfr, isPInSProceedVisually, isRnav, isSpecial, isVector, isVorDmeRnav, procedureDesignAircraftCategories, procedureDesignAircraftTypes, procedureDesignMagVar, rnavPbnNavSpec, rnpPbnNavSpec, sidCommonRoute, sidEnrouteTransition, sidRunwayTransition, supplementalData
Instance

<sid referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <isRnav>{0,1}</isRnav>
  <isHelicopterOnlyProcedure>{0,1}</isHelicopterOnlyProcedure>
  <procedureDesignAircraftCategories>{0,1}</procedureDesignAircraftCategories>
  <procedureDesignAircraftTypes>{0,1}</procedureDesignAircraftTypes>
  <isSpecial>{0,1}</isSpecial>
  <procedureDesignMagVar>{0,1}</procedureDesignMagVar>
  <isVorDmeRnav>{0,1}</isVorDmeRnav>
  <rnavPbnNavSpec>{0,1}</rnavPbnNavSpec>
  <rnpPbnNavSpec>{0,1}</rnpPbnNavSpec>
  <sidRunwayTransition>{0,unbounded}</sidRunwayTransition>
  <sidCommonRoute>{0,1}</sidCommonRoute>
  <sidEnrouteTransition>{0,unbounded}</sidEnrouteTransition>
  <isEngineOut>{0,1}</isEngineOut>
  <isVector>{0,1}</isVector>
  <isPInS>{0,1}</isPInS>
  <isPInSProceedVisually>{0,1}</isPInSProceedVisually>
  <isPInSProceedVfr>{0,1}</isPInSProceedVfr>
</sid>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="sid" type="SID" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element A424ObjectWithId / identifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="identifier" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element Procedure / isRnav
Namespace No namespace
Annotations

This element indcates whether the procedure is an RNAV procdedure.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isRnav" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element indcates whether the procedure is an RNAV procdedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Procedure / isHelicopterOnlyProcedure
Namespace No namespace
Annotations

If this element is present and true the procedure is only for helicopters.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isHelicopterOnlyProcedure" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>If this element is present and true the procedure is only for helicopters.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Procedure / procedureDesignAircraftCategories
Namespace No namespace
Annotations

This element indciates the category of aircraft that this procedure was designed to support.
Diagram
Diagram ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryA ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryB ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryC ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryD ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryE ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryHelicopter ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories
Type type:ProcedureDesignAircraftCategories
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children isCategoryA, isCategoryB, isCategoryC, isCategoryD, isCategoryE, isCategoryHelicopter
Instance

<procedureDesignAircraftCategories>
  <isCategoryA>{0,1}</isCategoryA>
  <isCategoryB>{0,1}</isCategoryB>
  <isCategoryC>{0,1}</isCategoryC>
  <isCategoryD>{0,1}</isCategoryD>
  <isCategoryE>{0,1}</isCategoryE>
  <isCategoryHelicopter>{0,1}</isCategoryHelicopter>
</procedureDesignAircraftCategories>
Source

<xs:element name="procedureDesignAircraftCategories" type="type:ProcedureDesignAircraftCategories" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element indciates the category of aircraft that this procedure was designed to support.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftCategories / isCategoryA
Namespace No namespace
Annotations

Aircraft Category A
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isCategoryA" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Category A</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftCategories / isCategoryB
Namespace No namespace
Annotations

Aircraft Category B
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isCategoryB" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Category B</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftCategories / isCategoryC
Namespace No namespace
Annotations

Aircraft Category C
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isCategoryC" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Category C</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftCategories / isCategoryD
Namespace No namespace
Annotations

Aircraft Category D
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isCategoryD" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Category D</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftCategories / isCategoryE
Namespace No namespace
Annotations

Aircraft Category E
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isCategoryE" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Category E</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftCategories / isCategoryHelicopter
Namespace No namespace
Annotations

Aircraft Category H (Helicopter)
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isCategoryHelicopter" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Category H (Helicopter)</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Procedure / procedureDesignAircraftTypes
Namespace No namespace
Annotations

This element indciates the type of aircraft that this procedure was designed to support.
Diagram
Diagram ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeJet ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeTurbojet ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeTuroprop ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeProp ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypePiston ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeNonJets ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeNotLimited ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeNonTurbojets ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes
Type type:ProcedureDesignAircraftTypes
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children isTypeJet, isTypeNonJets, isTypeNonTurbojets, isTypeNotLimited, isTypePiston, isTypeProp, isTypeTurbojet, isTypeTuroprop
Instance

<procedureDesignAircraftTypes>
  <isTypeJet>{0,1}</isTypeJet>
  <isTypeTurbojet>{0,1}</isTypeTurbojet>
  <isTypeTuroprop>{0,1}</isTypeTuroprop>
  <isTypeProp>{0,1}</isTypeProp>
  <isTypePiston>{0,1}</isTypePiston>
  <isTypeNonJets>{0,1}</isTypeNonJets>
  <isTypeNotLimited>{0,1}</isTypeNotLimited>
  <isTypeNonTurbojets>{0,1}</isTypeNonTurbojets>
</procedureDesignAircraftTypes>
Source

<xs:element name="procedureDesignAircraftTypes" type="type:ProcedureDesignAircraftTypes" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element indciates the type of aircraft that this procedure was designed to support.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftTypes / isTypeJet
Namespace No namespace
Annotations

Aircraft Type Jets only
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTypeJet" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Type Jets only</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftTypes / isTypeTurbojet
Namespace No namespace
Annotations

Aircraft Type Turbojet only
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTypeTurbojet" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Type Turbojet only</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftTypes / isTypeTuroprop
Namespace No namespace
Annotations

Aircraft Type Turboprop only
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTypeTuroprop" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Type Turboprop only</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftTypes / isTypeProp
Namespace No namespace
Annotations

Aircraft Type Prop only
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTypeProp" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Type Prop only</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftTypes / isTypePiston
Namespace No namespace
Annotations

Aircraft Type Pistons only
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTypePiston" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Type Pistons only</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftTypes / isTypeNonJets
Namespace No namespace
Annotations

Aircraft Type Non-Jets only
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTypeNonJets" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Type Non-Jets only</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftTypes / isTypeNotLimited
Namespace No namespace
Annotations

Aircraft Type Not Limited
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTypeNotLimited" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Type Not Limited</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureDesignAircraftTypes / isTypeNonTurbojets
Namespace No namespace
Annotations

Aircraft Type Non-Turbojets only
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTypeNonTurbojets" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft Type Non-Turbojets only</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Procedure / isSpecial
Namespace No namespace
Annotations

Definition/Description: This field provides an indicator whether the terminal procedure requires specific operational approval defined by official government sources. Special procedures may be developed based on aircraft performance, aircraft equipment, or crew training, and may also require the use of landing aids, communications, or weather services not available for public use. Examples of special procedures include: SIAP, RCAP, etc.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isSpecial" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Definition/Description: This field provides an indicator whether the terminal procedure requires specific operational approval defined by official government sources. Special procedures may be developed based on aircraft performance, aircraft equipment, or crew training, and may also require the use of landing aids, communications, or weather services not available for public use. Examples of special procedures include: SIAP, RCAP, etc.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Procedure / procedureDesignMagVar
Namespace No namespace
Annotations

This element provides the magnetic varaiation used to design the procedure.
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticVariation_magneticVariationEWT ARINC424_22_HTML.tmp#MagneticVariation_magneticVariationValue ARINC424_22_HTML.tmp#MagneticVariation
Type type:MagneticVariation
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children magneticVariationEWT, magneticVariationValue
Instance

<procedureDesignMagVar>
  <magneticVariationEWT>{1,1}</magneticVariationEWT>
  <magneticVariationValue>{1,1}</magneticVariationValue>
</procedureDesignMagVar>
Source

<xs:element name="procedureDesignMagVar" type="type:MagneticVariation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides the magnetic varaiation used to design the procedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SIDSTAR / isVorDmeRnav
Namespace No namespace
Annotations

If this element exists and is true then the procedure is VOR/DME RNAV.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isVorDmeRnav" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>If this element exists and is true then the procedure is VOR/DME RNAV.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SIDSTAR / rnavPbnNavSpec
Namespace No namespace
Annotations

This element indicates that an RNAV PBN navigation specification applies to this procedure
Diagram
Diagram ARINC424_22_HTML.tmp#RnavPbnNavSpec
Type enum:RnavPbnNavSpec
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Rnav5
enumeration Rnav2
enumeration Rnav1
enumeration BRnav
enumeration PRnav
enumeration PbnUnspecified
Source

<xs:element name="rnavPbnNavSpec" type="enum:RnavPbnNavSpec" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element indicates that an RNAV PBN navigation specification applies to this procedure</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SIDSTAR / rnpPbnNavSpec
Namespace No namespace
Annotations

This element indicates that an RNP PBN navigation specification applies to this procedure
Diagram
Diagram ARINC424_22_HTML.tmp#RnpPbnNavSpec
Type enum:RnpPbnNavSpec
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Rnp2
enumeration Rnp1
enumeration RnpAr
enumeration AdvRnp
enumeration Rnp0_3
enumeration PbnUnspecified
Source

<xs:element name="rnpPbnNavSpec" type="enum:RnpPbnNavSpec" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element indicates that an RNP PBN navigation specification applies to this procedure</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SID / sidRunwayTransition
Namespace No namespace
Annotations

These elements are the runway transitions of the SID
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#RunwayTransition_vectoring ARINC424_22_HTML.tmp#RunwayTransition_routeQualifications ARINC424_22_HTML.tmp#RunwayTransition ARINC424_22_HTML.tmp#SIDRunwayTransition_isFromRunway ARINC424_22_HTML.tmp#SIDRunwayTransition
Type SIDRunwayTransition
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children identifier, isFromRunway, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel, vectoring
Instance

<sidRunwayTransition>
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <transitionAltitudeOrLevel>{1,1}</transitionAltitudeOrLevel>
  <msaRef>{0,1}</msaRef>
  <procedureLeg>{1,unbounded}</procedureLeg>
  <vectoring>{0,1}</vectoring>
  <routeQualifications>{0,1}</routeQualifications>
  <isFromRunway>{0,1}</isFromRunway>
</sidRunwayTransition>
Source

<xs:element name="sidRunwayTransition" type="SIDRunwayTransition" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>These elements are the runway transitions of the SID</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureRoute / transitionAltitudeOrLevel
Namespace No namespace
Annotations

The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<transitionAltitudeOrLevel>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</transitionAltitudeOrLevel>
Source

<xs:element name="transitionAltitudeOrLevel" type="type:Altitude" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureRoute / msaRef
Namespace No namespace
Annotations

When the terminal procedure has a simgle MSA defined, on the common or final approach route, this field will contain a reference to the MSA for the entire procedure. If the government source MSA is "by transition," the reference is populated on each transition.
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="msaRef" type="xs:IDREF" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>When the terminal procedure has a simgle MSA defined, on the common or final approach route, this field will contain a reference to the MSA for the entire procedure. If the government source MSA is "by transition," the reference is populated on each transition.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureRoute / procedureLeg
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#ProcedureLeg_altitudeDescription ARINC424_22_HTML.tmp#ProcedureLeg_arcRadius ARINC424_22_HTML.tmp#ProcedureLeg_atcIndicator ARINC424_22_HTML.tmp#ProcedureLeg_distance ARINC424_22_HTML.tmp#ProcedureLeg_holdTime ARINC424_22_HTML.tmp#ProcedureLeg_waypointDescriptor ARINC424_22_HTML.tmp#ProcedureLeg_legDistance ARINC424_22_HTML.tmp#ProcedureLeg_legInboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_legInboundOutboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_pathAndTermination ARINC424_22_HTML.tmp#ProcedureLeg_procedureDesignMagVar ARINC424_22_HTML.tmp#ProcedureLeg_rho ARINC424_22_HTML.tmp#ProcedureLeg_rnp ARINC424_22_HTML.tmp#ProcedureLeg_speedLimit ARINC424_22_HTML.tmp#ProcedureLeg_speedLimitDescription ARINC424_22_HTML.tmp#ProcedureLeg_theta ARINC424_22_HTML.tmp#ProcedureLeg_transitionsAltitudeLevel ARINC424_22_HTML.tmp#ProcedureLeg_turnDirection ARINC424_22_HTML.tmp#ProcedureLeg_turnDirectionValid ARINC424_22_HTML.tmp#ProcedureLeg_verticalScaleFactor ARINC424_22_HTML.tmp#ProcedureLeg_alt1 ARINC424_22_HTML.tmp#ProcedureLeg_alt2 ARINC424_22_HTML.tmp#ProcedureLeg_course ARINC424_22_HTML.tmp#ProcedureLeg_centerFix ARINC424_22_HTML.tmp#ProcedureLeg_centerFixRef ARINC424_22_HTML.tmp#ProcedureLeg
Type ProcedureLeg
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children alt1, alt2, altitudeDescription, arcRadius, atcIndicator, centerFix, centerFixRef, course, custAreaCode, cycleDate, distance, fixIdent, fixRef, holdTime, legDistance, legInboundIndicator, legInboundOutboundIndicator, notes, pathAndTermination, procedureDesignMagVar, recNavaidIdent, recNavaidRef, recordType, rho, rnp, sequenceNumber, speedLimit, speedLimitDescription, supplementalData, theta, transitionsAltitudeLevel, turnDirection, turnDirectionValid, verticalScaleFactor, waypointDescriptor
Instance

<procedureLeg>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <sequenceNumber>{1,1}</sequenceNumber>
  <fixRef>{0,1}</fixRef>
  <fixIdent>{0,1}</fixIdent>
  <recNavaidIdent>{0,1}</recNavaidIdent>
  <recNavaidRef>{0,1}</recNavaidRef>
  <altitudeDescription>{0,1}</altitudeDescription>
  <arcRadius>{0,1}</arcRadius>
  <atcIndicator>{0,1}</atcIndicator>
  <distance>{0,1}</distance>
  <holdTime>{0,1}</holdTime>
  <waypointDescriptor>{1,1}</waypointDescriptor>
  <legDistance>{0,1}</legDistance>
  <legInboundIndicator>{0,1}</legInboundIndicator>
  <legInboundOutboundIndicator>{0,1}</legInboundOutboundIndicator>
  <pathAndTermination>{1,1}</pathAndTermination>
  <procedureDesignMagVar>{0,1}</procedureDesignMagVar>
  <rho>{0,1}</rho>
  <rnp>{0,1}</rnp>
  <speedLimit>{0,1}</speedLimit>
  <speedLimitDescription>{0,1}</speedLimitDescription>
  <theta>{0,1}</theta>
  <transitionsAltitudeLevel>{0,1}</transitionsAltitudeLevel>
  <turnDirection>{0,1}</turnDirection>
  <turnDirectionValid>{0,1}</turnDirectionValid>
  <verticalScaleFactor>{0,1}</verticalScaleFactor>
  <alt1>{0,1}</alt1>
  <alt2>{0,1}</alt2>
  <course>{0,1}</course>
  <centerFix>{0,1}</centerFix>
  <centerFixRef>{0,1}</centerFixRef>
</procedureLeg>
Source

<xs:element name="procedureLeg" type="ProcedureLeg" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element Leg / sequenceNumber
Namespace No namespace
Annotations

For Route Type Records - A route of flight is defined by a series of legs taken in order. The “Sequence Number” field defines the position of the leg in the sequence defining the route of flight identified in the route identifier field.
Diagram
Diagram ARINC424_22_HTML.tmp#SequenceNumber
Type type:SequenceNumber
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="sequenceNumber" type="type:SequenceNumber" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>For Route Type Records - A route of flight is defined by a series of legs taken in order. The “Sequence Number” field defines the position of the leg in the sequence defining the route of flight identified in the route identifier field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Leg / fixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="fixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Leg / fixIdent
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="fixIdent" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Leg / recNavaidIdent
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="recNavaidIdent" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Leg / recNavaidRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="recNavaidRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ProcedureLeg / altitudeDescription
Namespace No namespace
Annotations

The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.
Diagram
Diagram ARINC424_22_HTML.tmp#AltitudeDescription
Type enum:AltitudeDescription
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AtOrAboveFirst
At or above altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration AtOrBelow
At or below altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration At
At altitude specified in first Altitude field. Also used with Localizer Only Altitude field, and the FACF Waypoint on Precision Approach Coding with Electronic Glide Slope.
enumeration B
At or above to at or below altitudes specified in the first and second Altitude fields. Not used on FAF or MAP Waypoint Records in Precision Approach Coding with Electronic Glide Slope
enumeration C
"At or above" altitude specified in second "Altitude" field.
enumeration G
Glide Slope Altitude (MSL) At Fix, specified in the first Altitude field on the FAF Waypoint and Glide Slope Intercept Altitude (MSL) in second altitude of FAF Waypoint in Precision Approach Coding with electronic Glide Slope.
enumeration I
Glide Slope Intercept Altitude specified in second "Altitude" field and "at" altitude specified in first "Altitude" field on the FACF Waypoint in Precision Approach Coding with electronic Glide Slope
Source

<xs:element name="altitudeDescription" type="enum:AltitudeDescription" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / arcRadius
Namespace No namespace
Annotations

The “ARC Radius” field is used to define the radius of a precision turn. In Terminal Procedures, this is the “Constant Radius To A Fix” Path and Termination, for “RF” Leg. In Holding Patterns, this is the turning radius, inbound to outbound leg, for RNP Holding. The ARC Radius field is also used to specify the turn radius of RNP holding patterns included in SID, STAR, and Approach Records as HA, HF, and HM legs.
Diagram
Diagram ARINC424_22_HTML.tmp#ARCRadius
Type type:ARCRadius
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 6
fractionDigits 3
Source

<xs:element name="arcRadius" type="type:ARCRadius" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “ARC Radius” field is used to define the radius of a precision turn. In Terminal Procedures, this is the “Constant Radius To A Fix” Path and Termination, for “RF” Leg. In Holding Patterns, this is the turning radius, inbound to outbound leg, for RNP Holding. The ARC Radius field is also used to specify the turn radius of RNP holding patterns included in SID, STAR, and Approach Records as HA, HF, and HM legs.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / atcIndicator
Namespace No namespace
Annotations

The “ATC Indicator” field will be used to indicate that the altitudes shown in the altitude fields can be modified by ATC or the altitude will be assigned by ATC.
Diagram
Diagram ARINC424_22_HTML.tmp#ATCIndicator
Type enum:ATCIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration ModifiedOrAssigned
Altitude can be modified or assigned by ATC.
enumeration AssignedIfNotProvided
official government source states that the altitude will be assigned by ATC or if no altitude is supplied
Source

<xs:element name="atcIndicator" type="enum:ATCIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “ATC Indicator” field will be used to indicate that the altitudes shown in the altitude fields can be modified by ATC or the altitude will be assigned by ATC.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / distance
Namespace No namespace
Annotations

In SID, STAR and Approach Procedure records, this field may contain segment distances, along track distances, excursion distances, or DME distances. The actual content is dependent on the Path and Termination. For more information on the content, refer to Table Three, Leg Data Fields, in Attachment 5 of the 424 specification.
Diagram
Diagram ARINC424_22_HTML.tmp#LegDistance
Type type:LegDistance
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
Source

<xs:element name="distance" type="type:LegDistance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>In SID, STAR and Approach Procedure records, this field may contain segment distances, along track distances, excursion distances, or DME distances. The actual content is dependent on the Path and Termination. For more information on the content, refer to Table Three, Leg Data Fields, in Attachment 5 of the 424 specification.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / holdTime
Namespace No namespace
Annotations

In SID, STAR and Approach Procedure records, the field may contain segment distances/along track distances/excursion distances/DME distances or holding pattern timing.
Diagram
Diagram
Type xs:duration
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="holdTime" type="xs:duration" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>In SID, STAR and Approach Procedure records, the field may contain segment distances/along track distances/excursion distances/DME distances or holding pattern timing.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / waypointDescriptor
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isEssential ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isFlyOver ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isHolding ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isNoProcedureTurn ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isPhantomFix ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isSourceProvidedEnrouteWaypoint ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isTaaProcedureTurn ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isAtcCompulsoryReportingPoint ARINC424_22_HTML.tmp#ProcedureWaypointDescription
Type type:ProcedureWaypointDescription
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children isAtcCompulsoryReportingPoint, isEssential, isFlyOver, isHolding, isNoProcedureTurn, isPhantomFix, isSourceProvidedEnrouteWaypoint, isTaaProcedureTurn
Instance

<waypointDescriptor>
  <isEssential>{0,1}</isEssential>
  <isFlyOver>{0,1}</isFlyOver>
  <isHolding>{0,1}</isHolding>
  <isNoProcedureTurn>{0,1}</isNoProcedureTurn>
  <isPhantomFix>{0,1}</isPhantomFix>
  <isSourceProvidedEnrouteWaypoint>{0,1}</isSourceProvidedEnrouteWaypoint>
  <isTaaProcedureTurn>{0,1}</isTaaProcedureTurn>
  <isAtcCompulsoryReportingPoint>{0,1}</isAtcCompulsoryReportingPoint>
</waypointDescriptor>
Source

<xs:element name="waypointDescriptor" type="type:ProcedureWaypointDescription" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:ProcedureWaypointDescription / isEssential
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isEssential" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:ProcedureWaypointDescription / isFlyOver
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFlyOver" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:ProcedureWaypointDescription / isHolding
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isHolding" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:ProcedureWaypointDescription / isNoProcedureTurn
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isNoProcedureTurn" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:ProcedureWaypointDescription / isPhantomFix
Namespace No namespace
Annotations

A database waypoint established during procedure coding to facilitate more accurate navigation by the Flight Management Computer than would be allowed using air-mass related Path Terminators to replicate source data. The waypoint finds use when such considerations as increased environmental restrictions and the congestion of the available airspace come into play. Used to permit route construction with track to a fix (TF) legs.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isPhantomFix" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A database waypoint established during procedure coding to facilitate more accurate navigation by the Flight Management Computer than would be allowed using air-mass related Path Terminators to replicate source data. The waypoint finds use when such considerations as increased environmental restrictions and the congestion of the available airspace come into play. Used to permit route construction with track to a fix (TF) legs.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureWaypointDescription / isSourceProvidedEnrouteWaypoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isSourceProvidedEnrouteWaypoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:ProcedureWaypointDescription / isTaaProcedureTurn
Namespace No namespace
Annotations

The “TAA Procedure Turn” field is used to indicate whether or a course reversal is necessary when flying within a particular TAA Area.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTaaProcedureTurn" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “TAA Procedure Turn” field is used to indicate whether or a course reversal is necessary when flying within a particular TAA Area.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ProcedureWaypointDescription / isAtcCompulsoryReportingPoint
Namespace No namespace
Annotations

Compulsory Reporting Point: Essential or nonessential waypoints may be classified as ATC compulsory points.  ATC requires the pilot to make a communications report at these waypoints. All other waypoints may be classified as non compulsory reporting points and are reported only when specifically requested by ATC
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isAtcCompulsoryReportingPoint" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Compulsory Reporting Point: Essential or nonessential waypoints may be classified as ATC compulsory points. ATC requires the pilot to make a communications report at these waypoints. All other waypoints may be classified as non compulsory reporting points and are reported only when specifically requested by ATC</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / legDistance
Namespace No namespace
Annotations

The Terminal Procedure Flight Planning Leg distance is the along track distance required to complete any given leg. It is used to determine a cumulative track distance for a given terminal procedure for flight planning purposes, from the beginning of the take-off or arrival point to the termination point of the procedure.
Diagram
Diagram ARINC424_22_HTML.tmp#LegDistance
Type type:LegDistance
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
Source

<xs:element name="legDistance" type="type:LegDistance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Terminal Procedure Flight Planning Leg distance is the along track distance required to complete any given leg. It is used to determine a cumulative track distance for a given terminal procedure for flight planning purposes, from the beginning of the take-off or arrival point to the termination point of the procedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / legInboundIndicator
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#LegInboundIndicator
Type type:LegInboundIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="legInboundIndicator" type="type:LegInboundIndicator" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ProcedureLeg / legInboundOutboundIndicator
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#LegInboundOutboundIndicator
Type enum:LegInboundOutboundIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Inbound
Inbound
enumeration Outbound
Inbound
Source

<xs:element name="legInboundOutboundIndicator" type="enum:LegInboundOutboundIndicator" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ProcedureLeg / pathAndTermination
Namespace No namespace
Annotations

The Path and Termination defines the path geometry for a single record of an ATC terminal
procedure.
Diagram
Diagram ARINC424_22_HTML.tmp#PathAndTermination
Type enum:PathAndTermination
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration AF
Arc to a Fix
enumeration CA
Course to an Altitude
enumeration CD
Course to a DME Distance
enumeration CF
Course to a Fix
enumeration CI
Course to an Intercept
enumeration CR
Course to a Radial Termination
enumeration FA
Fix to an Altitude
enumeration DF
Distance to a Fix
enumeration FC
Track from a Fix for a Distance
enumeration FD
Track from a Fix to a DME Distance
enumeration FM
From a Fix to a Manual Termination
enumeration HA
Holding with Altitude Termination
enumeration HF
Holding with single circuit terminating at the fix
enumeration HM
Holding with Manual Termination
enumeration IF
Initial Fix
enumeration PI
045/180 Procedure Turn
enumeration RF
Constant Radius Arc
enumeration TF
Track to a Fix
enumeration VA
Heading to an Altitude Termination
enumeration VD
Heading to a DME Distance Termination
enumeration VI
Heading to an Intercept
enumeration VM
Heading to a Manual Termination
enumeration VR
Heading to a Radial Termination
Source

<xs:element name="pathAndTermination" type="enum:PathAndTermination" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Path and Termination defines the path geometry for a single record of an ATC terminal procedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / procedureDesignMagVar
Namespace No namespace
Annotations

The “Procedure Design Mag Var Indicator” field is an indication of how procedure design magnetic variation was provided in official source data for the procedure defined in the record/record set.
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticVariation_magneticVariationEWT ARINC424_22_HTML.tmp#MagneticVariation_magneticVariationValue ARINC424_22_HTML.tmp#MagneticVariation
Type type:MagneticVariation
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children magneticVariationEWT, magneticVariationValue
Instance

<procedureDesignMagVar>
  <magneticVariationEWT>{1,1}</magneticVariationEWT>
  <magneticVariationValue>{1,1}</magneticVariationValue>
</procedureDesignMagVar>
Source

<xs:element name="procedureDesignMagVar" type="type:MagneticVariation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Procedure Design Mag Var Indicator” field is an indication of how procedure design magnetic variation was provided in official source data for the procedure defined in the record/record set.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / rho
Namespace No namespace
Annotations

“RHO” is defined as the geodesic distance in nautical miles to the waypoint identified in the record’s “Fix Ident” field from the NAVAID in the “Recommended NAVAID” field.
Diagram
Diagram ARINC424_22_HTML.tmp#Rho
Type type:Rho
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
Source

<xs:element name="rho" type="type:Rho" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>“RHO” is defined as the geodesic distance in nautical miles to the waypoint identified in the record’s “Fix Ident” field from the NAVAID in the “Recommended NAVAID” field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / rnp
Namespace No namespace
Annotations

Required Navigation Performance (RNP) is a statement of the Navigation Performance necessary for operation within a defined airspace in accordance with ICAO Annex 15 and/or State published rules.
Diagram
Diagram ARINC424_22_HTML.tmp#RequiredNavigationPerformance
Type type:RequiredNavigationPerformance
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
fractionDigits 9
Source

<xs:element name="rnp" type="type:RequiredNavigationPerformance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Required Navigation Performance (RNP) is a statement of the Navigation Performance necessary for operation within a defined airspace in accordance with ICAO Annex 15 and/or State published rules.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / speedLimit
Namespace No namespace
Annotations

The “Speed Limit” field defines a speed, expressed in Knots, Indicated (K.I.A.S.), for a fix in a terminal procedure or for an airport or heliport terminal environment.
Diagram
Diagram ARINC424_22_HTML.tmp#SpeedLimit
Type type:SpeedLimit
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxExclusive 1000
Source

<xs:element name="speedLimit" type="type:SpeedLimit" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Speed Limit” field defines a speed, expressed in Knots, Indicated (K.I.A.S.), for a fix in a terminal procedure or for an airport or heliport terminal environment.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / speedLimitDescription
Namespace No namespace
Annotations

The "Speed Limit Description" field will designate whether the speed limit coded at a fix in a terminal procedure description is a mandatory, minimum or maximum speed.
For Maximum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit

The STAR and Approach Procedure Record speed limit will be applied forward to the end of the arrival (excluding the missed approach procedure) or until superseded by another speed limit.

For Minimum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will be applied forward to the end of the SID or Missed Approach Procedure or until superseded by another speed limit.

The STAR and Approach Procedure Record speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit.

For Mandatory speeds: The speed requirement shall be met at the fix. The speed will not be applied to previous legs or applied forward to the next legs of the procedure record.
Diagram
Diagram ARINC424_22_HTML.tmp#SpeedLimitDescription
Type enum:SpeedLimitDescription
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Manditory
Mandatory Speed, Cross Fix AT speed specified in Speed Limit
enumeration Minimum
Minimum Speed, Cross Fix AT or ABOVE speed specified in Speed Limit
enumeration Maximum
Maximum Speed, Cross Fix AT or BELOW speed specified in Speed Limit
Source

<xs:element name="speedLimitDescription" type="enum:SpeedLimitDescription" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The "Speed Limit Description" field will designate whether the speed limit coded at a fix in a terminal procedure description is a mandatory, minimum or maximum speed. For Maximum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit The STAR and Approach Procedure Record speed limit will be applied forward to the end of the arrival (excluding the missed approach procedure) or until superseded by another speed limit. For Minimum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will be applied forward to the end of the SID or Missed Approach Procedure or until superseded by another speed limit. The STAR and Approach Procedure Record speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit. For Mandatory speeds: The speed requirement shall be met at the fix. The speed will not be applied to previous legs or applied forward to the next legs of the procedure record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / theta
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Theta
Type type:Theta
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Source

<xs:element name="theta" type="type:Theta" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ProcedureLeg / transitionsAltitudeLevel
Namespace No namespace
Annotations

The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.
Diagram
Diagram ARINC424_22_HTML.tmp#TransitionAltitude
Type type:TransitionAltitude
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
maxInclusive 99999
minInclusive -2000
Source

<xs:element name="transitionsAltitudeLevel" type="type:TransitionAltitude" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / turnDirection
Namespace No namespace
Annotations

The “Turn Direction” field specifies the direction in which Terminal Procedure turns are to be made. It is also used to indication direction on course reversals, see Attachment 5 Path and Termination
Diagram
Diagram ARINC424_22_HTML.tmp#TurnDirection
Type enum:TurnDirection
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Left
Left
enumeration Right
Right
enumeration Either
Either Left or Right
Source

<xs:element name="turnDirection" type="enum:TurnDirection" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Turn Direction” field specifies the direction in which Terminal Procedure turns are to be made. It is also used to indication direction on course reversals, see Attachment 5 Path and Termination</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / turnDirectionValid
Namespace No namespace
Annotations

This field is used in conjunction with Turn direction to indicate that a turn is required prior to capturing the path defined in a terminal procedure.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="turnDirectionValid" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field is used in conjunction with Turn direction to indicate that a turn is required prior to capturing the path defined in a terminal procedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ProcedureLeg / verticalScaleFactor
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#VerticalScaleFactor
Type type:VerticalScaleFactor
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="verticalScaleFactor" type="type:VerticalScaleFactor" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ProcedureLeg / alt1
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<alt1>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</alt1>
Source

<xs:element name="alt1" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ProcedureLeg / alt2
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<alt2>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</alt2>
Source

<xs:element name="alt2" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ProcedureLeg / course
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Course_courseValue ARINC424_22_HTML.tmp#Course_isTrue ARINC424_22_HTML.tmp#Course
Type type:Course
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children courseValue, isTrue
Instance

<course>
  <courseValue>{1,1}</courseValue>
  <isTrue>{0,1}</isTrue>
</course>
Source

<xs:element name="course" type="type:Course" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:Course / courseValue
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CourseValue
Type type:CourseValue
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Source

<xs:element name="courseValue" type="type:CourseValue" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Course / isTrue
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTrue" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ProcedureLeg / centerFix
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="centerFix" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ProcedureLeg / centerFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="centerFixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element RunwayTransition / vectoring
Namespace No namespace
Annotations

This element provides vectoring information on the route
Diagram
Diagram ARINC424_22_HTML.tmp#Vectoring
Type type:Vectoring
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="vectoring" type="type:Vectoring" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides vectoring information on the route</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element RunwayTransition / routeQualifications
Namespace No namespace
Annotations

This element provides information on qualifications or details on the parent route element
Diagram
Diagram ARINC424_22_HTML.tmp#routeQualifications_isDmeReq ARINC424_22_HTML.tmp#routeQualifications_isGnssReq ARINC424_22_HTML.tmp#routeQualifications_isRadarReq ARINC424_22_HTML.tmp#routeQualifications_isFmsReq ARINC424_22_HTML.tmp#routeQualifications_isConventional ARINC424_22_HTML.tmp#routeQualifications
Type type:routeQualifications
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children isConventional, isDmeReq, isFmsReq, isGnssReq, isRadarReq
Instance

<routeQualifications>
  <isDmeReq>{0,1}</isDmeReq>
  <isGnssReq>{0,1}</isGnssReq>
  <isRadarReq>{0,1}</isRadarReq>
  <isFmsReq>{0,1}</isFmsReq>
  <isConventional>{0,1}</isConventional>
</routeQualifications>
Source

<xs:element name="routeQualifications" type="type:routeQualifications" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides information on qualifications or details on the parent route element</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:routeQualifications / isDmeReq
Namespace No namespace
Annotations

If this element exists and is true, Dme is required for the parent procedure.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="isDmeReq" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>If this element exists and is true, Dme is required for the parent procedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:routeQualifications / isGnssReq
Namespace No namespace
Annotations

If this element exists and is true, a GNSS is required for the parent procedure
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="isGnssReq" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>If this element exists and is true, a GNSS is required for the parent procedure</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:routeQualifications / isRadarReq
Namespace No namespace
Annotations

If this element exists and is true RADAR is required for the parent procedure
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="isRadarReq" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>If this element exists and is true RADAR is required for the parent procedure</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:routeQualifications / isFmsReq
Namespace No namespace
Annotations

If this element exists and is true a flight management system is required for the parent procedure
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="isFmsReq" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>If this element exists and is true a flight management system is required for the parent procedure</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:routeQualifications / isConventional
Namespace No namespace
Annotations

If this element exists and is true the route is a conventional route
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="isConventional" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>If this element exists and is true the route is a conventional route</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SIDRunwayTransition / isFromRunway
Namespace No namespace
Annotations

If this element exists and is true then the SID Runway Transition was from a runway.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="isFromRunway" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>If this element exists and is true then the SID Runway Transition was from a runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SID / sidCommonRoute
Namespace No namespace
Annotations

This element is the common route of the SID
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#CommonRoute_routeQualifications ARINC424_22_HTML.tmp#CommonRoute ARINC424_22_HTML.tmp#SIDCommonRoute_IsFromRunway ARINC424_22_HTML.tmp#SIDCommonRoute
Type SIDCommonRoute
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children IsFromRunway, identifier, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel
Instance

<sidCommonRoute>
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <transitionAltitudeOrLevel>{1,1}</transitionAltitudeOrLevel>
  <msaRef>{0,1}</msaRef>
  <procedureLeg>{1,unbounded}</procedureLeg>
  <routeQualifications>{0,1}</routeQualifications>
  <IsFromRunway>{0,1}</IsFromRunway>
</sidCommonRoute>
Source

<xs:element name="sidCommonRoute" type="SIDCommonRoute" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element is the common route of the SID</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CommonRoute / routeQualifications
Namespace No namespace
Annotations

This element provides information on qualifications or details on the parent route element
Diagram
Diagram ARINC424_22_HTML.tmp#routeQualifications_isDmeReq ARINC424_22_HTML.tmp#routeQualifications_isGnssReq ARINC424_22_HTML.tmp#routeQualifications_isRadarReq ARINC424_22_HTML.tmp#routeQualifications_isFmsReq ARINC424_22_HTML.tmp#routeQualifications_isConventional ARINC424_22_HTML.tmp#routeQualifications
Type type:routeQualifications
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children isConventional, isDmeReq, isFmsReq, isGnssReq, isRadarReq
Instance

<routeQualifications>
  <isDmeReq>{0,1}</isDmeReq>
  <isGnssReq>{0,1}</isGnssReq>
  <isRadarReq>{0,1}</isRadarReq>
  <isFmsReq>{0,1}</isFmsReq>
  <isConventional>{0,1}</isConventional>
</routeQualifications>
Source

<xs:element name="routeQualifications" type="type:routeQualifications" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides information on qualifications or details on the parent route element</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SIDCommonRoute / IsFromRunway
Namespace No namespace
Annotations

If this element exists and is true then the SID Common Route was from a runway.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="IsFromRunway" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>If this element exists and is true then the SID Common Route was from a runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SID / sidEnrouteTransition
Namespace No namespace
Annotations

These elements are the enroute transitions of the SID
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#EnrouteTransition_vectoring ARINC424_22_HTML.tmp#EnrouteTransition_routeQualifications ARINC424_22_HTML.tmp#EnrouteTransition ARINC424_22_HTML.tmp#SIDEnrouteTransition
Type SIDEnrouteTransition
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children identifier, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel, vectoring
Instance

<sidEnrouteTransition>
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <transitionAltitudeOrLevel>{1,1}</transitionAltitudeOrLevel>
  <msaRef>{0,1}</msaRef>
  <procedureLeg>{1,unbounded}</procedureLeg>
  <vectoring>{0,1}</vectoring>
  <routeQualifications>{0,1}</routeQualifications>
</sidEnrouteTransition>
Source

<xs:element name="sidEnrouteTransition" type="SIDEnrouteTransition" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>These elements are the enroute transitions of the SID</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element EnrouteTransition / vectoring
Namespace No namespace
Annotations

This element provides vectoring invormaiton on the route
Diagram
Diagram ARINC424_22_HTML.tmp#Vectoring
Type type:Vectoring
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="vectoring" type="type:Vectoring" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides vectoring invormaiton on the route</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element EnrouteTransition / routeQualifications
Namespace No namespace
Annotations

This element provides information on qualifications or details on the parent route element
Diagram
Diagram ARINC424_22_HTML.tmp#routeQualifications_isDmeReq ARINC424_22_HTML.tmp#routeQualifications_isGnssReq ARINC424_22_HTML.tmp#routeQualifications_isRadarReq ARINC424_22_HTML.tmp#routeQualifications_isFmsReq ARINC424_22_HTML.tmp#routeQualifications_isConventional ARINC424_22_HTML.tmp#routeQualifications
Type type:routeQualifications
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children isConventional, isDmeReq, isFmsReq, isGnssReq, isRadarReq
Instance

<routeQualifications>
  <isDmeReq>{0,1}</isDmeReq>
  <isGnssReq>{0,1}</isGnssReq>
  <isRadarReq>{0,1}</isRadarReq>
  <isFmsReq>{0,1}</isFmsReq>
  <isConventional>{0,1}</isConventional>
</routeQualifications>
Source

<xs:element name="routeQualifications" type="type:routeQualifications" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides information on qualifications or details on the parent route element</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SID / isEngineOut
Namespace No namespace
Annotations

This element indicates that the SID is an Engine Out SID
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isEngineOut" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element indicates that the SID is an Engine Out SID</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SID / isVector
Namespace No namespace
Annotations

The element indicates that the SID is a vector SID
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isVector" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The element indicates that the SID is a vector SID</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SID / isPInS
Namespace No namespace
Annotations

If this element exists and is true then the parent is a point in space SID.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isPInS" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>If this element exists and is true then the parent is a point in space SID.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SID / isPInSProceedVisually
Namespace No namespace
Annotations

If this element exists and is true then the procedure will proceed visually.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isPInSProceedVisually" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>If this element exists and is true then the procedure will proceed visually.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SID / isPInSProceedVfr
Namespace No namespace
Annotations

If this element exists and is true then the SID will proceed under visual flight rules.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isPInSProceedVfr" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>If this element exists and is true then the SID will proceed under visual flight rules.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element TerminalProcedures / star
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Procedure_referenceID ARINC424_22_HTML.tmp#Procedure_isRnav ARINC424_22_HTML.tmp#Procedure_isHelicopterOnlyProcedure ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftCategories ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftTypes ARINC424_22_HTML.tmp#Procedure_isSpecial ARINC424_22_HTML.tmp#Procedure_procedureDesignMagVar ARINC424_22_HTML.tmp#Procedure ARINC424_22_HTML.tmp#SIDSTAR_isVorDmeRnav ARINC424_22_HTML.tmp#SIDSTAR_rnavPbnNavSpec ARINC424_22_HTML.tmp#SIDSTAR_rnpPbnNavSpec ARINC424_22_HTML.tmp#SIDSTAR ARINC424_22_HTML.tmp#STAR_starRunwayTransition ARINC424_22_HTML.tmp#STAR_starEnrouteTransition ARINC424_22_HTML.tmp#STAR_starCommonRoute ARINC424_22_HTML.tmp#STAR_isContiniousDecent ARINC424_22_HTML.tmp#STAR
Type STAR
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children identifier, isContiniousDecent, isHelicopterOnlyProcedure, isRnav, isSpecial, isVorDmeRnav, procedureDesignAircraftCategories, procedureDesignAircraftTypes, procedureDesignMagVar, rnavPbnNavSpec, rnpPbnNavSpec, starCommonRoute, starEnrouteTransition, starRunwayTransition, supplementalData
Instance

<star referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <isRnav>{0,1}</isRnav>
  <isHelicopterOnlyProcedure>{0,1}</isHelicopterOnlyProcedure>
  <procedureDesignAircraftCategories>{0,1}</procedureDesignAircraftCategories>
  <procedureDesignAircraftTypes>{0,1}</procedureDesignAircraftTypes>
  <isSpecial>{0,1}</isSpecial>
  <procedureDesignMagVar>{0,1}</procedureDesignMagVar>
  <isVorDmeRnav>{0,1}</isVorDmeRnav>
  <rnavPbnNavSpec>{0,1}</rnavPbnNavSpec>
  <rnpPbnNavSpec>{0,1}</rnpPbnNavSpec>
  <starRunwayTransition>{0,unbounded}</starRunwayTransition>
  <starEnrouteTransition>{0,unbounded}</starEnrouteTransition>
  <starCommonRoute>{0,1}</starCommonRoute>
  <isContiniousDecent>{0,1}</isContiniousDecent>
</star>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="star" type="STAR" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element STAR / starRunwayTransition
Namespace No namespace
Annotations

These elements are the runway transitions.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#RunwayTransition_vectoring ARINC424_22_HTML.tmp#RunwayTransition_routeQualifications ARINC424_22_HTML.tmp#RunwayTransition ARINC424_22_HTML.tmp#STARRunwayTransition_isToRunway ARINC424_22_HTML.tmp#STARRunwayTransition
Type STARRunwayTransition
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children identifier, isToRunway, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel, vectoring
Instance

<starRunwayTransition>
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <transitionAltitudeOrLevel>{1,1}</transitionAltitudeOrLevel>
  <msaRef>{0,1}</msaRef>
  <procedureLeg>{1,unbounded}</procedureLeg>
  <vectoring>{0,1}</vectoring>
  <routeQualifications>{0,1}</routeQualifications>
  <isToRunway>{0,1}</isToRunway>
</starRunwayTransition>
Source

<xs:element name="starRunwayTransition" type="STARRunwayTransition" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>These elements are the runway transitions.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element STARRunwayTransition / isToRunway
Namespace No namespace
Annotations

If this element exists and is true then the STAR Common Route was to a runway.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="isToRunway" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>If this element exists and is true then the STAR Common Route was to a runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element STAR / starEnrouteTransition
Namespace No namespace
Annotations

These elements are the enroute transitions
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#EnrouteTransition_vectoring ARINC424_22_HTML.tmp#EnrouteTransition_routeQualifications ARINC424_22_HTML.tmp#EnrouteTransition ARINC424_22_HTML.tmp#STAREnrouteTransition
Type STAREnrouteTransition
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children identifier, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel, vectoring
Instance

<starEnrouteTransition>
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <transitionAltitudeOrLevel>{1,1}</transitionAltitudeOrLevel>
  <msaRef>{0,1}</msaRef>
  <procedureLeg>{1,unbounded}</procedureLeg>
  <vectoring>{0,1}</vectoring>
  <routeQualifications>{0,1}</routeQualifications>
</starEnrouteTransition>
Source

<xs:element name="starEnrouteTransition" type="STAREnrouteTransition" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>These elements are the enroute transitions</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element STAR / starCommonRoute
Namespace No namespace
Annotations

This element is the common route
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#CommonRoute_routeQualifications ARINC424_22_HTML.tmp#CommonRoute ARINC424_22_HTML.tmp#STARCommonRoute_isToRunway ARINC424_22_HTML.tmp#STARCommonRoute
Type STARCommonRoute
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children identifier, isToRunway, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel
Instance

<starCommonRoute>
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <transitionAltitudeOrLevel>{1,1}</transitionAltitudeOrLevel>
  <msaRef>{0,1}</msaRef>
  <procedureLeg>{1,unbounded}</procedureLeg>
  <routeQualifications>{0,1}</routeQualifications>
  <isToRunway>{0,1}</isToRunway>
</starCommonRoute>
Source

<xs:element name="starCommonRoute" type="STARCommonRoute" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element is the common route</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element STARCommonRoute / isToRunway
Namespace No namespace
Annotations

If this element exists and is true then the STAR Common Route was to a runway.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="isToRunway" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>If this element exists and is true then the STAR Common Route was to a runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element STAR / isContiniousDecent
Namespace No namespace
Annotations

If this element exists and is true then the parent is a continious decent STAR.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="isContiniousDecent" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>If this element exists and is true then the parent is a continious decent STAR.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element TerminalProcedures / approach
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Procedure_referenceID ARINC424_22_HTML.tmp#Procedure_isRnav ARINC424_22_HTML.tmp#Procedure_isHelicopterOnlyProcedure ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftCategories ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftTypes ARINC424_22_HTML.tmp#Procedure_isSpecial ARINC424_22_HTML.tmp#Procedure_procedureDesignMagVar ARINC424_22_HTML.tmp#Procedure ARINC424_22_HTML.tmp#Approach_approachRouteType ARINC424_22_HTML.tmp#Approach_gnssFMSIndicator ARINC424_22_HTML.tmp#Approach_gbasPathPoint ARINC424_22_HTML.tmp#Approach_sbasPathPoint ARINC424_22_HTML.tmp#Approach_approachTransition ARINC424_22_HTML.tmp#Approach_finalApproach ARINC424_22_HTML.tmp#Approach_missedApproach ARINC424_22_HTML.tmp#Approach_approachPointRef ARINC424_22_HTML.tmp#Approach_isRnavVisual ARINC424_22_HTML.tmp#Approach_isPinsProceedVisually ARINC424_22_HTML.tmp#Approach_isPinsProceedVfr ARINC424_22_HTML.tmp#Approach_isLocalizerBackcourse ARINC424_22_HTML.tmp#Approach_approachPbnNavSpec ARINC424_22_HTML.tmp#Approach_isPreferredProcedure ARINC424_22_HTML.tmp#Approach
Type Approach
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children approachPbnNavSpec, approachPointRef, approachRouteType, approachTransition, finalApproach, gbasPathPoint, gnssFMSIndicator, identifier, isHelicopterOnlyProcedure, isLocalizerBackcourse, isPinsProceedVfr, isPinsProceedVisually, isPreferredProcedure, isRnav, isRnavVisual, isSpecial, missedApproach, procedureDesignAircraftCategories, procedureDesignAircraftTypes, procedureDesignMagVar, sbasPathPoint, supplementalData
Instance

<approach referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <isRnav>{0,1}</isRnav>
  <isHelicopterOnlyProcedure>{0,1}</isHelicopterOnlyProcedure>
  <procedureDesignAircraftCategories>{0,1}</procedureDesignAircraftCategories>
  <procedureDesignAircraftTypes>{0,1}</procedureDesignAircraftTypes>
  <isSpecial>{0,1}</isSpecial>
  <procedureDesignMagVar>{0,1}</procedureDesignMagVar>
  <approachRouteType>{1,1}</approachRouteType>
  <gnssFMSIndicator>{0,1}</gnssFMSIndicator>
  <gbasPathPoint>{0,1}</gbasPathPoint>
  <sbasPathPoint>{0,1}</sbasPathPoint>
  <approachTransition>{0,unbounded}</approachTransition>
  <finalApproach>{1,1}</finalApproach>
  <missedApproach>{0,unbounded}</missedApproach>
  <approachPointRef>{0,1}</approachPointRef>
  <isRnavVisual>{0,1}</isRnavVisual>
  <isPinsProceedVisually>{0,1}</isPinsProceedVisually>
  <isPinsProceedVfr>{0,1}</isPinsProceedVfr>
  <isLocalizerBackcourse>{0,1}</isLocalizerBackcourse>
  <approachPbnNavSpec>{0,1}</approachPbnNavSpec>
  <isPreferredProcedure>{0,1}</isPreferredProcedure>
</approach>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="approach" type="Approach" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element Approach / approachRouteType
Namespace No namespace
Annotations

This element identifies what type of approach the parent is.
Diagram
Diagram ARINC424_22_HTML.tmp#ApproachRouteType
Type enum:ApproachRouteType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration LocBackcourse
Localizer/Backcourse Approach
enumeration VorDme
VORDME Approach
enumeration Fms
Flight Management System (FMS) Approach
enumeration Igs
Instrument Guidance System (IGS) Approach
enumeration Rnp
Area Navigation (RNAV) Approach with Required Navigation Performance (RNP) Approach
enumeration Ils
Instrument Landing System (ILS) Approach
enumeration Gls
GNSS Landing System (GLS)Approach
enumeration LocOnly
Localizer Only (LOC) Approach
enumeration Mls
Microwave Landing System (MLS) Approach
enumeration Ndb
Non-Directional Beacon (NDB) Approach
enumeration Gps
Global Positioning System (GPS) Approach
enumeration NdbDme
Non-Directional Beacon + DME(NDB+DME) Approach
enumeration Rnav
Area Navigation (RNAV) Approach
enumeration VorUsingVordmeOrVortac
VOR Approach using VORDME/VORTAC
enumeration Tacan
TACAN Approach
enumeration Sdf
Simplified Directional Facility (SDF) Approach
enumeration Vor
VOR Approach
enumeration Lda
Localizer Directional Aid (LDA) Approach
Source

<xs:element name="approachRouteType" type="enum:ApproachRouteType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element identifies what type of approach the parent is.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Approach / gnssFMSIndicator
Namespace No namespace
Annotations

The “GNSS/FMS Indicator” field provides an indication of whether or not the responsible government agency has authorized the overlay of a conventional, ground based approach procedure with the use of a sensor capable of processing GNSS data or if the procedure may be flown with FMS as the primary navigation equipment. The field is also used to indicate when and RNAV procedure has been authorized for GNSS-based vertical navigation.
Diagram
Diagram ARINC424_22_HTML.tmp#GNSSFMSIndicator
Type enum:GNSSFMSIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration GnssFmsOverlayAuthNotPublished
Procedure Not Authorized for GNSS or FMS Overlay ? Authorization not published.
enumeration GnssOverlayAuthNavaidOperatingAndMonitored
Procedure Authorized for GNSS Overlay, primary Navaids operating and monitored. Authorization not published.
enumeration GnssOverlayAuthNoMonitorNavaidAuth
Procedure Authorized for GNSS Overlay, primary Navaids installed, not monitored Authorization is published. Example: Procedure Title includes (GPS) or (GNSS)
enumeration GnssOverlayTitleIncludesGpsOrGnss
Procedure Authorized for GNSS Overlay, Procedure Title includes GPS or GNSS
enumeration FmsOverlayAuthorized
Procedure Authorized for FMS Overlay
enumeration SbasVerticalAuthorized
RNAV (GPS), RNAV (RNP) or RNAV (GNSS) Procedure SBAS use authorized; SBAS-based vertical navigation authorized
enumeration SbasVerticalNotAuthorized
RNAV (GPS), RNAV (RNP), RNAV (GNSS) or RNAV Visual Procedure, SBAS-based vertical navigation NOT Authorized
enumeration SbasVerticalNotPublished
RNAV (GPS) RNAV (RNP), or RNAV (GNSS) Procedure, SBAS-based vertical navigation use not published
enumeration StandAloneGNSS
Stand Alone GNSS Procedure
enumeration SbasVerticalNA
RNAV (GPS) RNAV (RNP), or RNAV (GNSS) Procedure within the SBAS operational footprint, but SBAS-based vertical navigation NOT Authorized
enumeration OverlayAuthNotPublished
Procedure Overlay Authorization not published
enumeration PbnRnpGps
PBN RNP Approach provide as GPS.  The GNSS/FMS IND of G indicates that the GPS approach is an PBN RNAV approach provided with route type P.
enumeration LocOnlyIls
Localizer only coding portion of ILS.  The GNSS/FMS IND of L indicates that the LOC approach is the Localizer only portion of an ILS approach which contains glideslope out information.
Source

<xs:element name="gnssFMSIndicator" type="enum:GNSSFMSIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “GNSS/FMS Indicator” field provides an indication of whether or not the responsible government agency has authorized the overlay of a conventional, ground based approach procedure with the use of a sensor capable of processing GNSS data or if the procedure may be flown with FMS as the primary navigation equipment. The field is also used to indicate when and RNAV procedure has been authorized for GNSS-based vertical navigation.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Approach / gbasPathPoint
Namespace No namespace
Annotations

This element is the GBAS path point record for the approach.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#PathPoint_approachPerformanceDesignator ARINC424_22_HTML.tmp#PathPoint_approachRouteIdentifier ARINC424_22_HTML.tmp#PathPoint_approachTypeIdentifier ARINC424_22_HTML.tmp#PathPoint_courseWidthAtThreshold ARINC424_22_HTML.tmp#PathPoint_FASDataCRCRemainder ARINC424_22_HTML.tmp#PathPoint_flightPathAlignmentPoint ARINC424_22_HTML.tmp#PathPoint_fpapEllipsoidHeight ARINC424_22_HTML.tmp#PathPoint_fpapOrthometricHeight ARINC424_22_HTML.tmp#PathPoint_glidePathAngle ARINC424_22_HTML.tmp#PathPoint_gnssChannelNumber ARINC424_22_HTML.tmp#PathPoint_helicopterProcedureCourse ARINC424_22_HTML.tmp#PathPoint_landingThresholdPoint ARINC424_22_HTML.tmp#PathPoint_lengthOffset ARINC424_22_HTML.tmp#PathPoint_ltpEllipsoidHeight ARINC424_22_HTML.tmp#PathPoint_ltpOrthometricHeight ARINC424_22_HTML.tmp#PathPoint_pathPointTCH ARINC424_22_HTML.tmp#PathPoint_referencePathDataSelector ARINC424_22_HTML.tmp#PathPoint_referencePathIdentifier ARINC424_22_HTML.tmp#PathPoint_routeIndicator ARINC424_22_HTML.tmp#PathPoint_runwayOrPadIdentifier ARINC424_22_HTML.tmp#PathPoint_tchUnitsIndicator ARINC424_22_HTML.tmp#PathPoint ARINC424_22_HTML.tmp#GBASPathPoint_operationType ARINC424_22_HTML.tmp#GBASPathPoint
Type GBASPathPoint
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children FASDataCRCRemainder, approachPerformanceDesignator, approachRouteIdentifier, approachTypeIdentifier, courseWidthAtThreshold, custAreaCode, cycleDate, flightPathAlignmentPoint, fpapEllipsoidHeight, fpapOrthometricHeight, glidePathAngle, gnssChannelNumber, helicopterProcedureCourse, landingThresholdPoint, lengthOffset, ltpEllipsoidHeight, ltpOrthometricHeight, notes, operationType, pathPointTCH, recordType, referencePathDataSelector, referencePathIdentifier, routeIndicator, runwayOrPadIdentifier, supplementalData, tchUnitsIndicator
Instance

<gbasPathPoint>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <approachPerformanceDesignator>{1,1}</approachPerformanceDesignator>
  <approachRouteIdentifier>{0,1}</approachRouteIdentifier>
  <approachTypeIdentifier>{0,1}</approachTypeIdentifier>
  <courseWidthAtThreshold>{1,1}</courseWidthAtThreshold>
  <FASDataCRCRemainder>{1,1}</FASDataCRCRemainder>
  <flightPathAlignmentPoint>{1,1}</flightPathAlignmentPoint>
  <fpapEllipsoidHeight>{0,1}</fpapEllipsoidHeight>
  <fpapOrthometricHeight>{0,1}</fpapOrthometricHeight>
  <glidePathAngle>{1,1}</glidePathAngle>
  <gnssChannelNumber>{0,1}</gnssChannelNumber>
  <helicopterProcedureCourse>{0,1}</helicopterProcedureCourse>
  <landingThresholdPoint>{1,1}</landingThresholdPoint>
  <lengthOffset>{0,1}</lengthOffset>
  <ltpEllipsoidHeight>{1,1}</ltpEllipsoidHeight>
  <ltpOrthometricHeight>{0,1}</ltpOrthometricHeight>
  <pathPointTCH>{1,1}</pathPointTCH>
  <referencePathDataSelector>{1,1}</referencePathDataSelector>
  <referencePathIdentifier>{1,1}</referencePathIdentifier>
  <routeIndicator>{0,1}</routeIndicator>
  <runwayOrPadIdentifier>{0,1}</runwayOrPadIdentifier>
  <tchUnitsIndicator>{1,1}</tchUnitsIndicator>
  <operationType>{1,1}</operationType>
</gbasPathPoint>
Source

<xs:element name="gbasPathPoint" type="GBASPathPoint" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element is the GBAS path point record for the approach.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / approachPerformanceDesignator
Namespace No namespace
Annotations

The “Approach Performance Designator” field is used to indicate the type or category of approach.
Diagram
Diagram ARINC424_22_HTML.tmp#ApproachPerformanceDesignator
Type enum:ApproachPerformanceDesignator
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration 0
GAST A or GAST B
enumeration 1
GAST C
enumeration 2
GAST C or GAST D
enumeration 3
Spare
enumeration 4
Spare
enumeration 5
Spare
enumeration 6
Spare
enumeration 7
Spare
Source

<xs:element name="approachPerformanceDesignator" type="enum:ApproachPerformanceDesignator" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Approach Performance Designator” field is used to indicate the type or category of approach.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / approachRouteIdentifier
Namespace No namespace
Annotations

The “Approach Route Identifier” field contains the identifier of the approach route to be flown. To facilitate the provision of multiple approach procedures of the same type to a given runway, the field also is used to provide a “multiple indicator.”
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="approachRouteIdentifier" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Approach Route Identifier” field contains the identifier of the approach route to be flown. To facilitate the provision of multiple approach procedures of the same type to a given runway, the field also is used to provide a “multiple indicator.”</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / approachTypeIdentifier
Namespace No namespace
Annotations

Identifies the approach types published on a given approach procedure which require Airport or Helicopter Operations SBAS path points.
Diagram
Diagram ARINC424_22_HTML.tmp#ApproachTypeIdentifier
Type type:ApproachTypeIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 10
Source

<xs:element name="approachTypeIdentifier" type="type:ApproachTypeIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Identifies the approach types published on a given approach procedure which require Airport or Helicopter Operations SBAS path points.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / courseWidthAtThreshold
Namespace No namespace
Annotations

The “Course Width At Threshold” field defines the width of the lateral course at the Landing Threshold Point (LTP) or Fictitious Helipoint (or helipoint). This width, in conjunction with the location of the Flight Path Alignment Point (FPAP) defines the sensitivity of the lateral deviations throughout the approach.
Diagram
Diagram ARINC424_22_HTML.tmp#CourseWidthAtThreshold
Type type:CourseWidthAtThreshold
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="courseWidthAtThreshold" type="type:CourseWidthAtThreshold" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Course Width At Threshold” field defines the width of the lateral course at the Landing Threshold Point (LTP) or Fictitious Helipoint (or helipoint). This width, in conjunction with the location of the Flight Path Alignment Point (FPAP) defines the sensitivity of the lateral deviations throughout the approach.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / FASDataCRCRemainder
Namespace No namespace
Annotations

The “Final Approach Segment Data CRC Remainder” field is an eight (8) character hexadecimal representation of the 32-bit CRC value provided by the source for the information contained in the aeronautical data fields being monitored for integrity. The value is calculated by a specific mathematical algorithm, which is both machine and man processible.
Diagram
Diagram ARINC424_22_HTML.tmp#FinalApproachSegmentDataCRCRemainder
Type type:FinalApproachSegmentDataCRCRemainder
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 8
Source

<xs:element name="FASDataCRCRemainder" type="type:FinalApproachSegmentDataCRCRemainder" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Final Approach Segment Data CRC Remainder” field is an eight (8) character hexadecimal representation of the 32-bit CRC value provided by the source for the information contained in the aeronautical data fields being monitored for integrity. The value is calculated by a specific mathematical algorithm, which is both machine and man processible.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / flightPathAlignmentPoint
Namespace No namespace
Annotations

Latitude and Longitude details of this point.
Diagram
Diagram ARINC424_22_HTML.tmp#HighPrecisionLocation_highPrecisionLatitude ARINC424_22_HTML.tmp#HighPrecisionLocation_highPrecisionLongitude ARINC424_22_HTML.tmp#HighPrecisionLocation
Type type:HighPrecisionLocation
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children highPrecisionLatitude, highPrecisionLongitude
Instance

<flightPathAlignmentPoint>
  <highPrecisionLatitude>{1,1}</highPrecisionLatitude>
  <highPrecisionLongitude>{1,1}</highPrecisionLongitude>
</flightPathAlignmentPoint>
Source

<xs:element name="flightPathAlignmentPoint" type="type:HighPrecisionLocation" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:HighPrecisionLocation / highPrecisionLatitude
Namespace No namespace
Annotations

The High Precision Latitude field contains the latitude of the navigation feature identified in the record. When used on Airport Path Point Records, one navigation feature is the LTP/FTP, the other is the FPAP. When used on Helicopter Operations Path Point Records, one navigation feature is the Fictitious Helipoint (or Helipoint), the other is the FPAP.
Diagram
Diagram ARINC424_22_HTML.tmp#HighPrecisionLatitude
Type type:HighPrecisionLatitude
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="highPrecisionLatitude" type="type:HighPrecisionLatitude" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The High Precision Latitude field contains the latitude of the navigation feature identified in the record. When used on Airport Path Point Records, one navigation feature is the LTP/FTP, the other is the FPAP. When used on Helicopter Operations Path Point Records, one navigation feature is the Fictitious Helipoint (or Helipoint), the other is the FPAP.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:HighPrecisionLocation / highPrecisionLongitude
Namespace No namespace
Annotations

The “High Precision Longitude” field contains the latitude of the navigation feature identified in the record. When used on Airport Path Point Records, one navigation feature is the LTP/FTP, the other is the FPAP. When used on Helicopter Operations Path Point Records, one navigation feature is the Fictitious Helipoint (or Helipoint), the other is the FPAP.
Diagram
Diagram ARINC424_22_HTML.tmp#HighPrecisionLongitude
Type type:HighPrecisionLongitude
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="highPrecisionLongitude" type="type:HighPrecisionLongitude" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “High Precision Longitude” field contains the latitude of the navigation feature identified in the record. When used on Airport Path Point Records, one navigation feature is the LTP/FTP, the other is the FPAP. When used on Helicopter Operations Path Point Records, one navigation feature is the Fictitious Helipoint (or Helipoint), the other is the FPAP.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / fpapEllipsoidHeight
Namespace No namespace
Annotations

The “Ellipsoidal Height” field is the height of a surveyed point in reference to the WGS-84 ellipsoid.
Diagram
Diagram ARINC424_22_HTML.tmp#EllipsoidHeight
Type type:EllipsoidHeight
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="fpapEllipsoidHeight" type="type:EllipsoidHeight" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Ellipsoidal Height” field is the height of a surveyed point in reference to the WGS-84 ellipsoid.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / fpapOrthometricHeight
Namespace No namespace
Annotations

The “Orthometric Height” field is the height of a surveyed point in reference to Mean Sea Level (MSL).
Diagram
Diagram ARINC424_22_HTML.tmp#OrthometricHeight
Type type:OrthometricHeight
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxInclusive +9999
minInclusive -9999
Source

<xs:element name="fpapOrthometricHeight" type="type:OrthometricHeight" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Orthometric Height” field is the height of a surveyed point in reference to Mean Sea Level (MSL).</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / glidePathAngle
Namespace No namespace
Annotations

The “Glide Path Angle” field is an angle, expressed in degrees, tenths and hundredths of degrees, measured at the Flight Path Control Point (FPCP) of those approach procedures that require the coding of a Airport or Helicopter Operations SBAS Path Point record or GBAS Path Point Record. It establishes the intended descent gradient for the final approach flight path. For an illustration of the GPA and related points.
Diagram
Diagram ARINC424_22_HTML.tmp#GlidePathAngle
Type type:GlidePathAngle
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="glidePathAngle" type="type:GlidePathAngle" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Glide Path Angle” field is an angle, expressed in degrees, tenths and hundredths of degrees, measured at the Flight Path Control Point (FPCP) of those approach procedures that require the coding of a Airport or Helicopter Operations SBAS Path Point record or GBAS Path Point Record. It establishes the intended descent gradient for the final approach flight path. For an illustration of the GPA and related points.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / gnssChannelNumber
Namespace No namespace
Annotations

The “GNSS Channel Number” field identifies the channel that will be decoded to identify the augmentation system used.  The Channel Number is derived from official government sources and is entered as five numeric characters. It consists of numeric characters in the ranges 0000 to 9999 and 20001 to 99999. In general, numbers less than 20000 are reserved for ILS and MLS. In some countries, Channel Numbers from 0000 to 9999 are reserved for SCAT-1 and will be entered as 00000 through 09999. Channel Numbers from 20001 to 39999 are reserved for GBAS (and SBAS if applicable). Channel Numbers from 40000 to 99999 are reserved for SBAS.
Diagram
Diagram ARINC424_22_HTML.tmp#Channel
Type type:Channel
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
Source

<xs:element name="gnssChannelNumber" type="type:Channel" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “GNSS Channel Number” field identifies the channel that will be decoded to identify the augmentation system used. The Channel Number is derived from official government sources and is entered as five numeric characters. It consists of numeric characters in the ranges 0000 to 9999 and 20001 to 99999. In general, numbers less than 20000 are reserved for ILS and MLS. In some countries, Channel Numbers from 0000 to 9999 are reserved for SCAT-1 and will be entered as 00000 through 09999. Channel Numbers from 20001 to 39999 are reserved for GBAS (and SBAS if applicable). Channel Numbers from 40000 to 99999 are reserved for SBAS.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / helicopterProcedureCourse
Namespace No namespace
Annotations

The Helicopter Procedure Course field is used on Path Point Continuation Records to define the final approach course of procedures designed for helicopter operations to runways, to helipads, and to points in space..
Diagram
Diagram ARINC424_22_HTML.tmp#CourseValue
Type type:CourseValue
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Source

<xs:element name="helicopterProcedureCourse" type="type:CourseValue" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Helicopter Procedure Course field is used on Path Point Continuation Records to define the final approach course of procedures designed for helicopter operations to runways, to helipads, and to points in space..</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / landingThresholdPoint
Namespace No namespace
Annotations

Latitude and Longitude details of this point.
Diagram
Diagram ARINC424_22_HTML.tmp#HighPrecisionLocation_highPrecisionLatitude ARINC424_22_HTML.tmp#HighPrecisionLocation_highPrecisionLongitude ARINC424_22_HTML.tmp#HighPrecisionLocation
Type type:HighPrecisionLocation
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children highPrecisionLatitude, highPrecisionLongitude
Instance

<landingThresholdPoint>
  <highPrecisionLatitude>{1,1}</highPrecisionLatitude>
  <highPrecisionLongitude>{1,1}</highPrecisionLongitude>
</landingThresholdPoint>
Source

<xs:element name="landingThresholdPoint" type="type:HighPrecisionLocation" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / lengthOffset
Namespace No namespace
Annotations

The “Length Offset” field is the distance from the stop end of the runway (SER) to the FPAP. This distance defines the location where lateral sensitivity changes to the missed approach sensitivity. If the FPAP is located at the designated center of the opposite runway end, the distance is zero.  Additionally, if the lenfth offset is not provided then the element should not exist.
Diagram
Diagram ARINC424_22_HTML.tmp#LengthOffset
Type type:LengthOffset
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="lengthOffset" type="type:LengthOffset" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Length Offset” field is the distance from the stop end of the runway (SER) to the FPAP. This distance defines the location where lateral sensitivity changes to the missed approach sensitivity. If the FPAP is located at the designated center of the opposite runway end, the distance is zero. Additionally, if the lenfth offset is not provided then the element should not exist.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / ltpEllipsoidHeight
Namespace No namespace
Annotations

The “Ellipsoidal Height” field is the height of a surveyed point in reference to the WGS-84 ellipsoid.
Diagram
Diagram ARINC424_22_HTML.tmp#EllipsoidHeight
Type type:EllipsoidHeight
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="ltpEllipsoidHeight" type="type:EllipsoidHeight" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Ellipsoidal Height” field is the height of a surveyed point in reference to the WGS-84 ellipsoid.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / ltpOrthometricHeight
Namespace No namespace
Annotations

The “Orthometric Height” field is the height of a surveyed point in reference to Mean Sea Level (MSL).
Diagram
Diagram ARINC424_22_HTML.tmp#OrthometricHeight
Type type:OrthometricHeight
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxInclusive +9999
minInclusive -9999
Source

<xs:element name="ltpOrthometricHeight" type="type:OrthometricHeight" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Orthometric Height” field is the height of a surveyed point in reference to Mean Sea Level (MSL).</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / pathPointTCH
Namespace No namespace
Annotations

On procedures to runways or helipads, the Path Point TCH is the height above the runway threshold (LTP) or the helicopter alighting point. On procedures which are Point in Space, the height of the fictitious helipoint (or helipoint) above the height of the heliport. It is the same as the TCH defined in Section 5.67, but has greater resolution due to the required precision.
Diagram
Diagram ARINC424_22_HTML.tmp#PathPointTCH
Type type:PathPointTCH
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 6
fractionDigits 2
Source

<xs:element name="pathPointTCH" type="type:PathPointTCH" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>On procedures to runways or helipads, the Path Point TCH is the height above the runway threshold (LTP) or the helicopter alighting point. On procedures which are Point in Space, the height of the fictitious helipoint (or helipoint) above the height of the heliport. It is the same as the TCH defined in Section 5.67, but has greater resolution due to the required precision.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / referencePathDataSelector
Namespace No namespace
Annotations

The “Reference Path Data Selector” field enables the automatic tuning of a procedure by Ground Based Augmentation Systems (GBAS) avionics.This data is not used for SBAS operations.
Diagram
Diagram ARINC424_22_HTML.tmp#ReferencePathDataSelector
Type type:ReferencePathDataSelector
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 2
Source

<xs:element name="referencePathDataSelector" type="type:ReferencePathDataSelector" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Reference Path Data Selector” field enables the automatic tuning of a procedure by Ground Based Augmentation Systems (GBAS) avionics.This data is not used for SBAS operations.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / referencePathIdentifier
Namespace No namespace
Annotations

The Reference Path Identifier field represents the three or four alphanumeric characters used to uniquely designate the reference path. The Reference Path Identifier is synonymous with the approach ID located beneath the Channel Number on Instrument Approach Plates and is unique only for a given airport.
Diagram
Diagram ARINC424_22_HTML.tmp#ReferencePathIdentifier
Type type:ReferencePathIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 4
Source

<xs:element name="referencePathIdentifier" type="type:ReferencePathIdentifier" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Reference Path Identifier field represents the three or four alphanumeric characters used to uniquely designate the reference path. The Reference Path Identifier is synonymous with the approach ID located beneath the Channel Number on Instrument Approach Plates and is unique only for a given airport.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / routeIndicator
Namespace No namespace
Annotations

The “Route Indicator” field is a single alpha character used to differentiate between multiple final approach segments to the same runway or helipad contained in the Final Approach Coding.
Diagram
Diagram ARINC424_22_HTML.tmp#RouteIndicator
Type type:RouteIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 1
Source

<xs:element name="routeIndicator" type="type:RouteIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Route Indicator” field is a single alpha character used to differentiate between multiple final approach segments to the same runway or helipad contained in the Final Approach Coding.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PathPoint / runwayOrPadIdentifier
Namespace No namespace
Annotations

This XML element is designed as an abstraction for Runway Identifier or Pad Identifier, this is done by using the XML attribute "choice", so that only one of the elements can be present in the XML file.
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayOrPadIdentifier_padIdentifier ARINC424_22_HTML.tmp#RunwayOrPadIdentifier_runwayIdentifier ARINC424_22_HTML.tmp#RunwayOrPadIdentifier
Type type:RunwayOrPadIdentifier
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children padIdentifier, runwayIdentifier
Instance

<runwayOrPadIdentifier>
  <padIdentifier>{1,1}</padIdentifier>
  <runwayIdentifier>{1,1}</runwayIdentifier>
</runwayOrPadIdentifier>
Source

<xs:element name="runwayOrPadIdentifier" type="type:RunwayOrPadIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This XML element is designed as an abstraction for Runway Identifier or Pad Identifier, this is done by using the XML attribute "choice", so that only one of the elements can be present in the XML file.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:RunwayOrPadIdentifier / padIdentifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="padIdentifier" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:RunwayOrPadIdentifier / runwayIdentifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayIdentifier_runwayLeftRightCenterType ARINC424_22_HTML.tmp#RunwayIdentifier_runwayNumber ARINC424_22_HTML.tmp#RunwayIdentifier
Type type:RunwayIdentifier
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children runwayLeftRightCenterType, runwayNumber
Instance

<runwayIdentifier>
  <runwayLeftRightCenterType>{0,1}</runwayLeftRightCenterType>
  <runwayNumber>{1,1}</runwayNumber>
</runwayIdentifier>
Source

<xs:element name="runwayIdentifier" type="type:RunwayIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:RunwayIdentifier / runwayLeftRightCenterType
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayLeftRightCenterType
Type enum:RunwayLeftRightCenterType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Left
Left (Runway of two or three parallel runways)
enumeration Right
Right (Runway of two or three parallel runways)
enumeration Center
Center (Runway of three parallel runways)
Source

<xs:element name="runwayLeftRightCenterType" type="enum:RunwayLeftRightCenterType" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:RunwayIdentifier / runwayNumber
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayNumber
Type type:RunwayNumber
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxInclusive 36
minInclusive 1
Source

<xs:element name="runwayNumber" type="type:RunwayNumber" minOccurs="1" maxOccurs="1"/>
[ top ]
Element PathPoint / tchUnitsIndicator
Namespace No namespace
Annotations

The “TCH Units Indicator” field is used in Path Point Records to define the units, Feet or Meters for the Path Point TCH. This element is included in the “CRC Wrap” a possible metric source value cannot be converted to feet.
Diagram
Diagram ARINC424_22_HTML.tmp#TCHUnitsIndicator
Type enum:TCHUnitsIndicator
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Feet
the Path Point TCH is provided in source documentation in Feet
enumeration Meters
Path Point TCH is provided in source documentation in meters
Source

<xs:element name="tchUnitsIndicator" type="enum:TCHUnitsIndicator" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “TCH Units Indicator” field is used in Path Point Records to define the units, Feet or Meters for the Path Point TCH. This element is included in the “CRC Wrap” a possible metric source value cannot be converted to feet.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element GBASPathPoint / operationType
Namespace No namespace
Annotations

The “Operation Type” field indicates whether the operation is an approach procedure, an advanced operation or other operational to be defined later.
Diagram
Diagram ARINC424_22_HTML.tmp#GBASOperationType
Type enum:GBASOperationType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration 0
Straight-in approach path
enumeration 1
Terminal Area Path definition (not for FAS Datablock)
enumeration 2
Missed Approach (not for FAS Datablock)
enumeration 3
Spare
enumeration 4
Spare
enumeration 5
Spare
enumeration 6
Spare
enumeration 7
Spare
enumeration 8
Spare
enumeration 9
Spare
enumeration 10
Spare
enumeration 11
Spare
enumeration 12
Spare
enumeration 13
Spare
enumeration 14
Spare
enumeration 15
Spare
Source

<xs:element name="operationType" type="enum:GBASOperationType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Operation Type” field indicates whether the operation is an approach procedure, an advanced operation or other operational to be defined later.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Approach / sbasPathPoint
Namespace No namespace
Annotations

This element is the SBAS path point for the approach
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#PathPoint_approachPerformanceDesignator ARINC424_22_HTML.tmp#PathPoint_approachRouteIdentifier ARINC424_22_HTML.tmp#PathPoint_approachTypeIdentifier ARINC424_22_HTML.tmp#PathPoint_courseWidthAtThreshold ARINC424_22_HTML.tmp#PathPoint_FASDataCRCRemainder ARINC424_22_HTML.tmp#PathPoint_flightPathAlignmentPoint ARINC424_22_HTML.tmp#PathPoint_fpapEllipsoidHeight ARINC424_22_HTML.tmp#PathPoint_fpapOrthometricHeight ARINC424_22_HTML.tmp#PathPoint_glidePathAngle ARINC424_22_HTML.tmp#PathPoint_gnssChannelNumber ARINC424_22_HTML.tmp#PathPoint_helicopterProcedureCourse ARINC424_22_HTML.tmp#PathPoint_landingThresholdPoint ARINC424_22_HTML.tmp#PathPoint_lengthOffset ARINC424_22_HTML.tmp#PathPoint_ltpEllipsoidHeight ARINC424_22_HTML.tmp#PathPoint_ltpOrthometricHeight ARINC424_22_HTML.tmp#PathPoint_pathPointTCH ARINC424_22_HTML.tmp#PathPoint_referencePathDataSelector ARINC424_22_HTML.tmp#PathPoint_referencePathIdentifier ARINC424_22_HTML.tmp#PathPoint_routeIndicator ARINC424_22_HTML.tmp#PathPoint_runwayOrPadIdentifier ARINC424_22_HTML.tmp#PathPoint_tchUnitsIndicator ARINC424_22_HTML.tmp#PathPoint ARINC424_22_HTML.tmp#SBASPathPoint_hal ARINC424_22_HTML.tmp#SBASPathPoint_operationType ARINC424_22_HTML.tmp#SBASPathPoint_sbasServiceProviderIdentifier ARINC424_22_HTML.tmp#SBASPathPoint_val ARINC424_22_HTML.tmp#SBASPathPoint_FinalApproachCourse ARINC424_22_HTML.tmp#SBASPathPoint
Type SBASPathPoint
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children FASDataCRCRemainder, FinalApproachCourse, approachPerformanceDesignator, approachRouteIdentifier, approachTypeIdentifier, courseWidthAtThreshold, custAreaCode, cycleDate, flightPathAlignmentPoint, fpapEllipsoidHeight, fpapOrthometricHeight, glidePathAngle, gnssChannelNumber, hal, helicopterProcedureCourse, landingThresholdPoint, lengthOffset, ltpEllipsoidHeight, ltpOrthometricHeight, notes, operationType, pathPointTCH, recordType, referencePathDataSelector, referencePathIdentifier, routeIndicator, runwayOrPadIdentifier, sbasServiceProviderIdentifier, supplementalData, tchUnitsIndicator, val
Instance

<sbasPathPoint>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <approachPerformanceDesignator>{1,1}</approachPerformanceDesignator>
  <approachRouteIdentifier>{0,1}</approachRouteIdentifier>
  <approachTypeIdentifier>{0,1}</approachTypeIdentifier>
  <courseWidthAtThreshold>{1,1}</courseWidthAtThreshold>
  <FASDataCRCRemainder>{1,1}</FASDataCRCRemainder>
  <flightPathAlignmentPoint>{1,1}</flightPathAlignmentPoint>
  <fpapEllipsoidHeight>{0,1}</fpapEllipsoidHeight>
  <fpapOrthometricHeight>{0,1}</fpapOrthometricHeight>
  <glidePathAngle>{1,1}</glidePathAngle>
  <gnssChannelNumber>{0,1}</gnssChannelNumber>
  <helicopterProcedureCourse>{0,1}</helicopterProcedureCourse>
  <landingThresholdPoint>{1,1}</landingThresholdPoint>
  <lengthOffset>{0,1}</lengthOffset>
  <ltpEllipsoidHeight>{1,1}</ltpEllipsoidHeight>
  <ltpOrthometricHeight>{0,1}</ltpOrthometricHeight>
  <pathPointTCH>{1,1}</pathPointTCH>
  <referencePathDataSelector>{1,1}</referencePathDataSelector>
  <referencePathIdentifier>{1,1}</referencePathIdentifier>
  <routeIndicator>{0,1}</routeIndicator>
  <runwayOrPadIdentifier>{0,1}</runwayOrPadIdentifier>
  <tchUnitsIndicator>{1,1}</tchUnitsIndicator>
  <hal>{1,1}</hal>
  <operationType>{1,1}</operationType>
  <sbasServiceProviderIdentifier>{1,1}</sbasServiceProviderIdentifier>
  <val>{1,1}</val>
  <FinalApproachCourse>{1,1}</FinalApproachCourse>
</sbasPathPoint>
Source

<xs:element name="sbasPathPoint" type="SBASPathPoint" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element is the SBAS path point for the approach</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SBASPathPoint / hal
Namespace No namespace
Annotations

The Horizontal Alert Limit (HAL) is the radius of a circle in the horizontal plane (the local plane tangent to the WGS-84 ellipsoid), with its center being at the true position, which describes the region which is required to contain the indicated horizontal position with the required probability for a particular navigation mode assuming the probability of a GPS satellite integrity failure being included in the position solution is less than or equal to 10-4 per hour.
Diagram
Diagram ARINC424_22_HTML.tmp#HorizontalAlertLimit
Type type:HorizontalAlertLimit
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 3
fractionDigits 1
Source

<xs:element name="hal" type="type:HorizontalAlertLimit" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Horizontal Alert Limit (HAL) is the radius of a circle in the horizontal plane (the local plane tangent to the WGS-84 ellipsoid), with its center being at the true position, which describes the region which is required to contain the indicated horizontal position with the required probability for a particular navigation mode assuming the probability of a GPS satellite integrity failure being included in the position solution is less than or equal to 10-4 per hour.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SBASPathPoint / operationType
Namespace No namespace
Annotations

The “Operation Type” field indicates whether the operation is an approach procedure, an advanced operation or other operational to be defined later.
Diagram
Diagram ARINC424_22_HTML.tmp#SBASOperationType
Type enum:SBASOperationType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration 0
Straight-in or point-in-space approach procedure
enumeration 1
Reserved for future definition
enumeration 2
Reserved for future definition
enumeration 3
Spare
enumeration 4
Spare
enumeration 5
Spare
enumeration 6
Spare
enumeration 7
Spare
enumeration 8
Spare
enumeration 9
Spare
enumeration 10
Spare
enumeration 11
Spare
enumeration 12
Spare
enumeration 13
Spare
enumeration 14
Spare
enumeration 15
Spare
Source

<xs:element name="operationType" type="enum:SBASOperationType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Operation Type” field indicates whether the operation is an approach procedure, an advanced operation or other operational to be defined later.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SBASPathPoint / sbasServiceProviderIdentifier
Namespace No namespace
Annotations

The “SBAS Service Provider Identifier” field is used to associate the approach procedure to a particular satellite based approach system service provider.
Diagram
Diagram ARINC424_22_HTML.tmp#SBASServiceProviderIdentifier
Type enum:SBASServiceProviderIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration 0
WAAS
enumeration 1
EGNOS
enumeration 2
MSAS
enumeration 14
Not intended for SBAS
enumeration 15
Any Service provider may be used
Source

<xs:element name="sbasServiceProviderIdentifier" type="enum:SBASServiceProviderIdentifier" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “SBAS Service Provider Identifier” field is used to associate the approach procedure to a particular satellite based approach system service provider.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SBASPathPoint / val
Namespace No namespace
Annotations

The Vertical Alert Limit (VAL) is half the length of a segment on the vertical axis (perpendicular to the horizontal plane of WGS-84 ellipsoid), with its center being at the true position, which describes the region which is required to contain the indicated vertical position with a probability of 1-10-7 per approach, assuming the probability of a GPS satellite integrity failure being included in the position solution is less than or equal to 10-4 per hour.
Diagram
Diagram ARINC424_22_HTML.tmp#VerticalAlertLimit
Type type:VerticalAlertLimit
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="val" type="type:VerticalAlertLimit" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Vertical Alert Limit (VAL) is half the length of a segment on the vertical axis (perpendicular to the horizontal plane of WGS-84 ellipsoid), with its center being at the true position, which describes the region which is required to contain the indicated vertical position with a probability of 1-10-7 per approach, assuming the probability of a GPS satellite integrity failure being included in the position solution is less than or equal to 10-4 per hour.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SBASPathPoint / FinalApproachCourse
Namespace No namespace
Annotations

The SBAS Final Approach Course field contains the published final approach course of the PBN procedure with SBAS level of service.
Diagram
Diagram ARINC424_22_HTML.tmp#Course_courseValue ARINC424_22_HTML.tmp#Course_isTrue ARINC424_22_HTML.tmp#Course
Type type:Course
Properties
content complex
Model
Children courseValue, isTrue
Instance

<FinalApproachCourse>
  <courseValue>{1,1}</courseValue>
  <isTrue>{0,1}</isTrue>
</FinalApproachCourse>
Source

<xs:element name="FinalApproachCourse" type="type:Course">
  <xs:annotation>
    <xs:documentation>The SBAS Final Approach Course field contains the published final approach course of the PBN procedure with SBAS level of service.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Approach / approachTransition
Namespace No namespace
Annotations

These elements are the approach transitions for the approach.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#ApproachRoute_qualifier1 ARINC424_22_HTML.tmp#ApproachRoute_qualifier2 ARINC424_22_HTML.tmp#ApproachRoute ARINC424_22_HTML.tmp#ApproachTransition_multipleIndicator ARINC424_22_HTML.tmp#ApproachTransition_taaReference ARINC424_22_HTML.tmp#ApproachTransition
Type ApproachTransition
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children identifier, msaRef, multipleIndicator, procedureLeg, qualifier1, qualifier2, supplementalData, taaReference, transitionAltitudeOrLevel
Instance

<approachTransition>
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <transitionAltitudeOrLevel>{1,1}</transitionAltitudeOrLevel>
  <msaRef>{0,1}</msaRef>
  <procedureLeg>{1,unbounded}</procedureLeg>
  <qualifier1>{0,1}</qualifier1>
  <qualifier2>{0,1}</qualifier2>
  <multipleIndicator>{0,1}</multipleIndicator>
  <taaReference>{0,1}</taaReference>
</approachTransition>
Source

<xs:element name="approachTransition" type="ApproachTransition" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>These elements are the approach transitions for the approach.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ApproachRoute / qualifier1
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ApproachQualifier1
Type enum:ApproachQualifier1
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration RnavVisual
RNAV Visual Procedure
enumeration DmeRequired
DME Required for Procedure
enumeration GpsRequiredDmeDmeNotAuthorized
GPS (GNSS) required, DME/DME to RNP xx.x not authorized
enumeration RnpAr
RNP SAAAR/AR
enumeration AdvancedRnp
Advanced (RNAV RNP, SAAAR/AR not required)
enumeration Gbas
GBAS Procedure
enumeration DmeNotRequired
DME Not Required for Procedure
enumeration GnssRequired
GNSS Required
enumeration GnssorDmeDmeRequired
GPS (GNSS) or DME/DME to RNP xx.x  required
enumeration DmeDmeRequired
DME/DME Required for Procedure
enumeration RnavSensorNotSpecified
RNAV, Sensor Not Specified
enumeration VorDmeRnav
VOR/DME RNAV
enumeration RnavRequiresFasDataBlock
RNAV Procedure that Requires FAS Data Block
Source

<xs:element name="qualifier1" type="enum:ApproachQualifier1" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ApproachRoute / qualifier2
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ApproachQualifier2
Type enum:ApproachQualifier2
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration PrimaryMissedApproach
Primary Missed Approach
enumeration SecondaryMissedApproach
Secondary Missed Approach
enumeration EngineOutMissedApproach
Engine Out Missed Approach
enumeration CircleToLandMinimums
Procedure with Circle-To-Land Minimums
enumeration HelicopterStraightInMinimums
Helicopter with straight-in minimums
enumeration HelicopterCircleToLandMinimums
Helicopter with circle-to-land minimums
enumeration HelicopterLandingMinimums
Helicopter with Helicopter Landing Minimums
enumeration StraightInMinimums
Procedure with Straight-in Minimums
enumeration VmcMinimums
Procedure with VMC minimums
Source

<xs:element name="qualifier2" type="enum:ApproachQualifier2" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ApproachTransition / multipleIndicator
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#MultipleIndicator
Type type:MultipleIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 1
Source

<xs:element name="multipleIndicator" type="type:MultipleIndicator" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ApproachTransition / taaReference
Namespace No namespace
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="taaReference" type="xs:IDREF" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Approach / finalApproach
Namespace No namespace
Annotations

This is the final approach route, which ends at the last part of the final before the missed approach.  e.g., The last point of the final approach is often  the missed approach point.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#ApproachRoute_qualifier1 ARINC424_22_HTML.tmp#ApproachRoute_qualifier2 ARINC424_22_HTML.tmp#ApproachRoute ARINC424_22_HTML.tmp#FinalApproach_fasBlockProvided ARINC424_22_HTML.tmp#FinalApproach_fasBlockProvidedLevelOfServiceName ARINC424_22_HTML.tmp#FinalApproach_isRemoteAltimeterRestricted ARINC424_22_HTML.tmp#FinalApproach_lnavAuthorisedForSBAS ARINC424_22_HTML.tmp#FinalApproach_lnavLevelOfServiceName ARINC424_22_HTML.tmp#FinalApproach_lnavVNAVAuthorisedForSBAS ARINC424_22_HTML.tmp#FinalApproach_lnavVNAVLevelOfServiceName ARINC424_22_HTML.tmp#FinalApproach_procedureTCH ARINC424_22_HTML.tmp#FinalApproach_rnpLOS ARINC424_22_HTML.tmp#FinalApproach
Type FinalApproach
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children fasBlockProvided, fasBlockProvidedLevelOfServiceName, identifier, isRemoteAltimeterRestricted, lnavAuthorisedForSBAS, lnavLevelOfServiceName, lnavVNAVAuthorisedForSBAS, lnavVNAVLevelOfServiceName, msaRef, procedureLeg, procedureTCH, qualifier1, qualifier2, rnpLOS, supplementalData, transitionAltitudeOrLevel
Instance

<finalApproach>
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <transitionAltitudeOrLevel>{1,1}</transitionAltitudeOrLevel>
  <msaRef>{0,1}</msaRef>
  <procedureLeg>{1,unbounded}</procedureLeg>
  <qualifier1>{0,1}</qualifier1>
  <qualifier2>{0,1}</qualifier2>
  <fasBlockProvided>{0,1}</fasBlockProvided>
  <fasBlockProvidedLevelOfServiceName>{0,1}</fasBlockProvidedLevelOfServiceName>
  <isRemoteAltimeterRestricted>{0,1}</isRemoteAltimeterRestricted>
  <lnavAuthorisedForSBAS>{0,1}</lnavAuthorisedForSBAS>
  <lnavLevelOfServiceName>{0,1}</lnavLevelOfServiceName>
  <lnavVNAVAuthorisedForSBAS>{0,1}</lnavVNAVAuthorisedForSBAS>
  <lnavVNAVLevelOfServiceName>{0,1}</lnavVNAVLevelOfServiceName>
  <procedureTCH>{0,1}</procedureTCH>
  <rnpLOS>{0,unbounded}</rnpLOS>
</finalApproach>
Source

<xs:element name="finalApproach" type="FinalApproach" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This is the final approach route, which ends at the last part of the final before the missed approach. e.g., The last point of the final approach is often the missed approach point.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FinalApproach / fasBlockProvided
Namespace No namespace
Annotations

The “Level of Service Authorized” field defines whether the Level of Service designated in an associated field (Section 5.275) is authorized or not authorized for a procedure.
Diagram
Diagram ARINC424_22_HTML.tmp#LevelOfServiceAuthorised
Type enum:LevelOfServiceAuthorised
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Authorized
Designated Level of Service is authorized for the procedure
enumeration NotAuthorized
Designated Level of Service is not authorized for the procedure
Source

<xs:element name="fasBlockProvided" type="enum:LevelOfServiceAuthorised" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Level of Service Authorized” field defines whether the Level of Service designated in an associated field (Section 5.275) is authorized or not authorized for a procedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FinalApproach / fasBlockProvidedLevelOfServiceName
Namespace No namespace
Annotations

The “Level of Service Name” field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for SBAS and/or RNP.
Diagram
Diagram ARINC424_22_HTML.tmp#LevelOfServiceName
Type enum:LevelOfServiceName
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 10
enumeration LPV
enumeration LPV200
enumeration LP
enumeration LNAV
enumeration LNAV/VNAV
Source

<xs:element name="fasBlockProvidedLevelOfServiceName" type="enum:LevelOfServiceName" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Level of Service Name” field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for SBAS and/or RNP.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FinalApproach / isRemoteAltimeterRestricted
Namespace No namespace
Annotations

The field indicates whether or not the existence and use of a remote altimeter setting is applicable to the procedure.  The field is true when there is a restriction on the use of LNAV/VNAV (Baro-VNAV) lines of minimum.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isRemoteAltimeterRestricted" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The field indicates whether or not the existence and use of a remote altimeter setting is applicable to the procedure. The field is true when there is a restriction on the use of LNAV/VNAV (Baro-VNAV) lines of minimum.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FinalApproach / lnavAuthorisedForSBAS
Namespace No namespace
Annotations

The “Level of Service Authorized” field defines whether the Level of Service designated in an associated field (Section 5.275) is authorized or not authorized for a procedure.
Diagram
Diagram ARINC424_22_HTML.tmp#LevelOfServiceAuthorised
Type enum:LevelOfServiceAuthorised
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Authorized
Designated Level of Service is authorized for the procedure
enumeration NotAuthorized
Designated Level of Service is not authorized for the procedure
Source

<xs:element name="lnavAuthorisedForSBAS" type="enum:LevelOfServiceAuthorised" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Level of Service Authorized” field defines whether the Level of Service designated in an associated field (Section 5.275) is authorized or not authorized for a procedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FinalApproach / lnavLevelOfServiceName
Namespace No namespace
Annotations

The “Level of Service Name” field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for SBAS and/or RNP.
Diagram
Diagram ARINC424_22_HTML.tmp#LevelOfServiceName
Type enum:LevelOfServiceName
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 10
enumeration LPV
enumeration LPV200
enumeration LP
enumeration LNAV
enumeration LNAV/VNAV
Source

<xs:element name="lnavLevelOfServiceName" type="enum:LevelOfServiceName" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Level of Service Name” field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for SBAS and/or RNP.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FinalApproach / lnavVNAVAuthorisedForSBAS
Namespace No namespace
Annotations

The “Level of Service Authorized” field defines whether the Level of Service designated in an associated field (Section 5.275) is authorized or not authorized for a procedure.
Diagram
Diagram ARINC424_22_HTML.tmp#LevelOfServiceAuthorised
Type enum:LevelOfServiceAuthorised
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Authorized
Designated Level of Service is authorized for the procedure
enumeration NotAuthorized
Designated Level of Service is not authorized for the procedure
Source

<xs:element name="lnavVNAVAuthorisedForSBAS" type="enum:LevelOfServiceAuthorised" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Level of Service Authorized” field defines whether the Level of Service designated in an associated field (Section 5.275) is authorized or not authorized for a procedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FinalApproach / lnavVNAVLevelOfServiceName
Namespace No namespace
Annotations

The “Level of Service Name” field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for SBAS and/or RNP.
Diagram
Diagram ARINC424_22_HTML.tmp#LevelOfServiceName
Type enum:LevelOfServiceName
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 10
enumeration LPV
enumeration LPV200
enumeration LP
enumeration LNAV
enumeration LNAV/VNAV
Source

<xs:element name="lnavVNAVLevelOfServiceName" type="enum:LevelOfServiceName" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Level of Service Name” field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for SBAS and/or RNP.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FinalApproach / procedureTCH
Namespace No namespace
Annotations

The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.
Diagram
Diagram ARINC424_22_HTML.tmp#ThresholdCrossingHeight
Type type:ThresholdCrossingHeight
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="procedureTCH" type="type:ThresholdCrossingHeight" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FinalApproach / rnpLOS
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RNPLOS_rnp ARINC424_22_HTML.tmp#RNPLOS_rnpLOSAuthorized ARINC424_22_HTML.tmp#RNPLOS
Type type:RNPLOS
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children rnp, rnpLOSAuthorized
Instance

<rnpLOS>
  <rnp>{1,1}</rnp>
  <rnpLOSAuthorized>{1,1}</rnpLOSAuthorized>
</rnpLOS>
Source

<xs:element name="rnpLOS" type="type:RNPLOS" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element type:RNPLOS / rnp
Namespace No namespace
Annotations

This field contains the RNP level of service in decimal e.g. 1.0
Diagram
Diagram
Type xs:decimal
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="rnp" type="xs:decimal" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field contains the RNP level of service in decimal e.g. 1.0</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:RNPLOS / rnpLOSAuthorized
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RnpLOSAuthorized
Type enum:RnpLOSAuthorized
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Authorized
enumeration NotAuthorized
Source

<xs:element name="rnpLOSAuthorized" type="enum:RnpLOSAuthorized" minOccurs="1" maxOccurs="1"/>
[ top ]
Element Approach / missedApproach
Namespace No namespace
Annotations

These elments are the missed approach routes for a procedure.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#ApproachRoute_qualifier1 ARINC424_22_HTML.tmp#ApproachRoute_qualifier2 ARINC424_22_HTML.tmp#ApproachRoute ARINC424_22_HTML.tmp#MissedApproach
Type MissedApproach
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children identifier, msaRef, procedureLeg, qualifier1, qualifier2, supplementalData, transitionAltitudeOrLevel
Instance

<missedApproach>
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <transitionAltitudeOrLevel>{1,1}</transitionAltitudeOrLevel>
  <msaRef>{0,1}</msaRef>
  <procedureLeg>{1,unbounded}</procedureLeg>
  <qualifier1>{0,1}</qualifier1>
  <qualifier2>{0,1}</qualifier2>
</missedApproach>
Source

<xs:element name="missedApproach" type="MissedApproach" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>These elments are the missed approach routes for a procedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Approach / approachPointRef
Namespace No namespace
Annotations

This element provides a reference to the point served by this approach procedure.  On an approach this would reference a runway or fix.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="approachPointRef" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides a reference to the point served by this approach procedure. On an approach this would reference a runway or fix.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Approach / isRnavVisual
Namespace No namespace
Annotations

If this element exists and is true the parent is an Rnav Visual.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isRnavVisual" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>If this element exists and is true the parent is an Rnav Visual.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Approach / isPinsProceedVisually
Namespace No namespace
Annotations

This element indicates if the procedure is Point In Space with a instructions to procede visually.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isPinsProceedVisually" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element indicates if the procedure is Point In Space with a instructions to procede visually.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Approach / isPinsProceedVfr
Namespace No namespace
Annotations

This element indicates if hte procedure is Point In Space with instructions to procedure under visual flight rules.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isPinsProceedVfr" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element indicates if hte procedure is Point In Space with instructions to procedure under visual flight rules.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Approach / isLocalizerBackcourse
Namespace No namespace
Annotations

If this element exists and is true th eparent is a localizer backcourse.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isLocalizerBackcourse" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>If this element exists and is true th eparent is a localizer backcourse.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Approach / approachPbnNavSpec
Namespace No namespace
Annotations

This element provides informaiton on the ICAO PBN navigation specification applicable to the approach.
Diagram
Diagram ARINC424_22_HTML.tmp#ApproachPbnNavSpec
Type enum:ApproachPbnNavSpec
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Rnav1
enumeration Rnp1
enumeration RnpAr
enumeration AdvRnp
enumeration Rnp0_3
enumeration PbnUnspecified
enumeration RnpApch
Source

<xs:element name="approachPbnNavSpec" type="enum:ApproachPbnNavSpec" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides informaiton on the ICAO PBN navigation specification applicable to the approach.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Approach / isPreferredProcedure
Namespace No namespace
Annotations

Preferred Multiple Approach Indicator is used to identify the multiple approach that is generally considered to be the most likely one to be utilized/needed when there are only multiple approaches available for a given approach type at a runway. This will be defined on the Approach FAF record in the Final Approach. For a given approach type at a runway, there shall be one and only one Primary Multiple Approach Indicator provided
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isPreferredProcedure" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Preferred Multiple Approach Indicator is used to identify the multiple approach that is generally considered to be the most likely one to be utilized/needed when there are only multiple approaches available for a given approach type at a runway. This will be defined on the Approach FAF record in the Final Approach. For a given approach type at a runway, there shall be one and only one Primary Multiple Approach Indicator provided</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / terminalWaypoint
Namespace No namespace
Annotations

Terminal Waypoint field contains all terminal waypoints and VFR waypoints within the geographical area of each airport/heliport. Terminal waypoints utilized by two or more airports will be stored in the Enroute Waypoint Subsection to eliminate duplication. Terminal waypoints used jointly by and airoprt and a heliport are also stored in the Enroute waypoint section.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Waypoint_nameFormatIndicator ARINC424_22_HTML.tmp#Waypoint_waypointType ARINC424_22_HTML.tmp#Waypoint_waypointUsage ARINC424_22_HTML.tmp#Waypoint ARINC424_22_HTML.tmp#TerminalWaypoint
Type TerminalWaypoint
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children custAreaCode, cycleDate, datumCode, firRef, icaoCode, identifier, location, magneticVariation, name, nameFormatIndicator, notes, recordType, supplementalData, uirRef, waypointType, waypointUsage
Instance

<terminalWaypoint referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <nameFormatIndicator>{0,1}</nameFormatIndicator>
  <waypointType>{1,1}</waypointType>
  <waypointUsage>{1,1}</waypointUsage>
</terminalWaypoint>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="terminalWaypoint" type="TerminalWaypoint" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Terminal Waypoint field contains all terminal waypoints and VFR waypoints within the geographical area of each airport/heliport. Terminal waypoints utilized by two or more airports will be stored in the Enroute Waypoint Subsection to eliminate duplication. Terminal waypoints used jointly by and airoprt and a heliport are also stored in the Enroute waypoint section.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Waypoint / nameFormatIndicator
Namespace No namespace
Annotations

The “Name Format Indicator” field is used to describe the format of the “Waypoint Name/Description” field (5.43). This field will be formatted according to the rules described in Chapter 7 of this Specification, Waypoint Naming Conventions.
Diagram
Diagram ARINC424_22_HTML.tmp#NameFormatIndicator_fixType ARINC424_22_HTML.tmp#NameFormatIndicator_localizerMarkerIndicator ARINC424_22_HTML.tmp#NameFormatIndicator
Type type:NameFormatIndicator
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children fixType, localizerMarkerIndicator
Instance

<nameFormatIndicator>
  <fixType>{1,1}</fixType>
  <localizerMarkerIndicator>{1,1}</localizerMarkerIndicator>
</nameFormatIndicator>
Source

<xs:element name="nameFormatIndicator" type="type:NameFormatIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Name Format Indicator” field is used to describe the format of the “Waypoint Name/Description” field (5.43). This field will be formatted according to the rules described in Chapter 7 of this Specification, Waypoint Naming Conventions.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:NameFormatIndicator / fixType
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#FixType
Type enum:FixType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Abeam
Abeam a Fix
enumeration BearingDistance
Bearing and Distance Fix
enumeration AirportName
Airport Name as Fix
enumeration Fir
FIR Fix
enumeration PhoeneticLetterName
Phoenetic Letter Name Fix
enumeration AirportIdent
Airport Ident as Fix
enumeration LatLong
Latitude/Longitude Fix
enumeration MultipleWord
Multiple Word as Fix
enumeration Navaid
Navaid Ident as Fix
enumeration PublishedFiveLetterName
Published Five - Letter - Name Fix
enumeration PublishedLessThanFiveLetterName
Published Name Fix, less than Five Letters
enumeration PublishedMoreThanFiveName
Published Name Fix, more than Five Letters
enumeration AptRwyRelated
Apt/Rwy Related Fix (Note 2)
enumeration Uir
UIR Fix
Source

<xs:element name="fixType" type="enum:FixType" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:NameFormatIndicator / localizerMarkerIndicator
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#LocalizerMarkerIndicator
Type enum:LocalizerMarkerIndicator
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration OfficialFiveLetter
Localizer Marker with official published five - letter identifier
enumeration NoPublishedFiveLetter
Localizer Marker without official published five - letter identifier
Source

<xs:element name="localizerMarkerIndicator" type="enum:LocalizerMarkerIndicator" minOccurs="1" maxOccurs="1"/>
[ top ]
Element Waypoint / waypointType
Namespace No namespace
Annotations

The “Waypoint Type” field identifies a number of data conditions.

1. The first is whether or not the waypoint has been published in an official government source or created during database coding of routes or procedures.
2. The second is whether or not the waypoint is an intersection formed with reference to ground based navaids or is an RNAV Waypoint formed by the latitude and longitude.
3. The third is an indication of one or more functions assigned to that waypoint in terminal procedure coding.
4. The fourth is an indication of location of the waypoint with reference to airspace boundaries and/or grid lines.
5. The fifth is an indication of how ATC might be using the waypoint in operational clearances.
6. The sixth is an indication that the waypoint has been published for VFR use only.
7. Lastly, there is an indication of whether the waypoint is published for use in terminal procedure coding of a specific type, multiple types or not published at all.
Diagram
Diagram ARINC424_22_HTML.tmp#WaypointType_isAirwayIntersection ARINC424_22_HTML.tmp#WaypointType_isArcCenter ARINC424_22_HTML.tmp#WaypointType_isBackMarker ARINC424_22_HTML.tmp#WaypointType_isControlledAirspaceIntersesction ARINC424_22_HTML.tmp#WaypointType_isEnroute ARINC424_22_HTML.tmp#WaypointType_isFACF ARINC424_22_HTML.tmp#WaypointType_isFAF ARINC424_22_HTML.tmp#WaypointType_isFIRorFRAEntryPoint ARINC424_22_HTML.tmp#WaypointType_isFIRorFRAExitPoint ARINC424_22_HTML.tmp#WaypointType_isFirUirFix ARINC424_22_HTML.tmp#WaypointType_isForApproach ARINC424_22_HTML.tmp#WaypointType_isForSID ARINC424_22_HTML.tmp#WaypointType_isForStar ARINC424_22_HTML.tmp#WaypointType_isForMultipleProcedures ARINC424_22_HTML.tmp#WaypointType_isFRAArrivalTransitionPoint ARINC424_22_HTML.tmp#WaypointType_isFRADepatureTransitionPoint ARINC424_22_HTML.tmp#WaypointType_isFRAIntermediatePoint ARINC424_22_HTML.tmp#WaypointType_isFRATerminalHoldingPoint ARINC424_22_HTML.tmp#WaypointType_isFullDegreeLatFix ARINC424_22_HTML.tmp#WaypointType_isHalfDegreeLatFix ARINC424_22_HTML.tmp#WaypointType_isHelicopterOnlyAirwayFix ARINC424_22_HTML.tmp#WaypointType_isInitialApproachFix ARINC424_22_HTML.tmp#WaypointType_isInitialDepartureFix ARINC424_22_HTML.tmp#WaypointType_isInnerMarker ARINC424_22_HTML.tmp#WaypointType_isIntermediateApproachFix ARINC424_22_HTML.tmp#WaypointType_isIntersectionDmeFix ARINC424_22_HTML.tmp#WaypointType_isMiddleMarker ARINC424_22_HTML.tmp#WaypointType_isMissedApproachPoint ARINC424_22_HTML.tmp#WaypointType_isNDB ARINC424_22_HTML.tmp#WaypointType_isOceanicGateway ARINC424_22_HTML.tmp#WaypointType_isOffRoute ARINC424_22_HTML.tmp#WaypointType_isOuterMarker ARINC424_22_HTML.tmp#WaypointType_isRequiredOffRoute ARINC424_22_HTML.tmp#WaypointType_isRfLegNotProcedureFix ARINC424_22_HTML.tmp#WaypointType_isRNAV ARINC424_22_HTML.tmp#WaypointType_isUsageRNAV ARINC424_22_HTML.tmp#WaypointType_isSourceProvidedEnroute ARINC424_22_HTML.tmp#WaypointType_isStepDownFix ARINC424_22_HTML.tmp#WaypointType_isUncharted ARINC424_22_HTML.tmp#WaypointType_isUnnamed ARINC424_22_HTML.tmp#WaypointType_isVFR ARINC424_22_HTML.tmp#WaypointType
Type type:WaypointType
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children isAirwayIntersection, isArcCenter, isBackMarker, isControlledAirspaceIntersesction, isEnroute, isFACF, isFAF, isFIRorFRAEntryPoint, isFIRorFRAExitPoint, isFRAArrivalTransitionPoint, isFRADepatureTransitionPoint, isFRAIntermediatePoint, isFRATerminalHoldingPoint, isFirUirFix, isForApproach, isForMultipleProcedures, isForSID, isForStar, isFullDegreeLatFix, isHalfDegreeLatFix, isHelicopterOnlyAirwayFix, isInitialApproachFix, isInitialDepartureFix, isInnerMarker, isIntermediateApproachFix, isIntersectionDmeFix, isMiddleMarker, isMissedApproachPoint, isNDB, isOceanicGateway, isOffRoute, isOuterMarker, isRNAV, isRequiredOffRoute, isRfLegNotProcedureFix, isSourceProvidedEnroute, isStepDownFix, isUncharted, isUnnamed, isUsageRNAV, isVFR
Instance

<waypointType>
  <isAirwayIntersection>{0,1}</isAirwayIntersection>
  <isArcCenter>{0,1}</isArcCenter>
  <isBackMarker>{0,1}</isBackMarker>
  <isControlledAirspaceIntersesction>{0,1}</isControlledAirspaceIntersesction>
  <isEnroute>{0,1}</isEnroute>
  <isFACF>{0,1}</isFACF>
  <isFAF>{0,1}</isFAF>
  <isFIRorFRAEntryPoint>{0,1}</isFIRorFRAEntryPoint>
  <isFIRorFRAExitPoint>{0,1}</isFIRorFRAExitPoint>
  <isFirUirFix>{0,1}</isFirUirFix>
  <isForApproach>{0,1}</isForApproach>
  <isForSID>{0,1}</isForSID>
  <isForStar>{0,1}</isForStar>
  <isForMultipleProcedures>{0,1}</isForMultipleProcedures>
  <isFRAArrivalTransitionPoint>{0,1}</isFRAArrivalTransitionPoint>
  <isFRADepatureTransitionPoint>{0,1}</isFRADepatureTransitionPoint>
  <isFRAIntermediatePoint>{0,1}</isFRAIntermediatePoint>
  <isFRATerminalHoldingPoint>{0,1}</isFRATerminalHoldingPoint>
  <isFullDegreeLatFix>{0,1}</isFullDegreeLatFix>
  <isHalfDegreeLatFix>{0,1}</isHalfDegreeLatFix>
  <isHelicopterOnlyAirwayFix>{0,1}</isHelicopterOnlyAirwayFix>
  <isInitialApproachFix>{0,1}</isInitialApproachFix>
  <isInitialDepartureFix>{0,1}</isInitialDepartureFix>
  <isInnerMarker>{0,1}</isInnerMarker>
  <isIntermediateApproachFix>{0,1}</isIntermediateApproachFix>
  <isIntersectionDmeFix>{0,1}</isIntersectionDmeFix>
  <isMiddleMarker>{0,1}</isMiddleMarker>
  <isMissedApproachPoint>{0,1}</isMissedApproachPoint>
  <isNDB>{0,1}</isNDB>
  <isOceanicGateway>{0,1}</isOceanicGateway>
  <isOffRoute>{0,1}</isOffRoute>
  <isOuterMarker>{0,1}</isOuterMarker>
  <isRequiredOffRoute>{0,1}</isRequiredOffRoute>
  <isRfLegNotProcedureFix>{0,1}</isRfLegNotProcedureFix>
  <isRNAV>{0,1}</isRNAV>
  <isUsageRNAV>{0,1}</isUsageRNAV>
  <isSourceProvidedEnroute>{0,1}</isSourceProvidedEnroute>
  <isStepDownFix>{0,1}</isStepDownFix>
  <isUncharted>{0,1}</isUncharted>
  <isUnnamed>{0,1}</isUnnamed>
  <isVFR>{0,1}</isVFR>
</waypointType>
Source

<xs:element name="waypointType" type="type:WaypointType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Waypoint Type” field identifies a number of data conditions. 1. The first is whether or not the waypoint has been published in an official government source or created during database coding of routes or procedures. 2. The second is whether or not the waypoint is an intersection formed with reference to ground based navaids or is an RNAV Waypoint formed by the latitude and longitude. 3. The third is an indication of one or more functions assigned to that waypoint in terminal procedure coding. 4. The fourth is an indication of location of the waypoint with reference to airspace boundaries and/or grid lines. 5. The fifth is an indication of how ATC might be using the waypoint in operational clearances. 6. The sixth is an indication that the waypoint has been published for VFR use only. 7. Lastly, there is an indication of whether the waypoint is published for use in terminal procedure coding of a specific type, multiple types or not published at all.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:WaypointType / isAirwayIntersection
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isAirwayIntersection" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isArcCenter
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isArcCenter" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isBackMarker
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isBackMarker" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isControlledAirspaceIntersesction
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isControlledAirspaceIntersesction" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isEnroute
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isEnroute" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isFACF
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFACF" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isFAF
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFAF" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isFIRorFRAEntryPoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFIRorFRAEntryPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isFIRorFRAExitPoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFIRorFRAExitPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isFirUirFix
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFirUirFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isForApproach
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isForApproach" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isForSID
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isForSID" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isForStar
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isForStar" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isForMultipleProcedures
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isForMultipleProcedures" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isFRAArrivalTransitionPoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFRAArrivalTransitionPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isFRADepatureTransitionPoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFRADepatureTransitionPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isFRAIntermediatePoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFRAIntermediatePoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isFRATerminalHoldingPoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFRATerminalHoldingPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isFullDegreeLatFix
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFullDegreeLatFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isHalfDegreeLatFix
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isHalfDegreeLatFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isHelicopterOnlyAirwayFix
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isHelicopterOnlyAirwayFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isInitialApproachFix
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isInitialApproachFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isInitialDepartureFix
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isInitialDepartureFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isInnerMarker
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isInnerMarker" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isIntermediateApproachFix
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isIntermediateApproachFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isIntersectionDmeFix
Namespace No namespace
Annotations

This field applies to the intersection of concepts that apply to aspects of conventional navigation. e.g., a fix at DME 10.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isIntersectionDmeFix" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field applies to the intersection of concepts that apply to aspects of conventional navigation. e.g., a fix at DME 10.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:WaypointType / isMiddleMarker
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isMiddleMarker" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isMissedApproachPoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isMissedApproachPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isNDB
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isNDB" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isOceanicGateway
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isOceanicGateway" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isOffRoute
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isOffRoute" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isOuterMarker
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isOuterMarker" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isRequiredOffRoute
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isRequiredOffRoute" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isRfLegNotProcedureFix
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isRfLegNotProcedureFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isRNAV
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isRNAV" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isUsageRNAV
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isUsageRNAV" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isSourceProvidedEnroute
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isSourceProvidedEnroute" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isStepDownFix
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isStepDownFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isUncharted
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isUncharted" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isUnnamed
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isUnnamed" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointType / isVFR
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isVFR" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Waypoint / waypointUsage
Namespace No namespace
Annotations

The waypoint usage field is employed to indicate the structure in which the waypoint is utilized.
Diagram
Diagram ARINC424_22_HTML.tmp#WaypointUsage_isHi ARINC424_22_HTML.tmp#WaypointUsage_isLo ARINC424_22_HTML.tmp#WaypointUsage_isTerminal ARINC424_22_HTML.tmp#WaypointUsage
Type type:WaypointUsage
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children isHi, isLo, isTerminal
Instance

<waypointUsage>
  <isHi>{0,1}</isHi>
  <isLo>{0,1}</isLo>
  <isTerminal>{0,1}</isTerminal>
</waypointUsage>
Source

<xs:element name="waypointUsage" type="type:WaypointUsage" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The waypoint usage field is employed to indicate the structure in which the waypoint is utilized.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:WaypointUsage / isHi
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isHi" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointUsage / isLo
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isLo" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:WaypointUsage / isTerminal
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTerminal" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Port / taa
Namespace No namespace
Annotations

The Airport TAA (Terminal Arrival Altitude) field contains the Sector Bearing, Sector Radii, and Section Altitudes for all government published Approach Procedures
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#TAA_referenceID ARINC424_22_HTML.tmp#TAA_approachTypeIdentifier ARINC424_22_HTML.tmp#TAA_magneticTrueIndicator ARINC424_22_HTML.tmp#TAA_taaFixPositionIndicator ARINC424_22_HTML.tmp#TAA_sectorTAADetails ARINC424_22_HTML.tmp#TAA_taaIAFWaypointReference ARINC424_22_HTML.tmp#TAA_sectorBearingWaypointRef ARINC424_22_HTML.tmp#TAA
Type TAA
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children approachTypeIdentifier, custAreaCode, cycleDate, magneticTrueIndicator, notes, recordType, sectorBearingWaypointRef, sectorTAADetails, supplementalData, taaFixPositionIndicator, taaIAFWaypointReference
Instance

<taa referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <approachTypeIdentifier>{1,unbounded}</approachTypeIdentifier>
  <magneticTrueIndicator>{0,1}</magneticTrueIndicator>
  <taaFixPositionIndicator>{1,1}</taaFixPositionIndicator>
  <sectorTAADetails>{1,unbounded}</sectorTAADetails>
  <taaIAFWaypointReference>{0,1}</taaIAFWaypointReference>
  <sectorBearingWaypointRef>{0,1}</sectorBearingWaypointRef>
</taa>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="taa" type="TAA" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The Airport TAA (Terminal Arrival Altitude) field contains the Sector Bearing, Sector Radii, and Section Altitudes for all government published Approach Procedures</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element TAA / approachTypeIdentifier
Namespace No namespace
Annotations

Identifies the approach types published on a given approach procedure which require Airport or Helicopter Operations SBAS path points.
Diagram
Diagram ARINC424_22_HTML.tmp#ApproachTypeIdentifier
Type type:ApproachTypeIdentifier
Properties
content simple
minOccurs 1
maxOccurs unbounded
Facets
maxLength 10
Source

<xs:element name="approachTypeIdentifier" type="type:ApproachTypeIdentifier" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Identifies the approach types published on a given approach procedure which require Airport or Helicopter Operations SBAS path points.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element TAA / magneticTrueIndicator
Namespace No namespace
Annotations

The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticTrueIndicator
Type enum:MagneticTrueIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Both
The field will be blank if details and procedures are provided in both magnetic and true for the airport. In such cases the individual detail or procedure records will contain the magnetic or true information
enumeration True
if all detail and procedure for the airport are reported in true bearing
enumeration Magnetic
if all detail and procedure for the airport are reported in magnetic bearing,
Source

<xs:element name="magneticTrueIndicator" type="enum:MagneticTrueIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element TAA / taaFixPositionIndicator
Namespace No namespace
Annotations

TThe Fix Position Indicator field contains an indication as to which TAA Initial Approach Fix (IAF) the data in the record applies.
Diagram
Diagram ARINC424_22_HTML.tmp#TAASectorIdentifier
Type enum:TAASectorIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration StraightInOrCenterFix
Straight-In or Center Fix
enumeration LeftBase
Left Base Area
enumeration RightBase
Right Base Area
Source

<xs:element name="taaFixPositionIndicator" type="enum:TAASectorIdentifier" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>TThe Fix Position Indicator field contains an indication as to which TAA Initial Approach Fix (IAF) the data in the record applies.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element TAA / sectorTAADetails
Namespace No namespace
Annotations

This class is an abstraction used to represent the details for a TAA Sector.
Diagram
Diagram ARINC424_22_HTML.tmp#Sector_sectorAltitude ARINC424_22_HTML.tmp#Sector_sectorBearingBegin ARINC424_22_HTML.tmp#Sector_sectorBearingEnd ARINC424_22_HTML.tmp#Sector_sectorRadius ARINC424_22_HTML.tmp#Sector ARINC424_22_HTML.tmp#TAASectorDetails_sectorRadiusStart ARINC424_22_HTML.tmp#TAASectorDetails_sectorRadiusEnd ARINC424_22_HTML.tmp#TAASectorDetails_procedureTurn ARINC424_22_HTML.tmp#TAASectorDetails
Type type:TAASectorDetails
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children procedureTurn, sectorAltitude, sectorBearingBegin, sectorBearingEnd, sectorRadius, sectorRadiusEnd, sectorRadiusStart
Instance

<sectorTAADetails>
  <sectorAltitude>{1,1}</sectorAltitude>
  <sectorBearingBegin>{1,1}</sectorBearingBegin>
  <sectorBearingEnd>{1,1}</sectorBearingEnd>
  <sectorRadius>{1,1}</sectorRadius>
  <sectorRadiusStart>{1,1}</sectorRadiusStart>
  <sectorRadiusEnd>{1,1}</sectorRadiusEnd>
  <procedureTurn>{1,1}</procedureTurn>
</sectorTAADetails>
Source

<xs:element name="sectorTAADetails" type="type:TAASectorDetails" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details for a TAA Sector.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:Sector / sectorAltitude
Namespace No namespace
Diagram
Diagram
Type xs:unsignedInt
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="sectorAltitude" type="xs:unsignedInt" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Sector / sectorBearingBegin
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SectorBearing
Type type:SectorBearing
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="sectorBearingBegin" type="type:SectorBearing" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Sector / sectorBearingEnd
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SectorBearing
Type type:SectorBearing
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="sectorBearingEnd" type="type:SectorBearing" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Sector / sectorRadius
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RadiusLimit
Type type:RadiusLimit
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 2
Source

<xs:element name="sectorRadius" type="type:RadiusLimit" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:TAASectorDetails / sectorRadiusStart
Namespace No namespace
Annotations

The “Sector Radius Start” field in TAA records defines the start distance that defines a TAA area. It is referenced to the TAA IAF Waypoint defined in that record. As TAA information is used towards that waypoint, the radius information is provided towards that waypoint. It encloses the sector defined in the record. The value is inclusive.
Diagram
Diagram ARINC424_22_HTML.tmp#RadiusLimit
Type type:RadiusLimit
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 2
Source

<xs:element name="sectorRadiusStart" type="type:RadiusLimit" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Sector Radius Start” field in TAA records defines the start distance that defines a TAA area. It is referenced to the TAA IAF Waypoint defined in that record. As TAA information is used towards that waypoint, the radius information is provided towards that waypoint. It encloses the sector defined in the record. The value is inclusive.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:TAASectorDetails / sectorRadiusEnd
Namespace No namespace
Annotations

The “Sector Radius End” field in TAA records defines the end distance that defines a TAA area. It is referenced to the TAA IAF Waypoint defined in that record. As TAA information is used towards that waypoint, the radius information is provided towards that waypoint. It encloses the sector defined in the record. The value is inclusive.
Diagram
Diagram ARINC424_22_HTML.tmp#RadiusLimit
Type type:RadiusLimit
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 2
Source

<xs:element name="sectorRadiusEnd" type="type:RadiusLimit" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Sector Radius End” field in TAA records defines the end distance that defines a TAA area. It is referenced to the TAA IAF Waypoint defined in that record. As TAA information is used towards that waypoint, the radius information is provided towards that waypoint. It encloses the sector defined in the record. The value is inclusive.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:TAASectorDetails / procedureTurn
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="procedureTurn" type="xs:boolean" minOccurs="1" maxOccurs="1"/>
[ top ]
Element TAA / taaIAFWaypointReference
Namespace No namespace
Annotations

The “TAA IAF Waypoint” field contains the identifier of the Initial Approach Fix (IAF) associated with a given Terminal Area Altitude sector. There may be one, two or three such IAF waypoints defined for a single approach procedure. The TAA IAF Waypoint identified in the TAA Sector with the identifier of “C” (Section 5.272) is the fix to which all sector bearing information for the procedure TAA is defined. The TAA IAF Waypoint in the individual TAA Sector records is the fix from which radius distances are defined.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="taaIAFWaypointReference" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “TAA IAF Waypoint” field contains the identifier of the Initial Approach Fix (IAF) associated with a given Terminal Area Altitude sector. There may be one, two or three such IAF waypoints defined for a single approach procedure. The TAA IAF Waypoint identified in the TAA Sector with the identifier of “C” (Section 5.272) is the fix to which all sector bearing information for the procedure TAA is defined. The TAA IAF Waypoint in the individual TAA Sector records is the fix from which radius distances are defined.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element TAA / sectorBearingWaypointRef
Namespace No namespace
Annotations

The Sector Bearing Reference Waypoint field contains the identifier of the waypoint that the Sector Bearings are referenced to within a given Terminal Area Altitude sector
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="sectorBearingWaypointRef" type="xs:IDREF" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Sector Bearing Reference Waypoint field contains the identifier of the waypoint that the Sector Bearings are referenced to within a given Terminal Area Altitude sector</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / portCommunication
Namespace No namespace
Annotations

Port Communication field contain all government published airport communication facilites for particular airoprts.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Communication_location ARINC424_22_HTML.tmp#Communication_altitudeDescription ARINC424_22_HTML.tmp#Communication_communicationAltitude1 ARINC424_22_HTML.tmp#Communication_communicationAltitude2 ARINC424_22_HTML.tmp#Communication_callSign ARINC424_22_HTML.tmp#Communication_communicationClass ARINC424_22_HTML.tmp#Communication_communicationType ARINC424_22_HTML.tmp#Communication_frequencyUnits ARINC424_22_HTML.tmp#Communication_radarService ARINC424_22_HTML.tmp#Communication_h24Indicator ARINC424_22_HTML.tmp#Communication_modulation ARINC424_22_HTML.tmp#Communication_sequenceNumber ARINC424_22_HTML.tmp#Communication_signalEmission ARINC424_22_HTML.tmp#Communication_transmitFrequency ARINC424_22_HTML.tmp#Communication_receiveFrequency ARINC424_22_HTML.tmp#Communication_communicationDetails ARINC424_22_HTML.tmp#Communication_guardTransmit ARINC424_22_HTML.tmp#Communication ARINC424_22_HTML.tmp#PortCommunication_communicationDistance ARINC424_22_HTML.tmp#PortCommunication_distanceDescription ARINC424_22_HTML.tmp#PortCommunication_multiSectorIndicator ARINC424_22_HTML.tmp#PortCommunication_portCommunicationSectorizationNarrative ARINC424_22_HTML.tmp#PortCommunication_sectorFacility ARINC424_22_HTML.tmp#PortCommunication_sectorization ARINC424_22_HTML.tmp#PortCommunication_serviceIndicator ARINC424_22_HTML.tmp#PortCommunication_additionalSectorization ARINC424_22_HTML.tmp#PortCommunication
Type PortCommunication
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children additionalSectorization, altitudeDescription, callSign, communicationAltitude1, communicationAltitude2, communicationClass, communicationDetails, communicationDistance, communicationType, custAreaCode, cycleDate, distanceDescription, frequencyUnits, guardTransmit, h24Indicator, location, modulation, multiSectorIndicator, notes, portCommunicationSectorizationNarrative, radarService, receiveFrequency, recordType, sectorFacility, sectorization, sequenceNumber, serviceIndicator, signalEmission, supplementalData, transmitFrequency
Instance

<portCommunication>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <location>{0,1}</location>
  <altitudeDescription>{0,1}</altitudeDescription>
  <communicationAltitude1>{0,1}</communicationAltitude1>
  <communicationAltitude2>{0,1}</communicationAltitude2>
  <callSign>{0,1}</callSign>
  <communicationClass>{0,1}</communicationClass>
  <communicationType>{0,1}</communicationType>
  <frequencyUnits>{0,1}</frequencyUnits>
  <radarService>{0,1}</radarService>
  <h24Indicator>{0,1}</h24Indicator>
  <modulation>{0,1}</modulation>
  <sequenceNumber>{1,1}</sequenceNumber>
  <signalEmission>{0,1}</signalEmission>
  <transmitFrequency>{0,1}</transmitFrequency>
  <receiveFrequency>{0,1}</receiveFrequency>
  <communicationDetails>{0,1}</communicationDetails>
  <guardTransmit>{0,1}</guardTransmit>
  <communicationDistance>{0,1}</communicationDistance>
  <distanceDescription>{0,1}</distanceDescription>
  <multiSectorIndicator>{0,1}</multiSectorIndicator>
  <portCommunicationSectorizationNarrative>{0,unbounded}</portCommunicationSectorizationNarrative>
  <sectorFacility>{0,1}</sectorFacility>
  <sectorization>{0,1}</sectorization>
  <serviceIndicator>{0,1}</serviceIndicator>
  <additionalSectorization>{0,unbounded}</additionalSectorization>
</portCommunication>
Source

<xs:element name="portCommunication" type="PortCommunication" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Port Communication field contain all government published airport communication facilites for particular airoprts.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / location
Namespace No namespace
Annotations

Latitude and Longitude details of this point.
Diagram
Diagram ARINC424_22_HTML.tmp#Location_latitude ARINC424_22_HTML.tmp#Location_longitude ARINC424_22_HTML.tmp#Location
Type type:Location
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children latitude, longitude
Instance

<location>
  <latitude>{1,1}</latitude>
  <longitude>{1,1}</longitude>
</location>
Source

<xs:element name="location" type="type:Location" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / altitudeDescription
Namespace No namespace
Annotations

The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.
Diagram
Diagram ARINC424_22_HTML.tmp#AltitudeDescription
Type enum:AltitudeDescription
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AtOrAboveFirst
At or above altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration AtOrBelow
At or below altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration At
At altitude specified in first Altitude field. Also used with Localizer Only Altitude field, and the FACF Waypoint on Precision Approach Coding with Electronic Glide Slope.
enumeration B
At or above to at or below altitudes specified in the first and second Altitude fields. Not used on FAF or MAP Waypoint Records in Precision Approach Coding with Electronic Glide Slope
enumeration C
"At or above" altitude specified in second "Altitude" field.
enumeration G
Glide Slope Altitude (MSL) At Fix, specified in the first Altitude field on the FAF Waypoint and Glide Slope Intercept Altitude (MSL) in second altitude of FAF Waypoint in Precision Approach Coding with electronic Glide Slope.
enumeration I
Glide Slope Intercept Altitude specified in second "Altitude" field and "at" altitude specified in first "Altitude" field on the FACF Waypoint in Precision Approach Coding with electronic Glide Slope
Source

<xs:element name="altitudeDescription" type="enum:AltitudeDescription" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / communicationAltitude1
Namespace No namespace
Annotations

The “Communication Altitude 1 and Altitude 2” fields are used to provide information on use of communication services frequencies with reference to specific altitudes. If the communication record in which Communication Altitude data is provided includes Sectorization data (5.183), the altitude data is valid only for the specific Sector.
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<communicationAltitude1>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</communicationAltitude1>
Source

<xs:element name="communicationAltitude1" type="type:Altitude" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Communication Altitude 1 and Altitude 2” fields are used to provide information on use of communication services frequencies with reference to specific altitudes. If the communication record in which Communication Altitude data is provided includes Sectorization data (5.183), the altitude data is valid only for the specific Sector.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / communicationAltitude2
Namespace No namespace
Annotations

The “Communication Altitude 1 and Altitude 2” fields are used to provide information on use of communication services frequencies with reference to specific altitudes. If the communication record in which Communication Altitude data is provided includes Sectorization data (5.183), the altitude data is valid only for the specific Sector.
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<communicationAltitude2>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</communicationAltitude2>
Source

<xs:element name="communicationAltitude2" type="type:Altitude" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Communication Altitude 1 and Altitude 2” fields are used to provide information on use of communication services frequencies with reference to specific altitudes. If the communication record in which Communication Altitude data is provided includes Sectorization data (5.183), the altitude data is valid only for the specific Sector.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / callSign
Namespace No namespace
Annotations

The “Call Sign” field contains the name of a communication service provider that is to be used when contacting that service/used by the service to identify itself when contacting aircraft on the frequencies contained in the record. The field is also used to provide the broadcast identification name of automated services.
Diagram
Diagram ARINC424_22_HTML.tmp#CallSign
Type type:CallSign
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 25
Source

<xs:element name="callSign" type="type:CallSign" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Call Sign” field contains the name of a communication service provider that is to be used when contacting that service/used by the service to identify itself when contacting aircraft on the frequencies contained in the record. The field is also used to provide the broadcast identification name of automated services.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / communicationClass
Namespace No namespace
Annotations

The “Communication Class” field will designate the major grouping of the Communication Types contained in the record.
Diagram
Diagram ARINC424_22_HTML.tmp#CommunicationClass
Type enum:CommunicationClass
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration LIRC
The Communication Type is that of one linked to an Information Region (FIR/UIR) for the purposes of providing control services to aircraft.
enumeration LIRI
The Communication Type is that of one linked to an Information Region (FIR/UIR) for the purposes of providing information services to aircraft.
enumeration USVC
The Communication Type is that of one used within an Information Region (FIR/UIR) for purposes other than control or information services and is not linked to that Region
enumeration ASVC
The Communication Type is that of one providing automated or broadcast services within an Information Region (FIR/UIR).
enumeration ATCF
The Communication Type is that of one providing ATC services to aircraft within the terminal area of an airport.
enumeration GNDF
The Communication Type is that of one providing ATC services to aircraft on the ground at an airport.
enumeration AOTF
The Communication Type is that of one providing services other than ATC functions on the ground or within the terminal area of an airport.
enumeration AFAC
The Communication Type is that of one provided automated or broadcast services to aircraft on the ground or with the terminal area of an airport.
Source

<xs:element name="communicationClass" type="enum:CommunicationClass" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Communication Class” field will designate the major grouping of the Communication Types contained in the record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / communicationType
Namespace No namespace
Annotations

The “Communication Type” is a three-character code indicating the type of communication service available on the frequency contained in the record. Decoding is available in the Communication Type Translation Table.
Diagram
Diagram ARINC424_22_HTML.tmp#CommunicationType
Type enum:CommunicationType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration ACC
Area Control Center
enumeration ACP
Airlift Command Post
enumeration AIR
Air to Air
enumeration APP
Approach Control
enumeration ARR
Arrival Control
enumeration ASO
Automatic Surface Observing System (ASOS)
enumeration ATI
Automatic Terminal Info Service (ATIS)
enumeration AWI
Airport Weather Information Broadcast (AWIB)
enumeration AWO
Automatic Weather Observing Service (AWOS)
enumeration AWS
Aerodrome Weather Information Services (AWIS)
enumeration CBA
Class B Airspace
enumeration CCA
Class C Airspace
enumeration CLD
Clearance Delivery
enumeration CPT
Clearance, Pre-Taxi
enumeration CTA
Control Area (Terminal)
enumeration CTF
Common Traffic Advisory Frequencies (Note 2)
enumeration CTL
Control
enumeration DEP
Departure Control
enumeration DIR
Director (Approach Control Radar)
enumeration EFS
Enroute Flight Advisory Service (EFAS)
enumeration EMR
Emergency
enumeration FSS
Flight Service Station
enumeration GCO
Ground Comm Outlet
enumeration GND
Ground Control
enumeration GTE
Gate Control
enumeration HEL
Helicopter Frequency
enumeration INF
Information
enumeration MBZ
Mandatory Broadcast
enumeration MIL
Military Frequency Zone (note 2)
enumeration MUL
Multicom
enumeration OPS
Operations
enumeration PAL
Pilot Activated Lighting (Note 1)
enumeration RDO
Radio
enumeration RDR
Radar
enumeration RFS
Remote Flight Service Station (RFSS)
enumeration RMP
Ramp/Taxi Control
enumeration RSA
Airport Radar Service Area (ARSA)
enumeration TCA
Terminal Control Area (TCA)
enumeration TMA
Terminal Control Area (TMA)
enumeration TML
Terminal
enumeration TRS
Terminal Radar Service Area (TRSA)
enumeration TWE
Transcriber Weather Broadcast (TWEB)
enumeration TWR
Tower, Air Traffic Control
enumeration UAC
Upper Area Control
enumeration UNI
Unicom
enumeration VOL
Volnet
Source

<xs:element name="communicationType" type="enum:CommunicationType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Communication Type” is a three-character code indicating the type of communication service available on the frequency contained in the record. Decoding is available in the Communication Type Translation Table.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / frequencyUnits
Namespace No namespace
Annotations

The “Frequency Units” field will designate the frequency spectrum area for the frequency in the “Communication Frequency” (Section 5.103) field as indicated in the table or will designate the content of the “Communication Frequency” field as a channel. For VHF based units, the field will also designate the established frequency spacing required of the frequency for unambiguous use.
Diagram
Diagram ARINC424_22_HTML.tmp#FrequencyUnits
Type enum:FrequencyUnits
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration LowFreq
Low Frequency
enumeration MediumFreq
Medium Frequency
enumeration HighFreq
High Frequency(3000 kHz to 30,000 kHz)
enumeration Vhf100kHzSpacing
Very High Frequency 100 kHz spacing
enumeration Vhf50kHzSpacing
Very High Frequency 50 kHz spacing
enumeration Vhf25kHzSpacing
Very High Frequency 25 kHz spacing
enumeration VhfNonStandard
Very High Frequency (30,000 kHz to 200 MHz) Non-standard spacing
enumeration Uhf
Ultra High Frequency (200 MHz to 3000 MHz)
enumeration Vhf8_33Spacing
Very High Frequency Communication Channel for 8.33kHz spacing
enumeration DigitalService
Digital Service
Source

<xs:element name="frequencyUnits" type="enum:FrequencyUnits" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Frequency Units” field will designate the frequency spectrum area for the frequency in the “Communication Frequency” (Section 5.103) field as indicated in the table or will designate the content of the “Communication Frequency” field as a channel. For VHF based units, the field will also designate the established frequency spacing required of the frequency for unambiguous use.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / radarService
Namespace No namespace
Annotations

The “Radar” field indicates whether or not the communication unit identified in the record has access to and uses information derived from primary or secondary radars while performing the communication service indicated by the Communication Type. It is not an indication of an operational radar frequency.
Diagram
Diagram ARINC424_22_HTML.tmp#Radar
Type enum:Radar
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration PrimaryOrSecondary
Primary or secondary Radar information is available to the service
enumeration No
If the Service documentation specifically states that the service does not have access  to primary or secondary radar information
enumeration Unknown
If the Source documentation does not provide details on the radar information access for the services
Source

<xs:element name="radarService" type="enum:Radar" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Radar” field indicates whether or not the communication unit identified in the record has access to and uses information derived from primary or secondary radars while performing the communication service indicated by the Communication Type. It is not an indication of an operational radar frequency.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / h24Indicator
Namespace No namespace
Annotations

The “24H Indicator” field is used to indicate whether a communication service frequency is available for use on a continual, i.e. 24 hours a day, seven days a week, basis or not.
Diagram
Diagram ARINC424_22_HTML.tmp#H24Indicator
Type enum:H24Indicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Continious
Frequency is continually available,
enumeration NotContinious
Frequency is not continually available,
enumeration Unknown
Unknown
Source

<xs:element name="h24Indicator" type="enum:H24Indicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “24H Indicator” field is used to indicate whether a communication service frequency is available for use on a continual, i.e. 24 hours a day, seven days a week, basis or not.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / modulation
Namespace No namespace
Annotations

The “Modulation” field will design the type of modulation for the frequency in the “Communication Frequency” (5.103) field.
Diagram
Diagram ARINC424_22_HTML.tmp#Modulation
Type enum:Modulation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AmFreq
Amplitude Modulated Frequency
enumeration FmFreq
Frequency Modulated Frequency
Source

<xs:element name="modulation" type="enum:Modulation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Modulation” field will design the type of modulation for the frequency in the “Communication Frequency” (5.103) field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / sequenceNumber
Namespace No namespace
Annotations

When used on Enroute, Airport and Heliport Communication Primary and Continuation records, the Sequence Number is used as a record counter within a given Identifier and Communication Class for providing output file record uniqueness.  (See ARINC 424 5.12)
Diagram
Diagram ARINC424_22_HTML.tmp#SequenceNumber
Type type:SequenceNumber
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="sequenceNumber" type="type:SequenceNumber" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>When used on Enroute, Airport and Heliport Communication Primary and Continuation records, the Sequence Number is used as a record counter within a given Identifier and Communication Class for providing output file record uniqueness. (See ARINC 424 5.12)</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / signalEmission
Namespace No namespace
Annotations

High Frequency (HF) signals used in aeronautical communications can be the complete signal or a portion of the signal, called a sideband. The “Signal Emission” field will designate for each HF Frequency what emission is used.
Diagram
Diagram ARINC424_22_HTML.tmp#SignalEmission
Type enum:SignalEmission
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration A3
Double Sideband (A3)
enumeration A3a
Single sideband, reduced carrier (A3A)
enumeration A3b
Two Independent sidebands (A3B)
enumeration A3h
Single sideband, full carrier (A3H)
enumeration A3j
Single sideband, suppressed carrier (A3J)
enumeration LsbCarrierUnk
Lower (single) sideband, carrier unknown
enumeration UsbCarrierUnk
Upper (single) sideband, carrier unknow
Source

<xs:element name="signalEmission" type="enum:SignalEmission" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>High Frequency (HF) signals used in aeronautical communications can be the complete signal or a portion of the signal, called a sideband. The “Signal Emission” field will designate for each HF Frequency what emission is used.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / transmitFrequency
Namespace No namespace
Annotations

The Communication Frequency field specifies either transmit or receive frequency of the communication service, dependent on in which column the frequency is located. Each communication record will contain both transmit and receive frequencies unless the service is published as a Transmit Only or Receive Only service. The content will be identical if the service transmits and receives on the same frequency. The fields will be left blank when the service provided is a digital service.
Diagram
Diagram ARINC424_22_HTML.tmp#Frequency_freqUnitOfMeasure ARINC424_22_HTML.tmp#Frequency_frequencyValue ARINC424_22_HTML.tmp#Frequency
Type type:Frequency
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children freqUnitOfMeasure, frequencyValue
Instance

<transmitFrequency>
  <freqUnitOfMeasure>{1,1}</freqUnitOfMeasure>
  <frequencyValue>{1,1}</frequencyValue>
</transmitFrequency>
Source

<xs:element name="transmitFrequency" type="type:Frequency" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Communication Frequency field specifies either transmit or receive frequency of the communication service, dependent on in which column the frequency is located. Each communication record will contain both transmit and receive frequencies unless the service is published as a Transmit Only or Receive Only service. The content will be identical if the service transmits and receives on the same frequency. The fields will be left blank when the service provided is a digital service.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / receiveFrequency
Namespace No namespace
Annotations

The Communication Frequency field specifies either transmit or receive frequency of the communication service, dependent on in which column the frequency is located. Each communication record will contain both transmit and receive frequencies unless the service is published as a Transmit Only or Receive Only service. The content will be identical if the service transmits and receives on the same frequency. The fields will be left blank when the service provided is a digital service.
Diagram
Diagram ARINC424_22_HTML.tmp#Frequency_freqUnitOfMeasure ARINC424_22_HTML.tmp#Frequency_frequencyValue ARINC424_22_HTML.tmp#Frequency
Type type:Frequency
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children freqUnitOfMeasure, frequencyValue
Instance

<receiveFrequency>
  <freqUnitOfMeasure>{1,1}</freqUnitOfMeasure>
  <frequencyValue>{1,1}</frequencyValue>
</receiveFrequency>
Source

<xs:element name="receiveFrequency" type="type:Frequency" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Communication Frequency field specifies either transmit or receive frequency of the communication service, dependent on in which column the frequency is located. Each communication record will contain both transmit and receive frequencies unless the service is published as a Transmit Only or Receive Only service. The content will be identical if the service transmits and receives on the same frequency. The fields will be left blank when the service provided is a digital service.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / communicationDetails
Namespace No namespace
Annotations

Information contained in the ARINC 424 communication continuation records
Diagram
Diagram ARINC424_22_HTML.tmp#CommunicationDetails_remoteFacility ARINC424_22_HTML.tmp#CommunicationDetails_timesOfOperation ARINC424_22_HTML.tmp#CommunicationDetails_transmitterSiteElevation ARINC424_22_HTML.tmp#CommunicationDetails_transmitterSiteMagVar ARINC424_22_HTML.tmp#CommunicationDetails
Type CommunicationDetails
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children remoteFacility, timesOfOperation, transmitterSiteElevation, transmitterSiteMagVar
Instance

<communicationDetails>
  <remoteFacility>{0,1}</remoteFacility>
  <timesOfOperation>{0,1}</timesOfOperation>
  <transmitterSiteElevation>{0,1}</transmitterSiteElevation>
  <transmitterSiteMagVar>{0,1}</transmitterSiteMagVar>
</communicationDetails>
Source

<xs:element name="communicationDetails" type="CommunicationDetails" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Information contained in the ARINC 424 communication continuation records</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CommunicationDetails / remoteFacility
Namespace No namespace
Annotations

The “Remote Facility” field is used to identify a Navaid or Airport that has been used to provide the latitude/longitude of a communication transmitter, Figure 5-8 and Notes 7 and 8 in Section 5.37 of this Specification.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="remoteFacility" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Remote Facility” field is used to identify a Navaid or Airport that has been used to provide the latitude/longitude of a communication transmitter, Figure 5-8 and Notes 7 and 8 in Section 5.37 of this Specification.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CommunicationDetails / timesOfOperation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#TimesOfOperation_timeCode ARINC424_22_HTML.tmp#TimesOfOperation_times ARINC424_22_HTML.tmp#TimesOfOperation_timeNarrative ARINC424_22_HTML.tmp#TimesOfOperation_byNotam ARINC424_22_HTML.tmp#TimesOfOperation_adjustForDST ARINC424_22_HTML.tmp#TimesOfOperation
Type type:TimesOfOperation
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children adjustForDST, byNotam, timeCode, timeNarrative, times
Instance

<timesOfOperation>
  <timeCode>{1,1}</timeCode>
  <times>{0,unbounded}</times>
  <timeNarrative>{0,1}</timeNarrative>
  <byNotam>{0,1}</byNotam>
  <adjustForDST>{0,1}</adjustForDST>
</timesOfOperation>
Source

<xs:element name="timesOfOperation" type="type:TimesOfOperation" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:TimesOfOperation / timeCode
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#TimeCode
Type enum:TimeCode
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration ContinuousIncludingHolidays
Active Continuously, including holidays
enumeration ContinuousExcludingHolidays
Active Continuously, excluding holidays
enumeration SpecifiedExcludingHolidays
Active times are provided in Time of Operation record and exclude holidays
enumeration SpecifiedIncludingHolidays
Active times are provided in Time of Operation record and include holidays
enumeration Complex
Activation Times are too complex for Time of Operation format and are provided in the timeNarrative field
enumeration ByNotam
Active times announced by NOTAM
enumeration Unspecified
Active times are not specified in source documentation
Source

<xs:element name="timeCode" type="enum:TimeCode" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:TimesOfOperation / times
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#TimeOfOperationInterval_dayOfWeek ARINC424_22_HTML.tmp#TimeOfOperationInterval_start ARINC424_22_HTML.tmp#TimeOfOperationInterval_end ARINC424_22_HTML.tmp#TimeOfOperationInterval
Type type:TimeOfOperationInterval
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children dayOfWeek, end, start
Instance

<times>
  <dayOfWeek>{0,7}</dayOfWeek>
  <start>{1,1}</start>
  <end>{1,1}</end>
</times>
Source

<xs:element name="times" type="type:TimeOfOperationInterval" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element type:TimeOfOperationInterval / dayOfWeek
Namespace No namespace
Annotations

This field supports specifying the same time interval on multiple days of the week in a single interval instance.  It should not be used if the "dayOfWeek" in the start and end times is specified (see documentation for StartOrEndTime).  If this field is used, and the "end" time is earlier than the "start" time, the time interval crosses midnight (00:00).
Diagram
Diagram ARINC424_22_HTML.tmp#DayOfWeek
Type enum:DayOfWeek
Properties
content simple
minOccurs 0
maxOccurs 7
Facets
enumeration Monday
enumeration Tuesday
enumeration Wednesday
enumeration Thursday
enumeration Friday
enumeration Saturday
enumeration Sunday
Source

<xs:element name="dayOfWeek" type="enum:DayOfWeek" minOccurs="0" maxOccurs="7">
  <xs:annotation>
    <xs:documentation>This field supports specifying the same time interval on multiple days of the week in a single interval instance. It should not be used if the "dayOfWeek" in the start and end times is specified (see documentation for StartOrEndTime). If this field is used, and the "end" time is earlier than the "start" time, the time interval crosses midnight (00:00).</xs:documentation>
    <!-- TIMEX: How to indicate an interval that rolls past midnight -->
  </xs:annotation>
</xs:element>
[ top ]
Element type:TimeOfOperationInterval / start
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#StartOrEndTime_dayOfWeek ARINC424_22_HTML.tmp#StartOrEndTime_time ARINC424_22_HTML.tmp#StartOrEndTime_relativeTimeIndicator ARINC424_22_HTML.tmp#StartOrEndTime
Type type:StartOrEndTime
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children dayOfWeek, relativeTimeIndicator, time
Instance

<start>
  <dayOfWeek>{0,1}</dayOfWeek>
  <time>{0,1}</time>
  <relativeTimeIndicator>{0,1}</relativeTimeIndicator>
</start>
Source

<xs:element name="start" type="type:StartOrEndTime" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:StartOrEndTime / dayOfWeek
Namespace No namespace
Annotations

This field supports specifying a continuous time interval across multiple days.  It should not be used if the "dayOfWeek" in TimeOfOperationInterval is specified.  If used, it should be specified for both start and end times, and they should be different otherwise the TimeOfOperationInterval field should be used.
Diagram
Diagram ARINC424_22_HTML.tmp#DayOfWeek
Type enum:DayOfWeek
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Monday
enumeration Tuesday
enumeration Wednesday
enumeration Thursday
enumeration Friday
enumeration Saturday
enumeration Sunday
Source

<xs:element name="dayOfWeek" type="enum:DayOfWeek" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field supports specifying a continuous time interval across multiple days. It should not be used if the "dayOfWeek" in TimeOfOperationInterval is specified. If used, it should be specified for both start and end times, and they should be different otherwise the TimeOfOperationInterval field should be used.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:StartOrEndTime / time
Namespace No namespace
Annotations

This field represents the start or end time of the TimeOfOperationInterval.  A timezone may be set for this field, in which case the time is specified in the local timezone.  If no timezone is set, UTC is assumed.  If a timezone is set indicating a local time, it should be the same for both start and end times, and the "adjustForDST" field in the enclosing TimesOfOperation instance may be set to indicate that the time follows daylight saving time in accordance with the local DST calendar.
Diagram
Diagram
Type xs:time
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="time" type="xs:time" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field represents the start or end time of the TimeOfOperationInterval. A timezone may be set for this field, in which case the time is specified in the local timezone. If no timezone is set, UTC is assumed. If a timezone is set indicating a local time, it should be the same for both start and end times, and the "adjustForDST" field in the enclosing TimesOfOperation instance may be set to indicate that the time follows daylight saving time in accordance with the local DST calendar.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:StartOrEndTime / relativeTimeIndicator
Namespace No namespace
Annotations

This field supports specifying the StartOrEndTime as an offset from sunrise or sunset.  In this case, the "time" field is just the offset amount such as 01:00:00 or 00:30:00.  If used, there should be no timezone set in the "time" field.
Diagram
Diagram ARINC424_22_HTML.tmp#RelativeTimeIndicator
Type enum:RelativeTimeIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration BeforeSunrise
enumeration AfterSunrise
enumeration BeforeSunset
enumeration AfterSunset
Source

<xs:element name="relativeTimeIndicator" type="enum:RelativeTimeIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field supports specifying the StartOrEndTime as an offset from sunrise or sunset. In this case, the "time" field is just the offset amount such as 01:00:00 or 00:30:00. If used, there should be no timezone set in the "time" field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:TimeOfOperationInterval / end
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#StartOrEndTime_dayOfWeek ARINC424_22_HTML.tmp#StartOrEndTime_time ARINC424_22_HTML.tmp#StartOrEndTime_relativeTimeIndicator ARINC424_22_HTML.tmp#StartOrEndTime
Type type:StartOrEndTime
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children dayOfWeek, relativeTimeIndicator, time
Instance

<end>
  <dayOfWeek>{0,1}</dayOfWeek>
  <time>{0,1}</time>
  <relativeTimeIndicator>{0,1}</relativeTimeIndicator>
</end>
Source

<xs:element name="end" type="type:StartOrEndTime" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:TimesOfOperation / timeNarrative
Namespace No namespace
Annotations

The “Time Narrative” field is used to provide Time of Operations and/or Conditions of Operations in a narrative form when source information is too complex to be formatted in accordance with ARINC 424 Section 5.195.  This field is used in conjunction with the TimeCode value "Complex".  This field is used on Airport, Heliport, and Enroute Communication Continuation records.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="timeNarrative" type="xs:string" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Time Narrative” field is used to provide Time of Operations and/or Conditions of Operations in a narrative form when source information is too complex to be formatted in accordance with ARINC 424 Section 5.195. This field is used in conjunction with the TimeCode value "Complex". This field is used on Airport, Heliport, and Enroute Communication Continuation records.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:TimesOfOperation / byNotam
Namespace No namespace
Annotations

Restrictive Airspace areas and communications facilities may not have established active times and are activated by NOTAM only or may be active by NOTAM in addition to established times.   If this field is "True", the area or communcations facility is active by NOTAM in addition to the specified time intervals.  If the the area or communication facility is active by NOTAM only, this field should not be used and the timeCode "ByNotam" should be used.  Used on Controlled and Restrictive Airspace Primary and Continuation records, and Airport, Heliport and Enroute Communications Continuation records.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="byNotam" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Restrictive Airspace areas and communications facilities may not have established active times and are activated by NOTAM only or may be active by NOTAM in addition to established times. If this field is "True", the area or communcations facility is active by NOTAM in addition to the specified time intervals. If the the area or communication facility is active by NOTAM only, this field should not be used and the timeCode "ByNotam" should be used. Used on Controlled and Restrictive Airspace Primary and Continuation records, and Airport, Heliport and Enroute Communications Continuation records.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:TimesOfOperation / adjustForDST
Namespace No namespace
Annotations

Indicates that the "times" instances in this record follow daylight saving time in accordance with the local DST calendar.  (See documentation for the "time" field in the StartOrEndTime records.)
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="adjustForDST" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Indicates that the "times" instances in this record follow daylight saving time in accordance with the local DST calendar. (See documentation for the "time" field in the StartOrEndTime records.)</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CommunicationDetails / transmitterSiteElevation
Namespace No namespace
Annotations

The “Facility Elevation” field provides the elevation of navaids and communication transmitters
Diagram
Diagram ARINC424_22_HTML.tmp#FacilityElevation
Type type:FacilityElevation
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="transmitterSiteElevation" type="type:FacilityElevation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Facility Elevation” field provides the elevation of navaids and communication transmitters</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CommunicationDetails / transmitterSiteMagVar
Namespace No namespace
Annotations

The “Magnetic Variation” field specifies the angular difference between True North and Magnetic North at the location defined in the record. “Dynamic Magnetic Variation” is a computer model derived value and takes location and date into consideration. For the “Station Declination” used in some record types, refer to Section 5.66.
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticVariation_magneticVariationEWT ARINC424_22_HTML.tmp#MagneticVariation_magneticVariationValue ARINC424_22_HTML.tmp#MagneticVariation
Type type:MagneticVariation
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children magneticVariationEWT, magneticVariationValue
Instance

<transmitterSiteMagVar>
  <magneticVariationEWT>{1,1}</magneticVariationEWT>
  <magneticVariationValue>{1,1}</magneticVariationValue>
</transmitterSiteMagVar>
Source

<xs:element name="transmitterSiteMagVar" type="type:MagneticVariation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Magnetic Variation” field specifies the angular difference between True North and Magnetic North at the location defined in the record. “Dynamic Magnetic Variation” is a computer model derived value and takes location and date into consideration. For the “Station Declination” used in some record types, refer to Section 5.66.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Communication / guardTransmit
Namespace No namespace
Annotations

The “Guard/Transmit” field is used to indicate if the frequency shown in the Communication Frequency field is used, by the station, to receive voice communication or to transmit voice on.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="guardTransmit" type="xs:string" minOccurs="0" maxOccurs="1">
  <!-- Legacy 424-18 support -->
  <xs:annotation>
    <xs:documentation>The “Guard/Transmit” field is used to indicate if the frequency shown in the Communication Frequency field is used, by the station, to receive voice communication or to transmit voice on.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PortCommunication / communicationDistance
Namespace No namespace
Annotations

The “Communication Distance” field is used to define the distance restriction a communication frequency is to be used within or beyond when such restrictions apply. This field is used in conjunction with the Distance Description field.
Diagram
Diagram ARINC424_22_HTML.tmp#CommunicationDistance
Type type:CommunicationDistance
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 2
Source

<xs:element name="communicationDistance" type="type:CommunicationDistance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Communication Distance” field is used to define the distance restriction a communication frequency is to be used within or beyond when such restrictions apply. This field is used in conjunction with the Distance Description field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PortCommunication / distanceDescription
Namespace No namespace
Annotations

The “Distance Description” field will designate whether a communication frequency is to be used from the facility out to a specified distance or from a specified distance and beyond in the Airport Communication Record. In the VHF Navaid Limitation Continuation Record, the field is used to define whether the limitation applies from the navaid out to a specified distance or from a specified distance and beyond.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceDescription
Type enum:DistanceDescription
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration OutToSpecifiedDistance
The communication frequency or navaid limitation is out to a specified distance.
enumeration AppliesBeyondDistance
The communication frequency is used or the navaid limitation applies beyond a specified distance
enumeration NoRestriction
no restrictions/limitations apply
Source

<xs:element name="distanceDescription" type="enum:DistanceDescription" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Distance Description” field will designate whether a communication frequency is to be used from the facility out to a specified distance or from a specified distance and beyond in the Airport Communication Record. In the VHF Navaid Limitation Continuation Record, the field is used to define whether the limitation applies from the navaid out to a specified distance or from a specified distance and beyond.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PortCommunication / multiSectorIndicator
Namespace No namespace
Annotations

The “Multi-Sector Indicator” field is used to indicate that the communication service and frequency are used in more than one defined sector. The actual sector data will be contained in the primary and continuation records of the affected airport or heliport communication record set.
Diagram
Diagram ARINC424_22_HTML.tmp#MultiSectorIndicator
Type enum:MultiSectorIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration MultiSector
Multi-sector data is published in official government source for the service and frequency
enumeration NotDefined
There is no defined sector data published for the service and frequency.
enumeration OnlyOneFromSource
The official government source has provided only a single defined sector for the service and frequency
Source

<xs:element name="multiSectorIndicator" type="enum:MultiSectorIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Multi-Sector Indicator” field is used to indicate that the communication service and frequency are used in more than one defined sector. The actual sector data will be contained in the primary and continuation records of the affected airport or heliport communication record set.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PortCommunication / portCommunicationSectorizationNarrative
Namespace No namespace
Annotations

Port Communication Sectorization Narrative Class description.
Diagram
Diagram ARINC424_22_HTML.tmp#SectorizationNarrative
Type type:SectorizationNarrative
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
maxLength 60
Source

<xs:element name="portCommunicationSectorizationNarrative" type="type:SectorizationNarrative" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Port Communication Sectorization Narrative Class description.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PortCommunication / sectorFacility
Namespace No namespace
Annotations

The “Sector Facility” field is used to define the Navaid or Airport upon which the information in the “Sector” (5.183) field is based.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="sectorFacility" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Sector Facility” field is used to define the Navaid or Airport upon which the information in the “Sector” (5.183) field is based.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PortCommunication / sectorization
Namespace No namespace
Annotations

The “Sectorization” field is used to define the airspace sector a communication frequency is applicable for when an airport defines sectors by bearing from the same point.
Diagram
Diagram ARINC424_22_HTML.tmp#Sectorization
Type type:Sectorization
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 6
Source

<xs:element name="sectorization" type="type:Sectorization" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Sectorization” field is used to define the airspace sector a communication frequency is applicable for when an airport defines sectors by bearing from the same point.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PortCommunication / serviceIndicator
Namespace No namespace
Annotations

The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type (5.101).
Diagram
Diagram ARINC424_22_HTML.tmp#AirportHeliportCommunicationServiceIndicator_serviceIndicatorAirportHeliportFrequency ARINC424_22_HTML.tmp#AirportHeliportCommunicationServiceIndicator_serviceIndicatorAirportHeliportInformation ARINC424_22_HTML.tmp#AirportHeliportCommunicationServiceIndicator_serviceIndicatorAirportHeliportService ARINC424_22_HTML.tmp#AirportHeliportCommunicationServiceIndicator
Type type:AirportHeliportCommunicationServiceIndicator
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children serviceIndicatorAirportHeliportFrequency, serviceIndicatorAirportHeliportInformation, serviceIndicatorAirportHeliportService
Instance

<serviceIndicator>
  <serviceIndicatorAirportHeliportFrequency>{0,1}</serviceIndicatorAirportHeliportFrequency>
  <serviceIndicatorAirportHeliportInformation>{0,1}</serviceIndicatorAirportHeliportInformation>
  <serviceIndicatorAirportHeliportService>{0,1}</serviceIndicatorAirportHeliportService>
</serviceIndicator>
Source

<xs:element name="serviceIndicator" type="type:AirportHeliportCommunicationServiceIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type (5.101).</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:AirportHeliportCommunicationServiceIndicator / serviceIndicatorAirportHeliportFrequency
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ServiceIndicatorAirportHeliportFrequency
Type enum:ServiceIndicatorAirportHeliportFrequency
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration ATF
Aerodrome Traffic Frequency (ATF)
enumeration CTAF
Common Traffic Advisory Frequency (CTAF)
enumeration MF
Mandatory Frequency (MF)
enumeration SF
Secondary Frequency
Source

<xs:element name="serviceIndicatorAirportHeliportFrequency" type="enum:ServiceIndicatorAirportHeliportFrequency" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AirportHeliportCommunicationServiceIndicator / serviceIndicatorAirportHeliportInformation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ServiceIndicatorAirportHeliportInformation
Type enum:ServiceIndicatorAirportHeliportInformation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration VDF
VHF Direction Finding Service (VDF)
enumeration NotEnglish
Language other than English
enumeration MilitaryUseFreq
Military Use Frequency
enumeration PCL
Pilot Controlled Light (PCL)
Source

<xs:element name="serviceIndicatorAirportHeliportInformation" type="enum:ServiceIndicatorAirportHeliportInformation" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AirportHeliportCommunicationServiceIndicator / serviceIndicatorAirportHeliportService
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ServiceIndicatorAirportHeliportService
Type enum:ServiceIndicatorAirportHeliportService
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AAS
Airport Advisory Service (AAS)
enumeration CARC
Community Aerodrome Radio Station (CARS)
enumeration DepartureService
Departure Service (Other than Departure Control Unit)
enumeration FIS
Flight Information Service (FIS)
enumeration IC
Initial Contact (IC)
enumeration ArrivalService
Arrival Service (Other than Arrival Control Unit)
enumeration AFIS
Aerodrome Flight Information Service(AFIS)
enumeration TerminalAeraControl
Terminal Area Control (Other than dedicated Terminal Control Unit)
Source

<xs:element name="serviceIndicatorAirportHeliportService" type="enum:ServiceIndicatorAirportHeliportService" minOccurs="0" maxOccurs="1"/>
[ top ]
Element PortCommunication / additionalSectorization
Namespace No namespace
Annotations

This element is used to represent the details for an Additional Sectorization used in port communications.
Diagram
Diagram ARINC424_22_HTML.tmp#AdditionalSectorization_additionalSectorizationAltitude1 ARINC424_22_HTML.tmp#AdditionalSectorization_additionalSectorizationAltitude2 ARINC424_22_HTML.tmp#AdditionalSectorization_additionalSectorizationAltitudeDescription ARINC424_22_HTML.tmp#AdditionalSectorization
Type type:AdditionalSectorization
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children additionalSectorizationAltitude1, additionalSectorizationAltitude2, additionalSectorizationAltitudeDescription
Instance

<additionalSectorization>
  <additionalSectorizationAltitude1>{0,1}</additionalSectorizationAltitude1>
  <additionalSectorizationAltitude2>{0,1}</additionalSectorizationAltitude2>
  <additionalSectorizationAltitudeDescription>{0,1}</additionalSectorizationAltitudeDescription>
</additionalSectorization>
Source

<xs:element name="additionalSectorization" type="type:AdditionalSectorization" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>This element is used to represent the details for an Additional Sectorization used in port communications.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:AdditionalSectorization / additionalSectorizationAltitude1
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<additionalSectorizationAltitude1>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</additionalSectorizationAltitude1>
Source

<xs:element name="additionalSectorizationAltitude1" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AdditionalSectorization / additionalSectorizationAltitude2
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<additionalSectorizationAltitude2>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</additionalSectorizationAltitude2>
Source

<xs:element name="additionalSectorizationAltitude2" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AdditionalSectorization / additionalSectorizationAltitudeDescription
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AltitudeDescription
Type enum:AltitudeDescription
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AtOrAboveFirst
At or above altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration AtOrBelow
At or below altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration At
At altitude specified in first Altitude field. Also used with Localizer Only Altitude field, and the FACF Waypoint on Precision Approach Coding with Electronic Glide Slope.
enumeration B
At or above to at or below altitudes specified in the first and second Altitude fields. Not used on FAF or MAP Waypoint Records in Precision Approach Coding with Electronic Glide Slope
enumeration C
"At or above" altitude specified in second "Altitude" field.
enumeration G
Glide Slope Altitude (MSL) At Fix, specified in the first Altitude field on the FAF Waypoint and Glide Slope Intercept Altitude (MSL) in second altitude of FAF Waypoint in Precision Approach Coding with electronic Glide Slope.
enumeration I
Glide Slope Intercept Altitude specified in second "Altitude" field and "at" altitude specified in first "Altitude" field on the FACF Waypoint in Precision Approach Coding with electronic Glide Slope
Source

<xs:element name="additionalSectorizationAltitudeDescription" type="enum:AltitudeDescription" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Port / helipad
Namespace No namespace
Annotations

Helipad field will contain a listing of all helipads associated with airports.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Helipad_padDimensionX ARINC424_22_HTML.tmp#Helipad_padDimensionY ARINC424_22_HTML.tmp#Helipad_padRadius ARINC424_22_HTML.tmp#Helipad_helipadShape ARINC424_22_HTML.tmp#Helipad_maximumHelicopterWeight ARINC424_22_HTML.tmp#Helipad_helicopterPerformanceReq ARINC424_22_HTML.tmp#Helipad
Type Helipad
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children custAreaCode, cycleDate, datumCode, firRef, helicopterPerformanceReq, helipadShape, icaoCode, identifier, location, magneticVariation, maximumHelicopterWeight, name, notes, padDimensionX, padDimensionY, padRadius, recordType, supplementalData, uirRef
Instance

<helipad referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <padDimensionX>{0,1}</padDimensionX>
  <padDimensionY>{0,1}</padDimensionY>
  <padRadius>{0,1}</padRadius>
  <helipadShape>{0,1}</helipadShape>
  <maximumHelicopterWeight>{0,1}</maximumHelicopterWeight>
  <helicopterPerformanceReq>{0,1}</helicopterPerformanceReq>
</helipad>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="helipad" type="Helipad" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Helipad field will contain a listing of all helipads associated with airports.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Helipad / padDimensionX
Namespace No namespace
Annotations

This element is the X dimension of a rectanglular pad.
Diagram
Diagram
Type xs:int
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="padDimensionX" type="xs:int" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element is the X dimension of a rectanglular pad.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Helipad / padDimensionY
Namespace No namespace
Annotations

This element is the Y dimension of a rectanglular pad.
Diagram
Diagram
Type xs:int
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="padDimensionY" type="xs:int" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element is the Y dimension of a rectanglular pad.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Helipad / padRadius
Namespace No namespace
Annotations

This element provides the pad radius if it is not a square or rectangle
Diagram
Diagram
Type xs:int
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="padRadius" type="xs:int" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides the pad radius if it is not a square or rectangle</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Helipad / helipadShape
Namespace No namespace
Annotations

This element provides the shape of the helipad.
Diagram
Diagram ARINC424_22_HTML.tmp#HelipadShape
Type enum:HelipadShape
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Circle
enumeration SqureAndOrRectangle
enumeration Undefined
Source

<xs:element maxOccurs="1" minOccurs="0" name="helipadShape" type="enum:HelipadShape">
  <xs:annotation>
    <xs:documentation>This element provides the shape of the helipad.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Helipad / maximumHelicopterWeight
Namespace No namespace
Annotations

This element provides the maximum weight for helicopters using this helipad.
Diagram
Diagram ARINC424_22_HTML.tmp#MaxHelicopterWeight
Type type:MaxHelicopterWeight
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element maxOccurs="1" minOccurs="0" name="maximumHelicopterWeight" type="type:MaxHelicopterWeight">
  <xs:annotation>
    <xs:documentation>This element provides the maximum weight for helicopters using this helipad.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Helipad / helicopterPerformanceReq
Namespace No namespace
Annotations

This element provides performance requirements for helicopters using this helipad.
Diagram
Diagram ARINC424_22_HTML.tmp#HelicopterPerformanceReq
Type enum:HelicopterPerformanceReq
Properties
content simple
minOccurs 0
Facets
enumeration MultiEngine
enumeration SingleEngineOnly
enumeration Unkown
Source

<xs:element minOccurs="0" name="helicopterPerformanceReq" type="enum:HelicopterPerformanceReq">
  <xs:annotation>
    <xs:documentation>This element provides performance requirements for helicopters using this helipad.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / localizerMarker
Namespace No namespace
Annotations

The Airport and Heliport Localizer Marker field contains details about all markers and locators associated with all types of localizers. It does not contain airway marker.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_elevation ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_localizerReference ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_locatorClass ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_locatorFacilityCharacteristics ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_locatorFrequency ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_markerType ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_minorAxisBearing ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_runwayIdentifier ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker
Type AirportHeliportLocalizerMarker
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children custAreaCode, cycleDate, datumCode, elevation, firRef, icaoCode, identifier, localizerReference, location, locatorClass, locatorFacilityCharacteristics, locatorFrequency, magneticVariation, markerType, minorAxisBearing, name, notes, recordType, runwayIdentifier, supplementalData, uirRef
Instance

<localizerMarker referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <elevation>{1,1}</elevation>
  <localizerReference>{0,1}</localizerReference>
  <locatorClass>{0,1}</locatorClass>
  <locatorFacilityCharacteristics>{0,1}</locatorFacilityCharacteristics>
  <locatorFrequency>{0,1}</locatorFrequency>
  <markerType>{0,1}</markerType>
  <minorAxisBearing>{0,1}</minorAxisBearing>
  <runwayIdentifier>{0,1}</runwayIdentifier>
</localizerMarker>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="localizerMarker" type="AirportHeliportLocalizerMarker" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The Airport and Heliport Localizer Marker field contains details about all markers and locators associated with all types of localizers. It does not contain airway marker.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirportHeliportLocalizerMarker / elevation
Namespace No namespace
Annotations

The Facility Elevation field provides the elevation of navaids and communication transmitters.
Diagram
Diagram ARINC424_22_HTML.tmp#Elevation
Type type:Elevation
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxInclusive 20000
minInclusive -1500
Source

<xs:element name="elevation" type="type:Elevation" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Facility Elevation field provides the elevation of navaids and communication transmitters.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirportHeliportLocalizerMarker / localizerReference
Namespace No namespace
Annotations

The “Localizer/MLS/GLS Identifier” field identifies the localizer, MLS facility or GLS Ref Path defined in the record. In the Runway Record, two “Landing Systems” may be defined.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="localizerReference" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Localizer/MLS/GLS Identifier” field identifies the localizer, MLS facility or GLS Ref Path defined in the record. In the Runway Record, two “Landing Systems” may be defined.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirportHeliportLocalizerMarker / locatorClass
Namespace No namespace
Annotations

The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense. The field is made up of five columns of codes that define this information.
Diagram
Diagram ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerLocatorFacility1 ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerLocatorAddInfo ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerLocatorCollocation ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerLocatorCoverage ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerLocatorFacility2 ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerWeatherInfo ARINC424_22_HTML.tmp#LocatorClass
Type LocatorClass
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children ahLocalizerMarkerLocatorAddInfo, ahLocalizerMarkerLocatorCollocation, ahLocalizerMarkerLocatorCoverage, ahLocalizerMarkerLocatorFacility1, ahLocalizerMarkerLocatorFacility2, ahLocalizerMarkerWeatherInfo
Instance

<locatorClass>
  <ahLocalizerMarkerLocatorFacility1>{0,1}</ahLocalizerMarkerLocatorFacility1>
  <ahLocalizerMarkerLocatorAddInfo>{0,1}</ahLocalizerMarkerLocatorAddInfo>
  <ahLocalizerMarkerLocatorCollocation>{0,1}</ahLocalizerMarkerLocatorCollocation>
  <ahLocalizerMarkerLocatorCoverage>{0,1}</ahLocalizerMarkerLocatorCoverage>
  <ahLocalizerMarkerLocatorFacility2>{0,1}</ahLocalizerMarkerLocatorFacility2>
  <ahLocalizerMarkerWeatherInfo>{0,1}</ahLocalizerMarkerWeatherInfo>
</locatorClass>
Source

<xs:element name="locatorClass" type="LocatorClass" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense. The field is made up of five columns of codes that define this information.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element LocatorClass / ahLocalizerMarkerLocatorFacility1
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AhLocalizerMarkerLocatorFacility1
Type enum:AhLocalizerMarkerLocatorFacility1
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Ndb
NDB
enumeration Sabh
SABH
enumeration MarineBeacon
Marine Beacon.
Source

<xs:element name="ahLocalizerMarkerLocatorFacility1" type="enum:AhLocalizerMarkerLocatorFacility1" minOccurs="0" maxOccurs="1"/>
[ top ]
Element LocatorClass / ahLocalizerMarkerLocatorAddInfo
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AhLocalizerMarkerLocatorAddInfo
Type enum:AhLocalizerMarkerLocatorAddInfo
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration NoVoiceOnFrequency
No Voice on Frequency.The frequency of this Navaid is not used to support two-way communication between a ground station and aircraft.
enumeration VoiceOnFrequency
Voice on Frequency.The frequency of this Navaid is used to support two-way communication between a ground station and aircraft.
Source

<xs:element name="ahLocalizerMarkerLocatorAddInfo" type="enum:AhLocalizerMarkerLocatorAddInfo" minOccurs="0" maxOccurs="1"/>
[ top ]
Element LocatorClass / ahLocalizerMarkerLocatorCollocation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AhLocalizerMarkerLocatorCollocation
Type enum:AhLocalizerMarkerLocatorCollocation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration BfoOperation
BFO Operation. Use of Beat Frequency Oscillator type of equipment is required to received an aural identification signal.
enumeration LocatorMarkerCollocated
Locator/Marker Collocated. The latitude/longitude position of the Locator and Marker are identical.
enumeration LocatorMiddleMarkerNotCollocated
Locator/Middle Marker Not Collocated. The latitude/longitude position of Locator and Marker are not identical.
Source

<xs:element name="ahLocalizerMarkerLocatorCollocation" type="enum:AhLocalizerMarkerLocatorCollocation" minOccurs="0" maxOccurs="1"/>
[ top ]
Element LocatorClass / ahLocalizerMarkerLocatorCoverage
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AhLocalizerMarkerLocatorCoverage
Type enum:AhLocalizerMarkerLocatorCoverage
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration HighPowerNdb
High-powered NDB. Generally usable within 75NM of the facility at all altitudes.
enumeration Ndb
NDB. Generally usable within 50NM of the facility at all altitude.
enumeration LowPowerNdb
Low-powered NDB. Generally usable within 25NM of the facility at all altitude.
enumeration Locator
Locator. Generally usable within 15NM of the facility at all altitudes.
Source

<xs:element name="ahLocalizerMarkerLocatorCoverage" type="enum:AhLocalizerMarkerLocatorCoverage" minOccurs="0" maxOccurs="1"/>
[ top ]
Element LocatorClass / ahLocalizerMarkerLocatorFacility2
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AhLocalizerMarkerLocatorFacility2
Type enum:AhLocalizerMarkerLocatorFacility2
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration InnerMarker
Inner Marker. There is an Inner Marker beacon at this location.
enumeration MiddleMarker
Middle Marker. There is a Middle Marker beacon at this location.
enumeration OuterMarker
Outer Marker. There is an Outer Marker beacon at this location.
enumeration BackMarker
Back Marker. There is a Backcourse Marker at this location.
Source

<xs:element name="ahLocalizerMarkerLocatorFacility2" type="enum:AhLocalizerMarkerLocatorFacility2" minOccurs="0" maxOccurs="1"/>
[ top ]
Element LocatorClass / ahLocalizerMarkerWeatherInfo
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#NavaidWeatherInfo
Type enum:NavaidWeatherInfo
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AUTOMATED
Automatic Transcribed Weather.The frequency of this Navaid is used for the continuous broadcast of some sort of automated weather system such as AWOS, ASOS, TWEB, AWIB, AWIS.
enumeration SCHEDULED
Broadcast Scheduled Weather.The frequency of this Navaid is used for the scheduled, noncontinuous broadcast of some sort of automated weather system such as VOLMET.
Source

<xs:element name="ahLocalizerMarkerWeatherInfo" type="enum:NavaidWeatherInfo" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirportHeliportLocalizerMarker / locatorFacilityCharacteristics
Namespace No namespace
Annotations

The “Facility Characteristics” field identifies the characteristics of the NAVAID facility.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="locatorFacilityCharacteristics" type="xs:string" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Facility Characteristics” field identifies the characteristics of the NAVAID facility.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirportHeliportLocalizerMarker / locatorFrequency
Namespace No namespace
Annotations

The “VOR/NDB Frequency” field specifies the frequency of the NAVAID identified in the “VOR/NDB Identifier” field of the record.
Diagram
Diagram ARINC424_22_HTML.tmp#Frequency_freqUnitOfMeasure ARINC424_22_HTML.tmp#Frequency_frequencyValue ARINC424_22_HTML.tmp#Frequency
Type type:Frequency
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children freqUnitOfMeasure, frequencyValue
Instance

<locatorFrequency>
  <freqUnitOfMeasure>{1,1}</freqUnitOfMeasure>
  <frequencyValue>{1,1}</frequencyValue>
</locatorFrequency>
Source

<xs:element name="locatorFrequency" type="type:Frequency" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “VOR/NDB Frequency” field specifies the frequency of the NAVAID identified in the “VOR/NDB Identifier” field of the record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirportHeliportLocalizerMarker / markerType
Namespace No namespace
Annotations

The “Marker Type” field defines the type of marker.
Diagram
Diagram ARINC424_22_HTML.tmp#MarkerType
Type enum:MarkerType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration IM
Inner Marker
enumeration MM
Middle Marker
enumeration OM
Outer Marker
enumeration BM
Back Marker
enumeration L
Locator at Marker
Source

<xs:element name="markerType" type="enum:MarkerType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Marker Type” field defines the type of marker.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirportHeliportLocalizerMarker / minorAxisBearing
Namespace No namespace
Annotations

The “Minor Axis Bearing” field indicates the true bearing of the minor axis of marker beacons.
Diagram
Diagram ARINC424_22_HTML.tmp#MinorAxisBearing
Type type:MinorAxisBearing
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Source

<xs:element name="minorAxisBearing" type="type:MinorAxisBearing" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Minor Axis Bearing” field indicates the true bearing of the minor axis of marker beacons.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirportHeliportLocalizerMarker / runwayIdentifier
Namespace No namespace
Annotations

The “Runway Identifier” fieldidentifies the runways described in runway records andrunways served by the ILS/MLS described in ILS/MLSrecords.
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayIdentifier_runwayLeftRightCenterType ARINC424_22_HTML.tmp#RunwayIdentifier_runwayNumber ARINC424_22_HTML.tmp#RunwayIdentifier
Type type:RunwayIdentifier
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children runwayLeftRightCenterType, runwayNumber
Instance

<runwayIdentifier>
  <runwayLeftRightCenterType>{0,1}</runwayLeftRightCenterType>
  <runwayNumber>{1,1}</runwayNumber>
</runwayIdentifier>
Source

<xs:element name="runwayIdentifier" type="type:RunwayIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Runway Identifier” fieldidentifies the runways described in runway records andrunways served by the ILS/MLS described in ILS/MLSrecords.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / localizerGlideslope
Namespace No namespace
Annotations

Localizer Glidescope field should contain all government published localizer type facilities to airport runways and/or helipad. As a minimum, this field should contain all localizer type facilities.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachAngle ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachCourseBearing ARINC424_22_HTML.tmp#PrecisionApproachNavaid_category ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayIdentifier ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayReference ARINC424_22_HTML.tmp#PrecisionApproachNavaid ARINC424_22_HTML.tmp#LocalizerGlideslope_approachRouteIdent ARINC424_22_HTML.tmp#LocalizerGlideslope_glideslopeBeamWidth ARINC424_22_HTML.tmp#LocalizerGlideslope_glideslopeHeightAtLandingThreshold ARINC424_22_HTML.tmp#LocalizerGlideslope_glideslopeLocation ARINC424_22_HTML.tmp#LocalizerGlideslope_glideslopePosition ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerPosition ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerPositionReference ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerTrueBearing ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerTrueBearingSource ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerWidth ARINC424_22_HTML.tmp#LocalizerGlideslope_stationDeclination ARINC424_22_HTML.tmp#LocalizerGlideslope_supportingFacilityReference ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerGlideslopeFrequency ARINC424_22_HTML.tmp#LocalizerGlideslope_ilsBackCourse ARINC424_22_HTML.tmp#LocalizerGlideslope_ilsDmeLocation ARINC424_22_HTML.tmp#LocalizerGlideslope
Type LocalizerGlideslope
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children approachAngle, approachCourseBearing, approachRouteIdent, category, custAreaCode, cycleDate, datumCode, elevation, firRef, glideslopeBeamWidth, glideslopeHeightAtLandingThreshold, glideslopeLocation, glideslopePosition, icaoCode, identifier, ilsBackCourse, ilsDmeLocation, localizerGlideslopeFrequency, localizerPosition, localizerPositionReference, localizerTrueBearing, localizerTrueBearingSource, localizerWidth, location, magneticVariation, name, notes, portRef, recordType, runwayIdentifier, runwayReference, stationDeclination, supplementalData, supportingFacilityReference, uirRef
Instance

<localizerGlideslope referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <portRef>{0,1}</portRef>
  <elevation>{0,1}</elevation>
  <approachAngle>{0,1}</approachAngle>
  <approachCourseBearing>{0,1}</approachCourseBearing>
  <category>{0,1}</category>
  <runwayIdentifier>{0,1}</runwayIdentifier>
  <runwayReference>{0,1}</runwayReference>
  <approachRouteIdent>{0,4}</approachRouteIdent>
  <glideslopeBeamWidth>{0,1}</glideslopeBeamWidth>
  <glideslopeHeightAtLandingThreshold>{0,1}</glideslopeHeightAtLandingThreshold>
  <glideslopeLocation>{0,1}</glideslopeLocation>
  <glideslopePosition>{0,1}</glideslopePosition>
  <localizerPosition>{0,1}</localizerPosition>
  <localizerPositionReference>{0,1}</localizerPositionReference>
  <localizerTrueBearing>{0,1}</localizerTrueBearing>
  <localizerTrueBearingSource>{0,1}</localizerTrueBearingSource>
  <localizerWidth>{0,1}</localizerWidth>
  <stationDeclination>{0,1}</stationDeclination>
  <supportingFacilityReference>{0,1}</supportingFacilityReference>
  <localizerGlideslopeFrequency>{1,1}</localizerGlideslopeFrequency>
  <ilsBackCourse>{0,1}</ilsBackCourse>
  <ilsDmeLocation>{0,1}</ilsDmeLocation>
</localizerGlideslope>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="localizerGlideslope" type="LocalizerGlideslope" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Localizer Glidescope field should contain all government published localizer type facilities to airport runways and/or helipad. As a minimum, this field should contain all localizer type facilities.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PrecisionApproachNavaid / approachAngle
Namespace No namespace
Annotations

The “Glide Slope Angle” field defines the glide slope angle of an ILS facility/GLS approach. The “Minimum Elevation Angle” field defines the lowest elevation angle authorized for the MLS procedure.
Diagram
Diagram ARINC424_22_HTML.tmp#PrecisionApproachAngle
Type type:PrecisionApproachAngle
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="approachAngle" type="type:PrecisionApproachAngle" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Glide Slope Angle” field defines the glide slope angle of an ILS facility/GLS approach. The “Minimum Elevation Angle” field defines the lowest elevation angle authorized for the MLS procedure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PrecisionApproachNavaid / approachCourseBearing
Namespace No namespace
Annotations

The “Localizer Bearing” field defines the magnetic bearing of the localizer course of the ILS facility/GLS approach described in the record. The “MLS Azimuth Bearing” and the “MLS Back Azimuth Bearing” fields define the inbound magnetic final approach course assigned to the center of the Azimuth or Back Azimuth Coverage (see Section 6.172).
Diagram
Diagram ARINC424_22_HTML.tmp#Bearing_bearingValue ARINC424_22_HTML.tmp#Bearing_isTrueBearing ARINC424_22_HTML.tmp#Bearing
Type type:Bearing
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children bearingValue, isTrueBearing
Instance

<approachCourseBearing>
  <bearingValue>{1,1}</bearingValue>
  <isTrueBearing>{0,1}</isTrueBearing>
</approachCourseBearing>
Source

<xs:element name="approachCourseBearing" type="type:Bearing" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Localizer Bearing” field defines the magnetic bearing of the localizer course of the ILS facility/GLS approach described in the record. The “MLS Azimuth Bearing” and the “MLS Back Azimuth Bearing” fields define the inbound magnetic final approach course assigned to the center of the Azimuth or Back Azimuth Coverage (see Section 6.172).</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:Bearing / bearingValue
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#BearingValue
Type type:BearingValue
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Source

<xs:element name="bearingValue" type="type:BearingValue" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Bearing / isTrueBearing
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTrueBearing" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element PrecisionApproachNavaid / category
Namespace No namespace
Annotations

The Localizer/MLS/GLS Performance Categories have established operating minimums and are listed as Category I, II, and III. The level of Performance Category does not imply that permission exists to use the facility for landing guidance to that level and does not limit minimal using designated classification. This field is also used to define the classification, non- ILS/MLS/GLS, and localizer installation such as IGS, LDA, or SDF. As used in the runway record, there are two fields, one labeled Localizer/MLS/GLS Category/Classification and the other labeled Second Localizer/MLS/GLS Category/Classification.
Diagram
Diagram ARINC424_22_HTML.tmp#PrecisionApproachCategory
Type enum:PrecisionApproachCategory
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration IlsLocOnly
ILS Localizer Only, No Glideslope
enumeration IlsMlsGlsCat1
ILS Localizer/MLS/GLS Category I
enumeration IlsMlsGlsCat2
ILS Localizer/MLS/GLS Category II
enumeration IlsMlsGlsCat3
ILS Localizer/MLS/GLS Category III
enumeration Igs
IGS Facility
enumeration LdaGlideslope
LDA Facility with Glideslope
enumeration LdaNoGlideslope
LDA Facility, no Glideslope
enumeration SdfGlideslope
SDF Facility with Glideslope
enumeration SdfNoGlideSlope
SDF Facility, no Glideslope
Source

<xs:element name="category" type="enum:PrecisionApproachCategory" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Localizer/MLS/GLS Performance Categories have established operating minimums and are listed as Category I, II, and III. The level of Performance Category does not imply that permission exists to use the facility for landing guidance to that level and does not limit minimal using designated classification. This field is also used to define the classification, non- ILS/MLS/GLS, and localizer installation such as IGS, LDA, or SDF. As used in the runway record, there are two fields, one labeled Localizer/MLS/GLS Category/Classification and the other labeled Second Localizer/MLS/GLS Category/Classification.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PrecisionApproachNavaid / runwayIdentifier
Namespace No namespace
Annotations

The “Runway Identifier” field identifies the runways described in runway records and runways served by the ILS/MLS described in ILS/MLSrecords.
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayIdentifier_runwayLeftRightCenterType ARINC424_22_HTML.tmp#RunwayIdentifier_runwayNumber ARINC424_22_HTML.tmp#RunwayIdentifier
Type type:RunwayIdentifier
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children runwayLeftRightCenterType, runwayNumber
Instance

<runwayIdentifier>
  <runwayLeftRightCenterType>{0,1}</runwayLeftRightCenterType>
  <runwayNumber>{1,1}</runwayNumber>
</runwayIdentifier>
Source

<xs:element name="runwayIdentifier" type="type:RunwayIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Runway Identifier” field identifies the runways described in runway records and runways served by the ILS/MLS described in ILS/MLSrecords.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PrecisionApproachNavaid / runwayReference
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="runwayReference" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element LocalizerGlideslope / approachRouteIdent
Namespace No namespace
Annotations

The “Approach Route Identifier” field contains the identifier of the approach route to be flown. To facilitate the provision of multiple approach procedures of the same type to a given runway, the field also is used to provide a “multiple indicator.”
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 0
maxOccurs 4
Facets
maxLength 16
Source

<xs:element name="approachRouteIdent" type="type:CoreIdentifier" minOccurs="0" maxOccurs="4">
  <xs:annotation>
    <xs:documentation>The “Approach Route Identifier” field contains the identifier of the approach route to be flown. To facilitate the provision of multiple approach procedures of the same type to a given runway, the field also is used to provide a “multiple indicator.”</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element LocalizerGlideslope / glideslopeBeamWidth
Namespace No namespace
Annotations

The “Glide Slope Beam Width” field specifies the glide path beam width of the Glide Slope defined in the record.
Diagram
Diagram ARINC424_22_HTML.tmp#GlideslopeBeamWidth
Type type:GlideslopeBeamWidth
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="glideslopeBeamWidth" type="type:GlideslopeBeamWidth" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Glide Slope Beam Width” field specifies the glide path beam width of the Glide Slope defined in the record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element LocalizerGlideslope / glideslopeHeightAtLandingThreshold
Namespace No namespace
Annotations

The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.
Diagram
Diagram ARINC424_22_HTML.tmp#ThresholdCrossingHeight
Type type:ThresholdCrossingHeight
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="glideslopeHeightAtLandingThreshold" type="type:ThresholdCrossingHeight" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element LocalizerGlideslope / glideslopeLocation
Namespace No namespace
Annotations

Latitude and Longitude details of this point.
Diagram
Diagram ARINC424_22_HTML.tmp#Location_latitude ARINC424_22_HTML.tmp#Location_longitude ARINC424_22_HTML.tmp#Location
Type type:Location
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children latitude, longitude
Instance

<glideslopeLocation>
  <latitude>{1,1}</latitude>
  <longitude>{1,1}</longitude>
</glideslopeLocation>
Source

<xs:element name="glideslopeLocation" type="type:Location" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element LocalizerGlideslope / glideslopePosition
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#BeamPosition
Type type:BeamPosition
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="glideslopePosition" type="type:BeamPosition" minOccurs="0" maxOccurs="1"/>
[ top ]
Element LocalizerGlideslope / localizerPosition
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#BeamPosition
Type type:BeamPosition
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="localizerPosition" type="type:BeamPosition" minOccurs="0" maxOccurs="1"/>
[ top ]
Element LocalizerGlideslope / localizerPositionReference
Namespace No namespace
Annotations

Element which encapsulates the localizer details for the corresponding Runway. This element contains the localizer ident and localizer class.
Diagram
Diagram ARINC424_22_HTML.tmp#LocalizerAzimuthPositionReference
Type enum:LocalizerAzimuthPositionReference
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration BeyondStopEnd
For Localizer and Azimuth positions the field is blank (@) when the antenna is situated beyond the stop end of the runway,
For Back Azimuth positions the field is blank (@) when the antenna is situated ahead of the approach end of the runway
enumeration BeforeApproachEnd
For Localizer and Azimuth positions the field contains a plus (+) sign when the antenna is situated ahead of the approach end of the runway
For Back Azimuth positions the field contains a plus (+) sign when the antenna is situated beyond the stop end of the runway
enumeration OffToSide
For Localizer and Azimuth positions the field contains a plus (-) sign when the antenna is located off to one side of the runway
For Back Azimuth positions the field contains a plus (-) sign when it is located off to one side of the runway.
Source

<xs:element name="localizerPositionReference" type="enum:LocalizerAzimuthPositionReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Element which encapsulates the localizer details for the corresponding Runway. This element contains the localizer ident and localizer class.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element LocalizerGlideslope / localizerTrueBearing
Namespace No namespace
Annotations

The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and
Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.
Diagram
Diagram ARINC424_22_HTML.tmp#TrueBearing
Type type:TrueBearing
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
fractionDigits 2
maxInclusive 360
minInclusive 0
Source

<xs:element name="localizerTrueBearing" type="type:TrueBearing" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element LocalizerGlideslope / localizerTrueBearingSource
Namespace No namespace
Annotations

The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.
Diagram
Diagram ARINC424_22_HTML.tmp#TrueBearingSource
Type enum:TrueBearingSource
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Official
“True Bearing” is derived from official government sources.
enumeration Other
“True Bearing" is derived from other sources
Source

<xs:element name="localizerTrueBearingSource" type="enum:TrueBearingSource" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element LocalizerGlideslope / localizerWidth
Namespace No namespace
Diagram
Diagram
Type xs:decimal
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="localizerWidth" type="xs:decimal" minOccurs="0" maxOccurs="1"/>
[ top ]
Element LocalizerGlideslope / stationDeclination
Namespace No namespace
Annotations

For VHF NAVAIDS, the “Station Declination” field contains the angular difference between true north and the zero degree radial of the NAVAID at the time the NAVAID was last site checked. For ILS localizers, the field contains the angular difference between true north and magnetic north at the localizer antenna site at the time the magnetic bearing of the localizer course was established.
Diagram
Diagram ARINC424_22_HTML.tmp#StationDeclination_stationDeclinationEWT ARINC424_22_HTML.tmp#StationDeclination_stationDeclinationValue ARINC424_22_HTML.tmp#StationDeclination
Type type:StationDeclination
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children stationDeclinationEWT, stationDeclinationValue
Instance

<stationDeclination>
  <stationDeclinationEWT>{1,1}</stationDeclinationEWT>
  <stationDeclinationValue>{1,1}</stationDeclinationValue>
</stationDeclination>
Source

<xs:element name="stationDeclination" type="type:StationDeclination" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>For VHF NAVAIDS, the “Station Declination” field contains the angular difference between true north and the zero degree radial of the NAVAID at the time the NAVAID was last site checked. For ILS localizers, the field contains the angular difference between true north and magnetic north at the localizer antenna site at the time the magnetic bearing of the localizer course was established.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:StationDeclination / stationDeclinationEWT
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#StationDeclinationEWT
Type enum:StationDeclinationEWT
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration East
Declination is East of True North
enumeration West
Declination is East of West North
enumeration True
Station is oriented to True North in an area in which the local variation is not zero.
enumeration Grid
Station is oriented to Grid North
Source

<xs:element name="stationDeclinationEWT" type="enum:StationDeclinationEWT" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:StationDeclination / stationDeclinationValue
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticVariationValue
Type type:MagneticVariationValue
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
maxInclusive 180
minInclusive 0
Source

<xs:element name="stationDeclinationValue" type="type:MagneticVariationValue" minOccurs="1" maxOccurs="1"/>
[ top ]
Element LocalizerGlideslope / supportingFacilityReference
Namespace No namespace
Annotations

The “VOR/NDB Identifier” field identifies the VHF/MF/LF facility defined in the record.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="supportingFacilityReference" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “VOR/NDB Identifier” field identifies the VHF/MF/LF facility defined in the record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element LocalizerGlideslope / localizerGlideslopeFrequency
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Frequency_freqUnitOfMeasure ARINC424_22_HTML.tmp#Frequency_frequencyValue ARINC424_22_HTML.tmp#Frequency
Type type:Frequency
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children freqUnitOfMeasure, frequencyValue
Instance

<localizerGlideslopeFrequency>
  <freqUnitOfMeasure>{1,1}</freqUnitOfMeasure>
  <frequencyValue>{1,1}</frequencyValue>
</localizerGlideslopeFrequency>
Source

<xs:element name="localizerGlideslopeFrequency" type="type:Frequency" minOccurs="1" maxOccurs="1"/>
[ top ]
Element LocalizerGlideslope / ilsBackCourse
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ILSBackCourse
Type enum:ILSBackCourse
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Usable
Usable
enumeration Unusable
Unusable
enumeration Restricted
Restricted
enumeration Undefined
Undefined
Source

<xs:element name="ilsBackCourse" type="enum:ILSBackCourse" minOccurs="0" maxOccurs="1"/>
[ top ]
Element LocalizerGlideslope / ilsDmeLocation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ILSDMELocation
Type enum:ILSDMELocation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration NotCollocated
Not collocated with Localizer or Glide Slope
enumeration CollocatedLocalizer
Collocated with localizer
enumeration CollocatedGlideSlope
Collocated with Glide Slope
Source

<xs:element name="ilsDmeLocation" type="enum:ILSDMELocation" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Port / gls
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachAngle ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachCourseBearing ARINC424_22_HTML.tmp#PrecisionApproachNavaid_category ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayIdentifier ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayReference ARINC424_22_HTML.tmp#PrecisionApproachNavaid ARINC424_22_HTML.tmp#GLS_serviceVolumneRadius ARINC424_22_HTML.tmp#GLS_stationElevationWGS84 ARINC424_22_HTML.tmp#GLS_stationType ARINC424_22_HTML.tmp#GLS_tdmaSlots ARINC424_22_HTML.tmp#GLS_glsChannel ARINC424_22_HTML.tmp#GLS_thresholdCrossingHeight ARINC424_22_HTML.tmp#GLS
Type GLS
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children approachAngle, approachCourseBearing, category, custAreaCode, cycleDate, datumCode, elevation, firRef, glsChannel, icaoCode, identifier, location, magneticVariation, name, notes, portRef, recordType, runwayIdentifier, runwayReference, serviceVolumneRadius, stationElevationWGS84, stationType, supplementalData, tdmaSlots, thresholdCrossingHeight, uirRef
Instance

<gls referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <portRef>{0,1}</portRef>
  <elevation>{0,1}</elevation>
  <approachAngle>{0,1}</approachAngle>
  <approachCourseBearing>{0,1}</approachCourseBearing>
  <category>{0,1}</category>
  <runwayIdentifier>{0,1}</runwayIdentifier>
  <runwayReference>{0,1}</runwayReference>
  <serviceVolumneRadius>{0,1}</serviceVolumneRadius>
  <stationElevationWGS84>{0,1}</stationElevationWGS84>
  <stationType>{0,1}</stationType>
  <tdmaSlots>{0,1}</tdmaSlots>
  <glsChannel>{1,1}</glsChannel>
  <thresholdCrossingHeight>{0,1}</thresholdCrossingHeight>
</gls>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="gls" type="GLS" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element GLS / serviceVolumneRadius
Namespace No namespace
Annotations

The service volume radius identifies the radius of the service volume around the transmitter in Nautical miles.
Diagram
Diagram ARINC424_22_HTML.tmp#ServiceVolumeRadius
Type type:ServiceVolumeRadius
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 2
Source

<xs:element name="serviceVolumneRadius" type="type:ServiceVolumeRadius" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The service volume radius identifies the radius of the service volume around the transmitter in Nautical miles.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element GLS / stationElevationWGS84
Namespace No namespace
Annotations

This field identifies the WGS84 elevation of the GLS ground station described in the record.
Diagram
Diagram ARINC424_22_HTML.tmp#StationElevationWGS84
Type type:StationElevationWGS84
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxInclusive 20000
minInclusive -1500
Source

<xs:element name="stationElevationWGS84" type="type:StationElevationWGS84" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field identifies the WGS84 elevation of the GLS ground station described in the record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element GLS / stationType
Namespace No namespace
Annotations

The station type identifies the type of the differential ground station. The first character will be L for LAAS/GLS ground station, C for SCAT-1 station. The second and third character will be blank for the moment. They will indicate the interoperability standard to which the station conforms.
Diagram
Diagram ARINC424_22_HTML.tmp#StationType
Type type:StationType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 3
Source

<xs:element name="stationType" type="type:StationType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The station type identifies the type of the differential ground station. The first character will be L for LAAS/GLS ground station, C for SCAT-1 station. The second and third character will be blank for the moment. They will indicate the interoperability standard to which the station conforms.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element GLS / tdmaSlots
Namespace No namespace
Annotations

The TDMA identifies the time slot(s) in which the ground station transmits the related approach. The high precision time source available through GPS permits utilization of Time division multiplexing or TDMA (Time Division Multiple Access), allowing multiple ground stations to share a common frequency by dividing it into eight time slots. An individual station may broadcast in one or more of eight slots.
Diagram
Diagram ARINC424_22_HTML.tmp#TDMASlots
Type type:TDMASlots
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 2
Source

<xs:element name="tdmaSlots" type="type:TDMASlots" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The TDMA identifies the time slot(s) in which the ground station transmits the related approach. The high precision time source available through GPS permits utilization of Time division multiplexing or TDMA (Time Division Multiple Access), allowing multiple ground stations to share a common frequency by dividing it into eight time slots. An individual station may broadcast in one or more of eight slots.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element GLS / glsChannel
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Channel
Type type:Channel
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 5
Source

<xs:element name="glsChannel" type="type:Channel" minOccurs="1" maxOccurs="1"/>
[ top ]
Element GLS / thresholdCrossingHeight
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ThresholdCrossingHeight
Type type:ThresholdCrossingHeight
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element maxOccurs="1" minOccurs="0" name="thresholdCrossingHeight" type="type:ThresholdCrossingHeight"/>
[ top ]
Element Port / mls
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachAngle ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachCourseBearing ARINC424_22_HTML.tmp#PrecisionApproachNavaid_category ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayIdentifier ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayReference ARINC424_22_HTML.tmp#PrecisionApproachNavaid ARINC424_22_HTML.tmp#MLS_azimuthCoverageLeft ARINC424_22_HTML.tmp#MLS_azimuthCoverageRight ARINC424_22_HTML.tmp#MLS_azimuthPosition ARINC424_22_HTML.tmp#MLS_azimuthPositionReference ARINC424_22_HTML.tmp#MLS_azimuthProportionalAngleLeft ARINC424_22_HTML.tmp#MLS_azimuthProportionalAngleRight ARINC424_22_HTML.tmp#MLS_elevationAngleSpan ARINC424_22_HTML.tmp#MLS_elevationLocation ARINC424_22_HTML.tmp#MLS_elevationPosition ARINC424_22_HTML.tmp#MLS_mlsBackAzimuthDetails ARINC424_22_HTML.tmp#MLS_nominalElevationAngle ARINC424_22_HTML.tmp#MLS_supportingFacilityReference ARINC424_22_HTML.tmp#MLS_mlsChannel ARINC424_22_HTML.tmp#MLS_mlsDmeLocation ARINC424_22_HTML.tmp#MLS_mlsApproachAzimuthScanRate ARINC424_22_HTML.tmp#MLS
Type MLS
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children approachAngle, approachCourseBearing, azimuthCoverageLeft, azimuthCoverageRight, azimuthPosition, azimuthPositionReference, azimuthProportionalAngleLeft, azimuthProportionalAngleRight, category, custAreaCode, cycleDate, datumCode, elevation, elevationAngleSpan, elevationLocation, elevationPosition, firRef, icaoCode, identifier, location, magneticVariation, mlsApproachAzimuthScanRate, mlsBackAzimuthDetails, mlsChannel, mlsDmeLocation, name, nominalElevationAngle, notes, portRef, recordType, runwayIdentifier, runwayReference, supplementalData, supportingFacilityReference, uirRef
Instance

<mls referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <portRef>{0,1}</portRef>
  <elevation>{0,1}</elevation>
  <approachAngle>{0,1}</approachAngle>
  <approachCourseBearing>{0,1}</approachCourseBearing>
  <category>{0,1}</category>
  <runwayIdentifier>{0,1}</runwayIdentifier>
  <runwayReference>{0,1}</runwayReference>
  <azimuthCoverageLeft>{0,1}</azimuthCoverageLeft>
  <azimuthCoverageRight>{0,1}</azimuthCoverageRight>
  <azimuthPosition>{0,1}</azimuthPosition>
  <azimuthPositionReference>{0,1}</azimuthPositionReference>
  <azimuthProportionalAngleLeft>{0,1}</azimuthProportionalAngleLeft>
  <azimuthProportionalAngleRight>{0,1}</azimuthProportionalAngleRight>
  <elevationAngleSpan>{0,1}</elevationAngleSpan>
  <elevationLocation>{0,1}</elevationLocation>
  <elevationPosition>{0,1}</elevationPosition>
  <mlsBackAzimuthDetails referenceID="">{0,1}</mlsBackAzimuthDetails>
  <nominalElevationAngle>{0,1}</nominalElevationAngle>
  <supportingFacilityReference>{0,1}</supportingFacilityReference>
  <mlsChannel>{1,1}</mlsChannel>
  <mlsDmeLocation>{0,1}</mlsDmeLocation>
  <mlsApproachAzimuthScanRate>{0,1}</mlsApproachAzimuthScanRate>
</mls>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="mls" type="MLS" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element MLS / azimuthCoverageLeft
Namespace No namespace
Annotations

The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.
Diagram
Diagram ARINC424_22_HTML.tmp#AzimuthCoverageSectorRightLeft
Type type:AzimuthCoverageSectorRightLeft
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Source

<xs:element name="azimuthCoverageLeft" type="type:AzimuthCoverageSectorRightLeft" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / azimuthCoverageRight
Namespace No namespace
Annotations

The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.
Diagram
Diagram ARINC424_22_HTML.tmp#AzimuthCoverageSectorRightLeft
Type type:AzimuthCoverageSectorRightLeft
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Source

<xs:element name="azimuthCoverageRight" type="type:AzimuthCoverageSectorRightLeft" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / azimuthPosition
Namespace No namespace
Annotations

The “Localizer/Azimuth Position” field defines the location of the facility antenna relative to one end of the runway.
Diagram
Diagram ARINC424_22_HTML.tmp#BeamPosition
Type type:BeamPosition
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="azimuthPosition" type="type:BeamPosition" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Localizer/Azimuth Position” field defines the location of the facility antenna relative to one end of the runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / azimuthPositionReference
Namespace No namespace
Annotations

The “Localizer/Azimuth Position Reference” field indicates whether the antenna is situated beyond the stop end of the runway, ahead of or beyond the approach end of the runway. The “Back Azimuth Position Reference” field indicates whether the antenna is situated ahead of the approach end of the runway, ahead of or beyond the stop end of the runway.
Diagram
Diagram ARINC424_22_HTML.tmp#LocalizerAzimuthPositionReference
Type enum:LocalizerAzimuthPositionReference
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration BeyondStopEnd
For Localizer and Azimuth positions the field is blank (@) when the antenna is situated beyond the stop end of the runway,
For Back Azimuth positions the field is blank (@) when the antenna is situated ahead of the approach end of the runway
enumeration BeforeApproachEnd
For Localizer and Azimuth positions the field contains a plus (+) sign when the antenna is situated ahead of the approach end of the runway
For Back Azimuth positions the field contains a plus (+) sign when the antenna is situated beyond the stop end of the runway
enumeration OffToSide
For Localizer and Azimuth positions the field contains a plus (-) sign when the antenna is located off to one side of the runway
For Back Azimuth positions the field contains a plus (-) sign when it is located off to one side of the runway.
Source

<xs:element name="azimuthPositionReference" type="enum:LocalizerAzimuthPositionReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Localizer/Azimuth Position Reference” field indicates whether the antenna is situated beyond the stop end of the runway, ahead of or beyond the approach end of the runway. The “Back Azimuth Position Reference” field indicates whether the antenna is situated ahead of the approach end of the runway, ahead of or beyond the stop end of the runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / azimuthProportionalAngleLeft
Namespace No namespace
Annotations

The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.
Diagram
Diagram ARINC424_22_HTML.tmp#AzimuthProportionalAngleRightLeft
Type type:AzimuthProportionalAngleRightLeft
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Source

<xs:element name="azimuthProportionalAngleLeft" type="type:AzimuthProportionalAngleRightLeft" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / azimuthProportionalAngleRight
Namespace No namespace
Annotations

The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.
Diagram
Diagram ARINC424_22_HTML.tmp#AzimuthProportionalAngleRightLeft
Type type:AzimuthProportionalAngleRightLeft
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Source

<xs:element name="azimuthProportionalAngleRight" type="type:AzimuthProportionalAngleRightLeft" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / elevationAngleSpan
Namespace No namespace
Annotations

The “Elevation Angle Span” field defines the scan of the elevation transmitter signal between the lower and upper limits
Diagram
Diagram ARINC424_22_HTML.tmp#ElevationAngleSpan
Type type:ElevationAngleSpan
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Source

<xs:element name="elevationAngleSpan" type="type:ElevationAngleSpan" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Elevation Angle Span” field defines the scan of the elevation transmitter signal between the lower and upper limits</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / elevationLocation
Namespace No namespace
Annotations

Latitude and Longitude details of this point's elevation component.
Diagram
Diagram ARINC424_22_HTML.tmp#Location_latitude ARINC424_22_HTML.tmp#Location_longitude ARINC424_22_HTML.tmp#Location
Type type:Location
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children latitude, longitude
Instance

<elevationLocation>
  <latitude>{1,1}</latitude>
  <longitude>{1,1}</longitude>
</elevationLocation>
Source

<xs:element name="elevationLocation" type="type:Location" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Latitude and Longitude details of this point's elevation component.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / elevationPosition
Namespace No namespace
Annotations

The “Elevation Position” field defines the location of the antenna with respect to the approach end of the runway.
Diagram
Diagram ARINC424_22_HTML.tmp#BeamPosition
Type type:BeamPosition
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="elevationPosition" type="type:BeamPosition" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Elevation Position” field defines the location of the antenna with respect to the approach end of the runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / mlsBackAzimuthDetails
Namespace No namespace
Annotations

MLS Back Azimuth Details
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_azimuthTrueBearing ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_azimuthTrueBearingSource ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthBearing ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthCoverageLeft ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthCoverageRight ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthPosition ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthPositionReference ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthProportionalSectorLeft ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthProportionalSectorRight ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthTrueBearing ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthTrueBearingSource ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_glidePathHeightAtLandingThreshold ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_mlsDatumPointLocation ARINC424_22_HTML.tmp#MLSBackAzimuthDetails
Type MLSBackAzimuthDetails
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children azimuthTrueBearing, azimuthTrueBearingSource, backAzimuthBearing, backAzimuthCoverageLeft, backAzimuthCoverageRight, backAzimuthPosition, backAzimuthPositionReference, backAzimuthProportionalSectorLeft, backAzimuthProportionalSectorRight, backAzimuthTrueBearing, backAzimuthTrueBearingSource, custAreaCode, cycleDate, datumCode, firRef, glidePathHeightAtLandingThreshold, icaoCode, identifier, location, magneticVariation, mlsDatumPointLocation, name, notes, recordType, supplementalData, uirRef
Instance

<mlsBackAzimuthDetails referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <azimuthTrueBearing>{0,1}</azimuthTrueBearing>
  <azimuthTrueBearingSource>{0,1}</azimuthTrueBearingSource>
  <backAzimuthBearing>{0,1}</backAzimuthBearing>
  <backAzimuthCoverageLeft>{0,1}</backAzimuthCoverageLeft>
  <backAzimuthCoverageRight>{0,1}</backAzimuthCoverageRight>
  <backAzimuthPosition>{0,1}</backAzimuthPosition>
  <backAzimuthPositionReference>{0,1}</backAzimuthPositionReference>
  <backAzimuthProportionalSectorLeft>{0,1}</backAzimuthProportionalSectorLeft>
  <backAzimuthProportionalSectorRight>{0,1}</backAzimuthProportionalSectorRight>
  <backAzimuthTrueBearing>{0,1}</backAzimuthTrueBearing>
  <backAzimuthTrueBearingSource>{0,1}</backAzimuthTrueBearingSource>
  <glidePathHeightAtLandingThreshold>{0,1}</glidePathHeightAtLandingThreshold>
  <mlsDatumPointLocation>{0,1}</mlsDatumPointLocation>
</mlsBackAzimuthDetails>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="mlsBackAzimuthDetails" type="MLSBackAzimuthDetails" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>MLS Back Azimuth Details</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / azimuthTrueBearing
Namespace No namespace
Annotations

The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and
Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.
Diagram
Diagram ARINC424_22_HTML.tmp#TrueBearing
Type type:TrueBearing
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
fractionDigits 2
maxInclusive 360
minInclusive 0
Source

<xs:element name="azimuthTrueBearing" type="type:TrueBearing" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / azimuthTrueBearingSource
Namespace No namespace
Annotations

The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.
Diagram
Diagram ARINC424_22_HTML.tmp#TrueBearingSource
Type enum:TrueBearingSource
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Official
“True Bearing” is derived from official government sources.
enumeration Other
“True Bearing" is derived from other sources
Source

<xs:element name="azimuthTrueBearingSource" type="enum:TrueBearingSource" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / backAzimuthBearing
Namespace No namespace
Annotations

The “MLS Azimuth Bearing” and the “MLS Back Azimuth Bearing” fields define the inbound magnetic final approach course assigned to the center of the Azimuth or Back Azimuth Coverage (see Section 6.172).
Diagram
Diagram ARINC424_22_HTML.tmp#Bearing_bearingValue ARINC424_22_HTML.tmp#Bearing_isTrueBearing ARINC424_22_HTML.tmp#Bearing
Type type:Bearing
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children bearingValue, isTrueBearing
Instance

<backAzimuthBearing>
  <bearingValue>{1,1}</bearingValue>
  <isTrueBearing>{0,1}</isTrueBearing>
</backAzimuthBearing>
Source

<xs:element name="backAzimuthBearing" type="type:Bearing" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “MLS Azimuth Bearing” and the “MLS Back Azimuth Bearing” fields define the inbound magnetic final approach course assigned to the center of the Azimuth or Back Azimuth Coverage (see Section 6.172).</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / backAzimuthCoverageLeft
Namespace No namespace
Annotations

The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.
Diagram
Diagram ARINC424_22_HTML.tmp#AzimuthCoverageSectorRightLeft
Type type:AzimuthCoverageSectorRightLeft
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Source

<xs:element name="backAzimuthCoverageLeft" type="type:AzimuthCoverageSectorRightLeft" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / backAzimuthCoverageRight
Namespace No namespace
Annotations

The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.
Diagram
Diagram ARINC424_22_HTML.tmp#AzimuthCoverageSectorRightLeft
Type type:AzimuthCoverageSectorRightLeft
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Source

<xs:element name="backAzimuthCoverageRight" type="type:AzimuthCoverageSectorRightLeft" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / backAzimuthPosition
Namespace No namespace
Annotations

The “Localizer/Azimuth Position” field defines the location of the facility antenna relative to one end of the runway.
Diagram
Diagram ARINC424_22_HTML.tmp#BeamPosition
Type type:BeamPosition
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="backAzimuthPosition" type="type:BeamPosition" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Localizer/Azimuth Position” field defines the location of the facility antenna relative to one end of the runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / backAzimuthPositionReference
Namespace No namespace
Annotations

The “Localizer/Azimuth Position Reference” field indicates whether the antenna is situated beyond the stop end of the runway, ahead of or beyond the approach end of the runway. The “Back Azimuth Position Reference” field indicates whether the antenna is situated ahead of the approach end of the runway, ahead of or beyond the stop end of the runway.
Diagram
Diagram ARINC424_22_HTML.tmp#LocalizerAzimuthPositionReference
Type enum:LocalizerAzimuthPositionReference
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration BeyondStopEnd
For Localizer and Azimuth positions the field is blank (@) when the antenna is situated beyond the stop end of the runway,
For Back Azimuth positions the field is blank (@) when the antenna is situated ahead of the approach end of the runway
enumeration BeforeApproachEnd
For Localizer and Azimuth positions the field contains a plus (+) sign when the antenna is situated ahead of the approach end of the runway
For Back Azimuth positions the field contains a plus (+) sign when the antenna is situated beyond the stop end of the runway
enumeration OffToSide
For Localizer and Azimuth positions the field contains a plus (-) sign when the antenna is located off to one side of the runway
For Back Azimuth positions the field contains a plus (-) sign when it is located off to one side of the runway.
Source

<xs:element name="backAzimuthPositionReference" type="enum:LocalizerAzimuthPositionReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Localizer/Azimuth Position Reference” field indicates whether the antenna is situated beyond the stop end of the runway, ahead of or beyond the approach end of the runway. The “Back Azimuth Position Reference” field indicates whether the antenna is situated ahead of the approach end of the runway, ahead of or beyond the stop end of the runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / backAzimuthProportionalSectorLeft
Namespace No namespace
Annotations

The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.
Diagram
Diagram ARINC424_22_HTML.tmp#AzimuthProportionalAngleRightLeft
Type type:AzimuthProportionalAngleRightLeft
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Source

<xs:element name="backAzimuthProportionalSectorLeft" type="type:AzimuthProportionalAngleRightLeft" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / backAzimuthProportionalSectorRight
Namespace No namespace
Annotations

The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.
Diagram
Diagram ARINC424_22_HTML.tmp#AzimuthProportionalAngleRightLeft
Type type:AzimuthProportionalAngleRightLeft
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Source

<xs:element name="backAzimuthProportionalSectorRight" type="type:AzimuthProportionalAngleRightLeft" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / backAzimuthTrueBearing
Namespace No namespace
Annotations

The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and
Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.
Diagram
Diagram ARINC424_22_HTML.tmp#TrueBearing
Type type:TrueBearing
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
fractionDigits 2
maxInclusive 360
minInclusive 0
Source

<xs:element name="backAzimuthTrueBearing" type="type:TrueBearing" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / backAzimuthTrueBearingSource
Namespace No namespace
Annotations

The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.
Diagram
Diagram ARINC424_22_HTML.tmp#TrueBearingSource
Type enum:TrueBearingSource
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Official
“True Bearing” is derived from official government sources.
enumeration Other
“True Bearing" is derived from other sources
Source

<xs:element name="backAzimuthTrueBearingSource" type="enum:TrueBearingSource" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / glidePathHeightAtLandingThreshold
Namespace No namespace
Annotations

The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.
Diagram
Diagram ARINC424_22_HTML.tmp#ThresholdCrossingHeight
Type type:ThresholdCrossingHeight
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="glidePathHeightAtLandingThreshold" type="type:ThresholdCrossingHeight" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLSBackAzimuthDetails / mlsDatumPointLocation
Namespace No namespace
Annotations

Latitude and Longitude details of this point.
Diagram
Diagram ARINC424_22_HTML.tmp#Location_latitude ARINC424_22_HTML.tmp#Location_longitude ARINC424_22_HTML.tmp#Location
Type type:Location
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children latitude, longitude
Instance

<mlsDatumPointLocation>
  <latitude>{1,1}</latitude>
  <longitude>{1,1}</longitude>
</mlsDatumPointLocation>
Source

<xs:element name="mlsDatumPointLocation" type="type:Location" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / nominalElevationAngle
Namespace No namespace
Annotations

The “Nominal Elevation Angle” field defines the normal glide path angle for the MLS installation.
Diagram
Diagram ARINC424_22_HTML.tmp#NominalElevationAngle
Type type:NominalElevationAngle
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="nominalElevationAngle" type="type:NominalElevationAngle" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Nominal Elevation Angle” field defines the normal glide path angle for the MLS installation.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / supportingFacilityReference
Namespace No namespace
Annotations

The “VOR/NDB Identifier” field identifies the VHF/MF/LF facility defined in the record.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="supportingFacilityReference" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “VOR/NDB Identifier” field identifies the VHF/MF/LF facility defined in the record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MLS / mlsChannel
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Channel
Type type:Channel
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 5
Source

<xs:element name="mlsChannel" type="type:Channel" minOccurs="1" maxOccurs="1"/>
[ top ]
Element MLS / mlsDmeLocation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#MLSDMELocation
Type enum:MLSDMELocation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration CollocatedAzimuth
Collocated with Azimuth
enumeration CollocatedElevation
Collocated with Elevation.
enumeration NotCollocated
Not Collocated with Azimuth or Elevation
Source

<xs:element name="mlsDmeLocation" type="enum:MLSDMELocation" minOccurs="0" maxOccurs="1"/>
[ top ]
Element MLS / mlsApproachAzimuthScanRate
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#MLSApproachAzimuthScanRate
Type enum:MLSApproachAzimuthScanRate
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AzimuthNotAvailable
Where a high-rate approach azimuth guidance is not available, enter blank.
enumeration AzimuthAvailable
Where a high-rate approach azimuth guidance is available, enter “H,”
Source

<xs:element name="mlsApproachAzimuthScanRate" type="enum:MLSApproachAzimuthScanRate" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Port / msa
Namespace No namespace
Annotations

The Minimum Sector Altitude (MSA) field contains details relating to available sector altitudes.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#MSA_referenceID ARINC424_22_HTML.tmp#MSA_centerFix ARINC424_22_HTML.tmp#MSA_icaoCode ARINC424_22_HTML.tmp#MSA_magneticTrueIndicator ARINC424_22_HTML.tmp#MSA_multipleCode ARINC424_22_HTML.tmp#MSA_sector ARINC424_22_HTML.tmp#MSA_centerFixRef ARINC424_22_HTML.tmp#MSA
Type MSA
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children centerFix, centerFixRef, custAreaCode, cycleDate, icaoCode, magneticTrueIndicator, multipleCode, notes, recordType, sector, supplementalData
Instance

<msa referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <centerFix>{0,1}</centerFix>
  <icaoCode>{0,1}</icaoCode>
  <magneticTrueIndicator>{0,1}</magneticTrueIndicator>
  <multipleCode>{0,1}</multipleCode>
  <sector>{1,unbounded}</sector>
  <centerFixRef>{0,1}</centerFixRef>
</msa>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="msa" type="MSA" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The Minimum Sector Altitude (MSA) field contains details relating to available sector altitudes.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MSA / centerFix
Namespace No namespace
Annotations

When used on Airport and Heliport MSA Records, the “Center Fix” field represents the MSA Center; that point (Navaid or Waypoint) on which the MSA is predicated. When used on Terminal Procedure Records, it can be used in three ways:

1. When the terminal procedure has an MSA defined, the field will contain the identifier of the fix on which the MSA is predicated. This will serve as a pointer to the specific MSA (PS) Record. This will be populated on the Final Approach Fix (FAF) Record only.
2. When the terminal procedure has a TAA defined, the field will contain the identifier of the fix on which the TAA Sector is predicated. This will serve as a pointer to the specific TAA (PK) Record. This will be populated on the first record for each approach transition.
3. When used in a terminal procedure record defined by an “RF” Path Terminator, the field will contain the fix that defines the center of the constant rate turn. If the RF Leg terminates at the FAF, where the MSA Center Fix information would normally be found, the RF Center Fix takes priority and the MSA Center Fix pointer will be moved to the FACF record.
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="centerFix" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>When used on Airport and Heliport MSA Records, the “Center Fix” field represents the MSA Center; that point (Navaid or Waypoint) on which the MSA is predicated. When used on Terminal Procedure Records, it can be used in three ways: 1. When the terminal procedure has an MSA defined, the field will contain the identifier of the fix on which the MSA is predicated. This will serve as a pointer to the specific MSA (PS) Record. This will be populated on the Final Approach Fix (FAF) Record only. 2. When the terminal procedure has a TAA defined, the field will contain the identifier of the fix on which the TAA Sector is predicated. This will serve as a pointer to the specific TAA (PK) Record. This will be populated on the first record for each approach transition. 3. When used in a terminal procedure record defined by an “RF” Path Terminator, the field will contain the fix that defines the center of the constant rate turn. If the RF Leg terminates at the FAF, where the MSA Center Fix information would normally be found, the RF Center Fix takes priority and the MSA Center Fix pointer will be moved to the FACF record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MSA / icaoCode
Namespace No namespace
Annotations

The “ICAO Code” field permits records to be categorized geographically within the limits of the categorization performed by the “Area Code” field.
Diagram
Diagram ARINC424_22_HTML.tmp#IcaoCode
Type type:IcaoCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
pattern [a-zA-Z0-9]{2}
Source

<xs:element name="icaoCode" type="type:IcaoCode" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “ICAO Code” field permits records to be categorized geographically within the limits of the categorization performed by the “Area Code” field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MSA / magneticTrueIndicator
Namespace No namespace
Annotations

The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticTrueIndicator
Type enum:MagneticTrueIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Both
The field will be blank if details and procedures are provided in both magnetic and true for the airport. In such cases the individual detail or procedure records will contain the magnetic or true information
enumeration True
if all detail and procedure for the airport are reported in true bearing
enumeration Magnetic
if all detail and procedure for the airport are reported in magnetic bearing,
Source

<xs:element name="magneticTrueIndicator" type="enum:MagneticTrueIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MSA / multipleCode
Namespace No namespace
Annotations

The “Multiple Code” field will be used to indicate Restrictive Airspace Areas or MSA Centers having the same designator but subdivided or differently divided by lateral and/or vertical detail.
Diagram
Diagram ARINC424_22_HTML.tmp#MultipleCode
Type type:MultipleCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 1
Source

<xs:element name="multipleCode" type="type:MultipleCode" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Multiple Code” field will be used to indicate Restrictive Airspace Areas or MSA Centers having the same designator but subdivided or differently divided by lateral and/or vertical detail.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MSA / sector
Namespace No namespace
Annotations

This class represents the details for a MSA Sector.
Diagram
Diagram ARINC424_22_HTML.tmp#Sector_sectorAltitude ARINC424_22_HTML.tmp#Sector_sectorBearingBegin ARINC424_22_HTML.tmp#Sector_sectorBearingEnd ARINC424_22_HTML.tmp#Sector_sectorRadius ARINC424_22_HTML.tmp#Sector
Type type:Sector
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children sectorAltitude, sectorBearingBegin, sectorBearingEnd, sectorRadius
Instance

<sector>
  <sectorAltitude>{1,1}</sectorAltitude>
  <sectorBearingBegin>{1,1}</sectorBearingBegin>
  <sectorBearingEnd>{1,1}</sectorBearingEnd>
  <sectorRadius>{1,1}</sectorRadius>
</sector>
Source

<xs:element name="sector" type="type:Sector" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>This class represents the details for a MSA Sector.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element MSA / centerFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="centerFixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Port / flightPlanningArrivalDepartureRecords
Namespace No namespace
Annotations

Flight Planning Arrival/Departure record is used to provide the sub-set of data defining SIDs, STARs, and Approach Procedures required for the computer generation of Flight Plans whihc include Terminal Procedure. This contains a sequential listing of published Arrival Procedures, Approach Procedures and Departure Procedures, the availabel Enroute and Runway Transitions for those procedures, the Transition waypoints, the appropriate along track distance fields, and the intermediate fixed along those routes.
Diagram
Diagram ARINC424_22_HTML.tmp#FlightPlanningRecords_flightPlanningRecord ARINC424_22_HTML.tmp#FlightPlanningRecords
Type FlightPlanningRecords
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children flightPlanningRecord
Instance

<flightPlanningArrivalDepartureRecords>
  <flightPlanningRecord>{1,unbounded}</flightPlanningRecord>
</flightPlanningArrivalDepartureRecords>
Source

<xs:element name="flightPlanningArrivalDepartureRecords" type="FlightPlanningRecords" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Flight Planning Arrival/Departure record is used to provide the sub-set of data defining SIDs, STARs, and Approach Procedures required for the computer generation of Flight Plans whihc include Terminal Procedure. This contains a sequential listing of published Arrival Procedures, Approach Procedures and Departure Procedures, the availabel Enroute and Runway Transitions for those procedures, the Transition waypoints, the appropriate along track distance fields, and the intermediate fixed along those routes.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecords / flightPlanningRecord
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#FlightPlanningRecord_altitude ARINC424_22_HTML.tmp#FlightPlanningRecord_altitudeDescription ARINC424_22_HTML.tmp#FlightPlanningRecord_atcIdentifier ARINC424_22_HTML.tmp#FlightPlanningRecord_atcWeightCategory ARINC424_22_HTML.tmp#FlightPlanningRecord_commonSegmentDetails ARINC424_22_HTML.tmp#FlightPlanningRecord_enrouteDetails ARINC424_22_HTML.tmp#FlightPlanningRecord_intermediateFixDetails ARINC424_22_HTML.tmp#FlightPlanningRecord_timesOfOperation ARINC424_22_HTML.tmp#FlightPlanningRecord_initialCruiseTable ARINC424_22_HTML.tmp#FlightPlanningRecord_initialDepartureMagneticCourse ARINC424_22_HTML.tmp#FlightPlanningRecord_legTypeCode ARINC424_22_HTML.tmp#FlightPlanningRecord_numberOfEngines ARINC424_22_HTML.tmp#FlightPlanningRecord_port ARINC424_22_HTML.tmp#FlightPlanningRecord_procedureDescription ARINC424_22_HTML.tmp#FlightPlanningRecord_procedureType ARINC424_22_HTML.tmp#FlightPlanningRecord_reportingCode ARINC424_22_HTML.tmp#FlightPlanningRecord_rnavFlags ARINC424_22_HTML.tmp#FlightPlanningRecord_runwaySegmentDetails ARINC424_22_HTML.tmp#FlightPlanningRecord_sequenceNumber ARINC424_22_HTML.tmp#FlightPlanningRecord_sidSTARApproachIdentifier ARINC424_22_HTML.tmp#FlightPlanningRecord_speedLimit ARINC424_22_HTML.tmp#FlightPlanningRecord_speedLimitDescription ARINC424_22_HTML.tmp#FlightPlanningRecord_turbopropJetIndicator ARINC424_22_HTML.tmp#FlightPlanningRecord
Type FlightPlanningRecord
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children altitude, altitudeDescription, atcIdentifier, atcWeightCategory, commonSegmentDetails, custAreaCode, cycleDate, enrouteDetails, initialCruiseTable, initialDepartureMagneticCourse, intermediateFixDetails, legTypeCode, notes, numberOfEngines, port, procedureDescription, procedureType, recordType, reportingCode, rnavFlags, runwaySegmentDetails, sequenceNumber, sidSTARApproachIdentifier, speedLimit, speedLimitDescription, supplementalData, timesOfOperation, turbopropJetIndicator
Instance

<flightPlanningRecord>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <altitude>{0,1}</altitude>
  <altitudeDescription>{0,1}</altitudeDescription>
  <atcIdentifier>{0,1}</atcIdentifier>
  <atcWeightCategory>{0,1}</atcWeightCategory>
  <commonSegmentDetails>{0,1}</commonSegmentDetails>
  <enrouteDetails>{0,1}</enrouteDetails>
  <intermediateFixDetails>{0,4}</intermediateFixDetails>
  <timesOfOperation>{0,1}</timesOfOperation>
  <initialCruiseTable>{0,1}</initialCruiseTable>
  <initialDepartureMagneticCourse>{0,1}</initialDepartureMagneticCourse>
  <legTypeCode>{0,1}</legTypeCode>
  <numberOfEngines>{0,1}</numberOfEngines>
  <port>{0,1}</port>
  <procedureDescription>{0,1}</procedureDescription>
  <procedureType>{0,1}</procedureType>
  <reportingCode>{0,1}</reportingCode>
  <rnavFlags>{0,1}</rnavFlags>
  <runwaySegmentDetails>{0,1}</runwaySegmentDetails>
  <sequenceNumber>{1,1}</sequenceNumber>
  <sidSTARApproachIdentifier>{0,1}</sidSTARApproachIdentifier>
  <speedLimit>{0,1}</speedLimit>
  <speedLimitDescription>{0,1}</speedLimitDescription>
  <turbopropJetIndicator>{0,1}</turbopropJetIndicator>
</flightPlanningRecord>
Source

<xs:element name="flightPlanningRecord" type="FlightPlanningRecord" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element FlightPlanningRecord / altitude
Namespace No namespace
Annotations

The “Altitude” field used on Flight Planning Arrival/Departure Data Records is a simplification of the altitude concept used in the full procedure records. It will provide an altitude indication in hundreds of feet, no AGL, MSL, FL etc indication provided.
Diagram
Diagram ARINC424_22_HTML.tmp#FlightPlanningAltitude
Type type:FlightPlanningAltitude
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="altitude" type="type:FlightPlanningAltitude" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Altitude” field used on Flight Planning Arrival/Departure Data Records is a simplification of the altitude concept used in the full procedure records. It will provide an altitude indication in hundreds of feet, no AGL, MSL, FL etc indication provided.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / altitudeDescription
Namespace No namespace
Annotations

The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.
Diagram
Diagram ARINC424_22_HTML.tmp#AltitudeDescription
Type enum:AltitudeDescription
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AtOrAboveFirst
At or above altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration AtOrBelow
At or below altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration At
At altitude specified in first Altitude field. Also used with Localizer Only Altitude field, and the FACF Waypoint on Precision Approach Coding with Electronic Glide Slope.
enumeration B
At or above to at or below altitudes specified in the first and second Altitude fields. Not used on FAF or MAP Waypoint Records in Precision Approach Coding with Electronic Glide Slope
enumeration C
"At or above" altitude specified in second "Altitude" field.
enumeration G
Glide Slope Altitude (MSL) At Fix, specified in the first Altitude field on the FAF Waypoint and Glide Slope Intercept Altitude (MSL) in second altitude of FAF Waypoint in Precision Approach Coding with electronic Glide Slope.
enumeration I
Glide Slope Intercept Altitude specified in second "Altitude" field and "at" altitude specified in first "Altitude" field on the FACF Waypoint in Precision Approach Coding with electronic Glide Slope
Source

<xs:element name="altitudeDescription" type="enum:AltitudeDescription" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / atcIdentifier
Namespace No namespace
Annotations

The “ATC Identifier” field used on Flight Planning Arrival/Departure Data Records is the indication of the officially published procedure designation which is required for Flight Planning.
Diagram
Diagram ARINC424_22_HTML.tmp#ATCIdentifier
Type type:ATCIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 7
Source

<xs:element name="atcIdentifier" type="type:ATCIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “ATC Identifier” field used on Flight Planning Arrival/Departure Data Records is the indication of the officially published procedure designation which is required for Flight Planning.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / atcWeightCategory
Namespace No namespace
Annotations

The “ATC Weight Category” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure included in the record is restricted to, or designed for, a specific aircraft weight grouping.
Diagram
Diagram ARINC424_22_HTML.tmp#ATCWeightCategory
Type enum:ATCWeightCategory
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Heavy
Heavy, all aircraft types of 136,000kg (300000LB) or more.
enumeration Medium
Medium, aircraft types less than 136,000kg (300,000LB) and more than 7,000kg (155,000LB).
enumeration Light
Light, aircraft types of 7,000kg (155,000LB) or less
Source

<xs:element name="atcWeightCategory" type="enum:ATCWeightCategory" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “ATC Weight Category” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure included in the record is restricted to, or designed for, a specific aircraft weight grouping.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / commonSegmentDetails
Namespace No namespace
Annotations

This class is an abstraction used to represent a Common Segment.
Diagram
Diagram ARINC424_22_HTML.tmp#CommonSegmentDetails_alongTrackDistance ARINC424_22_HTML.tmp#CommonSegmentDetails_fix ARINC424_22_HTML.tmp#CommonSegmentDetails
Type type:CommonSegmentDetails
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children alongTrackDistance, fix
Instance

<commonSegmentDetails>
  <alongTrackDistance>{1,1}</alongTrackDistance>
  <fix>{0,1}</fix>
</commonSegmentDetails>
Source

<xs:element name="commonSegmentDetails" type="type:CommonSegmentDetails" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent a Common Segment.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:CommonSegmentDetails / alongTrackDistance
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AlongTrackDistance
Type type:AlongTrackDistance
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="alongTrackDistance" type="type:AlongTrackDistance" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:CommonSegmentDetails / fix
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="fix" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element FlightPlanningRecord / enrouteDetails
Namespace No namespace
Annotations

This class is an abstraction used to represent the details for a segment.
Diagram
Diagram ARINC424_22_HTML.tmp#SegmentDetails_transitionIdentifier ARINC424_22_HTML.tmp#SegmentDetails_alongTrackDistance ARINC424_22_HTML.tmp#SegmentDetails_fix ARINC424_22_HTML.tmp#SegmentDetails
Type type:SegmentDetails
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children alongTrackDistance, fix, transitionIdentifier
Instance

<enrouteDetails>
  <transitionIdentifier>{1,1}</transitionIdentifier>
  <alongTrackDistance>{1,1}</alongTrackDistance>
  <fix>{0,1}</fix>
</enrouteDetails>
Source

<xs:element name="enrouteDetails" type="type:SegmentDetails" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details for a segment.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:SegmentDetails / transitionIdentifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="transitionIdentifier" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:SegmentDetails / alongTrackDistance
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AlongTrackDistance
Type type:AlongTrackDistance
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="alongTrackDistance" type="type:AlongTrackDistance" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:SegmentDetails / fix
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="fix" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element FlightPlanningRecord / intermediateFixDetails
Namespace No namespace
Annotations

Representsthe details of an intermediate fix in the flight planning record
Diagram
Diagram ARINC424_22_HTML.tmp#IntermediateFixDetails_fixRelatedTransitionCode ARINC424_22_HTML.tmp#IntermediateFixDetails_intermediateDistance ARINC424_22_HTML.tmp#IntermediateFixDetails_fix ARINC424_22_HTML.tmp#IntermediateFixDetails
Type type:IntermediateFixDetails
Properties
content complex
minOccurs 0
maxOccurs 4
Model
Children fix, fixRelatedTransitionCode, intermediateDistance
Instance

<intermediateFixDetails>
  <fixRelatedTransitionCode>{1,1}</fixRelatedTransitionCode>
  <intermediateDistance>{1,1}</intermediateDistance>
  <fix>{0,1}</fix>
</intermediateFixDetails>
Source

<xs:element name="intermediateFixDetails" type="type:IntermediateFixDetails" minOccurs="0" maxOccurs="4">
  <!-- Can it be only 4 -->
  <xs:annotation>
    <xs:documentation>Representsthe details of an intermediate fix in the flight planning record</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:IntermediateFixDetails / fixRelatedTransitionCode
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#FixRelatedTransitionCode
Type enum:FixRelatedTransitionCode
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration 1
Fix Located in SID Runway Transition
enumeration 2
Fix Located in SID Common Portion
enumeration 3
Fix Located in SID Enroute Transition
enumeration 4
Fix Located in STAR Enroute Transition
enumeration 5
Fix Located in STAR Common Portion
enumeration 6
Fix Located in STAR Runway Transition
Source

<xs:element name="fixRelatedTransitionCode" type="enum:FixRelatedTransitionCode" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:IntermediateFixDetails / intermediateDistance
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AlongTrackDistance
Type type:AlongTrackDistance
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="intermediateDistance" type="type:AlongTrackDistance" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:IntermediateFixDetails / fix
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="fix" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element FlightPlanningRecord / timesOfOperation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#TimesOfOperation_timeCode ARINC424_22_HTML.tmp#TimesOfOperation_times ARINC424_22_HTML.tmp#TimesOfOperation_timeNarrative ARINC424_22_HTML.tmp#TimesOfOperation_byNotam ARINC424_22_HTML.tmp#TimesOfOperation_adjustForDST ARINC424_22_HTML.tmp#TimesOfOperation
Type type:TimesOfOperation
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children adjustForDST, byNotam, timeCode, timeNarrative, times
Instance

<timesOfOperation>
  <timeCode>{1,1}</timeCode>
  <times>{0,unbounded}</times>
  <timeNarrative>{0,1}</timeNarrative>
  <byNotam>{0,1}</byNotam>
  <adjustForDST>{0,1}</adjustForDST>
</timesOfOperation>
Source

<xs:element name="timesOfOperation" type="type:TimesOfOperation" minOccurs="0" maxOccurs="1"/>
[ top ]
Element FlightPlanningRecord / initialCruiseTable
Namespace No namespace
Annotations

A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseTableIdentifier
Type type:CruiseTableIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 2
Source

<xs:element name="initialCruiseTable" type="type:CruiseTableIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / initialDepartureMagneticCourse
Namespace No namespace
Annotations

“Outbound Magnetic Course” is the published outbound magnetic course from the waypoint identified in the record’s “Fix Ident” field. In addition, this field is used for Course/Heading/Radials on SID/STAR Approach Records through requirements of the Path Terminator and coding rules contained in Attachment 5 of this specification.
Diagram
Diagram ARINC424_22_HTML.tmp#Course_courseValue ARINC424_22_HTML.tmp#Course_isTrue ARINC424_22_HTML.tmp#Course
Type type:Course
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children courseValue, isTrue
Instance

<initialDepartureMagneticCourse>
  <courseValue>{1,1}</courseValue>
  <isTrue>{0,1}</isTrue>
</initialDepartureMagneticCourse>
Source

<xs:element name="initialDepartureMagneticCourse" type="type:Course" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>“Outbound Magnetic Course” is the published outbound magnetic course from the waypoint identified in the record’s “Fix Ident” field. In addition, this field is used for Course/Heading/Radials on SID/STAR Approach Records through requirements of the Path Terminator and coding rules contained in Attachment 5 of this specification.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / legTypeCode
Namespace No namespace
Annotations

The “Leg Type Code” field used on Flight Planning Arrival/Departure Data Records is a simplification of the Path Terminator concept. It will provide the information on the path between intermediate waypoints as straight or curved and provide an indication of the change in direction of flight, expressed as left or right, at an intermediate waypoint.
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#LegTypeCode_legTypeCodeSC ARINC424_22_HTML.tmp#LegTypeCode_legTypeTurnIndication ARINC424_22_HTML.tmp#LegTypeCode
Type type:LegTypeCode
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children legTypeCodeSC, legTypeTurnIndication
Instance

<legTypeCode>
  <legTypeCodeSC>{1,1}</legTypeCodeSC>
  <legTypeTurnIndication>{1,1}</legTypeTurnIndication>
</legTypeCode>
Source

<xs:element name="legTypeCode" type="type:LegTypeCode" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Leg Type Code” field used on Flight Planning Arrival/Departure Data Records is a simplification of the Path Terminator concept. It will provide the information on the path between intermediate waypoints as straight or curved and provide an indication of the change in direction of flight, expressed as left or right, at an intermediate waypoint.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:LegTypeCode / legTypeCodeSC
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#LegTypeCodeSC
Type enum:LegTypeCodeSC
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration PointToPoint
Straight Point to Point
enumeration Curved
Curved line Flight Track
Source

<xs:element name="legTypeCodeSC" type="enum:LegTypeCodeSC" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:LegTypeCode / legTypeTurnIndication
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#LegTypeTurnIndication
Type enum:LegTypeTurnIndication
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Left
Left
enumeration Right
Right
Source

<xs:element name="legTypeTurnIndication" type="enum:LegTypeTurnIndication" minOccurs="1" maxOccurs="1"/>
[ top ]
Element FlightPlanningRecord / numberOfEngines
Namespace No namespace
Annotations

The “Number of Engines Restriction” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure, normally departure, is restricted to, or designed for, aircraft with a specific number of engines.
Diagram
Diagram ARINC424_22_HTML.tmp#NumberofEnginesRestriction
Type type:NumberofEnginesRestriction
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 4
Source

<xs:element name="numberOfEngines" type="type:NumberofEnginesRestriction" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Number of Engines Restriction” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure, normally departure, is restricted to, or designed for, aircraft with a specific number of engines.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / port
Namespace No namespace
Annotations

The “port” references the airport or heliport to which the data contained in the record relates.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="port" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “port” references the airport or heliport to which the data contained in the record relates.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / procedureDescription
Namespace No namespace
Annotations

The “Procedure Description” field used on Flight Planning Arrival/Departure Data Records is the textual representation of the procedure name.
Diagram
Diagram ARINC424_22_HTML.tmp#ProcedureDescription
Type type:ProcedureDescription
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 15
Source

<xs:element name="procedureDescription" type="type:ProcedureDescription" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Procedure Description” field used on Flight Planning Arrival/Departure Data Records is the textual representation of the procedure name.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / procedureType
Namespace No namespace
Annotations

The “Procedure Type” field used on Flight Planning Arrival/Departure Data Record is a single character code indication the type of procedure in the record, such as Arrival, Standard Instrument Arrival Route, Approach.
Diagram
Diagram ARINC424_22_HTML.tmp#ProcedureType
Type enum:ProcedureType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration ArrivalInDb
Arrival Procedure, Available in Database
enumeration ArrivalNotInDb
Arrival Procedure, Not Available in Database
enumeration DepartureInDb
Departure Procedure, Available in Database
enumeration DepartureNotInDb
Departure Procedure, Not Available in Database
enumeration StarInDb
Standard Terminal Arrival Route (STAR), Available in Database
enumeration StarNotInDb
Standard Terminal Arrival Route (STAR), Not Available in Database
enumeration SidInDb
Standard Instrument Departure (SID), Available in Database
enumeration SidNotInDb
Standard Instrument Departure (SID), Not Available in Database
enumeration VectorSidInDb
Vector SID, Available in Database
enumeration VectorSidNotInDB
Vector SID, Not Available in Database
enumeration ApproachInDb
Approach Procedure, Available in Database
enumeration ApproachInDb
Approach Procedure, Not Available in Database
Source

<xs:element name="procedureType" type="enum:ProcedureType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Procedure Type” field used on Flight Planning Arrival/Departure Data Record is a single character code indication the type of procedure in the record, such as Arrival, Standard Instrument Arrival Route, Approach.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / reportingCode
Namespace No namespace
Annotations

The “Reporting Code” field used on Flight Planning Arrival/Departure Data Records is a simplification of the Waypoint Description concept. It will provide the information on intermediate waypoints as either Position Report Required (Compulsory Report) or Position Report Not Required (On-Request Report).
Diagram
Diagram ARINC424_22_HTML.tmp#ReportingCode
Type enum:ReportingCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Required
Position Report Required
enumeration NotRequired
Position Report Not Required
Source

<xs:element name="reportingCode" type="enum:ReportingCode" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Reporting Code” field used on Flight Planning Arrival/Departure Data Records is a simplification of the Waypoint Description concept. It will provide the information on intermediate waypoints as either Position Report Required (Compulsory Report) or Position Report Not Required (On-Request Report).</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / rnavFlags
Namespace No namespace
Annotations

The “RNAV Flag” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure included in the record is restricted to, or designed for, aircraft capable of flying RNAV Procedures.
Diagram
Diagram ARINC424_22_HTML.tmp#RNAVFlag
Type enum:RNAVFlag
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Yes
The field will indicate Yes, the procedure is an RNAV procedure
enumeration No
The field will indicate No, the procedure is NOT an RNAV procedure
Source

<xs:element name="rnavFlags" type="enum:RNAVFlag" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “RNAV Flag” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure included in the record is restricted to, or designed for, aircraft capable of flying RNAV Procedures.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / runwaySegmentDetails
Namespace No namespace
Annotations

This class is an abstraction used to represent the details for a segment.
Diagram
Diagram ARINC424_22_HTML.tmp#SegmentDetails_transitionIdentifier ARINC424_22_HTML.tmp#SegmentDetails_alongTrackDistance ARINC424_22_HTML.tmp#SegmentDetails_fix ARINC424_22_HTML.tmp#SegmentDetails
Type type:SegmentDetails
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children alongTrackDistance, fix, transitionIdentifier
Instance

<runwaySegmentDetails>
  <transitionIdentifier>{1,1}</transitionIdentifier>
  <alongTrackDistance>{1,1}</alongTrackDistance>
  <fix>{0,1}</fix>
</runwaySegmentDetails>
Source

<xs:element name="runwaySegmentDetails" type="type:SegmentDetails" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details for a segment.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / sequenceNumber
Namespace No namespace
Annotations

For Record Types requiring more than one primary record to define the complete content – In a series of records used to define a complete condition, the “Sequence Number” is used to define each primary record in the sequence.
Diagram
Diagram ARINC424_22_HTML.tmp#SequenceNumber
Type type:SequenceNumber
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="sequenceNumber" type="type:SequenceNumber" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>For Record Types requiring more than one primary record to define the complete content – In a series of records used to define a complete condition, the “Sequence Number” is used to define each primary record in the sequence.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / sidSTARApproachIdentifier
Namespace No namespace
Annotations

This UML Class is the base class for SIDSTARRouteIdentifier and ApproachRouteIdentifier classes. this is used in Airport SID/STAR/Approach records. The base class is used so that any of the above mentioned classes can be used in the XML file.
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="sidSTARApproachIdentifier" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This UML Class is the base class for SIDSTARRouteIdentifier and ApproachRouteIdentifier classes. this is used in Airport SID/STAR/Approach records. The base class is used so that any of the above mentioned classes can be used in the XML file.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / speedLimit
Namespace No namespace
Annotations

The “Speed Limit” field defines a speed, expressed in Knots, Indicated (K.I.A.S.), for a fix in a terminal procedure or for an airport or heliport terminal environment.
Diagram
Diagram ARINC424_22_HTML.tmp#SpeedLimit
Type type:SpeedLimit
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxExclusive 1000
Source

<xs:element name="speedLimit" type="type:SpeedLimit" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Speed Limit” field defines a speed, expressed in Knots, Indicated (K.I.A.S.), for a fix in a terminal procedure or for an airport or heliport terminal environment.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / speedLimitDescription
Namespace No namespace
Annotations

The "Speed Limit Description" field will designate whether the speed limit coded at a fix in a terminal procedure description is a mandatory, minimum or maximum speed.
								For Maximum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit

								The STAR and Approach Procedure Record speed limit will be applied forward to the end of the arrival (excluding the missed approach procedure) or until superseded by another speed limit.

								For Minimum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will be applied forward to the end of the SID or Missed Approach Procedure or until superseded by another speed limit.

								The STAR and Approach Procedure Record speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit.

								For Mandatory speeds: The speed requirement shall be met at the fix. The speed will not be applied to previous legs or applied forward to the next legs of the procedure record.
Diagram
Diagram ARINC424_22_HTML.tmp#SpeedLimitDescription
Type enum:SpeedLimitDescription
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Manditory
Mandatory Speed, Cross Fix AT speed specified in Speed Limit
enumeration Minimum
Minimum Speed, Cross Fix AT or ABOVE speed specified in Speed Limit
enumeration Maximum
Maximum Speed, Cross Fix AT or BELOW speed specified in Speed Limit
Source

<xs:element name="speedLimitDescription" type="enum:SpeedLimitDescription" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The "Speed Limit Description" field will designate whether the speed limit coded at a fix in a terminal procedure description is a mandatory, minimum or maximum speed. For Maximum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit The STAR and Approach Procedure Record speed limit will be applied forward to the end of the arrival (excluding the missed approach procedure) or until superseded by another speed limit. For Minimum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will be applied forward to the end of the SID or Missed Approach Procedure or until superseded by another speed limit. The STAR and Approach Procedure Record speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit. For Mandatory speeds: The speed requirement shall be met at the fix. The speed will not be applied to previous legs or applied forward to the next legs of the procedure record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FlightPlanningRecord / turbopropJetIndicator
Namespace No namespace
Annotations

The “Turboprop/Jet Indicator” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure, normally departure, is restricted to, or designed for, aircraft with a specific kind of engines.
Diagram
Diagram ARINC424_22_HTML.tmp#TurbopropJetIndicator
Type enum:TurbopropJetIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration All
All Aircraft
enumeration JetsAndTurboProps
Jets and Turbo Props
enumeration AllCruise250OrLess
All Aircraft, Cruise speed 250 kts or less
enumeration NonJetAndTurboProp
Non-jet and Turbo Prop
enumeration MultiEngineProps
Multi-Engine Props Only
enumeration Jets
Jets
enumeration NonJetNonTurboprop
Non-Jet, Non-Turbo Prop
enumeration TurboProp
Turbo Props
Source

<xs:element name="turbopropJetIndicator" type="enum:TurbopropJetIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Turboprop/Jet Indicator” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure, normally departure, is restricted to, or designed for, aircraft with a specific kind of engines.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / categoryDistance
Namespace No namespace
Annotations

The “Category Radii” fields, expressed in tenths of nautical miles, specifies the obstacle clearance area for aircraft maneuvering to land on a runway which is not aligned with the FAC of the approach procedure. The limits of the circling area are defined to be an arc from the center of the end of each usable runway. The extremities of the adjacent arcs are joined by lines drawn tangent to the arcs. The area thus enclosed is the circling approach area.
Diagram
Diagram ARINC424_22_HTML.tmp#CategoryDistance
Type type:CategoryDistance
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 2
fractionDigits 1
Source

<xs:element name="categoryDistance" type="type:CategoryDistance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Category Radii” fields, expressed in tenths of nautical miles, specifies the obstacle clearance area for aircraft maneuvering to land on a runway which is not aligned with the FAC of the approach procedure. The limits of the circling area are defined to be an arc from the center of the end of each usable runway. The extremities of the adjacent arcs are joined by lines drawn tangent to the arcs. The area thus enclosed is the circling approach area.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Port / maxHelicopterWeight
Namespace No namespace
Annotations

This element provides the maximum weight that the helipad or FATO can support.
Diagram
Diagram ARINC424_22_HTML.tmp#MaxHelicopterWeight
Type type:MaxHelicopterWeight
Properties
content simple
minOccurs 0
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element minOccurs="0" name="maxHelicopterWeight" type="type:MaxHelicopterWeight">
  <xs:annotation>
    <xs:documentation>This element provides the maximum weight that the helipad or FATO can support.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airport / controlledASArptIndicator
Namespace No namespace
Annotations

The “port” field references the airport or heliport to which the data contained in the record relates.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="controlledASArptIndicator" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “port” field references the airport or heliport to which the data contained in the record relates.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airport / controlledASIndicator
Namespace No namespace
Annotations

The “Controlled Airspace Indicator” field is used to indicate if an airport is associated with controlled airspace of a terminal type such as a Terminal Control Area (TMA or TCA) Radar Area or Class B or C Airspace within the USA.
Diagram
Diagram ARINC424_22_HTML.tmp#ControlledASIndicator
Type enum:ControlledASIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration WithinOrBelowClassC
The Airport is within or below the lateral limits of Class C Airspace.
enumeration WithinOrBelowCta
The Airport is within or below the lateral limits of a CTA.
enumeration WithinOrBelowTmsTca
The Airport is within or below the lateral limits of a TMA or TCA.
enumeration WithinOrBelowRadarZone
The Airport is within or below the lateral limits Radar Zone
enumeration WithinOrBelowClassB
The Airport is within or below the lateral limits of Class B Airspace.
Source

<xs:element name="controlledASIndicator" type="enum:ControlledASIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Controlled Airspace Indicator” field is used to indicate if an airport is associated with controlled airspace of a terminal type such as a Terminal Control Area (TMA or TCA) Radar Area or Class B or C Airspace within the USA.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airport / longestRunway
Namespace No namespace
Annotations

The “Longest Runway” field permits airport to be classified on
Diagram
Diagram ARINC424_22_HTML.tmp#LongestRunway
Type type:LongestRunway
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
Source

<xs:element name="longestRunway" type="type:LongestRunway" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Longest Runway” field permits airport to be classified on</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airport / longestRunwaySurfaceCode
Namespace No namespace
Annotations

The “Longest Runway Surface Code” field is used to define whether or not there is a hard surface runway at the airport, the length of which is indicated in the Longest Runway field.
Diagram
Diagram ARINC424_22_HTML.tmp#LongestRunwaySurfaceCode
Type enum:LongestRunwaySurfaceCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Hard
Hard Surface, for example, asphalt or concrete
enumeration Soft
Soft Surface, for example, gravel, grass or soil
enumeration Water
Water Runway
enumeration Undefined
Undefined, surface material not provided in source
Source

<xs:element name="longestRunwaySurfaceCode" type="enum:LongestRunwaySurfaceCode" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Longest Runway Surface Code” field is used to define whether or not there is a hard surface runway at the airport, the length of which is indicated in the Longest Runway field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airport / runway
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Runway_displacedThresholdDistance ARINC424_22_HTML.tmp#Runway_landingThresholdElevation ARINC424_22_HTML.tmp#Runway_ltpEllipsoidHeight ARINC424_22_HTML.tmp#Runway_primaryApproachNavaidReference ARINC424_22_HTML.tmp#Runway_runwayBearing ARINC424_22_HTML.tmp#Runway_runwayTrueBearing ARINC424_22_HTML.tmp#Runway_runwayTrueBearingSource ARINC424_22_HTML.tmp#Runway_runwayDescription ARINC424_22_HTML.tmp#Runway_runwayGradient ARINC424_22_HTML.tmp#Runway_runwayIdentifier ARINC424_22_HTML.tmp#Runway_runwayLength ARINC424_22_HTML.tmp#Runway_runwayWidth ARINC424_22_HTML.tmp#Runway_secondaryApproachNavaidReference ARINC424_22_HTML.tmp#Runway_stopway ARINC424_22_HTML.tmp#Runway_tchValueIndicator ARINC424_22_HTML.tmp#Runway_tdzeLocation ARINC424_22_HTML.tmp#Runway_thresholdCrossingHeight ARINC424_22_HTML.tmp#Runway_touchDownZoneElevation ARINC424_22_HTML.tmp#Runway_starterExtension ARINC424_22_HTML.tmp#Runway_surfaceType ARINC424_22_HTML.tmp#Runway_maximumHelicopterWeight ARINC424_22_HTML.tmp#Runway_helicopterPerformanceReq ARINC424_22_HTML.tmp#Runway_takeOffRunwayAvailable ARINC424_22_HTML.tmp#Runway_takeOffDistanceAvailable ARINC424_22_HTML.tmp#Runway_accelerateStopDistanceAvailable ARINC424_22_HTML.tmp#Runway_landingDistanceAvailable ARINC424_22_HTML.tmp#Runway_runwayUsageIndicator ARINC424_22_HTML.tmp#Runway_runwayAccuracy ARINC424_22_HTML.tmp#Runway
Type Runway
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children accelerateStopDistanceAvailable, custAreaCode, cycleDate, datumCode, displacedThresholdDistance, firRef, helicopterPerformanceReq, icaoCode, identifier, landingDistanceAvailable, landingThresholdElevation, location, ltpEllipsoidHeight, magneticVariation, maximumHelicopterWeight, name, notes, primaryApproachNavaidReference, recordType, runwayAccuracy, runwayBearing, runwayDescription, runwayGradient, runwayIdentifier, runwayLength, runwayTrueBearing, runwayTrueBearingSource, runwayUsageIndicator, runwayWidth, secondaryApproachNavaidReference, starterExtension, stopway, supplementalData, surfaceType, takeOffDistanceAvailable, takeOffRunwayAvailable, tchValueIndicator, tdzeLocation, thresholdCrossingHeight, touchDownZoneElevation, uirRef
Instance

<runway referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <displacedThresholdDistance>{0,1}</displacedThresholdDistance>
  <landingThresholdElevation>{0,1}</landingThresholdElevation>
  <ltpEllipsoidHeight>{0,1}</ltpEllipsoidHeight>
  <primaryApproachNavaidReference>{0,1}</primaryApproachNavaidReference>
  <runwayBearing>{0,1}</runwayBearing>
  <runwayTrueBearing>{0,1}</runwayTrueBearing>
  <runwayTrueBearingSource>{0,1}</runwayTrueBearingSource>
  <runwayDescription>{0,1}</runwayDescription>
  <runwayGradient>{0,1}</runwayGradient>
  <runwayIdentifier>{1,1}</runwayIdentifier>
  <runwayLength>{0,1}</runwayLength>
  <runwayWidth>{0,1}</runwayWidth>
  <secondaryApproachNavaidReference>{0,1}</secondaryApproachNavaidReference>
  <stopway>{0,1}</stopway>
  <tchValueIndicator>{0,1}</tchValueIndicator>
  <tdzeLocation>{0,1}</tdzeLocation>
  <thresholdCrossingHeight>{0,1}</thresholdCrossingHeight>
  <touchDownZoneElevation>{0,1}</touchDownZoneElevation>
  <starterExtension>{0,1}</starterExtension>
  <surfaceType>{0,1}</surfaceType>
  <maximumHelicopterWeight>{0,1}</maximumHelicopterWeight>
  <helicopterPerformanceReq>{0,1}</helicopterPerformanceReq>
  <takeOffRunwayAvailable>{0,1}</takeOffRunwayAvailable>
  <takeOffDistanceAvailable>{0,1}</takeOffDistanceAvailable>
  <accelerateStopDistanceAvailable>{0,1}</accelerateStopDistanceAvailable>
  <landingDistanceAvailable>{0,1}</landingDistanceAvailable>
  <runwayUsageIndicator>{0,1}</runwayUsageIndicator>
  <runwayAccuracy>{1,1}</runwayAccuracy>
</runway>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="runway" type="Runway" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element Runway / displacedThresholdDistance
Namespace No namespace
Annotations

The distance from the extremity of a runway to a threshold not located at that extremity of that runway.
Diagram
Diagram ARINC424_22_HTML.tmp#DisplacedThresholdDistance
Type type:DisplacedThresholdDistance
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="displacedThresholdDistance" type="type:DisplacedThresholdDistance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The distance from the extremity of a runway to a threshold not located at that extremity of that runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / landingThresholdElevation
Namespace No namespace
Annotations

The elevation of the landing threshold of the runway described in a runway record is defined in the “Landing Threshold Elevation” field.
Diagram
Diagram ARINC424_22_HTML.tmp#Elevation
Type type:Elevation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxInclusive 20000
minInclusive -1500
Source

<xs:element name="landingThresholdElevation" type="type:Elevation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The elevation of the landing threshold of the runway described in a runway record is defined in the “Landing Threshold Elevation” field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / ltpEllipsoidHeight
Namespace No namespace
Annotations

The “Ellipsoidal Height” field is the height of a surveyed point in reference to the WGS-84 ellipsoid.
Diagram
Diagram ARINC424_22_HTML.tmp#EllipsoidHeight
Type type:EllipsoidHeight
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="ltpEllipsoidHeight" type="type:EllipsoidHeight" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Ellipsoidal Height” field is the height of a surveyed point in reference to the WGS-84 ellipsoid.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / primaryApproachNavaidReference
Namespace No namespace
Annotations

Element which encapsulates the ILS/MLS/GLS details for the corresponding Runway. This element contains the navaid reference and class.
Diagram
Diagram ARINC424_22_HTML.tmp#PrecisionApproachNavaidReference_approachCategory ARINC424_22_HTML.tmp#PrecisionApproachNavaidReference_navaidReference ARINC424_22_HTML.tmp#PrecisionApproachNavaidReference
Type type:PrecisionApproachNavaidReference
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children approachCategory, navaidReference
Instance

<primaryApproachNavaidReference>
  <approachCategory>{1,1}</approachCategory>
  <navaidReference>{1,1}</navaidReference>
</primaryApproachNavaidReference>
Source

<xs:element name="primaryApproachNavaidReference" type="type:PrecisionApproachNavaidReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Element which encapsulates the ILS/MLS/GLS details for the corresponding Runway. This element contains the navaid reference and class.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:PrecisionApproachNavaidReference / approachCategory
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PrecisionApproachCategory
Type enum:PrecisionApproachCategory
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration IlsLocOnly
ILS Localizer Only, No Glideslope
enumeration IlsMlsGlsCat1
ILS Localizer/MLS/GLS Category I
enumeration IlsMlsGlsCat2
ILS Localizer/MLS/GLS Category II
enumeration IlsMlsGlsCat3
ILS Localizer/MLS/GLS Category III
enumeration Igs
IGS Facility
enumeration LdaGlideslope
LDA Facility with Glideslope
enumeration LdaNoGlideslope
LDA Facility, no Glideslope
enumeration SdfGlideslope
SDF Facility with Glideslope
enumeration SdfNoGlideSlope
SDF Facility, no Glideslope
Source

<xs:element name="approachCategory" type="enum:PrecisionApproachCategory" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:PrecisionApproachNavaidReference / navaidReference
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="navaidReference" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element Runway / runwayBearing
Namespace No namespace
Annotations

The bearing of the runway identified in the “runway identifier” or “pad ident” field of the record is specified in the “Runway Bearing” field.
Diagram
Diagram ARINC424_22_HTML.tmp#Bearing_bearingValue ARINC424_22_HTML.tmp#Bearing_isTrueBearing ARINC424_22_HTML.tmp#Bearing
Type type:Bearing
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children bearingValue, isTrueBearing
Instance

<runwayBearing>
  <bearingValue>{1,1}</bearingValue>
  <isTrueBearing>{0,1}</isTrueBearing>
</runwayBearing>
Source

<xs:element name="runwayBearing" type="type:Bearing" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The bearing of the runway identified in the “runway identifier” or “pad ident” field of the record is specified in the “Runway Bearing” field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / runwayTrueBearing
Namespace No namespace
Annotations

The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and
Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.
Diagram
Diagram ARINC424_22_HTML.tmp#TrueBearing
Type type:TrueBearing
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
fractionDigits 2
maxInclusive 360
minInclusive 0
Source

<xs:element name="runwayTrueBearing" type="type:TrueBearing" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / runwayTrueBearingSource
Namespace No namespace
Annotations

The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.
Diagram
Diagram ARINC424_22_HTML.tmp#TrueBearingSource
Type enum:TrueBearingSource
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Official
“True Bearing” is derived from official government sources.
enumeration Other
“True Bearing" is derived from other sources
Source

<xs:element name="runwayTrueBearingSource" type="enum:TrueBearingSource" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / runwayDescription
Namespace No namespace
Annotations

If required, additional information concerning a runway can be included in a record in the “Runway Description” field.
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayDescription
Type type:RunwayDescription
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 22
Source

<xs:element name="runwayDescription" type="type:RunwayDescription" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>If required, additional information concerning a runway can be included in a record in the “Runway Description” field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / runwayGradient
Namespace No namespace
Annotations

The Runway Gradient field indicates an overall gradient in percent, measured from the start of take-off roll end of the runway designated in the record. The gradient is expressed as a positive or negative gradient; positive being an upward and negative being a downward gradient.
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayGradient
Type type:RunwayGradient
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxInclusive 9.0
minInclusive -9.0
Source

<xs:element name="runwayGradient" type="type:RunwayGradient" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Runway Gradient field indicates an overall gradient in percent, measured from the start of take-off roll end of the runway designated in the record. The gradient is expressed as a positive or negative gradient; positive being an upward and negative being a downward gradient.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / runwayIdentifier
Namespace No namespace
Annotations

The “Runway Identifier” field identifies the runways described in runway records and runways served by the ILS/MLS described in ILS/MLS records.
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayIdentifier_runwayLeftRightCenterType ARINC424_22_HTML.tmp#RunwayIdentifier_runwayNumber ARINC424_22_HTML.tmp#RunwayIdentifier
Type type:RunwayIdentifier
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children runwayLeftRightCenterType, runwayNumber
Instance

<runwayIdentifier>
  <runwayLeftRightCenterType>{0,1}</runwayLeftRightCenterType>
  <runwayNumber>{1,1}</runwayNumber>
</runwayIdentifier>
Source

<xs:element name="runwayIdentifier" type="type:RunwayIdentifier" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Runway Identifier” field identifies the runways described in runway records and runways served by the ILS/MLS described in ILS/MLS records.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / runwayLength
Namespace No namespace
Annotations

The “Runway Length” field defines the total length of the runway surface declared suitable and available for ground operations of aircraft for the runway identified in the records’ Runway Identifier field.
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayLength
Type type:RunwayLength
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
Source

<xs:element name="runwayLength" type="type:RunwayLength" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Runway Length” field defines the total length of the runway surface declared suitable and available for ground operations of aircraft for the runway identified in the records’ Runway Identifier field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / runwayWidth
Namespace No namespace
Annotations

The width of the runway identified in the “Runway Identifier” field is specified in the “Runway Width” field.
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayWidth
Type type:RunwayWidth
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="runwayWidth" type="type:RunwayWidth" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The width of the runway identified in the “Runway Identifier” field is specified in the “Runway Width” field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / secondaryApproachNavaidReference
Namespace No namespace
Annotations

Element which encapsulates the ILS/MLS/GLS details for the corresponding Runway. This element contains the navaid reference and class.
Diagram
Diagram ARINC424_22_HTML.tmp#PrecisionApproachNavaidReference_approachCategory ARINC424_22_HTML.tmp#PrecisionApproachNavaidReference_navaidReference ARINC424_22_HTML.tmp#PrecisionApproachNavaidReference
Type type:PrecisionApproachNavaidReference
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children approachCategory, navaidReference
Instance

<secondaryApproachNavaidReference>
  <approachCategory>{1,1}</approachCategory>
  <navaidReference>{1,1}</navaidReference>
</secondaryApproachNavaidReference>
Source

<xs:element name="secondaryApproachNavaidReference" type="type:PrecisionApproachNavaidReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Element which encapsulates the ILS/MLS/GLS details for the corresponding Runway. This element contains the navaid reference and class.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / stopway
Namespace No namespace
Annotations

“Stopway” means the length of an area beyond the take-off runway, no less wide than the runway and centered upon the extended centerline of the runway, and designated for use in decelerating the airplane during an aborted takeoff.
Diagram
Diagram ARINC424_22_HTML.tmp#StopWay
Type type:StopWay
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="stopway" type="type:StopWay" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>“Stopway” means the length of an area beyond the take-off runway, no less wide than the runway and centered upon the extended centerline of the runway, and designated for use in decelerating the airplane during an aborted takeoff.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / tchValueIndicator
Namespace No namespace
Annotations

The “TCH Value Indicator” field will define which TCH value is provided in the runway record.
Diagram
Diagram ARINC424_22_HTML.tmp#TCHValueIndicator
Type enum:TCHValueIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration TchOfElectricGlideSlope
TCH provided in Runway Record is that of the electronic Glide Slope
enumeration TchRnavToRunway
TCH provided in Runway Record is that of an RNAV procedure to the runway
enumeration TchVgsi
TCH provided in the Runway Record is that of the VGSI for the runway
enumeration TchDefaulted
TCH provided in the Runway Record is the default value of 40 or 50 feet (See Section 5.67).
Source

<xs:element name="tchValueIndicator" type="enum:TCHValueIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “TCH Value Indicator” field will define which TCH value is provided in the runway record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / tdzeLocation
Namespace No namespace
Annotations

The content of the “TDZE Location” field indicates whether the TDZ elevation was obtained from official government sources or from other sources.
Diagram
Diagram ARINC424_22_HTML.tmp#TDZELocation
Type enum:TDZELocation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Official
Official Source
enumeration LandingThreshold
Landing Threshold
enumeration AirportElevation
Airport Elevation
Source

<xs:element name="tdzeLocation" type="enum:TDZELocation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The content of the “TDZE Location” field indicates whether the TDZ elevation was obtained from official government sources or from other sources.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / thresholdCrossingHeight
Namespace No namespace
Annotations

The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.
Diagram
Diagram ARINC424_22_HTML.tmp#ThresholdCrossingHeight
Type type:ThresholdCrossingHeight
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="thresholdCrossingHeight" type="type:ThresholdCrossingHeight" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / touchDownZoneElevation
Namespace No namespace
Annotations

The “Touchdown Zone Elevation” is the highest elevation in the first 3,000 feet of the landing surface beginning at the threshold.
Diagram
Diagram ARINC424_22_HTML.tmp#TouchDownZoneElevation
Type type:TouchDownZoneElevation
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="touchDownZoneElevation" type="type:TouchDownZoneElevation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Touchdown Zone Elevation” is the highest elevation in the first 3,000 feet of the landing surface beginning at the threshold.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / starterExtension
Namespace No namespace
Annotations

This data element describes a starter extension of a runway
Diagram
Diagram ARINC424_22_HTML.tmp#StarterExtension
Type type:StarterExtension
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxInclusive 9999
minInclusive 1
Source

<xs:element name="starterExtension" type="type:StarterExtension" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This data element describes a starter extension of a runway</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / surfaceType
Namespace No namespace
Annotations

This element provides the surface type of the runway.
Diagram
Diagram ARINC424_22_HTML.tmp#SurfaceType
Type enum:SurfaceType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Asphalt
enumeration AsphaltAndGrass
enumeration BituminousTarOrAsphalt
Bituminous tar or asphalt and/or oil or bitumen bound, mix-in-place surfaces (often refered to as “earth cement”)
enumeration BrickisLaidOrMortared
enumeration Clay
enumeration Concrete
enumeration ConcreteAndAsphalt
enumeration ConcreteAndGrass
enumeration Coral
enumeration Dirt
enumeration Grass
enumeration Gravel
enumeration Ice
enumeration Laterite
enumeration Macadam
enumeration LandingMat
Usually made of aluminium
enumeration ProtectiveLaminate
Usually made of rubber
enumeration Metal
Steel or Aluminium
enumeration Mix
Non bituminous mix
enumeration Other
enumeration Paved
generic hard surface
enumeration PiercedSteelPlanking
enumeration Sand
enumeration Sealed
enumeration Silt
enumeration Snow
enumeration Soil
enumeration Stone
enumeration Tarmac
enumeration Treated
enumeration Turf
enumeration Unknown
enumeration Unpaved
enumeration Water
Source

<xs:element name="surfaceType" type="enum:SurfaceType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides the surface type of the runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / maximumHelicopterWeight
Namespace No namespace
Annotations

This element provides the max weight for helicopters using this runway.
Diagram
Diagram ARINC424_22_HTML.tmp#MaxHelicopterWeight
Type type:MaxHelicopterWeight
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element name="maximumHelicopterWeight" type="type:MaxHelicopterWeight" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides the max weight for helicopters using this runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / helicopterPerformanceReq
Namespace No namespace
Annotations

This element provides a performance requirement for helicopters to use this runway.
Diagram
Diagram ARINC424_22_HTML.tmp#HelicopterPerformanceReq
Type enum:HelicopterPerformanceReq
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration MultiEngine
enumeration SingleEngineOnly
enumeration Unkown
Source

<xs:element name="helicopterPerformanceReq" type="enum:HelicopterPerformanceReq" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides a performance requirement for helicopters to use this runway.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / takeOffRunwayAvailable
Namespace No namespace
Annotations

Take Off Run Available (TORA) is the declared distance value which is available for take-off ground roll.  Starter extension distances are not included in the TORA distance and may be added if a starter extension is available.  A value of 00000 indicates that the runway is not usable for take-off.  A blank field means that no value is declared in source.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceFeetFiveDigits
Type type:DistanceFeetFiveDigits
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
Source

<xs:element name="takeOffRunwayAvailable" type="type:DistanceFeetFiveDigits" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Take Off Run Available (TORA) is the declared distance value which is available for take-off ground roll. Starter extension distances are not included in the TORA distance and may be added if a starter extension is available. A value of 00000 indicates that the runway is not usable for take-off. A blank field means that no value is declared in source.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / takeOffDistanceAvailable
Namespace No namespace
Annotations

Take Off Distance Available (TODA) is the declared distance value which is available for take-off over a 50 ft obstacle.  Typically, the TODA equals the TORA plus clearway.  Starter extension distances are not included in the TODA. A value of 00000 indicates that the runway is not usable for take-off. A blank field means that no value is declared in source.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceFeetFiveDigits
Type type:DistanceFeetFiveDigits
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
Source

<xs:element name="takeOffDistanceAvailable" type="type:DistanceFeetFiveDigits" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Take Off Distance Available (TODA) is the declared distance value which is available for take-off over a 50 ft obstacle. Typically, the TODA equals the TORA plus clearway. Starter extension distances are not included in the TODA. A value of 00000 indicates that the runway is not usable for take-off. A blank field means that no value is declared in source.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / accelerateStopDistanceAvailable
Namespace No namespace
Annotations

Accelerate Stop Distance Available (ASDA) is the declared distance value which is available in case of an aborted take-off.  Typically, the ASDA equals the TORA plus stopway.  Starter extension distances are not included in the TODA distance and may be added if a starter extension is available. A value of 00000 indicates that the runway is not usable for take-off.  A blank field means that no value is declared in source.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceFeetFiveDigits
Type type:DistanceFeetFiveDigits
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
Source

<xs:element name="accelerateStopDistanceAvailable" type="type:DistanceFeetFiveDigits" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Accelerate Stop Distance Available (ASDA) is the declared distance value which is available in case of an aborted take-off. Typically, the ASDA equals the TORA plus stopway. Starter extension distances are not included in the TODA distance and may be added if a starter extension is available. A value of 00000 indicates that the runway is not usable for take-off. A blank field means that no value is declared in source.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / landingDistanceAvailable
Namespace No namespace
Annotations

Landing Distance Available (LDA) is the declared distance value which is available for landing.  Typically, the LDA equals the runway length minus the threshold displacement distance.  A value of 00000 indicates that the runway is not usable for landing. A blank field means that no value is declared in source.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceFeetFiveDigits
Type type:DistanceFeetFiveDigits
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 5
Source

<xs:element name="landingDistanceAvailable" type="type:DistanceFeetFiveDigits" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Landing Distance Available (LDA) is the declared distance value which is available for landing. Typically, the LDA equals the runway length minus the threshold displacement distance. A value of 00000 indicates that the runway is not usable for landing. A blank field means that no value is declared in source.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / runwayUsageIndicator
Namespace No namespace
Annotations

The Runway Usage Indicator field specifies if a Runway is usable for take-off, landing, or both operations.
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayUsageIndicator
Type enum:RunwayUsageIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration LandingOnly
enumeration TakeoffOnly
enumeration TakeoffAndLanding
Source

<xs:element name="runwayUsageIndicator" type="enum:RunwayUsageIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Runway Usage Indicator field specifies if a Runway is usable for take-off, landing, or both operations.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Runway / runwayAccuracy
Namespace No namespace
Annotations

This element indicates runway data elements meet runway accuracy requirements by confirming they are consistent with a trustworthy independent data source.
Diagram
Diagram ARINC424_22_HTML.tmp#Runway_Runway_runwayAccuracy_runwayAccuracyCompliance ARINC424_22_HTML.tmp#Runway_Runway_runwayAccuracy_landingThresholdElvationAccuracyCompliance
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children landingThresholdElvationAccuracyCompliance, runwayAccuracyCompliance
Instance

<runwayAccuracy>
  <runwayAccuracyCompliance>{0,1}</runwayAccuracyCompliance>
  <landingThresholdElvationAccuracyCompliance>{0,1}</landingThresholdElvationAccuracyCompliance>
</runwayAccuracy>
Source

<xs:element name="runwayAccuracy" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element indicates runway data elements meet runway accuracy requirements by confirming they are consistent with a trustworthy independent data source.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="runwayAccuracyCompliance" type="enum:RunwayAccuracyCompliance" minOccurs="0" maxOccurs="1"/>
      <xs:element name="landingThresholdElvationAccuracyCompliance" type="enum:LandingThresholdElvationAccuracyCompliance" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element Runway / runwayAccuracy / runwayAccuracyCompliance
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayAccuracyCompliance
Type enum:RunwayAccuracyCompliance
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Compliant
enumeration NotCompliant
enumeration NotEvaluated
Source

<xs:element name="runwayAccuracyCompliance" type="enum:RunwayAccuracyCompliance" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Runway / runwayAccuracy / landingThresholdElvationAccuracyCompliance
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#LandingThresholdElvationAccuracyCompliance
Type enum:LandingThresholdElvationAccuracyCompliance
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Compliant
enumeration NotCompliant
enumeration NotEvaluated
Source

<xs:element name="landingThresholdElvationAccuracyCompliance" type="enum:LandingThresholdElvationAccuracyCompliance" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Airport / airportGate
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#AirportGate
Type AirportGate
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children custAreaCode, cycleDate, datumCode, firRef, icaoCode, identifier, location, magneticVariation, name, notes, recordType, supplementalData, uirRef
Instance

<airportGate referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
</airportGate>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="airportGate" type="AirportGate" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element AeroPublication / heliports
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Heliports_heliport ARINC424_22_HTML.tmp#Heliports
Type Heliports
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children heliport
Instance

<heliports>
  <heliport referenceID="">{0,unbounded}</heliport>
</heliports>
Source

<xs:element name="heliports" type="Heliports" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Heliports / heliport
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Port_elevation ARINC424_22_HTML.tmp#Port_ataIATADesignator ARINC424_22_HTML.tmp#Port_daylightIndicator ARINC424_22_HTML.tmp#Port_ifrCapability ARINC424_22_HTML.tmp#Port_magneticTrueIndicator ARINC424_22_HTML.tmp#Port_publicMilitaryIndicator ARINC424_22_HTML.tmp#Port_recommendedNavaid ARINC424_22_HTML.tmp#Port_speedLimit ARINC424_22_HTML.tmp#Port_speedLimitAltitude ARINC424_22_HTML.tmp#Port_timeZone ARINC424_22_HTML.tmp#Port_transitionAltitude ARINC424_22_HTML.tmp#Port_transitionLevel ARINC424_22_HTML.tmp#Port_terminalNDB ARINC424_22_HTML.tmp#Port_terminalProcedures ARINC424_22_HTML.tmp#Port_terminalWaypoint ARINC424_22_HTML.tmp#Port_taa ARINC424_22_HTML.tmp#Port_portCommunication ARINC424_22_HTML.tmp#Port_helipad ARINC424_22_HTML.tmp#Port_localizerMarker ARINC424_22_HTML.tmp#Port_localizerGlideslope ARINC424_22_HTML.tmp#Port_gls ARINC424_22_HTML.tmp#Port_mls ARINC424_22_HTML.tmp#Port_msa ARINC424_22_HTML.tmp#Port_flightPlanningArrivalDepartureRecords ARINC424_22_HTML.tmp#Port_categoryDistance ARINC424_22_HTML.tmp#Port_maxHelicopterWeight ARINC424_22_HTML.tmp#Port ARINC424_22_HTML.tmp#Heliport_heliportType ARINC424_22_HTML.tmp#Heliport
Type Heliport
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children ataIATADesignator, categoryDistance, custAreaCode, cycleDate, datumCode, daylightIndicator, elevation, firRef, flightPlanningArrivalDepartureRecords, gls, helipad, heliportType, icaoCode, identifier, ifrCapability, localizerGlideslope, localizerMarker, location, magneticTrueIndicator, magneticVariation, maxHelicopterWeight, mls, msa, name, notes, portCommunication, publicMilitaryIndicator, recommendedNavaid, recordType, speedLimit, speedLimitAltitude, supplementalData, taa, terminalNDB, terminalProcedures, terminalWaypoint, timeZone, transitionAltitude, transitionLevel, uirRef
Instance

<heliport referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <elevation>{1,1}</elevation>
  <ataIATADesignator>{0,1}</ataIATADesignator>
  <daylightIndicator>{0,1}</daylightIndicator>
  <ifrCapability>{0,1}</ifrCapability>
  <magneticTrueIndicator>{0,1}</magneticTrueIndicator>
  <publicMilitaryIndicator>{0,1}</publicMilitaryIndicator>
  <recommendedNavaid>{0,1}</recommendedNavaid>
  <speedLimit>{0,1}</speedLimit>
  <speedLimitAltitude>{0,1}</speedLimitAltitude>
  <timeZone>{0,1}</timeZone>
  <transitionAltitude>{0,1}</transitionAltitude>
  <transitionLevel>{0,1}</transitionLevel>
  <terminalNDB referenceID="">{0,unbounded}</terminalNDB>
  <terminalProcedures>{0,1}</terminalProcedures>
  <terminalWaypoint referenceID="">{0,unbounded}</terminalWaypoint>
  <taa referenceID="">{0,unbounded}</taa>
  <portCommunication>{0,unbounded}</portCommunication>
  <helipad referenceID="">{0,unbounded}</helipad>
  <localizerMarker referenceID="">{0,unbounded}</localizerMarker>
  <localizerGlideslope referenceID="">{0,unbounded}</localizerGlideslope>
  <gls referenceID="">{0,unbounded}</gls>
  <mls referenceID="">{0,unbounded}</mls>
  <msa referenceID="">{0,unbounded}</msa>
  <flightPlanningArrivalDepartureRecords>{0,unbounded}</flightPlanningArrivalDepartureRecords>
  <categoryDistance>{0,1}</categoryDistance>
  <maxHelicopterWeight>{0,1}</maxHelicopterWeight>
  <heliportType>{0,1}</heliportType>
</heliport>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="heliport" type="Heliport" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element Heliport / heliportType
Namespace No namespace
Annotations

This element provies information as to what type of heliport the facility is.
Diagram
Diagram ARINC424_22_HTML.tmp#HeliportType
Type enum:HeliportType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Hospital
enumeration OilRig
enumeration Other
enumeration NotProvided
Source

<xs:element name="heliportType" type="enum:HeliportType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provies information as to what type of heliport the facility is.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AeroPublication / airways
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Airways_airway ARINC424_22_HTML.tmp#Airways
Type Airways
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children airway
Instance

<airways>
  <airway referenceID="">{0,unbounded}</airway>
</airways>
Source

<xs:element name="airways" type="Airways" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Airways / airway
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Airway_referenceID ARINC424_22_HTML.tmp#Airway_airwayRouteType ARINC424_22_HTML.tmp#Airway_custAreaCode ARINC424_22_HTML.tmp#Airway_airwaysMarker ARINC424_22_HTML.tmp#Airway_airwaysRescritionAltitudeExclusion ARINC424_22_HTML.tmp#Airway_airwaysRestrictionSeasonalClosure ARINC424_22_HTML.tmp#Airway_airwaysRestrictionCruisingTableReplacement ARINC424_22_HTML.tmp#Airway_airwaySegment ARINC424_22_HTML.tmp#Airway
Type Airway
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children airwayRouteType, airwaySegment, airwaysMarker, airwaysRescritionAltitudeExclusion, airwaysRestrictionCruisingTableReplacement, airwaysRestrictionSeasonalClosure, custAreaCode, identifier, supplementalData
Instance

<airway referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <airwayRouteType>{1,1}</airwayRouteType>
  <custAreaCode>{1,1}</custAreaCode>
  <airwaysMarker referenceID="">{0,unbounded}</airwaysMarker>
  <airwaysRescritionAltitudeExclusion>{0,unbounded}</airwaysRescritionAltitudeExclusion>
  <airwaysRestrictionSeasonalClosure>{0,unbounded}</airwaysRestrictionSeasonalClosure>
  <airwaysRestrictionCruisingTableReplacement>{0,unbounded}</airwaysRestrictionCruisingTableReplacement>
  <airwaySegment>{1,unbounded}</airwaySegment>
</airway>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="airway" type="Airway" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element Airway / airwayRouteType
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#EnrouteAirwayRouteType
Type enum:EnrouteAirwayRouteType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Airline
Airline Airway (Tailored Data)
enumeration Control
Control
enumeration Direct
Direct Route
enumeration Helicopter
Helicopter Airways
enumeration OfficiallyDesignatedExceptRnavHelicpoter
Officially Designated Airways, except RNAV, RNP, or Helicopter Airways
enumeration RnavRNP
RNAV or RNP Airways (ICAO PBN Nav Spec)
enumeration Undesignated
Undesignated ATS Route
enumeration Tacan
TACAN Airway
Source

<xs:element name="airwayRouteType" type="enum:EnrouteAirwayRouteType" minOccurs="1" maxOccurs="1"/>
[ top ]
Element Airway / custAreaCode
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#CustAreaCode_areaCode ARINC424_22_HTML.tmp#CustAreaCode_customerCode ARINC424_22_HTML.tmp#CustAreaCode
Type type:CustAreaCode
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children areaCode, customerCode
Instance

<custAreaCode>
  <areaCode>{1,1}</areaCode>
  <customerCode>{1,1}</customerCode>
</custAreaCode>
Source

<xs:element name="custAreaCode" type="type:CustAreaCode" minOccurs="1" maxOccurs="1"/>
[ top ]
Element Airway / airwaysMarker
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#AirwaysMarker_elevation ARINC424_22_HTML.tmp#AirwaysMarker_markerCode ARINC424_22_HTML.tmp#AirwaysMarker_markerPower ARINC424_22_HTML.tmp#AirwaysMarker_markerShape ARINC424_22_HTML.tmp#AirwaysMarker_minorAxis ARINC424_22_HTML.tmp#AirwaysMarker
Type AirwaysMarker
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children custAreaCode, cycleDate, datumCode, elevation, firRef, icaoCode, identifier, location, magneticVariation, markerCode, markerPower, markerShape, minorAxis, name, notes, recordType, supplementalData, uirRef
Instance

<airwaysMarker referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <elevation>{1,1}</elevation>
  <markerCode>{0,1}</markerCode>
  <markerPower>{0,1}</markerPower>
  <markerShape>{0,1}</markerShape>
  <minorAxis>{0,1}</minorAxis>
</airwaysMarker>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="airwaysMarker" type="AirwaysMarker" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element AirwaysMarker / elevation
Namespace No namespace
Annotations

The Facility Elevation field provides the elevation of navaids and communication transmitters.
Diagram
Diagram ARINC424_22_HTML.tmp#Elevation
Type type:Elevation
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxInclusive 20000
minInclusive -1500
Source

<xs:element name="elevation" type="type:Elevation" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Facility Elevation field provides the elevation of navaids and communication transmitters.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwaysMarker / markerCode
Namespace No namespace
Annotations

The “Marker Code” field contains the coded ident that provides an aural and visual indication of station passage in the cockpit. The code shall be keyed so as to transmit dots or dashes, or both, in an appropriate sequence on a radio frequency of 75 MHz. The frequency of the modulating tone is 3000 Hz.
Diagram
Diagram ARINC424_22_HTML.tmp#MarkerCode
Type type:MarkerCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 4
Source

<xs:element name="markerCode" type="type:MarkerCode" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Marker Code” field contains the coded ident that provides an aural and visual indication of station passage in the cockpit. The code shall be keyed so as to transmit dots or dashes, or both, in an appropriate sequence on a radio frequency of 75 MHz. The frequency of the modulating tone is 3000 Hz.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwaysMarker / markerPower
Namespace No namespace
Annotations

The “High/Low” field indicates the power of the enroute marker.
Diagram
Diagram ARINC424_22_HTML.tmp#HighLow
Type enum:HighLow
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Low
Low Power
enumeration High
High Power
Source

<xs:element name="markerPower" type="enum:HighLow" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “High/Low” field indicates the power of the enroute marker.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwaysMarker / markerShape
Namespace No namespace
Annotations

The “Shape” field defines the radiation pattern of an airways marker as being either “bone” or “elliptical.”
Diagram
Diagram ARINC424_22_HTML.tmp#MarkerShape
Type enum:MarkerShape
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Bone
Bone Shape
enumeration Elliptical
Elliptical Shape
Source

<xs:element name="markerShape" type="enum:MarkerShape" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Shape” field defines the radiation pattern of an airways marker as being either “bone” or “elliptical.”</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwaysMarker / minorAxis
Namespace No namespace
Annotations

The “Minor Axis Bearing” field indicates the true bearing of the minor axis of marker beacons.
Diagram
Diagram ARINC424_22_HTML.tmp#MinorAxisBearing
Type type:MinorAxisBearing
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Source

<xs:element name="minorAxis" type="type:MinorAxisBearing" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Minor Axis Bearing” field indicates the true bearing of the minor axis of marker beacons.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airway / airwaysRescritionAltitudeExclusion
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionType ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_routeIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_fixReference ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_timesOfOperation ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionAltitudeExclusion_exclusionIndicator ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionAltitudeExclusion_restrictionAltitudeBlockIndicator ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionAltitudeExclusion_unitsofAltitude ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionAltitudeExclusion
Type EnrouteAirwaysRestrictionAltitudeExclusion
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children custAreaCode, cycleDate, endDate, endFixICAOCode, endFixIdentifier, exclusionIndicator, fixReference, notes, recordType, restrictionAltitudeBlockIndicator, restrictionIdentifier, restrictionType, routeIdentifier, startDate, startFixICAOCode, startFixIdentifier, supplementalData, timesOfOperation, unitsofAltitude
Instance

<airwaysRescritionAltitudeExclusion>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <endDate>{0,1}</endDate>
  <endFixICAOCode>{0,1}</endFixICAOCode>
  <endFixIdentifier>{0,1}</endFixIdentifier>
  <restrictionIdentifier>{0,1}</restrictionIdentifier>
  <restrictionType>{0,1}</restrictionType>
  <routeIdentifier>{0,1}</routeIdentifier>
  <startDate>{0,1}</startDate>
  <startFixICAOCode>{0,1}</startFixICAOCode>
  <startFixIdentifier>{0,1}</startFixIdentifier>
  <fixReference>{0,1}</fixReference>
  <timesOfOperation>{0,1}</timesOfOperation>
  <exclusionIndicator>{0,1}</exclusionIndicator>
  <restrictionAltitudeBlockIndicator>{0,unbounded}</restrictionAltitudeBlockIndicator>
  <unitsofAltitude>{0,1}</unitsofAltitude>
</airwaysRescritionAltitudeExclusion>
Source

<xs:element name="airwaysRescritionAltitudeExclusion" type="EnrouteAirwaysRestrictionAltitudeExclusion" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element EnrouteAirwaysRestriction / endDate
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AirwayRestrictionStartEndDate
Type type:AirwayRestrictionStartEndDate
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 7
Source

<xs:element name="endDate" type="type:AirwayRestrictionStartEndDate" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteAirwaysRestriction / endFixICAOCode
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#IcaoCode
Type type:IcaoCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
pattern [a-zA-Z0-9]{2}
Source

<xs:element name="endFixICAOCode" type="type:IcaoCode" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteAirwaysRestriction / endFixIdentifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="endFixIdentifier" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteAirwaysRestriction / restrictionIdentifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RestrictionIdentifier
Type type:RestrictionIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="restrictionIdentifier" type="type:RestrictionIdentifier" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteAirwaysRestriction / restrictionType
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RestrictionRecordType
Type enum:RestrictionRecordType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AE
Altitude Exclusion. The record contains altitudes, normally available, that are excluded from use for the Enroute Airway Segment. May be further restricted by Time of Operation information.
enumeration TC
Cruising Table Replacement. The record contains only a reference to a Cruising Table Identifier. That Cruise Table will be in force, replacing the Cruise Table Identifier in the Enroute Airway segment records defined in the Start Fix/End Fix fields.
enumeration SC
Seasonal Restriction. Record is used to close an Airway or portion of an Airway on a seasonal basis.
enumeration NR
Note Restrictions. The record contains restrictions that do not fit the pattern of formatted information allowed by other Restriction Record Types.
Source

<xs:element name="restrictionType" type="enum:RestrictionRecordType" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteAirwaysRestriction / routeIdentifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RouteIdentifier
Type type:RouteIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 10
Source

<xs:element name="routeIdentifier" type="type:RouteIdentifier" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteAirwaysRestriction / startDate
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AirwayRestrictionStartEndDate
Type type:AirwayRestrictionStartEndDate
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 7
Source

<xs:element name="startDate" type="type:AirwayRestrictionStartEndDate" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteAirwaysRestriction / startFixICAOCode
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#IcaoCode
Type type:IcaoCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
pattern [a-zA-Z0-9]{2}
Source

<xs:element name="startFixICAOCode" type="type:IcaoCode" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteAirwaysRestriction / startFixIdentifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="startFixIdentifier" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteAirwaysRestriction / fixReference
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="fixReference" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteAirwaysRestriction / timesOfOperation
Namespace No namespace
Annotations

The Time of Operation field is used to indicate the times of operation of an airway restriction.
Diagram
Diagram ARINC424_22_HTML.tmp#TimesOfOperation_timeCode ARINC424_22_HTML.tmp#TimesOfOperation_times ARINC424_22_HTML.tmp#TimesOfOperation_timeNarrative ARINC424_22_HTML.tmp#TimesOfOperation_byNotam ARINC424_22_HTML.tmp#TimesOfOperation_adjustForDST ARINC424_22_HTML.tmp#TimesOfOperation
Type type:TimesOfOperation
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children adjustForDST, byNotam, timeCode, timeNarrative, times
Instance

<timesOfOperation>
  <timeCode>{1,1}</timeCode>
  <times>{0,unbounded}</times>
  <timeNarrative>{0,1}</timeNarrative>
  <byNotam>{0,1}</byNotam>
  <adjustForDST>{0,1}</adjustForDST>
</timesOfOperation>
Source

<xs:element name="timesOfOperation" type="type:TimesOfOperation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Time of Operation field is used to indicate the times of operation of an airway restriction.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element EnrouteAirwaysRestrictionAltitudeExclusion / exclusionIndicator
Namespace No namespace
Annotations

The “Exclusion Indicator” field is an indication of how the altitudes contained in the Cruising Table record referenced by the Airway segment(s) are restricted. This is an “all altitude” restriction, further defined by direction of flight. These codes will not be used when certain altitudes remain available in a direction of flight.
Diagram
Diagram ARINC424_22_HTML.tmp#ExclusionIndicator
Type enum:ExclusionIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AllBoth
All altitudes in both directions of flight are restricted. This effectively closes the airway in both direction of flight.
enumeration AllOpposite
All altitudes in the opposite direction in which the Enroute Airway is coded are restricted. This effectively closes the airway in one direction of flight i.e., the opposite direction from that in which the airway is coded.
enumeration AllPerAirway
All altitudes in the direction in which the Enroute Airway is coded are restricted. This effectively closes the airway in one direction of flight i.e., the direction in which the airway is coded.
enumeration NotAll
The restriction is not an all altitude restriction.
Source

<xs:element name="exclusionIndicator" type="enum:ExclusionIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Exclusion Indicator” field is an indication of how the altitudes contained in the Cruising Table record referenced by the Airway segment(s) are restricted. This is an “all altitude” restriction, further defined by direction of flight. These codes will not be used when certain altitudes remain available in a direction of flight.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element EnrouteAirwaysRestrictionAltitudeExclusion / restrictionAltitudeBlockIndicator
Namespace No namespace
Annotations

This class is an abstraction for Restriction Altitude and Block Indicator elements as they occur together in airways restriction records.
Diagram
Diagram ARINC424_22_HTML.tmp#RestrictionAltitudeBlockIndicator_blockIndicator ARINC424_22_HTML.tmp#RestrictionAltitudeBlockIndicator_restrictionAltitude ARINC424_22_HTML.tmp#RestrictionAltitudeBlockIndicator
Type type:RestrictionAltitudeBlockIndicator
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children blockIndicator, restrictionAltitude
Instance

<restrictionAltitudeBlockIndicator>
  <blockIndicator>{0,1}</blockIndicator>
  <restrictionAltitude>{0,1}</restrictionAltitude>
</restrictionAltitudeBlockIndicator>
Source

<xs:element name="restrictionAltitudeBlockIndicator" type="type:RestrictionAltitudeBlockIndicator" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>This class is an abstraction for Restriction Altitude and Block Indicator elements as they occur together in airways restriction records.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:RestrictionAltitudeBlockIndicator / blockIndicator
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#BlockIndicator
Type enum:BlockIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Block
indicating an altitude block
enumeration Individual
indicating individual altitudes
Source

<xs:element name="blockIndicator" type="enum:BlockIndicator" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:RestrictionAltitudeBlockIndicator / restrictionAltitude
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RestrictionAltitude
Type type:RestrictionAltitude
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="restrictionAltitude" type="type:RestrictionAltitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteAirwaysRestrictionAltitudeExclusion / unitsofAltitude
Namespace No namespace
Annotations

The “Units of Altitude” field is used to indicate the units of measurement for the values in the “Restriction Altitude” fields.
Diagram
Diagram ARINC424_22_HTML.tmp#UnitsofAltitude
Type enum:UnitsofAltitude
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration HundredsFeet
Restriction Altitudes are expressed in hundreds of feet
enumeration MetricFlightLevel
Restriction Altitudes are expressed in metric Flight Levels
enumeration FeetFlightLevel
Restriction Altitudes are expressed in feet Flight Levels
enumeration TensOfMeters
Restriction Altitudes are expressed in tens of meters
Source

<xs:element name="unitsofAltitude" type="enum:UnitsofAltitude" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Units of Altitude” field is used to indicate the units of measurement for the values in the “Restriction Altitude” fields.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airway / airwaysRestrictionSeasonalClosure
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionType ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_routeIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_fixReference ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_timesOfOperation ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionSeasonalClosure_cruiseTableIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionSeasonalClosure
Type EnrouteAirwaysRestrictionSeasonalClosure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children cruiseTableIdentifier, custAreaCode, cycleDate, endDate, endFixICAOCode, endFixIdentifier, fixReference, notes, recordType, restrictionIdentifier, restrictionType, routeIdentifier, startDate, startFixICAOCode, startFixIdentifier, supplementalData, timesOfOperation
Instance

<airwaysRestrictionSeasonalClosure>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <endDate>{0,1}</endDate>
  <endFixICAOCode>{0,1}</endFixICAOCode>
  <endFixIdentifier>{0,1}</endFixIdentifier>
  <restrictionIdentifier>{0,1}</restrictionIdentifier>
  <restrictionType>{0,1}</restrictionType>
  <routeIdentifier>{0,1}</routeIdentifier>
  <startDate>{0,1}</startDate>
  <startFixICAOCode>{0,1}</startFixICAOCode>
  <startFixIdentifier>{0,1}</startFixIdentifier>
  <fixReference>{0,1}</fixReference>
  <timesOfOperation>{0,1}</timesOfOperation>
  <cruiseTableIdentifier>{0,1}</cruiseTableIdentifier>
</airwaysRestrictionSeasonalClosure>
Source

<xs:element name="airwaysRestrictionSeasonalClosure" type="EnrouteAirwaysRestrictionSeasonalClosure" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element EnrouteAirwaysRestrictionSeasonalClosure / cruiseTableIdentifier
Namespace No namespace
Annotations

A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseTableIdentifier
Type type:CruiseTableIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 2
Source

<xs:element name="cruiseTableIdentifier" type="type:CruiseTableIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airway / airwaysRestrictionCruisingTableReplacement
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionType ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_routeIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_fixReference ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_timesOfOperation ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionCruisingTableReplacement_cruiseTableIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionCruisingTableReplacement_cruiseTableRef ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionCruisingTableReplacement
Type EnrouteAirwaysRestrictionCruisingTableReplacement
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children cruiseTableIdentifier, cruiseTableRef, custAreaCode, cycleDate, endDate, endFixICAOCode, endFixIdentifier, fixReference, notes, recordType, restrictionIdentifier, restrictionType, routeIdentifier, startDate, startFixICAOCode, startFixIdentifier, supplementalData, timesOfOperation
Instance

<airwaysRestrictionCruisingTableReplacement>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <endDate>{0,1}</endDate>
  <endFixICAOCode>{0,1}</endFixICAOCode>
  <endFixIdentifier>{0,1}</endFixIdentifier>
  <restrictionIdentifier>{0,1}</restrictionIdentifier>
  <restrictionType>{0,1}</restrictionType>
  <routeIdentifier>{0,1}</routeIdentifier>
  <startDate>{0,1}</startDate>
  <startFixICAOCode>{0,1}</startFixICAOCode>
  <startFixIdentifier>{0,1}</startFixIdentifier>
  <fixReference>{0,1}</fixReference>
  <timesOfOperation>{0,1}</timesOfOperation>
  <cruiseTableIdentifier>{0,1}</cruiseTableIdentifier>
  <cruiseTableRef>{0,1}</cruiseTableRef>
</airwaysRestrictionCruisingTableReplacement>
Source

<xs:element name="airwaysRestrictionCruisingTableReplacement" type="EnrouteAirwaysRestrictionCruisingTableReplacement" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element EnrouteAirwaysRestrictionCruisingTableReplacement / cruiseTableIdentifier
Namespace No namespace
Annotations

A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseTableIdentifier
Type type:CruiseTableIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 2
Source

<xs:element name="cruiseTableIdentifier" type="type:CruiseTableIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element EnrouteAirwaysRestrictionCruisingTableReplacement / cruiseTableRef
Namespace No namespace
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 0
Source

<xs:element minOccurs="0" name="cruiseTableRef" type="xs:IDREF"/>
[ top ]
Element Airway / airwaySegment
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#AirwaySegment_airwayLeg ARINC424_22_HTML.tmp#AirwaySegment_qualifier1 ARINC424_22_HTML.tmp#AirwaySegment_qualifier2 ARINC424_22_HTML.tmp#AirwaySegment_rnavPbnNavSpec ARINC424_22_HTML.tmp#AirwaySegment_rnpPbnNavSpec ARINC424_22_HTML.tmp#AirwaySegment
Type AirwaySegment
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children airwayLeg, identifier, qualifier1, qualifier2, rnavPbnNavSpec, rnpPbnNavSpec, supplementalData
Instance

<airwaySegment>
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <airwayLeg>{2,unbounded}</airwayLeg>
  <qualifier1>{0,1}</qualifier1>
  <qualifier2>{0,1}</qualifier2>
  <rnavPbnNavSpec>{0,1}</rnavPbnNavSpec>
  <rnpPbnNavSpec>{0,1}</rnpPbnNavSpec>
</airwaySegment>
Source

<xs:element name="airwaySegment" type="AirwaySegment" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element AirwaySegment / airwayLeg
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#AirwayLeg_boundaryCode ARINC424_22_HTML.tmp#AirwayLeg_cruiseTableIndicator ARINC424_22_HTML.tmp#AirwayLeg_directionRestriction ARINC424_22_HTML.tmp#AirwayLeg_routeDistanceFrom ARINC424_22_HTML.tmp#AirwayLeg_euIndicator ARINC424_22_HTML.tmp#AirwayLeg_fixRadiusTransitionIndicator ARINC424_22_HTML.tmp#AirwayLeg_inboundCourse ARINC424_22_HTML.tmp#AirwayLeg_waypointDescription ARINC424_22_HTML.tmp#AirwayLeg_level ARINC424_22_HTML.tmp#AirwayLeg_rho ARINC424_22_HTML.tmp#AirwayLeg_rnp ARINC424_22_HTML.tmp#AirwayLeg_rvsmMinimumLevel ARINC424_22_HTML.tmp#AirwayLeg_theta ARINC424_22_HTML.tmp#AirwayLeg_verticalScaleFactor ARINC424_22_HTML.tmp#AirwayLeg_vsfRVSMMaximumLevel ARINC424_22_HTML.tmp#AirwayLeg_outboundCourse ARINC424_22_HTML.tmp#AirwayLeg_minAltitude1 ARINC424_22_HTML.tmp#AirwayLeg_minAltitude2 ARINC424_22_HTML.tmp#AirwayLeg_maximumAltitude ARINC424_22_HTML.tmp#AirwayLeg_restrictiveAirspaceRef ARINC424_22_HTML.tmp#AirwayLeg
Type AirwayLeg
Type hierarchy
Properties
content complex
minOccurs 2
maxOccurs unbounded
Model
Children boundaryCode, cruiseTableIndicator, custAreaCode, cycleDate, directionRestriction, euIndicator, fixIdent, fixRadiusTransitionIndicator, fixRef, inboundCourse, level, maximumAltitude, minAltitude1, minAltitude2, notes, outboundCourse, recNavaidIdent, recNavaidRef, recordType, restrictiveAirspaceRef, rho, rnp, routeDistanceFrom, rvsmMinimumLevel, sequenceNumber, supplementalData, theta, verticalScaleFactor, vsfRVSMMaximumLevel, waypointDescription
Instance

<airwayLeg>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <sequenceNumber>{1,1}</sequenceNumber>
  <fixRef>{0,1}</fixRef>
  <fixIdent>{0,1}</fixIdent>
  <recNavaidIdent>{0,1}</recNavaidIdent>
  <recNavaidRef>{0,1}</recNavaidRef>
  <boundaryCode>{0,1}</boundaryCode>
  <cruiseTableIndicator>{0,1}</cruiseTableIndicator>
  <directionRestriction>{0,1}</directionRestriction>
  <routeDistanceFrom>{0,1}</routeDistanceFrom>
  <euIndicator>{0,1}</euIndicator>
  <fixRadiusTransitionIndicator>{0,1}</fixRadiusTransitionIndicator>
  <inboundCourse>{0,1}</inboundCourse>
  <waypointDescription>{1,1}</waypointDescription>
  <level>{0,1}</level>
  <rho>{0,1}</rho>
  <rnp>{0,1}</rnp>
  <rvsmMinimumLevel>{0,1}</rvsmMinimumLevel>
  <theta>{0,1}</theta>
  <verticalScaleFactor>{0,1}</verticalScaleFactor>
  <vsfRVSMMaximumLevel>{0,1}</vsfRVSMMaximumLevel>
  <outboundCourse>{0,1}</outboundCourse>
  <minAltitude1>{0,1}</minAltitude1>
  <minAltitude2>{0,1}</minAltitude2>
  <maximumAltitude>{0,1}</maximumAltitude>
  <restrictiveAirspaceRef>{0,1}</restrictiveAirspaceRef>
</airwayLeg>
Source

<xs:element name="airwayLeg" type="AirwayLeg" minOccurs="2" maxOccurs="unbounded"/>
[ top ]
Element AirwayLeg / boundaryCode
Namespace No namespace
Annotations

Routes of flight frequently cross geographical boundaries. The “Boundary Code” field identifies the area into, or from which a continuous route passes when such a crossing occurs.
Diagram
Diagram ARINC424_22_HTML.tmp#BoundaryCode
Type enum:BoundaryCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration U
USA (USA)
enumeration C
Canada and Alaska (CAN)
enumeration P
Pacific (PAC)
enumeration L
Latin America (LAM)
enumeration S
South America (SAM)
enumeration 1
South Pacific (SPA)
enumeration E
Europe (EUR)
enumeration 2
Eastern Europe (EEU)
enumeration M
Middle East South Asia (MES)
enumeration A
Africa (AFR
Source

<xs:element name="boundaryCode" type="enum:BoundaryCode" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Routes of flight frequently cross geographical boundaries. The “Boundary Code” field identifies the area into, or from which a continuous route passes when such a crossing occurs.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwayLeg / cruiseTableIndicator
Namespace No namespace
Annotations

A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseTableIdentifier
Type type:CruiseTableIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 2
Source

<xs:element name="cruiseTableIndicator" type="type:CruiseTableIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwayLeg / directionRestriction
Namespace No namespace
Annotations

The “Direction Restriction” field will indicate the direction an Enroute Airway is to be flown
Diagram
Diagram ARINC424_22_HTML.tmp#EnrouteAirwayDirectionalRestriction
Type enum:EnrouteAirwayDirectionalRestriction
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Oneway
One way in direction route is coded (Forward).
enumeration Backward
One way in opposite direction route is coded (backward).
enumeration NoRestrictions
No restrictions on direction.
Source

<xs:element name="directionRestriction" type="enum:EnrouteAirwayDirectionalRestriction" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Direction Restriction” field will indicate the direction an Enroute Airway is to be flown</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwayLeg / routeDistanceFrom
Namespace No namespace
Annotations

In Enroute Airways, Route Distance From is the distance in nautical miles from the waypoint identified in the records Fix Ident field to the next waypoint of the route.
Diagram
Diagram ARINC424_22_HTML.tmp#LegDistance
Type type:LegDistance
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
Source

<xs:element name="routeDistanceFrom" type="type:LegDistance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>In Enroute Airways, Route Distance From is the distance in nautical miles from the waypoint identified in the records Fix Ident field to the next waypoint of the route.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwayLeg / euIndicator
Namespace No namespace
Annotations

The “EU Indicator” field is used to identify those Enroute Airway records that have an Airway Restriction record without identifying the restriction.
Diagram
Diagram ARINC424_22_HTML.tmp#EUIndicator
Type enum:EUIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration NoRestriction
no restriction record exists.
enumeration Restriction
restriction for the segment is contained in the restriction file
Source

<xs:element name="euIndicator" type="enum:EUIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “EU Indicator” field is used to identify those Enroute Airway records that have an Airway Restriction record without identifying the restriction.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwayLeg / fixRadiusTransitionIndicator
Namespace No namespace
Annotations

Indicates that a specific turn radius from the inbound course to the outbound course is required by the airspace controlling agency.
Diagram
Diagram ARINC424_22_HTML.tmp#FixedRadiusTransitionIndicator
Type type:FixedRadiusTransitionIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="fixRadiusTransitionIndicator" type="type:FixedRadiusTransitionIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Indicates that a specific turn radius from the inbound course to the outbound course is required by the airspace controlling agency.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwayLeg / inboundCourse
Namespace No namespace
Annotations

“Inbound Magnetic Course” is the published inbound magnetic course to the waypoint in the “Fix Ident” field of the records in which it is employed.

The “HX” group of Path Terminator codes is used to provide racetrack type course reversal flight paths. Government publications for these course reversal include an “inbound magnetic bearing.” The SID/STAR/Approach Procedures records do not include a dedicated field for this inbound course. Instead, the information is included in the “Outbound Magnetic Course” field of such records.
Diagram
Diagram ARINC424_22_HTML.tmp#Course_courseValue ARINC424_22_HTML.tmp#Course_isTrue ARINC424_22_HTML.tmp#Course
Type type:Course
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children courseValue, isTrue
Instance

<inboundCourse>
  <courseValue>{1,1}</courseValue>
  <isTrue>{0,1}</isTrue>
</inboundCourse>
Source

<xs:element name="inboundCourse" type="type:Course" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>“Inbound Magnetic Course” is the published inbound magnetic course to the waypoint in the “Fix Ident” field of the records in which it is employed. The “HX” group of Path Terminator codes is used to provide racetrack type course reversal flight paths. Government publications for these course reversal include an “inbound magnetic bearing.” The SID/STAR/Approach Procedures records do not include a dedicated field for this inbound course. Instead, the information is included in the “Outbound Magnetic Course” field of such records.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwayLeg / waypointDescription
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AirwayWaypointDescription_isEssential ARINC424_22_HTML.tmp#AirwayWaypointDescription_isHolding ARINC424_22_HTML.tmp#AirwayWaypointDescription_isNonEssential ARINC424_22_HTML.tmp#AirwayWaypointDescription_isOceanicGateway ARINC424_22_HTML.tmp#AirwayWaypointDescription_isOffAirwayFloating ARINC424_22_HTML.tmp#AirwayWaypointDescription_isSourceProvidedEnrouteWaypoint ARINC424_22_HTML.tmp#AirwayWaypointDescription_isTransitionEssential ARINC424_22_HTML.tmp#AirwayWaypointDescription_isUnchartedIntersection ARINC424_22_HTML.tmp#AirwayWaypointDescription_isAtcCompulsoryReportingPoint ARINC424_22_HTML.tmp#AirwayWaypointDescription
Type type:AirwayWaypointDescription
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children isAtcCompulsoryReportingPoint, isEssential, isHolding, isNonEssential, isOceanicGateway, isOffAirwayFloating, isSourceProvidedEnrouteWaypoint, isTransitionEssential, isUnchartedIntersection
Instance

<waypointDescription>
  <isEssential>{0,1}</isEssential>
  <isHolding>{1,1}</isHolding>
  <isNonEssential>{0,1}</isNonEssential>
  <isOceanicGateway>{0,1}</isOceanicGateway>
  <isOffAirwayFloating>{0,1}</isOffAirwayFloating>
  <isSourceProvidedEnrouteWaypoint>{0,1}</isSourceProvidedEnrouteWaypoint>
  <isTransitionEssential>{0,1}</isTransitionEssential>
  <isUnchartedIntersection>{0,1}</isUnchartedIntersection>
  <isAtcCompulsoryReportingPoint>{0,1}</isAtcCompulsoryReportingPoint>
</waypointDescription>
Source

<xs:element name="waypointDescription" type="type:AirwayWaypointDescription" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:AirwayWaypointDescription / isEssential
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isEssential" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AirwayWaypointDescription / isHolding
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="isHolding" type="xs:boolean" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:AirwayWaypointDescription / isNonEssential
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isNonEssential" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AirwayWaypointDescription / isOceanicGateway
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isOceanicGateway" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AirwayWaypointDescription / isOffAirwayFloating
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isOffAirwayFloating" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AirwayWaypointDescription / isSourceProvidedEnrouteWaypoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isSourceProvidedEnrouteWaypoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AirwayWaypointDescription / isTransitionEssential
Namespace No namespace
Annotations

A waypoint which normally would be classified as non-essential may be required to transition from the enroute structure to the terminal structure. Waypoints falling into this category are classified as Transition Essential Waypoints
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isTransitionEssential" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A waypoint which normally would be classified as non-essential may be required to transition from the enroute structure to the terminal structure. Waypoints falling into this category are classified as Transition Essential Waypoints</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:AirwayWaypointDescription / isUnchartedIntersection
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isUnchartedIntersection" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AirwayWaypointDescription / isAtcCompulsoryReportingPoint
Namespace No namespace
Annotations

Compulsory Reporting Point: Essential or nonessential waypoints may be classified as ATC compulsory points.  ATC requires the pilot to make a communications report at these waypoints. All other waypoints may be classified as non compulsory reporting points and are reported only when specifically requested by ATC
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isAtcCompulsoryReportingPoint" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Compulsory Reporting Point: Essential or nonessential waypoints may be classified as ATC compulsory points. ATC requires the pilot to make a communications report at these waypoints. All other waypoints may be classified as non compulsory reporting points and are reported only when specifically requested by ATC</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwayLeg / level
Namespace No namespace
Annotations

The Level field defines the airway structure of which the record is an element.
Diagram
Diagram ARINC424_22_HTML.tmp#Level
Type enum:Level
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AllAlt
All Altitudes
enumeration HighAlt
High Altitudes
enumeration LowAlt
Low Altitudes
Source

<xs:element name="level" type="enum:Level" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Level field defines the airway structure of which the record is an element.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwayLeg / rho
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Rho
Type type:Rho
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
Source

<xs:element name="rho" type="type:Rho" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirwayLeg / rnp
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RequiredNavigationPerformance
Type type:RequiredNavigationPerformance
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
fractionDigits 9
Source

<xs:element name="rnp" type="type:RequiredNavigationPerformance" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirwayLeg / rvsmMinimumLevel
Namespace No namespace
Annotations

RVSM Minimum Level is the lowest defined cruising level for an airway or holding pattern.
Diagram
Diagram ARINC424_22_HTML.tmp#FlightLevel
Type type:FlightLevel
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="rvsmMinimumLevel" type="type:FlightLevel" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>RVSM Minimum Level is the lowest defined cruising level for an airway or holding pattern.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwayLeg / theta
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Theta
Type type:Theta
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Source

<xs:element name="theta" type="type:Theta" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirwayLeg / verticalScaleFactor
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#VerticalScaleFactor
Type type:VerticalScaleFactor
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="verticalScaleFactor" type="type:VerticalScaleFactor" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirwayLeg / vsfRVSMMaximumLevel
Namespace No namespace
Annotations

RVSM Maximum Level is the highest defined cruising level for an airway or holding pattern.
Diagram
Diagram ARINC424_22_HTML.tmp#FlightLevel
Type type:FlightLevel
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="vsfRVSMMaximumLevel" type="type:FlightLevel" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>RVSM Maximum Level is the highest defined cruising level for an airway or holding pattern.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwayLeg / outboundCourse
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Course_courseValue ARINC424_22_HTML.tmp#Course_isTrue ARINC424_22_HTML.tmp#Course
Type type:Course
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children courseValue, isTrue
Instance

<outboundCourse>
  <courseValue>{1,1}</courseValue>
  <isTrue>{0,1}</isTrue>
</outboundCourse>
Source

<xs:element name="outboundCourse" type="type:Course" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirwayLeg / minAltitude1
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<minAltitude1>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</minAltitude1>
Source

<xs:element name="minAltitude1" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirwayLeg / minAltitude2
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<minAltitude2>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</minAltitude2>
Source

<xs:element name="minAltitude2" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirwayLeg / maximumAltitude
Namespace No namespace
Annotations

The “Maximum Altitude” field is used to indicate the maximum altitude allowed.
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude ARINC424_22_HTML.tmp#AltitudeLimit_isGround ARINC424_22_HTML.tmp#AltitudeLimit_isMSL ARINC424_22_HTML.tmp#AltitudeLimit_isNotam ARINC424_22_HTML.tmp#AltitudeLimit_isNotSpecified ARINC424_22_HTML.tmp#AltitudeLimit_isUnlimited ARINC424_22_HTML.tmp#AltitudeLimit
Type type:AltitudeLimit
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isGround, isMSL, isNotDefined, isNotSpecified, isNotam, isUnknown, isUnlimited
Instance

<maximumAltitude>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
  <isGround>{0,1}</isGround>
  <isMSL>{0,1}</isMSL>
  <isNotam>{0,1}</isNotam>
  <isNotSpecified>{0,1}</isNotSpecified>
  <isUnlimited>{0,1}</isUnlimited>
</maximumAltitude>
Source

<xs:element name="maximumAltitude" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Maximum Altitude” field is used to indicate the maximum altitude allowed.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:AltitudeLimit / isGround
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isGround" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AltitudeLimit / isMSL
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isMSL" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AltitudeLimit / isNotam
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isNotam" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AltitudeLimit / isNotSpecified
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isNotSpecified" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:AltitudeLimit / isUnlimited
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isUnlimited" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirwayLeg / restrictiveAirspaceRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RestrictiveAirspaceReference_restrictiveAirspaceDesignation ARINC424_22_HTML.tmp#RestrictiveAirspaceReference_restrictiveAirspaceICAOCode ARINC424_22_HTML.tmp#RestrictiveAirspaceReference_restrictiveAirspaceMultipleCode ARINC424_22_HTML.tmp#RestrictiveAirspaceReference_restrictiveAirspaceType ARINC424_22_HTML.tmp#RestrictiveAirspaceReference
Type RestrictiveAirspaceReference
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children restrictiveAirspaceDesignation, restrictiveAirspaceICAOCode, restrictiveAirspaceMultipleCode, restrictiveAirspaceType
Instance

<restrictiveAirspaceRef>
  <restrictiveAirspaceDesignation>{1,1}</restrictiveAirspaceDesignation>
  <restrictiveAirspaceICAOCode>{1,1}</restrictiveAirspaceICAOCode>
  <restrictiveAirspaceMultipleCode>{1,1}</restrictiveAirspaceMultipleCode>
  <restrictiveAirspaceType>{1,1}</restrictiveAirspaceType>
</restrictiveAirspaceRef>
Source

<xs:element name="restrictiveAirspaceRef" type="RestrictiveAirspaceReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element RestrictiveAirspaceReference / restrictiveAirspaceDesignation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RestrictiveAirspaceDesignation
Type type:RestrictiveAirspaceDesignation
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 10
Source

<xs:element name="restrictiveAirspaceDesignation" type="type:RestrictiveAirspaceDesignation" minOccurs="1" maxOccurs="1"/>
[ top ]
Element RestrictiveAirspaceReference / restrictiveAirspaceICAOCode
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#IcaoCode
Type type:IcaoCode
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
pattern [a-zA-Z0-9]{2}
Source

<xs:element name="restrictiveAirspaceICAOCode" type="type:IcaoCode" minOccurs="1" maxOccurs="1"/>
[ top ]
Element RestrictiveAirspaceReference / restrictiveAirspaceMultipleCode
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#MultipleCode
Type type:MultipleCode
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 1
Source

<xs:element name="restrictiveAirspaceMultipleCode" type="type:MultipleCode" minOccurs="1" maxOccurs="1"/>
[ top ]
Element RestrictiveAirspaceReference / restrictiveAirspaceType
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RestrictiveAirspaceType
Type enum:RestrictiveAirspaceType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Alert
Alert
enumeration Caution
Caution
enumeration Danger
Danger
enumeration MilitaryOps
Military Operations Area
enumeration NationalSecurity
National Security Area
enumeration Prohibited
Prohibited
enumeration Restricted
Restricted
enumeration Training
Training
enumeration Warning
Warning
enumeration Unspecified
Unspecified or Unknown
Source

<xs:element name="restrictiveAirspaceType" type="enum:RestrictiveAirspaceType" minOccurs="1" maxOccurs="1"/>
[ top ]
Element AirwaySegment / qualifier1
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AirwayQualifier1
Type enum:AirwayQualifier1
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration GnssRequired
GNSS required
enumeration GnssOrDmeDmeIruRequired
GNSS or DME/DME/IRU Required
enumeration GnssDmeDmeIruOrDmeDmeRequired
GNSS, DME/DME/IRU or DME/DME Required
enumeration EquipmentRequirementsUnspecified
Equipment requirements unspecified
Source

<xs:element name="qualifier1" type="enum:AirwayQualifier1" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirwaySegment / qualifier2
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AirwayQualifier2
Type enum:AirwayQualifier2
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration FixRelatedTransitionRequired
Fix Related Transition (FRT) required
enumeration ParallelOffsetRequired
Parallel Offset Required
enumeration ToacRequired
TOAC Required
Source

<xs:element name="qualifier2" type="enum:AirwayQualifier2" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirwaySegment / rnavPbnNavSpec
Namespace No namespace
Annotations

This element indicates that an RNAV PBN navigation specification applies to this airway segment
Diagram
Diagram ARINC424_22_HTML.tmp#AirwayRnavPbnNavSpec
Type enum:AirwayRnavPbnNavSpec
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Rnav5
enumeration Rnav4
enumeration Rnav2
enumeration Rnav1
enumeration BRnav
enumeration PRnav
enumeration PbnUnspecified
Source

<xs:element name="rnavPbnNavSpec" type="enum:AirwayRnavPbnNavSpec" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element indicates that an RNAV PBN navigation specification applies to this airway segment</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirwaySegment / rnpPbnNavSpec
Namespace No namespace
Annotations

This element indicates that an RNP PBN navigation specification applies to this airway segment
Diagram
Diagram ARINC424_22_HTML.tmp#AirwayRnpPbnNavSpec
Type enum:AirwayRnpPbnNavSpec
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Rnp4
enumeration Rnp2
enumeration Rnp1
enumeration RnpAr
enumeration AdvRnp
enumeration Rnp0_3
enumeration PbnUnspecified
Source

<xs:element name="rnpPbnNavSpec" type="enum:AirwayRnpPbnNavSpec" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element indicates that an RNP PBN navigation specification applies to this airway segment</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AeroPublication / enrouteWaypoints
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#EnrouteWaypoints_waypoint ARINC424_22_HTML.tmp#EnrouteWaypoints
Type EnrouteWaypoints
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children waypoint
Instance

<enrouteWaypoints>
  <waypoint referenceID="">{1,unbounded}</waypoint>
</enrouteWaypoints>
Source

<xs:element name="enrouteWaypoints" type="EnrouteWaypoints" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteWaypoints / waypoint
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Waypoint_nameFormatIndicator ARINC424_22_HTML.tmp#Waypoint_waypointType ARINC424_22_HTML.tmp#Waypoint_waypointUsage ARINC424_22_HTML.tmp#Waypoint
Type Waypoint
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children custAreaCode, cycleDate, datumCode, firRef, icaoCode, identifier, location, magneticVariation, name, nameFormatIndicator, notes, recordType, supplementalData, uirRef, waypointType, waypointUsage
Instance

<waypoint referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <nameFormatIndicator>{0,1}</nameFormatIndicator>
  <waypointType>{1,1}</waypointType>
  <waypointUsage>{1,1}</waypointUsage>
</waypoint>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="waypoint" type="Waypoint" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element AeroPublication / vhfNavaids
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Navaids_vhfNavaid ARINC424_22_HTML.tmp#Navaids
Type Navaids
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children vhfNavaid
Instance

<vhfNavaids>
  <vhfNavaid referenceID="">{1,unbounded}</vhfNavaid>
</vhfNavaids>
Source

<xs:element name="vhfNavaids" type="Navaids" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Navaids / vhfNavaid
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid
Type Navaid
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children custAreaCode, cycleDate, datumCode, elevation, firRef, icaoCode, identifier, location, magneticVariation, name, notes, portRef, recordType, supplementalData, uirRef
Instance

<vhfNavaid referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <portRef>{0,1}</portRef>
  <elevation>{0,1}</elevation>
</vhfNavaid>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="vhfNavaid" type="Navaid" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element AeroPublication / ndbs
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#NDBs_ndb ARINC424_22_HTML.tmp#NDBs
Type NDBs
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children ndb
Instance

<ndbs>
  <ndb referenceID="">{1,unbounded}</ndb>
</ndbs>
Source

<xs:element name="ndbs" type="NDBs" minOccurs="0" maxOccurs="1"/>
[ top ]
Element NDBs / ndb
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#NDB_ndbClass ARINC424_22_HTML.tmp#NDB_ndbFrequency ARINC424_22_HTML.tmp#NDB_typeOfEmission ARINC424_22_HTML.tmp#NDB_repititionRate ARINC424_22_HTML.tmp#NDB_navaidNdbEmissionType ARINC424_22_HTML.tmp#NDB_dmeRef ARINC424_22_HTML.tmp#NDB
Type NDB
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children custAreaCode, cycleDate, datumCode, dmeRef, elevation, firRef, icaoCode, identifier, location, magneticVariation, name, navaidNdbEmissionType, ndbClass, ndbFrequency, notes, portRef, recordType, repititionRate, supplementalData, typeOfEmission, uirRef
Instance

<ndb referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <datumCode>{0,1}</datumCode>
  <icaoCode>{1,1}</icaoCode>
  <identifier>{1,1}</identifier>
  <location>{1,1}</location>
  <magneticVariation>{0,1}</magneticVariation>
  <name>{0,1}</name>
  <uirRef>{0,1}</uirRef>
  <firRef>{0,1}</firRef>
  <portRef>{0,1}</portRef>
  <elevation>{0,1}</elevation>
  <ndbClass>{1,1}</ndbClass>
  <ndbFrequency>{1,1}</ndbFrequency>
  <typeOfEmission>{0,1}</typeOfEmission>
  <repititionRate>{0,1}</repititionRate>
  <navaidNdbEmissionType>{0,1}</navaidNdbEmissionType>
  <dmeRef>{0,1}</dmeRef>
</ndb>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="ndb" type="NDB" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element AeroPublication / companyRoutes
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CompanyRoutes_companyRoute ARINC424_22_HTML.tmp#CompanyRoutes
Type CompanyRoutes
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children companyRoute
Instance

<companyRoutes>
  <companyRoute referenceID="">{1,unbounded}</companyRoute>
</companyRoutes>
Source

<xs:element name="companyRoutes" type="CompanyRoutes" minOccurs="0" maxOccurs="1"/>
[ top ]
Element CompanyRoutes / companyRoute
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#CompanyRoute_referenceID ARINC424_22_HTML.tmp#CompanyRoute_alternateDistanace ARINC424_22_HTML.tmp#CompanyRoute_costIndex ARINC424_22_HTML.tmp#CompanyRoute_cruiseAltitude ARINC424_22_HTML.tmp#CompanyRoute_enrouteEmergencyPortRef ARINC424_22_HTML.tmp#CompanyRoute_fromPortFix ARINC424_22_HTML.tmp#CompanyRoute_identifier ARINC424_22_HTML.tmp#CompanyRoute_terminalAlternateAirport ARINC424_22_HTML.tmp#CompanyRoute_toPortFix ARINC424_22_HTML.tmp#CompanyRoute_viaSID ARINC424_22_HTML.tmp#CompanyRoute_viaEnrouteLegs ARINC424_22_HTML.tmp#CompanyRoute_viaSTAR ARINC424_22_HTML.tmp#CompanyRoute_viaApproachConnectorLegs ARINC424_22_HTML.tmp#CompanyRoute_viaApproach ARINC424_22_HTML.tmp#CompanyRoute_alternateRef ARINC424_22_HTML.tmp#CompanyRoute
Type CompanyRoute
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children alternateDistanace, alternateRef, costIndex, cruiseAltitude, custAreaCode, cycleDate, enrouteEmergencyPortRef, fromPortFix, identifier, notes, recordType, supplementalData, terminalAlternateAirport, toPortFix, viaApproach, viaApproachConnectorLegs, viaEnrouteLegs, viaSID, viaSTAR
Instance

<companyRoute referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <alternateDistanace>{0,1}</alternateDistanace>
  <costIndex>{0,1}</costIndex>
  <cruiseAltitude>{0,1}</cruiseAltitude>
  <enrouteEmergencyPortRef>{0,1}</enrouteEmergencyPortRef>
  <fromPortFix>{0,1}</fromPortFix>
  <identifier>{1,1}</identifier>
  <terminalAlternateAirport>{0,1}</terminalAlternateAirport>
  <toPortFix>{0,1}</toPortFix>
  <viaSID>{0,1}</viaSID>
  <viaEnrouteLegs>{0,unbounded}</viaEnrouteLegs>
  <viaSTAR>{0,1}</viaSTAR>
  <viaApproachConnectorLegs>{0,unbounded}</viaApproachConnectorLegs>
  <viaApproach>{0,1}</viaApproach>
  <alternateRef>{1,1}</alternateRef>
</companyRoute>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="companyRoute" type="CompanyRoute" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element CompanyRoute / alternateDistanace
Namespace No namespace
Annotations

This field is used to supply the distance in nautical miles from the “To Airport/Heliport/Fix” to the Alternate Airport/Heliport.
Diagram
Diagram ARINC424_22_HTML.tmp#AlternateDistance
Type type:AlternateDistance
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="alternateDistanace" type="type:AlternateDistance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field is used to supply the distance in nautical miles from the “To Airport/Heliport/Fix” to the Alternate Airport/Heliport.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CompanyRoute / costIndex
Namespace No namespace
Annotations

The Cost Index field is used to define the relative value of fuel-related costs and time-related costs for a particular route.
Diagram
Diagram ARINC424_22_HTML.tmp#CostIndex
Type type:CostIndex
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="costIndex" type="type:CostIndex" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Cost Index field is used to define the relative value of fuel-related costs and time-related costs for a particular route.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CompanyRoute / cruiseAltitude
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseAltitude
Type type:CruiseAltitude
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 5
Source

<xs:element name="cruiseAltitude" type="type:CruiseAltitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element CompanyRoute / enrouteEmergencyPortRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="enrouteEmergencyPortRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element CompanyRoute / fromPortFix
Namespace No namespace
Annotations

When used on Company Routes and Helicopter Operations Company Routes, the “From Airport/Heliport/Fix” is the fix from which the company route originates. The “To Airport/Heliport/Fix” is the fix at which the company route terminates. When used on Alternate Records, it is the Departure, Destination or Enroute Airport/Fix for which the alternate information is being provided.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="fromPortFix" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>When used on Company Routes and Helicopter Operations Company Routes, the “From Airport/Heliport/Fix” is the fix from which the company route originates. The “To Airport/Heliport/Fix” is the fix at which the company route terminates. When used on Alternate Records, it is the Departure, Destination or Enroute Airport/Fix for which the alternate information is being provided.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CompanyRoute / identifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="identifier" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element CompanyRoute / terminalAlternateAirport
Namespace No namespace
Annotations

This field has two uses depending on the “VIA” field and File Code for “To Fix.” For “VIA” field content of “ALT” this field will contain the Alternate Airport Ident or Heliport Ident for this Company Route. If the file code for “To Fix” contains “P,” this field will contain the Airport Ident for REGN CODE (Section 5.41) of Terminal Waypoints (PC records) and Runway (PG records). If the file code for “To Fix” contains “H”, this field will contain the Heliport Ident for REGN CODE (Section 5.41) of Helicopter Terminal Waypoints (HC records).
Diagram
Diagram ARINC424_22_HTML.tmp#TerminalAlternateAirport
Type type:TerminalAlternateAirport
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 4
Source

<xs:element name="terminalAlternateAirport" type="type:TerminalAlternateAirport" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field has two uses depending on the “VIA” field and File Code for “To Fix.” For “VIA” field content of “ALT” this field will contain the Alternate Airport Ident or Heliport Ident for this Company Route. If the file code for “To Fix” contains “P,” this field will contain the Airport Ident for REGN CODE (Section 5.41) of Terminal Waypoints (PC records) and Runway (PG records). If the file code for “To Fix” contains “H”, this field will contain the Heliport Ident for REGN CODE (Section 5.41) of Helicopter Terminal Waypoints (HC records).</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CompanyRoute / toPortFix
Namespace No namespace
Annotations

When used on Company Routes and Helicopter Operations Company Routes, the “From Airport/Heliport/Fix” is the fix from which the company route originates. The “To Airport/Heliport/Fix” is the fix at which the company route terminates. When used on Alternate Records, it is the Departure, Destination or Enroute Airport/Fix for which the alternate information is being provided.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="toPortFix" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>When used on Company Routes and Helicopter Operations Company Routes, the “From Airport/Heliport/Fix” is the fix from which the company route originates. The “To Airport/Heliport/Fix” is the fix at which the company route terminates. When used on Alternate Records, it is the Departure, Destination or Enroute Airport/Fix for which the alternate information is being provided.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CompanyRoute / viaSID
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ViaSID_sidRef ARINC424_22_HTML.tmp#ViaSID_SIDSelectedRoutes ARINC424_22_HTML.tmp#ViaSID_cycleDate ARINC424_22_HTML.tmp#ViaSID_cruiseAltitude ARINC424_22_HTML.tmp#ViaSID
Type ViaSID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children SIDSelectedRoutes, cruiseAltitude, cycleDate, sidRef
Instance

<viaSID>
  <sidRef>{1,1}</sidRef>
  <SIDSelectedRoutes>{1,1}</SIDSelectedRoutes>
  <cycleDate>{1,1}</cycleDate>
  <cruiseAltitude>{0,1}</cruiseAltitude>
</viaSID>
Source

<xs:element name="viaSID" type="ViaSID" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ViaSID / sidRef
Namespace No namespace
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="sidRef" type="xs:IDREF" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaSID / SIDSelectedRoutes
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SIDSTARSelectedRoutes_viaEnroute ARINC424_22_HTML.tmp#SIDSTARSelectedRoutes_viaCommon ARINC424_22_HTML.tmp#SIDSTARSelectedRoutes_viaRunway ARINC424_22_HTML.tmp#SIDSTARSelectedRoutes
Type SIDSTARSelectedRoutes
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children viaCommon, viaEnroute, viaRunway
Instance

<SIDSelectedRoutes>
  <viaEnroute>{0,1}</viaEnroute>
  <viaCommon>{0,1}</viaCommon>
  <viaRunway>{0,1}</viaRunway>
</SIDSelectedRoutes>
Source

<xs:element name="SIDSelectedRoutes" type="SIDSTARSelectedRoutes" minOccurs="1" maxOccurs="1"/>
[ top ]
Element SIDSTARSelectedRoutes / viaEnroute
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ViaEnroute_enrouteIdent ARINC424_22_HTML.tmp#ViaEnroute_toFixRef ARINC424_22_HTML.tmp#ViaEnroute
Type ViaEnroute
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children enrouteIdent, toFixRef
Instance

<viaEnroute>
  <enrouteIdent>{1,1}</enrouteIdent>
  <toFixRef>{1,1}</toFixRef>
</viaEnroute>
Source

<xs:element name="viaEnroute" type="ViaEnroute" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ViaEnroute / enrouteIdent
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="enrouteIdent" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaEnroute / toFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="toFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element SIDSTARSelectedRoutes / viaCommon
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ViaCommon_commonIdent ARINC424_22_HTML.tmp#ViaCommon_toFixRef ARINC424_22_HTML.tmp#ViaCommon
Type ViaCommon
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children commonIdent, toFixRef
Instance

<viaCommon>
  <commonIdent>{1,1}</commonIdent>
  <toFixRef>{1,1}</toFixRef>
</viaCommon>
Source

<xs:element name="viaCommon" type="ViaCommon" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ViaCommon / commonIdent
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="commonIdent" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaCommon / toFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="toFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element SIDSTARSelectedRoutes / viaRunway
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ViaRunway_runwayIdent ARINC424_22_HTML.tmp#ViaRunway_toFixRef ARINC424_22_HTML.tmp#ViaRunway
Type ViaRunway
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children runwayIdent, toFixRef
Instance

<viaRunway>
  <runwayIdent>{1,1}</runwayIdent>
  <toFixRef>{1,1}</toFixRef>
</viaRunway>
Source

<xs:element name="viaRunway" type="ViaRunway" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ViaRunway / runwayIdent
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="runwayIdent" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaRunway / toFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="toFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaSID / cycleDate
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CycleDate
Type type:CycleDate
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
minLength 4
maxLength 4
Source

<xs:element name="cycleDate" type="type:CycleDate" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaSID / cruiseAltitude
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<cruiseAltitude>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</cruiseAltitude>
Source

<xs:element minOccurs="0" name="cruiseAltitude" type="type:Altitude"/>
[ top ]
Element CompanyRoute / viaEnrouteLegs
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#ViaEnrouteLeg_selectedEnroute ARINC424_22_HTML.tmp#ViaEnrouteLeg_cruisingAltitude ARINC424_22_HTML.tmp#ViaEnrouteLeg
Type ViaEnrouteLeg
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children cruisingAltitude, custAreaCode, cycleDate, fixIdent, fixRef, notes, recNavaidIdent, recNavaidRef, recordType, selectedEnroute, sequenceNumber, supplementalData
Instance

<viaEnrouteLegs>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <sequenceNumber>{1,1}</sequenceNumber>
  <fixRef>{0,1}</fixRef>
  <fixIdent>{0,1}</fixIdent>
  <recNavaidIdent>{0,1}</recNavaidIdent>
  <recNavaidRef>{0,1}</recNavaidRef>
  <selectedEnroute>{1,1}</selectedEnroute>
  <cruisingAltitude>{0,1}</cruisingAltitude>
</viaEnrouteLegs>
Source

<xs:element name="viaEnrouteLegs" type="ViaEnrouteLeg" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element ViaEnrouteLeg / selectedEnroute
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SelectedEnroute_viaFix ARINC424_22_HTML.tmp#SelectedEnroute_viaAirway ARINC424_22_HTML.tmp#SelectedEnroute
Type SelectedEnroute
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children viaAirway, viaFix
Instance

<selectedEnroute>
  <viaFix>{1,1}</viaFix>
  <viaAirway>{1,1}</viaAirway>
</selectedEnroute>
Source

<xs:element name="selectedEnroute" type="SelectedEnroute" minOccurs="1" maxOccurs="1"/>
[ top ]
Element SelectedEnroute / viaFix
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ViaFix_viaFixRef ARINC424_22_HTML.tmp#ViaFix
Type ViaFix
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children viaFixRef
Instance

<viaFix>
  <viaFixRef>{1,1}</viaFixRef>
</viaFix>
Source

<xs:element name="viaFix" type="ViaFix" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaFix / viaFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="viaFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element SelectedEnroute / viaAirway
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ViaAirway_viaAirwayRef ARINC424_22_HTML.tmp#ViaAirway_exitFixRef ARINC424_22_HTML.tmp#ViaAirway_entryFixRef ARINC424_22_HTML.tmp#ViaAirway
Type ViaAirway
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children entryFixRef, exitFixRef, viaAirwayRef
Instance

<viaAirway>
  <viaAirwayRef>{1,1}</viaAirwayRef>
  <exitFixRef>{1,1}</exitFixRef>
  <entryFixRef>{1,1}</entryFixRef>
</viaAirway>
Source

<xs:element name="viaAirway" type="ViaAirway" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaAirway / viaAirwayRef
Namespace No namespace
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="viaAirwayRef" type="xs:IDREF" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaAirway / exitFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="exitFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaAirway / entryFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="entryFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaEnrouteLeg / cruisingAltitude
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<cruisingAltitude>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</cruisingAltitude>
Source

<xs:element name="cruisingAltitude" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element CompanyRoute / viaSTAR
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ViaSTAR_starRef ARINC424_22_HTML.tmp#ViaSTAR_STARselectedRoutes ARINC424_22_HTML.tmp#ViaSTAR_cycleDate ARINC424_22_HTML.tmp#ViaSTAR_cruiseAltitude ARINC424_22_HTML.tmp#ViaSTAR
Type ViaSTAR
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children STARselectedRoutes, cruiseAltitude, cycleDate, starRef
Instance

<viaSTAR>
  <starRef>{1,1}</starRef>
  <STARselectedRoutes>{1,1}</STARselectedRoutes>
  <cycleDate>{1,1}</cycleDate>
  <cruiseAltitude>{0,1}</cruiseAltitude>
</viaSTAR>
Source

<xs:element name="viaSTAR" type="ViaSTAR" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ViaSTAR / starRef
Namespace No namespace
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="starRef" type="xs:IDREF" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaSTAR / STARselectedRoutes
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SIDSTARSelectedRoutes_viaEnroute ARINC424_22_HTML.tmp#SIDSTARSelectedRoutes_viaCommon ARINC424_22_HTML.tmp#SIDSTARSelectedRoutes_viaRunway ARINC424_22_HTML.tmp#SIDSTARSelectedRoutes
Type SIDSTARSelectedRoutes
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children viaCommon, viaEnroute, viaRunway
Instance

<STARselectedRoutes>
  <viaEnroute>{0,1}</viaEnroute>
  <viaCommon>{0,1}</viaCommon>
  <viaRunway>{0,1}</viaRunway>
</STARselectedRoutes>
Source

<xs:element name="STARselectedRoutes" type="SIDSTARSelectedRoutes" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaSTAR / cycleDate
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CycleDate
Type type:CycleDate
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
minLength 4
maxLength 4
Source

<xs:element name="cycleDate" type="type:CycleDate" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaSTAR / cruiseAltitude
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<cruiseAltitude>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</cruiseAltitude>
Source

<xs:element minOccurs="0" name="cruiseAltitude" type="type:Altitude"/>
[ top ]
Element CompanyRoute / viaApproachConnectorLegs
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#ViaEnrouteLeg_selectedEnroute ARINC424_22_HTML.tmp#ViaEnrouteLeg_cruisingAltitude ARINC424_22_HTML.tmp#ViaEnrouteLeg
Type ViaEnrouteLeg
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children cruisingAltitude, custAreaCode, cycleDate, fixIdent, fixRef, notes, recNavaidIdent, recNavaidRef, recordType, selectedEnroute, sequenceNumber, supplementalData
Instance

<viaApproachConnectorLegs>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <sequenceNumber>{1,1}</sequenceNumber>
  <fixRef>{0,1}</fixRef>
  <fixIdent>{0,1}</fixIdent>
  <recNavaidIdent>{0,1}</recNavaidIdent>
  <recNavaidRef>{0,1}</recNavaidRef>
  <selectedEnroute>{1,1}</selectedEnroute>
  <cruisingAltitude>{0,1}</cruisingAltitude>
</viaApproachConnectorLegs>
Source

<xs:element name="viaApproachConnectorLegs" type="ViaEnrouteLeg" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element CompanyRoute / viaApproach
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ViaApproach_approachRef ARINC424_22_HTML.tmp#ViaApproach_cycleDate ARINC424_22_HTML.tmp#ViaApproach_approachSelectedRoutes ARINC424_22_HTML.tmp#ViaApproach_cruiseAlt ARINC424_22_HTML.tmp#ViaApproach
Type ViaApproach
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children approachRef, approachSelectedRoutes, cruiseAlt, cycleDate
Instance

<viaApproach>
  <approachRef>{1,1}</approachRef>
  <cycleDate>{1,1}</cycleDate>
  <approachSelectedRoutes>{1,1}</approachSelectedRoutes>
  <cruiseAlt>{0,1}</cruiseAlt>
</viaApproach>
Source

<xs:element name="viaApproach" type="ViaApproach" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ViaApproach / approachRef
Namespace No namespace
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="approachRef" type="xs:IDREF" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaApproach / cycleDate
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CycleDate
Type type:CycleDate
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
minLength 4
maxLength 4
Source

<xs:element name="cycleDate" type="type:CycleDate" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaApproach / approachSelectedRoutes
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ApproachSelectedRoutes_selectedFinal ARINC424_22_HTML.tmp#ApproachSelectedRoutes_selectedApproachTransition ARINC424_22_HTML.tmp#ApproachSelectedRoutes
Type ApproachSelectedRoutes
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children selectedApproachTransition, selectedFinal
Instance

<approachSelectedRoutes>
  <selectedFinal>{0,1}</selectedFinal>
  <selectedApproachTransition>{0,1}</selectedApproachTransition>
</approachSelectedRoutes>
Source

<xs:element name="approachSelectedRoutes" type="ApproachSelectedRoutes" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ApproachSelectedRoutes / selectedFinal
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SelectedFinal_toFixRef ARINC424_22_HTML.tmp#SelectedFinal_ident ARINC424_22_HTML.tmp#SelectedFinal
Type SelectedFinal
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children ident, toFixRef
Instance

<selectedFinal>
  <toFixRef>{1,1}</toFixRef>
  <ident>{1,1}</ident>
</selectedFinal>
Source

<xs:element name="selectedFinal" type="SelectedFinal" minOccurs="0" maxOccurs="1"/>
[ top ]
Element SelectedFinal / toFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="toFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element SelectedFinal / ident
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="ident" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ApproachSelectedRoutes / selectedApproachTransition
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SelectedApproachTransition_ident ARINC424_22_HTML.tmp#SelectedApproachTransition_toFixRef ARINC424_22_HTML.tmp#SelectedApproachTransition
Type SelectedApproachTransition
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children ident, toFixRef
Instance

<selectedApproachTransition>
  <ident>{1,1}</ident>
  <toFixRef>{1,1}</toFixRef>
</selectedApproachTransition>
Source

<xs:element name="selectedApproachTransition" type="SelectedApproachTransition" minOccurs="0" maxOccurs="1"/>
[ top ]
Element SelectedApproachTransition / ident
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="ident" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element SelectedApproachTransition / toFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="toFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ViaApproach / cruiseAlt
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<cruiseAlt>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</cruiseAlt>
Source

<xs:element name="cruiseAlt" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element CompanyRoute / alternateRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="alternateRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element AeroPublication / airspaces
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Airspaces_controlledAirspace ARINC424_22_HTML.tmp#Airspaces_restrictiveAirspace ARINC424_22_HTML.tmp#Airspaces_specialActivityArea ARINC424_22_HTML.tmp#Airspaces_firUIR ARINC424_22_HTML.tmp#Airspaces
Type Airspaces
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children controlledAirspace, firUIR, restrictiveAirspace, specialActivityArea
Instance

<airspaces>
  <controlledAirspace>{0,unbounded}</controlledAirspace>
  <restrictiveAirspace>{0,unbounded}</restrictiveAirspace>
  <specialActivityArea>{0,unbounded}</specialActivityArea>
  <firUIR referenceID="">{0,unbounded}</firUIR>
</airspaces>
Source

<xs:element name="airspaces" type="Airspaces" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Airspaces / controlledAirspace
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#Airspace_airspaceName ARINC424_22_HTML.tmp#Airspace_multipleCode ARINC424_22_HTML.tmp#Airspace_timesOfOperation ARINC424_22_HTML.tmp#Airspace_unitIndicatorLower ARINC424_22_HTML.tmp#Airspace_unitIndicatorUpper ARINC424_22_HTML.tmp#Airspace_airspaceSegment ARINC424_22_HTML.tmp#Airspace_upperLimit ARINC424_22_HTML.tmp#Airspace_lowerLimit ARINC424_22_HTML.tmp#Airspace_controllingAgency ARINC424_22_HTML.tmp#Airspace ARINC424_22_HTML.tmp#ControlledAirspace_airspaceClassification ARINC424_22_HTML.tmp#ControlledAirspace_controlledAirspaceCenter ARINC424_22_HTML.tmp#ControlledAirspace_controlledAirspaceType ARINC424_22_HTML.tmp#ControlledAirspace_rnp ARINC424_22_HTML.tmp#ControlledAirspace_airspaceSpeedRestriction ARINC424_22_HTML.tmp#ControlledAirspace
Type ControlledAirspace
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children airspaceClassification, airspaceName, airspaceSegment, airspaceSpeedRestriction, controlledAirspaceCenter, controlledAirspaceType, controllingAgency, lowerLimit, multipleCode, rnp, supplementalData, timesOfOperation, unitIndicatorLower, unitIndicatorUpper, upperLimit
Instance

<controlledAirspace>
  <supplementalData>{0,1}</supplementalData>
  <airspaceName>{1,1}</airspaceName>
  <multipleCode>{0,1}</multipleCode>
  <timesOfOperation>{0,1}</timesOfOperation>
  <unitIndicatorLower>{0,1}</unitIndicatorLower>
  <unitIndicatorUpper>{0,1}</unitIndicatorUpper>
  <airspaceSegment>{1,unbounded}</airspaceSegment>
  <upperLimit>{0,1}</upperLimit>
  <lowerLimit>{0,1}</lowerLimit>
  <controllingAgency>{0,1}</controllingAgency>
  <airspaceClassification>{1,1}</airspaceClassification>
  <controlledAirspaceCenter>{0,1}</controlledAirspaceCenter>
  <controlledAirspaceType>{1,1}</controlledAirspaceType>
  <rnp>{0,1}</rnp>
  <airspaceSpeedRestriction>{0,unbounded}</airspaceSpeedRestriction>
</controlledAirspace>
Source

<xs:element name="controlledAirspace" type="ControlledAirspace" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element Airspace / airspaceName
Namespace No namespace
Annotations

The “Airspace Name” field will contain the name of the airspace when assigned.
Diagram
Diagram ARINC424_22_HTML.tmp#Name
Type type:Name
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 50
Source

<xs:element name="airspaceName" type="type:Name" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Airspace Name” field will contain the name of the airspace when assigned.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airspace / multipleCode
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#MultipleCode
Type type:MultipleCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 1
Source

<xs:element name="multipleCode" type="type:MultipleCode" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Airspace / timesOfOperation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#TimesOfOperation_timeCode ARINC424_22_HTML.tmp#TimesOfOperation_times ARINC424_22_HTML.tmp#TimesOfOperation_timeNarrative ARINC424_22_HTML.tmp#TimesOfOperation_byNotam ARINC424_22_HTML.tmp#TimesOfOperation_adjustForDST ARINC424_22_HTML.tmp#TimesOfOperation
Type type:TimesOfOperation
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children adjustForDST, byNotam, timeCode, timeNarrative, times
Instance

<timesOfOperation>
  <timeCode>{1,1}</timeCode>
  <times>{0,unbounded}</times>
  <timeNarrative>{0,1}</timeNarrative>
  <byNotam>{0,1}</byNotam>
  <adjustForDST>{0,1}</adjustForDST>
</timesOfOperation>
Source

<xs:element name="timesOfOperation" type="type:TimesOfOperation" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Airspace / unitIndicatorLower
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#UnitIndicator
Type enum:UnitIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Msl
MSL
enumeration Agl
AGL
Source

<xs:element name="unitIndicatorLower" type="enum:UnitIndicator" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Airspace / unitIndicatorUpper
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#UnitIndicator
Type enum:UnitIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Msl
MSL
enumeration Agl
AGL
Source

<xs:element name="unitIndicatorUpper" type="enum:UnitIndicator" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Airspace / airspaceSegment
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#AirspaceSegment_arcBearing ARINC424_22_HTML.tmp#AirspaceSegment_arcDistance ARINC424_22_HTML.tmp#AirspaceSegment_arcOriginLocation ARINC424_22_HTML.tmp#AirspaceSegment_boundaryVIA ARINC424_22_HTML.tmp#AirspaceSegment_isEndOfDescription ARINC424_22_HTML.tmp#AirspaceSegment_level ARINC424_22_HTML.tmp#AirspaceSegment_location ARINC424_22_HTML.tmp#AirspaceSegment_sequenceNumber ARINC424_22_HTML.tmp#AirspaceSegment
Type AirspaceSegment
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children arcBearing, arcDistance, arcOriginLocation, boundaryVIA, custAreaCode, cycleDate, isEndOfDescription, level, location, notes, recordType, sequenceNumber, supplementalData
Instance

<airspaceSegment>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <arcBearing>{0,1}</arcBearing>
  <arcDistance>{0,1}</arcDistance>
  <arcOriginLocation>{0,1}</arcOriginLocation>
  <boundaryVIA>{1,1}</boundaryVIA>
  <isEndOfDescription>{0,1}</isEndOfDescription>
  <level>{0,1}</level>
  <location>{0,1}</location>
  <sequenceNumber>{1,1}</sequenceNumber>
</airspaceSegment>
Source

<xs:element name="airspaceSegment" type="AirspaceSegment" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element AirspaceSegment / arcBearing
Namespace No namespace
Annotations

The Arc Bearing field contains the true bearing from the Arc Origin  position to the beginning of the arc
Diagram
Diagram ARINC424_22_HTML.tmp#ArcBearing
Type type:ArcBearing
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Source

<xs:element name="arcBearing" type="type:ArcBearing" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Arc Bearing field contains the true bearing from the Arc Origin position to the beginning of the arc</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirspaceSegment / arcDistance
Namespace No namespace
Annotations

The “Arc Distance” field is used to define the distance in nautical miles from the “ArcOrigin” position to the arc defining the lateral boundary of a FIR/UIR or Restrictive Airspace.
Diagram
Diagram ARINC424_22_HTML.tmp#ArcDistance
Type type:ArcDistance
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 4
fractionDigits 1
Source

<xs:element name="arcDistance" type="type:ArcDistance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Arc Distance” field is used to define the distance in nautical miles from the “ArcOrigin” position to the arc defining the lateral boundary of a FIR/UIR or Restrictive Airspace.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirspaceSegment / arcOriginLocation
Namespace No namespace
Annotations

Latitude and Longitude details of this point.
Diagram
Diagram ARINC424_22_HTML.tmp#Location_latitude ARINC424_22_HTML.tmp#Location_longitude ARINC424_22_HTML.tmp#Location
Type type:Location
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children latitude, longitude
Instance

<arcOriginLocation>
  <latitude>{1,1}</latitude>
  <longitude>{1,1}</longitude>
</arcOriginLocation>
Source

<xs:element name="arcOriginLocation" type="type:Location" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirspaceSegment / boundaryVIA
Namespace No namespace
Annotations

The “Boundary VIA” defines the path of the boundary from the position identified in the record to the next defined position.
Diagram
Diagram ARINC424_22_HTML.tmp#BoundaryVia
Type enum:BoundaryVia
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Circle
Circle
enumeration GreatCircle
Great Circle
enumeration RhumbLine
Rhumb Line
enumeration CounterClockwiseArc
Counter Clockwise ARC
enumeration ClockwiseArc
Clockwise ARC
Source

<xs:element name="boundaryVIA" type="enum:BoundaryVia" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Boundary VIA” defines the path of the boundary from the position identified in the record to the next defined position.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirspaceSegment / isEndOfDescription
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isEndOfDescription" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AirspaceSegment / level
Namespace No namespace
Annotations

The Level field defines the airway structure of which the record is an element.
Diagram
Diagram ARINC424_22_HTML.tmp#Level
Type enum:Level
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AllAlt
All Altitudes
enumeration HighAlt
High Altitudes
enumeration LowAlt
Low Altitudes
Source

<xs:element name="level" type="enum:Level" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Level field defines the airway structure of which the record is an element.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirspaceSegment / location
Namespace No namespace
Annotations

Latitude and Longitude details of this point.
Diagram
Diagram ARINC424_22_HTML.tmp#Location_latitude ARINC424_22_HTML.tmp#Location_longitude ARINC424_22_HTML.tmp#Location
Type type:Location
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children latitude, longitude
Instance

<location>
  <latitude>{1,1}</latitude>
  <longitude>{1,1}</longitude>
</location>
Source

<xs:element name="location" type="type:Location" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AirspaceSegment / sequenceNumber
Namespace No namespace
Annotations

For Boundary Type Records - A boundary is defined by a series of records taken in order. The “Sequence Number” field defines the location of the record in the sequence defining a boundary.
Diagram
Diagram ARINC424_22_HTML.tmp#SequenceNumber
Type type:SequenceNumber
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="sequenceNumber" type="type:SequenceNumber" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>For Boundary Type Records - A boundary is defined by a series of records taken in order. The “Sequence Number” field defines the location of the record in the sequence defining a boundary.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airspace / upperLimit
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude ARINC424_22_HTML.tmp#AltitudeLimit_isGround ARINC424_22_HTML.tmp#AltitudeLimit_isMSL ARINC424_22_HTML.tmp#AltitudeLimit_isNotam ARINC424_22_HTML.tmp#AltitudeLimit_isNotSpecified ARINC424_22_HTML.tmp#AltitudeLimit_isUnlimited ARINC424_22_HTML.tmp#AltitudeLimit
Type type:AltitudeLimit
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isGround, isMSL, isNotDefined, isNotSpecified, isNotam, isUnknown, isUnlimited
Instance

<upperLimit>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
  <isGround>{0,1}</isGround>
  <isMSL>{0,1}</isMSL>
  <isNotam>{0,1}</isNotam>
  <isNotSpecified>{0,1}</isNotSpecified>
  <isUnlimited>{0,1}</isUnlimited>
</upperLimit>
Source

<xs:element name="upperLimit" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Airspace / lowerLimit
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude ARINC424_22_HTML.tmp#AltitudeLimit_isGround ARINC424_22_HTML.tmp#AltitudeLimit_isMSL ARINC424_22_HTML.tmp#AltitudeLimit_isNotam ARINC424_22_HTML.tmp#AltitudeLimit_isNotSpecified ARINC424_22_HTML.tmp#AltitudeLimit_isUnlimited ARINC424_22_HTML.tmp#AltitudeLimit
Type type:AltitudeLimit
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isGround, isMSL, isNotDefined, isNotSpecified, isNotam, isUnknown, isUnlimited
Instance

<lowerLimit>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
  <isGround>{0,1}</isGround>
  <isMSL>{0,1}</isMSL>
  <isNotam>{0,1}</isNotam>
  <isNotSpecified>{0,1}</isNotSpecified>
  <isUnlimited>{0,1}</isUnlimited>
</lowerLimit>
Source

<xs:element name="lowerLimit" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Airspace / controllingAgency
Namespace No namespace
Annotations

Some “Restrictive Airspace” areas are designated joint use and IFR operations in the area may be authorized by the controlling agency when it is not being utilized by the using agency.
Diagram
Diagram ARINC424_22_HTML.tmp#ControllingAgency
Type type:ControllingAgency
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 25
Source

<xs:element name="controllingAgency" type="type:ControllingAgency" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Some “Restrictive Airspace” areas are designated joint use and IFR operations in the area may be authorized by the controlling agency when it is not being utilized by the using agency.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ControlledAirspace / airspaceClassification
Namespace No namespace
Annotations

The “Controlled Airspace Classification” field will contain an alpha character indicating the published classification of the controlled airspace, when assigned.
Diagram
Diagram ARINC424_22_HTML.tmp#AirspaceClassification
Type type:AirspaceClassification
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 1
pattern [A-G]
Source

<xs:element name="airspaceClassification" type="type:AirspaceClassification" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Controlled Airspace Classification” field will contain an alpha character indicating the published classification of the controlled airspace, when assigned.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ControlledAirspace / controlledAirspaceCenter
Namespace No namespace
Annotations

The “Controlled Airspace Center” field is used to define the navigation element upon which the controlled airspace being defined is predicated, but not necessarily centered. Where the Airspace is not defined then the “Region Identifier” should be used. In this case, the Controlled Airspace Center will contain the ICAO Identification code for the Controlled Airspace to which the data contained in the record relates.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="controlledAirspaceCenter" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Controlled Airspace Center” field is used to define the navigation element upon which the controlled airspace being defined is predicated, but not necessarily centered. Where the Airspace is not defined then the “Region Identifier” should be used. In this case, the Controlled Airspace Center will contain the ICAO Identification code for the Controlled Airspace to which the data contained in the record relates.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ControlledAirspace / controlledAirspaceType
Namespace No namespace
Annotations

The “Controlled Airspace Type” field is used to indicate the type of controlled airspace, using codes from the table below.
Diagram
Diagram ARINC424_22_HTML.tmp#ControlledAirspaceType
Type enum:ControlledAirspaceType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration ClassC
Class C Airspace (Was ARSA within the USA).
enumeration Control
Control Area, ICAO Designation (CTA).
enumeration TerminalControl
Terminal Control Area, ICAO Designation (TMA or TCA).
enumeration Radar
Radar Zone or Radar Area (Was TRSA within the USA).
enumeration ClassB
Class B Airspace (Was TCA with the USA).
enumeration ClassD
Class D Airspace within the USA, Control Zone, ICAO Designation (CTR).
Source

<xs:element name="controlledAirspaceType" type="enum:ControlledAirspaceType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Controlled Airspace Type” field is used to indicate the type of controlled airspace, using codes from the table below.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element ControlledAirspace / rnp
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RequiredNavigationPerformance
Type type:RequiredNavigationPerformance
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
fractionDigits 9
Source

<xs:element name="rnp" type="type:RequiredNavigationPerformance" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ControlledAirspace / airspaceSpeedRestriction
Namespace No namespace
Annotations

When government source provides a speed restriction then this element will be provided.
Diagram
Diagram ARINC424_22_HTML.tmp#AirspaceSpeedRestriction_speedRestriction ARINC424_22_HTML.tmp#AirspaceSpeedRestriction_speedAltitude ARINC424_22_HTML.tmp#AirspaceSpeedRestriction
Type type:AirspaceSpeedRestriction
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children speedAltitude, speedRestriction
Instance

<airspaceSpeedRestriction>
  <speedRestriction>{1,1}</speedRestriction>
  <speedAltitude>{1,1}</speedAltitude>
</airspaceSpeedRestriction>
Source

<xs:element name="airspaceSpeedRestriction" type="type:AirspaceSpeedRestriction" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>When government source provides a speed restriction then this element will be provided.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:AirspaceSpeedRestriction / speedRestriction
Namespace No namespace
Annotations

When used on a Controlled Airspace record, the field is used to describe a speed restriction within the Airspace
Diagram
Diagram ARINC424_22_HTML.tmp#SpeedLimit
Type type:SpeedLimit
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxExclusive 1000
Source

<xs:element name="speedRestriction" type="type:SpeedLimit" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>When used on a Controlled Airspace record, the field is used to describe a speed restriction within the Airspace</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:AirspaceSpeedRestriction / speedAltitude
Namespace No namespace
Annotations

Speed Limit Altitude is the altitude below which speed limits may be imposed
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<speedAltitude>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</speedAltitude>
Source

<xs:element name="speedAltitude" type="type:Altitude" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Speed Limit Altitude is the altitude below which speed limits may be imposed</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airspaces / restrictiveAirspace
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#Airspace_airspaceName ARINC424_22_HTML.tmp#Airspace_multipleCode ARINC424_22_HTML.tmp#Airspace_timesOfOperation ARINC424_22_HTML.tmp#Airspace_unitIndicatorLower ARINC424_22_HTML.tmp#Airspace_unitIndicatorUpper ARINC424_22_HTML.tmp#Airspace_airspaceSegment ARINC424_22_HTML.tmp#Airspace_upperLimit ARINC424_22_HTML.tmp#Airspace_lowerLimit ARINC424_22_HTML.tmp#Airspace_controllingAgency ARINC424_22_HTML.tmp#Airspace ARINC424_22_HTML.tmp#RestrictiveAirspace_ICAOCode ARINC424_22_HTML.tmp#RestrictiveAirspace_restrictiveAirspaceDesignation ARINC424_22_HTML.tmp#RestrictiveAirspace_restrictiveAirspaceName ARINC424_22_HTML.tmp#RestrictiveAirspace_restrictiveAirspaceType ARINC424_22_HTML.tmp#RestrictiveAirspace
Type RestrictiveAirspace
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children ICAOCode, airspaceName, airspaceSegment, controllingAgency, lowerLimit, multipleCode, restrictiveAirspaceDesignation, restrictiveAirspaceName, restrictiveAirspaceType, supplementalData, timesOfOperation, unitIndicatorLower, unitIndicatorUpper, upperLimit
Instance

<restrictiveAirspace>
  <supplementalData>{0,1}</supplementalData>
  <airspaceName>{1,1}</airspaceName>
  <multipleCode>{0,1}</multipleCode>
  <timesOfOperation>{0,1}</timesOfOperation>
  <unitIndicatorLower>{0,1}</unitIndicatorLower>
  <unitIndicatorUpper>{0,1}</unitIndicatorUpper>
  <airspaceSegment>{1,unbounded}</airspaceSegment>
  <upperLimit>{0,1}</upperLimit>
  <lowerLimit>{0,1}</lowerLimit>
  <controllingAgency>{0,1}</controllingAgency>
  <ICAOCode>{0,1}</ICAOCode>
  <restrictiveAirspaceDesignation>{1,1}</restrictiveAirspaceDesignation>
  <restrictiveAirspaceName>{0,1}</restrictiveAirspaceName>
  <restrictiveAirspaceType>{1,1}</restrictiveAirspaceType>
</restrictiveAirspace>
Source

<xs:element name="restrictiveAirspace" type="RestrictiveAirspace" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element RestrictiveAirspace / ICAOCode
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#IcaoCode
Type type:IcaoCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
pattern [a-zA-Z0-9]{2}
Source

<xs:element name="ICAOCode" type="type:IcaoCode" minOccurs="0" maxOccurs="1"/>
[ top ]
Element RestrictiveAirspace / restrictiveAirspaceDesignation
Namespace No namespace
Annotations

The “Restrictive Airspace Designation” field contains the number or name that uniquely identifies the restrictive airspace.
Diagram
Diagram ARINC424_22_HTML.tmp#RestrictiveAirspaceDesignation
Type type:RestrictiveAirspaceDesignation
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 10
Source

<xs:element name="restrictiveAirspaceDesignation" type="type:RestrictiveAirspaceDesignation" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Restrictive Airspace Designation” field contains the number or name that uniquely identifies the restrictive airspace.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element RestrictiveAirspace / restrictiveAirspaceName
Namespace No namespace
Annotations

The “Restrictive Airspace Name” field will contain the name of the restrictive airspace when assigned.
Diagram
Diagram ARINC424_22_HTML.tmp#Name
Type type:Name
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 50
Source

<xs:element name="restrictiveAirspaceName" type="type:Name" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Restrictive Airspace Name” field will contain the name of the restrictive airspace when assigned.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element RestrictiveAirspace / restrictiveAirspaceType
Namespace No namespace
Annotations

The “Restrictive Airspace Type” field is used to indicate the type of Airspace in which the flight of aircraft is prohibited or restricted. The restriction may be continuous or specified for certain times.
Diagram
Diagram ARINC424_22_HTML.tmp#RestrictiveAirspaceType
Type enum:RestrictiveAirspaceType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Alert
Alert
enumeration Caution
Caution
enumeration Danger
Danger
enumeration MilitaryOps
Military Operations Area
enumeration NationalSecurity
National Security Area
enumeration Prohibited
Prohibited
enumeration Restricted
Restricted
enumeration Training
Training
enumeration Warning
Warning
enumeration Unspecified
Unspecified or Unknown
Source

<xs:element name="restrictiveAirspaceType" type="enum:RestrictiveAirspaceType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Restrictive Airspace Type” field is used to indicate the type of Airspace in which the flight of aircraft is prohibited or restricted. The restriction may be continuous or specified for certain times.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airspaces / specialActivityArea
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#SpecialActivityArea_activityType ARINC424_22_HTML.tmp#SpecialActivityArea_communicationType ARINC424_22_HTML.tmp#SpecialActivityArea_communicationFrequency ARINC424_22_HTML.tmp#SpecialActivityArea_controllingAgency ARINC424_22_HTML.tmp#SpecialActivityArea_icaoCode ARINC424_22_HTML.tmp#SpecialActivityArea_location ARINC424_22_HTML.tmp#SpecialActivityArea_publicMilitaryIndicator ARINC424_22_HTML.tmp#SpecialActivityArea_saaIdentifier ARINC424_22_HTML.tmp#SpecialActivityArea_saaOperatingTimes ARINC424_22_HTML.tmp#SpecialActivityArea_saaSize ARINC424_22_HTML.tmp#SpecialActivityArea_saaVolume ARINC424_22_HTML.tmp#SpecialActivityArea_specialActivityAreaName ARINC424_22_HTML.tmp#SpecialActivityArea_unitIndicator ARINC424_22_HTML.tmp#SpecialActivityArea_upperLimit ARINC424_22_HTML.tmp#SpecialActivityArea
Type SpecialActivityArea
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children activityType, communicationFrequency, communicationType, controllingAgency, custAreaCode, cycleDate, icaoCode, location, notes, publicMilitaryIndicator, recordType, saaIdentifier, saaOperatingTimes, saaSize, saaVolume, specialActivityAreaName, supplementalData, unitIndicator, upperLimit
Instance

<specialActivityArea>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <activityType>{1,1}</activityType>
  <communicationType>{1,1}</communicationType>
  <communicationFrequency>{1,1}</communicationFrequency>
  <controllingAgency>{1,1}</controllingAgency>
  <icaoCode>{1,1}</icaoCode>
  <location>{1,1}</location>
  <publicMilitaryIndicator>{1,1}</publicMilitaryIndicator>
  <saaIdentifier>{1,1}</saaIdentifier>
  <saaOperatingTimes>{1,1}</saaOperatingTimes>
  <saaSize>{1,1}</saaSize>
  <saaVolume>{1,1}</saaVolume>
  <specialActivityAreaName>{1,1}</specialActivityAreaName>
  <unitIndicator>{1,1}</unitIndicator>
  <upperLimit>{1,1}</upperLimit>
</specialActivityArea>
Source

<xs:element name="specialActivityArea" type="SpecialActivityArea" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element SpecialActivityArea / activityType
Namespace No namespace
Annotations

The Activity Type is used to define the type of Special Activity that is occurring.
Diagram
Diagram ARINC424_22_HTML.tmp#ActivityType
Type enum:ActivityType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Parachute
Parachute Jump Area
enumeration Glider
Glider Operations
enumeration HangGlider
Hang Glider Activities
enumeration UltraLight
Ultra Light Activities
Source

<xs:element name="activityType" type="enum:ActivityType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Activity Type is used to define the type of Special Activity that is occurring.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / communicationType
Namespace No namespace
Annotations

The “Communication Type” is a three-character code indicating the type of communication service available on the frequency contained in the record. Decoding is available in the Communication Type Translation Table.
Diagram
Diagram ARINC424_22_HTML.tmp#CommunicationType
Type enum:CommunicationType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration ACC
Area Control Center
enumeration ACP
Airlift Command Post
enumeration AIR
Air to Air
enumeration APP
Approach Control
enumeration ARR
Arrival Control
enumeration ASO
Automatic Surface Observing System (ASOS)
enumeration ATI
Automatic Terminal Info Service (ATIS)
enumeration AWI
Airport Weather Information Broadcast (AWIB)
enumeration AWO
Automatic Weather Observing Service (AWOS)
enumeration AWS
Aerodrome Weather Information Services (AWIS)
enumeration CBA
Class B Airspace
enumeration CCA
Class C Airspace
enumeration CLD
Clearance Delivery
enumeration CPT
Clearance, Pre-Taxi
enumeration CTA
Control Area (Terminal)
enumeration CTF
Common Traffic Advisory Frequencies (Note 2)
enumeration CTL
Control
enumeration DEP
Departure Control
enumeration DIR
Director (Approach Control Radar)
enumeration EFS
Enroute Flight Advisory Service (EFAS)
enumeration EMR
Emergency
enumeration FSS
Flight Service Station
enumeration GCO
Ground Comm Outlet
enumeration GND
Ground Control
enumeration GTE
Gate Control
enumeration HEL
Helicopter Frequency
enumeration INF
Information
enumeration MBZ
Mandatory Broadcast
enumeration MIL
Military Frequency Zone (note 2)
enumeration MUL
Multicom
enumeration OPS
Operations
enumeration PAL
Pilot Activated Lighting (Note 1)
enumeration RDO
Radio
enumeration RDR
Radar
enumeration RFS
Remote Flight Service Station (RFSS)
enumeration RMP
Ramp/Taxi Control
enumeration RSA
Airport Radar Service Area (ARSA)
enumeration TCA
Terminal Control Area (TCA)
enumeration TMA
Terminal Control Area (TMA)
enumeration TML
Terminal
enumeration TRS
Terminal Radar Service Area (TRSA)
enumeration TWE
Transcriber Weather Broadcast (TWEB)
enumeration TWR
Tower, Air Traffic Control
enumeration UAC
Upper Area Control
enumeration UNI
Unicom
enumeration VOL
Volnet
Source

<xs:element name="communicationType" type="enum:CommunicationType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Communication Type” is a three-character code indicating the type of communication service available on the frequency contained in the record. Decoding is available in the Communication Type Translation Table.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / communicationFrequency
Namespace No namespace
Annotations

The “Communication Frequency” field specifies either transmit or receive frequency of the communication service, dependent on in which column the frequency is located. Each communication record will contain both transmit and receive frequencies unless the service is published as a Transmit Only or Receive Only service. The content will be identical if the service transmits and receives on the same frequency. The fields will be left blank when the service provided is a digital service.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="communicationFrequency" type="xs:string" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Communication Frequency” field specifies either transmit or receive frequency of the communication service, dependent on in which column the frequency is located. Each communication record will contain both transmit and receive frequencies unless the service is published as a Transmit Only or Receive Only service. The content will be identical if the service transmits and receives on the same frequency. The fields will be left blank when the service provided is a digital service.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / controllingAgency
Namespace No namespace
Annotations

Some “Restrictive Airspace” areas are designated joint use and IFR operations in the area may be authorized by the controlling agency when it is not being utilized by the using agency.
Diagram
Diagram ARINC424_22_HTML.tmp#ControllingAgency
Type type:ControllingAgency
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 25
Source

<xs:element name="controllingAgency" type="type:ControllingAgency" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Some “Restrictive Airspace” areas are designated joint use and IFR operations in the area may be authorized by the controlling agency when it is not being utilized by the using agency.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / icaoCode
Namespace No namespace
Annotations

The “ICAO Code” field permits records to be categorized geographically within the limits of the categorization performed by the “Area Code” field.
Diagram
Diagram ARINC424_22_HTML.tmp#IcaoCode
Type type:IcaoCode
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
pattern [a-zA-Z0-9]{2}
Source

<xs:element name="icaoCode" type="type:IcaoCode" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “ICAO Code” field permits records to be categorized geographically within the limits of the categorization performed by the “Area Code” field.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / location
Namespace No namespace
Annotations

Latitude and Longitude details of this point.
Diagram
Diagram ARINC424_22_HTML.tmp#Location_latitude ARINC424_22_HTML.tmp#Location_longitude ARINC424_22_HTML.tmp#Location
Type type:Location
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children latitude, longitude
Instance

<location>
  <latitude>{1,1}</latitude>
  <longitude>{1,1}</longitude>
</location>
Source

<xs:element name="location" type="type:Location" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / publicMilitaryIndicator
Namespace No namespace
Annotations

Airports can be classified into four categories, airports open to the general public, military airports, joint use civil and military, and airports closed to the public. This field permits these airports to be categorized by their use.
Diagram
Diagram ARINC424_22_HTML.tmp#PublicMilitaryIndicator
Type enum:PublicMilitaryIndicator
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Private
Airport/Heliport is not open to the public (private)
enumeration Civil
Airport/Heliport is open to the public (civil)
enumeration Military
Airport/Heliport is military airport
enumeration Joint
Airport is joint Civil and Military
Source

<xs:element name="publicMilitaryIndicator" type="enum:PublicMilitaryIndicator" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Airports can be classified into four categories, airports open to the general public, military airports, joint use civil and military, and airports closed to the public. This field permits these airports to be categorized by their use.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / saaIdentifier
Namespace No namespace
Annotations

The “Activity Identifier” field contains the number or name that uniquely identifies the Special Activity Area.
Diagram
Diagram ARINC424_22_HTML.tmp#SAAIdentifier
Type type:SAAIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 6
Source

<xs:element name="saaIdentifier" type="type:SAAIdentifier" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Activity Identifier” field contains the number or name that uniquely identifies the Special Activity Area.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / saaOperatingTimes
Namespace No namespace
Annotations

The Special Activity Area Operating Times field contains the annual expected operation schedule of the Special Activity.
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#SpecialActivityAreaOperatingTimes_holidayQualifier ARINC424_22_HTML.tmp#SpecialActivityAreaOperatingTimes_holidays ARINC424_22_HTML.tmp#SpecialActivityAreaOperatingTimes_timeOfUse ARINC424_22_HTML.tmp#SpecialActivityAreaOperatingTimes
Type type:SpecialActivityAreaOperatingTimes
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children holidayQualifier, holidays, timeOfUse
Instance

<saaOperatingTimes>
  <holidayQualifier>{1,1}</holidayQualifier>
  <holidays>{1,1}</holidays>
  <timeOfUse>{1,1}</timeOfUse>
</saaOperatingTimes>
Source

<xs:element name="saaOperatingTimes" type="type:SpecialActivityAreaOperatingTimes" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Special Activity Area Operating Times field contains the annual expected operation schedule of the Special Activity.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:SpecialActivityAreaOperatingTimes / holidayQualifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#HolidayQualifier
Type enum:HolidayQualifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration IncludesHolidays
Including Holidays
enumeration ExcludesHolidays
Excluding Holidays
enumeration U
Unknown
Source

<xs:element name="holidayQualifier" type="enum:HolidayQualifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:SpecialActivityAreaOperatingTimes / holidays
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Holidays
Type enum:Holidays
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Continious
Continuous
enumeration Weekdays
Weekdays
enumeration Weekends
Weekends
enumeration Other
Other
enumeration Unkown
Unknown
enumeration WeekendsAndHolidays
Weekends and holidays
Source

<xs:element name="holidays" type="enum:Holidays" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:SpecialActivityAreaOperatingTimes / timeOfUse
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#TimeOfUse
Type enum:TimeOfUse
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration SrSs
SR-SS
enumeration Night
Night Use
enumeration Continious
Continous
enumeration ActiveByNotam
Active by NOTAM
Source

<xs:element name="timeOfUse" type="enum:TimeOfUse" minOccurs="1" maxOccurs="1"/>
[ top ]
Element SpecialActivityArea / saaSize
Namespace No namespace
Annotations

The Special Activity Area Size field contains the radius around the center point where the Special Activity is expected to occur.
Diagram
Diagram ARINC424_22_HTML.tmp#SpecialActivityAreaSize
Type type:SpecialActivityAreaSize
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="saaSize" type="type:SpecialActivityAreaSize" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Special Activity Area Size field contains the radius around the center point where the Special Activity is expected to occur.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / saaVolume
Namespace No namespace
Annotations

The “Special Activity Area Volume” field contains the expected annual level of intensity of the Special Activity.
Diagram
Diagram ARINC424_22_HTML.tmp#SpecialActivityAreaVolume
Type type:SpecialActivityAreaVolume
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 1
Source

<xs:element name="saaVolume" type="type:SpecialActivityAreaVolume" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Special Activity Area Volume” field contains the expected annual level of intensity of the Special Activity.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / specialActivityAreaName
Namespace No namespace
Annotations

The “Restrictive Airspace Name” field will contain the name of the restrictive airspace when assigned.
Diagram
Diagram ARINC424_22_HTML.tmp#Name
Type type:Name
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 50
Source

<xs:element name="specialActivityAreaName" type="type:Name" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Restrictive Airspace Name” field will contain the name of the restrictive airspace when assigned.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / unitIndicator
Namespace No namespace
Annotations

Restrictive Airspace lower and upper limits are specified as above mean sea level (MSL) or above ground level (AGL). This field permits the unit of measurement to be indicated.
Diagram
Diagram ARINC424_22_HTML.tmp#UnitIndicator
Type enum:UnitIndicator
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Msl
MSL
enumeration Agl
AGL
Source

<xs:element name="unitIndicator" type="enum:UnitIndicator" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Restrictive Airspace lower and upper limits are specified as above mean sea level (MSL) or above ground level (AGL). This field permits the unit of measurement to be indicated.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element SpecialActivityArea / upperLimit
Namespace No namespace
Annotations

Special Use Airspace is described by both lateral and vertical boundaries. The “Lower/Upper Limit” fields contain the lower and upper limits of the FIR/UIR or Restrictive Airspace being described.
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude ARINC424_22_HTML.tmp#AltitudeLimit_isGround ARINC424_22_HTML.tmp#AltitudeLimit_isMSL ARINC424_22_HTML.tmp#AltitudeLimit_isNotam ARINC424_22_HTML.tmp#AltitudeLimit_isNotSpecified ARINC424_22_HTML.tmp#AltitudeLimit_isUnlimited ARINC424_22_HTML.tmp#AltitudeLimit
Type type:AltitudeLimit
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children altitude, isFlightLevel, isGround, isMSL, isNotDefined, isNotSpecified, isNotam, isUnknown, isUnlimited
Instance

<upperLimit>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
  <isGround>{0,1}</isGround>
  <isMSL>{0,1}</isMSL>
  <isNotam>{0,1}</isNotam>
  <isNotSpecified>{0,1}</isNotSpecified>
  <isUnlimited>{0,1}</isUnlimited>
</upperLimit>
Source

<xs:element name="upperLimit" type="type:AltitudeLimit" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Special Use Airspace is described by both lateral and vertical boundaries. The “Lower/Upper Limit” fields contain the lower and upper limits of the FIR/UIR or Restrictive Airspace being described.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Airspaces / firUIR
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#FIRUIR_referenceID ARINC424_22_HTML.tmp#FIRUIR_cruiseTableIdentifier ARINC424_22_HTML.tmp#FIRUIR_entryReport ARINC424_22_HTML.tmp#FIRUIR_firUIRAddress ARINC424_22_HTML.tmp#FIRUIR_firUIRIdentifier ARINC424_22_HTML.tmp#FIRUIR_firUIRIndicator ARINC424_22_HTML.tmp#FIRUIR_firUIRSegment ARINC424_22_HTML.tmp#FIRUIR_firUIRName ARINC424_22_HTML.tmp#FIRUIR_firUpperLimit ARINC424_22_HTML.tmp#FIRUIR_uirUpperLimit ARINC424_22_HTML.tmp#FIRUIR_uirLowerLimit ARINC424_22_HTML.tmp#FIRUIR_firUIRATCReportingUnitsAltitude ARINC424_22_HTML.tmp#FIRUIR_firUIRATCReportingUnitsSpeed ARINC424_22_HTML.tmp#FIRUIR
Type FIRUIR
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children cruiseTableIdentifier, custAreaCode, cycleDate, entryReport, firUIRATCReportingUnitsAltitude, firUIRATCReportingUnitsSpeed, firUIRAddress, firUIRIdentifier, firUIRIndicator, firUIRName, firUIRSegment, firUpperLimit, notes, recordType, supplementalData, uirLowerLimit, uirUpperLimit
Instance

<firUIR referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <cruiseTableIdentifier>{0,1}</cruiseTableIdentifier>
  <entryReport>{0,1}</entryReport>
  <firUIRAddress>{1,1}</firUIRAddress>
  <firUIRIdentifier>{1,1}</firUIRIdentifier>
  <firUIRIndicator>{1,1}</firUIRIndicator>
  <firUIRSegment>{1,unbounded}</firUIRSegment>
  <firUIRName>{0,1}</firUIRName>
  <firUpperLimit>{0,1}</firUpperLimit>
  <uirUpperLimit>{0,1}</uirUpperLimit>
  <uirLowerLimit>{0,1}</uirLowerLimit>
  <firUIRATCReportingUnitsAltitude>{0,1}</firUIRATCReportingUnitsAltitude>
  <firUIRATCReportingUnitsSpeed>{0,1}</firUIRATCReportingUnitsSpeed>
</firUIR>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="firUIR" type="FIRUIR" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element FIRUIR / cruiseTableIdentifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseTableIdentifier
Type type:CruiseTableIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 2
Source

<xs:element name="cruiseTableIdentifier" type="type:CruiseTableIdentifier" minOccurs="0" maxOccurs="1"/>
[ top ]
Element FIRUIR / entryReport
Namespace No namespace
Annotations

The FIR/UIR Entry Report field is used to indicate whether an entry report on ICAO flight plan is required for that specific FIR/UIR.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="entryReport" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The FIR/UIR Entry Report field is used to indicate whether an entry report on ICAO flight plan is required for that specific FIR/UIR.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FIRUIR / firUIRAddress
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#FIRUIRAddress
Type type:FIRUIRAddress
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 4
Source

<xs:element name="firUIRAddress" type="type:FIRUIRAddress" minOccurs="1" maxOccurs="1"/>
[ top ]
Element FIRUIR / firUIRIdentifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#FIRUIRIdentifier
Type type:FIRUIRIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 4
Source

<xs:element name="firUIRIdentifier" type="type:FIRUIRIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element FIRUIR / firUIRIndicator
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#FIRUIRIndicator
Type enum:FIRUIRIndicator
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Fir
FIR
enumeration Uir
UIR
enumeration Combined
Combined FIR/UIR
Source

<xs:element name="firUIRIndicator" type="enum:FIRUIRIndicator" minOccurs="1" maxOccurs="1"/>
[ top ]
Element FIRUIR / firUIRSegment
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#AirspaceSegment_arcBearing ARINC424_22_HTML.tmp#AirspaceSegment_arcDistance ARINC424_22_HTML.tmp#AirspaceSegment_arcOriginLocation ARINC424_22_HTML.tmp#AirspaceSegment_boundaryVIA ARINC424_22_HTML.tmp#AirspaceSegment_isEndOfDescription ARINC424_22_HTML.tmp#AirspaceSegment_level ARINC424_22_HTML.tmp#AirspaceSegment_location ARINC424_22_HTML.tmp#AirspaceSegment_sequenceNumber ARINC424_22_HTML.tmp#AirspaceSegment ARINC424_22_HTML.tmp#FIRUIRSegment_adjacentFIRIdentifier ARINC424_22_HTML.tmp#FIRUIRSegment_adjacentUIRIdentifier ARINC424_22_HTML.tmp#FIRUIRSegment
Type FIRUIRSegment
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children adjacentFIRIdentifier, adjacentUIRIdentifier, arcBearing, arcDistance, arcOriginLocation, boundaryVIA, custAreaCode, cycleDate, isEndOfDescription, level, location, notes, recordType, sequenceNumber, supplementalData
Instance

<firUIRSegment>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <arcBearing>{0,1}</arcBearing>
  <arcDistance>{0,1}</arcDistance>
  <arcOriginLocation>{0,1}</arcOriginLocation>
  <boundaryVIA>{1,1}</boundaryVIA>
  <isEndOfDescription>{0,1}</isEndOfDescription>
  <level>{0,1}</level>
  <location>{0,1}</location>
  <sequenceNumber>{1,1}</sequenceNumber>
  <adjacentFIRIdentifier>{0,1}</adjacentFIRIdentifier>
  <adjacentUIRIdentifier>{0,1}</adjacentUIRIdentifier>
</firUIRSegment>
Source

<xs:element name="firUIRSegment" type="FIRUIRSegment" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element FIRUIRSegment / adjacentFIRIdentifier
Namespace No namespace
Annotations

The “FIR/UIR Identifier” field identifies the Flight Information Region and Upper Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The Identifier is for the controlling Area Control Center or Flight Information Center.
Diagram
Diagram ARINC424_22_HTML.tmp#FIRUIRIdentifier
Type type:FIRUIRIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 4
Source

<xs:element name="adjacentFIRIdentifier" type="type:FIRUIRIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “FIR/UIR Identifier” field identifies the Flight Information Region and Upper Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The Identifier is for the controlling Area Control Center or Flight Information Center.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FIRUIRSegment / adjacentUIRIdentifier
Namespace No namespace
Annotations

The “FIR/UIR Identifier” field identifies the Flight Information Region and Upper Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The Identifier is for the controlling Area Control Center or Flight Information Center.
Diagram
Diagram ARINC424_22_HTML.tmp#FIRUIRIdentifier
Type type:FIRUIRIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 4
Source

<xs:element name="adjacentUIRIdentifier" type="type:FIRUIRIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “FIR/UIR Identifier” field identifies the Flight Information Region and Upper Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The Identifier is for the controlling Area Control Center or Flight Information Center.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element FIRUIR / firUIRName
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#FIRUIRName
Type type:FIRUIRName
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 25
Source

<xs:element name="firUIRName" type="type:FIRUIRName" minOccurs="0" maxOccurs="1"/>
[ top ]
Element FIRUIR / firUpperLimit
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude ARINC424_22_HTML.tmp#AltitudeLimit_isGround ARINC424_22_HTML.tmp#AltitudeLimit_isMSL ARINC424_22_HTML.tmp#AltitudeLimit_isNotam ARINC424_22_HTML.tmp#AltitudeLimit_isNotSpecified ARINC424_22_HTML.tmp#AltitudeLimit_isUnlimited ARINC424_22_HTML.tmp#AltitudeLimit
Type type:AltitudeLimit
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isGround, isMSL, isNotDefined, isNotSpecified, isNotam, isUnknown, isUnlimited
Instance

<firUpperLimit>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
  <isGround>{0,1}</isGround>
  <isMSL>{0,1}</isMSL>
  <isNotam>{0,1}</isNotam>
  <isNotSpecified>{0,1}</isNotSpecified>
  <isUnlimited>{0,1}</isUnlimited>
</firUpperLimit>
Source

<xs:element name="firUpperLimit" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1"/>
[ top ]
Element FIRUIR / uirUpperLimit
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude ARINC424_22_HTML.tmp#AltitudeLimit_isGround ARINC424_22_HTML.tmp#AltitudeLimit_isMSL ARINC424_22_HTML.tmp#AltitudeLimit_isNotam ARINC424_22_HTML.tmp#AltitudeLimit_isNotSpecified ARINC424_22_HTML.tmp#AltitudeLimit_isUnlimited ARINC424_22_HTML.tmp#AltitudeLimit
Type type:AltitudeLimit
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isGround, isMSL, isNotDefined, isNotSpecified, isNotam, isUnknown, isUnlimited
Instance

<uirUpperLimit>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
  <isGround>{0,1}</isGround>
  <isMSL>{0,1}</isMSL>
  <isNotam>{0,1}</isNotam>
  <isNotSpecified>{0,1}</isNotSpecified>
  <isUnlimited>{0,1}</isUnlimited>
</uirUpperLimit>
Source

<xs:element name="uirUpperLimit" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1"/>
[ top ]
Element FIRUIR / uirLowerLimit
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude ARINC424_22_HTML.tmp#AltitudeLimit_isGround ARINC424_22_HTML.tmp#AltitudeLimit_isMSL ARINC424_22_HTML.tmp#AltitudeLimit_isNotam ARINC424_22_HTML.tmp#AltitudeLimit_isNotSpecified ARINC424_22_HTML.tmp#AltitudeLimit_isUnlimited ARINC424_22_HTML.tmp#AltitudeLimit
Type type:AltitudeLimit
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isGround, isMSL, isNotDefined, isNotSpecified, isNotam, isUnknown, isUnlimited
Instance

<uirLowerLimit>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
  <isGround>{0,1}</isGround>
  <isMSL>{0,1}</isMSL>
  <isNotam>{0,1}</isNotam>
  <isNotSpecified>{0,1}</isNotSpecified>
  <isUnlimited>{0,1}</isUnlimited>
</uirLowerLimit>
Source

<xs:element name="uirLowerLimit" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1"/>
[ top ]
Element FIRUIR / firUIRATCReportingUnitsAltitude
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#FIRUIRATCReportingUnitsAltitude
Type enum:FIRUIRATCReportingUnitsAltitude
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration NotSpecified
Not specified
enumeration FlightLevel
ALT in Flight Level
enumeration Meters
ALT in Meters
enumeration Feet
TAS in Feet
Source

<xs:element name="firUIRATCReportingUnitsAltitude" type="enum:FIRUIRATCReportingUnitsAltitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element FIRUIR / firUIRATCReportingUnitsSpeed
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#FIRUIRATCReportingUnitsSpeed
Type enum:FIRUIRATCReportingUnitsSpeed
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration NotSpecified
Not specified
enumeration Knots
TAS in Knots
enumeration Mach
TAS in Mach
enumeration KilometersHr
TAS in Kilometers/hr
Source

<xs:element name="firUIRATCReportingUnitsSpeed" type="enum:FIRUIRATCReportingUnitsSpeed" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AeroPublication / alternates
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Alternates_alternate ARINC424_22_HTML.tmp#Alternates
Type Alternates
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children alternate
Instance

<alternates>
  <alternate referenceID="">{1,unbounded}</alternate>
</alternates>
Source

<xs:element name="alternates" type="Alternates" minOccurs="0" maxOccurs="1"/>
[ top ]
Element Alternates / alternate
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Alternate_referenceID ARINC424_22_HTML.tmp#Alternate_alternateDetails ARINC424_22_HTML.tmp#Alternate_departureOrArrivalPort ARINC424_22_HTML.tmp#Alternate
Type Alternate
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children alternateDetails, custAreaCode, cycleDate, departureOrArrivalPort, notes, recordType, supplementalData
Instance

<alternate referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <alternateDetails>{1,unbounded}</alternateDetails>
  <departureOrArrivalPort>{1,1}</departureOrArrivalPort>
</alternate>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="alternate" type="Alternate" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element Alternate / alternateDetails
Namespace No namespace
Annotations

This class is an abstraction used to represent the details of an Alternate.
Diagram
Diagram ARINC424_22_HTML.tmp#AlternateDetails_alternateIdentifier ARINC424_22_HTML.tmp#AlternateDetails_distanceToAlternate ARINC424_22_HTML.tmp#AlternateDetails
Type type:AlternateDetails
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children alternateIdentifier, distanceToAlternate
Instance

<alternateDetails>
  <alternateIdentifier>{1,1}</alternateIdentifier>
  <distanceToAlternate>{1,1}</distanceToAlternate>
</alternateDetails>
Source

<xs:element name="alternateDetails" type="type:AlternateDetails" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details of an Alternate.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:AlternateDetails / alternateIdentifier
Namespace No namespace
Annotations

This element points to the airport or heliport element.
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="alternateIdentifier" type="type:PointReference" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element points to the airport or heliport element.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:AlternateDetails / distanceToAlternate
Namespace No namespace
Annotations

The “Distance To Alternate” field defines either the direct (geodesic) distance from the Destination Airport or Fix to the Alternate Airport or the along track distance of an alternate Company Routein nautical miles.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceIntegerNM
Type type:DistanceIntegerNM
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="distanceToAlternate" type="type:DistanceIntegerNM" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Distance To Alternate” field defines either the direct (geodesic) distance from the Destination Airport or Fix to the Alternate Airport or the along track distance of an alternate Company Routein nautical miles.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Alternate / departureOrArrivalPort
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#DepatureOrArrivalPort_arrivalPortRef ARINC424_22_HTML.tmp#DepatureOrArrivalPort_depaturePortReference ARINC424_22_HTML.tmp#DepatureOrArrivalPort
Type DepatureOrArrivalPort
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children arrivalPortRef, depaturePortReference
Instance

<departureOrArrivalPort>
  <arrivalPortRef>{1,1}</arrivalPortRef>
  <depaturePortReference>{1,1}</depaturePortReference>
</departureOrArrivalPort>
Source

<xs:element name="departureOrArrivalPort" type="DepatureOrArrivalPort" minOccurs="1" maxOccurs="1"/>
[ top ]
Element DepatureOrArrivalPort / arrivalPortRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="arrivalPortRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element DepatureOrArrivalPort / depaturePortReference
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 1
maxOccurs 1
Source

<xs:element name="depaturePortReference" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
[ top ]
Element AeroPublication / cruisingTables
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CruisingTables_cruisingTable ARINC424_22_HTML.tmp#CruisingTables
Type CruisingTables
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children cruisingTable
Instance

<cruisingTables>
  <cruisingTable referenceID="">{1,unbounded}</cruisingTable>
</cruisingTables>
Source

<xs:element name="cruisingTables" type="CruisingTables" minOccurs="0" maxOccurs="1"/>
[ top ]
Element CruisingTables / cruisingTable
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#CruisingTable_referenceID ARINC424_22_HTML.tmp#CruisingTable_cruiseTableIdentifier ARINC424_22_HTML.tmp#CruisingTable_cruisingTableLeg ARINC424_22_HTML.tmp#CruisingTable
Type CruisingTable
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children cruiseTableIdentifier, cruisingTableLeg, supplementalData
Instance

<cruisingTable referenceID="">
  <supplementalData>{0,1}</supplementalData>
  <cruiseTableIdentifier>{1,1}</cruiseTableIdentifier>
  <cruisingTableLeg>{1,unbounded}</cruisingTableLeg>
</cruisingTable>
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:element name="cruisingTable" type="CruisingTable" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element CruisingTable / cruiseTableIdentifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseTableIdentifier
Type type:CruiseTableIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 2
Source

<xs:element name="cruiseTableIdentifier" type="type:CruiseTableIdentifier" minOccurs="1" maxOccurs="1"/>
[ top ]
Element CruisingTable / cruisingTableLeg
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CruisingTableLeg_cruiseDetails ARINC424_22_HTML.tmp#CruisingTableLeg_cruiseTableIdentifier ARINC424_22_HTML.tmp#CruisingTableLeg_magneticTrueIndicator ARINC424_22_HTML.tmp#CruisingTableLeg_sequenceNumber ARINC424_22_HTML.tmp#CruisingTableLeg
Type CruisingTableLeg
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children cruiseDetails, cruiseTableIdentifier, magneticTrueIndicator, sequenceNumber
Instance

<cruisingTableLeg>
  <cruiseDetails>{0,4}</cruiseDetails>
  <cruiseTableIdentifier>{1,1}</cruiseTableIdentifier>
  <magneticTrueIndicator>{0,1}</magneticTrueIndicator>
  <sequenceNumber>{1,1}</sequenceNumber>
</cruisingTableLeg>
Source

<xs:element name="cruisingTableLeg" type="CruisingTableLeg" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element CruisingTableLeg / cruiseDetails
Namespace No namespace
Annotations

This class is an abstraction used to represent the details of Cruise Level.
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseDetails_cruiseLevelTo ARINC424_22_HTML.tmp#CruiseDetails_cuiseLevelFrom ARINC424_22_HTML.tmp#CruiseDetails_verticalSeparation ARINC424_22_HTML.tmp#CruiseDetails
Type type:CruiseDetails
Properties
content complex
minOccurs 0
maxOccurs 4
Model
Children cruiseLevelTo, cuiseLevelFrom, verticalSeparation
Instance

<cruiseDetails>
  <cruiseLevelTo>{1,1}</cruiseLevelTo>
  <cuiseLevelFrom>{1,1}</cuiseLevelFrom>
  <verticalSeparation>{1,1}</verticalSeparation>
</cruiseDetails>
Source

<xs:element name="cruiseDetails" type="type:CruiseDetails" minOccurs="0" maxOccurs="4">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details of Cruise Level.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:CruiseDetails / cruiseLevelTo
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseLevelFromTo
Type type:CruiseLevelFromTo
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 5
Source

<xs:element name="cruiseLevelTo" type="type:CruiseLevelFromTo" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:CruiseDetails / cuiseLevelFrom
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseLevelFromTo
Type type:CruiseLevelFromTo
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 5
Source

<xs:element name="cuiseLevelFrom" type="type:CruiseLevelFromTo" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:CruiseDetails / verticalSeparation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#VerticalSeparation
Type type:VerticalSeparation
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 5
Source

<xs:element name="verticalSeparation" type="type:VerticalSeparation" minOccurs="1" maxOccurs="1"/>
[ top ]
Element CruisingTableLeg / cruiseTableIdentifier
Namespace No namespace
Annotations

A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseTableIdentifier
Type type:CruiseTableIdentifier
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 2
Source

<xs:element name="cruiseTableIdentifier" type="type:CruiseTableIdentifier" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CruisingTableLeg / magneticTrueIndicator
Namespace No namespace
Annotations

The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticTrueIndicator
Type enum:MagneticTrueIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Both
The field will be blank if details and procedures are provided in both magnetic and true for the airport. In such cases the individual detail or procedure records will contain the magnetic or true information
enumeration True
if all detail and procedure for the airport are reported in true bearing
enumeration Magnetic
if all detail and procedure for the airport are reported in magnetic bearing,
Source

<xs:element name="magneticTrueIndicator" type="enum:MagneticTrueIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CruisingTableLeg / sequenceNumber
Namespace No namespace
Annotations

For Record Types requiring more than one primary record to define the complete content – In a series of records used to define a complete condition, the “Sequence Number” is used to define each primary record in the sequence.
Diagram
Diagram ARINC424_22_HTML.tmp#SequenceNumber
Type type:SequenceNumber
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 4
Source

<xs:element name="sequenceNumber" type="type:SequenceNumber" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>For Record Types requiring more than one primary record to define the complete content – In a series of records used to define a complete condition, the “Sequence Number” is used to define each primary record in the sequence.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AeroPublication / preferedRoutes
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PreferedRoutes_preferedRoute ARINC424_22_HTML.tmp#PreferedRoutes
Type PreferedRoutes
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children preferedRoute
Instance

<preferedRoutes>
  <preferedRoute>{1,unbounded}</preferedRoute>
</preferedRoutes>
Source

<xs:element name="preferedRoutes" type="PreferedRoutes" minOccurs="0" maxOccurs="1"/>
[ top ]
Element PreferedRoutes / preferedRoute
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#PreferedRoute_preferedRouteRouteType ARINC424_22_HTML.tmp#PreferedRoute_timesOfOperation ARINC424_22_HTML.tmp#PreferedRoute_preferedRouteLeg ARINC424_22_HTML.tmp#PreferedRoute
Type PreferedRoute
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children identifier, preferedRouteLeg, preferedRouteRouteType, supplementalData, timesOfOperation
Instance

<preferedRoute>
  <supplementalData>{0,1}</supplementalData>
  <identifier>{1,1}</identifier>
  <preferedRouteRouteType>{1,1}</preferedRouteRouteType>
  <timesOfOperation>{0,1}</timesOfOperation>
  <preferedRouteLeg>{1,unbounded}</preferedRouteLeg>
</preferedRoute>
Source

<xs:element name="preferedRoute" type="PreferedRoute" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element PreferedRoute / preferedRouteRouteType
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PreferedRouteRouteType
Type enum:PreferedRouteRouteType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration NorthAmericanNorthAtlantic
North American Route for North Atlantic Traffic
enumeration Common
Common Portion
enumeration Preferntial
Preferential Route
enumeration PacificOceanTransition
Pacific Oceanic Transition Routes (PACOTS)
enumeration TacanAustralia
TACAN Route - Australia
enumeration NatNonCommon
North American Routes for North Atlantic Traffic - Non-common Portion
enumeration PeferredPreferentialOverfly
Preferred/Preferential Overfly Routes
enumeration Preferred
Preferred Routes
enumeration Tos
Traffic Orientation System Routes (TOS)
enumeration Tec
Tower Enroute Control Routes (TEC)
Source

<xs:element name="preferedRouteRouteType" type="enum:PreferedRouteRouteType" minOccurs="1" maxOccurs="1"/>
[ top ]
Element PreferedRoute / timesOfOperation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#TimesOfOperation_timeCode ARINC424_22_HTML.tmp#TimesOfOperation_times ARINC424_22_HTML.tmp#TimesOfOperation_timeNarrative ARINC424_22_HTML.tmp#TimesOfOperation_byNotam ARINC424_22_HTML.tmp#TimesOfOperation_adjustForDST ARINC424_22_HTML.tmp#TimesOfOperation
Type type:TimesOfOperation
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children adjustForDST, byNotam, timeCode, timeNarrative, times
Instance

<timesOfOperation>
  <timeCode>{1,1}</timeCode>
  <times>{0,unbounded}</times>
  <timeNarrative>{0,1}</timeNarrative>
  <byNotam>{0,1}</byNotam>
  <adjustForDST>{0,1}</adjustForDST>
</timesOfOperation>
Source

<xs:element name="timesOfOperation" type="type:TimesOfOperation" minOccurs="0" maxOccurs="1"/>
[ top ]
Element PreferedRoute / preferedRouteLeg
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#PreferedRouteLeg_aircraftUsageGroup ARINC424_22_HTML.tmp#PreferedRouteLeg_altitudeDescription ARINC424_22_HTML.tmp#PreferedRouteLeg_areaCode ARINC424_22_HTML.tmp#PreferedRouteLeg_directionRestriction ARINC424_22_HTML.tmp#PreferedRouteLeg_intialAirportFix ARINC424_22_HTML.tmp#PreferedRouteLeg_level ARINC424_22_HTML.tmp#PreferedRouteLeg_maximumAltitude ARINC424_22_HTML.tmp#PreferedRouteLeg_minimumAltitude ARINC424_22_HTML.tmp#PreferedRouteLeg_preferedRouteUseIndicator ARINC424_22_HTML.tmp#PreferedRouteLeg_routeType ARINC424_22_HTML.tmp#PreferedRouteLeg_terminusAirportFix ARINC424_22_HTML.tmp#PreferedRouteLeg_viaCode ARINC424_22_HTML.tmp#PreferedRouteLeg_airwayRef ARINC424_22_HTML.tmp#PreferedRouteLeg_procedureRef ARINC424_22_HTML.tmp#PreferedRouteLeg_alt1 ARINC424_22_HTML.tmp#PreferedRouteLeg_alt2 ARINC424_22_HTML.tmp#PreferedRouteLeg_initialAirportFixRef ARINC424_22_HTML.tmp#PreferedRouteLeg_toTerminusFixRef ARINC424_22_HTML.tmp#PreferedRouteLeg
Type PreferedRouteLeg
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children aircraftUsageGroup, airwayRef, alt1, alt2, altitudeDescription, areaCode, custAreaCode, cycleDate, directionRestriction, fixIdent, fixRef, initialAirportFixRef, intialAirportFix, level, maximumAltitude, minimumAltitude, notes, preferedRouteUseIndicator, procedureRef, recNavaidIdent, recNavaidRef, recordType, routeType, sequenceNumber, supplementalData, terminusAirportFix, toTerminusFixRef, viaCode
Instance

<preferedRouteLeg>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <sequenceNumber>{1,1}</sequenceNumber>
  <fixRef>{0,1}</fixRef>
  <fixIdent>{0,1}</fixIdent>
  <recNavaidIdent>{0,1}</recNavaidIdent>
  <recNavaidRef>{0,1}</recNavaidRef>
  <aircraftUsageGroup>{0,1}</aircraftUsageGroup>
  <altitudeDescription>{0,1}</altitudeDescription>
  <areaCode>{0,1}</areaCode>
  <directionRestriction>{0,1}</directionRestriction>
  <intialAirportFix>{0,1}</intialAirportFix>
  <level>{0,1}</level>
  <maximumAltitude>{0,1}</maximumAltitude>
  <minimumAltitude>{0,1}</minimumAltitude>
  <preferedRouteUseIndicator>{1,1}</preferedRouteUseIndicator>
  <routeType>{0,1}</routeType>
  <terminusAirportFix>{0,1}</terminusAirportFix>
  <viaCode>{0,1}</viaCode>
  <airwayRef>{0,1}</airwayRef>
  <procedureRef>{0,1}</procedureRef>
  <alt1>{0,1}</alt1>
  <alt2>{0,1}</alt2>
  <initialAirportFixRef>{0,1}</initialAirportFixRef>
  <toTerminusFixRef>{0,1}</toTerminusFixRef>
</preferedRouteLeg>
Source

<xs:element name="preferedRouteLeg" type="PreferedRouteLeg" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element PreferedRouteLeg / aircraftUsageGroup
Namespace No namespace
Annotations

The “Aircraft Use Group” field provides information on what aircraft or groups of aircraft are permitted to use a certain route.
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#AircraftUsageGroup_aircraftOrAircraftGroup ARINC424_22_HTML.tmp#AircraftUsageGroup_alternateAircraftorAircraftGroup ARINC424_22_HTML.tmp#AircraftUsageGroup
Type type:AircraftUsageGroup
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children aircraftOrAircraftGroup, alternateAircraftorAircraftGroup
Instance

<aircraftUsageGroup>
  <aircraftOrAircraftGroup>{1,1}</aircraftOrAircraftGroup>
  <alternateAircraftorAircraftGroup>{1,1}</alternateAircraftorAircraftGroup>
</aircraftUsageGroup>
Source

<xs:element name="aircraftUsageGroup" type="type:AircraftUsageGroup" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Aircraft Use Group” field provides information on what aircraft or groups of aircraft are permitted to use a certain route.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:AircraftUsageGroup / aircraftOrAircraftGroup
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AircraftOrAircraftGroup
Type enum:AircraftOrAircraftGroup
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration All
All Aircraft
enumeration AllSpeed250OrLess
All Aircraft, Cruise speed 250 kts or less
enumeration NonJetAndTurboProp
Non-Jet and Turbo Prop
enumeration MultiEnginePropsOnly
Multi-Engine Props Only
enumeration JetsTurbopropsSpecialCruise190OrGreater
Jets and Turbo Props/Special, Cruise Speed 190 kts or greater
enumeration Helicopter
Helicopter Only
enumeration JetPower
Jet Power
enumeration TurbopropSpecialCruise190orGreater
Turbo-Prop/Special, Cruise Speed 190 kts or greater
enumeration NonJetNonTurboprop
Non-Jet, Non-Turbo Prop
enumeration NonJetCruise190OrGreater
Non-Jet, Cruise speed 190 kts or greater
enumeration NonJetCruise190OrLess
Non-Jet, Cruise speed 189 kts or less
enumeration AircraftAsDefinedInNotes
Aircraft as defined in a Notes Continuation Record
enumeration SingleEngine
Single Engine
enumeration TwinEngine
Twin Engine
Source

<xs:element name="aircraftOrAircraftGroup" type="enum:AircraftOrAircraftGroup" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:AircraftUsageGroup / alternateAircraftorAircraftGroup
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AircraftUsageFieldContent2
Type type:AircraftUsageFieldContent2
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 1
Source

<xs:element name="alternateAircraftorAircraftGroup" type="type:AircraftUsageFieldContent2" minOccurs="1" maxOccurs="1"/>
[ top ]
Element PreferedRouteLeg / altitudeDescription
Namespace No namespace
Annotations

The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.
Diagram
Diagram ARINC424_22_HTML.tmp#AltitudeDescription
Type enum:AltitudeDescription
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AtOrAboveFirst
At or above altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration AtOrBelow
At or below altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration At
At altitude specified in first Altitude field. Also used with Localizer Only Altitude field, and the FACF Waypoint on Precision Approach Coding with Electronic Glide Slope.
enumeration B
At or above to at or below altitudes specified in the first and second Altitude fields. Not used on FAF or MAP Waypoint Records in Precision Approach Coding with Electronic Glide Slope
enumeration C
"At or above" altitude specified in second "Altitude" field.
enumeration G
Glide Slope Altitude (MSL) At Fix, specified in the first Altitude field on the FAF Waypoint and Glide Slope Intercept Altitude (MSL) in second altitude of FAF Waypoint in Precision Approach Coding with electronic Glide Slope.
enumeration I
Glide Slope Intercept Altitude specified in second "Altitude" field and "at" altitude specified in first "Altitude" field on the FACF Waypoint in Precision Approach Coding with electronic Glide Slope
Source

<xs:element name="altitudeDescription" type="enum:AltitudeDescription" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PreferedRouteLeg / areaCode
Namespace No namespace
Annotations

The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.
Diagram
Diagram ARINC424_22_HTML.tmp#AreaCode
Type enum:AreaCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AFR
Africa
enumeration CAN
Canada
enumeration EEU
Eastern Europe and Asia
enumeration EUR
Europe
enumeration LAM
Latin America
enumeration MES
Middle East
enumeration PAC
Pacific
enumeration SAM
South America
enumeration SPA
South Pacific
enumeration USA
United States
Source

<xs:element name="areaCode" type="enum:AreaCode" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PreferedRouteLeg / directionRestriction
Namespace No namespace
Annotations

The “Direction Restriction” field will indicate whether the routing is available only in the direction of “from initial fix to terminus fix” or in both directions.
Diagram
Diagram ARINC424_22_HTML.tmp#PrefferedRouteDirectionalRestriction
Type enum:PrefferedRouteDirectionalRestriction
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration UniDirectional
Uni-directional Preferred Route, usable only from Initial Fix to Terminus Fix.
enumeration BiDirectional
Bi-directional Preferred Route, usable from Initial Fix to Terminus Fix or from Terminus Fix to Initial Fix.
Source

<xs:element name="directionRestriction" type="enum:PrefferedRouteDirectionalRestriction" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Direction Restriction” field will indicate whether the routing is available only in the direction of “from initial fix to terminus fix” or in both directions.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PreferedRouteLeg / intialAirportFix
Namespace No namespace
Annotations

The “Initial Fix” and the “Terminus Fix” fields are used to define the departure airport or initial fix and the destination airport or terminus fix of a preferred route.
Diagram
Diagram ARINC424_22_HTML.tmp#InitialTerminusAirportFix
Type type:InitialTerminusAirportFix
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 5
Source

<xs:element name="intialAirportFix" type="type:InitialTerminusAirportFix" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Initial Fix” and the “Terminus Fix” fields are used to define the departure airport or initial fix and the destination airport or terminus fix of a preferred route.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PreferedRouteLeg / level
Namespace No namespace
Annotations

The Level field defines the airway structure of which the record is an element.
Diagram
Diagram ARINC424_22_HTML.tmp#Level
Type enum:Level
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AllAlt
All Altitudes
enumeration HighAlt
High Altitudes
enumeration LowAlt
Low Altitudes
Source

<xs:element name="level" type="enum:Level" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Level field defines the airway structure of which the record is an element.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PreferedRouteLeg / maximumAltitude
Namespace No namespace
Annotations

The “Maximum Altitude” field is used to indicate the maximum altitude allowed.
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude ARINC424_22_HTML.tmp#AltitudeLimit_isGround ARINC424_22_HTML.tmp#AltitudeLimit_isMSL ARINC424_22_HTML.tmp#AltitudeLimit_isNotam ARINC424_22_HTML.tmp#AltitudeLimit_isNotSpecified ARINC424_22_HTML.tmp#AltitudeLimit_isUnlimited ARINC424_22_HTML.tmp#AltitudeLimit
Type type:AltitudeLimit
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isGround, isMSL, isNotDefined, isNotSpecified, isNotam, isUnknown, isUnlimited
Instance

<maximumAltitude>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
  <isGround>{0,1}</isGround>
  <isMSL>{0,1}</isMSL>
  <isNotam>{0,1}</isNotam>
  <isNotSpecified>{0,1}</isNotSpecified>
  <isUnlimited>{0,1}</isUnlimited>
</maximumAltitude>
Source

<xs:element name="maximumAltitude" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Maximum Altitude” field is used to indicate the maximum altitude allowed.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PreferedRouteLeg / minimumAltitude
Namespace No namespace
Annotations

The “Altitude/Minimum Altitude” field indicates the reference altitude associated with (1) Enroute Airways (MEA, MFA or other minimum altitudes as defined by source), (2) holding pattern path of Holding Pattern record, (3) altitudes at fixes in terminal procedures and terminal procedure path termination defined by the Path Terminator in the Airport or Heliport SID/STAR/Approach Record and (4) lowest altitude of the “blocked altitudes” for a Preferred Route.
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<minimumAltitude>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</minimumAltitude>
Source

<xs:element name="minimumAltitude" type="type:Altitude" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Altitude/Minimum Altitude” field indicates the reference altitude associated with (1) Enroute Airways (MEA, MFA or other minimum altitudes as defined by source), (2) holding pattern path of Holding Pattern record, (3) altitudes at fixes in terminal procedures and terminal procedure path termination defined by the Path Terminator in the Airport or Heliport SID/STAR/Approach Record and (4) lowest altitude of the “blocked altitudes” for a Preferred Route.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PreferedRouteLeg / preferedRouteUseIndicator
Namespace No namespace
Annotations

The “Preferred Route Use Indicator” provides information on whether the route in question is point-to-point and therefore usable for navigation, or area-to-area and usable only as advisory information which requires further processing. The field will also provide information on whether or not RNAV equipment is required to use the route.
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#PreferedRouteUseIndicator_preferredRouteUseIndicatorPointArea ARINC424_22_HTML.tmp#PreferedRouteUseIndicator_preferredRouteUseIndicatorRNAV ARINC424_22_HTML.tmp#PreferedRouteUseIndicator
Type type:PreferedRouteUseIndicator
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children preferredRouteUseIndicatorPointArea, preferredRouteUseIndicatorRNAV
Instance

<preferedRouteUseIndicator>
  <preferredRouteUseIndicatorPointArea>{1,1}</preferredRouteUseIndicatorPointArea>
  <preferredRouteUseIndicatorRNAV>{1,1}</preferredRouteUseIndicatorRNAV>
</preferedRouteUseIndicator>
Source

<xs:element name="preferedRouteUseIndicator" type="type:PreferedRouteUseIndicator" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Preferred Route Use Indicator” provides information on whether the route in question is point-to-point and therefore usable for navigation, or area-to-area and usable only as advisory information which requires further processing. The field will also provide information on whether or not RNAV equipment is required to use the route.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:PreferedRouteUseIndicator / preferredRouteUseIndicatorPointArea
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PreferredRouteUseIndicatorPointArea
Type enum:PreferredRouteUseIndicatorPointArea
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration P
the route is point-to-point
enumeration A
the route is area-to-area
Source

<xs:element name="preferredRouteUseIndicatorPointArea" type="enum:PreferredRouteUseIndicatorPointArea" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:PreferedRouteUseIndicator / preferredRouteUseIndicatorRNAV
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PreferredRouteUseIndicatorRNAV
Type enum:PreferredRouteUseIndicatorRNAV
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration RnavEquipRequired
RNAV equipment is required
enumeration RnavEquipNotRequired
RNAV equipment is NOT required
Source

<xs:element name="preferredRouteUseIndicatorRNAV" type="enum:PreferredRouteUseIndicatorRNAV" minOccurs="1" maxOccurs="1"/>
[ top ]
Element PreferedRouteLeg / routeType
Namespace No namespace
Annotations

The “Route Type” field defines the type of Enroute Airway, Preferred Route, Airport and Heliport SID/STAR/Approach Routes of which the record is an element. For Airport and Heliport SID/STAR/Approach Routes, “Route Type” includes a “primary route type,” and up to two “route type qualifiers.”
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="routeType" type="xs:string" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Route Type” field defines the type of Enroute Airway, Preferred Route, Airport and Heliport SID/STAR/Approach Routes of which the record is an element. For Airport and Heliport SID/STAR/Approach Routes, “Route Type” includes a “primary route type,” and up to two “route type qualifiers.”</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PreferedRouteLeg / terminusAirportFix
Namespace No namespace
Annotations

The “Initial Fix” and the “Terminus Fix” fields are used to define the departure airport or initial fix and the destination airport or terminus fix of a preferred route.
Diagram
Diagram ARINC424_22_HTML.tmp#InitialTerminusAirportFix
Type type:InitialTerminusAirportFix
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 5
Source

<xs:element name="terminusAirportFix" type="type:InitialTerminusAirportFix" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Initial Fix” and the “Terminus Fix” fields are used to define the departure airport or initial fix and the destination airport or terminus fix of a preferred route.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PreferedRouteLeg / viaCode
Namespace No namespace
Annotations

The "VIA Code" field is used to define the type of route used in the SID/STAR/Approach/Airways field (Section 5.78) on Company Route records and defines the type of route used in the AWY Identifier on Preferred Route records. On the Preferred Route records, some codes define the use, or restriction to use, of a fix or routing.
Diagram
Diagram ARINC424_22_HTML.tmp#PreferredRouteVIACodes
Type enum:PreferredRouteVIACodes
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AWY
Designated Airway
enumeration DIR
Direct to Fix
enumeration INT
Initial Fix
enumeration RVF
Route via Fix
enumeration RNF
Route via Fix not permitted
enumeration SID
Standard Instrument Departure
enumeration STR
Standard Terminal Arrival and Profile Descent
Source

<xs:element name="viaCode" type="enum:PreferredRouteVIACodes" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The "VIA Code" field is used to define the type of route used in the SID/STAR/Approach/Airways field (Section 5.78) on Company Route records and defines the type of route used in the AWY Identifier on Preferred Route records. On the Preferred Route records, some codes define the use, or restriction to use, of a fix or routing.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element PreferedRouteLeg / airwayRef
Namespace No namespace
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="airwayRef" type="xs:IDREF" minOccurs="0" maxOccurs="1"/>
[ top ]
Element PreferedRouteLeg / procedureRef
Namespace No namespace
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="procedureRef" type="xs:IDREF" minOccurs="0" maxOccurs="1"/>
[ top ]
Element PreferedRouteLeg / alt1
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<alt1>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</alt1>
Source

<xs:element name="alt1" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element PreferedRouteLeg / alt2
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<alt2>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</alt2>
Source

<xs:element name="alt2" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
[ top ]
Element PreferedRouteLeg / initialAirportFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="initialAirportFixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element PreferedRouteLeg / toTerminusFixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="toTerminusFixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AeroPublication / enrouteCommunications
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#EnrouteCommunications_enrouteCommunication ARINC424_22_HTML.tmp#EnrouteCommunications
Type EnrouteCommunications
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children enrouteCommunication
Instance

<enrouteCommunications>
  <enrouteCommunication>{0,unbounded}</enrouteCommunication>
</enrouteCommunications>
Source

<xs:element name="enrouteCommunications" type="EnrouteCommunications" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteCommunications / enrouteCommunication
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Communication_location ARINC424_22_HTML.tmp#Communication_altitudeDescription ARINC424_22_HTML.tmp#Communication_communicationAltitude1 ARINC424_22_HTML.tmp#Communication_communicationAltitude2 ARINC424_22_HTML.tmp#Communication_callSign ARINC424_22_HTML.tmp#Communication_communicationClass ARINC424_22_HTML.tmp#Communication_communicationType ARINC424_22_HTML.tmp#Communication_frequencyUnits ARINC424_22_HTML.tmp#Communication_radarService ARINC424_22_HTML.tmp#Communication_h24Indicator ARINC424_22_HTML.tmp#Communication_modulation ARINC424_22_HTML.tmp#Communication_sequenceNumber ARINC424_22_HTML.tmp#Communication_signalEmission ARINC424_22_HTML.tmp#Communication_transmitFrequency ARINC424_22_HTML.tmp#Communication_receiveFrequency ARINC424_22_HTML.tmp#Communication_communicationDetails ARINC424_22_HTML.tmp#Communication_guardTransmit ARINC424_22_HTML.tmp#Communication ARINC424_22_HTML.tmp#EnrouteCommunication_firRDOIdent ARINC424_22_HTML.tmp#EnrouteCommunication_firUirRef ARINC424_22_HTML.tmp#EnrouteCommunication_positionNarrative ARINC424_22_HTML.tmp#EnrouteCommunication_serviceIndicator ARINC424_22_HTML.tmp#EnrouteCommunication_assignedSectorName ARINC424_22_HTML.tmp#EnrouteCommunication
Type EnrouteCommunication
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children altitudeDescription, assignedSectorName, callSign, communicationAltitude1, communicationAltitude2, communicationClass, communicationDetails, communicationType, custAreaCode, cycleDate, firRDOIdent, firUirRef, frequencyUnits, guardTransmit, h24Indicator, location, modulation, notes, positionNarrative, radarService, receiveFrequency, recordType, sequenceNumber, serviceIndicator, signalEmission, supplementalData, transmitFrequency
Instance

<enrouteCommunication>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <location>{0,1}</location>
  <altitudeDescription>{0,1}</altitudeDescription>
  <communicationAltitude1>{0,1}</communicationAltitude1>
  <communicationAltitude2>{0,1}</communicationAltitude2>
  <callSign>{0,1}</callSign>
  <communicationClass>{0,1}</communicationClass>
  <communicationType>{0,1}</communicationType>
  <frequencyUnits>{0,1}</frequencyUnits>
  <radarService>{0,1}</radarService>
  <h24Indicator>{0,1}</h24Indicator>
  <modulation>{0,1}</modulation>
  <sequenceNumber>{1,1}</sequenceNumber>
  <signalEmission>{0,1}</signalEmission>
  <transmitFrequency>{0,1}</transmitFrequency>
  <receiveFrequency>{0,1}</receiveFrequency>
  <communicationDetails>{0,1}</communicationDetails>
  <guardTransmit>{0,1}</guardTransmit>
  <firRDOIdent>{0,1}</firRDOIdent>
  <firUirRef>{0,1}</firUirRef>
  <positionNarrative>{0,1}</positionNarrative>
  <serviceIndicator>{0,1}</serviceIndicator>
  <assignedSectorName>{0,1}</assignedSectorName>
</enrouteCommunication>
Source

<xs:element name="enrouteCommunication" type="EnrouteCommunication" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element EnrouteCommunication / firRDOIdent
Namespace No namespace
Annotations

The “FIR/RDO Identifier” field used on Enroute Communication records is the source provided identifier for a communication service as used in message addressing. For Information Regions (FIR/UIR) it is the four-character identifier assigned to the Information Region as published in ICAO Document 7910, Location Indicators. For Flight Service Stations, it is the three or four character identifier assigned to the station by the relevant authority. For other communication services established for enroute use and not addressable under the Information Region, Flight Service Station concept, it is the identifier assigned by the relevant authority to that station for the purpose of addressing message traffic.
Diagram
Diagram ARINC424_22_HTML.tmp#FIRRDOIdentifier
Type type:FIRRDOIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="firRDOIdent" type="type:FIRRDOIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “FIR/RDO Identifier” field used on Enroute Communication records is the source provided identifier for a communication service as used in message addressing. For Information Regions (FIR/UIR) it is the four-character identifier assigned to the Information Region as published in ICAO Document 7910, Location Indicators. For Flight Service Stations, it is the three or four character identifier assigned to the station by the relevant authority. For other communication services established for enroute use and not addressable under the Information Region, Flight Service Station concept, it is the identifier assigned by the relevant authority to that station for the purpose of addressing message traffic.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element EnrouteCommunication / firUirRef
Namespace No namespace
Annotations

This element provides an IDREF to identify the FIRUIR element for the parent enrouteCommunication element.
Diagram
Diagram
Type xs:IDREF
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="firUirRef" type="xs:IDREF" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This element provides an IDREF to identify the FIRUIR element for the parent enrouteCommunication element.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element EnrouteCommunication / positionNarrative
Namespace No namespace
Annotations

The “Position Narrative” field is a textual description of the location of a communication transmitter. This may be the name of a Remote Communication Outlet, a Remote Communication Air/Ground Station or the place name of the geographical location of the transmitter site.
Diagram
Diagram ARINC424_22_HTML.tmp#PositionNarrative
Type type:PositionNarrative
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 25
Source

<xs:element name="positionNarrative" type="type:PositionNarrative" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Position Narrative” field is a textual description of the location of a communication transmitter. This may be the name of a Remote Communication Outlet, a Remote Communication Air/Ground Station or the place name of the geographical location of the transmitter site.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element EnrouteCommunication / serviceIndicator
Namespace No namespace
Annotations

The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type (5.101).
Diagram
Diagram ARINC424_22_HTML.tmp#EnrouteCommunicationServiceIndicator_serviceIndicatorEnrouteFrequency ARINC424_22_HTML.tmp#EnrouteCommunicationServiceIndicator_serviceIndicatorEnrouteInformation ARINC424_22_HTML.tmp#EnrouteCommunicationServiceIndicator_serviceIndicatorEnrouteService ARINC424_22_HTML.tmp#EnrouteCommunicationServiceIndicator
Type type:EnrouteCommunicationServiceIndicator
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children serviceIndicatorEnrouteFrequency, serviceIndicatorEnrouteInformation, serviceIndicatorEnrouteService
Instance

<serviceIndicator>
  <serviceIndicatorEnrouteFrequency>{0,1}</serviceIndicatorEnrouteFrequency>
  <serviceIndicatorEnrouteInformation>{0,1}</serviceIndicatorEnrouteInformation>
  <serviceIndicatorEnrouteService>{0,1}</serviceIndicatorEnrouteService>
</serviceIndicator>
Source

<xs:element name="serviceIndicator" type="type:EnrouteCommunicationServiceIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type (5.101).</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:EnrouteCommunicationServiceIndicator / serviceIndicatorEnrouteFrequency
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ServiceIndicatorEnrouteFrequency
Type enum:ServiceIndicatorEnrouteFrequency
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AirGround
Air/Ground
enumeration Distance
Discrete Frequency
enumeration MF
Mandatory Frequency (MF)
enumeration SF
Secondary Frequency
Source

<xs:element name="serviceIndicatorEnrouteFrequency" type="enum:ServiceIndicatorEnrouteFrequency" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:EnrouteCommunicationServiceIndicator / serviceIndicatorEnrouteInformation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ServiceIndicatorEnrouteInformation
Type enum:ServiceIndicatorEnrouteInformation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Vdf
VHF Direction Finding Service (VDF)
enumeration NotEnglish
Language other than English
enumeration MilitaryUseFreq
Military Use Frequency
Source

<xs:element name="serviceIndicatorEnrouteInformation" type="enum:ServiceIndicatorEnrouteInformation" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:EnrouteCommunicationServiceIndicator / serviceIndicatorEnrouteService
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ServiceIndicatorEnrouteService
Type enum:ServiceIndicatorEnrouteService
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AEI
Aeronautical Enroute Information
enumeration FIS
Flight Information Service (FIS)
Source

<xs:element name="serviceIndicatorEnrouteService" type="enum:ServiceIndicatorEnrouteService" minOccurs="0" maxOccurs="1"/>
[ top ]
Element EnrouteCommunication / assignedSectorName
Namespace No namespace
Annotations

The “Associated Sector Name” field is used to indicate the published name of an Enroute Communication Sector.
Diagram
Diagram ARINC424_22_HTML.tmp#AssignedSectorName
Type type:AssignedSectorName
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 25
Source

<xs:element name="assignedSectorName" type="type:AssignedSectorName" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Associated Sector Name” field is used to indicate the published name of an Enroute Communication Sector.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element AeroPublication / geographicalReferences
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#GeographicalReferences_geographicalReference ARINC424_22_HTML.tmp#GeographicalReferences
Type GeographicalReferences
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children geographicalReference
Instance

<geographicalReferences>
  <geographicalReference>{1,unbounded}</geographicalReference>
</geographicalReferences>
Source

<xs:element name="geographicalReferences" type="GeographicalReferences" minOccurs="0" maxOccurs="1"/>
[ top ]
Element GeographicalReferences / geographicalReference
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#GeographicalReference_geographicalEntity ARINC424_22_HTML.tmp#GeographicalReference_GeographicalRefTableID ARINC424_22_HTML.tmp#GeographicalReference_preferredRouteDetails ARINC424_22_HTML.tmp#GeographicalReference
Type GeographicalReference
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children GeographicalRefTableID, custAreaCode, cycleDate, geographicalEntity, notes, preferredRouteDetails, recordType, supplementalData
Instance

<geographicalReference>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <geographicalEntity>{0,1}</geographicalEntity>
  <GeographicalRefTableID>{1,1}</GeographicalRefTableID>
  <preferredRouteDetails>{1,unbounded}</preferredRouteDetails>
</geographicalReference>
Source

<xs:element name="geographicalReference" type="GeographicalReference" minOccurs="1" maxOccurs="unbounded"/>
[ top ]
Element GeographicalReference / geographicalEntity
Namespace No namespace
Annotations

The Geographical Reference Table will be used to identify “Geographical Entities” not definable by other established encoding systems. For established systems refer to Section 7 of this document.
Diagram
Diagram ARINC424_22_HTML.tmp#GeographicalEntity
Type type:GeographicalEntity
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 29
Source

<xs:element name="geographicalEntity" type="type:GeographicalEntity" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Geographical Reference Table will be used to identify “Geographical Entities” not definable by other established encoding systems. For established systems refer to Section 7 of this document.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element GeographicalReference / GeographicalRefTableID
Namespace No namespace
Annotations

The “Geographical Reference Table Identifier” will be used to provide a unique identification for each Geographical Entity. As the “Geographical Entity” field is a large field with no established content, this two character code will act as a pseudo key for the record.
Diagram
Diagram ARINC424_22_HTML.tmp#GeographicalReferenceTableIdentifier_geographicalReferenceTableIdentifierPos1 ARINC424_22_HTML.tmp#GeographicalReferenceTableIdentifier_geographicalReferenceTableIdentifierPos2 ARINC424_22_HTML.tmp#GeographicalReferenceTableIdentifier
Type type:GeographicalReferenceTableIdentifier
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children geographicalReferenceTableIdentifierPos1, geographicalReferenceTableIdentifierPos2
Instance

<GeographicalRefTableID>
  <geographicalReferenceTableIdentifierPos1>{1,1}</geographicalReferenceTableIdentifierPos1>
  <geographicalReferenceTableIdentifierPos2>{1,1}</geographicalReferenceTableIdentifierPos2>
</GeographicalRefTableID>
Source

<xs:element name="GeographicalRefTableID" type="type:GeographicalReferenceTableIdentifier" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Geographical Reference Table Identifier” will be used to provide a unique identification for each Geographical Entity. As the “Geographical Entity” field is a large field with no established content, this two character code will act as a pseudo key for the record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:GeographicalReferenceTableIdentifier / geographicalReferenceTableIdentifierPos1
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#GeographicalReferenceTableIdentifierPos1
Type type:GeographicalReferenceTableIdentifierPos1
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 1
Source

<xs:element name="geographicalReferenceTableIdentifierPos1" type="type:GeographicalReferenceTableIdentifierPos1" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:GeographicalReferenceTableIdentifier / geographicalReferenceTableIdentifierPos2
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#GeographicalReferenceTableIdentifierPos2
Type type:GeographicalReferenceTableIdentifierPos2
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 1
Source

<xs:element name="geographicalReferenceTableIdentifierPos2" type="type:GeographicalReferenceTableIdentifierPos2" minOccurs="1" maxOccurs="1"/>
[ top ]
Element GeographicalReference / preferredRouteDetails
Namespace No namespace
Annotations

This class is an abstraction used to represent the details Preferred Route Identifier and Preferred Route Use Indicator.
Diagram
Diagram ARINC424_22_HTML.tmp#PreferredRouteDetails_preferedRouteIdentifier ARINC424_22_HTML.tmp#PreferredRouteDetails_preferredRouteUseIndicator ARINC424_22_HTML.tmp#PreferredRouteDetails
Type type:PreferredRouteDetails
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children preferedRouteIdentifier, preferredRouteUseIndicator
Instance

<preferredRouteDetails>
  <preferedRouteIdentifier>{0,1}</preferedRouteIdentifier>
  <preferredRouteUseIndicator>{0,1}</preferredRouteUseIndicator>
</preferredRouteDetails>
Source

<xs:element name="preferredRouteDetails" type="type:PreferredRouteDetails" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details Preferred Route Identifier and Preferred Route Use Indicator.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:PreferredRouteDetails / preferedRouteIdentifier
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RouteIdentifier
Type type:RouteIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 10
Source

<xs:element name="preferedRouteIdentifier" type="type:RouteIdentifier" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:PreferredRouteDetails / preferredRouteUseIndicator
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#PreferedRouteUseIndicator_preferredRouteUseIndicatorPointArea ARINC424_22_HTML.tmp#PreferedRouteUseIndicator_preferredRouteUseIndicatorRNAV ARINC424_22_HTML.tmp#PreferedRouteUseIndicator
Type type:PreferedRouteUseIndicator
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children preferredRouteUseIndicatorPointArea, preferredRouteUseIndicatorRNAV
Instance

<preferredRouteUseIndicator>
  <preferredRouteUseIndicatorPointArea>{1,1}</preferredRouteUseIndicatorPointArea>
  <preferredRouteUseIndicatorRNAV>{1,1}</preferredRouteUseIndicatorRNAV>
</preferredRouteUseIndicator>
Source

<xs:element name="preferredRouteUseIndicator" type="type:PreferedRouteUseIndicator" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AeroPublication / gridMoras
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#GridMoras_gridMora ARINC424_22_HTML.tmp#GridMoras
Type GridMoras
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children gridMora
Instance

<gridMoras>
  <gridMora>{0,unbounded}</gridMora>
</gridMoras>
Source

<xs:element name="gridMoras" type="GridMoras" minOccurs="0" maxOccurs="1"/>
[ top ]
Element GridMoras / gridMora
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#GridMora_startingPosition ARINC424_22_HTML.tmp#GridMora_mora ARINC424_22_HTML.tmp#GridMora
Type GridMora
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children custAreaCode, cycleDate, mora, notes, recordType, startingPosition, supplementalData
Instance

<gridMora>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <startingPosition>{1,1}</startingPosition>
  <mora>{30,30}</mora>
</gridMora>
Source

<xs:element name="gridMora" type="GridMora" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element GridMora / startingPosition
Namespace No namespace
Annotations

Latitude and Longitude details of the lower left corner of the block of MORAs.
Diagram
Diagram ARINC424_22_HTML.tmp#Location_latitude ARINC424_22_HTML.tmp#Location_longitude ARINC424_22_HTML.tmp#Location
Type type:Location
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children latitude, longitude
Instance

<startingPosition>
  <latitude>{1,1}</latitude>
  <longitude>{1,1}</longitude>
</startingPosition>
Source

<xs:element name="startingPosition" type="type:Location" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Latitude and Longitude details of the lower left corner of the block of MORAs.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element GridMora / mora
Namespace No namespace
Annotations

Grid Minimum Off-route Altitude (MORA) provides terrain and obstruction clearance within a one degree of latitude by one degree of longitude block.  The first MORA in the list is for the block whose lower left corner is given by the startingPosition field.  Each successive block is one degree of longitude east of the prior block.  Within a single record, each MORA has the same latitude.
Diagram
Diagram ARINC424_22_HTML.tmp#GridMORA_isUnknown ARINC424_22_HTML.tmp#GridMORA_altitude ARINC424_22_HTML.tmp#GridMORA
Type type:GridMORA
Properties
content complex
minOccurs 30
maxOccurs 30
Model
Children altitude, isUnknown
Instance

<mora>
  <isUnknown>{0,1}</isUnknown>
  <altitude>{0,1}</altitude>
</mora>
Source

<xs:element name="mora" type="type:GridMORA" minOccurs="30" maxOccurs="30">
  <xs:annotation>
    <xs:documentation>Grid Minimum Off-route Altitude (MORA) provides terrain and obstruction clearance within a one degree of latitude by one degree of longitude block. The first MORA in the list is for the block whose lower left corner is given by the startingPosition field. Each successive block is one degree of longitude east of the prior block. Within a single record, each MORA has the same latitude.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:GridMORA / isUnknown
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isUnknown" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:GridMORA / altitude
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AltitudeValue
Type type:AltitudeValue
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxInclusive 99999
minInclusive -2000
Source

<xs:element name="altitude" type="type:AltitudeValue" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AeroPublication / supplementalData
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SupplementalData
Type SupplementalData
Properties
content complex
minOccurs 0
maxOccurs 1
Model
ANY element from namespace(s) 'http://www.mitre.org/ARINC/extensions, http://www.navtech.aero/ARINC/extensions, http://www.garmin.com/ARINC/extensions, http://www.agustawestland-ans.com/ARINC/extensions, http://www.NGA.mil'
Source

<xs:element name="supplementalData" type="SupplementalData" minOccurs="0" maxOccurs="1"/>
[ top ]
Element AeroPublication / holdingPatterns
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#HoldingPatterns_holdingPattern ARINC424_22_HTML.tmp#HoldingPatterns
Type HoldingPatterns
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children holdingPattern
Instance

<holdingPatterns>
  <holdingPattern>{0,unbounded}</holdingPattern>
</holdingPatterns>
Source

<xs:element name="holdingPatterns" type="HoldingPatterns" minOccurs="0" maxOccurs="1"/>
[ top ]
Element HoldingPatterns / holdingPattern
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#HoldingPattern_isEnroute ARINC424_22_HTML.tmp#HoldingPattern_arcRadius ARINC424_22_HTML.tmp#HoldingPattern_duplicateIndicator ARINC424_22_HTML.tmp#HoldingPattern_holdingPatternName ARINC424_22_HTML.tmp#HoldingPattern_holdingSpeed ARINC424_22_HTML.tmp#HoldingPattern_holdingTime ARINC424_22_HTML.tmp#HoldingPattern_holdingDistance ARINC424_22_HTML.tmp#HoldingPattern_inboundHoldingCourse ARINC424_22_HTML.tmp#HoldingPattern_legInboundOutboundIndicator ARINC424_22_HTML.tmp#HoldingPattern_maximumAltitude ARINC424_22_HTML.tmp#HoldingPattern_minimumAltitude ARINC424_22_HTML.tmp#HoldingPattern_RNP ARINC424_22_HTML.tmp#HoldingPattern_rvsmMaximumLevel ARINC424_22_HTML.tmp#HoldingPattern_rvsmMinimumLevel ARINC424_22_HTML.tmp#HoldingPattern_turnDirection ARINC424_22_HTML.tmp#HoldingPattern_verticalScaleFactor ARINC424_22_HTML.tmp#HoldingPattern_fixIdentifier ARINC424_22_HTML.tmp#HoldingPattern_fixRef ARINC424_22_HTML.tmp#HoldingPattern_portRef ARINC424_22_HTML.tmp#HoldingPattern
Type HoldingPattern
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children RNP, arcRadius, custAreaCode, cycleDate, duplicateIndicator, fixIdentifier, fixRef, holdingDistance, holdingPatternName, holdingSpeed, holdingTime, inboundHoldingCourse, isEnroute, legInboundOutboundIndicator, maximumAltitude, minimumAltitude, notes, portRef, recordType, rvsmMaximumLevel, rvsmMinimumLevel, supplementalData, turnDirection, verticalScaleFactor
Instance

<holdingPattern>
  <supplementalData>{0,1}</supplementalData>
  <custAreaCode>{1,1}</custAreaCode>
  <cycleDate>{1,1}</cycleDate>
  <notes>{0,unbounded}</notes>
  <recordType>{1,1}</recordType>
  <isEnroute>{0,1}</isEnroute>
  <arcRadius>{0,1}</arcRadius>
  <duplicateIndicator>{0,1}</duplicateIndicator>
  <holdingPatternName>{0,1}</holdingPatternName>
  <holdingSpeed>{0,1}</holdingSpeed>
  <holdingTime>{0,1}</holdingTime>
  <holdingDistance>{0,1}</holdingDistance>
  <inboundHoldingCourse>{0,1}</inboundHoldingCourse>
  <legInboundOutboundIndicator>{0,1}</legInboundOutboundIndicator>
  <maximumAltitude>{0,1}</maximumAltitude>
  <minimumAltitude>{0,1}</minimumAltitude>
  <RNP>{0,1}</RNP>
  <rvsmMaximumLevel>{0,1}</rvsmMaximumLevel>
  <rvsmMinimumLevel>{0,1}</rvsmMinimumLevel>
  <turnDirection>{0,1}</turnDirection>
  <verticalScaleFactor>{0,1}</verticalScaleFactor>
  <fixIdentifier>{0,1}</fixIdentifier>
  <fixRef>{0,1}</fixRef>
  <portRef>{0,1}</portRef>
</holdingPattern>
Source

<xs:element name="holdingPattern" type="HoldingPattern" minOccurs="0" maxOccurs="unbounded"/>
[ top ]
Element HoldingPattern / isEnroute
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isEnroute" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element HoldingPattern / arcRadius
Namespace No namespace
Annotations

The “ARC Radius” field is used to define the radius of a precision turn. In Terminal Procedures, this is the “Constant Radius To A Fix” Path and Termination, for “RF” Leg. In Holding Patterns, this is the turning radius, inbound to outbound leg, for RNP Holding. The ARC Radius field is also used to specify the turn radius of RNP holding patterns included in SID, STAR, and Approach Records as HA, HF, and HM legs.
Diagram
Diagram ARINC424_22_HTML.tmp#ARCRadius
Type type:ARCRadius
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 6
fractionDigits 3
Source

<xs:element name="arcRadius" type="type:ARCRadius" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “ARC Radius” field is used to define the radius of a precision turn. In Terminal Procedures, this is the “Constant Radius To A Fix” Path and Termination, for “RF” Leg. In Holding Patterns, this is the turning radius, inbound to outbound leg, for RNP Holding. The ARC Radius field is also used to specify the turn radius of RNP holding patterns included in SID, STAR, and Approach Records as HA, HF, and HM legs.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / duplicateIndicator
Namespace No namespace
Annotations

The “Duplicate Identifier” field is used to further define holding patterns when official government source has designated more than one Holding Pattern on a Navaid or Waypoint.
Diagram
Diagram ARINC424_22_HTML.tmp#Numeric ARINC424_22_HTML.tmp#DuplicateIndicator_duplicatorIndicatorPos1 ARINC424_22_HTML.tmp#DuplicateIndicator_duplicatorIndicatorPos2 ARINC424_22_HTML.tmp#DuplicateIndicator
Type type:DuplicateIndicator
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children duplicatorIndicatorPos1, duplicatorIndicatorPos2
Instance

<duplicateIndicator>
  <duplicatorIndicatorPos1>{1,1}</duplicatorIndicatorPos1>
  <duplicatorIndicatorPos2>{1,1}</duplicatorIndicatorPos2>
</duplicateIndicator>
Source

<xs:element name="duplicateIndicator" type="type:DuplicateIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Duplicate Identifier” field is used to further define holding patterns when official government source has designated more than one Holding Pattern on a Navaid or Waypoint.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:DuplicateIndicator / duplicatorIndicatorPos1
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#DuplicateIndicatorPos1
Type enum:DuplicateIndicatorPos1
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Undefined
Undefined (None Defined)
enumeration HighAlt
High Altitude
enumeration LowAlt
Low Altitude
enumeration Sid
SID
enumeration Star
STAR
enumeration Approach
Approach
enumeration MissedApproach
Missed Approach
enumeration Undefined
Undefined (with other defined)
enumeration AllAlt
All Altitude
Source

<xs:element name="duplicatorIndicatorPos1" type="enum:DuplicateIndicatorPos1" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:DuplicateIndicator / duplicatorIndicatorPos2
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#DuplicateIndicatorPos2
Type type:DuplicateIndicatorPos2
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="duplicatorIndicatorPos2" type="type:DuplicateIndicatorPos2" minOccurs="1" maxOccurs="1"/>
[ top ]
Element HoldingPattern / holdingPatternName
Namespace No namespace
Annotations

The “Name” field defines the name commonly applied to the navigation entity defined in the record.
Diagram
Diagram ARINC424_22_HTML.tmp#Name
Type type:Name
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 50
Source

<xs:element name="holdingPatternName" type="type:Name" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Name” field defines the name commonly applied to the navigation entity defined in the record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / holdingSpeed
Namespace No namespace
Annotations

The “Holding Speed” will be the maximum speed in a holding pattern.
Diagram
Diagram ARINC424_22_HTML.tmp#HoldingSpeed
Type type:HoldingSpeed
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="holdingSpeed" type="type:HoldingSpeed" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Holding Speed” will be the maximum speed in a holding pattern.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / holdingTime
Namespace No namespace
Annotations

The Leg Time field specifies the length of the inbound leg or outbound of a holding pattern in units of time. The determination of inbound or outbound is identified by the content of Section 5.298 of the applicable record. Inbound is defined as the timing between the point at which the aircraft rolls out on the inbound leg of the holding pattern and the fix at which the holding pattern is defined. Outbound is defined as the timing from a point abeam the holding fix to the beginning of the inbound turn.
Diagram
Diagram
Type xs:duration
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="holdingTime" type="xs:duration" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Leg Time field specifies the length of the inbound leg or outbound of a holding pattern in units of time. The determination of inbound or outbound is identified by the content of Section 5.298 of the applicable record. Inbound is defined as the timing between the point at which the aircraft rolls out on the inbound leg of the holding pattern and the fix at which the holding pattern is defined. Outbound is defined as the timing from a point abeam the holding fix to the beginning of the inbound turn.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / holdingDistance
Namespace No namespace
Annotations

The Leg Length field specifies the distance of either the inbound leg or the outbound leg of the holding pattern. The determination of inbound or outbound is identified by the content of Section 5.298 of the applicable record. Inbound is defined as the distance between the point at which the aircraft rolls out on the inbound leg of the holding pattern and the fix at which the holding pattern is defined. Outbound is defined as the distance from a point abeam the holding fix to the beginning of the inbound turn.
Diagram
Diagram ARINC424_22_HTML.tmp#HoldingLegLength
Type type:HoldingLegLength
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
fractionDigits 1
Source

<xs:element name="holdingDistance" type="type:HoldingLegLength" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Leg Length field specifies the distance of either the inbound leg or the outbound leg of the holding pattern. The determination of inbound or outbound is identified by the content of Section 5.298 of the applicable record. Inbound is defined as the distance between the point at which the aircraft rolls out on the inbound leg of the holding pattern and the fix at which the holding pattern is defined. Outbound is defined as the distance from a point abeam the holding fix to the beginning of the inbound turn.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / inboundHoldingCourse
Namespace No namespace
Annotations

The Inbound Holding Course field defines the inbound course to the holding waypoint.
Diagram
Diagram ARINC424_22_HTML.tmp#Course_courseValue ARINC424_22_HTML.tmp#Course_isTrue ARINC424_22_HTML.tmp#Course
Type type:Course
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children courseValue, isTrue
Instance

<inboundHoldingCourse>
  <courseValue>{1,1}</courseValue>
  <isTrue>{0,1}</isTrue>
</inboundHoldingCourse>
Source

<xs:element name="inboundHoldingCourse" type="type:Course" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Inbound Holding Course field defines the inbound course to the holding waypoint.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / legInboundOutboundIndicator
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#LegInboundOutboundIndicator
Type enum:LegInboundOutboundIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Inbound
Inbound
enumeration Outbound
Inbound
Source

<xs:element name="legInboundOutboundIndicator" type="enum:LegInboundOutboundIndicator" minOccurs="0" maxOccurs="1"/>
[ top ]
Element HoldingPattern / maximumAltitude
Namespace No namespace
Annotations

The “Maximum Altitude” field is used to indicate the maximum altitude allowed.
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude ARINC424_22_HTML.tmp#AltitudeLimit_isGround ARINC424_22_HTML.tmp#AltitudeLimit_isMSL ARINC424_22_HTML.tmp#AltitudeLimit_isNotam ARINC424_22_HTML.tmp#AltitudeLimit_isNotSpecified ARINC424_22_HTML.tmp#AltitudeLimit_isUnlimited ARINC424_22_HTML.tmp#AltitudeLimit
Type type:AltitudeLimit
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isGround, isMSL, isNotDefined, isNotSpecified, isNotam, isUnknown, isUnlimited
Instance

<maximumAltitude>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
  <isGround>{0,1}</isGround>
  <isMSL>{0,1}</isMSL>
  <isNotam>{0,1}</isNotam>
  <isNotSpecified>{0,1}</isNotSpecified>
  <isUnlimited>{0,1}</isUnlimited>
</maximumAltitude>
Source

<xs:element name="maximumAltitude" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Maximum Altitude” field is used to indicate the maximum altitude allowed.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / minimumAltitude
Namespace No namespace
Annotations

The “Altitude/Minimum Altitude” field indicates the reference altitude associated with (1) Enroute Airways (MEA, MFA or other minimum altitudes as defined by source), (2) holding pattern path of Holding Pattern record, (3) altitudes at fixes in terminal procedures and terminal procedure path termination defined by the Path Terminator in the Airport or Heliport SID/STAR/Approach Record and (4) lowest altitude of the “blocked altitudes” for a Preferred Route.
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude
Type type:Altitude
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Instance

<minimumAltitude>
  <isNotDefined>{0,1}</isNotDefined>
  <isUnknown>{0,1}</isUnknown>
  <isFlightLevel>{0,1}</isFlightLevel>
  <altitude>{0,1}</altitude>
</minimumAltitude>
Source

<xs:element name="minimumAltitude" type="type:Altitude" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Altitude/Minimum Altitude” field indicates the reference altitude associated with (1) Enroute Airways (MEA, MFA or other minimum altitudes as defined by source), (2) holding pattern path of Holding Pattern record, (3) altitudes at fixes in terminal procedures and terminal procedure path termination defined by the Path Terminator in the Airport or Heliport SID/STAR/Approach Record and (4) lowest altitude of the “blocked altitudes” for a Preferred Route.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / RNP
Namespace No namespace
Annotations

Required Navigation Performance (RNP) is a statement of the Navigation Performance necessary for operation within a defined airspace in accordance with ICAO Annex 15 and/or State published rules.
Diagram
Diagram ARINC424_22_HTML.tmp#RequiredNavigationPerformance
Type type:RequiredNavigationPerformance
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
fractionDigits 9
Source

<xs:element name="RNP" type="type:RequiredNavigationPerformance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Required Navigation Performance (RNP) is a statement of the Navigation Performance necessary for operation within a defined airspace in accordance with ICAO Annex 15 and/or State published rules.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / rvsmMaximumLevel
Namespace No namespace
Annotations

RVSM Maximum Level is the highest defined cruising level for an airway or holding pattern.
Diagram
Diagram ARINC424_22_HTML.tmp#FlightLevel
Type type:FlightLevel
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="rvsmMaximumLevel" type="type:FlightLevel" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>RVSM Maximum Level is the highest defined cruising level for an airway or holding pattern.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / rvsmMinimumLevel
Namespace No namespace
Annotations

RVSM Minimum Level is the lowest defined cruising level for an airway or holding pattern.
Diagram
Diagram ARINC424_22_HTML.tmp#FlightLevel
Type type:FlightLevel
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="rvsmMinimumLevel" type="type:FlightLevel" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>RVSM Minimum Level is the lowest defined cruising level for an airway or holding pattern.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / turnDirection
Namespace No namespace
Annotations

The “Turn” field specifies the direction in which holding pattern turns are to be made.
Diagram
Diagram ARINC424_22_HTML.tmp#Turn
Type enum:Turn
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Left
Left
enumeration Right
Right
Source

<xs:element name="turnDirection" type="enum:Turn" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Turn” field specifies the direction in which holding pattern turns are to be made.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / verticalScaleFactor
Namespace No namespace
Annotations

Vertical Scale Factor (VSF) is used to set the vertical deviation scale.
Diagram
Diagram ARINC424_22_HTML.tmp#VerticalScaleFactor
Type type:VerticalScaleFactor
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="verticalScaleFactor" type="type:VerticalScaleFactor" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Vertical Scale Factor (VSF) is used to set the vertical deviation scale.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / fixIdentifier
Namespace No namespace
Annotations

The “Fix Identifier” field contains the five-character-name-code, or other series of characters, with which the fix is identified. This includes Waypoint Identifiers, VHF NAVAID Identifiers, NDB NAVAID identifier, Airport Identifiers, and Runway Identifiers
Diagram
Diagram ARINC424_22_HTML.tmp#CoreIdentifier
Type type:CoreIdentifier
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 16
Source

<xs:element name="fixIdentifier" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Fix Identifier” field contains the five-character-name-code, or other series of characters, with which the fix is identified. This includes Waypoint Identifiers, VHF NAVAID Identifiers, NDB NAVAID identifier, Airport Identifiers, and Runway Identifiers</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element HoldingPattern / fixRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="fixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element HoldingPattern / portRef
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="portRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:ApproachWaypointDescription / isEngineOutDisarmPoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isEngineOutDisarmPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:ApproachWaypointDescription / isFACF
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFACF" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:ApproachWaypointDescription / isMissedApproachPoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isMissedApproachPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:ApproachWaypointDescription / isFAF
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFAF" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:ApproachWaypointDescription / isFinalEndPoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFinalEndPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:ApproachWaypointDescription / isFixTurningFinalApproach
Namespace No namespace
Annotations

Step-down fix on the final approach coding indicating a segment course change that is greater than or equal to one degree different than the next leg. All RF non-procedure fixes on the final approach coding meet this requirement. This code will take precedence over a step-down fix code at the same fix.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isFixTurningFinalApproach" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Step-down fix on the final approach coding indicating a segment course change that is greater than or equal to one degree different than the next leg. All RF non-procedure fixes on the final approach coding meet this requirement. This code will take precedence over a step-down fix code at the same fix.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ApproachWaypointDescription / isInitialApproachFix
Namespace No namespace
Annotations

An Initial Approach Fix is that fix designated by the government source documentations as the fix at which the Initial Approach segment begins. An Approach Procedure may have no IAF or multiple IAFs waypoints.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isInitialApproachFix" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>An Initial Approach Fix is that fix designated by the government source documentations as the fix at which the Initial Approach segment begins. An Approach Procedure may have no IAF or multiple IAFs waypoints.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ApproachWaypointDescription / isIntermediateApproachFix
Namespace No namespace
Annotations

An Intermediate Fix is a fix designated by government source documentation as the fix at which the Intermediate Approach Segment of the approach begins
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isIntermediateApproachFix" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>An Intermediate Fix is a fix designated by government source documentation as the fix at which the Intermediate Approach Segment of the approach begins</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ApproachWaypointDescription / stepDownFix
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#StepDownFix
Type enum:StepDownFix
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration unnamedInFinalApproachSegment
enumeration unnamedInIntermediateApproachSegment
enumeration named
Source

<xs:element name="stepDownFix" type="enum:StepDownFix" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:NavaidLimitation / navaidLimitationCode
Namespace No namespace
Annotations

The “Navaid Limitation Codes” field is used to define the type of limitation to be expected with a VHF Navaid.
Diagram
Diagram ARINC424_22_HTML.tmp#NavaidLimitationCode
Type enum:NavaidLimitationCode
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Coverage
Coverage, the limitations are expressed as maximum reception reliability
enumeration Fluctuations
Fluctuations, radial(s) are affected by course fluctuations.
enumeration Roughness
Roughness, signal roughness experienced in the sector(s) defined.
enumeration Unreliable
Unreliable in the sector(s), at the altitude(s), at the distance(s) defined.
enumeration Restricted
Restricted in the sector(s), at the altitude(s), at the distance(s) defined
enumeration Unusable
Unusable in the sector(s), at the altitude(s), at the distance(s) defined.
enumeration OutOfTollerance
Out of Tolerance in the sector(s), at the altitude(s), at the distance(s) defined.
Source

<xs:element name="navaidLimitationCode" type="enum:NavaidLimitationCode" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Navaid Limitation Codes” field is used to define the type of limitation to be expected with a VHF Navaid.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:NavaidLimitation / componentAffectedIndicator
Namespace No namespace
Annotations

The VHF Navaid File contains navaids that have one or two components - azimuth and/or distance. Published limitations may apply to one or both of the components. The “Component Affected Indicator” defines which component(s) are affected by the limitation.
Diagram
Diagram ARINC424_22_HTML.tmp#ComponentAffectedIndicator
Type enum:ComponentAffectedIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration TacanOrVortacAzimuth
TACAN or VORTAC, TACAN azimuth component only affected.
enumeration VorDmeOrVortacAzimuthAndDistance
VORDME or VORTAC, both azimuth and distance component affected.
enumeration VordmeOrDmeDistance
VORDME or DME, distance component only affected.
enumeration VortacOrTacanAzimth
VORTAC or TACAN, TACAN azimuth and distance component affected.
enumeration TacanVortacDistance
TACAN or VORTAC, distance component affected.
enumeration VorOrVordmeOrVorAzimuth
VOR, VORDME or VORDME, VOR azimuth component affected
enumeration VorOrVordmeOrTacanOrVortacanAzimuth
VOR, VORDME or TACAN, VOR and TACAN azimuth and distance component affected.
Source

<xs:element name="componentAffectedIndicator" type="enum:ComponentAffectedIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The VHF Navaid File contains navaids that have one or two components - azimuth and/or distance. Published limitations may apply to one or both of the components. The “Component Affected Indicator” defines which component(s) are affected by the limitation.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:NavaidLimitation / sectorDetails
Namespace No namespace
Annotations

This class is an abstraction used to represent the details for a Sector.
Diagram
Diagram ARINC424_22_HTML.tmp#SectorDetails_altitudeDescription ARINC424_22_HTML.tmp#SectorDetails_altitudeLimitation ARINC424_22_HTML.tmp#SectorDetails_distanceDescription ARINC424_22_HTML.tmp#SectorDetails_distanceLimitationBegin ARINC424_22_HTML.tmp#SectorDetails_distanceLimitationEnd ARINC424_22_HTML.tmp#SectorDetails_sectorFrom ARINC424_22_HTML.tmp#SectorDetails_sectorTo ARINC424_22_HTML.tmp#SectorDetails
Type type:SectorDetails
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children altitudeDescription, altitudeLimitation, distanceDescription, distanceLimitationBegin, distanceLimitationEnd, sectorFrom, sectorTo
Instance

<sectorDetails>
  <altitudeDescription>{1,1}</altitudeDescription>
  <altitudeLimitation>{1,1}</altitudeLimitation>
  <distanceDescription>{1,1}</distanceDescription>
  <distanceLimitationBegin>{1,1}</distanceLimitationBegin>
  <distanceLimitationEnd>{1,1}</distanceLimitationEnd>
  <sectorFrom>{1,1}</sectorFrom>
  <sectorTo>{1,1}</sectorTo>
</sectorDetails>
Source

<xs:element name="sectorDetails" type="type:SectorDetails" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details for a Sector.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:SectorDetails / altitudeDescription
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AltitudeDescription
Type enum:AltitudeDescription
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration AtOrAboveFirst
At or above altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration AtOrBelow
At or below altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration At
At altitude specified in first Altitude field. Also used with Localizer Only Altitude field, and the FACF Waypoint on Precision Approach Coding with Electronic Glide Slope.
enumeration B
At or above to at or below altitudes specified in the first and second Altitude fields. Not used on FAF or MAP Waypoint Records in Precision Approach Coding with Electronic Glide Slope
enumeration C
"At or above" altitude specified in second "Altitude" field.
enumeration G
Glide Slope Altitude (MSL) At Fix, specified in the first Altitude field on the FAF Waypoint and Glide Slope Intercept Altitude (MSL) in second altitude of FAF Waypoint in Precision Approach Coding with electronic Glide Slope.
enumeration I
Glide Slope Intercept Altitude specified in second "Altitude" field and "at" altitude specified in first "Altitude" field on the FACF Waypoint in Precision Approach Coding with electronic Glide Slope
Source

<xs:element name="altitudeDescription" type="enum:AltitudeDescription" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:SectorDetails / altitudeLimitation
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AltitudeLimitation
Type type:AltitudeLimitation
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
length 6
Source

<xs:element name="altitudeLimitation" type="type:AltitudeLimitation" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:SectorDetails / distanceDescription
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceDescription
Type enum:DistanceDescription
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration OutToSpecifiedDistance
The communication frequency or navaid limitation is out to a specified distance.
enumeration AppliesBeyondDistance
The communication frequency is used or the navaid limitation applies beyond a specified distance
enumeration NoRestriction
no restrictions/limitations apply
Source

<xs:element name="distanceDescription" type="enum:DistanceDescription" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:SectorDetails / distanceLimitationBegin
Namespace No namespace
Annotations

The “Distance Limitation” fields are used to define the distance range from the navaid at which the limitation applies.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceIntegerNM
Type type:DistanceIntegerNM
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="distanceLimitationBegin" type="type:DistanceIntegerNM" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Distance Limitation” fields are used to define the distance range from the navaid at which the limitation applies.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:SectorDetails / distanceLimitationEnd
Namespace No namespace
Annotations

The “Distance Limitation” fields are used to define the distance range from the navaid at which the limitation applies.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceIntegerNM
Type type:DistanceIntegerNM
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="distanceLimitationEnd" type="type:DistanceIntegerNM" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Distance Limitation” fields are used to define the distance range from the navaid at which the limitation applies.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:SectorDetails / sectorFrom
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SectorCodes
Type enum:SectorCodes
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration 000To015
from 000 to 015
enumeration 015To030
From 015 to 030
enumeration 030To045
From 030 to 045
enumeration 045To060
From 045 to 060
enumeration 060To075
From 060 to 075
enumeration 075To090
From 075 to 090
enumeration 090To105
From 090 to 105
enumeration 105To120
From 105 to 120
enumeration 120To135
From 120 to 135
enumeration 135to150
From 135 to 150
enumeration 150To165
From 150 to 165
enumeration 165To180
From 165 to 180
enumeration 180To195
From 180 to 195
enumeration 195To210
From 195 to 210
enumeration 210To225
From 210 to 225
enumeration 225To240
From 225 to 240
enumeration 240To225
From 240 to 255
enumeration 225To270
From255 to 270
enumeration 270To285
From 270 to 285
enumeration 285To300
From 285 to 300
enumeration 300To315
From 300 to 315
enumeration 315To330
From 315 to 330
enumeration 330To345
From 330 to 345
enumeration 345To000
From 345 to 000
Source

<xs:element name="sectorFrom" type="enum:SectorCodes" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:SectorDetails / sectorTo
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SectorCodes
Type enum:SectorCodes
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration 000To015
from 000 to 015
enumeration 015To030
From 015 to 030
enumeration 030To045
From 030 to 045
enumeration 045To060
From 045 to 060
enumeration 060To075
From 060 to 075
enumeration 075To090
From 075 to 090
enumeration 090To105
From 090 to 105
enumeration 105To120
From 105 to 120
enumeration 120To135
From 120 to 135
enumeration 135to150
From 135 to 150
enumeration 150To165
From 150 to 165
enumeration 165To180
From 165 to 180
enumeration 180To195
From 180 to 195
enumeration 195To210
From 195 to 210
enumeration 210To225
From 210 to 225
enumeration 225To240
From 225 to 240
enumeration 240To225
From 240 to 255
enumeration 225To270
From255 to 270
enumeration 270To285
From 270 to 285
enumeration 285To300
From 285 to 300
enumeration 300To315
From 300 to 315
enumeration 315To330
From 315 to 330
enumeration 330To345
From 330 to 345
enumeration 345To000
From 345 to 000
Source

<xs:element name="sectorTo" type="enum:SectorCodes" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:NavaidLimitation / sequenceEndIndicator
Namespace No namespace
Annotations

The “Sequence End Indicator” field is used to define the end of a set of sequences defining a given limitation to a given VHF Navaid Component or Component pair.
Diagram
Diagram ARINC424_22_HTML.tmp#SequenceEndIndicator
Type type:SequenceEndIndicator
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
length 1
Source

<xs:element name="sequenceEndIndicator" type="type:SequenceEndIndicator" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Sequence End Indicator” field is used to define the end of a set of sequences defining a given limitation to a given VHF Navaid Component or Component pair.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:ServiceIndicator / airportHeliportCommunicationServiceIndicator
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AirportHeliportCommunicationServiceIndicator_serviceIndicatorAirportHeliportFrequency ARINC424_22_HTML.tmp#AirportHeliportCommunicationServiceIndicator_serviceIndicatorAirportHeliportInformation ARINC424_22_HTML.tmp#AirportHeliportCommunicationServiceIndicator_serviceIndicatorAirportHeliportService ARINC424_22_HTML.tmp#AirportHeliportCommunicationServiceIndicator
Type type:AirportHeliportCommunicationServiceIndicator
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children serviceIndicatorAirportHeliportFrequency, serviceIndicatorAirportHeliportInformation, serviceIndicatorAirportHeliportService
Instance

<airportHeliportCommunicationServiceIndicator>
  <serviceIndicatorAirportHeliportFrequency>{0,1}</serviceIndicatorAirportHeliportFrequency>
  <serviceIndicatorAirportHeliportInformation>{0,1}</serviceIndicatorAirportHeliportInformation>
  <serviceIndicatorAirportHeliportService>{0,1}</serviceIndicatorAirportHeliportService>
</airportHeliportCommunicationServiceIndicator>
Source

<xs:element name="airportHeliportCommunicationServiceIndicator" type="type:AirportHeliportCommunicationServiceIndicator" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:ServiceIndicator / enrouteCommunicationServiceIndicator
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#EnrouteCommunicationServiceIndicator_serviceIndicatorEnrouteFrequency ARINC424_22_HTML.tmp#EnrouteCommunicationServiceIndicator_serviceIndicatorEnrouteInformation ARINC424_22_HTML.tmp#EnrouteCommunicationServiceIndicator_serviceIndicatorEnrouteService ARINC424_22_HTML.tmp#EnrouteCommunicationServiceIndicator
Type type:EnrouteCommunicationServiceIndicator
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children serviceIndicatorEnrouteFrequency, serviceIndicatorEnrouteInformation, serviceIndicatorEnrouteService
Instance

<enrouteCommunicationServiceIndicator>
  <serviceIndicatorEnrouteFrequency>{0,1}</serviceIndicatorEnrouteFrequency>
  <serviceIndicatorEnrouteInformation>{0,1}</serviceIndicatorEnrouteInformation>
  <serviceIndicatorEnrouteService>{0,1}</serviceIndicatorEnrouteService>
</enrouteCommunicationServiceIndicator>
Source

<xs:element name="enrouteCommunicationServiceIndicator" type="type:EnrouteCommunicationServiceIndicator" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Minimums / aircraftCategory
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#AircraftCategory
Type type:AircraftCategory
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="aircraftCategory" type="type:AircraftCategory" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:Minimums / decisionHeight
Namespace No namespace
Annotations

The “Decision Height” fields are used to specify a specific height in the precision approach at which a missed approach must be initiated if the required visual reference to continue the approach has not been established
Diagram
Diagram ARINC424_22_HTML.tmp#DecisionHeight
Type type:DecisionHeight
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="decisionHeight" type="type:DecisionHeight" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Decision Height” fields are used to specify a specific height in the precision approach at which a missed approach must be initiated if the required visual reference to continue the approach has not been established</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:Minimums / minimumDescentHeight
Namespace No namespace
Annotations

The Minimum Descent Height fields specify the lowest height, expressed in feet, to which descent is authorized on final approach or during circle-toland maneuvering in execution of a standard instrument approach procedure where no electric glide slope is provided.
Diagram
Diagram ARINC424_22_HTML.tmp#MinimumDescentHeight
Type type:MinimumDescentHeight
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="minimumDescentHeight" type="type:MinimumDescentHeight" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Minimum Descent Height fields specify the lowest height, expressed in feet, to which descent is authorized on final approach or during circle-toland maneuvering in execution of a standard instrument approach procedure where no electric glide slope is provided.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:Minimums / radii
Namespace No namespace
Annotations

The Category Radii fields, expressed in tenths of nautical miles, specifies the obstacle clearance area for aircraft maneuvering to land on a runway which is not aligned with the FAC of the approach procedure. The limits of the circling area are defined to be an arc from the center of the end of each usable runway. The extremities of the adjacent arcs are joined by lines drawn tangent to the arcs. The area thus enclosed is the circling approach area.
Diagram
Diagram ARINC424_22_HTML.tmp#CategoryDistance
Type type:CategoryDistance
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 2
fractionDigits 1
Source

<xs:element name="radii" type="type:CategoryDistance" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Category Radii fields, expressed in tenths of nautical miles, specifies the obstacle clearance area for aircraft maneuvering to land on a runway which is not aligned with the FAC of the approach procedure. The limits of the circling area are defined to be an arc from the center of the end of each usable runway. The extremities of the adjacent arcs are joined by lines drawn tangent to the arcs. The area thus enclosed is the circling approach area.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:OperationalConditions / climbGradient
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ClimbGradient
Type type:ClimbGradient
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="climbGradient" type="type:ClimbGradient" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:OperationalConditions / minimums
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Minimums_aircraftCategory ARINC424_22_HTML.tmp#Minimums_decisionHeight ARINC424_22_HTML.tmp#Minimums_minimumDescentHeight ARINC424_22_HTML.tmp#Minimums_radii ARINC424_22_HTML.tmp#Minimums
Type type:Minimums
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children aircraftCategory, decisionHeight, minimumDescentHeight, radii
Instance

<minimums>
  <aircraftCategory>{1,1}</aircraftCategory>
  <decisionHeight>{1,1}</decisionHeight>
  <minimumDescentHeight>{1,1}</minimumDescentHeight>
  <radii>{1,1}</radii>
</minimums>
Source

<xs:element name="minimums" type="type:Minimums" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:OperationalConditions / minType
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#MinType
Type type:MinType
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="minType" type="type:MinType" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:OperationalConditions / rnp
Namespace No namespace
Annotations

Required Navigation Performance (RNP) is a statement of the Navigation Performance necessary for operation within a defined airspace in accordance with ICAO Annex 15 and/or State published rules.
Diagram
Diagram ARINC424_22_HTML.tmp#RequiredNavigationPerformance
Type type:RequiredNavigationPerformance
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
fractionDigits 9
Source

<xs:element name="rnp" type="type:RequiredNavigationPerformance" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Required Navigation Performance (RNP) is a statement of the Navigation Performance necessary for operation within a defined airspace in accordance with ICAO Annex 15 and/or State published rules.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element type:RNPLevelOfServiceDetails / rnpAuthorised
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#LevelOfServiceAuthorised
Type enum:LevelOfServiceAuthorised
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Authorized
Designated Level of Service is authorized for the procedure
enumeration NotAuthorized
Designated Level of Service is not authorized for the procedure
Source

<xs:element name="rnpAuthorised" type="enum:LevelOfServiceAuthorised" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:RNPLevelOfServiceDetails / rnpLevelOfService
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#RNPLevelOfService
Type type:RNPLevelOfService
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="rnpLevelOfService" type="type:RNPLevelOfService" minOccurs="1" maxOccurs="1"/>
[ top ]
Element type:VhfNavaidClass / vhfNavaidCoverage
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#VhfNavaidCoverage
Type enum:VhfNavaidCoverage
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Terminal
Terminal. Generally usable within 25NM of the facility and below 12000 feet
enumeration Low
Low Altitude.Generally usable within 40NM of the facility and up to 18000 feet.
enumeration High
High Altitude. Generally usable Within 130NM of the facility and up 60000 feet.
enumeration Undefined
Undefined. Coverage not defined by government source.
enumeration IlsTacan
ILS/TACAN. Full TACAN facility frequency-paired and operating with the same identifier as an ILS Localizer. Coverage is Terminal.
Source

<xs:element name="vhfNavaidCoverage" type="enum:VhfNavaidCoverage" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:VhfNavaidClass / vhfNavaidWeatherInfo
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#NavaidWeatherInfo
Type enum:NavaidWeatherInfo
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AUTOMATED
Automatic Transcribed Weather.The frequency of this Navaid is used for the continuous broadcast of some sort of automated weather system such as AWOS, ASOS, TWEB, AWIB, AWIS.
enumeration SCHEDULED
Broadcast Scheduled Weather.The frequency of this Navaid is used for the scheduled, noncontinuous broadcast of some sort of automated weather system such as VOLMET.
Source

<xs:element name="vhfNavaidWeatherInfo" type="enum:NavaidWeatherInfo" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:VhfNavaidClass / isNotCollocated
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isNotCollocated" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:VhfNavaidClass / isBiased
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isBiased" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element type:VhfNavaidClass / isNoVoice
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isNoVoice" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element ApproachLeg / approachWaypointDescription
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ApproachWaypointDescription_isEngineOutDisarmPoint ARINC424_22_HTML.tmp#ApproachWaypointDescription_isFACF ARINC424_22_HTML.tmp#ApproachWaypointDescription_isMissedApproachPoint ARINC424_22_HTML.tmp#ApproachWaypointDescription_isFAF ARINC424_22_HTML.tmp#ApproachWaypointDescription_isFinalEndPoint ARINC424_22_HTML.tmp#ApproachWaypointDescription_isFixTurningFinalApproach ARINC424_22_HTML.tmp#ApproachWaypointDescription_isInitialApproachFix ARINC424_22_HTML.tmp#ApproachWaypointDescription_isIntermediateApproachFix ARINC424_22_HTML.tmp#ApproachWaypointDescription_stepDownFix ARINC424_22_HTML.tmp#ApproachWaypointDescription
Type type:ApproachWaypointDescription
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children isEngineOutDisarmPoint, isFACF, isFAF, isFinalEndPoint, isFixTurningFinalApproach, isInitialApproachFix, isIntermediateApproachFix, isMissedApproachPoint, stepDownFix
Instance

<approachWaypointDescription>
  <isEngineOutDisarmPoint>{0,1}</isEngineOutDisarmPoint>
  <isFACF>{0,1}</isFACF>
  <isMissedApproachPoint>{0,1}</isMissedApproachPoint>
  <isFAF>{0,1}</isFAF>
  <isFinalEndPoint>{0,1}</isFinalEndPoint>
  <isFixTurningFinalApproach>{0,1}</isFixTurningFinalApproach>
  <isInitialApproachFix>{0,1}</isInitialApproachFix>
  <isIntermediateApproachFix>{0,1}</isIntermediateApproachFix>
  <stepDownFix>{0,1}</stepDownFix>
</approachWaypointDescription>
Source

<xs:element name="approachWaypointDescription" type="type:ApproachWaypointDescription" minOccurs="1" maxOccurs="1"/>
[ top ]
Element ApproachLeg / verticalAngle
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#VerticalAngle
Type type:VerticalAngle
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxExclusive 15
minInclusive 0
Source

<xs:element name="verticalAngle" type="type:VerticalAngle" minOccurs="0" maxOccurs="1"/>
[ top ]
Element StarLeg / verticalAngle
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#VerticalAngle
Type type:VerticalAngle
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxExclusive 15
minInclusive 0
Source

<xs:element name="verticalAngle" type="type:VerticalAngle" minOccurs="0" maxOccurs="1"/>
[ top ]
Element SidLeg / isEngineOutDisarmPoint
Namespace No namespace
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isEngineOutDisarmPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
[ top ]
Element SidLeg / isInitialDepartureFix
Namespace No namespace
Annotations

The Initial Departure Fix indication, P in column 43, is coded for the first published fix/waypoint of an RNAV departure.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isInitialDepartureFix" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Initial Departure Fix indication, P in column 43, is coded for the first published fix/waypoint of an RNAV departure.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CommunicationTypeTranslation / communicationType
Namespace No namespace
Annotations

The “Communication Type” is a three-character code indicating the type of communication service available on the frequency contained in the record. Decoding is available in the Communication Type Translation Table.
Diagram
Diagram ARINC424_22_HTML.tmp#CommunicationType
Type enum:CommunicationType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration ACC
Area Control Center
enumeration ACP
Airlift Command Post
enumeration AIR
Air to Air
enumeration APP
Approach Control
enumeration ARR
Arrival Control
enumeration ASO
Automatic Surface Observing System (ASOS)
enumeration ATI
Automatic Terminal Info Service (ATIS)
enumeration AWI
Airport Weather Information Broadcast (AWIB)
enumeration AWO
Automatic Weather Observing Service (AWOS)
enumeration AWS
Aerodrome Weather Information Services (AWIS)
enumeration CBA
Class B Airspace
enumeration CCA
Class C Airspace
enumeration CLD
Clearance Delivery
enumeration CPT
Clearance, Pre-Taxi
enumeration CTA
Control Area (Terminal)
enumeration CTF
Common Traffic Advisory Frequencies (Note 2)
enumeration CTL
Control
enumeration DEP
Departure Control
enumeration DIR
Director (Approach Control Radar)
enumeration EFS
Enroute Flight Advisory Service (EFAS)
enumeration EMR
Emergency
enumeration FSS
Flight Service Station
enumeration GCO
Ground Comm Outlet
enumeration GND
Ground Control
enumeration GTE
Gate Control
enumeration HEL
Helicopter Frequency
enumeration INF
Information
enumeration MBZ
Mandatory Broadcast
enumeration MIL
Military Frequency Zone (note 2)
enumeration MUL
Multicom
enumeration OPS
Operations
enumeration PAL
Pilot Activated Lighting (Note 1)
enumeration RDO
Radio
enumeration RDR
Radar
enumeration RFS
Remote Flight Service Station (RFSS)
enumeration RMP
Ramp/Taxi Control
enumeration RSA
Airport Radar Service Area (ARSA)
enumeration TCA
Terminal Control Area (TCA)
enumeration TMA
Terminal Control Area (TMA)
enumeration TML
Terminal
enumeration TRS
Terminal Radar Service Area (TRSA)
enumeration TWE
Transcriber Weather Broadcast (TWEB)
enumeration TWR
Tower, Air Traffic Control
enumeration UAC
Upper Area Control
enumeration UNI
Unicom
enumeration VOL
Volnet
Source

<xs:element name="communicationType" type="enum:CommunicationType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Communication Type” is a three-character code indicating the type of communication service available on the frequency contained in the record. Decoding is available in the Communication Type Translation Table.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CommunicationTypeTranslation / communicationClass
Namespace No namespace
Annotations

The “Communication Class” field will designate the major grouping of the Communication Types contained in the record.
Diagram
Diagram ARINC424_22_HTML.tmp#CommunicationClass
Type enum:CommunicationClass
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration LIRC
The Communication Type is that of one linked to an Information Region (FIR/UIR) for the purposes of providing control services to aircraft.
enumeration LIRI
The Communication Type is that of one linked to an Information Region (FIR/UIR) for the purposes of providing information services to aircraft.
enumeration USVC
The Communication Type is that of one used within an Information Region (FIR/UIR) for purposes other than control or information services and is not linked to that Region
enumeration ASVC
The Communication Type is that of one providing automated or broadcast services within an Information Region (FIR/UIR).
enumeration ATCF
The Communication Type is that of one providing ATC services to aircraft within the terminal area of an airport.
enumeration GNDF
The Communication Type is that of one providing ATC services to aircraft on the ground at an airport.
enumeration AOTF
The Communication Type is that of one providing services other than ATC functions on the ground or within the terminal area of an airport.
enumeration AFAC
The Communication Type is that of one provided automated or broadcast services to aircraft on the ground or with the terminal area of an airport.
Source

<xs:element name="communicationClass" type="enum:CommunicationClass" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Communication Class” field will designate the major grouping of the Communication Types contained in the record.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CommunicationTypeTranslation / translation
Namespace No namespace
Annotations

The “Translation” field is used to provide a decoding of a three character Communication Type (5.101).
Diagram
Diagram ARINC424_22_HTML.tmp#Translation
Type type:Translation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 80
Source

<xs:element name="translation" type="type:Translation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Translation” field is used to provide a decoding of a three character Communication Type (5.101).</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CommunicationTypeTranslation / typeRecognizedBy
Namespace No namespace
Annotations

The “Type Recognized By” field is used to provide an indication of the provider of a given Communication Type (5.101).
Diagram
Diagram ARINC424_22_HTML.tmp#TypeRecognizedBy
Type enum:TypeRecognizedBy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Icao
The Communication Type is found in government source provided in accordance with ICAO standards.
enumeration Faa
The Communication Type is found in government source provided in accordance with US FAA standards.
enumeration IcaoAndFaa
The Communication Type is found in government source provided in accordance with both ICAO and US FAA standards.
enumeration LocalCountry
The Communication Type is found in government source provided by the country in which the communication is used.
enumeration OtherLocalCountry
The Communication Type is found in government source provided by the country in which the communication is used.
enumeration MadeUp
The Communication Type has been established by the data supplier.
Source

<xs:element name="typeRecognizedBy" type="enum:TypeRecognizedBy" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Type Recognized By” field is used to provide an indication of the provider of a given Communication Type (5.101).</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element CommunicationTypeTranslation / usedOn
Namespace No namespace
Annotations

The “Used On” field provides an indication of what kind of communication records a particular Communication Type is used on.
Diagram
Diagram ARINC424_22_HTML.tmp#UsedOn
Type enum:UsedOn
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration AirportComms
Type is used on Airport Communication Records only
enumeration EnrouteComms
Type is used on Enroute Communication Records only
enumeration HeliportComms
Type is used on Heliport Communication Records only
enumeration AirportHeliportEnrouteComms
Type is used on Airport, Heliport and Enroute Communication Records
enumeration AiportHeliportComms
Type is used on Airport and Heliport Communication Records
Source

<xs:element name="usedOn" type="enum:UsedOn" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Used On” field provides an indication of what kind of communication records a particular Communication Type is used on.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Vor / vorFrequency
Namespace No namespace
Annotations

This data element identifies frequency information on the navaid.
Diagram
Diagram ARINC424_22_HTML.tmp#Frequency_freqUnitOfMeasure ARINC424_22_HTML.tmp#Frequency_frequencyValue ARINC424_22_HTML.tmp#Frequency
Type type:Frequency
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children freqUnitOfMeasure, frequencyValue
Instance

<vorFrequency>
  <freqUnitOfMeasure>{1,1}</freqUnitOfMeasure>
  <frequencyValue>{1,1}</frequencyValue>
</vorFrequency>
Source

<xs:element name="vorFrequency" type="type:Frequency" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This data element identifies frequency information on the navaid.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Vor / navaidClass
Namespace No namespace
Annotations

The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense.
Diagram
Diagram ARINC424_22_HTML.tmp#VhfNavaidClass_vhfNavaidCoverage ARINC424_22_HTML.tmp#VhfNavaidClass_vhfNavaidWeatherInfo ARINC424_22_HTML.tmp#VhfNavaidClass_isNotCollocated ARINC424_22_HTML.tmp#VhfNavaidClass_isBiased ARINC424_22_HTML.tmp#VhfNavaidClass_isNoVoice ARINC424_22_HTML.tmp#VhfNavaidClass
Type type:VhfNavaidClass
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children isBiased, isNoVoice, isNotCollocated, vhfNavaidCoverage, vhfNavaidWeatherInfo
Instance

<navaidClass>
  <vhfNavaidCoverage>{0,1}</vhfNavaidCoverage>
  <vhfNavaidWeatherInfo>{0,1}</vhfNavaidWeatherInfo>
  <isNotCollocated>{0,1}</isNotCollocated>
  <isBiased>{0,1}</isBiased>
  <isNoVoice>{0,1}</isNoVoice>
</navaidClass>
Source

<xs:element name="navaidClass" type="type:VhfNavaidClass" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Vor / dmeRef
Namespace No namespace
Annotations

This field idenifies a reference to a DME navaid which originated in the same source data record as the VOR (i.e. is paired with the VOR)
Diagram
Diagram ARINC424_22_HTML.tmp#PointReference
Type type:PointReference
Properties
content complex
minOccurs 0
maxOccurs 1
Source

<xs:element name="dmeRef" type="type:PointReference" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field idenifies a reference to a DME navaid which originated in the same source data record as the VOR (i.e. is paired with the VOR)</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Vor / stationDeclination
Namespace No namespace
Annotations

For VHF NAVAIDS, the “Station Declination” field contains the angular difference between true north and the zero degree radial of the NAVAID at the time the NAVAID was last site checked. For ILS localizers, the field contains the angular difference between true north and magnetic north at the localizer antenna site at the time the magnetic bearing of the localizer course was established.
Diagram
Diagram ARINC424_22_HTML.tmp#StationDeclination_stationDeclinationEWT ARINC424_22_HTML.tmp#StationDeclination_stationDeclinationValue ARINC424_22_HTML.tmp#StationDeclination
Type type:StationDeclination
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children stationDeclinationEWT, stationDeclinationValue
Instance

<stationDeclination>
  <stationDeclinationEWT>{1,1}</stationDeclinationEWT>
  <stationDeclinationValue>{1,1}</stationDeclinationValue>
</stationDeclination>
Source

<xs:element name="stationDeclination" type="type:StationDeclination" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>For VHF NAVAIDS, the “Station Declination” field contains the angular difference between true north and the zero degree radial of the NAVAID at the time the NAVAID was last site checked. For ILS localizers, the field contains the angular difference between true north and magnetic north at the localizer antenna site at the time the magnetic bearing of the localizer course was established.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Vor / figureOfMerit
Namespace No namespace
Annotations

The Figure of Merit field is used to denote those situations where information has been made available that indicate a VHF Navaid facility is usable beyond the range value that is specified through the Class field. It is also used to denote when a VHF Navaid contained in the database is not available for operational use, i.e., is out of service and to flag a VHF Navaid that is not included in a civilian international NOTAM system.
Diagram
Diagram ARINC424_22_HTML.tmp#FigureOfMerit
Type enum:FigureOfMerit
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration TerminalUse
Terminal Use (generally within 25NM)
enumeration LowAlt
Low Altitude Use (generally within 40NM)
enumeration HighAlt
High Altitude Use (generally within 130NM)
enumeration ExtendedHighAlt
Extended High Altitude Use (generally beyond 130NM)
enumeration NotNOTAMd
Navaid Not included in a civil international NOTAM system
enumeration OutOfService
Navaid Out of Service
Source

<xs:element name="figureOfMerit" type="enum:FigureOfMerit" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Figure of Merit field is used to denote those situations where information has been made available that indicate a VHF Navaid facility is usable beyond the range value that is specified through the Class field. It is also used to denote when a VHF Navaid contained in the database is not available for operational use, i.e., is out of service and to flag a VHF Navaid that is not included in a civilian international NOTAM system.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Vor / frequencyProtection
Namespace No namespace
Annotations

The “Frequency Protection” field provides an indication of the distance to the next nearest NAVAID on the same frequency.
Diagram
Diagram ARINC424_22_HTML.tmp#FrequencyProtectionDistance
Type type:FrequencyProtectionDistance
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="frequencyProtection" type="type:FrequencyProtectionDistance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Frequency Protection” field provides an indication of the distance to the next nearest NAVAID on the same frequency.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Vor / navaidSynchronization
Namespace No namespace
Annotations

This field identifies if the navaid is synchronized.
Diagram
Diagram ARINC424_22_HTML.tmp#NavaidSynchronization
Type enum:NavaidSynchronization
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Synchronous
Synchronous
enumeration Asynchronous
ASynchronous
enumeration Unknown
Unknown
Source

<xs:element name="navaidSynchronization" type="enum:NavaidSynchronization" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field identifies if the navaid is synchronized.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element Vor / navaidLimitations
Namespace No namespace
Annotations

This field represents the navaid limitations.
Diagram
Diagram ARINC424_22_HTML.tmp#NavaidLimitation_navaidLimitationCode ARINC424_22_HTML.tmp#NavaidLimitation_componentAffectedIndicator ARINC424_22_HTML.tmp#NavaidLimitation_sectorDetails ARINC424_22_HTML.tmp#NavaidLimitation_sequenceEndIndicator ARINC424_22_HTML.tmp#NavaidLimitation
Type type:NavaidLimitation
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children componentAffectedIndicator, navaidLimitationCode, sectorDetails, sequenceEndIndicator
Instance

<navaidLimitations>
  <navaidLimitationCode>{0,1}</navaidLimitationCode>
  <componentAffectedIndicator>{0,1}</componentAffectedIndicator>
  <sectorDetails>{0,unbounded}</sectorDetails>
  <sequenceEndIndicator>{0,1}</sequenceEndIndicator>
</navaidLimitations>
Source

<xs:element name="navaidLimitations" type="type:NavaidLimitation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field represents the navaid limitations.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element DmeTacan / vorFrequency
Namespace No namespace
Annotations

This data element identifies VHF frequency that corresponds to the actual DME or TACAN frequency.
Diagram
Diagram ARINC424_22_HTML.tmp#Frequency_freqUnitOfMeasure ARINC424_22_HTML.tmp#Frequency_frequencyValue ARINC424_22_HTML.tmp#Frequency
Type type:Frequency
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children freqUnitOfMeasure, frequencyValue
Instance

<vorFrequency>
  <freqUnitOfMeasure>{1,1}</freqUnitOfMeasure>
  <frequencyValue>{1,1}</frequencyValue>
</vorFrequency>
Source

<xs:element name="vorFrequency" type="type:Frequency" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This data element identifies VHF frequency that corresponds to the actual DME or TACAN frequency.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element DmeTacan / navaidClass
Namespace No namespace
Annotations

The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense.
Diagram
Diagram ARINC424_22_HTML.tmp#VhfNavaidClass_vhfNavaidCoverage ARINC424_22_HTML.tmp#VhfNavaidClass_vhfNavaidWeatherInfo ARINC424_22_HTML.tmp#VhfNavaidClass_isNotCollocated ARINC424_22_HTML.tmp#VhfNavaidClass_isBiased ARINC424_22_HTML.tmp#VhfNavaidClass_isNoVoice ARINC424_22_HTML.tmp#VhfNavaidClass
Type type:VhfNavaidClass
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children isBiased, isNoVoice, isNotCollocated, vhfNavaidCoverage, vhfNavaidWeatherInfo
Instance

<navaidClass>
  <vhfNavaidCoverage>{0,1}</vhfNavaidCoverage>
  <vhfNavaidWeatherInfo>{0,1}</vhfNavaidWeatherInfo>
  <isNotCollocated>{0,1}</isNotCollocated>
  <isBiased>{0,1}</isBiased>
  <isNoVoice>{0,1}</isNoVoice>
</navaidClass>
Source

<xs:element name="navaidClass" type="type:VhfNavaidClass" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element DmeTacan / dmeOperationalServiceVolume
Namespace No namespace
Annotations

The DME Operational Service Volume field is used to specify the service volume information of DME Navaids to support using DMEDME and DME-DME-IRU FMS capabilities in RNAV procedures and routes.
Diagram
Diagram ARINC424_22_HTML.tmp#DMEOperationalServiceVolume
Type enum:DMEOperationalServiceVolume
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration 40OrLess
40NM or less
enumeration 70OrLess
70NM or less
enumeration 130OrLess
130NM or less
enumeration GreaterThan130
Greater than 130NM
enumeration Unspecified
Unspecified
Source

<xs:element name="dmeOperationalServiceVolume" type="enum:DMEOperationalServiceVolume" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The DME Operational Service Volume field is used to specify the service volume information of DME Navaids to support using DMEDME and DME-DME-IRU FMS capabilities in RNAV procedures and routes.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element DmeTacan / ilsDmeLocation
Namespace No namespace
Annotations

This field identifies information about co-location with ILS facilities if the field is related to an ILS facility.
Diagram
Diagram ARINC424_22_HTML.tmp#ILSDMELocation
Type enum:ILSDMELocation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration NotCollocated
Not collocated with Localizer or Glide Slope
enumeration CollocatedLocalizer
Collocated with localizer
enumeration CollocatedGlideSlope
Collocated with Glide Slope
Source

<xs:element name="ilsDmeLocation" type="enum:ILSDMELocation" minOccurs="0" maxOccurs="1">
  <!-- Part of facility characteristics -->
  <xs:annotation>
    <xs:documentation>This field identifies information about co-location with ILS facilities if the field is related to an ILS facility.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element DmeTacan / ilsDMEBias
Namespace No namespace
Annotations

This field is used to specify the DME offset
Diagram
Diagram ARINC424_22_HTML.tmp#ILSDMEBias
Type type:ILSDMEBias
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 2
fractionDigits 1
Source

<xs:element name="ilsDMEBias" type="type:ILSDMEBias" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field is used to specify the DME offset</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element DmeTacan / routeInappropriateDME
Namespace No namespace
Annotations

A “Route Inappropriate Navaid Indicator” is used when a DME navaid has source provided information identifying the navaid as inappropriate for use in navigation solutions for one or more RNAV 1 and RNAV 2 routes.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="routeInappropriateDME" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A “Route Inappropriate Navaid Indicator” is used when a DME navaid has source provided information identifying the navaid as inappropriate for use in navigation solutions for one or more RNAV 1 and RNAV 2 routes.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element DmeTacan / figureOfMerit
Namespace No namespace
Annotations

The Figure of Merit field is used to denote those situations where information has been made available that indicate a VHF Navaid facility is usable beyond the range value that is specified through the Class field. It is also used to denote when a VHF Navaid contained in the database is not available for operational use, i.e., is out of service and to flag a VHF Navaid that is not included in a civilian international NOTAM system.
Diagram
Diagram ARINC424_22_HTML.tmp#FigureOfMerit
Type enum:FigureOfMerit
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration TerminalUse
Terminal Use (generally within 25NM)
enumeration LowAlt
Low Altitude Use (generally within 40NM)
enumeration HighAlt
High Altitude Use (generally within 130NM)
enumeration ExtendedHighAlt
Extended High Altitude Use (generally beyond 130NM)
enumeration NotNOTAMd
Navaid Not included in a civil international NOTAM system
enumeration OutOfService
Navaid Out of Service
Source

<xs:element name="figureOfMerit" type="enum:FigureOfMerit" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Figure of Merit field is used to denote those situations where information has been made available that indicate a VHF Navaid facility is usable beyond the range value that is specified through the Class field. It is also used to denote when a VHF Navaid contained in the database is not available for operational use, i.e., is out of service and to flag a VHF Navaid that is not included in a civilian international NOTAM system.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element DmeTacan / isPaired
Namespace No namespace
Annotations

Indicates whether this DME or TACAN originates from the same source record as a VOR with the same identifier.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="isPaired" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Indicates whether this DME or TACAN originates from the same source record as a VOR with the same identifier.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element DmeTacan / isMlsP
Namespace No namespace
Annotations

This field identifies if the navaid is part of a Precision MLS.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
Source

<xs:element name="isMlsP" type="xs:boolean" minOccurs="0">
  <xs:annotation>
    <xs:documentation>This field identifies if the navaid is part of a Precision MLS.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element DmeTacan / frequencyProtection
Namespace No namespace
Annotations

The “Frequency Protection” field provides an indication of the distance to the next nearest NAVAID on the same frequency.
Diagram
Diagram ARINC424_22_HTML.tmp#FrequencyProtectionDistance
Type type:FrequencyProtectionDistance
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
totalDigits 3
Source

<xs:element name="frequencyProtection" type="type:FrequencyProtectionDistance" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The “Frequency Protection” field provides an indication of the distance to the next nearest NAVAID on the same frequency.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element DmeTacan / navaidLimitations
Namespace No namespace
Annotations

This field represents the navaid limitations.
Diagram
Diagram ARINC424_22_HTML.tmp#NavaidLimitation_navaidLimitationCode ARINC424_22_HTML.tmp#NavaidLimitation_componentAffectedIndicator ARINC424_22_HTML.tmp#NavaidLimitation_sectorDetails ARINC424_22_HTML.tmp#NavaidLimitation_sequenceEndIndicator ARINC424_22_HTML.tmp#NavaidLimitation
Type type:NavaidLimitation
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children componentAffectedIndicator, navaidLimitationCode, sectorDetails, sequenceEndIndicator
Instance

<navaidLimitations>
  <navaidLimitationCode>{0,1}</navaidLimitationCode>
  <componentAffectedIndicator>{0,1}</componentAffectedIndicator>
  <sectorDetails>{0,unbounded}</sectorDetails>
  <sequenceEndIndicator>{0,1}</sequenceEndIndicator>
</navaidLimitations>
Source

<xs:element name="navaidLimitations" type="type:NavaidLimitation" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>This field represents the navaid limitations.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Complex Type Airports
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Airports_airport
Used by
Model
Children airport
Source

<xs:complexType name="Airports">
  <xs:sequence>
    <xs:element name="airport" type="Airport" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type Airport
Namespace No namespace
Annotations

This following record contains the fields used in Airport Record.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Port_elevation ARINC424_22_HTML.tmp#Port_ataIATADesignator ARINC424_22_HTML.tmp#Port_daylightIndicator ARINC424_22_HTML.tmp#Port_ifrCapability ARINC424_22_HTML.tmp#Port_magneticTrueIndicator ARINC424_22_HTML.tmp#Port_publicMilitaryIndicator ARINC424_22_HTML.tmp#Port_recommendedNavaid ARINC424_22_HTML.tmp#Port_speedLimit ARINC424_22_HTML.tmp#Port_speedLimitAltitude ARINC424_22_HTML.tmp#Port_timeZone ARINC424_22_HTML.tmp#Port_transitionAltitude ARINC424_22_HTML.tmp#Port_transitionLevel ARINC424_22_HTML.tmp#Port_terminalNDB ARINC424_22_HTML.tmp#Port_terminalProcedures ARINC424_22_HTML.tmp#Port_terminalWaypoint ARINC424_22_HTML.tmp#Port_taa ARINC424_22_HTML.tmp#Port_portCommunication ARINC424_22_HTML.tmp#Port_helipad ARINC424_22_HTML.tmp#Port_localizerMarker ARINC424_22_HTML.tmp#Port_localizerGlideslope ARINC424_22_HTML.tmp#Port_gls ARINC424_22_HTML.tmp#Port_mls ARINC424_22_HTML.tmp#Port_msa ARINC424_22_HTML.tmp#Port_flightPlanningArrivalDepartureRecords ARINC424_22_HTML.tmp#Port_categoryDistance ARINC424_22_HTML.tmp#Port_maxHelicopterWeight ARINC424_22_HTML.tmp#Port ARINC424_22_HTML.tmp#Airport_controlledASArptIndicator ARINC424_22_HTML.tmp#Airport_controlledASIndicator ARINC424_22_HTML.tmp#Airport_longestRunway ARINC424_22_HTML.tmp#Airport_longestRunwaySurfaceCode ARINC424_22_HTML.tmp#Airport_runway ARINC424_22_HTML.tmp#Airport_airportGate
Type extension of Port
Type hierarchy
Used by
Model
Children airportGate, ataIATADesignator, categoryDistance, controlledASArptIndicator, controlledASIndicator, custAreaCode, cycleDate, datumCode, daylightIndicator, elevation, firRef, flightPlanningArrivalDepartureRecords, gls, helipad, icaoCode, identifier, ifrCapability, localizerGlideslope, localizerMarker, location, longestRunway, longestRunwaySurfaceCode, magneticTrueIndicator, magneticVariation, maxHelicopterWeight, mls, msa, name, notes, portCommunication, publicMilitaryIndicator, recommendedNavaid, recordType, runway, speedLimit, speedLimitAltitude, supplementalData, taa, terminalNDB, terminalProcedures, terminalWaypoint, timeZone, transitionAltitude, transitionLevel, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Airport">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Airport Record.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Port">
      <xs:sequence>
        <xs:element name="controlledASArptIndicator" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “port” field references the airport or heliport to which the data contained in the record relates.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="controlledASIndicator" type="enum:ControlledASIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Controlled Airspace Indicator” field is used to indicate if an airport is associated with controlled airspace of a terminal type such as a Terminal Control Area (TMA or TCA) Radar Area or Class B or C Airspace within the USA.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="longestRunway" type="type:LongestRunway" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Longest Runway” field permits airport to be classified on</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="longestRunwaySurfaceCode" type="enum:LongestRunwaySurfaceCode" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Longest Runway Surface Code” field is used to define whether or not there is a hard surface runway at the airport, the length of which is indicated in the Longest Runway field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runway" type="Runway" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="airportGate" type="AirportGate" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Port
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Port_elevation ARINC424_22_HTML.tmp#Port_ataIATADesignator ARINC424_22_HTML.tmp#Port_daylightIndicator ARINC424_22_HTML.tmp#Port_ifrCapability ARINC424_22_HTML.tmp#Port_magneticTrueIndicator ARINC424_22_HTML.tmp#Port_publicMilitaryIndicator ARINC424_22_HTML.tmp#Port_recommendedNavaid ARINC424_22_HTML.tmp#Port_speedLimit ARINC424_22_HTML.tmp#Port_speedLimitAltitude ARINC424_22_HTML.tmp#Port_timeZone ARINC424_22_HTML.tmp#Port_transitionAltitude ARINC424_22_HTML.tmp#Port_transitionLevel ARINC424_22_HTML.tmp#Port_terminalNDB ARINC424_22_HTML.tmp#Port_terminalProcedures ARINC424_22_HTML.tmp#Port_terminalWaypoint ARINC424_22_HTML.tmp#Port_taa ARINC424_22_HTML.tmp#Port_portCommunication ARINC424_22_HTML.tmp#Port_helipad ARINC424_22_HTML.tmp#Port_localizerMarker ARINC424_22_HTML.tmp#Port_localizerGlideslope ARINC424_22_HTML.tmp#Port_gls ARINC424_22_HTML.tmp#Port_mls ARINC424_22_HTML.tmp#Port_msa ARINC424_22_HTML.tmp#Port_flightPlanningArrivalDepartureRecords ARINC424_22_HTML.tmp#Port_categoryDistance ARINC424_22_HTML.tmp#Port_maxHelicopterWeight
Type extension of A424Point
Type hierarchy
Properties
abstract true
Used by
Complex Types Airport, Heliport
Model
Children ataIATADesignator, categoryDistance, custAreaCode, cycleDate, datumCode, daylightIndicator, elevation, firRef, flightPlanningArrivalDepartureRecords, gls, helipad, icaoCode, identifier, ifrCapability, localizerGlideslope, localizerMarker, location, magneticTrueIndicator, magneticVariation, maxHelicopterWeight, mls, msa, name, notes, portCommunication, publicMilitaryIndicator, recommendedNavaid, recordType, speedLimit, speedLimitAltitude, supplementalData, taa, terminalNDB, terminalProcedures, terminalWaypoint, timeZone, transitionAltitude, transitionLevel, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Port" abstract="true">
  <xs:complexContent>
    <xs:extension base="A424Point">
      <xs:sequence>
        <xs:element name="elevation" type="type:Elevation" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Elevation of the highest elevation of any landing surface on the port in feet.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ataIATADesignator" type="type:ATAIATADesignator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The ATA/IATA field contains the Airport/Heliport ATA/IATA designator code to which the data contained in the record relates.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="daylightIndicator" type="type:DaylightIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Daylight” Time Indicator” field is used to indicate if the airport observes Daylight or Summer time when such time changes are in effect for the country or state the airport resides in.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ifrCapability" type="type:IFRCapability" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “IFR Capability” field indicates if the Airport/Heliport has any published Instrument Approach Procedures.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="magneticTrueIndicator" type="enum:MagneticTrueIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="publicMilitaryIndicator" type="enum:PublicMilitaryIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Airports can be classified into four categories, airports open to the general public, military airports, joint use civil and military, and airports closed to the public. This field permits these airports to be categorized by their use.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="recommendedNavaid" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Recommended Navaid” field allows the reference facility for the waypoint in a given record “Fix Ident” field or for an Airport or Heliport to be specified. VHF, NDB (Enroute and Terminal), Localizer, TACAN, GLS and MLS Navaids may be referenced.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="speedLimit" type="type:SpeedLimit" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Speed Limit field defines a speed, expressed in Knots, Indicated (K.I.A.S.), for a fix in a terminal procedure or for an airport or heliport terminal environment.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="speedLimitAltitude" type="type:Altitude" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>“Speed Limit Altitude” is the altitude below which speed limits may be imposed.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="timeZone" type="type:TimeZone" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The standard time zone system is based on the division of world into 24 zones, each of 15 degrees longitude. The “zero” time zone is entered at Greenwich meridian with longitudes 7 degrees, 30 minutes West and 7 degrees, 30 minutes east, and there is no difference in the standard time of this time zone and Greenwich Mean Time. Time zones are designated by letters of the alphabet and numbers by which the standard time of each zone differs from that at Greenwich.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="transitionAltitude" type="type:TransitionAltitude" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="transitionLevel" type="type:TransitionAltitude" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="terminalNDB" type="TerminalNDB" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>"Terminal NDB" field contains NDBs associated with the Airports and Heliports</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="terminalProcedures" type="TerminalProcedures" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Collectively, all Standard Instrument Departures (SIDs), Standard Terminal Arrivel Routes (STARs) and Instument Approach Procedures (IAPs) coded to the standards in this specification are referred to as Terminal Procedure.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="terminalWaypoint" type="TerminalWaypoint" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Terminal Waypoint field contains all terminal waypoints and VFR waypoints within the geographical area of each airport/heliport. Terminal waypoints utilized by two or more airports will be stored in the Enroute Waypoint Subsection to eliminate duplication. Terminal waypoints used jointly by and airoprt and a heliport are also stored in the Enroute waypoint section.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="taa" type="TAA" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>The Airport TAA (Terminal Arrival Altitude) field contains the Sector Bearing, Sector Radii, and Section Altitudes for all government published Approach Procedures</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="portCommunication" type="PortCommunication" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Port Communication field contain all government published airport communication facilites for particular airoprts.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="helipad" type="Helipad" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Helipad field will contain a listing of all helipads associated with airports.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="localizerMarker" type="AirportHeliportLocalizerMarker" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>The Airport and Heliport Localizer Marker field contains details about all markers and locators associated with all types of localizers. It does not contain airway marker.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="localizerGlideslope" type="LocalizerGlideslope" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Localizer Glidescope field should contain all government published localizer type facilities to airport runways and/or helipad. As a minimum, this field should contain all localizer type facilities.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="gls" type="GLS" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="mls" type="MLS" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="msa" type="MSA" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>The Minimum Sector Altitude (MSA) field contains details relating to available sector altitudes.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="flightPlanningArrivalDepartureRecords" type="FlightPlanningRecords" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Flight Planning Arrival/Departure record is used to provide the sub-set of data defining SIDs, STARs, and Approach Procedures required for the computer generation of Flight Plans whihc include Terminal Procedure. This contains a sequential listing of published Arrival Procedures, Approach Procedures and Departure Procedures, the availabel Enroute and Runway Transitions for those procedures, the Transition waypoints, the appropriate along track distance fields, and the intermediate fixed along those routes.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="categoryDistance" type="type:CategoryDistance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Category Radii” fields, expressed in tenths of nautical miles, specifies the obstacle clearance area for aircraft maneuvering to land on a runway which is not aligned with the FAC of the approach procedure. The limits of the circling area are defined to be an arc from the center of the end of each usable runway. The extremities of the adjacent arcs are joined by lines drawn tangent to the arcs. The area thus enclosed is the circling approach area.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" name="maxHelicopterWeight" type="type:MaxHelicopterWeight">
          <xs:annotation>
            <xs:documentation>This element provides the maximum weight that the helipad or FATO can support.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type A424Point
Namespace No namespace
Annotations

Abstract superclass for any class that has a latitude and longitude
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef
Type extension of A424Record
Type hierarchy
Properties
abstract true
Used by
Model
Children custAreaCode, cycleDate, datumCode, firRef, icaoCode, identifier, location, magneticVariation, name, notes, recordType, supplementalData, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="A424Point" abstract="true">
  <xs:annotation>
    <xs:documentation>Abstract superclass for any class that has a latitude and longitude</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="datumCode" type="enum:DatumCode" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Datum Code field defines the Local Horizontal Reference Datum to which a geographical position, expressed in latitude and longitude, is associated.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="icaoCode" type="type:IcaoCode" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “ICAO Code” field permits records to be categorized geographically within the limits of the categorization performed by the “Area Code” field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="identifier" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The identifier field contains the five-character-name-code, or other series of characters, with which the fix is identified. This includes Waypoint Identifiers, VHF NAVAID Identifiers, NDB NAVAID identifier, and Airport Identifiers</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="location" type="type:Location" minOccurs="1" maxOccurs="1"/>
        <xs:element name="magneticVariation" type="type:MagneticVariation" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Magnetic Variation” field specifies the angular difference between True North and Magnetic North at the location defined in the record. “Dynamic Magnetic Variation” is a computer model derived value and takes location and date into consideration. For the “Station Declination” used in some record types, refer to Section 5.66.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="name" type="type:Name" minOccurs="0" maxOccurs="1"/>
        <xs:element name="uirRef" type="xs:IDREF" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The UIR Reference field identifies the Upper Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The reference is for the controlling Area Control Center or Flight Information Center.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="firRef" type="xs:IDREF" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The FIR Reference field identifies the Flight Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The reference is for the controlling Area Control Center or Flight Information Center.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
      <xs:attribute name="referenceID" use="required" type="xs:ID"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type A424Record
Namespace No namespace
Annotations

Represents an ARINC 424 record type
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType
Type extension of A424Base
Type hierarchy
Properties
abstract true
Used by
Model
Children custAreaCode, cycleDate, notes, recordType, supplementalData
Source

<xs:complexType name="A424Record" abstract="true">
  <xs:annotation>
    <xs:documentation>Represents an ARINC 424 record type</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Base">
      <xs:sequence>
        <xs:element name="custAreaCode" type="type:CustAreaCode" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="cycleDate" type="type:CycleDate" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>For the concrete data type that implements A424Record the cycle date represents the last time the children elements changed. This only applies to elements with the same arity as this cycle date element. For example the cycle date that is a first child of a Procedure does not indicate if children of a Leg changed.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="notes" type="type:NotesText" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>This class is used to have relevant Notes</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="recordType" type="enum:RecordType" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Record Type” field content indicates whether the record data are “standard,” i.e., suitable for universal application, or “tailored,” i.e. included for a single user’s specific purpose . Record type is set to tailored if any extension points are included in the record or if any content of the ARINC 424 XML schemas are altered in any way.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type A424Base
Namespace No namespace
Annotations

Base Class for the A424 Records.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData
Properties
abstract true
Used by
Model
Children supplementalData
Source

<xs:complexType name="A424Base" abstract="true">
  <xs:annotation>
    <xs:documentation>Base Class for the A424 Records.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="supplementalData" type="SupplementalData" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>This field is for private and/or temporary exchanges of data.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type SupplementalData
Namespace No namespace
Diagram
Diagram
Used by
Model
ANY element from namespace(s) 'http://www.mitre.org/ARINC/extensions, http://www.navtech.aero/ARINC/extensions, http://www.garmin.com/ARINC/extensions, http://www.agustawestland-ans.com/ARINC/extensions, http://www.NGA.mil'
Source

<xs:complexType name="SupplementalData">
  <xs:sequence>
    <xs:any namespace="http://www.mitre.org/ARINC/extensions, http://www.navtech.aero/ARINC/extensions, http://www.garmin.com/ARINC/extensions, http://www.agustawestland-ans.com/ARINC/extensions, http://www.NGA.mil" processContents="strict" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>xs:any provides the ability to extend ARINC 424 with custom data. An organization that creates an extension should define a namespace for the extension. This element is what identifies a valid namespace for the extensions. A user should add the namespace, if not already provided in this element's definition to the namespace attribute. The namespace must be different than the default namespace and or any namespace used outside of extensions to this standard.</xs:documentation>
      </xs:annotation>
    </xs:any>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type type:CustAreaCode
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#CustAreaCode_areaCode ARINC424_22_HTML.tmp#CustAreaCode_customerCode
Type extension of type:Alpha
Type hierarchy
Used by
Model
Children areaCode, customerCode
Source

<xs:complexType name="CustAreaCode">
  <xs:annotation>
    <xs:documentation>The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="type:Alpha">
      <xs:choice>
        <xs:element name="areaCode" type="enum:AreaCode" minOccurs="1" maxOccurs="1"/>
        <xs:element name="customerCode" type="type:CustomerCode" minOccurs="1" maxOccurs="1"/>
      </xs:choice>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type type:Alpha
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This Class represents the "Alpha" character type of the Arinc 424 data.
Diagram
Diagram
Used by
Model
Source

<xs:complexType name="Alpha">
  <xs:annotation>
    <xs:documentation>This Class represents the "Alpha" character type of the Arinc 424 data.</xs:documentation>
  </xs:annotation>
  <xs:sequence/>
</xs:complexType>
[ top ]
Simple Type enum:AreaCode
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AFR
Africa
enumeration CAN
Canada
enumeration EEU
Eastern Europe and Asia
enumeration EUR
Europe
enumeration LAM
Latin America
enumeration MES
Middle East
enumeration PAC
Pacific
enumeration SAM
South America
enumeration SPA
South Pacific
enumeration USA
United States
Used by
Source

<xs:simpleType name="AreaCode">
  <xs:annotation>
    <xs:documentation>The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AFR">
      <xs:annotation>
        <xs:documentation>Africa</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CAN">
      <xs:annotation>
        <xs:documentation>Canada</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EEU">
      <xs:annotation>
        <xs:documentation>Eastern Europe and Asia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EUR">
      <xs:annotation>
        <xs:documentation>Europe</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LAM">
      <xs:annotation>
        <xs:documentation>Latin America</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MES">
      <xs:annotation>
        <xs:documentation>Middle East</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PAC">
      <xs:annotation>
        <xs:documentation>Pacific</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SAM">
      <xs:annotation>
        <xs:documentation>South America</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SPA">
      <xs:annotation>
        <xs:documentation>South Pacific</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="USA">
      <xs:annotation>
        <xs:documentation>United States</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:CustomerCode
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [a-zA-Z0-9]{2,3}
Used by
Source

<xs:simpleType name="CustomerCode">
  <xs:annotation>
    <xs:documentation>The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[a-zA-Z0-9]{2,3}"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:CycleDate
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The "Cycle Date" field identifies the calendar period in which the record was added to the file or last revised. A change in any ARINC 424 field, except Dynamic Magnetic Variation, Frequency Protection, Continuation Record Number and File Record Number, requires a cycle date change. The cycle date will not change if there is no change in the data.

The first two digits of the field contain the last two digits of the year in which the addition or revision was made. The last two digits contain the numeric identity of the 28-day data update cycle during which the change occurred. Each calendar year contains 13 such cycles; however, on rare occasions 14 cycles will be encountered.  Note:  This field does not indicate changes on elements/attributes of type ID or IDREF.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 4
maxLength 4
Used by
Source

<xs:simpleType name="CycleDate">
  <xs:annotation>
    <xs:documentation>The "Cycle Date" field identifies the calendar period in which the record was added to the file or last revised. A change in any ARINC 424 field, except Dynamic Magnetic Variation, Frequency Protection, Continuation Record Number and File Record Number, requires a cycle date change. The cycle date will not change if there is no change in the data. The first two digits of the field contain the last two digits of the year in which the addition or revision was made. The last two digits contain the numeric identity of the 28-day data update cycle during which the change occurred. Each calendar year contains 13 such cycles; however, on rare occasions 14 cycles will be encountered. Note: This field does not indicate changes on elements/attributes of type ID or IDREF.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="4"/>
    <xs:maxLength value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:NotesText
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Notes” field is provided to accommodate any information that cannot be entered in the primary record.
Diagram
Diagram
Type xs:string
Used by
Source

<xs:simpleType name="NotesText">
  <xs:annotation>
    <xs:documentation>The “Notes” field is provided to accommodate any information that cannot be entered in the primary record.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Simple Type enum:RecordType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Record Type” field content indicates whether the record data are “standard,” i.e., suitable for universal application, or “tailored,” i.e. included on the master file for a single user’s specific purpose .  Record type is set to tailored if any extension points are included in the record or if any ARINC 424 XML schemas are modified.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Standard
Standard
enumeration Tailored
Tailored
Used by
Source

<xs:simpleType name="RecordType">
  <xs:annotation>
    <xs:documentation>The “Record Type” field content indicates whether the record data are “standard,” i.e., suitable for universal application, or “tailored,” i.e. included on the master file for a single user’s specific purpose . Record type is set to tailored if any extension points are included in the record or if any ARINC 424 XML schemas are modified.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Standard">
      <xs:annotation>
        <xs:documentation>Standard</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Tailored">
      <xs:annotation>
        <xs:documentation>Tailored</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:DatumCode
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Datum Code field defines the Local Horizontal Reference Datum to which a geographical position, expressed in latitude and longitude, is associated.
Diagram
Diagram
Type restriction of xs:string
Facets
length 3
enumeration ADI
Adindan
enumeration AFG
Afgooye
enumeration AIA
Antigua Island Astro 1943
enumeration AIN
Ain El Abd 1970
enumeration AMA
American Samoa 1962
enumeration ANO
Anna 1 Astro 1965
enumeration ANS
Austria NS
enumeration ARF
Arc 1950
enumeration ARS
Arc 1960
enumeration ASC
Ascension Island 1958
enumeration ASM
Montserrat Island Astro 1958
enumeration ASQ
Astronomical Station 1952
enumeration ATF
Astro Beacon “E� 1945
enumeration AUA
Australian Geodetic 1966
enumeration AUG
Australian Geodetic 1984
enumeration BAT
Djakarta (Batavia)
enumeration BER
Bermuda 1957
enumeration BID
Bissau
enumeration BOO
Bogota Observatory
enumeration BUR
Bukit Rimpah
enumeration CAC
Cape Canaveral
enumeration CAI
Campo Inchauspe 1969
enumeration CAO
Canton Astro 1966
enumeration CAP
Cape
enumeration CAZ
Camp Area Astro
enumeration CCD
S-JTSK
enumeration CGE
Carthage
enumeration CHI
Chatham Island Astro 1971
enumeration CHU
Chua Astro
enumeration COA
Corrego Alegre
enumeration DAL
Dabola
enumeration DAN
Danish Geodetic Institute 1934 System
enumeration DID
Deception Island
enumeration DOB
GUX 1 Astro
enumeration EAS
Easter Island 1967
enumeration ENW
Wake-Eniwetok, 1960
enumeration EST
Co-Ordinate System 1937 of Estonia
enumeration EUR
European 1950
enumeration EUS
European 1979
enumeration FAH
Oman
enumeration FLO
Observatorio Meteorologico 1939
enumeration FOT
Fort Thomas 1955
enumeration GAA
Gan 1970
enumeration GAN
Gandajika Base
enumeration GEO
Geodetic Datum 1949
enumeration GIZ
DOS 1968
enumeration GRA
Graciosa Base SW 1948
enumeration GRX
Greek Geodetic Reference System 1987
enumeration GSE
Gunuung Segara
enumeration GUA
Guam 1963
enumeration HEN
Herat North
enumeration HER
Hermannskogel
enumeration HIT
Provisional South Chilean 1963 (also known as Hito XVIII 1963)
enumeration HJO
Hjorsey 1955
enumeration HKD
Hong Kong 1963
enumeration HTN
Hu-Tzu-Shan
enumeration IBE
Bellevue (IGN)
enumeration IDN
Indonesian 1974
enumeration IGF
Nouvelle Triangulation de France (FRANCE)
enumeration IND
Indian
enumeration INF
Indian 1954
enumeration ING
Indian 1960
enumeration INH
Indian 1975
enumeration IRL
Ireland 1965
enumeration ISG
ISTS 061 Astro 1968
enumeration IST
ISTS 073 Astro 1969
enumeration JOH
Johnston Island 1961
enumeration KAN
Kandawala
enumeration KEA
Kertau 1948
enumeration KEG
Kerguelen Island 1949
enumeration KUS
Kusaie Astro 1951
enumeration LCF
L.C. 5 Astro 1961
enumeration LEH
Leigon
enumeration LIB
Liberia 1964
enumeration LUZ
Luzon
enumeration MAS
Massawa
enumeration MCN
Manchurian Principal System
enumeration MER
Merchich
enumeration MID
Midway Astro 1961
enumeration MIK
Mahe 1971
enumeration MIN
Minna
enumeration MOD
Rome 1940
enumeration MOL
Montjong Lowe
enumeration MPO
M'Poraloko
enumeration MVS
Viti Levu 1916
enumeration NAH
Nahrwan
enumeration NAN
Nanking 1960
enumeration NAP
Naparima, BWI
enumeration NAR
North American 1983
enumeration NAS
North American 1927
enumeration NSD
North Sahara 1959
enumeration OEG
Old Egyptian 1907
enumeration OGB
Ordnance Survey of Great Britain 1936
enumeration OHA
Old Hawaiian
enumeration PAM
Palmer Astro
enumeration PDM
Potsdam
enumeration PHA
Ayabelle Lighthouse
enumeration PIT
Pitcairn Astro 1967
enumeration PLN
Pico de las Nieves
enumeration POS
Porto Santo 1936
enumeration PRD
Portuguese Datum 1973
enumeration PRP
Provisional South American 1956
enumeration PTB
Point 58
enumeration PTN
Point Noire 1948
enumeration PUK
Pulkovo 1942
enumeration PUR
Puerto Rico
enumeration QAT
Qatar National
enumeration QUO
Qornoq
enumeration REU
Reunion
enumeration RPE
Parametrop Zemp 1990 (English translation) The Parameters of the Earth 1990
enumeration RTS
RT90
enumeration SAE
Santo (DOS) 1965
enumeration SAN
South American 1969
enumeration SAO
Sao Braz
enumeration SAP
Sapper Hill 1943
enumeration SCK
Schwarzeck
enumeration SGM
Selvagem Grande 1938
enumeration SHB
Astro DOS 71/4
enumeration SOA
South Asia
enumeration SPK
S-42 (Pulkovo 1942)
enumeration SRL
Sierra Leone 1960
enumeration STO
Stockholm 1938 (RT38)
enumeration SYO
Sydney Observatory
enumeration TAN
Tananarive Observatory 1925
enumeration TDC
Tristan Astro 1968
enumeration TIL
Timbalai 1948
enumeration TOY
Tokyo
enumeration TRI
Trinidad Trigonometrical Survey
enumeration TRN
Astro Tern Island (Frig) 1961
enumeration UNK
Unknown
enumeration VOI
Voirol 1874
enumeration VOR
Voirol 1960
enumeration WAK
Wake Island Astro 1952
enumeration WGA
World Geodetic System 1960
enumeration WGB
World Geodetic System 1966
enumeration WGC
World Geodetic System 1972
enumeration WGE
World Geodetic System 1984
enumeration YAC
Yacare
enumeration ZAN
Zanderij
Used by
Source

<xs:simpleType name="DatumCode">
  <xs:annotation>
    <xs:documentation>The Datum Code field defines the Local Horizontal Reference Datum to which a geographical position, expressed in latitude and longitude, is associated.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="3"/>
    <xs:enumeration value="ADI">
      <xs:annotation>
        <xs:documentation>Adindan</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AFG">
      <xs:annotation>
        <xs:documentation>Afgooye</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AIA">
      <xs:annotation>
        <xs:documentation>Antigua Island Astro 1943</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AIN">
      <xs:annotation>
        <xs:documentation>Ain El Abd 1970</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AMA">
      <xs:annotation>
        <xs:documentation>American Samoa 1962</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ANO">
      <xs:annotation>
        <xs:documentation>Anna 1 Astro 1965</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ANS">
      <xs:annotation>
        <xs:documentation>Austria NS</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ARF">
      <xs:annotation>
        <xs:documentation>Arc 1950</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ARS">
      <xs:annotation>
        <xs:documentation>Arc 1960</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ASC">
      <xs:annotation>
        <xs:documentation>Ascension Island 1958</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ASM">
      <xs:annotation>
        <xs:documentation>Montserrat Island Astro 1958</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ASQ">
      <xs:annotation>
        <xs:documentation>Astronomical Station 1952</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ATF">
      <xs:annotation>
        <xs:documentation>Astro Beacon “E� 1945</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AUA">
      <xs:annotation>
        <xs:documentation>Australian Geodetic 1966</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AUG">
      <xs:annotation>
        <xs:documentation>Australian Geodetic 1984</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BAT">
      <xs:annotation>
        <xs:documentation>Djakarta (Batavia)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BER">
      <xs:annotation>
        <xs:documentation>Bermuda 1957</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BID">
      <xs:annotation>
        <xs:documentation>Bissau</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BOO">
      <xs:annotation>
        <xs:documentation>Bogota Observatory</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BUR">
      <xs:annotation>
        <xs:documentation>Bukit Rimpah</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CAC">
      <xs:annotation>
        <xs:documentation>Cape Canaveral</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CAI">
      <xs:annotation>
        <xs:documentation>Campo Inchauspe 1969</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CAO">
      <xs:annotation>
        <xs:documentation>Canton Astro 1966</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CAP">
      <xs:annotation>
        <xs:documentation>Cape</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CAZ">
      <xs:annotation>
        <xs:documentation>Camp Area Astro</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CCD">
      <xs:annotation>
        <xs:documentation>S-JTSK</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CGE">
      <xs:annotation>
        <xs:documentation>Carthage</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CHI">
      <xs:annotation>
        <xs:documentation>Chatham Island Astro 1971</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CHU">
      <xs:annotation>
        <xs:documentation>Chua Astro</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="COA">
      <xs:annotation>
        <xs:documentation>Corrego Alegre</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DAL">
      <xs:annotation>
        <xs:documentation>Dabola</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DAN">
      <xs:annotation>
        <xs:documentation>Danish Geodetic Institute 1934 System</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DID">
      <xs:annotation>
        <xs:documentation>Deception Island</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DOB">
      <xs:annotation>
        <xs:documentation>GUX 1 Astro</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EAS">
      <xs:annotation>
        <xs:documentation>Easter Island 1967</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ENW">
      <xs:annotation>
        <xs:documentation>Wake-Eniwetok, 1960</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EST">
      <xs:annotation>
        <xs:documentation>Co-Ordinate System 1937 of Estonia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EUR">
      <xs:annotation>
        <xs:documentation>European 1950</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EUS">
      <xs:annotation>
        <xs:documentation>European 1979</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FAH">
      <xs:annotation>
        <xs:documentation>Oman</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FLO">
      <xs:annotation>
        <xs:documentation>Observatorio Meteorologico 1939</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FOT">
      <xs:annotation>
        <xs:documentation>Fort Thomas 1955</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GAA">
      <xs:annotation>
        <xs:documentation>Gan 1970</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GAN">
      <xs:annotation>
        <xs:documentation>Gandajika Base</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GEO">
      <xs:annotation>
        <xs:documentation>Geodetic Datum 1949</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GIZ">
      <xs:annotation>
        <xs:documentation>DOS 1968</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GRA">
      <xs:annotation>
        <xs:documentation>Graciosa Base SW 1948</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GRX">
      <xs:annotation>
        <xs:documentation>Greek Geodetic Reference System 1987</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GSE">
      <xs:annotation>
        <xs:documentation>Gunuung Segara</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GUA">
      <xs:annotation>
        <xs:documentation>Guam 1963</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HEN">
      <xs:annotation>
        <xs:documentation>Herat North</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HER">
      <xs:annotation>
        <xs:documentation>Hermannskogel</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HIT">
      <xs:annotation>
        <xs:documentation>Provisional South Chilean 1963 (also known as Hito XVIII 1963)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HJO">
      <xs:annotation>
        <xs:documentation>Hjorsey 1955</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HKD">
      <xs:annotation>
        <xs:documentation>Hong Kong 1963</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HTN">
      <xs:annotation>
        <xs:documentation>Hu-Tzu-Shan</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IBE">
      <xs:annotation>
        <xs:documentation>Bellevue (IGN)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IDN">
      <xs:annotation>
        <xs:documentation>Indonesian 1974</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IGF">
      <xs:annotation>
        <xs:documentation>Nouvelle Triangulation de France (FRANCE)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IND">
      <xs:annotation>
        <xs:documentation>Indian</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="INF">
      <xs:annotation>
        <xs:documentation>Indian 1954</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ING">
      <xs:annotation>
        <xs:documentation>Indian 1960</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="INH">
      <xs:annotation>
        <xs:documentation>Indian 1975</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IRL">
      <xs:annotation>
        <xs:documentation>Ireland 1965</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ISG">
      <xs:annotation>
        <xs:documentation>ISTS 061 Astro 1968</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IST">
      <xs:annotation>
        <xs:documentation>ISTS 073 Astro 1969</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="JOH">
      <xs:annotation>
        <xs:documentation>Johnston Island 1961</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="KAN">
      <xs:annotation>
        <xs:documentation>Kandawala</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="KEA">
      <xs:annotation>
        <xs:documentation>Kertau 1948</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="KEG">
      <xs:annotation>
        <xs:documentation>Kerguelen Island 1949</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="KUS">
      <xs:annotation>
        <xs:documentation>Kusaie Astro 1951</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LCF">
      <xs:annotation>
        <xs:documentation>L.C. 5 Astro 1961</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LEH">
      <xs:annotation>
        <xs:documentation>Leigon</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LIB">
      <xs:annotation>
        <xs:documentation>Liberia 1964</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LUZ">
      <xs:annotation>
        <xs:documentation>Luzon</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MAS">
      <xs:annotation>
        <xs:documentation>Massawa</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MCN">
      <xs:annotation>
        <xs:documentation>Manchurian Principal System</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MER">
      <xs:annotation>
        <xs:documentation>Merchich</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MID">
      <xs:annotation>
        <xs:documentation>Midway Astro 1961</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MIK">
      <xs:annotation>
        <xs:documentation>Mahe 1971</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MIN">
      <xs:annotation>
        <xs:documentation>Minna</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MOD">
      <xs:annotation>
        <xs:documentation>Rome 1940</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MOL">
      <xs:annotation>
        <xs:documentation>Montjong Lowe</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MPO">
      <xs:annotation>
        <xs:documentation>M'Poraloko</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MVS">
      <xs:annotation>
        <xs:documentation>Viti Levu 1916</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NAH">
      <xs:annotation>
        <xs:documentation>Nahrwan</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NAN">
      <xs:annotation>
        <xs:documentation>Nanking 1960</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NAP">
      <xs:annotation>
        <xs:documentation>Naparima, BWI</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NAR">
      <xs:annotation>
        <xs:documentation>North American 1983</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NAS">
      <xs:annotation>
        <xs:documentation>North American 1927</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NSD">
      <xs:annotation>
        <xs:documentation>North Sahara 1959</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OEG">
      <xs:annotation>
        <xs:documentation>Old Egyptian 1907</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OGB">
      <xs:annotation>
        <xs:documentation>Ordnance Survey of Great Britain 1936</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OHA">
      <xs:annotation>
        <xs:documentation>Old Hawaiian</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PAM">
      <xs:annotation>
        <xs:documentation>Palmer Astro</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PDM">
      <xs:annotation>
        <xs:documentation>Potsdam</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PHA">
      <xs:annotation>
        <xs:documentation>Ayabelle Lighthouse</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PIT">
      <xs:annotation>
        <xs:documentation>Pitcairn Astro 1967</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PLN">
      <xs:annotation>
        <xs:documentation>Pico de las Nieves</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="POS">
      <xs:annotation>
        <xs:documentation>Porto Santo 1936</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PRD">
      <xs:annotation>
        <xs:documentation>Portuguese Datum 1973</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PRP">
      <xs:annotation>
        <xs:documentation>Provisional South American 1956</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PTB">
      <xs:annotation>
        <xs:documentation>Point 58</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PTN">
      <xs:annotation>
        <xs:documentation>Point Noire 1948</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PUK">
      <xs:annotation>
        <xs:documentation>Pulkovo 1942</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PUR">
      <xs:annotation>
        <xs:documentation>Puerto Rico</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="QAT">
      <xs:annotation>
        <xs:documentation>Qatar National</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="QUO">
      <xs:annotation>
        <xs:documentation>Qornoq</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="REU">
      <xs:annotation>
        <xs:documentation>Reunion</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RPE">
      <xs:annotation>
        <xs:documentation>Parametrop Zemp 1990 (English translation) The Parameters of the Earth 1990</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RTS">
      <xs:annotation>
        <xs:documentation>RT90</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SAE">
      <xs:annotation>
        <xs:documentation>Santo (DOS) 1965</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SAN">
      <xs:annotation>
        <xs:documentation>South American 1969</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SAO">
      <xs:annotation>
        <xs:documentation>Sao Braz</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SAP">
      <xs:annotation>
        <xs:documentation>Sapper Hill 1943</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SCK">
      <xs:annotation>
        <xs:documentation>Schwarzeck</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SGM">
      <xs:annotation>
        <xs:documentation>Selvagem Grande 1938</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SHB">
      <xs:annotation>
        <xs:documentation>Astro DOS 71/4</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SOA">
      <xs:annotation>
        <xs:documentation>South Asia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SPK">
      <xs:annotation>
        <xs:documentation>S-42 (Pulkovo 1942)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SRL">
      <xs:annotation>
        <xs:documentation>Sierra Leone 1960</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="STO">
      <xs:annotation>
        <xs:documentation>Stockholm 1938 (RT38)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SYO">
      <xs:annotation>
        <xs:documentation>Sydney Observatory</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TAN">
      <xs:annotation>
        <xs:documentation>Tananarive Observatory 1925</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TDC">
      <xs:annotation>
        <xs:documentation>Tristan Astro 1968</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TIL">
      <xs:annotation>
        <xs:documentation>Timbalai 1948</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TOY">
      <xs:annotation>
        <xs:documentation>Tokyo</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TRI">
      <xs:annotation>
        <xs:documentation>Trinidad Trigonometrical Survey</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TRN">
      <xs:annotation>
        <xs:documentation>Astro Tern Island (Frig) 1961</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="UNK">
      <xs:annotation>
        <xs:documentation>Unknown</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VOI">
      <xs:annotation>
        <xs:documentation>Voirol 1874</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VOR">
      <xs:annotation>
        <xs:documentation>Voirol 1960</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="WAK">
      <xs:annotation>
        <xs:documentation>Wake Island Astro 1952</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="WGA">
      <xs:annotation>
        <xs:documentation>World Geodetic System 1960</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="WGB">
      <xs:annotation>
        <xs:documentation>World Geodetic System 1966</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="WGC">
      <xs:annotation>
        <xs:documentation>World Geodetic System 1972</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="WGE">
      <xs:annotation>
        <xs:documentation>World Geodetic System 1984</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="YAC">
      <xs:annotation>
        <xs:documentation>Yacare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ZAN">
      <xs:annotation>
        <xs:documentation>Zanderij</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:IcaoCode
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This element provides the 2 character code to identify a state
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [a-zA-Z0-9]{2}
Used by
Source

<xs:simpleType name="IcaoCode">
  <xs:annotation>
    <xs:documentation>This element provides the 2 character code to identify a state</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[a-zA-Z0-9]{2}"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:CoreIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Core Identifier” field contains the character-name-code, or other series of characters, with which the object is identified. This includes Waypoint Identifiers, VHF NAVAID Identifiers, NDB NAVAID identifier, Airport Identifiers, Runway Identifiers, and other objects.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 16
Used by
Source

<xs:simpleType name="CoreIdentifier">
  <xs:annotation>
    <xs:documentation>The “Core Identifier” field contains the character-name-code, or other series of characters, with which the object is identified. This includes Waypoint Identifiers, VHF NAVAID Identifiers, NDB NAVAID identifier, Airport Identifiers, Runway Identifiers, and other objects.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="16"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:Location
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Latitude and Longitude details of this point.
Diagram
Diagram ARINC424_22_HTML.tmp#Location_latitude ARINC424_22_HTML.tmp#Location_longitude
Used by
Model
Children latitude, longitude
Source

<xs:complexType name="Location">
  <xs:annotation>
    <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="latitude" type="type:Latitude" minOccurs="1" maxOccurs="1"/>
    <xs:element name="longitude" type="type:Longitude" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type type:Latitude
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Latitude” field contains the latitude of the navigational feature identified in the record.  The latitude is a complex type that consists of children elements that contain scaled integers.
Diagram
Diagram ARINC424_22_HTML.tmp#Latitude_deg ARINC424_22_HTML.tmp#Latitude_min ARINC424_22_HTML.tmp#Latitude_sec ARINC424_22_HTML.tmp#Latitude_hSec ARINC424_22_HTML.tmp#Latitude_northSouth ARINC424_22_HTML.tmp#Latitude_decimalDegreesLatitude
Used by
Model
Children decimalDegreesLatitude, deg, hSec, min, northSouth, sec
Source

<xs:complexType name="Latitude">
  <xs:annotation>
    <xs:documentation>The “Latitude” field contains the latitude of the navigational feature identified in the record. The latitude is a complex type that consists of children elements that contain scaled integers.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="deg" type="type:LatDegree" minOccurs="1" maxOccurs="1"/>
    <xs:element name="min" type="type:Minute" minOccurs="1" maxOccurs="1"/>
    <xs:element name="sec" type="type:Second" minOccurs="1" maxOccurs="1"/>
    <xs:element name="hSec" type="type:HundredthSecond" minOccurs="1" maxOccurs="1"/>
    <xs:element name="northSouth" type="enum:NorthSouth" minOccurs="1" maxOccurs="1"/>
    <xs:element name="decimalDegreesLatitude" type="xs:decimal" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>This field is optional for convenience in data processing. The value of this field is not authoritative.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:LatDegree
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Contains degrees of a coordinate as an integer.  e.g., 90, -89
Diagram
Diagram ARINC424_22_HTML.tmp#LatLongDegree
Type restriction of type:LatLongDegree
Type hierarchy
Facets
maxInclusive 90
minInclusive 0
Used by
Source

<xs:simpleType name="LatDegree">
  <xs:annotation>
    <xs:documentation>Contains degrees of a coordinate as an integer. e.g., 90, -89</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:LatLongDegree">
    <xs:maxInclusive value="90"/>
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:LatLongDegree
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This is an abstract class that is the parent class for degrees.
Diagram
Diagram
Type xs:int
Used by
Source

<xs:simpleType name="LatLongDegree">
  <xs:annotation>
    <xs:documentation>This is an abstract class that is the parent class for degrees.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int"/>
</xs:simpleType>
[ top ]
Simple Type type:Minute
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Contains minutes of a coordinate as an integer.  e.g., 0, 60
Diagram
Diagram
Type restriction of xs:int
Facets
maxExclusive 60
minInclusive 0
Used by
Source

<xs:simpleType name="Minute">
  <xs:annotation>
    <xs:documentation>Contains minutes of a coordinate as an integer. e.g., 0, 60</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int">
    <xs:maxExclusive value="60"/>
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:Second
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Contains seconds of a coordinate as an integer.  e.g., 0, 60
Diagram
Diagram
Type restriction of xs:int
Facets
maxExclusive 60
minInclusive 0
Used by
Source

<xs:simpleType name="Second">
  <xs:annotation>
    <xs:documentation>Contains seconds of a coordinate as an integer. e.g., 0, 60</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int">
    <xs:maxExclusive value="60"/>
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:HundredthSecond
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Contains hundredths of a coordinate as an integer.  e.g., 0, 99
Diagram
Diagram
Type restriction of xs:int
Facets
maxInclusive 99
minInclusive 0
Used by
Source

<xs:simpleType name="HundredthSecond">
  <xs:annotation>
    <xs:documentation>Contains hundredths of a coordinate as an integer. e.g., 0, 99</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int">
    <xs:maxInclusive value="99"/>
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:NorthSouth
Namespace http://www.arinc424.com/xml/enumerations
Annotations

This data type indicates if latitude is north or south.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration North
North
enumeration South
South
Used by
Source

<xs:simpleType name="NorthSouth">
  <xs:annotation>
    <xs:documentation>This data type indicates if latitude is north or south.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="North">
      <xs:annotation>
        <xs:documentation>North</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="South">
      <xs:annotation>
        <xs:documentation>South</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:Longitude
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Longitude field contains the longitude of the geographic position of the navigational feature identified in the record.
Diagram
Diagram ARINC424_22_HTML.tmp#Longitude_deg ARINC424_22_HTML.tmp#Longitude_min ARINC424_22_HTML.tmp#Longitude_sec ARINC424_22_HTML.tmp#Longitude_hSec ARINC424_22_HTML.tmp#Longitude_eastWest ARINC424_22_HTML.tmp#Longitude_decimalDegreesLongitude
Used by
Model
Children decimalDegreesLongitude, deg, eastWest, hSec, min, sec
Source

<xs:complexType name="Longitude">
  <xs:annotation>
    <xs:documentation>The Longitude field contains the longitude of the geographic position of the navigational feature identified in the record.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="deg" type="type:longDegree" minOccurs="1" maxOccurs="1"/>
    <xs:element name="min" type="type:Minute" minOccurs="1" maxOccurs="1"/>
    <xs:element name="sec" type="type:Second" minOccurs="1" maxOccurs="1"/>
    <xs:element name="hSec" type="type:HundredthSecond" minOccurs="1" maxOccurs="1"/>
    <xs:element name="eastWest" type="enum:EastWest" minOccurs="1" maxOccurs="1"/>
    <xs:element name="decimalDegreesLongitude" type="xs:decimal" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>This field is optional for convenience in data processing. The value of this field is not authoritative.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:longDegree
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram ARINC424_22_HTML.tmp#LatLongDegree
Type restriction of type:LatLongDegree
Type hierarchy
Facets
maxInclusive 180
minInclusive 0
Used by
Source

<xs:simpleType name="longDegree">
  <xs:restriction base="type:LatLongDegree">
    <xs:maxInclusive value="180"/>
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:EastWest
Namespace http://www.arinc424.com/xml/enumerations
Annotations

This data type indicates if the longitude is east or west.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration East
East
enumeration West
West
Used by
Source

<xs:simpleType name="EastWest">
  <xs:annotation>
    <xs:documentation>This data type indicates if the longitude is east or west.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="East">
      <xs:annotation>
        <xs:documentation>East</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="West">
      <xs:annotation>
        <xs:documentation>West</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:MagneticVariation
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Magnetic Variation” field specifies the angular difference between True North and Magnetic North at the location defined in the record. “Dynamic Magnetic Variation” is a computer model derived value and takes location and date into consideration. For the “Station Declination” used in some record types, refer to Section 5.66.
Diagram
Diagram ARINC424_22_HTML.tmp#MagneticVariation_magneticVariationEWT ARINC424_22_HTML.tmp#MagneticVariation_magneticVariationValue
Used by
Model
Children magneticVariationEWT, magneticVariationValue
Source

<xs:complexType name="MagneticVariation">
  <xs:annotation>
    <xs:documentation>The “Magnetic Variation” field specifies the angular difference between True North and Magnetic North at the location defined in the record. “Dynamic Magnetic Variation” is a computer model derived value and takes location and date into consideration. For the “Station Declination” used in some record types, refer to Section 5.66.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="magneticVariationEWT" type="enum:MagneticVariationEWT" minOccurs="1" maxOccurs="1"/>
    <xs:element name="magneticVariationValue" type="type:MagneticVariationValue" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:MagneticVariationEWT
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Magnetic Variation field specifies the angular difference between True North and Magnetic North at the location defined in the record. Dynamic Magnetic Variation is a computer model derived value and takes location and date into consideration. For the Station Declination used in some record types, refer to Section 5.66.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration East
Magnetic variation is East of TRUE North
enumeration West
Magnetic variation is West of TRUE North
enumeration True
The element defined in the current record is provided TRUE.
Used by
Source

<xs:simpleType name="MagneticVariationEWT">
  <xs:annotation>
    <xs:documentation>The Magnetic Variation field specifies the angular difference between True North and Magnetic North at the location defined in the record. Dynamic Magnetic Variation is a computer model derived value and takes location and date into consideration. For the Station Declination used in some record types, refer to Section 5.66.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="East">
      <xs:annotation>
        <xs:documentation>Magnetic variation is East of TRUE North</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="West">
      <xs:annotation>
        <xs:documentation>Magnetic variation is West of TRUE North</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="True">
      <xs:annotation>
        <xs:documentation>The element defined in the current record is provided TRUE.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:MagneticVariationValue
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Magnetic Variation” field specifies the angular difference between True North and Magnetic North at the location defined in the record. “Dynamic Magnetic Variation” is a computer model derived value and takes location and date into consideration. For the “Station Declination” used in some record types, refer to Section 5.66.
Diagram
Diagram
Type restriction of xs:decimal
Facets
totalDigits 4
fractionDigits 1
maxInclusive 180
minInclusive 0
Used by
Source

<xs:simpleType name="MagneticVariationValue">
  <xs:annotation>
    <xs:documentation>The “Magnetic Variation” field specifies the angular difference between True North and Magnetic North at the location defined in the record. “Dynamic Magnetic Variation” is a computer model derived value and takes location and date into consideration. For the “Station Declination” used in some record types, refer to Section 5.66.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="180"/>
    <xs:totalDigits value="4"/>
    <xs:fractionDigits value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:Name
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Name” field defines the name commonly applied to the navigation entity defined in the record.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 50
Used by
Source

<xs:simpleType name="Name">
  <xs:annotation>
    <xs:documentation>The “Name” field defines the name commonly applied to the navigation entity defined in the record.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:Elevation
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Elevation of the respective feature.
Diagram
Diagram
Type restriction of xs:int
Facets
maxInclusive 20000
minInclusive -1500
Used by
Source

<xs:simpleType name="Elevation">
  <xs:annotation>
    <xs:documentation>Elevation of the respective feature.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int">
    <xs:maxInclusive value="20000"/>
    <xs:minInclusive value="-1500"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:ATAIATADesignator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “ATA/IATA” field contains the Airport/Heliport ATA/IATA designator code to which the data contained in the record relates.
Diagram
Diagram
Type xs:string
Used by
Source

<xs:simpleType name="ATAIATADesignator">
  <xs:annotation>
    <xs:documentation>The “ATA/IATA” field contains the Airport/Heliport ATA/IATA designator code to which the data contained in the record relates.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Simple Type type:DaylightIndicator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Daylight” Time Indicator” field is used to indicate if the airport observes Daylight or Summer time when such time changes are in effect for the country or state the airport resides in.
Diagram
Diagram
Type xs:boolean
Used by
Source

<xs:simpleType name="DaylightIndicator">
  <xs:annotation>
    <xs:documentation>The “Daylight” Time Indicator” field is used to indicate if the airport observes Daylight or Summer time when such time changes are in effect for the country or state the airport resides in.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:boolean"/>
</xs:simpleType>
[ top ]
Simple Type type:IFRCapability
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “IFR Capability” field indicates if the Airport/Heliport has any published Instrument Approach Procedures.
Diagram
Diagram
Type xs:boolean
Used by
Source

<xs:simpleType name="IFRCapability">
  <xs:annotation>
    <xs:documentation>The “IFR Capability” field indicates if the Airport/Heliport has any published Instrument Approach Procedures.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:boolean"/>
</xs:simpleType>
[ top ]
Simple Type enum:MagneticTrueIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Both
The field will be blank if details and procedures are provided in both magnetic and true for the airport. In such cases the individual detail or procedure records will contain the magnetic or true information
enumeration True
if all detail and procedure for the airport are reported in true bearing
enumeration Magnetic
if all detail and procedure for the airport are reported in magnetic bearing,
Used by
Source

<xs:simpleType name="MagneticTrueIndicator">
  <xs:annotation>
    <xs:documentation>The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Both">
      <xs:annotation>
        <xs:documentation>The field will be blank if details and procedures are provided in both magnetic and true for the airport. In such cases the individual detail or procedure records will contain the magnetic or true information</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="True">
      <xs:annotation>
        <xs:documentation>if all detail and procedure for the airport are reported in true bearing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Magnetic">
      <xs:annotation>
        <xs:documentation>if all detail and procedure for the airport are reported in magnetic bearing,</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:PublicMilitaryIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Airports can be classified into four categories, airports open to the general public, military airports, joint use civil and military, and airports closed to the public. This field permits these airports to be categorized by their use.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Private
Airport/Heliport is not open to the public (private)
enumeration Civil
Airport/Heliport is open to the public (civil)
enumeration Military
Airport/Heliport is military airport
enumeration Joint
Airport is joint Civil and Military
Used by
Source

<xs:simpleType name="PublicMilitaryIndicator">
  <xs:annotation>
    <xs:documentation>Airports can be classified into four categories, airports open to the general public, military airports, joint use civil and military, and airports closed to the public. This field permits these airports to be categorized by their use.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Private">
      <xs:annotation>
        <xs:documentation>Airport/Heliport is not open to the public (private)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Civil">
      <xs:annotation>
        <xs:documentation>Airport/Heliport is open to the public (civil)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Military">
      <xs:annotation>
        <xs:documentation>Airport/Heliport is military airport</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Joint">
      <xs:annotation>
        <xs:documentation>Airport is joint Civil and Military</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:PointReference
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This element provides a way to reference any child element of A424Point.
Diagram
Diagram
Type extension of xs:IDREF
Used by
Source

<xs:complexType name="PointReference">
  <xs:annotation>
    <xs:documentation>This element provides a way to reference any child element of A424Point.</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:extension base="xs:IDREF"/>
  </xs:simpleContent>
</xs:complexType>
[ top ]
Simple Type type:SpeedLimit
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Speed Limit field defines a speed, expressed in Knots, Indicated (K.I.A.S.), for a fix in a terminal procedure or for an airport or heliport terminal environment.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
maxExclusive 1000
Used by
Source

<xs:simpleType name="SpeedLimit">
  <xs:annotation>
    <xs:documentation>The Speed Limit field defines a speed, expressed in Knots, Indicated (K.I.A.S.), for a fix in a terminal procedure or for an airport or heliport terminal environment.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:maxExclusive value="1000"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:Altitude
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The "Altitude/Minimum Altitude" field is a choice element that may contain one of either an element of type FlightLevel or an element of type Altitude.

The “Altitude/Minimum Altitude” field indicates the reference altitude associated with (1) Enroute Airways (MEA, MFA or other minimum altitudes as defined by source), (2) holding pattern path of Holding Pattern record, (3) altitudes at fixes in terminal procedures and terminal procedure path termination defined by the Path Terminator in the Airport or Heliport SID/STAR/Approach Elements and (4) lowest altitude of the “blocked altitudes” for a Preferred Route.
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude
Used by
Model
Children altitude, isFlightLevel, isNotDefined, isUnknown
Source

<xs:complexType name="Altitude">
  <xs:annotation>
    <xs:documentation>The "Altitude/Minimum Altitude" field is a choice element that may contain one of either an element of type FlightLevel or an element of type Altitude. The “Altitude/Minimum Altitude” field indicates the reference altitude associated with (1) Enroute Airways (MEA, MFA or other minimum altitudes as defined by source), (2) holding pattern path of Holding Pattern record, (3) altitudes at fixes in terminal procedures and terminal procedure path termination defined by the Path Terminator in the Airport or Heliport SID/STAR/Approach Elements and (4) lowest altitude of the “blocked altitudes” for a Preferred Route.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="isNotDefined" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isUnknown" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFlightLevel" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>If this field is true, then the numerical value in the altitude element is populated with a flight level. Therefore, the sibling altitude element represents the altitude in hundreds of feet, else the altitude element represents altitude in feet.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="altitude" type="type:AltitudeValue" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:AltitudeValue
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The all-numeric altitude field will contain altitudes in feet with a resolution of one foot.

If isFlightLevel is true, this element represents altitude as a flight level.  The contents of this field only contain the numerical portion of the flight level expressed in hundreds of feet (e.g., 120, 1, or 10).
Diagram
Diagram
Type restriction of xs:int
Facets
maxInclusive 99999
minInclusive -2000
Used by
Source

<xs:simpleType name="AltitudeValue">
  <xs:annotation>
    <xs:documentation>The all-numeric altitude field will contain altitudes in feet with a resolution of one foot. If isFlightLevel is true, this element represents altitude as a flight level. The contents of this field only contain the numerical portion of the flight level expressed in hundreds of feet (e.g., 120, 1, or 10).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int">
    <xs:maxInclusive value="99999"/>
    <xs:minInclusive value="-2000"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:TimeZone
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The standard time zone system is based on the division of world into 24 zones, each of 15 degrees longitude. The “zero” time zone is entered at Greenwich meridian with longitudes 7 degrees, 30 minutes West and 7 degrees, 30 minutes east, and there is no difference in the standard time of this time zone and Greenwich Mean Time. Time zones are designated by an integer offset from Greenwich Mean Time, which represets the time difference from GMT in hours, and a minute offset for non-standard time zone offsets.  (See ARINC 424 5.178 for further explanation.)
Diagram
Diagram ARINC424_22_HTML.tmp#TimeZone_hourOffset ARINC424_22_HTML.tmp#TimeZone_minuteOffset
Used by
Element Port/timeZone
Model
Children hourOffset, minuteOffset
Source

<xs:complexType name="TimeZone">
  <xs:annotation>
    <xs:documentation>The standard time zone system is based on the division of world into 24 zones, each of 15 degrees longitude. The “zero” time zone is entered at Greenwich meridian with longitudes 7 degrees, 30 minutes West and 7 degrees, 30 minutes east, and there is no difference in the standard time of this time zone and Greenwich Mean Time. Time zones are designated by an integer offset from Greenwich Mean Time, which represets the time difference from GMT in hours, and a minute offset for non-standard time zone offsets. (See ARINC 424 5.178 for further explanation.)</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="hourOffset">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-14"/>
          <xs:maxInclusive value="12"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="minuteOffset" type="xs:int" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:TransitionAltitude
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.
Diagram
Diagram ARINC424_22_HTML.tmp#AltitudeValue
Type restriction of type:AltitudeValue
Type hierarchy
Facets
totalDigits 5
maxInclusive 99999
minInclusive -2000
Used by
Source

<xs:simpleType name="TransitionAltitude">
  <xs:annotation>
    <xs:documentation>The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:AltitudeValue">
    <xs:totalDigits value="5"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type TerminalNDB
Namespace No namespace
Annotations

This following record contains the fields used in NDB NAVAID Primary Records Record
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#NDB_ndbClass ARINC424_22_HTML.tmp#NDB_ndbFrequency ARINC424_22_HTML.tmp#NDB_typeOfEmission ARINC424_22_HTML.tmp#NDB_repititionRate ARINC424_22_HTML.tmp#NDB_navaidNdbEmissionType ARINC424_22_HTML.tmp#NDB_dmeRef ARINC424_22_HTML.tmp#NDB
Type extension of NDB
Type hierarchy
Used by
Model
Children custAreaCode, cycleDate, datumCode, dmeRef, elevation, firRef, icaoCode, identifier, location, magneticVariation, name, navaidNdbEmissionType, ndbClass, ndbFrequency, notes, portRef, recordType, repititionRate, supplementalData, typeOfEmission, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="TerminalNDB">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in NDB NAVAID Primary Records Record</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="NDB">
      <xs:sequence/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type NDB
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#NDB_ndbClass ARINC424_22_HTML.tmp#NDB_ndbFrequency ARINC424_22_HTML.tmp#NDB_typeOfEmission ARINC424_22_HTML.tmp#NDB_repititionRate ARINC424_22_HTML.tmp#NDB_navaidNdbEmissionType ARINC424_22_HTML.tmp#NDB_dmeRef
Type extension of Navaid
Type hierarchy
Used by
Complex Type TerminalNDB
Element NDBs/ndb
Model
Children custAreaCode, cycleDate, datumCode, dmeRef, elevation, firRef, icaoCode, identifier, location, magneticVariation, name, navaidNdbEmissionType, ndbClass, ndbFrequency, notes, portRef, recordType, repititionRate, supplementalData, typeOfEmission, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="NDB">
  <xs:complexContent>
    <xs:extension base="Navaid">
      <xs:sequence>
        <xs:element name="ndbClass" type="type:NdbNavaidClass" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense. The field is made up of five columns of codes that define this information.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ndbFrequency" type="type:Frequency" minOccurs="1" maxOccurs="1"/>
        <xs:element name="typeOfEmission" type="enum:TypeOfEmission" minOccurs="0" maxOccurs="1"/>
        <xs:element name="repititionRate" type="type:RepetitionRate" minOccurs="0" maxOccurs="1"/>
        <xs:element name="navaidNdbEmissionType" type="enum:NavaidNDBEmissionType" minOccurs="0" maxOccurs="1"/>
        <xs:element name="dmeRef" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This field idenifies a reference to a DME navaid which originated in the same source data record as the NDB (i.e. is paired with the NDB)</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Navaid
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation
Type extension of A424Point
Type hierarchy
Properties
abstract true
Used by
Model
Children custAreaCode, cycleDate, datumCode, elevation, firRef, icaoCode, identifier, location, magneticVariation, name, notes, portRef, recordType, supplementalData, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Navaid" abstract="true">
  <xs:complexContent>
    <xs:extension base="A424Point">
      <xs:sequence>
        <xs:element name="portRef" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Defines the location of a designated point using a combination of angles and distances based on the guidance service. The set of angles and distances must not under specify the location.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <!-- Note: 'elevation' is in the primary record for DME and precision approach navaids, and in the simulation continuation record for VORs and NDBs -->
        <xs:element name="elevation" type="type:Elevation" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Elevation of the navaid location in feet.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type type:NdbNavaidClass
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram ARINC424_22_HTML.tmp#NdbNavaidClass_isBFORequired ARINC424_22_HTML.tmp#NdbNavaidClass_ndbNavaidCoverage ARINC424_22_HTML.tmp#NdbNavaidClass_ndbNavaidIfMarker ARINC424_22_HTML.tmp#NdbNavaidClass_ndbNavaidType ARINC424_22_HTML.tmp#NdbNavaidClass_ndbNavaidWeatherInfo ARINC424_22_HTML.tmp#NdbNavaidClass_isNoVoice
Used by
Element NDB/ndbClass
Model
Children isBFORequired, isNoVoice, ndbNavaidCoverage, ndbNavaidIfMarker, ndbNavaidType, ndbNavaidWeatherInfo
Source

<xs:complexType name="NdbNavaidClass">
  <xs:sequence>
    <xs:element name="isBFORequired" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>BFO Operation. Use of Beat Frequency Oscillator type of equipment is required to received an aural identification signal.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ndbNavaidCoverage" type="enum:NdbNavaidCoverage" minOccurs="0" maxOccurs="1"/>
    <xs:element name="ndbNavaidIfMarker" type="enum:NdbNavaidIfMarkerInfo" minOccurs="0" maxOccurs="1"/>
    <xs:element name="ndbNavaidType" type="enum:NdbNavaidType" minOccurs="1" maxOccurs="1"/>
    <xs:element name="ndbNavaidWeatherInfo" type="enum:NavaidWeatherInfo" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isNoVoice" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:NdbNavaidCoverage
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The field NDBNavaidCoverage is the first character of the 5 character Navaid class, When used in NDB Navaid Record –NDBs and Terminal NDBs.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration HighPowerNdb
High-powered NDB. Generally usable within 75NM of the facility at all altitudes.
enumeration LowPowerNdb
Low-powered NDB. Generally usable within 25NM of the facility at all altitude.
enumeration Locator
Locator. Generally usable within 15NM of the facility at all altitudes.
enumeration NDB
NDB. Generally usable within 50NM of the facility at all altitude.
Used by
Source

<xs:simpleType name="NdbNavaidCoverage">
  <xs:annotation>
    <xs:documentation>The field NDBNavaidCoverage is the first character of the 5 character Navaid class, When used in NDB Navaid Record –NDBs and Terminal NDBs.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="HighPowerNdb">
      <xs:annotation>
        <xs:documentation>High-powered NDB. Generally usable within 75NM of the facility at all altitudes.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LowPowerNdb">
      <xs:annotation>
        <xs:documentation>Low-powered NDB. Generally usable within 25NM of the facility at all altitude.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Locator">
      <xs:annotation>
        <xs:documentation>Locator. Generally usable within 15NM of the facility at all altitudes.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NDB">
      <xs:annotation>
        <xs:documentation>NDB. Generally usable within 50NM of the facility at all altitude.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:NdbNavaidIfMarkerInfo
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The field NDBNavaidFacility2 is the second character of the 5 character Navaid class, when used in NDB Navaid Record – NDBs and Terminal NDBs.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration InnerMarker
Inner Marker. There is an Inner Marker beacon at this location.
enumeration MiddleMarker
Middle Marker. There is a Middle Marker beacon at this location.
enumeration OuterMarker
Outer Marker. There is an Outer Marker beacon at this location.
enumeration BackMarker
Back Marker. There is a Backcourse Marker at this location.
Used by
Source

<xs:simpleType name="NdbNavaidIfMarkerInfo">
  <xs:annotation>
    <xs:documentation>The field NDBNavaidFacility2 is the second character of the 5 character Navaid class, when used in NDB Navaid Record – NDBs and Terminal NDBs.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="InnerMarker">
      <xs:annotation>
        <xs:documentation>Inner Marker. There is an Inner Marker beacon at this location.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MiddleMarker">
      <xs:annotation>
        <xs:documentation>Middle Marker. There is a Middle Marker beacon at this location.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OuterMarker">
      <xs:annotation>
        <xs:documentation>Outer Marker. There is an Outer Marker beacon at this location.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BackMarker">
      <xs:annotation>
        <xs:documentation>Back Marker. There is a Backcourse Marker at this location.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:NdbNavaidType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The field NDBNavaidFacility1 is the first character of the 5 character Navaid class,when used in NDB Navaid Record –NDBs and Terminal NDBs.  It indicates the type of navaid represented by the NDB
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Ndb
NDB
enumeration Sabh
SABH
enumeration MarineBeacon
Marine Beacon.
Used by
Source

<xs:simpleType name="NdbNavaidType">
  <xs:annotation>
    <xs:documentation>The field NDBNavaidFacility1 is the first character of the 5 character Navaid class,when used in NDB Navaid Record –NDBs and Terminal NDBs. It indicates the type of navaid represented by the NDB</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Ndb">
      <xs:annotation>
        <xs:documentation>NDB</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Sabh">
      <xs:annotation>
        <xs:documentation>SABH</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MarineBeacon">
      <xs:annotation>
        <xs:documentation>Marine Beacon.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:NavaidWeatherInfo
Namespace http://www.arinc424.com/xml/enumerations
Annotations

This data type provides information on weather information that is broadcast from this navaid.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AUTOMATED
Automatic Transcribed Weather.The frequency of this Navaid is used for the continuous broadcast of some sort of automated weather system such as AWOS, ASOS, TWEB, AWIB, AWIS.
enumeration SCHEDULED
Broadcast Scheduled Weather.The frequency of this Navaid is used for the scheduled, noncontinuous broadcast of some sort of automated weather system such as VOLMET.
Used by
Source

<xs:simpleType name="NavaidWeatherInfo">
  <xs:annotation>
    <xs:documentation>This data type provides information on weather information that is broadcast from this navaid.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AUTOMATED">
      <xs:annotation>
        <xs:documentation>Automatic Transcribed Weather.The frequency of this Navaid is used for the continuous broadcast of some sort of automated weather system such as AWOS, ASOS, TWEB, AWIB, AWIS.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SCHEDULED">
      <xs:annotation>
        <xs:documentation>Broadcast Scheduled Weather.The frequency of this Navaid is used for the scheduled, noncontinuous broadcast of some sort of automated weather system such as VOLMET.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:Frequency
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This field specifies frequency and unit of measure of the frequency information.
Diagram
Diagram ARINC424_22_HTML.tmp#Frequency_freqUnitOfMeasure ARINC424_22_HTML.tmp#Frequency_frequencyValue
Used by
Model
Children freqUnitOfMeasure, frequencyValue
Source

<xs:complexType name="Frequency">
  <xs:annotation>
    <xs:documentation>This field specifies frequency and unit of measure of the frequency information.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="freqUnitOfMeasure" type="enum:FreqUnitOfMeasure" minOccurs="1" maxOccurs="1"/>
    <xs:element name="frequencyValue" type="xs:decimal" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:FreqUnitOfMeasure
Namespace http://www.arinc424.com/xml/enumerations
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration megaHertz
megaHertz
enumeration kiloHertz
kiloHertz
Used by
Source

<xs:simpleType name="FreqUnitOfMeasure">
  <xs:restriction base="xs:string">
    <xs:enumeration value="megaHertz">
      <xs:annotation>
        <xs:documentation>megaHertz</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="kiloHertz">
      <xs:annotation>
        <xs:documentation>kiloHertz</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:TypeOfEmission
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Facility Characteristics field identifies the characteristics of the NAVAID facility.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
enumeration 400
400 Hertz
enumeration 1020
1020 Hertz
Used by
Source

<xs:simpleType name="TypeOfEmission">
  <xs:annotation>
    <xs:documentation>The Facility Characteristics field identifies the characteristics of the NAVAID facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:enumeration value="400">
      <xs:annotation>
        <xs:documentation>400 Hertz</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1020">
      <xs:annotation>
        <xs:documentation>1020 Hertz</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:RepetitionRate
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Facility Characteristics field identifies the characteristics of the NAVAID facility.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
maxExclusive 10
minInclusive 0
Used by
Source

<xs:simpleType name="RepetitionRate">
  <xs:annotation>
    <xs:documentation>The Facility Characteristics field identifies the characteristics of the NAVAID facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:maxExclusive value="10"/>
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:NavaidNDBEmissionType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The NavaidNDBEmissionType field identifies the characteristics of the NAVAID facility.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration UnmodulatedCarrier
Unmodulated carrier
enumeration CarrierKeyed
Carrier keyed, bandwidth less than .1 kHz and/or carrier keyed, bandwidth greater than .1 kHz
enumeration ToneKeyModulation
Tone keyed modulation
Used by
Source

<xs:simpleType name="NavaidNDBEmissionType">
  <xs:annotation>
    <xs:documentation>The NavaidNDBEmissionType field identifies the characteristics of the NAVAID facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="UnmodulatedCarrier">
      <xs:annotation>
        <xs:documentation>Unmodulated carrier</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CarrierKeyed">
      <xs:annotation>
        <xs:documentation>Carrier keyed, bandwidth less than .1 kHz and/or carrier keyed, bandwidth greater than .1 kHz</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ToneKeyModulation">
      <xs:annotation>
        <xs:documentation>Tone keyed modulation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type TerminalProcedures
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#TerminalProcedures_sid ARINC424_22_HTML.tmp#TerminalProcedures_star ARINC424_22_HTML.tmp#TerminalProcedures_approach
Used by
Model
Children approach, sid, star
Source

<xs:complexType name="TerminalProcedures">
  <xs:sequence>
    <xs:element name="sid" type="SID" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="star" type="STAR" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="approach" type="Approach" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type SID
Namespace No namespace
Annotations

This element represents a standard instrument departure.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Procedure_referenceID ARINC424_22_HTML.tmp#Procedure_isRnav ARINC424_22_HTML.tmp#Procedure_isHelicopterOnlyProcedure ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftCategories ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftTypes ARINC424_22_HTML.tmp#Procedure_isSpecial ARINC424_22_HTML.tmp#Procedure_procedureDesignMagVar ARINC424_22_HTML.tmp#Procedure ARINC424_22_HTML.tmp#SIDSTAR_isVorDmeRnav ARINC424_22_HTML.tmp#SIDSTAR_rnavPbnNavSpec ARINC424_22_HTML.tmp#SIDSTAR_rnpPbnNavSpec ARINC424_22_HTML.tmp#SIDSTAR ARINC424_22_HTML.tmp#SID_sidRunwayTransition ARINC424_22_HTML.tmp#SID_sidCommonRoute ARINC424_22_HTML.tmp#SID_sidEnrouteTransition ARINC424_22_HTML.tmp#SID_isEngineOut ARINC424_22_HTML.tmp#SID_isVector ARINC424_22_HTML.tmp#SID_isPInS ARINC424_22_HTML.tmp#SID_isPInSProceedVisually ARINC424_22_HTML.tmp#SID_isPInSProceedVfr
Type extension of SIDSTAR
Type hierarchy
Used by
Model
Children identifier, isEngineOut, isHelicopterOnlyProcedure, isPInS, isPInSProceedVfr, isPInSProceedVisually, isRnav, isSpecial, isVector, isVorDmeRnav, procedureDesignAircraftCategories, procedureDesignAircraftTypes, procedureDesignMagVar, rnavPbnNavSpec, rnpPbnNavSpec, sidCommonRoute, sidEnrouteTransition, sidRunwayTransition, supplementalData
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="SID">
  <xs:annotation>
    <xs:documentation>This element represents a standard instrument departure.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="SIDSTAR">
      <xs:sequence>
        <xs:element name="sidRunwayTransition" type="SIDRunwayTransition" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>These elements are the runway transitions of the SID</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sidCommonRoute" type="SIDCommonRoute" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element is the common route of the SID</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sidEnrouteTransition" type="SIDEnrouteTransition" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>These elements are the enroute transitions of the SID</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isEngineOut" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element indicates that the SID is an Engine Out SID</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isVector" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The element indicates that the SID is a vector SID</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isPInS" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>If this element exists and is true then the parent is a point in space SID.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isPInSProceedVisually" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>If this element exists and is true then the procedure will proceed visually.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isPInSProceedVfr" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>If this element exists and is true then the SID will proceed under visual flight rules.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type SIDSTAR
Namespace No namespace
Annotations

This class is the base class for SID and STAR records. It contains all the fields that are common to both SID and STAR.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Procedure_referenceID ARINC424_22_HTML.tmp#Procedure_isRnav ARINC424_22_HTML.tmp#Procedure_isHelicopterOnlyProcedure ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftCategories ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftTypes ARINC424_22_HTML.tmp#Procedure_isSpecial ARINC424_22_HTML.tmp#Procedure_procedureDesignMagVar ARINC424_22_HTML.tmp#Procedure ARINC424_22_HTML.tmp#SIDSTAR_isVorDmeRnav ARINC424_22_HTML.tmp#SIDSTAR_rnavPbnNavSpec ARINC424_22_HTML.tmp#SIDSTAR_rnpPbnNavSpec
Type extension of Procedure
Type hierarchy
Properties
abstract true
Used by
Complex Types SID, STAR
Model
Children identifier, isHelicopterOnlyProcedure, isRnav, isSpecial, isVorDmeRnav, procedureDesignAircraftCategories, procedureDesignAircraftTypes, procedureDesignMagVar, rnavPbnNavSpec, rnpPbnNavSpec, supplementalData
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="SIDSTAR" abstract="true">
  <xs:annotation>
    <xs:documentation>This class is the base class for SID and STAR records. It contains all the fields that are common to both SID and STAR.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Procedure">
      <xs:sequence>
        <xs:element name="isVorDmeRnav" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>If this element exists and is true then the procedure is VOR/DME RNAV.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rnavPbnNavSpec" type="enum:RnavPbnNavSpec" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element indicates that an RNAV PBN navigation specification applies to this procedure</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rnpPbnNavSpec" type="enum:RnpPbnNavSpec" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element indicates that an RNP PBN navigation specification applies to this procedure</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Procedure
Namespace No namespace
Annotations

This abstract element is used to represent elements common to different types of terminal procedures.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Procedure_referenceID ARINC424_22_HTML.tmp#Procedure_isRnav ARINC424_22_HTML.tmp#Procedure_isHelicopterOnlyProcedure ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftCategories ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftTypes ARINC424_22_HTML.tmp#Procedure_isSpecial ARINC424_22_HTML.tmp#Procedure_procedureDesignMagVar
Type extension of A424ObjectWithId
Type hierarchy
Properties
abstract true
Used by
Complex Types Approach, SIDSTAR
Model
Children identifier, isHelicopterOnlyProcedure, isRnav, isSpecial, procedureDesignAircraftCategories, procedureDesignAircraftTypes, procedureDesignMagVar, supplementalData
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Procedure" abstract="true">
  <xs:annotation>
    <xs:documentation>This abstract element is used to represent elements common to different types of terminal procedures.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424ObjectWithId">
      <xs:sequence>
        <xs:element name="isRnav" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element indcates whether the procedure is an RNAV procdedure.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isHelicopterOnlyProcedure" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>If this element is present and true the procedure is only for helicopters.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="procedureDesignAircraftCategories" type="type:ProcedureDesignAircraftCategories" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element indciates the category of aircraft that this procedure was designed to support.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="procedureDesignAircraftTypes" type="type:ProcedureDesignAircraftTypes" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element indciates the type of aircraft that this procedure was designed to support.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isSpecial" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Definition/Description: This field provides an indicator whether the terminal procedure requires specific operational approval defined by official government sources. Special procedures may be developed based on aircraft performance, aircraft equipment, or crew training, and may also require the use of landing aids, communications, or weather services not available for public use. Examples of special procedures include: SIAP, RCAP, etc.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="procedureDesignMagVar" type="type:MagneticVariation" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides the magnetic varaiation used to design the procedure.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
      <xs:attribute name="referenceID" use="required" type="xs:ID"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type A424ObjectWithId
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier
Type extension of A424Base
Type hierarchy
Used by
Complex Types Airway, Procedure, Route
Model
Children identifier, supplementalData
Source

<xs:complexType name="A424ObjectWithId">
  <xs:complexContent>
    <xs:extension base="A424Base">
      <xs:sequence>
        <xs:element name="identifier" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type type:ProcedureDesignAircraftCategories
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This type provides the aircraft category(s) for which the procedure or portion of a procedure (transition) was designed.
Diagram
Diagram ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryA ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryB ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryC ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryD ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryE ARINC424_22_HTML.tmp#ProcedureDesignAircraftCategories_isCategoryHelicopter
Used by
Model
Children isCategoryA, isCategoryB, isCategoryC, isCategoryD, isCategoryE, isCategoryHelicopter
Source

<xs:complexType name="ProcedureDesignAircraftCategories">
  <xs:annotation>
    <xs:documentation>This type provides the aircraft category(s) for which the procedure or portion of a procedure (transition) was designed.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="isCategoryA" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Category A</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isCategoryB" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Category B</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isCategoryC" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Category C</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isCategoryD" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Category D</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isCategoryE" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Category E</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isCategoryHelicopter" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Category H (Helicopter)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type type:ProcedureDesignAircraftTypes
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This type provides the aircraft type(s) for which the procedure or portion of a procedure (transition) was designed.
Diagram
Diagram ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeJet ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeTurbojet ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeTuroprop ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeProp ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypePiston ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeNonJets ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeNotLimited ARINC424_22_HTML.tmp#ProcedureDesignAircraftTypes_isTypeNonTurbojets
Used by
Model
Children isTypeJet, isTypeNonJets, isTypeNonTurbojets, isTypeNotLimited, isTypePiston, isTypeProp, isTypeTurbojet, isTypeTuroprop
Source

<xs:complexType name="ProcedureDesignAircraftTypes">
  <xs:annotation>
    <xs:documentation>This type provides the aircraft type(s) for which the procedure or portion of a procedure (transition) was designed.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="isTypeJet" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Type Jets only</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isTypeTurbojet" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Type Turbojet only</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isTypeTuroprop" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Type Turboprop only</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isTypeProp" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Type Prop only</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isTypePiston" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Type Pistons only</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isTypeNonJets" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Type Non-Jets only</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isTypeNotLimited" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Type Not Limited</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isTypeNonTurbojets" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft Type Non-Turbojets only</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:RnavPbnNavSpec
Namespace http://www.arinc424.com/xml/enumerations
Annotations

This field provides information on the ICAO PBN Navigation Specification applicable to this procedure
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Rnav5
enumeration Rnav2
enumeration Rnav1
enumeration BRnav
enumeration PRnav
enumeration PbnUnspecified
Used by
Source

<xs:simpleType name="RnavPbnNavSpec">
  <xs:annotation>
    <xs:documentation>This field provides information on the ICAO PBN Navigation Specification applicable to this procedure</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Rnav5"/>
    <xs:enumeration value="Rnav2"/>
    <xs:enumeration value="Rnav1"/>
    <xs:enumeration value="BRnav"/>
    <xs:enumeration value="PRnav"/>
    <xs:enumeration value="PbnUnspecified"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:RnpPbnNavSpec
Namespace http://www.arinc424.com/xml/enumerations
Annotations

This field provides information on the ICAO PBN Navigation Specification appliable to this procedure
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Rnp2
enumeration Rnp1
enumeration RnpAr
enumeration AdvRnp
enumeration Rnp0_3
enumeration PbnUnspecified
Used by
Source

<xs:simpleType name="RnpPbnNavSpec">
  <xs:annotation>
    <xs:documentation>This field provides information on the ICAO PBN Navigation Specification appliable to this procedure</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Rnp2"/>
    <xs:enumeration value="Rnp1"/>
    <xs:enumeration value="RnpAr"/>
    <xs:enumeration value="AdvRnp"/>
    <xs:enumeration value="Rnp0_3"/>
    <xs:enumeration value="PbnUnspecified"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type SIDRunwayTransition
Namespace No namespace
Annotations

This element represents a SID runway transition.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#RunwayTransition_vectoring ARINC424_22_HTML.tmp#RunwayTransition_routeQualifications ARINC424_22_HTML.tmp#RunwayTransition ARINC424_22_HTML.tmp#SIDRunwayTransition_isFromRunway
Type extension of RunwayTransition
Type hierarchy
Used by
Model
Children identifier, isFromRunway, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel, vectoring
Source

<xs:complexType name="SIDRunwayTransition">
  <xs:annotation>
    <xs:documentation>This element represents a SID runway transition.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="RunwayTransition">
      <xs:sequence>
        <xs:element minOccurs="0" name="isFromRunway" type="xs:boolean">
          <xs:annotation>
            <xs:documentation>If this element exists and is true then the SID Runway Transition was from a runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type RunwayTransition
Namespace No namespace
Annotations

This atstract element represents of shared information between SID and STAR Runway Transitions.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#RunwayTransition_vectoring ARINC424_22_HTML.tmp#RunwayTransition_routeQualifications
Type extension of ProcedureRoute
Type hierarchy
Properties
abstract true
Used by
Model
Children identifier, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel, vectoring
Source

<xs:complexType name="RunwayTransition" abstract="true">
  <xs:annotation>
    <xs:documentation>This atstract element represents of shared information between SID and STAR Runway Transitions.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ProcedureRoute">
      <xs:sequence>
        <xs:element name="vectoring" type="type:Vectoring" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides vectoring information on the route</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="routeQualifications" type="type:routeQualifications" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides information on qualifications or details on the parent route element</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type ProcedureRoute
Namespace No namespace
Annotations

This class represents a Transition. This is the base class for other Transitions for inheriting the attributes of this class.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg
Type extension of Route
Type hierarchy
Properties
abstract true
Used by
Model
Children identifier, msaRef, procedureLeg, supplementalData, transitionAltitudeOrLevel
Source

<xs:complexType name="ProcedureRoute" abstract="true">
  <xs:annotation>
    <xs:documentation>This class represents a Transition. This is the base class for other Transitions for inheriting the attributes of this class.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Route">
      <xs:sequence>
        <xs:element name="transitionAltitudeOrLevel" type="type:Altitude" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="msaRef" type="xs:IDREF" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>When the terminal procedure has a simgle MSA defined, on the common or final approach route, this field will contain a reference to the MSA for the entire procedure. If the government source MSA is "by transition," the reference is populated on each transition.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="procedureLeg" type="ProcedureLeg" minOccurs="1" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Route
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId
Type extension of A424ObjectWithId
Type hierarchy
Properties
abstract true
Used by
Model
Children identifier, supplementalData
Source

<xs:complexType name="Route" abstract="true">
  <xs:complexContent>
    <xs:extension base="A424ObjectWithId">
      <xs:sequence/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type ProcedureLeg
Namespace No namespace
Annotations

This class is an abstraction of Procedure Leg. all the details pertaining to a Procedure leg are captured here.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#ProcedureLeg_altitudeDescription ARINC424_22_HTML.tmp#ProcedureLeg_arcRadius ARINC424_22_HTML.tmp#ProcedureLeg_atcIndicator ARINC424_22_HTML.tmp#ProcedureLeg_distance ARINC424_22_HTML.tmp#ProcedureLeg_holdTime ARINC424_22_HTML.tmp#ProcedureLeg_waypointDescriptor ARINC424_22_HTML.tmp#ProcedureLeg_legDistance ARINC424_22_HTML.tmp#ProcedureLeg_legInboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_legInboundOutboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_pathAndTermination ARINC424_22_HTML.tmp#ProcedureLeg_procedureDesignMagVar ARINC424_22_HTML.tmp#ProcedureLeg_rho ARINC424_22_HTML.tmp#ProcedureLeg_rnp ARINC424_22_HTML.tmp#ProcedureLeg_speedLimit ARINC424_22_HTML.tmp#ProcedureLeg_speedLimitDescription ARINC424_22_HTML.tmp#ProcedureLeg_theta ARINC424_22_HTML.tmp#ProcedureLeg_transitionsAltitudeLevel ARINC424_22_HTML.tmp#ProcedureLeg_turnDirection ARINC424_22_HTML.tmp#ProcedureLeg_turnDirectionValid ARINC424_22_HTML.tmp#ProcedureLeg_verticalScaleFactor ARINC424_22_HTML.tmp#ProcedureLeg_alt1 ARINC424_22_HTML.tmp#ProcedureLeg_alt2 ARINC424_22_HTML.tmp#ProcedureLeg_course ARINC424_22_HTML.tmp#ProcedureLeg_centerFix ARINC424_22_HTML.tmp#ProcedureLeg_centerFixRef
Type extension of Leg
Type hierarchy
Properties
abstract true
Used by
Model
Children alt1, alt2, altitudeDescription, arcRadius, atcIndicator, centerFix, centerFixRef, course, custAreaCode, cycleDate, distance, fixIdent, fixRef, holdTime, legDistance, legInboundIndicator, legInboundOutboundIndicator, notes, pathAndTermination, procedureDesignMagVar, recNavaidIdent, recNavaidRef, recordType, rho, rnp, sequenceNumber, speedLimit, speedLimitDescription, supplementalData, theta, transitionsAltitudeLevel, turnDirection, turnDirectionValid, verticalScaleFactor, waypointDescriptor
Source

<xs:complexType name="ProcedureLeg" abstract="true">
  <xs:annotation>
    <xs:documentation>This class is an abstraction of Procedure Leg. all the details pertaining to a Procedure leg are captured here.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Leg">
      <xs:sequence>
        <xs:element name="altitudeDescription" type="enum:AltitudeDescription" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="arcRadius" type="type:ARCRadius" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “ARC Radius” field is used to define the radius of a precision turn. In Terminal Procedures, this is the “Constant Radius To A Fix” Path and Termination, for “RF” Leg. In Holding Patterns, this is the turning radius, inbound to outbound leg, for RNP Holding. The ARC Radius field is also used to specify the turn radius of RNP holding patterns included in SID, STAR, and Approach Records as HA, HF, and HM legs.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="atcIndicator" type="enum:ATCIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “ATC Indicator” field will be used to indicate that the altitudes shown in the altitude fields can be modified by ATC or the altitude will be assigned by ATC.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="distance" type="type:LegDistance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>In SID, STAR and Approach Procedure records, this field may contain segment distances, along track distances, excursion distances, or DME distances. The actual content is dependent on the Path and Termination. For more information on the content, refer to Table Three, Leg Data Fields, in Attachment 5 of the 424 specification.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="holdTime" type="xs:duration" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>In SID, STAR and Approach Procedure records, the field may contain segment distances/along track distances/excursion distances/DME distances or holding pattern timing.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="waypointDescriptor" type="type:ProcedureWaypointDescription" minOccurs="1" maxOccurs="1"/>
        <xs:element name="legDistance" type="type:LegDistance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Terminal Procedure Flight Planning Leg distance is the along track distance required to complete any given leg. It is used to determine a cumulative track distance for a given terminal procedure for flight planning purposes, from the beginning of the take-off or arrival point to the termination point of the procedure.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="legInboundIndicator" type="type:LegInboundIndicator" minOccurs="0" maxOccurs="1"/>
        <xs:element name="legInboundOutboundIndicator" type="enum:LegInboundOutboundIndicator" minOccurs="0" maxOccurs="1"/>
        <xs:element name="pathAndTermination" type="enum:PathAndTermination" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Path and Termination defines the path geometry for a single record of an ATC terminal procedure.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="procedureDesignMagVar" type="type:MagneticVariation" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Procedure Design Mag Var Indicator” field is an indication of how procedure design magnetic variation was provided in official source data for the procedure defined in the record/record set.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rho" type="type:Rho" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>“RHO” is defined as the geodesic distance in nautical miles to the waypoint identified in the record’s “Fix Ident” field from the NAVAID in the “Recommended NAVAID” field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rnp" type="type:RequiredNavigationPerformance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Required Navigation Performance (RNP) is a statement of the Navigation Performance necessary for operation within a defined airspace in accordance with ICAO Annex 15 and/or State published rules.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="speedLimit" type="type:SpeedLimit" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Speed Limit” field defines a speed, expressed in Knots, Indicated (K.I.A.S.), for a fix in a terminal procedure or for an airport or heliport terminal environment.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="speedLimitDescription" type="enum:SpeedLimitDescription" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The "Speed Limit Description" field will designate whether the speed limit coded at a fix in a terminal procedure description is a mandatory, minimum or maximum speed. For Maximum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit The STAR and Approach Procedure Record speed limit will be applied forward to the end of the arrival (excluding the missed approach procedure) or until superseded by another speed limit. For Minimum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will be applied forward to the end of the SID or Missed Approach Procedure or until superseded by another speed limit. The STAR and Approach Procedure Record speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit. For Mandatory speeds: The speed requirement shall be met at the fix. The speed will not be applied to previous legs or applied forward to the next legs of the procedure record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="theta" type="type:Theta" minOccurs="0" maxOccurs="1"/>
        <xs:element name="transitionsAltitudeLevel" type="type:TransitionAltitude" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Transition Altitude” field defines the altitude in the vicinity of an airport or heliport at or below which the vertical position of an aircraft is controlled by reference to altitudes (MSL). The “Transition Level” field defines the lowest flight level available for use above the transition altitude. Aircraft descending through the transition layer will use altimeters set to local station pressure, while departing aircraft climbing through the layer will be using standard altimeter setting (QNE) of 29.92 inches of mercury, 1013.2 millibars or 1013.2 hectopascals.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="turnDirection" type="enum:TurnDirection" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Turn Direction” field specifies the direction in which Terminal Procedure turns are to be made. It is also used to indication direction on course reversals, see Attachment 5 Path and Termination</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="turnDirectionValid" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This field is used in conjunction with Turn direction to indicate that a turn is required prior to capturing the path defined in a terminal procedure.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="verticalScaleFactor" type="type:VerticalScaleFactor" minOccurs="0" maxOccurs="1"/>
        <xs:element name="alt1" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
        <xs:element name="alt2" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
        <xs:element name="course" type="type:Course" minOccurs="0" maxOccurs="1"/>
        <xs:element name="centerFix" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1"/>
        <xs:element name="centerFixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Leg
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef
Type extension of A424Record
Type hierarchy
Properties
abstract true
Used by
Model
Children custAreaCode, cycleDate, fixIdent, fixRef, notes, recNavaidIdent, recNavaidRef, recordType, sequenceNumber, supplementalData
Source

<xs:complexType name="Leg" abstract="true">
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="sequenceNumber" type="type:SequenceNumber" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>For Route Type Records - A route of flight is defined by a series of legs taken in order. The “Sequence Number” field defines the position of the leg in the sequence defining the route of flight identified in the route identifier field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="fixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
        <xs:element name="fixIdent" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1"/>
        <xs:element name="recNavaidIdent" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1"/>
        <xs:element name="recNavaidRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:SequenceNumber
Namespace http://www.arinc424.com/xml/datatypes
Annotations

For Route Type Records - A route of flight is defined by a series of records taken in order. The “Sequence Number” field defines the location of the record in the sequence defining the route of flight identified in the route identifier field. For Boundary Type Records - A boundary is defined by a series of records taken in order. The “Sequence Number” field defines the location of the record in the sequence defining a boundary. For Record Types requiring more than one primary record to define the complete content – In a series of records used to define a complete condition, the “Sequence Number” is used to define each primary record in the sequence. For Airport and Heliport TAA Records – Sequence Number 1 will always be assigned to the record based on the Center Fix upon which the Straight-In Area is predicated, Sequence Number 2 will always be assigned to the record based on the Center Fix upon which the Left Base Area is predicated, and Sequence Number 3 will always be assigned to the record based on the Center Fix upon which the Right Base Area is predicated. Therefore, if a TAA Record has a Straight-In Area and a Right Base Area, but no Left Base Area, only Sequence Numbers 1 and 3 will be used. If a TAA Record has a Straight-In Area and a Left Base Area but no Right Base Area, only Sequence Numbers 1 and 2 will be used.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 4
Used by
Source

<xs:simpleType name="SequenceNumber">
  <xs:annotation>
    <xs:documentation>For Route Type Records - A route of flight is defined by a series of records taken in order. The “Sequence Number” field defines the location of the record in the sequence defining the route of flight identified in the route identifier field. For Boundary Type Records - A boundary is defined by a series of records taken in order. The “Sequence Number” field defines the location of the record in the sequence defining a boundary. For Record Types requiring more than one primary record to define the complete content – In a series of records used to define a complete condition, the “Sequence Number” is used to define each primary record in the sequence. For Airport and Heliport TAA Records – Sequence Number 1 will always be assigned to the record based on the Center Fix upon which the Straight-In Area is predicated, Sequence Number 2 will always be assigned to the record based on the Center Fix upon which the Left Base Area is predicated, and Sequence Number 3 will always be assigned to the record based on the Center Fix upon which the Right Base Area is predicated. Therefore, if a TAA Record has a Straight-In Area and a Right Base Area, but no Left Base Area, only Sequence Numbers 1 and 3 will be used. If a TAA Record has a Straight-In Area and a Left Base Area but no Right Base Area, only Sequence Numbers 1 and 2 will be used.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:AltitudeDescription
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AtOrAboveFirst
At or above altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration AtOrBelow
At or below altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.
enumeration At
At altitude specified in first Altitude field. Also used with Localizer Only Altitude field, and the FACF Waypoint on Precision Approach Coding with Electronic Glide Slope.
enumeration B
At or above to at or below altitudes specified in the first and second Altitude fields. Not used on FAF or MAP Waypoint Records in Precision Approach Coding with Electronic Glide Slope
enumeration C
"At or above" altitude specified in second "Altitude" field.
enumeration G
Glide Slope Altitude (MSL) At Fix, specified in the first Altitude field on the FAF Waypoint and Glide Slope Intercept Altitude (MSL) in second altitude of FAF Waypoint in Precision Approach Coding with electronic Glide Slope.
enumeration I
Glide Slope Intercept Altitude specified in second "Altitude" field and "at" altitude specified in first "Altitude" field on the FACF Waypoint in Precision Approach Coding with electronic Glide Slope
Used by
Source

<xs:simpleType name="AltitudeDescription">
  <xs:annotation>
    <xs:documentation>The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AtOrAboveFirst">
      <xs:annotation>
        <xs:documentation>At or above altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AtOrBelow">
      <xs:annotation>
        <xs:documentation>At or below altitude specified in first Altitude field. Also used with Localizer Only Altitude field and the FACF Waypoint on Precision Approach Procedures with Electronic Glide Slope.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="At">
      <xs:annotation>
        <xs:documentation>At altitude specified in first Altitude field. Also used with Localizer Only Altitude field, and the FACF Waypoint on Precision Approach Coding with Electronic Glide Slope.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="B">
      <xs:annotation>
        <xs:documentation>At or above to at or below altitudes specified in the first and second Altitude fields. Not used on FAF or MAP Waypoint Records in Precision Approach Coding with Electronic Glide Slope</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="C">
      <xs:annotation>
        <xs:documentation>"At or above" altitude specified in second "Altitude" field.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="G">
      <xs:annotation>
        <xs:documentation>Glide Slope Altitude (MSL) At Fix, specified in the first Altitude field on the FAF Waypoint and Glide Slope Intercept Altitude (MSL) in second altitude of FAF Waypoint in Precision Approach Coding with electronic Glide Slope.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="I">
      <xs:annotation>
        <xs:documentation>Glide Slope Intercept Altitude specified in second "Altitude" field and "at" altitude specified in first "Altitude" field on the FACF Waypoint in Precision Approach Coding with electronic Glide Slope</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:ARCRadius
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “ARC Radius” field is used to define the radius of a precision turn. In Terminal Procedures, this is the “Constant Radius To A Fix” Path and Termination, for “RF” Leg. In Holding Patterns, this is the turning radius, inbound to outbound leg, for RNP Holding. The ARC Radius field is also used to specify the turn radius of RNP holding patterns included in SID, STAR, and Approach Records as HA, HF, and HM legs.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceNMThousanths
Type type:DistanceNMThousanths
Type hierarchy
Facets
totalDigits 6
fractionDigits 3
Used by
Source

<xs:simpleType name="ARCRadius">
  <xs:annotation>
    <xs:documentation>The “ARC Radius” field is used to define the radius of a precision turn. In Terminal Procedures, this is the “Constant Radius To A Fix” Path and Termination, for “RF” Leg. In Holding Patterns, this is the turning radius, inbound to outbound leg, for RNP Holding. The ARC Radius field is also used to specify the turn radius of RNP holding patterns included in SID, STAR, and Approach Records as HA, HF, and HM legs.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceNMThousanths"/>
</xs:simpleType>
[ top ]
Simple Type type:DistanceNMThousanths
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type restriction of xs:decimal
Facets
totalDigits 6
fractionDigits 3
Used by
Simple Type type:ARCRadius
Source

<xs:simpleType name="DistanceNMThousanths">
  <xs:restriction base="xs:decimal">
    <xs:totalDigits value="6"/>
    <xs:fractionDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ATCIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The ATC Indicator field will be used to indicate that the altitudes shown in the altitude fields can be modified by ATC or the altitude will be assigned by ATC.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration ModifiedOrAssigned
Altitude can be modified or assigned by ATC.
enumeration AssignedIfNotProvided
official government source states that the altitude will be assigned by ATC or if no altitude is supplied
Used by
Source

<xs:simpleType name="ATCIndicator">
  <xs:annotation>
    <xs:documentation>The ATC Indicator field will be used to indicate that the altitudes shown in the altitude fields can be modified by ATC or the altitude will be assigned by ATC.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="ModifiedOrAssigned">
      <xs:annotation>
        <xs:documentation>Altitude can be modified or assigned by ATC.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AssignedIfNotProvided">
      <xs:annotation>
        <xs:documentation>official government source states that the altitude will be assigned by ATC or if no altitude is supplied</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:LegDistance
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Leg distance element used on procedure and airway legs, and terminal procedure flight planning records.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceNM
Type type:DistanceNM
Type hierarchy
Facets
totalDigits 4
fractionDigits 1
Used by
Source

<xs:simpleType name="LegDistance">
  <xs:annotation>
    <xs:documentation>Leg distance element used on procedure and airway legs, and terminal procedure flight planning records.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceNM"/>
</xs:simpleType>
[ top ]
Simple Type type:DistanceNM
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type restriction of xs:decimal
Facets
totalDigits 4
fractionDigits 1
Used by
Source

<xs:simpleType name="DistanceNM">
  <xs:restriction base="xs:decimal">
    <xs:totalDigits value="4"/>
    <xs:fractionDigits value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:ProcedureWaypointDescription
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class represents the waypoint description information used by procedure legs.
Diagram
Diagram ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isEssential ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isFlyOver ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isHolding ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isNoProcedureTurn ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isPhantomFix ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isSourceProvidedEnrouteWaypoint ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isTaaProcedureTurn ARINC424_22_HTML.tmp#ProcedureWaypointDescription_isAtcCompulsoryReportingPoint
Used by
Model
Children isAtcCompulsoryReportingPoint, isEssential, isFlyOver, isHolding, isNoProcedureTurn, isPhantomFix, isSourceProvidedEnrouteWaypoint, isTaaProcedureTurn
Source

<xs:complexType name="ProcedureWaypointDescription">
  <xs:annotation>
    <xs:documentation>This class represents the waypoint description information used by procedure legs.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="isEssential" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFlyOver" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isHolding" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isNoProcedureTurn" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isPhantomFix" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>A database waypoint established during procedure coding to facilitate more accurate navigation by the Flight Management Computer than would be allowed using air-mass related Path Terminators to replicate source data. The waypoint finds use when such considerations as increased environmental restrictions and the congestion of the available airspace come into play. Used to permit route construction with track to a fix (TF) legs.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isSourceProvidedEnrouteWaypoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isTaaProcedureTurn" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “TAA Procedure Turn” field is used to indicate whether or a course reversal is necessary when flying within a particular TAA Area.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isAtcCompulsoryReportingPoint" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Compulsory Reporting Point: Essential or nonessential waypoints may be classified as ATC compulsory points. ATC requires the pilot to make a communications report at these waypoints. All other waypoints may be classified as non compulsory reporting points and are reported only when specifically requested by ATC</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:LegInboundIndicator
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type xs:string
Used by
Source

<xs:simpleType name="LegInboundIndicator">
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Simple Type enum:LegInboundOutboundIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Leg Inbound/Outbound Indicator is used to identify the Leg Length or Leg Time field values (5.64 or 5.65) as being applicable to either the inbound or the outbound leg of a holding pattern or race track course reversal.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Inbound
Inbound
enumeration Outbound
Inbound
Used by
Source

<xs:simpleType name="LegInboundOutboundIndicator">
  <xs:annotation>
    <xs:documentation>The Leg Inbound/Outbound Indicator is used to identify the Leg Length or Leg Time field values (5.64 or 5.65) as being applicable to either the inbound or the outbound leg of a holding pattern or race track course reversal.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Inbound">
      <xs:annotation>
        <xs:documentation>Inbound</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Outbound">
      <xs:annotation>
        <xs:documentation>Inbound</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:PathAndTermination
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Path and Termination defines the path geometry for a single record of an ATC terminal
procedure.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AF
Arc to a Fix
enumeration CA
Course to an Altitude
enumeration CD
Course to a DME Distance
enumeration CF
Course to a Fix
enumeration CI
Course to an Intercept
enumeration CR
Course to a Radial Termination
enumeration FA
Fix to an Altitude
enumeration DF
Distance to a Fix
enumeration FC
Track from a Fix for a Distance
enumeration FD
Track from a Fix to a DME Distance
enumeration FM
From a Fix to a Manual Termination
enumeration HA
Holding with Altitude Termination
enumeration HF
Holding with single circuit terminating at the fix
enumeration HM
Holding with Manual Termination
enumeration IF
Initial Fix
enumeration PI
045/180 Procedure Turn
enumeration RF
Constant Radius Arc
enumeration TF
Track to a Fix
enumeration VA
Heading to an Altitude Termination
enumeration VD
Heading to a DME Distance Termination
enumeration VI
Heading to an Intercept
enumeration VM
Heading to a Manual Termination
enumeration VR
Heading to a Radial Termination
Used by
Source

<xs:simpleType name="PathAndTermination">
  <xs:annotation>
    <xs:documentation>The Path and Termination defines the path geometry for a single record of an ATC terminal procedure.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AF">
      <xs:annotation>
        <xs:documentation>Arc to a Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CA">
      <xs:annotation>
        <xs:documentation>Course to an Altitude</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CD">
      <xs:annotation>
        <xs:documentation>Course to a DME Distance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CF">
      <xs:annotation>
        <xs:documentation>Course to a Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CI">
      <xs:annotation>
        <xs:documentation>Course to an Intercept</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CR">
      <xs:annotation>
        <xs:documentation>Course to a Radial Termination</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FA">
      <xs:annotation>
        <xs:documentation>Fix to an Altitude</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DF">
      <xs:annotation>
        <xs:documentation>Distance to a Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FC">
      <xs:annotation>
        <xs:documentation>Track from a Fix for a Distance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FD">
      <xs:annotation>
        <xs:documentation>Track from a Fix to a DME Distance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FM">
      <xs:annotation>
        <xs:documentation>From a Fix to a Manual Termination</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HA">
      <xs:annotation>
        <xs:documentation>Holding with Altitude Termination</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HF">
      <xs:annotation>
        <xs:documentation>Holding with single circuit terminating at the fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HM">
      <xs:annotation>
        <xs:documentation>Holding with Manual Termination</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IF">
      <xs:annotation>
        <xs:documentation>Initial Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PI">
      <xs:annotation>
        <xs:documentation>045/180 Procedure Turn</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RF">
      <xs:annotation>
        <xs:documentation>Constant Radius Arc</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TF">
      <xs:annotation>
        <xs:documentation>Track to a Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VA">
      <xs:annotation>
        <xs:documentation>Heading to an Altitude Termination</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VD">
      <xs:annotation>
        <xs:documentation>Heading to a DME Distance Termination</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VI">
      <xs:annotation>
        <xs:documentation>Heading to an Intercept</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VM">
      <xs:annotation>
        <xs:documentation>Heading to a Manual Termination</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VR">
      <xs:annotation>
        <xs:documentation>Heading to a Radial Termination</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:Rho
Namespace http://www.arinc424.com/xml/datatypes
Annotations

“RHO” is defined as the geodesic distance in nautical miles to the waypoint identified in the record’s “Fix Ident” field from the NAVAID in the “Recommended NAVAID” field.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceNM
Type type:DistanceNM
Type hierarchy
Facets
totalDigits 4
fractionDigits 1
Used by
Source

<xs:simpleType name="Rho">
  <xs:annotation>
    <xs:documentation>“RHO” is defined as the geodesic distance in nautical miles to the waypoint identified in the record’s “Fix Ident” field from the NAVAID in the “Recommended NAVAID” field.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceNM"/>
</xs:simpleType>
[ top ]
Simple Type type:RequiredNavigationPerformance
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Required Navigation Performance (RNP) is a statement of the Navigation Performance necessary for operation within a defined airspace in accordance with ICAO Annex 15 and/or State published rules.  e.g., .15, 4, 1, .3
Diagram
Diagram
Type restriction of xs:decimal
Facets
fractionDigits 9
Used by
Source

<xs:simpleType name="RequiredNavigationPerformance">
  <xs:annotation>
    <xs:documentation>Required Navigation Performance (RNP) is a statement of the Navigation Performance necessary for operation within a defined airspace in accordance with ICAO Annex 15 and/or State published rules. e.g., .15, 4, 1, .3</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:fractionDigits value="9"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:SpeedLimitDescription
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The "Speed Limit Description" field will designate whether the speed limit coded at a fix in a terminal procedure description is a mandatory, minimum or maximum speed.
For Maximum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit

The STAR and Approach Procedure Record speed limit will be applied forward to the end of the arrival (excluding the missed approach procedure) or until superseded by another speed limit.

For Minimum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will be applied forward to the end of the SID or Missed Approach Procedure or until superseded by another speed limit.

The STAR and Approach Procedure Record speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit.

For Mandatory speeds: The speed requirement shall be met at the fix. The speed will not be applied to previous legs or applied forward to the next legs of the procedure record.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Manditory
Mandatory Speed, Cross Fix AT speed specified in Speed Limit
enumeration Minimum
Minimum Speed, Cross Fix AT or ABOVE speed specified in Speed Limit
enumeration Maximum
Maximum Speed, Cross Fix AT or BELOW speed specified in Speed Limit
Used by
Source

<xs:simpleType name="SpeedLimitDescription">
  <xs:annotation>
    <xs:documentation>The "Speed Limit Description" field will designate whether the speed limit coded at a fix in a terminal procedure description is a mandatory, minimum or maximum speed. For Maximum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit The STAR and Approach Procedure Record speed limit will be applied forward to the end of the arrival (excluding the missed approach procedure) or until superseded by another speed limit. For Minimum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will be applied forward to the end of the SID or Missed Approach Procedure or until superseded by another speed limit. The STAR and Approach Procedure Record speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit. For Mandatory speeds: The speed requirement shall be met at the fix. The speed will not be applied to previous legs or applied forward to the next legs of the procedure record.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Manditory">
      <xs:annotation>
        <xs:documentation>Mandatory Speed, Cross Fix AT speed specified in Speed Limit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Minimum">
      <xs:annotation>
        <xs:documentation>Minimum Speed, Cross Fix AT or ABOVE speed specified in Speed Limit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Maximum">
      <xs:annotation>
        <xs:documentation>Maximum Speed, Cross Fix AT or BELOW speed specified in Speed Limit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:Theta
Namespace http://www.arinc424.com/xml/datatypes
Annotations

“Theta” is defined as the magnetic bearing to the waypoint identified in the record’s “FIX Ident” field from the Navaid in the “Recommended Navaid” field.
Diagram
Diagram ARINC424_22_HTML.tmp#BearingValue
Type type:BearingValue
Type hierarchy
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Used by
Source

<xs:simpleType name="Theta">
  <xs:annotation>
    <xs:documentation>“Theta” is defined as the magnetic bearing to the waypoint identified in the record’s “FIX Ident” field from the Navaid in the “Recommended Navaid” field.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:BearingValue"/>
</xs:simpleType>
[ top ]
Simple Type type:BearingValue
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram ARINC424_22_HTML.tmp#CompassValue
Type restriction of type:CompassValue
Type hierarchy
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Used by
Source

<xs:simpleType name="BearingValue">
  <xs:restriction base="type:CompassValue">
    <xs:totalDigits value="4"/>
    <xs:fractionDigits value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:CompassValue
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type restriction of xs:decimal
Facets
maxInclusive 360
minInclusive 0
Used by
Source

<xs:simpleType name="CompassValue">
  <xs:restriction base="xs:decimal">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="360"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:TurnDirection
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Turn Direction” field specifies the direction in which Terminal Procedure turns are to be made. It is also used to indication direction on course reversals, see Attachment 5 Path and Termination
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Left
Left
enumeration Right
Right
enumeration Either
Either Left or Right
Used by
Source

<xs:simpleType name="TurnDirection">
  <xs:annotation>
    <xs:documentation>The “Turn Direction” field specifies the direction in which Terminal Procedure turns are to be made. It is also used to indication direction on course reversals, see Attachment 5 Path and Termination</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Left">
      <xs:annotation>
        <xs:documentation>Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Right">
      <xs:annotation>
        <xs:documentation>Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Either">
      <xs:annotation>
        <xs:documentation>Either Left or Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:VerticalScaleFactor
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Vertical Scale Factor (VSF) is used to set the vertical deviation scale.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="VerticalScaleFactor">
  <xs:annotation>
    <xs:documentation>Vertical Scale Factor (VSF) is used to set the vertical deviation scale.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:Course
Namespace http://www.arinc424.com/xml/datatypes
Annotations

“Outbound Magnetic Course” is the published outbound magnetic course from the waypoint identified in the record’s “Fix Ident” field. In addition, this field is used for Course/Heading/Radials on SID/STAR Approach Records through requirements of the Path Terminator and coding rules contained in Attachment 5 of this specification.
Diagram
Diagram ARINC424_22_HTML.tmp#Course_courseValue ARINC424_22_HTML.tmp#Course_isTrue
Used by
Model
Children courseValue, isTrue
Source

<xs:complexType name="Course">
  <xs:annotation>
    <xs:documentation>“Outbound Magnetic Course” is the published outbound magnetic course from the waypoint identified in the record’s “Fix Ident” field. In addition, this field is used for Course/Heading/Radials on SID/STAR Approach Records through requirements of the Path Terminator and coding rules contained in Attachment 5 of this specification.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="courseValue" type="type:CourseValue" minOccurs="1" maxOccurs="1"/>
    <xs:element name="isTrue" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:CourseValue
Namespace http://www.arinc424.com/xml/datatypes
Annotations

“Outbound Magnetic Course” is the published outbound magnetic course from the waypoint identified in the record’s “Fix Ident” field. In addition, this field is used for Course/Heading/Radials on SID/STAR Approach Records through requirements of the Path Terminator and coding rules contained in Attachment 5 of this specification.
Diagram
Diagram ARINC424_22_HTML.tmp#CompassValue
Type restriction of type:CompassValue
Type hierarchy
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Used by
Source

<xs:simpleType name="CourseValue">
  <xs:annotation>
    <xs:documentation>“Outbound Magnetic Course” is the published outbound magnetic course from the waypoint identified in the record’s “Fix Ident” field. In addition, this field is used for Course/Heading/Radials on SID/STAR Approach Records through requirements of the Path Terminator and coding rules contained in Attachment 5 of this specification.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:CompassValue">
    <xs:totalDigits value="4"/>
    <xs:fractionDigits value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:Vectoring
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type xs:string
Used by
Source

<xs:simpleType name="Vectoring">
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Complex Type type:routeQualifications
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This element provides boolean expressions describing qualifications of the route.  The qualifications in this element are common to different types of routes
Diagram
Diagram ARINC424_22_HTML.tmp#routeQualifications_isDmeReq ARINC424_22_HTML.tmp#routeQualifications_isGnssReq ARINC424_22_HTML.tmp#routeQualifications_isRadarReq ARINC424_22_HTML.tmp#routeQualifications_isFmsReq ARINC424_22_HTML.tmp#routeQualifications_isConventional
Used by
Model
Children isConventional, isDmeReq, isFmsReq, isGnssReq, isRadarReq
Source

<xs:complexType name="routeQualifications">
  <xs:annotation>
    <xs:documentation>This element provides boolean expressions describing qualifications of the route. The qualifications in this element are common to different types of routes</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element minOccurs="0" name="isDmeReq" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>If this element exists and is true, Dme is required for the parent procedure.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element minOccurs="0" name="isGnssReq" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>If this element exists and is true, a GNSS is required for the parent procedure</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element minOccurs="0" name="isRadarReq" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>If this element exists and is true RADAR is required for the parent procedure</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element minOccurs="0" name="isFmsReq" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>If this element exists and is true a flight management system is required for the parent procedure</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element minOccurs="0" name="isConventional" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>If this element exists and is true the route is a conventional route</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type SIDCommonRoute
Namespace No namespace
Annotations

This element represents a SID common route.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#CommonRoute_routeQualifications ARINC424_22_HTML.tmp#CommonRoute ARINC424_22_HTML.tmp#SIDCommonRoute_IsFromRunway
Type extension of CommonRoute
Type hierarchy
Used by
Model
Children IsFromRunway, identifier, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel
Source

<xs:complexType name="SIDCommonRoute">
  <xs:annotation>
    <xs:documentation>This element represents a SID common route.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="CommonRoute">
      <xs:sequence>
        <xs:element minOccurs="0" name="IsFromRunway" type="xs:boolean">
          <xs:annotation>
            <xs:documentation>If this element exists and is true then the SID Common Route was from a runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type CommonRoute
Namespace No namespace
Annotations

This atstract element represents of shared information between SID and STAR common routes.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#CommonRoute_routeQualifications
Type extension of ProcedureRoute
Type hierarchy
Properties
abstract true
Used by
Model
Children identifier, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel
Source

<xs:complexType name="CommonRoute" abstract="true">
  <xs:annotation>
    <xs:documentation>This atstract element represents of shared information between SID and STAR common routes.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ProcedureRoute">
      <xs:sequence>
        <xs:element name="routeQualifications" type="type:routeQualifications" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides information on qualifications or details on the parent route element</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type SIDEnrouteTransition
Namespace No namespace
Annotations

This element represents a SID Enroute Transition.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#EnrouteTransition_vectoring ARINC424_22_HTML.tmp#EnrouteTransition_routeQualifications ARINC424_22_HTML.tmp#EnrouteTransition
Type extension of EnrouteTransition
Type hierarchy
Used by
Model
Children identifier, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel, vectoring
Source

<xs:complexType name="SIDEnrouteTransition">
  <xs:annotation>
    <xs:documentation>This element represents a SID Enroute Transition.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="EnrouteTransition">
      <xs:sequence/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type EnrouteTransition
Namespace No namespace
Annotations

This atstract element represents of shared information between SID and STAR Enroute Transitions.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#EnrouteTransition_vectoring ARINC424_22_HTML.tmp#EnrouteTransition_routeQualifications
Type extension of ProcedureRoute
Type hierarchy
Properties
abstract true
Used by
Model
Children identifier, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel, vectoring
Source

<xs:complexType name="EnrouteTransition" abstract="true">
  <xs:annotation>
    <xs:documentation>This atstract element represents of shared information between SID and STAR Enroute Transitions.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ProcedureRoute">
      <xs:sequence>
        <xs:element name="vectoring" type="type:Vectoring" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides vectoring invormaiton on the route</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="routeQualifications" type="type:routeQualifications" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides information on qualifications or details on the parent route element</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type STAR
Namespace No namespace
Annotations

This class is an abstraction of STAR. STAR records are represented by this class.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Procedure_referenceID ARINC424_22_HTML.tmp#Procedure_isRnav ARINC424_22_HTML.tmp#Procedure_isHelicopterOnlyProcedure ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftCategories ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftTypes ARINC424_22_HTML.tmp#Procedure_isSpecial ARINC424_22_HTML.tmp#Procedure_procedureDesignMagVar ARINC424_22_HTML.tmp#Procedure ARINC424_22_HTML.tmp#SIDSTAR_isVorDmeRnav ARINC424_22_HTML.tmp#SIDSTAR_rnavPbnNavSpec ARINC424_22_HTML.tmp#SIDSTAR_rnpPbnNavSpec ARINC424_22_HTML.tmp#SIDSTAR ARINC424_22_HTML.tmp#STAR_starRunwayTransition ARINC424_22_HTML.tmp#STAR_starEnrouteTransition ARINC424_22_HTML.tmp#STAR_starCommonRoute ARINC424_22_HTML.tmp#STAR_isContiniousDecent
Type extension of SIDSTAR
Type hierarchy
Used by
Model
Children identifier, isContiniousDecent, isHelicopterOnlyProcedure, isRnav, isSpecial, isVorDmeRnav, procedureDesignAircraftCategories, procedureDesignAircraftTypes, procedureDesignMagVar, rnavPbnNavSpec, rnpPbnNavSpec, starCommonRoute, starEnrouteTransition, starRunwayTransition, supplementalData
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="STAR">
  <xs:annotation>
    <xs:documentation>This class is an abstraction of STAR. STAR records are represented by this class.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="SIDSTAR">
      <xs:sequence>
        <xs:element name="starRunwayTransition" type="STARRunwayTransition" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>These elements are the runway transitions.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="starEnrouteTransition" type="STAREnrouteTransition" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>These elements are the enroute transitions</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="starCommonRoute" type="STARCommonRoute" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element is the common route</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" name="isContiniousDecent" type="xs:boolean">
          <xs:annotation>
            <xs:documentation>If this element exists and is true then the parent is a continious decent STAR.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type STARRunwayTransition
Namespace No namespace
Annotations

This element represents a STAR Runway Transition.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#RunwayTransition_vectoring ARINC424_22_HTML.tmp#RunwayTransition_routeQualifications ARINC424_22_HTML.tmp#RunwayTransition ARINC424_22_HTML.tmp#STARRunwayTransition_isToRunway
Type extension of RunwayTransition
Type hierarchy
Used by
Model
Children identifier, isToRunway, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel, vectoring
Source

<xs:complexType name="STARRunwayTransition">
  <xs:annotation>
    <xs:documentation>This element represents a STAR Runway Transition.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="RunwayTransition">
      <xs:sequence>
        <xs:element minOccurs="0" name="isToRunway" type="xs:boolean">
          <xs:annotation>
            <xs:documentation>If this element exists and is true then the STAR Common Route was to a runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type STAREnrouteTransition
Namespace No namespace
Annotations

This element represents a STAR enroute transition.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#EnrouteTransition_vectoring ARINC424_22_HTML.tmp#EnrouteTransition_routeQualifications ARINC424_22_HTML.tmp#EnrouteTransition
Type extension of EnrouteTransition
Type hierarchy
Used by
Model
Children identifier, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel, vectoring
Source

<xs:complexType name="STAREnrouteTransition">
  <xs:annotation>
    <xs:documentation>This element represents a STAR enroute transition.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="EnrouteTransition">
      <xs:sequence/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type STARCommonRoute
Namespace No namespace
Annotations

The element represents a STAR Common Route.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#CommonRoute_routeQualifications ARINC424_22_HTML.tmp#CommonRoute ARINC424_22_HTML.tmp#STARCommonRoute_isToRunway
Type extension of CommonRoute
Type hierarchy
Used by
Model
Children identifier, isToRunway, msaRef, procedureLeg, routeQualifications, supplementalData, transitionAltitudeOrLevel
Source

<xs:complexType name="STARCommonRoute">
  <xs:annotation>
    <xs:documentation>The element represents a STAR Common Route.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="CommonRoute">
      <xs:sequence>
        <xs:element minOccurs="0" name="isToRunway" type="xs:boolean">
          <xs:annotation>
            <xs:documentation>If this element exists and is true then the STAR Common Route was to a runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Approach
Namespace No namespace
Annotations

This class is an abstraction of Approach. Approach records are represented by this class.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Procedure_referenceID ARINC424_22_HTML.tmp#Procedure_isRnav ARINC424_22_HTML.tmp#Procedure_isHelicopterOnlyProcedure ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftCategories ARINC424_22_HTML.tmp#Procedure_procedureDesignAircraftTypes ARINC424_22_HTML.tmp#Procedure_isSpecial ARINC424_22_HTML.tmp#Procedure_procedureDesignMagVar ARINC424_22_HTML.tmp#Procedure ARINC424_22_HTML.tmp#Approach_approachRouteType ARINC424_22_HTML.tmp#Approach_gnssFMSIndicator ARINC424_22_HTML.tmp#Approach_gbasPathPoint ARINC424_22_HTML.tmp#Approach_sbasPathPoint ARINC424_22_HTML.tmp#Approach_approachTransition ARINC424_22_HTML.tmp#Approach_finalApproach ARINC424_22_HTML.tmp#Approach_missedApproach ARINC424_22_HTML.tmp#Approach_approachPointRef ARINC424_22_HTML.tmp#Approach_isRnavVisual ARINC424_22_HTML.tmp#Approach_isPinsProceedVisually ARINC424_22_HTML.tmp#Approach_isPinsProceedVfr ARINC424_22_HTML.tmp#Approach_isLocalizerBackcourse ARINC424_22_HTML.tmp#Approach_approachPbnNavSpec ARINC424_22_HTML.tmp#Approach_isPreferredProcedure
Type extension of Procedure
Type hierarchy
Used by
Model
Children approachPbnNavSpec, approachPointRef, approachRouteType, approachTransition, finalApproach, gbasPathPoint, gnssFMSIndicator, identifier, isHelicopterOnlyProcedure, isLocalizerBackcourse, isPinsProceedVfr, isPinsProceedVisually, isPreferredProcedure, isRnav, isRnavVisual, isSpecial, missedApproach, procedureDesignAircraftCategories, procedureDesignAircraftTypes, procedureDesignMagVar, sbasPathPoint, supplementalData
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Approach">
  <xs:annotation>
    <xs:documentation>This class is an abstraction of Approach. Approach records are represented by this class.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Procedure">
      <xs:sequence>
        <xs:element name="approachRouteType" type="enum:ApproachRouteType" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element identifies what type of approach the parent is.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="gnssFMSIndicator" type="enum:GNSSFMSIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “GNSS/FMS Indicator” field provides an indication of whether or not the responsible government agency has authorized the overlay of a conventional, ground based approach procedure with the use of a sensor capable of processing GNSS data or if the procedure may be flown with FMS as the primary navigation equipment. The field is also used to indicate when and RNAV procedure has been authorized for GNSS-based vertical navigation.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="gbasPathPoint" type="GBASPathPoint" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element is the GBAS path point record for the approach.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sbasPathPoint" type="SBASPathPoint" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element is the SBAS path point for the approach</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="approachTransition" type="ApproachTransition" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>These elements are the approach transitions for the approach.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="finalApproach" type="FinalApproach" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This is the final approach route, which ends at the last part of the final before the missed approach. e.g., The last point of the final approach is often the missed approach point.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="missedApproach" type="MissedApproach" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>These elments are the missed approach routes for a procedure.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="approachPointRef" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides a reference to the point served by this approach procedure. On an approach this would reference a runway or fix.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <!-- The remainder of these fields are related to route qualifiers -->
        <xs:element name="isRnavVisual" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>If this element exists and is true the parent is an Rnav Visual.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isPinsProceedVisually" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element indicates if the procedure is Point In Space with a instructions to procede visually.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isPinsProceedVfr" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element indicates if hte procedure is Point In Space with instructions to procedure under visual flight rules.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isLocalizerBackcourse" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>If this element exists and is true th eparent is a localizer backcourse.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="approachPbnNavSpec" type="enum:ApproachPbnNavSpec" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides informaiton on the ICAO PBN navigation specification applicable to the approach.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isPreferredProcedure" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Preferred Multiple Approach Indicator is used to identify the multiple approach that is generally considered to be the most likely one to be utilized/needed when there are only multiple approaches available for a given approach type at a runway. This will be defined on the Approach FAF record in the Final Approach. For a given approach type at a runway, there shall be one and only one Primary Multiple Approach Indicator provided</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:ApproachRouteType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The "Route Type" field defines the type of Airport Approach (PF) and Heliport Approach (HF) Records
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration LocBackcourse
Localizer/Backcourse Approach
enumeration VorDme
VORDME Approach
enumeration Fms
Flight Management System (FMS) Approach
enumeration Igs
Instrument Guidance System (IGS) Approach
enumeration Rnp
Area Navigation (RNAV) Approach with Required Navigation Performance (RNP) Approach
enumeration Ils
Instrument Landing System (ILS) Approach
enumeration Gls
GNSS Landing System (GLS)Approach
enumeration LocOnly
Localizer Only (LOC) Approach
enumeration Mls
Microwave Landing System (MLS) Approach
enumeration Ndb
Non-Directional Beacon (NDB) Approach
enumeration Gps
Global Positioning System (GPS) Approach
enumeration NdbDme
Non-Directional Beacon + DME(NDB+DME) Approach
enumeration Rnav
Area Navigation (RNAV) Approach
enumeration VorUsingVordmeOrVortac
VOR Approach using VORDME/VORTAC
enumeration Tacan
TACAN Approach
enumeration Sdf
Simplified Directional Facility (SDF) Approach
enumeration Vor
VOR Approach
enumeration Lda
Localizer Directional Aid (LDA) Approach
Used by
Source

<xs:simpleType name="ApproachRouteType">
  <xs:annotation>
    <xs:documentation>The "Route Type" field defines the type of Airport Approach (PF) and Heliport Approach (HF) Records</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="LocBackcourse">
      <xs:annotation>
        <xs:documentation>Localizer/Backcourse Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VorDme">
      <xs:annotation>
        <xs:documentation>VORDME Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Fms">
      <xs:annotation>
        <xs:documentation>Flight Management System (FMS) Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Igs">
      <xs:annotation>
        <xs:documentation>Instrument Guidance System (IGS) Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Rnp">
      <xs:annotation>
        <xs:documentation>Area Navigation (RNAV) Approach with Required Navigation Performance (RNP) Approach</xs:documentation>
        <xs:documentation>Route types of Rnp or Rnav indicate a procedure titled RNAV, e.g., RNAV (GPS) or RNAV (RNP). Route Type H indicates a procedure titled RNP. COMMENTARY: The Route Types H and R are coded to differentiate between the approach procedure titles published in state source. The words in brackets will not be considered for the coding of the Route Type. While according to the PBN manual there is no RNAV approach specification, many approaches are still published using an RNAV title. Additionally, there are still non PBN RNAV approaches published, e.g., VOR/DME RNAV. The following old titles will be coded with a Route Type R: RNAV (GPS) RWY 09 RNAV (GNSS) RWY 09 RNAV (RNP) RWY 09 The following new titles will be coded with Route Type H: RNP RWY 09 RNP RWY 09 (AR) The following new titles will be coded with Route Type R: RNAV RWY 09 RNAV RWY 09 (AR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Ils">
      <xs:annotation>
        <xs:documentation>Instrument Landing System (ILS) Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Gls">
      <xs:annotation>
        <xs:documentation>GNSS Landing System (GLS)Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LocOnly">
      <xs:annotation>
        <xs:documentation>Localizer Only (LOC) Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Mls">
      <xs:annotation>
        <xs:documentation>Microwave Landing System (MLS) Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Ndb">
      <xs:annotation>
        <xs:documentation>Non-Directional Beacon (NDB) Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Gps">
      <xs:annotation>
        <xs:documentation>Global Positioning System (GPS) Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NdbDme">
      <xs:annotation>
        <xs:documentation>Non-Directional Beacon + DME(NDB+DME) Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Rnav">
      <xs:annotation>
        <xs:documentation>Area Navigation (RNAV) Approach</xs:documentation>
        <xs:documentation>Route Type R indicates a procedure titled RNAV, e.g., RNAV (GPS) or RNAV (RNP). Route Type H indicates a procedure titled RNP. COMMENTARY: The Route Types H and R are coded to differentiate between the approach procedure titles published in state source. The words in brackets will not be considered for the coding of the Route Type. While according to the PBN manual there is no RNAV approach specification, many approaches are still published using an RNAV title. Additionally, there are still non PBN RNAV approaches published, e.g., VOR/DME RNAV. The following old titles will be coded with a Route Type R: RNAV (GPS) RWY 09 RNAV (GNSS) RWY 09 RNAV (RNP) RWY 09 The following new titles will be coded with Route Type H: RNP RWY 09 RNP RWY 09 (AR) The following new titles will be coded with Route Type R: RNAV RWY 09 RNAV RWY 09 (AR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VorUsingVordmeOrVortac">
      <xs:annotation>
        <xs:documentation>VOR Approach using VORDME/VORTAC</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Tacan">
      <xs:annotation>
        <xs:documentation>TACAN Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Sdf">
      <xs:annotation>
        <xs:documentation>Simplified Directional Facility (SDF) Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Vor">
      <xs:annotation>
        <xs:documentation>VOR Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Lda">
      <xs:annotation>
        <xs:documentation>Localizer Directional Aid (LDA) Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:GNSSFMSIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The GNSS/FMS Indicator field provides an indication of whether or not the responsible government agency has authorized the overlay of a conventional, ground based approach procedure with the use of a sensor capable of processing GNSS data or if the procedure may be flown with FMS as the primary navigation equipment. The field is also used to indicate when and RNAV procedure has been authorized for GNSS-based vertical navigation.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration GnssFmsOverlayAuthNotPublished
Procedure Not Authorized for GNSS or FMS Overlay ? Authorization not published.
enumeration GnssOverlayAuthNavaidOperatingAndMonitored
Procedure Authorized for GNSS Overlay, primary Navaids operating and monitored. Authorization not published.
enumeration GnssOverlayAuthNoMonitorNavaidAuth
Procedure Authorized for GNSS Overlay, primary Navaids installed, not monitored Authorization is published. Example: Procedure Title includes (GPS) or (GNSS)
enumeration GnssOverlayTitleIncludesGpsOrGnss
Procedure Authorized for GNSS Overlay, Procedure Title includes GPS or GNSS
enumeration FmsOverlayAuthorized
Procedure Authorized for FMS Overlay
enumeration SbasVerticalAuthorized
RNAV (GPS), RNAV (RNP) or RNAV (GNSS) Procedure SBAS use authorized; SBAS-based vertical navigation authorized
enumeration SbasVerticalNotAuthorized
RNAV (GPS), RNAV (RNP), RNAV (GNSS) or RNAV Visual Procedure, SBAS-based vertical navigation NOT Authorized
enumeration SbasVerticalNotPublished
RNAV (GPS) RNAV (RNP), or RNAV (GNSS) Procedure, SBAS-based vertical navigation use not published
enumeration StandAloneGNSS
Stand Alone GNSS Procedure
enumeration SbasVerticalNA
RNAV (GPS) RNAV (RNP), or RNAV (GNSS) Procedure within the SBAS operational footprint, but SBAS-based vertical navigation NOT Authorized
enumeration OverlayAuthNotPublished
Procedure Overlay Authorization not published
enumeration PbnRnpGps
PBN RNP Approach provide as GPS.  The GNSS/FMS IND of G indicates that the GPS approach is an PBN RNAV approach provided with route type P.
enumeration LocOnlyIls
Localizer only coding portion of ILS.  The GNSS/FMS IND of L indicates that the LOC approach is the Localizer only portion of an ILS approach which contains glideslope out information.
Used by
Source

<xs:simpleType name="GNSSFMSIndicator">
  <xs:annotation>
    <xs:documentation>The GNSS/FMS Indicator field provides an indication of whether or not the responsible government agency has authorized the overlay of a conventional, ground based approach procedure with the use of a sensor capable of processing GNSS data or if the procedure may be flown with FMS as the primary navigation equipment. The field is also used to indicate when and RNAV procedure has been authorized for GNSS-based vertical navigation.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="GnssFmsOverlayAuthNotPublished">
      <xs:annotation>
        <xs:documentation>Procedure Not Authorized for GNSS or FMS Overlay ? Authorization not published.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GnssOverlayAuthNavaidOperatingAndMonitored">
      <xs:annotation>
        <xs:documentation>Procedure Authorized for GNSS Overlay, primary Navaids operating and monitored. Authorization not published.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GnssOverlayAuthNoMonitorNavaidAuth">
      <xs:annotation>
        <xs:documentation>Procedure Authorized for GNSS Overlay, primary Navaids installed, not monitored Authorization is published. Example: Procedure Title includes (GPS) or (GNSS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GnssOverlayTitleIncludesGpsOrGnss">
      <xs:annotation>
        <xs:documentation>Procedure Authorized for GNSS Overlay, Procedure Title includes GPS or GNSS</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FmsOverlayAuthorized">
      <xs:annotation>
        <xs:documentation>Procedure Authorized for FMS Overlay</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SbasVerticalAuthorized">
      <xs:annotation>
        <xs:documentation>RNAV (GPS), RNAV (RNP) or RNAV (GNSS) Procedure SBAS use authorized; SBAS-based vertical navigation authorized</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SbasVerticalNotAuthorized">
      <xs:annotation>
        <xs:documentation>RNAV (GPS), RNAV (RNP), RNAV (GNSS) or RNAV Visual Procedure, SBAS-based vertical navigation NOT Authorized</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SbasVerticalNotPublished">
      <xs:annotation>
        <xs:documentation>RNAV (GPS) RNAV (RNP), or RNAV (GNSS) Procedure, SBAS-based vertical navigation use not published</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="StandAloneGNSS">
      <xs:annotation>
        <xs:documentation>Stand Alone GNSS Procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SbasVerticalNA">
      <xs:annotation>
        <xs:documentation>RNAV (GPS) RNAV (RNP), or RNAV (GNSS) Procedure within the SBAS operational footprint, but SBAS-based vertical navigation NOT Authorized</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OverlayAuthNotPublished">
      <xs:annotation>
        <xs:documentation>Procedure Overlay Authorization not published</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PbnRnpGps">
      <xs:annotation>
        <xs:documentation>PBN RNP Approach provide as GPS. The GNSS/FMS IND of G indicates that the GPS approach is an PBN RNAV approach provided with route type P.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LocOnlyIls">
      <xs:annotation>
        <xs:documentation>Localizer only coding portion of ILS. The GNSS/FMS IND of L indicates that the LOC approach is the Localizer only portion of an ILS approach which contains glideslope out information.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type GBASPathPoint
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#PathPoint_approachPerformanceDesignator ARINC424_22_HTML.tmp#PathPoint_approachRouteIdentifier ARINC424_22_HTML.tmp#PathPoint_approachTypeIdentifier ARINC424_22_HTML.tmp#PathPoint_courseWidthAtThreshold ARINC424_22_HTML.tmp#PathPoint_FASDataCRCRemainder ARINC424_22_HTML.tmp#PathPoint_flightPathAlignmentPoint ARINC424_22_HTML.tmp#PathPoint_fpapEllipsoidHeight ARINC424_22_HTML.tmp#PathPoint_fpapOrthometricHeight ARINC424_22_HTML.tmp#PathPoint_glidePathAngle ARINC424_22_HTML.tmp#PathPoint_gnssChannelNumber ARINC424_22_HTML.tmp#PathPoint_helicopterProcedureCourse ARINC424_22_HTML.tmp#PathPoint_landingThresholdPoint ARINC424_22_HTML.tmp#PathPoint_lengthOffset ARINC424_22_HTML.tmp#PathPoint_ltpEllipsoidHeight ARINC424_22_HTML.tmp#PathPoint_ltpOrthometricHeight ARINC424_22_HTML.tmp#PathPoint_pathPointTCH ARINC424_22_HTML.tmp#PathPoint_referencePathDataSelector ARINC424_22_HTML.tmp#PathPoint_referencePathIdentifier ARINC424_22_HTML.tmp#PathPoint_routeIndicator ARINC424_22_HTML.tmp#PathPoint_runwayOrPadIdentifier ARINC424_22_HTML.tmp#PathPoint_tchUnitsIndicator ARINC424_22_HTML.tmp#PathPoint ARINC424_22_HTML.tmp#GBASPathPoint_operationType
Type extension of PathPoint
Type hierarchy
Used by
Model
Children FASDataCRCRemainder, approachPerformanceDesignator, approachRouteIdentifier, approachTypeIdentifier, courseWidthAtThreshold, custAreaCode, cycleDate, flightPathAlignmentPoint, fpapEllipsoidHeight, fpapOrthometricHeight, glidePathAngle, gnssChannelNumber, helicopterProcedureCourse, landingThresholdPoint, lengthOffset, ltpEllipsoidHeight, ltpOrthometricHeight, notes, operationType, pathPointTCH, recordType, referencePathDataSelector, referencePathIdentifier, routeIndicator, runwayOrPadIdentifier, supplementalData, tchUnitsIndicator
Source

<xs:complexType name="GBASPathPoint">
  <xs:complexContent>
    <xs:extension base="PathPoint">
      <xs:sequence>
        <xs:element name="operationType" type="enum:GBASOperationType" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Operation Type” field indicates whether the operation is an approach procedure, an advanced operation or other operational to be defined later.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type PathPoint
Namespace No namespace
Annotations

Path Point Primary Record Description
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#PathPoint_approachPerformanceDesignator ARINC424_22_HTML.tmp#PathPoint_approachRouteIdentifier ARINC424_22_HTML.tmp#PathPoint_approachTypeIdentifier ARINC424_22_HTML.tmp#PathPoint_courseWidthAtThreshold ARINC424_22_HTML.tmp#PathPoint_FASDataCRCRemainder ARINC424_22_HTML.tmp#PathPoint_flightPathAlignmentPoint ARINC424_22_HTML.tmp#PathPoint_fpapEllipsoidHeight ARINC424_22_HTML.tmp#PathPoint_fpapOrthometricHeight ARINC424_22_HTML.tmp#PathPoint_glidePathAngle ARINC424_22_HTML.tmp#PathPoint_gnssChannelNumber ARINC424_22_HTML.tmp#PathPoint_helicopterProcedureCourse ARINC424_22_HTML.tmp#PathPoint_landingThresholdPoint ARINC424_22_HTML.tmp#PathPoint_lengthOffset ARINC424_22_HTML.tmp#PathPoint_ltpEllipsoidHeight ARINC424_22_HTML.tmp#PathPoint_ltpOrthometricHeight ARINC424_22_HTML.tmp#PathPoint_pathPointTCH ARINC424_22_HTML.tmp#PathPoint_referencePathDataSelector ARINC424_22_HTML.tmp#PathPoint_referencePathIdentifier ARINC424_22_HTML.tmp#PathPoint_routeIndicator ARINC424_22_HTML.tmp#PathPoint_runwayOrPadIdentifier ARINC424_22_HTML.tmp#PathPoint_tchUnitsIndicator
Type extension of A424Record
Type hierarchy
Used by
Complex Types GBASPathPoint, SBASPathPoint
Model
Children FASDataCRCRemainder, approachPerformanceDesignator, approachRouteIdentifier, approachTypeIdentifier, courseWidthAtThreshold, custAreaCode, cycleDate, flightPathAlignmentPoint, fpapEllipsoidHeight, fpapOrthometricHeight, glidePathAngle, gnssChannelNumber, helicopterProcedureCourse, landingThresholdPoint, lengthOffset, ltpEllipsoidHeight, ltpOrthometricHeight, notes, pathPointTCH, recordType, referencePathDataSelector, referencePathIdentifier, routeIndicator, runwayOrPadIdentifier, supplementalData, tchUnitsIndicator
Source

<xs:complexType name="PathPoint">
  <xs:annotation>
    <xs:documentation>Path Point Primary Record Description</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="approachPerformanceDesignator" type="enum:ApproachPerformanceDesignator" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Approach Performance Designator” field is used to indicate the type or category of approach.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="approachRouteIdentifier" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Approach Route Identifier” field contains the identifier of the approach route to be flown. To facilitate the provision of multiple approach procedures of the same type to a given runway, the field also is used to provide a “multiple indicator.”</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="approachTypeIdentifier" type="type:ApproachTypeIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Identifies the approach types published on a given approach procedure which require Airport or Helicopter Operations SBAS path points.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="courseWidthAtThreshold" type="type:CourseWidthAtThreshold" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Course Width At Threshold” field defines the width of the lateral course at the Landing Threshold Point (LTP) or Fictitious Helipoint (or helipoint). This width, in conjunction with the location of the Flight Path Alignment Point (FPAP) defines the sensitivity of the lateral deviations throughout the approach.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="FASDataCRCRemainder" type="type:FinalApproachSegmentDataCRCRemainder" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Final Approach Segment Data CRC Remainder” field is an eight (8) character hexadecimal representation of the 32-bit CRC value provided by the source for the information contained in the aeronautical data fields being monitored for integrity. The value is calculated by a specific mathematical algorithm, which is both machine and man processible.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="flightPathAlignmentPoint" type="type:HighPrecisionLocation" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="fpapEllipsoidHeight" type="type:EllipsoidHeight" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Ellipsoidal Height” field is the height of a surveyed point in reference to the WGS-84 ellipsoid.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="fpapOrthometricHeight" type="type:OrthometricHeight" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Orthometric Height” field is the height of a surveyed point in reference to Mean Sea Level (MSL).</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="glidePathAngle" type="type:GlidePathAngle" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Glide Path Angle” field is an angle, expressed in degrees, tenths and hundredths of degrees, measured at the Flight Path Control Point (FPCP) of those approach procedures that require the coding of a Airport or Helicopter Operations SBAS Path Point record or GBAS Path Point Record. It establishes the intended descent gradient for the final approach flight path. For an illustration of the GPA and related points.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="gnssChannelNumber" type="type:Channel" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “GNSS Channel Number” field identifies the channel that will be decoded to identify the augmentation system used. The Channel Number is derived from official government sources and is entered as five numeric characters. It consists of numeric characters in the ranges 0000 to 9999 and 20001 to 99999. In general, numbers less than 20000 are reserved for ILS and MLS. In some countries, Channel Numbers from 0000 to 9999 are reserved for SCAT-1 and will be entered as 00000 through 09999. Channel Numbers from 20001 to 39999 are reserved for GBAS (and SBAS if applicable). Channel Numbers from 40000 to 99999 are reserved for SBAS.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="helicopterProcedureCourse" type="type:CourseValue" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Helicopter Procedure Course field is used on Path Point Continuation Records to define the final approach course of procedures designed for helicopter operations to runways, to helipads, and to points in space..</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="landingThresholdPoint" type="type:HighPrecisionLocation" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="lengthOffset" type="type:LengthOffset" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Length Offset” field is the distance from the stop end of the runway (SER) to the FPAP. This distance defines the location where lateral sensitivity changes to the missed approach sensitivity. If the FPAP is located at the designated center of the opposite runway end, the distance is zero. Additionally, if the lenfth offset is not provided then the element should not exist.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ltpEllipsoidHeight" type="type:EllipsoidHeight" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Ellipsoidal Height” field is the height of a surveyed point in reference to the WGS-84 ellipsoid.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ltpOrthometricHeight" type="type:OrthometricHeight" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Orthometric Height” field is the height of a surveyed point in reference to Mean Sea Level (MSL).</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="pathPointTCH" type="type:PathPointTCH" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>On procedures to runways or helipads, the Path Point TCH is the height above the runway threshold (LTP) or the helicopter alighting point. On procedures which are Point in Space, the height of the fictitious helipoint (or helipoint) above the height of the heliport. It is the same as the TCH defined in Section 5.67, but has greater resolution due to the required precision.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="referencePathDataSelector" type="type:ReferencePathDataSelector" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Reference Path Data Selector” field enables the automatic tuning of a procedure by Ground Based Augmentation Systems (GBAS) avionics.This data is not used for SBAS operations.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="referencePathIdentifier" type="type:ReferencePathIdentifier" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Reference Path Identifier field represents the three or four alphanumeric characters used to uniquely designate the reference path. The Reference Path Identifier is synonymous with the approach ID located beneath the Channel Number on Instrument Approach Plates and is unique only for a given airport.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="routeIndicator" type="type:RouteIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Route Indicator” field is a single alpha character used to differentiate between multiple final approach segments to the same runway or helipad contained in the Final Approach Coding.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayOrPadIdentifier" type="type:RunwayOrPadIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This XML element is designed as an abstraction for Runway Identifier or Pad Identifier, this is done by using the XML attribute "choice", so that only one of the elements can be present in the XML file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="tchUnitsIndicator" type="enum:TCHUnitsIndicator" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “TCH Units Indicator” field is used in Path Point Records to define the units, Feet or Meters for the Path Point TCH. This element is included in the “CRC Wrap” a possible metric source value cannot be converted to feet.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:ApproachPerformanceDesignator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Approach Performance Designator” field is used to indicate the type or category of approach.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 0
GAST A or GAST B
enumeration 1
GAST C
enumeration 2
GAST C or GAST D
enumeration 3
Spare
enumeration 4
Spare
enumeration 5
Spare
enumeration 6
Spare
enumeration 7
Spare
Used by
Source

<xs:simpleType name="ApproachPerformanceDesignator">
  <xs:annotation>
    <xs:documentation>The “Approach Performance Designator” field is used to indicate the type or category of approach.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="0">
      <xs:annotation>
        <xs:documentation>GAST A or GAST B</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1">
      <xs:annotation>
        <xs:documentation>GAST C</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2">
      <xs:annotation>
        <xs:documentation>GAST C or GAST D</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="5">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="6">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="7">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:ApproachTypeIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Identifies the approach types published on a given approach procedure which require Airport or Helicopter Operations SBAS path points.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 10
Used by
Source

<xs:simpleType name="ApproachTypeIdentifier">
  <xs:annotation>
    <xs:documentation>Identifies the approach types published on a given approach procedure which require Airport or Helicopter Operations SBAS path points.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="10"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:CourseWidthAtThreshold
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Course Width At Threshold” field defines the width of the lateral course at the Landing Threshold Point (LTP) or Fictitious Helipoint (or helipoint). This width, in conjunction with the location of the Flight Path Alignment Point (FPAP) defines the sensitivity of the lateral deviations throughout the approach.
Diagram
Diagram
Type xs:decimal
Used by
Source

<xs:simpleType name="CourseWidthAtThreshold">
  <xs:annotation>
    <xs:documentation>The “Course Width At Threshold” field defines the width of the lateral course at the Landing Threshold Point (LTP) or Fictitious Helipoint (or helipoint). This width, in conjunction with the location of the Flight Path Alignment Point (FPAP) defines the sensitivity of the lateral deviations throughout the approach.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal"/>
</xs:simpleType>
[ top ]
Simple Type type:FinalApproachSegmentDataCRCRemainder
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Final Approach Segment Data CRC Remainder” field is an eight (8) character hexadecimal representation of the 32-bit CRC value provided by the source for the information contained in the aeronautical data fields being monitored for integrity. The value is calculated by a specific mathematical algorithm, which is both machine and man processible.
Diagram
Diagram
Type restriction of xs:string
Facets
length 8
Used by
Source

<xs:simpleType name="FinalApproachSegmentDataCRCRemainder">
  <xs:annotation>
    <xs:documentation>The “Final Approach Segment Data CRC Remainder” field is an eight (8) character hexadecimal representation of the 32-bit CRC value provided by the source for the information contained in the aeronautical data fields being monitored for integrity. The value is calculated by a specific mathematical algorithm, which is both machine and man processible.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="8"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:HighPrecisionLocation
Namespace http://www.arinc424.com/xml/datatypes
Annotations

High Precision Location
Diagram
Diagram ARINC424_22_HTML.tmp#HighPrecisionLocation_highPrecisionLatitude ARINC424_22_HTML.tmp#HighPrecisionLocation_highPrecisionLongitude
Used by
Model
Children highPrecisionLatitude, highPrecisionLongitude
Source

<xs:complexType name="HighPrecisionLocation">
  <xs:annotation>
    <xs:documentation>High Precision Location</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="highPrecisionLatitude" type="type:HighPrecisionLatitude" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The High Precision Latitude field contains the latitude of the navigation feature identified in the record. When used on Airport Path Point Records, one navigation feature is the LTP/FTP, the other is the FPAP. When used on Helicopter Operations Path Point Records, one navigation feature is the Fictitious Helipoint (or Helipoint), the other is the FPAP.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="highPrecisionLongitude" type="type:HighPrecisionLongitude" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “High Precision Longitude” field contains the latitude of the navigation feature identified in the record. When used on Airport Path Point Records, one navigation feature is the LTP/FTP, the other is the FPAP. When used on Helicopter Operations Path Point Records, one navigation feature is the Fictitious Helipoint (or Helipoint), the other is the FPAP.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:HighPrecisionLatitude
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “High Precision Latitude” field contains the latitude of the navigation feature identified in the record. When used on Airport Path Point Records, one navigation feature is the LTP/FTP, the other is the FPAP. When used on Helicopter Operations Path Point Records, one navigation feature is the Fictitious Helipoint (or Helipoint), the other is the FPAP.
Diagram
Diagram
Type xs:string
Used by
Source

<xs:simpleType name="HighPrecisionLatitude">
  <xs:annotation>
    <xs:documentation>The “High Precision Latitude” field contains the latitude of the navigation feature identified in the record. When used on Airport Path Point Records, one navigation feature is the LTP/FTP, the other is the FPAP. When used on Helicopter Operations Path Point Records, one navigation feature is the Fictitious Helipoint (or Helipoint), the other is the FPAP.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Simple Type type:HighPrecisionLongitude
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “High Precision Longitude” field contains the longitude of the navigation feature identified in the record. When used on Airport Path Point Records, one navigation feature is the LTP/FTP, the other is the FPAP. When used on Helicopter Operations Path Point Records, one navigation feature is the Fictitious Helipoint (or Helipoint), the other is the FPAP.
Diagram
Diagram
Type xs:string
Used by
Source

<xs:simpleType name="HighPrecisionLongitude">
  <xs:annotation>
    <xs:documentation>The “High Precision Longitude” field contains the longitude of the navigation feature identified in the record. When used on Airport Path Point Records, one navigation feature is the LTP/FTP, the other is the FPAP. When used on Helicopter Operations Path Point Records, one navigation feature is the Fictitious Helipoint (or Helipoint), the other is the FPAP.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Simple Type type:EllipsoidHeight
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Ellipsoidal Height” field is the height of a surveyed point in reference to the WGS-84 ellipsoid.
Diagram
Diagram
Type xs:decimal
Used by
Source

<xs:simpleType name="EllipsoidHeight">
  <xs:annotation>
    <xs:documentation>The “Ellipsoidal Height” field is the height of a surveyed point in reference to the WGS-84 ellipsoid.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal"/>
</xs:simpleType>
[ top ]
Simple Type type:OrthometricHeight
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Orthometric Height” field is the height of a surveyed point in reference to Mean Sea Level (MSL).
Diagram
Diagram
Type restriction of xs:decimal
Facets
maxInclusive +9999
minInclusive -9999
Used by
Source

<xs:simpleType name="OrthometricHeight">
  <xs:annotation>
    <xs:documentation>The “Orthometric Height” field is the height of a surveyed point in reference to Mean Sea Level (MSL).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:maxInclusive value="+9999"/>
    <xs:minInclusive value="-9999"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:GlidePathAngle
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Glide Path Angle” field is an angle, expressed in degrees, tenths and hundredths of degrees, measured at the Flight Path Control Point (FPCP) of those approach procedures that require the coding of a Airport or Helicopter Operations SBAS Path Point record or GBAS Path Point Record. It establishes the intended descent gradient for the final approach flight path. For an illustration of the GPA and related points.
Diagram
Diagram
Type xs:decimal
Used by
Source

<xs:simpleType name="GlidePathAngle">
  <xs:annotation>
    <xs:documentation>The “Glide Path Angle” field is an angle, expressed in degrees, tenths and hundredths of degrees, measured at the Flight Path Control Point (FPCP) of those approach procedures that require the coding of a Airport or Helicopter Operations SBAS Path Point record or GBAS Path Point Record. It establishes the intended descent gradient for the final approach flight path. For an illustration of the GPA and related points.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal"/>
</xs:simpleType>
[ top ]
Simple Type type:Channel
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “GNSS Channel Number” field identifies the channel to be used for a given approach.

The “MLS Channel” field specifies the channel of the Azimuth, Elevation and Data transmissions for the MLS identified in the “MLS Identifier” field of the record.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 5
Used by
Source

<xs:simpleType name="Channel">
  <xs:annotation>
    <xs:documentation>The “GNSS Channel Number” field identifies the channel to be used for a given approach. The “MLS Channel” field specifies the channel of the Azimuth, Elevation and Data transmissions for the MLS identified in the “MLS Identifier” field of the record.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="5"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:LengthOffset
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Length Offset” field is the distance from the stop end of the runway (SER) to the FPAP. This distance defines the location where lateral sensitivity changes to the missed approach sensitivity. If the FPAP is located at the designated center of the opposite runway end, the distance is zero.Additionally, if the procedure is a Point in Space procedure and there is no runway, the value is set to 0000 (all zeros).
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceFeet
Type type:DistanceFeet
Type hierarchy
Facets
totalDigits 4
Used by
Source

<xs:simpleType name="LengthOffset">
  <xs:annotation>
    <xs:documentation>The “Length Offset” field is the distance from the stop end of the runway (SER) to the FPAP. This distance defines the location where lateral sensitivity changes to the missed approach sensitivity. If the FPAP is located at the designated center of the opposite runway end, the distance is zero.Additionally, if the procedure is a Point in Space procedure and there is no runway, the value is set to 0000 (all zeros).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceFeet"/>
</xs:simpleType>
[ top ]
Simple Type type:DistanceFeet
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceFeetFiveDigits
Type restriction of type:DistanceFeetFiveDigits
Type hierarchy
Facets
totalDigits 4
Used by
Source

<xs:simpleType name="DistanceFeet">
  <xs:restriction base="type:DistanceFeetFiveDigits">
    <xs:totalDigits value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:DistanceFeetFiveDigits
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 5
Used by
Source

<xs:simpleType name="DistanceFeetFiveDigits">
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="5"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:PathPointTCH
Namespace http://www.arinc424.com/xml/datatypes
Annotations

On procedures to runways or helipads, the Path Point TCH is the height above the runway threshold (LTP) or the helicopter alighting point. On procedures which are Point in Space, the height of the fictitious helipoint (or helipoint) above the height of the heliport. It is the same as the TCH defined in Section 5.67, but has greater resolution due to the required precision.  The value may be expressed in feet to a resolution of tenths of feet, or meters to a resolution of hundredths of meters. Whether the value is in feet or meters can be determined from the TCH Units Indicator.
Diagram
Diagram
Type restriction of xs:decimal
Facets
totalDigits 6
fractionDigits 2
Used by
Source

<xs:simpleType name="PathPointTCH">
  <xs:annotation>
    <xs:documentation>On procedures to runways or helipads, the Path Point TCH is the height above the runway threshold (LTP) or the helicopter alighting point. On procedures which are Point in Space, the height of the fictitious helipoint (or helipoint) above the height of the heliport. It is the same as the TCH defined in Section 5.67, but has greater resolution due to the required precision. The value may be expressed in feet to a resolution of tenths of feet, or meters to a resolution of hundredths of meters. Whether the value is in feet or meters can be determined from the TCH Units Indicator.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:totalDigits value="6"/>
    <xs:fractionDigits value="2"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:ReferencePathDataSelector
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Reference Path Data Selector” field enables the automatic tuning of a procedure by Ground Based Augmentation Systems (GBAS) avionics.This data is not used for SBAS operations.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 2
Used by
Source

<xs:simpleType name="ReferencePathDataSelector">
  <xs:annotation>
    <xs:documentation>The “Reference Path Data Selector” field enables the automatic tuning of a procedure by Ground Based Augmentation Systems (GBAS) avionics.This data is not used for SBAS operations.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="2"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:ReferencePathIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Reference Path Identifier field represents the three or four alphanumeric characters used to uniquely designate the reference path. The Reference Path Identifier is synonymous with the approach ID located beneath the Channel Number on Instrument Approach Plates and is unique only for a given airport.
Diagram
Diagram
Type restriction of xs:string
Facets
length 4
Used by
Source

<xs:simpleType name="ReferencePathIdentifier">
  <xs:annotation>
    <xs:documentation>The Reference Path Identifier field represents the three or four alphanumeric characters used to uniquely designate the reference path. The Reference Path Identifier is synonymous with the approach ID located beneath the Channel Number on Instrument Approach Plates and is unique only for a given airport.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:RouteIndicator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Route Indicator” field is a single alpha character used to differentiate between multiple final approach segments to the same runway or helipad contained in the Final Approach Coding.
Diagram
Diagram
Type restriction of xs:string
Facets
length 1
Used by
Source

<xs:simpleType name="RouteIndicator">
  <xs:annotation>
    <xs:documentation>The “Route Indicator” field is a single alpha character used to differentiate between multiple final approach segments to the same runway or helipad contained in the Final Approach Coding.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:RunwayOrPadIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This XML element is designed as an abstraction for Runway Identifier or Pad Identifier, this is done by using the XML attribute "choice", so that only one of the elements can be present in the XML file.
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayOrPadIdentifier_padIdentifier ARINC424_22_HTML.tmp#RunwayOrPadIdentifier_runwayIdentifier
Used by
Model
Children padIdentifier, runwayIdentifier
Source

<xs:complexType name="RunwayOrPadIdentifier">
  <xs:annotation>
    <xs:documentation>This XML element is designed as an abstraction for Runway Identifier or Pad Identifier, this is done by using the XML attribute "choice", so that only one of the elements can be present in the XML file.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="padIdentifier" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
    <xs:element name="runwayIdentifier" type="type:RunwayIdentifier" minOccurs="1" maxOccurs="1"/>
  </xs:choice>
</xs:complexType>
[ top ]
Complex Type type:RunwayIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Runway Identifier” field identifies the runways described in runway records and runways served by the ILS/MLS described in ILS/MLS records.
Diagram
Diagram ARINC424_22_HTML.tmp#RunwayIdentifier_runwayLeftRightCenterType ARINC424_22_HTML.tmp#RunwayIdentifier_runwayNumber
Used by
Model
Children runwayLeftRightCenterType, runwayNumber
Source

<xs:complexType name="RunwayIdentifier">
  <xs:annotation>
    <xs:documentation>The “Runway Identifier” field identifies the runways described in runway records and runways served by the ILS/MLS described in ILS/MLS records.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="runwayLeftRightCenterType" type="enum:RunwayLeftRightCenterType" minOccurs="0" maxOccurs="1"/>
    <xs:element name="runwayNumber" type="type:RunwayNumber" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:RunwayLeftRightCenterType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Runway Left/Right/Centre Indicator
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Left
Left (Runway of two or three parallel runways)
enumeration Right
Right (Runway of two or three parallel runways)
enumeration Center
Center (Runway of three parallel runways)
Used by
Source

<xs:simpleType name="RunwayLeftRightCenterType">
  <xs:annotation>
    <xs:documentation>Runway Left/Right/Centre Indicator</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Left">
      <xs:annotation>
        <xs:documentation>Left (Runway of two or three parallel runways)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Right">
      <xs:annotation>
        <xs:documentation>Right (Runway of two or three parallel runways)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Center">
      <xs:annotation>
        <xs:documentation>Center (Runway of three parallel runways)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:RunwayNumber
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “RunwayNumber” field identifies the runways described in runway records and runways served by the ILS/MLS described in ILS/MLS records. The runway Number is only part of the Runway Identifier.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
maxInclusive 36
minInclusive 1
Used by
Source

<xs:simpleType name="RunwayNumber">
  <xs:annotation>
    <xs:documentation>The “RunwayNumber” field identifies the runways described in runway records and runways served by the ILS/MLS described in ILS/MLS records. The runway Number is only part of the Runway Identifier.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:maxInclusive value="36"/>
    <xs:minInclusive value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:TCHUnitsIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The TCH Units Indicator field is used in Path Point Records to define the units, Feet or Meters for the Path Point TCH.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Feet
the Path Point TCH is provided in source documentation in Feet
enumeration Meters
Path Point TCH is provided in source documentation in meters
Used by
Source

<xs:simpleType name="TCHUnitsIndicator">
  <xs:annotation>
    <xs:documentation>The TCH Units Indicator field is used in Path Point Records to define the units, Feet or Meters for the Path Point TCH.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Feet">
      <xs:annotation>
        <xs:documentation>the Path Point TCH is provided in source documentation in Feet</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Meters">
      <xs:annotation>
        <xs:documentation>Path Point TCH is provided in source documentation in meters</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:GBASOperationType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Operation Type” field indicates whether the operation is an approach procedure, an advanced operation or other operational to be defined later.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 0
Straight-in approach path
enumeration 1
Terminal Area Path definition (not for FAS Datablock)
enumeration 2
Missed Approach (not for FAS Datablock)
enumeration 3
Spare
enumeration 4
Spare
enumeration 5
Spare
enumeration 6
Spare
enumeration 7
Spare
enumeration 8
Spare
enumeration 9
Spare
enumeration 10
Spare
enumeration 11
Spare
enumeration 12
Spare
enumeration 13
Spare
enumeration 14
Spare
enumeration 15
Spare
Used by
Source

<xs:simpleType name="GBASOperationType">
  <xs:annotation>
    <xs:documentation>The “Operation Type” field indicates whether the operation is an approach procedure, an advanced operation or other operational to be defined later.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="0">
      <xs:annotation>
        <xs:documentation>Straight-in approach path</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1">
      <xs:annotation>
        <xs:documentation>Terminal Area Path definition (not for FAS Datablock)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2">
      <xs:annotation>
        <xs:documentation>Missed Approach (not for FAS Datablock)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="5">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="6">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="7">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="10">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="11">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="12">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="13">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="14">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="15">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type SBASPathPoint
Namespace No namespace
Annotations

This following record contains the fields used in Path Point Record.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#PathPoint_approachPerformanceDesignator ARINC424_22_HTML.tmp#PathPoint_approachRouteIdentifier ARINC424_22_HTML.tmp#PathPoint_approachTypeIdentifier ARINC424_22_HTML.tmp#PathPoint_courseWidthAtThreshold ARINC424_22_HTML.tmp#PathPoint_FASDataCRCRemainder ARINC424_22_HTML.tmp#PathPoint_flightPathAlignmentPoint ARINC424_22_HTML.tmp#PathPoint_fpapEllipsoidHeight ARINC424_22_HTML.tmp#PathPoint_fpapOrthometricHeight ARINC424_22_HTML.tmp#PathPoint_glidePathAngle ARINC424_22_HTML.tmp#PathPoint_gnssChannelNumber ARINC424_22_HTML.tmp#PathPoint_helicopterProcedureCourse ARINC424_22_HTML.tmp#PathPoint_landingThresholdPoint ARINC424_22_HTML.tmp#PathPoint_lengthOffset ARINC424_22_HTML.tmp#PathPoint_ltpEllipsoidHeight ARINC424_22_HTML.tmp#PathPoint_ltpOrthometricHeight ARINC424_22_HTML.tmp#PathPoint_pathPointTCH ARINC424_22_HTML.tmp#PathPoint_referencePathDataSelector ARINC424_22_HTML.tmp#PathPoint_referencePathIdentifier ARINC424_22_HTML.tmp#PathPoint_routeIndicator ARINC424_22_HTML.tmp#PathPoint_runwayOrPadIdentifier ARINC424_22_HTML.tmp#PathPoint_tchUnitsIndicator ARINC424_22_HTML.tmp#PathPoint ARINC424_22_HTML.tmp#SBASPathPoint_hal ARINC424_22_HTML.tmp#SBASPathPoint_operationType ARINC424_22_HTML.tmp#SBASPathPoint_sbasServiceProviderIdentifier ARINC424_22_HTML.tmp#SBASPathPoint_val ARINC424_22_HTML.tmp#SBASPathPoint_FinalApproachCourse
Type extension of PathPoint
Type hierarchy
Used by
Model
Children FASDataCRCRemainder, FinalApproachCourse, approachPerformanceDesignator, approachRouteIdentifier, approachTypeIdentifier, courseWidthAtThreshold, custAreaCode, cycleDate, flightPathAlignmentPoint, fpapEllipsoidHeight, fpapOrthometricHeight, glidePathAngle, gnssChannelNumber, hal, helicopterProcedureCourse, landingThresholdPoint, lengthOffset, ltpEllipsoidHeight, ltpOrthometricHeight, notes, operationType, pathPointTCH, recordType, referencePathDataSelector, referencePathIdentifier, routeIndicator, runwayOrPadIdentifier, sbasServiceProviderIdentifier, supplementalData, tchUnitsIndicator, val
Source

<xs:complexType name="SBASPathPoint">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Path Point Record.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="PathPoint">
      <xs:sequence>
        <xs:element name="hal" type="type:HorizontalAlertLimit" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Horizontal Alert Limit (HAL) is the radius of a circle in the horizontal plane (the local plane tangent to the WGS-84 ellipsoid), with its center being at the true position, which describes the region which is required to contain the indicated horizontal position with the required probability for a particular navigation mode assuming the probability of a GPS satellite integrity failure being included in the position solution is less than or equal to 10-4 per hour.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="operationType" type="enum:SBASOperationType" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Operation Type” field indicates whether the operation is an approach procedure, an advanced operation or other operational to be defined later.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sbasServiceProviderIdentifier" type="enum:SBASServiceProviderIdentifier" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “SBAS Service Provider Identifier” field is used to associate the approach procedure to a particular satellite based approach system service provider.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="val" type="type:VerticalAlertLimit" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Vertical Alert Limit (VAL) is half the length of a segment on the vertical axis (perpendicular to the horizontal plane of WGS-84 ellipsoid), with its center being at the true position, which describes the region which is required to contain the indicated vertical position with a probability of 1-10-7 per approach, assuming the probability of a GPS satellite integrity failure being included in the position solution is less than or equal to 10-4 per hour.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="FinalApproachCourse" type="type:Course">
          <xs:annotation>
            <xs:documentation>The SBAS Final Approach Course field contains the published final approach course of the PBN procedure with SBAS level of service.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:HorizontalAlertLimit
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Horizontal Alert Limit (HAL) is the radius of a circle in the horizontal plane (the local plane tangent to the WGS-84 ellipsoid), with its center being at the true position, which describes the region which is required to contain the indicated horizontal position with the required probability for a particular navigation mode assuming the probability of a GPS satellite integrity failure being included in the position solution is less than or equal to 10-4 per hour.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceMeters
Type type:DistanceMeters
Type hierarchy
Facets
totalDigits 3
fractionDigits 1
Used by
Source

<xs:simpleType name="HorizontalAlertLimit">
  <xs:annotation>
    <xs:documentation>The Horizontal Alert Limit (HAL) is the radius of a circle in the horizontal plane (the local plane tangent to the WGS-84 ellipsoid), with its center being at the true position, which describes the region which is required to contain the indicated horizontal position with the required probability for a particular navigation mode assuming the probability of a GPS satellite integrity failure being included in the position solution is less than or equal to 10-4 per hour.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceMeters"/>
</xs:simpleType>
[ top ]
Simple Type type:DistanceMeters
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type restriction of xs:decimal
Facets
totalDigits 3
fractionDigits 1
Used by
Source

<xs:simpleType name="DistanceMeters">
  <xs:restriction base="xs:decimal">
    <xs:totalDigits value="3"/>
    <xs:fractionDigits value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:SBASOperationType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Operation Type” field indicates whether the operation is an approach procedure, an advanced operation or other operational to be defined later.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 0
Straight-in or point-in-space approach procedure
enumeration 1
Reserved for future definition
enumeration 2
Reserved for future definition
enumeration 3
Spare
enumeration 4
Spare
enumeration 5
Spare
enumeration 6
Spare
enumeration 7
Spare
enumeration 8
Spare
enumeration 9
Spare
enumeration 10
Spare
enumeration 11
Spare
enumeration 12
Spare
enumeration 13
Spare
enumeration 14
Spare
enumeration 15
Spare
Used by
Source

<xs:simpleType name="SBASOperationType">
  <xs:annotation>
    <xs:documentation>The “Operation Type” field indicates whether the operation is an approach procedure, an advanced operation or other operational to be defined later.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="0">
      <xs:annotation>
        <xs:documentation>Straight-in or point-in-space approach procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1">
      <xs:annotation>
        <xs:documentation>Reserved for future definition</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2">
      <xs:annotation>
        <xs:documentation>Reserved for future definition</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="5">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="6">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="7">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="10">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="11">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="12">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="13">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="14">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="15">
      <xs:annotation>
        <xs:documentation>Spare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:SBASServiceProviderIdentifier
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “SBAS Service Provider Identifier” field is used to associate the approach procedure to a particular satellite based approach system service provider.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 0
WAAS
enumeration 1
EGNOS
enumeration 2
MSAS
enumeration 14
Not intended for SBAS
enumeration 15
Any Service provider may be used
Used by
Source

<xs:simpleType name="SBASServiceProviderIdentifier">
  <xs:annotation>
    <xs:documentation>The “SBAS Service Provider Identifier” field is used to associate the approach procedure to a particular satellite based approach system service provider.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="0">
      <xs:annotation>
        <xs:documentation>WAAS</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1">
      <xs:annotation>
        <xs:documentation>EGNOS</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2">
      <xs:annotation>
        <xs:documentation>MSAS</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="14">
      <xs:annotation>
        <xs:documentation>Not intended for SBAS</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="15">
      <xs:annotation>
        <xs:documentation>Any Service provider may be used</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:VerticalAlertLimit
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Vertical Alert Limit (VAL) is half the length of a segment on the vertical axis (perpendicular to the horizontal plane of WGS-84 ellipsoid), with its center being at the true position, which describes the region which is required to contain the indicated vertical position with a probability of 1-10-7 per approach, assuming the probability of a GPS satellite integrity failure being included in the position solution is less than or equal to 10-4 per hour.
Diagram
Diagram
Type xs:decimal
Used by
Source

<xs:simpleType name="VerticalAlertLimit">
  <xs:annotation>
    <xs:documentation>The Vertical Alert Limit (VAL) is half the length of a segment on the vertical axis (perpendicular to the horizontal plane of WGS-84 ellipsoid), with its center being at the true position, which describes the region which is required to contain the indicated vertical position with a probability of 1-10-7 per approach, assuming the probability of a GPS satellite integrity failure being included in the position solution is less than or equal to 10-4 per hour.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal"/>
</xs:simpleType>
[ top ]
Complex Type ApproachTransition
Namespace No namespace
Annotations

This class is an abstraction of Approach Transition.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#ApproachRoute_qualifier1 ARINC424_22_HTML.tmp#ApproachRoute_qualifier2 ARINC424_22_HTML.tmp#ApproachRoute ARINC424_22_HTML.tmp#ApproachTransition_multipleIndicator ARINC424_22_HTML.tmp#ApproachTransition_taaReference
Type extension of ApproachRoute
Type hierarchy
Used by
Model
Children identifier, msaRef, multipleIndicator, procedureLeg, qualifier1, qualifier2, supplementalData, taaReference, transitionAltitudeOrLevel
Source

<xs:complexType name="ApproachTransition">
  <xs:annotation>
    <xs:documentation>This class is an abstraction of Approach Transition.</xs:documentation>
  </xs:annotation>
  <xs:complexContent mixed="false">
    <xs:extension base="ApproachRoute">
      <xs:sequence>
        <xs:element name="multipleIndicator" type="type:MultipleIndicator" minOccurs="0" maxOccurs="1"/>
        <xs:element name="taaReference" type="xs:IDREF" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type ApproachRoute
Namespace No namespace
Annotations

This atstract element represents of shared information between SID and STAR Enroute Transitions.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#ApproachRoute_qualifier1 ARINC424_22_HTML.tmp#ApproachRoute_qualifier2
Type extension of ProcedureRoute
Type hierarchy
Properties
abstract true
Used by
Model
Children identifier, msaRef, procedureLeg, qualifier1, qualifier2, supplementalData, transitionAltitudeOrLevel
Source

<xs:complexType name="ApproachRoute" abstract="true">
  <xs:annotation>
    <xs:documentation>This atstract element represents of shared information between SID and STAR Enroute Transitions.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ProcedureRoute">
      <xs:sequence>
        <xs:element name="qualifier1" type="enum:ApproachQualifier1" minOccurs="0" maxOccurs="1"/>
        <xs:element name="qualifier2" type="enum:ApproachQualifier2" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:ApproachQualifier1
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Route Qualifier 1 for Airport Approach (PF) and Heliport (HF) Records – Route Type
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration RnavVisual
RNAV Visual Procedure
enumeration DmeRequired
DME Required for Procedure
enumeration GpsRequiredDmeDmeNotAuthorized
GPS (GNSS) required, DME/DME to RNP xx.x not authorized
enumeration RnpAr
RNP SAAAR/AR
enumeration AdvancedRnp
Advanced (RNAV RNP, SAAAR/AR not required)
enumeration Gbas
GBAS Procedure
enumeration DmeNotRequired
DME Not Required for Procedure
enumeration GnssRequired
GNSS Required
enumeration GnssorDmeDmeRequired
GPS (GNSS) or DME/DME to RNP xx.x  required
enumeration DmeDmeRequired
DME/DME Required for Procedure
enumeration RnavSensorNotSpecified
RNAV, Sensor Not Specified
enumeration VorDmeRnav
VOR/DME RNAV
enumeration RnavRequiresFasDataBlock
RNAV Procedure that Requires FAS Data Block
Used by
Source

<xs:simpleType name="ApproachQualifier1">
  <xs:annotation>
    <xs:documentation>Route Qualifier 1 for Airport Approach (PF) and Heliport (HF) Records – Route Type</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="RnavVisual">
      <xs:annotation>
        <xs:documentation>RNAV Visual Procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DmeRequired">
      <xs:annotation>
        <xs:documentation>DME Required for Procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GpsRequiredDmeDmeNotAuthorized">
      <xs:annotation>
        <xs:documentation>GPS (GNSS) required, DME/DME to RNP xx.x not authorized</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RnpAr">
      <xs:annotation>
        <xs:documentation>RNP SAAAR/AR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AdvancedRnp">
      <xs:annotation>
        <xs:documentation>Advanced (RNAV RNP, SAAAR/AR not required)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Gbas">
      <xs:annotation>
        <xs:documentation>GBAS Procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DmeNotRequired">
      <xs:annotation>
        <xs:documentation>DME Not Required for Procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GnssRequired">
      <xs:annotation>
        <xs:documentation>GNSS Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GnssorDmeDmeRequired">
      <xs:annotation>
        <xs:documentation>GPS (GNSS) or DME/DME to RNP xx.x required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DmeDmeRequired">
      <xs:annotation>
        <xs:documentation>DME/DME Required for Procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RnavSensorNotSpecified">
      <xs:annotation>
        <xs:documentation>RNAV, Sensor Not Specified</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VorDmeRnav">
      <xs:annotation>
        <xs:documentation>VOR/DME RNAV</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RnavRequiresFasDataBlock">
      <xs:annotation>
        <xs:documentation>RNAV Procedure that Requires FAS Data Block</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ApproachQualifier2
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Route Type Qualifier 2 for Airport Approach (PF) and Heliport (HF) Records – Route Type
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration PrimaryMissedApproach
Primary Missed Approach
enumeration SecondaryMissedApproach
Secondary Missed Approach
enumeration EngineOutMissedApproach
Engine Out Missed Approach
enumeration CircleToLandMinimums
Procedure with Circle-To-Land Minimums
enumeration HelicopterStraightInMinimums
Helicopter with straight-in minimums
enumeration HelicopterCircleToLandMinimums
Helicopter with circle-to-land minimums
enumeration HelicopterLandingMinimums
Helicopter with Helicopter Landing Minimums
enumeration StraightInMinimums
Procedure with Straight-in Minimums
enumeration VmcMinimums
Procedure with VMC minimums
Used by
Source

<xs:simpleType name="ApproachQualifier2">
  <xs:annotation>
    <xs:documentation>Route Type Qualifier 2 for Airport Approach (PF) and Heliport (HF) Records – Route Type</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="PrimaryMissedApproach">
      <xs:annotation>
        <xs:documentation>Primary Missed Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SecondaryMissedApproach">
      <xs:annotation>
        <xs:documentation>Secondary Missed Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EngineOutMissedApproach">
      <xs:annotation>
        <xs:documentation>Engine Out Missed Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CircleToLandMinimums">
      <xs:annotation>
        <xs:documentation>Procedure with Circle-To-Land Minimums</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HelicopterStraightInMinimums">
      <xs:annotation>
        <xs:documentation>Helicopter with straight-in minimums</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HelicopterCircleToLandMinimums">
      <xs:annotation>
        <xs:documentation>Helicopter with circle-to-land minimums</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HelicopterLandingMinimums">
      <xs:annotation>
        <xs:documentation>Helicopter with Helicopter Landing Minimums</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="StraightInMinimums">
      <xs:annotation>
        <xs:documentation>Procedure with Straight-in Minimums</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VmcMinimums">
      <xs:annotation>
        <xs:documentation>Procedure with VMC minimums</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:MultipleIndicator
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type restriction of xs:string
Facets
length 1
Used by
Source

<xs:simpleType name="MultipleIndicator">
  <xs:restriction base="xs:string">
    <xs:length value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type FinalApproach
Namespace No namespace
Annotations

This class is an abstraction of Final Transition.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#ApproachRoute_qualifier1 ARINC424_22_HTML.tmp#ApproachRoute_qualifier2 ARINC424_22_HTML.tmp#ApproachRoute ARINC424_22_HTML.tmp#FinalApproach_fasBlockProvided ARINC424_22_HTML.tmp#FinalApproach_fasBlockProvidedLevelOfServiceName ARINC424_22_HTML.tmp#FinalApproach_isRemoteAltimeterRestricted ARINC424_22_HTML.tmp#FinalApproach_lnavAuthorisedForSBAS ARINC424_22_HTML.tmp#FinalApproach_lnavLevelOfServiceName ARINC424_22_HTML.tmp#FinalApproach_lnavVNAVAuthorisedForSBAS ARINC424_22_HTML.tmp#FinalApproach_lnavVNAVLevelOfServiceName ARINC424_22_HTML.tmp#FinalApproach_procedureTCH ARINC424_22_HTML.tmp#FinalApproach_rnpLOS
Type extension of ApproachRoute
Type hierarchy
Used by
Model
Children fasBlockProvided, fasBlockProvidedLevelOfServiceName, identifier, isRemoteAltimeterRestricted, lnavAuthorisedForSBAS, lnavLevelOfServiceName, lnavVNAVAuthorisedForSBAS, lnavVNAVLevelOfServiceName, msaRef, procedureLeg, procedureTCH, qualifier1, qualifier2, rnpLOS, supplementalData, transitionAltitudeOrLevel
Source

<xs:complexType name="FinalApproach">
  <xs:annotation>
    <xs:documentation>This class is an abstraction of Final Transition.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ApproachRoute">
      <xs:sequence>
        <xs:element name="fasBlockProvided" type="enum:LevelOfServiceAuthorised" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Level of Service Authorized” field defines whether the Level of Service designated in an associated field (Section 5.275) is authorized or not authorized for a procedure.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="fasBlockProvidedLevelOfServiceName" type="enum:LevelOfServiceName" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Level of Service Name” field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for SBAS and/or RNP.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isRemoteAltimeterRestricted" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The field indicates whether or not the existence and use of a remote altimeter setting is applicable to the procedure. The field is true when there is a restriction on the use of LNAV/VNAV (Baro-VNAV) lines of minimum.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="lnavAuthorisedForSBAS" type="enum:LevelOfServiceAuthorised" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Level of Service Authorized” field defines whether the Level of Service designated in an associated field (Section 5.275) is authorized or not authorized for a procedure.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="lnavLevelOfServiceName" type="enum:LevelOfServiceName" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Level of Service Name” field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for SBAS and/or RNP.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="lnavVNAVAuthorisedForSBAS" type="enum:LevelOfServiceAuthorised" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Level of Service Authorized” field defines whether the Level of Service designated in an associated field (Section 5.275) is authorized or not authorized for a procedure.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="lnavVNAVLevelOfServiceName" type="enum:LevelOfServiceName" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Level of Service Name” field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for SBAS and/or RNP.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="procedureTCH" type="type:ThresholdCrossingHeight" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rnpLOS" type="type:RNPLOS" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:LevelOfServiceAuthorised
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Level of Service Authorized” field defines whether the Level of Service designated in an associated field (Section 5.275) is authorized or not authorized for a procedure.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Authorized
Designated Level of Service is authorized for the procedure
enumeration NotAuthorized
Designated Level of Service is not authorized for the procedure
Used by
Source

<xs:simpleType name="LevelOfServiceAuthorised">
  <xs:annotation>
    <xs:documentation>The “Level of Service Authorized” field defines whether the Level of Service designated in an associated field (Section 5.275) is authorized or not authorized for a procedure.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Authorized">
      <xs:annotation>
        <xs:documentation>Designated Level of Service is authorized for the procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NotAuthorized">
      <xs:annotation>
        <xs:documentation>Designated Level of Service is not authorized for the procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:LevelOfServiceName
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Level of Service Name” field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for SBAS and/or RNP.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 10
enumeration LPV
enumeration LPV200
enumeration LP
enumeration LNAV
enumeration LNAV/VNAV
Used by
Source

<xs:simpleType name="LevelOfServiceName">
  <xs:annotation>
    <xs:documentation>The “Level of Service Name” field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for SBAS and/or RNP.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="10"/>
    <xs:enumeration value="LPV"/>
    <xs:enumeration value="LPV200"/>
    <xs:enumeration value="LP"/>
    <xs:enumeration value="LNAV"/>
    <xs:enumeration value="LNAV/VNAV"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:ThresholdCrossingHeight
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="ThresholdCrossingHeight">
  <xs:annotation>
    <xs:documentation>The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:RNPLOS
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram ARINC424_22_HTML.tmp#RNPLOS_rnp ARINC424_22_HTML.tmp#RNPLOS_rnpLOSAuthorized
Used by
Model
Children rnp, rnpLOSAuthorized
Source

<xs:complexType name="RNPLOS">
  <xs:sequence>
    <xs:element name="rnp" type="xs:decimal" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>This field contains the RNP level of service in decimal e.g. 1.0</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rnpLOSAuthorized" type="enum:RnpLOSAuthorized" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:RnpLOSAuthorized
Namespace http://www.arinc424.com/xml/enumerations
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Authorized
enumeration NotAuthorized
Used by
Source

<xs:simpleType name="RnpLOSAuthorized">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Authorized"/>
    <xs:enumeration value="NotAuthorized"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type MissedApproach
Namespace No namespace
Annotations

This class is an abstraction of Missed Approach Transition.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#ProcedureRoute_transitionAltitudeOrLevel ARINC424_22_HTML.tmp#ProcedureRoute_msaRef ARINC424_22_HTML.tmp#ProcedureRoute_procedureLeg ARINC424_22_HTML.tmp#ProcedureRoute ARINC424_22_HTML.tmp#ApproachRoute_qualifier1 ARINC424_22_HTML.tmp#ApproachRoute_qualifier2 ARINC424_22_HTML.tmp#ApproachRoute
Type extension of ApproachRoute
Type hierarchy
Used by
Model
Children identifier, msaRef, procedureLeg, qualifier1, qualifier2, supplementalData, transitionAltitudeOrLevel
Source

<xs:complexType name="MissedApproach">
  <xs:annotation>
    <xs:documentation>This class is an abstraction of Missed Approach Transition.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ApproachRoute"/>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:ApproachPbnNavSpec
Namespace http://www.arinc424.com/xml/enumerations
Annotations

This field provides information on the ICAO PBN Navigation Specification appliable to this approach
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Rnav1
enumeration Rnp1
enumeration RnpAr
enumeration AdvRnp
enumeration Rnp0_3
enumeration PbnUnspecified
enumeration RnpApch
Used by
Source

<xs:simpleType name="ApproachPbnNavSpec">
  <xs:annotation>
    <xs:documentation>This field provides information on the ICAO PBN Navigation Specification appliable to this approach</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Rnav1"/>
    <xs:enumeration value="Rnp1"/>
    <xs:enumeration value="RnpAr"/>
    <xs:enumeration value="AdvRnp"/>
    <xs:enumeration value="Rnp0_3"/>
    <xs:enumeration value="PbnUnspecified"/>
    <xs:enumeration value="RnpApch"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type TerminalWaypoint
Namespace No namespace
Annotations

This following record contains the fields used in Waypoint Record
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Waypoint_nameFormatIndicator ARINC424_22_HTML.tmp#Waypoint_waypointType ARINC424_22_HTML.tmp#Waypoint_waypointUsage ARINC424_22_HTML.tmp#Waypoint
Type extension of Waypoint
Type hierarchy
Used by
Model
Children custAreaCode, cycleDate, datumCode, firRef, icaoCode, identifier, location, magneticVariation, name, nameFormatIndicator, notes, recordType, supplementalData, uirRef, waypointType, waypointUsage
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="TerminalWaypoint">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Waypoint Record</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Waypoint">
      <xs:sequence/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Waypoint
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Waypoint_nameFormatIndicator ARINC424_22_HTML.tmp#Waypoint_waypointType ARINC424_22_HTML.tmp#Waypoint_waypointUsage
Type extension of A424Point
Type hierarchy
Used by
Model
Children custAreaCode, cycleDate, datumCode, firRef, icaoCode, identifier, location, magneticVariation, name, nameFormatIndicator, notes, recordType, supplementalData, uirRef, waypointType, waypointUsage
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Waypoint">
  <xs:complexContent>
    <xs:extension base="A424Point">
      <xs:sequence>
        <xs:element name="nameFormatIndicator" type="type:NameFormatIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Name Format Indicator” field is used to describe the format of the “Waypoint Name/Description” field (5.43). This field will be formatted according to the rules described in Chapter 7 of this Specification, Waypoint Naming Conventions.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="waypointType" type="type:WaypointType" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Waypoint Type” field identifies a number of data conditions. 1. The first is whether or not the waypoint has been published in an official government source or created during database coding of routes or procedures. 2. The second is whether or not the waypoint is an intersection formed with reference to ground based navaids or is an RNAV Waypoint formed by the latitude and longitude. 3. The third is an indication of one or more functions assigned to that waypoint in terminal procedure coding. 4. The fourth is an indication of location of the waypoint with reference to airspace boundaries and/or grid lines. 5. The fifth is an indication of how ATC might be using the waypoint in operational clearances. 6. The sixth is an indication that the waypoint has been published for VFR use only. 7. Lastly, there is an indication of whether the waypoint is published for use in terminal procedure coding of a specific type, multiple types or not published at all.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="waypointUsage" type="type:WaypointUsage" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The waypoint usage field is employed to indicate the structure in which the waypoint is utilized.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type type:NameFormatIndicator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Name Format Indicator” field is used to describe the format of the “Waypoint Name/Description” field (5.43). This field will be formatted according to the rules described in Chapter 7 of this Specification, Waypoint Naming Conventions.
Diagram
Diagram ARINC424_22_HTML.tmp#NameFormatIndicator_fixType ARINC424_22_HTML.tmp#NameFormatIndicator_localizerMarkerIndicator
Used by
Model
Children fixType, localizerMarkerIndicator
Source

<xs:complexType name="NameFormatIndicator">
  <xs:annotation>
    <xs:documentation>The “Name Format Indicator” field is used to describe the format of the “Waypoint Name/Description” field (5.43). This field will be formatted according to the rules described in Chapter 7 of this Specification, Waypoint Naming Conventions.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="fixType" type="enum:FixType" minOccurs="1" maxOccurs="1"/>
    <xs:element name="localizerMarkerIndicator" type="enum:LocalizerMarkerIndicator" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:FixType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Fix Type Enums for the field Name Format Indicator
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Abeam
Abeam a Fix
enumeration BearingDistance
Bearing and Distance Fix
enumeration AirportName
Airport Name as Fix
enumeration Fir
FIR Fix
enumeration PhoeneticLetterName
Phoenetic Letter Name Fix
enumeration AirportIdent
Airport Ident as Fix
enumeration LatLong
Latitude/Longitude Fix
enumeration MultipleWord
Multiple Word as Fix
enumeration Navaid
Navaid Ident as Fix
enumeration PublishedFiveLetterName
Published Five - Letter - Name Fix
enumeration PublishedLessThanFiveLetterName
Published Name Fix, less than Five Letters
enumeration PublishedMoreThanFiveName
Published Name Fix, more than Five Letters
enumeration AptRwyRelated
Apt/Rwy Related Fix (Note 2)
enumeration Uir
UIR Fix
Used by
Source

<xs:simpleType name="FixType">
  <xs:annotation>
    <xs:documentation>Fix Type Enums for the field Name Format Indicator</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Abeam">
      <xs:annotation>
        <xs:documentation>Abeam a Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BearingDistance">
      <xs:annotation>
        <xs:documentation>Bearing and Distance Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AirportName">
      <xs:annotation>
        <xs:documentation>Airport Name as Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Fir">
      <xs:annotation>
        <xs:documentation>FIR Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PhoeneticLetterName">
      <xs:annotation>
        <xs:documentation>Phoenetic Letter Name Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AirportIdent">
      <xs:annotation>
        <xs:documentation>Airport Ident as Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LatLong">
      <xs:annotation>
        <xs:documentation>Latitude/Longitude Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MultipleWord">
      <xs:annotation>
        <xs:documentation>Multiple Word as Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Navaid">
      <xs:annotation>
        <xs:documentation>Navaid Ident as Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PublishedFiveLetterName">
      <xs:annotation>
        <xs:documentation>Published Five - Letter - Name Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PublishedLessThanFiveLetterName">
      <xs:annotation>
        <xs:documentation>Published Name Fix, less than Five Letters</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PublishedMoreThanFiveName">
      <xs:annotation>
        <xs:documentation>Published Name Fix, more than Five Letters</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AptRwyRelated">
      <xs:annotation>
        <xs:documentation>Apt/Rwy Related Fix (Note 2)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Uir">
      <xs:annotation>
        <xs:documentation>UIR Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:LocalizerMarkerIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The localizer Marker Indicator enums for the Name format Indicator Field.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration OfficialFiveLetter
Localizer Marker with official published five - letter identifier
enumeration NoPublishedFiveLetter
Localizer Marker without official published five - letter identifier
Used by
Source

<xs:simpleType name="LocalizerMarkerIndicator">
  <xs:annotation>
    <xs:documentation>The localizer Marker Indicator enums for the Name format Indicator Field.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="OfficialFiveLetter">
      <xs:annotation>
        <xs:documentation>Localizer Marker with official published five - letter identifier</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NoPublishedFiveLetter">
      <xs:annotation>
        <xs:documentation>Localizer Marker without official published five - letter identifier</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:WaypointType
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Waypoint Type” field identifies a number of data conditions.

1. The first is whether or not the waypoint has been published in an official government source or created during database coding of routes or
procedures.
2. The second is whether or not the waypoint is an intersection and/or DME fix formed with reference to ground based navaids or is an RNAV Waypoint formed by the
latitude and longitude.
3. The third is an indication of one or more functions assigned to that waypoint in terminal procedure coding.
4. The fourth is an indication of location of the waypoint with reference to airspace boundaries and/or grid lines.
5. The fifth is an indication of how ATC might be using the waypoint in operational clearances.
6. The sixth is an indication that the waypoint has been published for VFR use only.
7. Lastly, there is an indication of whether the waypoint is published for use in terminal procedure coding of a specific type, multiple types or not published at all.
Diagram
Diagram ARINC424_22_HTML.tmp#WaypointType_isAirwayIntersection ARINC424_22_HTML.tmp#WaypointType_isArcCenter ARINC424_22_HTML.tmp#WaypointType_isBackMarker ARINC424_22_HTML.tmp#WaypointType_isControlledAirspaceIntersesction ARINC424_22_HTML.tmp#WaypointType_isEnroute ARINC424_22_HTML.tmp#WaypointType_isFACF ARINC424_22_HTML.tmp#WaypointType_isFAF ARINC424_22_HTML.tmp#WaypointType_isFIRorFRAEntryPoint ARINC424_22_HTML.tmp#WaypointType_isFIRorFRAExitPoint ARINC424_22_HTML.tmp#WaypointType_isFirUirFix ARINC424_22_HTML.tmp#WaypointType_isForApproach ARINC424_22_HTML.tmp#WaypointType_isForSID ARINC424_22_HTML.tmp#WaypointType_isForStar ARINC424_22_HTML.tmp#WaypointType_isForMultipleProcedures ARINC424_22_HTML.tmp#WaypointType_isFRAArrivalTransitionPoint ARINC424_22_HTML.tmp#WaypointType_isFRADepatureTransitionPoint ARINC424_22_HTML.tmp#WaypointType_isFRAIntermediatePoint ARINC424_22_HTML.tmp#WaypointType_isFRATerminalHoldingPoint ARINC424_22_HTML.tmp#WaypointType_isFullDegreeLatFix ARINC424_22_HTML.tmp#WaypointType_isHalfDegreeLatFix ARINC424_22_HTML.tmp#WaypointType_isHelicopterOnlyAirwayFix ARINC424_22_HTML.tmp#WaypointType_isInitialApproachFix ARINC424_22_HTML.tmp#WaypointType_isInitialDepartureFix ARINC424_22_HTML.tmp#WaypointType_isInnerMarker ARINC424_22_HTML.tmp#WaypointType_isIntermediateApproachFix ARINC424_22_HTML.tmp#WaypointType_isIntersectionDmeFix ARINC424_22_HTML.tmp#WaypointType_isMiddleMarker ARINC424_22_HTML.tmp#WaypointType_isMissedApproachPoint ARINC424_22_HTML.tmp#WaypointType_isNDB ARINC424_22_HTML.tmp#WaypointType_isOceanicGateway ARINC424_22_HTML.tmp#WaypointType_isOffRoute ARINC424_22_HTML.tmp#WaypointType_isOuterMarker ARINC424_22_HTML.tmp#WaypointType_isRequiredOffRoute ARINC424_22_HTML.tmp#WaypointType_isRfLegNotProcedureFix ARINC424_22_HTML.tmp#WaypointType_isRNAV ARINC424_22_HTML.tmp#WaypointType_isUsageRNAV ARINC424_22_HTML.tmp#WaypointType_isSourceProvidedEnroute ARINC424_22_HTML.tmp#WaypointType_isStepDownFix ARINC424_22_HTML.tmp#WaypointType_isUncharted ARINC424_22_HTML.tmp#WaypointType_isUnnamed ARINC424_22_HTML.tmp#WaypointType_isVFR
Used by
Model
Children isAirwayIntersection, isArcCenter, isBackMarker, isControlledAirspaceIntersesction, isEnroute, isFACF, isFAF, isFIRorFRAEntryPoint, isFIRorFRAExitPoint, isFRAArrivalTransitionPoint, isFRADepatureTransitionPoint, isFRAIntermediatePoint, isFRATerminalHoldingPoint, isFirUirFix, isForApproach, isForMultipleProcedures, isForSID, isForStar, isFullDegreeLatFix, isHalfDegreeLatFix, isHelicopterOnlyAirwayFix, isInitialApproachFix, isInitialDepartureFix, isInnerMarker, isIntermediateApproachFix, isIntersectionDmeFix, isMiddleMarker, isMissedApproachPoint, isNDB, isOceanicGateway, isOffRoute, isOuterMarker, isRNAV, isRequiredOffRoute, isRfLegNotProcedureFix, isSourceProvidedEnroute, isStepDownFix, isUncharted, isUnnamed, isUsageRNAV, isVFR
Source

<xs:complexType name="WaypointType">
  <xs:annotation>
    <xs:documentation>The “Waypoint Type” field identifies a number of data conditions. 1. The first is whether or not the waypoint has been published in an official government source or created during database coding of routes or procedures. 2. The second is whether or not the waypoint is an intersection and/or DME fix formed with reference to ground based navaids or is an RNAV Waypoint formed by the latitude and longitude. 3. The third is an indication of one or more functions assigned to that waypoint in terminal procedure coding. 4. The fourth is an indication of location of the waypoint with reference to airspace boundaries and/or grid lines. 5. The fifth is an indication of how ATC might be using the waypoint in operational clearances. 6. The sixth is an indication that the waypoint has been published for VFR use only. 7. Lastly, there is an indication of whether the waypoint is published for use in terminal procedure coding of a specific type, multiple types or not published at all.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="isAirwayIntersection" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isArcCenter" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isBackMarker" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isControlledAirspaceIntersesction" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isEnroute" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFACF" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFAF" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFIRorFRAEntryPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFIRorFRAExitPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFirUirFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isForApproach" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isForSID" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isForStar" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isForMultipleProcedures" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFRAArrivalTransitionPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFRADepatureTransitionPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFRAIntermediatePoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFRATerminalHoldingPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFullDegreeLatFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isHalfDegreeLatFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isHelicopterOnlyAirwayFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isInitialApproachFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isInitialDepartureFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isInnerMarker" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isIntermediateApproachFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isIntersectionDmeFix" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>This field applies to the intersection of concepts that apply to aspects of conventional navigation. e.g., a fix at DME 10.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isMiddleMarker" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isMissedApproachPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isNDB" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isOceanicGateway" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isOffRoute" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isOuterMarker" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isRequiredOffRoute" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isRfLegNotProcedureFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <!-- These two RNAV flags can be set independently in 424 -->
    <xs:element name="isRNAV" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isUsageRNAV" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isSourceProvidedEnroute" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isStepDownFix" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isUncharted" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isUnnamed" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isVFR" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type type:WaypointUsage
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The waypoint usage field is employed to indicate the structure in which the waypoint is utilized.
Diagram
Diagram ARINC424_22_HTML.tmp#WaypointUsage_isHi ARINC424_22_HTML.tmp#WaypointUsage_isLo ARINC424_22_HTML.tmp#WaypointUsage_isTerminal
Used by
Model
Children isHi, isLo, isTerminal
Source

<xs:complexType name="WaypointUsage">
  <xs:annotation>
    <xs:documentation>The waypoint usage field is employed to indicate the structure in which the waypoint is utilized.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="isHi" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isLo" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isTerminal" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type TAA
Namespace No namespace
Annotations

The Airport Terminal Arrival Altitude (TAA) file contains details relating to TAA sectorization and sector altitudes.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#TAA_referenceID ARINC424_22_HTML.tmp#TAA_approachTypeIdentifier ARINC424_22_HTML.tmp#TAA_magneticTrueIndicator ARINC424_22_HTML.tmp#TAA_taaFixPositionIndicator ARINC424_22_HTML.tmp#TAA_sectorTAADetails ARINC424_22_HTML.tmp#TAA_taaIAFWaypointReference ARINC424_22_HTML.tmp#TAA_sectorBearingWaypointRef
Type extension of A424Record
Type hierarchy
Used by
Element Port/taa
Model
Children approachTypeIdentifier, custAreaCode, cycleDate, magneticTrueIndicator, notes, recordType, sectorBearingWaypointRef, sectorTAADetails, supplementalData, taaFixPositionIndicator, taaIAFWaypointReference
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="TAA">
  <xs:annotation>
    <xs:documentation>The Airport Terminal Arrival Altitude (TAA) file contains details relating to TAA sectorization and sector altitudes.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="approachTypeIdentifier" type="type:ApproachTypeIdentifier" minOccurs="1" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Identifies the approach types published on a given approach procedure which require Airport or Helicopter Operations SBAS path points.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="magneticTrueIndicator" type="enum:MagneticTrueIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="taaFixPositionIndicator" type="enum:TAASectorIdentifier" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>TThe Fix Position Indicator field contains an indication as to which TAA Initial Approach Fix (IAF) the data in the record applies.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sectorTAADetails" type="type:TAASectorDetails" minOccurs="1" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>This class is an abstraction used to represent the details for a TAA Sector.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="taaIAFWaypointReference" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “TAA IAF Waypoint” field contains the identifier of the Initial Approach Fix (IAF) associated with a given Terminal Area Altitude sector. There may be one, two or three such IAF waypoints defined for a single approach procedure. The TAA IAF Waypoint identified in the TAA Sector with the identifier of “C” (Section 5.272) is the fix to which all sector bearing information for the procedure TAA is defined. The TAA IAF Waypoint in the individual TAA Sector records is the fix from which radius distances are defined.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sectorBearingWaypointRef" type="xs:IDREF" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Sector Bearing Reference Waypoint field contains the identifier of the waypoint that the Sector Bearings are referenced to within a given Terminal Area Altitude sector</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
      <xs:attribute name="referenceID" use="required" type="xs:ID"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:TAASectorIdentifier
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Fix Position Indicator field contains an indication as to which TAA Initial Approach Fix (IAF) the data in the record applies.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration StraightInOrCenterFix
Straight-In or Center Fix
enumeration LeftBase
Left Base Area
enumeration RightBase
Right Base Area
Used by
Source

<xs:simpleType name="TAASectorIdentifier">
  <xs:annotation>
    <xs:documentation>The Fix Position Indicator field contains an indication as to which TAA Initial Approach Fix (IAF) the data in the record applies.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="StraightInOrCenterFix">
      <xs:annotation>
        <xs:documentation>Straight-In or Center Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LeftBase">
      <xs:annotation>
        <xs:documentation>Left Base Area</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RightBase">
      <xs:annotation>
        <xs:documentation>Right Base Area</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:TAASectorDetails
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class represents the details for a TAA Sector.
Diagram
Diagram ARINC424_22_HTML.tmp#Sector_sectorAltitude ARINC424_22_HTML.tmp#Sector_sectorBearingBegin ARINC424_22_HTML.tmp#Sector_sectorBearingEnd ARINC424_22_HTML.tmp#Sector_sectorRadius ARINC424_22_HTML.tmp#Sector ARINC424_22_HTML.tmp#TAASectorDetails_sectorRadiusStart ARINC424_22_HTML.tmp#TAASectorDetails_sectorRadiusEnd ARINC424_22_HTML.tmp#TAASectorDetails_procedureTurn
Type extension of type:Sector
Type hierarchy
Used by
Model
Children procedureTurn, sectorAltitude, sectorBearingBegin, sectorBearingEnd, sectorRadius, sectorRadiusEnd, sectorRadiusStart
Source

<xs:complexType name="TAASectorDetails">
  <xs:annotation>
    <xs:documentation>This class represents the details for a TAA Sector.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="type:Sector">
      <xs:sequence>
        <xs:element name="sectorRadiusStart" type="type:RadiusLimit" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Sector Radius Start” field in TAA records defines the start distance that defines a TAA area. It is referenced to the TAA IAF Waypoint defined in that record. As TAA information is used towards that waypoint, the radius information is provided towards that waypoint. It encloses the sector defined in the record. The value is inclusive.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sectorRadiusEnd" type="type:RadiusLimit" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Sector Radius End” field in TAA records defines the end distance that defines a TAA area. It is referenced to the TAA IAF Waypoint defined in that record. As TAA information is used towards that waypoint, the radius information is provided towards that waypoint. It encloses the sector defined in the record. The value is inclusive.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="procedureTurn" type="xs:boolean" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type type:Sector
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class represents the details for a MSA or TAA Sector.
Diagram
Diagram ARINC424_22_HTML.tmp#Sector_sectorAltitude ARINC424_22_HTML.tmp#Sector_sectorBearingBegin ARINC424_22_HTML.tmp#Sector_sectorBearingEnd ARINC424_22_HTML.tmp#Sector_sectorRadius
Used by
Complex Type type:TAASectorDetails
Element MSA/sector
Model
Children sectorAltitude, sectorBearingBegin, sectorBearingEnd, sectorRadius
Source

<xs:complexType name="Sector">
  <xs:annotation>
    <xs:documentation>This class represents the details for a MSA or TAA Sector.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="sectorAltitude" type="xs:unsignedInt" minOccurs="1" maxOccurs="1"/>
    <xs:element name="sectorBearingBegin" type="type:SectorBearing" minOccurs="1" maxOccurs="1"/>
    <xs:element name="sectorBearingEnd" type="type:SectorBearing" minOccurs="1" maxOccurs="1"/>
    <xs:element name="sectorRadius" type="type:RadiusLimit" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:SectorBearing
Namespace http://www.arinc424.com/xml/datatypes
Annotations

When used on MSA Records, the “Sector Bearing” contains beginning and ending bearing values, referenced to the MSA Center, for each sector of the MSA. When used on TAA records, the “Sector Bearing” contains the beginning and ending bearings that define a TAA Area and are referenced to the TAA Initial Approach Fix (IAF) Waypoint.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="SectorBearing">
  <xs:annotation>
    <xs:documentation>When used on MSA Records, the “Sector Bearing” contains beginning and ending bearing values, referenced to the MSA Center, for each sector of the MSA. When used on TAA records, the “Sector Bearing” contains the beginning and ending bearings that define a TAA Area and are referenced to the TAA Initial Approach Fix (IAF) Waypoint.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:RadiusLimit
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The altitude shown in the Sector Altitude field provides a 1000 foot obstacle clearance with a specified radius from the navigational facility/fix. The Radius Limit, field allows the radius to be specified.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceIntegerNMTwoDigits
Type type:DistanceIntegerNMTwoDigits
Type hierarchy
Facets
totalDigits 2
Used by
Source

<xs:simpleType name="RadiusLimit">
  <xs:annotation>
    <xs:documentation>The altitude shown in the Sector Altitude field provides a 1000 foot obstacle clearance with a specified radius from the navigational facility/fix. The Radius Limit, field allows the radius to be specified.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceIntegerNMTwoDigits"/>
</xs:simpleType>
[ top ]
Simple Type type:DistanceIntegerNMTwoDigits
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceIntegerNM
Type restriction of type:DistanceIntegerNM
Type hierarchy
Facets
totalDigits 2
Used by
Source

<xs:simpleType name="DistanceIntegerNMTwoDigits">
  <xs:restriction base="type:DistanceIntegerNM">
    <xs:totalDigits value="2"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:DistanceIntegerNM
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceIntegerNMFourDigits
Type restriction of type:DistanceIntegerNMFourDigits
Type hierarchy
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="DistanceIntegerNM">
  <xs:restriction base="type:DistanceIntegerNMFourDigits">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:DistanceIntegerNMFourDigits
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 4
Used by
Source

<xs:simpleType name="DistanceIntegerNMFourDigits">
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type PortCommunication
Namespace No namespace
Annotations

This following record contains the fields used in Communication records.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Communication_location ARINC424_22_HTML.tmp#Communication_altitudeDescription ARINC424_22_HTML.tmp#Communication_communicationAltitude1 ARINC424_22_HTML.tmp#Communication_communicationAltitude2 ARINC424_22_HTML.tmp#Communication_callSign ARINC424_22_HTML.tmp#Communication_communicationClass ARINC424_22_HTML.tmp#Communication_communicationType ARINC424_22_HTML.tmp#Communication_frequencyUnits ARINC424_22_HTML.tmp#Communication_radarService ARINC424_22_HTML.tmp#Communication_h24Indicator ARINC424_22_HTML.tmp#Communication_modulation ARINC424_22_HTML.tmp#Communication_sequenceNumber ARINC424_22_HTML.tmp#Communication_signalEmission ARINC424_22_HTML.tmp#Communication_transmitFrequency ARINC424_22_HTML.tmp#Communication_receiveFrequency ARINC424_22_HTML.tmp#Communication_communicationDetails ARINC424_22_HTML.tmp#Communication_guardTransmit ARINC424_22_HTML.tmp#Communication ARINC424_22_HTML.tmp#PortCommunication_communicationDistance ARINC424_22_HTML.tmp#PortCommunication_distanceDescription ARINC424_22_HTML.tmp#PortCommunication_multiSectorIndicator ARINC424_22_HTML.tmp#PortCommunication_portCommunicationSectorizationNarrative ARINC424_22_HTML.tmp#PortCommunication_sectorFacility ARINC424_22_HTML.tmp#PortCommunication_sectorization ARINC424_22_HTML.tmp#PortCommunication_serviceIndicator ARINC424_22_HTML.tmp#PortCommunication_additionalSectorization
Type extension of Communication
Type hierarchy
Used by
Model
Children additionalSectorization, altitudeDescription, callSign, communicationAltitude1, communicationAltitude2, communicationClass, communicationDetails, communicationDistance, communicationType, custAreaCode, cycleDate, distanceDescription, frequencyUnits, guardTransmit, h24Indicator, location, modulation, multiSectorIndicator, notes, portCommunicationSectorizationNarrative, radarService, receiveFrequency, recordType, sectorFacility, sectorization, sequenceNumber, serviceIndicator, signalEmission, supplementalData, transmitFrequency
Source

<xs:complexType name="PortCommunication">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Communication records.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Communication">
      <xs:sequence>
        <xs:element name="communicationDistance" type="type:CommunicationDistance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Communication Distance” field is used to define the distance restriction a communication frequency is to be used within or beyond when such restrictions apply. This field is used in conjunction with the Distance Description field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="distanceDescription" type="enum:DistanceDescription" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Distance Description” field will designate whether a communication frequency is to be used from the facility out to a specified distance or from a specified distance and beyond in the Airport Communication Record. In the VHF Navaid Limitation Continuation Record, the field is used to define whether the limitation applies from the navaid out to a specified distance or from a specified distance and beyond.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="multiSectorIndicator" type="enum:MultiSectorIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Multi-Sector Indicator” field is used to indicate that the communication service and frequency are used in more than one defined sector. The actual sector data will be contained in the primary and continuation records of the affected airport or heliport communication record set.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="portCommunicationSectorizationNarrative" type="type:SectorizationNarrative" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>Port Communication Sectorization Narrative Class description.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sectorFacility" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Sector Facility” field is used to define the Navaid or Airport upon which the information in the “Sector” (5.183) field is based.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sectorization" type="type:Sectorization" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Sectorization” field is used to define the airspace sector a communication frequency is applicable for when an airport defines sectors by bearing from the same point.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="serviceIndicator" type="type:AirportHeliportCommunicationServiceIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type (5.101).</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="additionalSectorization" type="type:AdditionalSectorization" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>This element is used to represent the details for an Additional Sectorization used in port communications.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Communication
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Communication_location ARINC424_22_HTML.tmp#Communication_altitudeDescription ARINC424_22_HTML.tmp#Communication_communicationAltitude1 ARINC424_22_HTML.tmp#Communication_communicationAltitude2 ARINC424_22_HTML.tmp#Communication_callSign ARINC424_22_HTML.tmp#Communication_communicationClass ARINC424_22_HTML.tmp#Communication_communicationType ARINC424_22_HTML.tmp#Communication_frequencyUnits ARINC424_22_HTML.tmp#Communication_radarService ARINC424_22_HTML.tmp#Communication_h24Indicator ARINC424_22_HTML.tmp#Communication_modulation ARINC424_22_HTML.tmp#Communication_sequenceNumber ARINC424_22_HTML.tmp#Communication_signalEmission ARINC424_22_HTML.tmp#Communication_transmitFrequency ARINC424_22_HTML.tmp#Communication_receiveFrequency ARINC424_22_HTML.tmp#Communication_communicationDetails ARINC424_22_HTML.tmp#Communication_guardTransmit
Type extension of A424Record
Type hierarchy
Used by
Model
Children altitudeDescription, callSign, communicationAltitude1, communicationAltitude2, communicationClass, communicationDetails, communicationType, custAreaCode, cycleDate, frequencyUnits, guardTransmit, h24Indicator, location, modulation, notes, radarService, receiveFrequency, recordType, sequenceNumber, signalEmission, supplementalData, transmitFrequency
Source

<xs:complexType name="Communication">
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="location" type="type:Location" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="altitudeDescription" type="enum:AltitudeDescription" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="communicationAltitude1" type="type:Altitude" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Communication Altitude 1 and Altitude 2” fields are used to provide information on use of communication services frequencies with reference to specific altitudes. If the communication record in which Communication Altitude data is provided includes Sectorization data (5.183), the altitude data is valid only for the specific Sector.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="communicationAltitude2" type="type:Altitude" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Communication Altitude 1 and Altitude 2” fields are used to provide information on use of communication services frequencies with reference to specific altitudes. If the communication record in which Communication Altitude data is provided includes Sectorization data (5.183), the altitude data is valid only for the specific Sector.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="callSign" type="type:CallSign" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Call Sign” field contains the name of a communication service provider that is to be used when contacting that service/used by the service to identify itself when contacting aircraft on the frequencies contained in the record. The field is also used to provide the broadcast identification name of automated services.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="communicationClass" type="enum:CommunicationClass" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Communication Class” field will designate the major grouping of the Communication Types contained in the record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="communicationType" type="enum:CommunicationType" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Communication Type” is a three-character code indicating the type of communication service available on the frequency contained in the record. Decoding is available in the Communication Type Translation Table.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="frequencyUnits" type="enum:FrequencyUnits" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Frequency Units” field will designate the frequency spectrum area for the frequency in the “Communication Frequency” (Section 5.103) field as indicated in the table or will designate the content of the “Communication Frequency” field as a channel. For VHF based units, the field will also designate the established frequency spacing required of the frequency for unambiguous use.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="radarService" type="enum:Radar" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Radar” field indicates whether or not the communication unit identified in the record has access to and uses information derived from primary or secondary radars while performing the communication service indicated by the Communication Type. It is not an indication of an operational radar frequency.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="h24Indicator" type="enum:H24Indicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “24H Indicator” field is used to indicate whether a communication service frequency is available for use on a continual, i.e. 24 hours a day, seven days a week, basis or not.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="modulation" type="enum:Modulation" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Modulation” field will design the type of modulation for the frequency in the “Communication Frequency” (5.103) field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sequenceNumber" type="type:SequenceNumber" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>When used on Enroute, Airport and Heliport Communication Primary and Continuation records, the Sequence Number is used as a record counter within a given Identifier and Communication Class for providing output file record uniqueness. (See ARINC 424 5.12)</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="signalEmission" type="enum:SignalEmission" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>High Frequency (HF) signals used in aeronautical communications can be the complete signal or a portion of the signal, called a sideband. The “Signal Emission” field will designate for each HF Frequency what emission is used.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="transmitFrequency" type="type:Frequency" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Communication Frequency field specifies either transmit or receive frequency of the communication service, dependent on in which column the frequency is located. Each communication record will contain both transmit and receive frequencies unless the service is published as a Transmit Only or Receive Only service. The content will be identical if the service transmits and receives on the same frequency. The fields will be left blank when the service provided is a digital service.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="receiveFrequency" type="type:Frequency" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Communication Frequency field specifies either transmit or receive frequency of the communication service, dependent on in which column the frequency is located. Each communication record will contain both transmit and receive frequencies unless the service is published as a Transmit Only or Receive Only service. The content will be identical if the service transmits and receives on the same frequency. The fields will be left blank when the service provided is a digital service.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="communicationDetails" type="CommunicationDetails" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Information contained in the ARINC 424 communication continuation records</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="guardTransmit" type="xs:string" minOccurs="0" maxOccurs="1">
          <!-- Legacy 424-18 support -->
          <xs:annotation>
            <xs:documentation>The “Guard/Transmit” field is used to indicate if the frequency shown in the Communication Frequency field is used, by the station, to receive voice communication or to transmit voice on.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:CallSign
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Call Sign” field contains the name of a communications service provider that is to be used when contacting that service/used by the service to identify itself when contacting aircraft on the frequencies contained in the record. The field is also used to provide the broadcast identification name of automated services.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 25
Used by
Source

<xs:simpleType name="CallSign">
  <xs:annotation>
    <xs:documentation>The “Call Sign” field contains the name of a communications service provider that is to be used when contacting that service/used by the service to identify itself when contacting aircraft on the frequencies contained in the record. The field is also used to provide the broadcast identification name of automated services.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="25"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:CommunicationClass
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Communication Class field will designate the major grouping of the Communication Types contained in the record.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration LIRC
The Communication Type is that of one linked to an Information Region (FIR/UIR) for the purposes of providing control services to aircraft.
enumeration LIRI
The Communication Type is that of one linked to an Information Region (FIR/UIR) for the purposes of providing information services to aircraft.
enumeration USVC
The Communication Type is that of one used within an Information Region (FIR/UIR) for purposes other than control or information services and is not linked to that Region
enumeration ASVC
The Communication Type is that of one providing automated or broadcast services within an Information Region (FIR/UIR).
enumeration ATCF
The Communication Type is that of one providing ATC services to aircraft within the terminal area of an airport.
enumeration GNDF
The Communication Type is that of one providing ATC services to aircraft on the ground at an airport.
enumeration AOTF
The Communication Type is that of one providing services other than ATC functions on the ground or within the terminal area of an airport.
enumeration AFAC
The Communication Type is that of one provided automated or broadcast services to aircraft on the ground or with the terminal area of an airport.
Used by
Source

<xs:simpleType name="CommunicationClass">
  <xs:annotation>
    <xs:documentation>The Communication Class field will designate the major grouping of the Communication Types contained in the record.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="LIRC">
      <xs:annotation>
        <xs:documentation>The Communication Type is that of one linked to an Information Region (FIR/UIR) for the purposes of providing control services to aircraft.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LIRI">
      <xs:annotation>
        <xs:documentation>The Communication Type is that of one linked to an Information Region (FIR/UIR) for the purposes of providing information services to aircraft.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="USVC">
      <xs:annotation>
        <xs:documentation>The Communication Type is that of one used within an Information Region (FIR/UIR) for purposes other than control or information services and is not linked to that Region</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ASVC">
      <xs:annotation>
        <xs:documentation>The Communication Type is that of one providing automated or broadcast services within an Information Region (FIR/UIR).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ATCF">
      <xs:annotation>
        <xs:documentation>The Communication Type is that of one providing ATC services to aircraft within the terminal area of an airport.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GNDF">
      <xs:annotation>
        <xs:documentation>The Communication Type is that of one providing ATC services to aircraft on the ground at an airport.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AOTF">
      <xs:annotation>
        <xs:documentation>The Communication Type is that of one providing services other than ATC functions on the ground or within the terminal area of an airport.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AFAC">
      <xs:annotation>
        <xs:documentation>The Communication Type is that of one provided automated or broadcast services to aircraft on the ground or with the terminal area of an airport.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:CommunicationType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Communication Type” is a three-character code indicating the type of communications service available on the frequency contained in the record. Decoding is available in the Communication Type Translation Table.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration ACC
Area Control Center
enumeration ACP
Airlift Command Post
enumeration AIR
Air to Air
enumeration APP
Approach Control
enumeration ARR
Arrival Control
enumeration ASO
Automatic Surface Observing System (ASOS)
enumeration ATI
Automatic Terminal Info Service (ATIS)
enumeration AWI
Airport Weather Information Broadcast (AWIB)
enumeration AWO
Automatic Weather Observing Service (AWOS)
enumeration AWS
Aerodrome Weather Information Services (AWIS)
enumeration CBA
Class B Airspace
enumeration CCA
Class C Airspace
enumeration CLD
Clearance Delivery
enumeration CPT
Clearance, Pre-Taxi
enumeration CTA
Control Area (Terminal)
enumeration CTF
Common Traffic Advisory Frequencies (Note 2)
enumeration CTL
Control
enumeration DEP
Departure Control
enumeration DIR
Director (Approach Control Radar)
enumeration EFS
Enroute Flight Advisory Service (EFAS)
enumeration EMR
Emergency
enumeration FSS
Flight Service Station
enumeration GCO
Ground Comm Outlet
enumeration GND
Ground Control
enumeration GTE
Gate Control
enumeration HEL
Helicopter Frequency
enumeration INF
Information
enumeration MBZ
Mandatory Broadcast
enumeration MIL
Military Frequency Zone (note 2)
enumeration MUL
Multicom
enumeration OPS
Operations
enumeration PAL
Pilot Activated Lighting (Note 1)
enumeration RDO
Radio
enumeration RDR
Radar
enumeration RFS
Remote Flight Service Station (RFSS)
enumeration RMP
Ramp/Taxi Control
enumeration RSA
Airport Radar Service Area (ARSA)
enumeration TCA
Terminal Control Area (TCA)
enumeration TMA
Terminal Control Area (TMA)
enumeration TML
Terminal
enumeration TRS
Terminal Radar Service Area (TRSA)
enumeration TWE
Transcriber Weather Broadcast (TWEB)
enumeration TWR
Tower, Air Traffic Control
enumeration UAC
Upper Area Control
enumeration UNI
Unicom
enumeration VOL
Volnet
Used by
Source

<xs:simpleType name="CommunicationType">
  <xs:annotation>
    <xs:documentation>The “Communication Type” is a three-character code indicating the type of communications service available on the frequency contained in the record. Decoding is available in the Communication Type Translation Table.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="ACC">
      <xs:annotation>
        <xs:documentation>Area Control Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ACP">
      <xs:annotation>
        <xs:documentation>Airlift Command Post</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AIR">
      <xs:annotation>
        <xs:documentation>Air to Air</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="APP">
      <xs:annotation>
        <xs:documentation>Approach Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ARR">
      <xs:annotation>
        <xs:documentation>Arrival Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ASO">
      <xs:annotation>
        <xs:documentation>Automatic Surface Observing System (ASOS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ATI">
      <xs:annotation>
        <xs:documentation>Automatic Terminal Info Service (ATIS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AWI">
      <xs:annotation>
        <xs:documentation>Airport Weather Information Broadcast (AWIB)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AWO">
      <xs:annotation>
        <xs:documentation>Automatic Weather Observing Service (AWOS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AWS">
      <xs:annotation>
        <xs:documentation>Aerodrome Weather Information Services (AWIS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CBA">
      <xs:annotation>
        <xs:documentation>Class B Airspace</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CCA">
      <xs:annotation>
        <xs:documentation>Class C Airspace</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CLD">
      <xs:annotation>
        <xs:documentation>Clearance Delivery</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CPT">
      <xs:annotation>
        <xs:documentation>Clearance, Pre-Taxi</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CTA">
      <xs:annotation>
        <xs:documentation>Control Area (Terminal)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CTF">
      <xs:annotation>
        <xs:documentation>Common Traffic Advisory Frequencies (Note 2)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CTL">
      <xs:annotation>
        <xs:documentation>Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DEP">
      <xs:annotation>
        <xs:documentation>Departure Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DIR">
      <xs:annotation>
        <xs:documentation>Director (Approach Control Radar)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EFS">
      <xs:annotation>
        <xs:documentation>Enroute Flight Advisory Service (EFAS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EMR">
      <xs:annotation>
        <xs:documentation>Emergency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FSS">
      <xs:annotation>
        <xs:documentation>Flight Service Station</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GCO">
      <xs:annotation>
        <xs:documentation>Ground Comm Outlet</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GND">
      <xs:annotation>
        <xs:documentation>Ground Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GTE">
      <xs:annotation>
        <xs:documentation>Gate Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HEL">
      <xs:annotation>
        <xs:documentation>Helicopter Frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="INF">
      <xs:annotation>
        <xs:documentation>Information</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MBZ">
      <xs:annotation>
        <xs:documentation>Mandatory Broadcast</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MIL">
      <xs:annotation>
        <xs:documentation>Military Frequency Zone (note 2)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MUL">
      <xs:annotation>
        <xs:documentation>Multicom</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OPS">
      <xs:annotation>
        <xs:documentation>Operations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PAL">
      <xs:annotation>
        <xs:documentation>Pilot Activated Lighting (Note 1)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RDO">
      <xs:annotation>
        <xs:documentation>Radio</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RDR">
      <xs:annotation>
        <xs:documentation>Radar</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RFS">
      <xs:annotation>
        <xs:documentation>Remote Flight Service Station (RFSS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RMP">
      <xs:annotation>
        <xs:documentation>Ramp/Taxi Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RSA">
      <xs:annotation>
        <xs:documentation>Airport Radar Service Area (ARSA)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TCA">
      <xs:annotation>
        <xs:documentation>Terminal Control Area (TCA)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TMA">
      <xs:annotation>
        <xs:documentation>Terminal Control Area (TMA)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TML">
      <xs:annotation>
        <xs:documentation>Terminal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TRS">
      <xs:annotation>
        <xs:documentation>Terminal Radar Service Area (TRSA)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TWE">
      <xs:annotation>
        <xs:documentation>Transcriber Weather Broadcast (TWEB)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TWR">
      <xs:annotation>
        <xs:documentation>Tower, Air Traffic Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="UAC">
      <xs:annotation>
        <xs:documentation>Upper Area Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="UNI">
      <xs:annotation>
        <xs:documentation>Unicom</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VOL">
      <xs:annotation>
        <xs:documentation>Volnet</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:FrequencyUnits
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Frequency Units field will designate the frequency spectrum area for the frequency in the Communication Frequency (Section 5.103) field as indicated in the table or will designate the content of the Communication Frequency field as a channel. For VHF based units, the field will also designate the established frequency spacing required of the frequency for unambiguous use.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration LowFreq
Low Frequency
enumeration MediumFreq
Medium Frequency
enumeration HighFreq
High Frequency(3000 kHz to 30,000 kHz)
enumeration Vhf100kHzSpacing
Very High Frequency 100 kHz spacing
enumeration Vhf50kHzSpacing
Very High Frequency 50 kHz spacing
enumeration Vhf25kHzSpacing
Very High Frequency 25 kHz spacing
enumeration VhfNonStandard
Very High Frequency (30,000 kHz to 200 MHz) Non-standard spacing
enumeration Uhf
Ultra High Frequency (200 MHz to 3000 MHz)
enumeration Vhf8_33Spacing
Very High Frequency Communication Channel for 8.33kHz spacing
enumeration DigitalService
Digital Service
Used by
Source

<xs:simpleType name="FrequencyUnits">
  <xs:annotation>
    <xs:documentation>The Frequency Units field will designate the frequency spectrum area for the frequency in the Communication Frequency (Section 5.103) field as indicated in the table or will designate the content of the Communication Frequency field as a channel. For VHF based units, the field will also designate the established frequency spacing required of the frequency for unambiguous use.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="LowFreq">
      <xs:annotation>
        <xs:documentation>Low Frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MediumFreq">
      <xs:annotation>
        <xs:documentation>Medium Frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HighFreq">
      <xs:annotation>
        <xs:documentation>High Frequency(3000 kHz to 30,000 kHz)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Vhf100kHzSpacing">
      <xs:annotation>
        <xs:documentation>Very High Frequency 100 kHz spacing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Vhf50kHzSpacing">
      <xs:annotation>
        <xs:documentation>Very High Frequency 50 kHz spacing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Vhf25kHzSpacing">
      <xs:annotation>
        <xs:documentation>Very High Frequency 25 kHz spacing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VhfNonStandard">
      <xs:annotation>
        <xs:documentation>Very High Frequency (30,000 kHz to 200 MHz) Non-standard spacing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Uhf">
      <xs:annotation>
        <xs:documentation>Ultra High Frequency (200 MHz to 3000 MHz)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Vhf8_33Spacing">
      <xs:annotation>
        <xs:documentation>Very High Frequency Communication Channel for 8.33kHz spacing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DigitalService">
      <xs:annotation>
        <xs:documentation>Digital Service</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:Radar
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Radar field indicates whether or not the communication unit identified in the record has access to and uses information derived from primary or secondary radars while performing the communication service indicated by the Communication Type. It is not an indication of an operational radar frequency.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration PrimaryOrSecondary
Primary or secondary Radar information is available to the service
enumeration No
If the Service documentation specifically states that the service does not have access  to primary or secondary radar information
enumeration Unknown
If the Source documentation does not provide details on the radar information access for the services
Used by
Source

<xs:simpleType name="Radar">
  <xs:annotation>
    <xs:documentation>The Radar field indicates whether or not the communication unit identified in the record has access to and uses information derived from primary or secondary radars while performing the communication service indicated by the Communication Type. It is not an indication of an operational radar frequency.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="PrimaryOrSecondary">
      <xs:annotation>
        <xs:documentation>Primary or secondary Radar information is available to the service</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="No">
      <xs:annotation>
        <xs:documentation>If the Service documentation specifically states that the service does not have access to primary or secondary radar information</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Unknown">
      <xs:annotation>
        <xs:documentation>If the Source documentation does not provide details on the radar information access for the services</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:H24Indicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “24H Indicator” field is used to indicate whether a communication service frequency is available for use on a continual, i.e. 24 hours a day, seven days a week, basis or not.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Continious
Frequency is continually available,
enumeration NotContinious
Frequency is not continually available,
enumeration Unknown
Unknown
Used by
Source

<xs:simpleType name="H24Indicator">
  <xs:annotation>
    <xs:documentation>The “24H Indicator” field is used to indicate whether a communication service frequency is available for use on a continual, i.e. 24 hours a day, seven days a week, basis or not.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Continious">
      <xs:annotation>
        <xs:documentation>Frequency is continually available,</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NotContinious">
      <xs:annotation>
        <xs:documentation>Frequency is not continually available,</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Unknown">
      <xs:annotation>
        <xs:documentation>Unknown</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:Modulation
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Modulation field will design the type of modulation for the frequency in the Communication Frequency (5.103) field.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AmFreq
Amplitude Modulated Frequency
enumeration FmFreq
Frequency Modulated Frequency
Used by
Source

<xs:simpleType name="Modulation">
  <xs:annotation>
    <xs:documentation>The Modulation field will design the type of modulation for the frequency in the Communication Frequency (5.103) field.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AmFreq">
      <xs:annotation>
        <xs:documentation>Amplitude Modulated Frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FmFreq">
      <xs:annotation>
        <xs:documentation>Frequency Modulated Frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:SignalEmission
Namespace http://www.arinc424.com/xml/enumerations
Annotations

High Frequency (HF) signals used in aeronautical communications can be the complete signal or a portion of the signal, called a sideband. The Signal Emission field will designate for each HF Frequency what emission is used.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration A3
Double Sideband (A3)
enumeration A3a
Single sideband, reduced carrier (A3A)
enumeration A3b
Two Independent sidebands (A3B)
enumeration A3h
Single sideband, full carrier (A3H)
enumeration A3j
Single sideband, suppressed carrier (A3J)
enumeration LsbCarrierUnk
Lower (single) sideband, carrier unknown
enumeration UsbCarrierUnk
Upper (single) sideband, carrier unknow
Used by
Source

<xs:simpleType name="SignalEmission">
  <xs:annotation>
    <xs:documentation>High Frequency (HF) signals used in aeronautical communications can be the complete signal or a portion of the signal, called a sideband. The Signal Emission field will designate for each HF Frequency what emission is used.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="A3">
      <xs:annotation>
        <xs:documentation>Double Sideband (A3)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="A3a">
      <xs:annotation>
        <xs:documentation>Single sideband, reduced carrier (A3A)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="A3b">
      <xs:annotation>
        <xs:documentation>Two Independent sidebands (A3B)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="A3h">
      <xs:annotation>
        <xs:documentation>Single sideband, full carrier (A3H)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="A3j">
      <xs:annotation>
        <xs:documentation>Single sideband, suppressed carrier (A3J)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LsbCarrierUnk">
      <xs:annotation>
        <xs:documentation>Lower (single) sideband, carrier unknown</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="UsbCarrierUnk">
      <xs:annotation>
        <xs:documentation>Upper (single) sideband, carrier unknow</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type CommunicationDetails
Namespace No namespace
Annotations

The Communication Details record contains the fields used in Communication Continuation Records.
Diagram
Diagram ARINC424_22_HTML.tmp#CommunicationDetails_remoteFacility ARINC424_22_HTML.tmp#CommunicationDetails_timesOfOperation ARINC424_22_HTML.tmp#CommunicationDetails_transmitterSiteElevation ARINC424_22_HTML.tmp#CommunicationDetails_transmitterSiteMagVar
Used by
Model
Children remoteFacility, timesOfOperation, transmitterSiteElevation, transmitterSiteMagVar
Source

<xs:complexType name="CommunicationDetails">
  <xs:annotation>
    <xs:documentation>The Communication Details record contains the fields used in Communication Continuation Records.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="remoteFacility" type="type:PointReference" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Remote Facility” field is used to identify a Navaid or Airport that has been used to provide the latitude/longitude of a communication transmitter, Figure 5-8 and Notes 7 and 8 in Section 5.37 of this Specification.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="timesOfOperation" type="type:TimesOfOperation" minOccurs="0" maxOccurs="1"/>
    <xs:element name="transmitterSiteElevation" type="type:FacilityElevation" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Facility Elevation” field provides the elevation of navaids and communication transmitters</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="transmitterSiteMagVar" type="type:MagneticVariation" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Magnetic Variation” field specifies the angular difference between True North and Magnetic North at the location defined in the record. “Dynamic Magnetic Variation” is a computer model derived value and takes location and date into consideration. For the “Station Declination” used in some record types, refer to Section 5.66.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type type:TimesOfOperation
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Used on airspace, flight planning, communications, and preferred route records to specify the times of operations of those entities.
Diagram
Diagram ARINC424_22_HTML.tmp#TimesOfOperation_timeCode ARINC424_22_HTML.tmp#TimesOfOperation_times ARINC424_22_HTML.tmp#TimesOfOperation_timeNarrative ARINC424_22_HTML.tmp#TimesOfOperation_byNotam ARINC424_22_HTML.tmp#TimesOfOperation_adjustForDST
Used by
Model
Children adjustForDST, byNotam, timeCode, timeNarrative, times
Source

<xs:complexType name="TimesOfOperation">
  <xs:annotation>
    <xs:documentation>Used on airspace, flight planning, communications, and preferred route records to specify the times of operations of those entities.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="timeCode" type="enum:TimeCode" minOccurs="1" maxOccurs="1"/>
    <xs:element name="times" type="type:TimeOfOperationInterval" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="timeNarrative" type="xs:string" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Time Narrative” field is used to provide Time of Operations and/or Conditions of Operations in a narrative form when source information is too complex to be formatted in accordance with ARINC 424 Section 5.195. This field is used in conjunction with the TimeCode value "Complex". This field is used on Airport, Heliport, and Enroute Communication Continuation records.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="byNotam" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Restrictive Airspace areas and communications facilities may not have established active times and are activated by NOTAM only or may be active by NOTAM in addition to established times. If this field is "True", the area or communcations facility is active by NOTAM in addition to the specified time intervals. If the the area or communication facility is active by NOTAM only, this field should not be used and the timeCode "ByNotam" should be used. Used on Controlled and Restrictive Airspace Primary and Continuation records, and Airport, Heliport and Enroute Communications Continuation records.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="adjustForDST" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Indicates that the "times" instances in this record follow daylight saving time in accordance with the local DST calendar. (See documentation for the "time" field in the StartOrEndTime records.)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:TimeCode
Namespace http://www.arinc424.com/xml/enumerations
Annotations

“Time Code” is used in a Time of Operations Record to indicate how to interpret the other fields in Time of Operations records.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration ContinuousIncludingHolidays
Active Continuously, including holidays
enumeration ContinuousExcludingHolidays
Active Continuously, excluding holidays
enumeration SpecifiedExcludingHolidays
Active times are provided in Time of Operation record and exclude holidays
enumeration SpecifiedIncludingHolidays
Active times are provided in Time of Operation record and include holidays
enumeration Complex
Activation Times are too complex for Time of Operation format and are provided in the timeNarrative field
enumeration ByNotam
Active times announced by NOTAM
enumeration Unspecified
Active times are not specified in source documentation
Used by
Source

<xs:simpleType name="TimeCode">
  <xs:annotation>
    <xs:documentation>“Time Code” is used in a Time of Operations Record to indicate how to interpret the other fields in Time of Operations records.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="ContinuousIncludingHolidays">
      <xs:annotation>
        <xs:documentation>Active Continuously, including holidays</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ContinuousExcludingHolidays">
      <xs:annotation>
        <xs:documentation>Active Continuously, excluding holidays</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SpecifiedExcludingHolidays">
      <xs:annotation>
        <xs:documentation>Active times are provided in Time of Operation record and exclude holidays</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SpecifiedIncludingHolidays">
      <xs:annotation>
        <xs:documentation>Active times are provided in Time of Operation record and include holidays</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Complex">
      <xs:annotation>
        <xs:documentation>Activation Times are too complex for Time of Operation format and are provided in the timeNarrative field</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ByNotam">
      <xs:annotation>
        <xs:documentation>Active times announced by NOTAM</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Unspecified">
      <xs:annotation>
        <xs:documentation>Active times are not specified in source documentation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:TimeOfOperationInterval
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Time of Operation” field is used to indicate the times of operation of a Facility or Restriction (See ARINC 424 5.195).
Diagram
Diagram ARINC424_22_HTML.tmp#TimeOfOperationInterval_dayOfWeek ARINC424_22_HTML.tmp#TimeOfOperationInterval_start ARINC424_22_HTML.tmp#TimeOfOperationInterval_end
Used by
Model
Children dayOfWeek, end, start
Source

<xs:complexType name="TimeOfOperationInterval">
  <xs:annotation>
    <xs:documentation>The “Time of Operation” field is used to indicate the times of operation of a Facility or Restriction (See ARINC 424 5.195).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="dayOfWeek" type="enum:DayOfWeek" minOccurs="0" maxOccurs="7">
      <xs:annotation>
        <xs:documentation>This field supports specifying the same time interval on multiple days of the week in a single interval instance. It should not be used if the "dayOfWeek" in the start and end times is specified (see documentation for StartOrEndTime). If this field is used, and the "end" time is earlier than the "start" time, the time interval crosses midnight (00:00).</xs:documentation>
        <!-- TIMEX: How to indicate an interval that rolls past midnight -->
      </xs:annotation>
    </xs:element>
    <xs:element name="start" type="type:StartOrEndTime" minOccurs="1" maxOccurs="1"/>
    <xs:element name="end" type="type:StartOrEndTime" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:DayOfWeek
Namespace http://www.arinc424.com/xml/enumerations
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Monday
enumeration Tuesday
enumeration Wednesday
enumeration Thursday
enumeration Friday
enumeration Saturday
enumeration Sunday
Used by
Source

<xs:simpleType name="DayOfWeek">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Monday"/>
    <xs:enumeration value="Tuesday"/>
    <xs:enumeration value="Wednesday"/>
    <xs:enumeration value="Thursday"/>
    <xs:enumeration value="Friday"/>
    <xs:enumeration value="Saturday"/>
    <xs:enumeration value="Sunday"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:StartOrEndTime
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram ARINC424_22_HTML.tmp#StartOrEndTime_dayOfWeek ARINC424_22_HTML.tmp#StartOrEndTime_time ARINC424_22_HTML.tmp#StartOrEndTime_relativeTimeIndicator
Used by
Model
Children dayOfWeek, relativeTimeIndicator, time
Source

<xs:complexType name="StartOrEndTime">
  <xs:sequence>
    <xs:element name="dayOfWeek" type="enum:DayOfWeek" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>This field supports specifying a continuous time interval across multiple days. It should not be used if the "dayOfWeek" in TimeOfOperationInterval is specified. If used, it should be specified for both start and end times, and they should be different otherwise the TimeOfOperationInterval field should be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="time" type="xs:time" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>This field represents the start or end time of the TimeOfOperationInterval. A timezone may be set for this field, in which case the time is specified in the local timezone. If no timezone is set, UTC is assumed. If a timezone is set indicating a local time, it should be the same for both start and end times, and the "adjustForDST" field in the enclosing TimesOfOperation instance may be set to indicate that the time follows daylight saving time in accordance with the local DST calendar.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="relativeTimeIndicator" type="enum:RelativeTimeIndicator" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>This field supports specifying the StartOrEndTime as an offset from sunrise or sunset. In this case, the "time" field is just the offset amount such as 01:00:00 or 00:30:00. If used, there should be no timezone set in the "time" field.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:RelativeTimeIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Indicates that the start or end time is relative to sunset or sunrise.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration BeforeSunrise
enumeration AfterSunrise
enumeration BeforeSunset
enumeration AfterSunset
Used by
Source

<xs:simpleType name="RelativeTimeIndicator">
  <xs:annotation>
    <xs:documentation>Indicates that the start or end time is relative to sunset or sunrise.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="BeforeSunrise"/>
    <xs:enumeration value="AfterSunrise"/>
    <xs:enumeration value="BeforeSunset"/>
    <xs:enumeration value="AfterSunset"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:FacilityElevation
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Facility Elevation” field provides the elevation of navaids and communication transmitters
Diagram
Diagram
Type xs:int
Used by
Source

<xs:simpleType name="FacilityElevation">
  <xs:annotation>
    <xs:documentation>The “Facility Elevation” field provides the elevation of navaids and communication transmitters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int"/>
</xs:simpleType>
[ top ]
Simple Type type:CommunicationDistance
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Communication Distance” field is used to define the distance restriction a communication frequency is to be used within or beyond when such restrictions apply. This field is used in conjunction with the Distance Description field.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 2
Used by
Source

<xs:simpleType name="CommunicationDistance">
  <xs:annotation>
    <xs:documentation>The “Communication Distance” field is used to define the distance restriction a communication frequency is to be used within or beyond when such restrictions apply. This field is used in conjunction with the Distance Description field.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="2"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:DistanceDescription
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Distance Description” field will designate whether a communication frequency is to be used from the facility out to a specified distance or from a specified distance and beyond in the Airport Communication Record. In the VHF Navaid Limitation Continuation Record, the field is used to define whether the limitation applies from the navaid out to a specified distance or from a specified distance and beyond.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration OutToSpecifiedDistance
The communication frequency or navaid limitation is out to a specified distance.
enumeration AppliesBeyondDistance
The communication frequency is used or the navaid limitation applies beyond a specified distance
enumeration NoRestriction
no restrictions/limitations apply
Used by
Source

<xs:simpleType name="DistanceDescription">
  <xs:annotation>
    <xs:documentation>The “Distance Description” field will designate whether a communication frequency is to be used from the facility out to a specified distance or from a specified distance and beyond in the Airport Communication Record. In the VHF Navaid Limitation Continuation Record, the field is used to define whether the limitation applies from the navaid out to a specified distance or from a specified distance and beyond.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="OutToSpecifiedDistance">
      <xs:annotation>
        <xs:documentation>The communication frequency or navaid limitation is out to a specified distance.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AppliesBeyondDistance">
      <xs:annotation>
        <xs:documentation>The communication frequency is used or the navaid limitation applies beyond a specified distance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NoRestriction">
      <xs:annotation>
        <xs:documentation>no restrictions/limitations apply</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:MultiSectorIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Multi-Sector Indicator field is used to indicate that the communication service and frequency are used in more than one defined sector. The actual sector data will be contained in the primary and continuation records of the affected airport or heliport communication record set.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration MultiSector
Multi-sector data is published in official government source for the service and frequency
enumeration NotDefined
There is no defined sector data published for the service and frequency.
enumeration OnlyOneFromSource
The official government source has provided only a single defined sector for the service and frequency
Used by
Source

<xs:simpleType name="MultiSectorIndicator">
  <xs:annotation>
    <xs:documentation>The Multi-Sector Indicator field is used to indicate that the communication service and frequency are used in more than one defined sector. The actual sector data will be contained in the primary and continuation records of the affected airport or heliport communication record set.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="MultiSector">
      <xs:annotation>
        <xs:documentation>Multi-sector data is published in official government source for the service and frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NotDefined">
      <xs:annotation>
        <xs:documentation>There is no defined sector data published for the service and frequency.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OnlyOneFromSource">
      <xs:annotation>
        <xs:documentation>The official government source has provided only a single defined sector for the service and frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:SectorizationNarrative
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Sectorization Narrative” field is used to define sectors of operations for communications services on specific frequencies in a narrative format when that data cannot be formatted in the Sectorization (5.183) field. The field may also be used to qualify the Sectorization information. This is usually the “and” situation, meaning the communications service/frequency is to be used in the defined sector and in some other defined situation that cannot be formatted such as Sectorization An example is “309127” in the Sectorization field and “When Departing Runway 31L/R” in the Narrative field.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 60
Used by
Source

<xs:simpleType name="SectorizationNarrative">
  <xs:annotation>
    <xs:documentation>The “Sectorization Narrative” field is used to define sectors of operations for communications services on specific frequencies in a narrative format when that data cannot be formatted in the Sectorization (5.183) field. The field may also be used to qualify the Sectorization information. This is usually the “and” situation, meaning the communications service/frequency is to be used in the defined sector and in some other defined situation that cannot be formatted such as Sectorization An example is “309127” in the Sectorization field and “When Departing Runway 31L/R” in the Narrative field.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="60"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:Sectorization
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Sectorization” field is used to define the airspace sector a communication frequency is applicable for when an airport defines sectors by bearing from the same point.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 6
Used by
Source

<xs:simpleType name="Sectorization">
  <xs:annotation>
    <xs:documentation>The “Sectorization” field is used to define the airspace sector a communication frequency is applicable for when an airport defines sectors by bearing from the same point.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="6"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:AirportHeliportCommunicationServiceIndicator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type.
Diagram
Diagram ARINC424_22_HTML.tmp#AirportHeliportCommunicationServiceIndicator_serviceIndicatorAirportHeliportFrequency ARINC424_22_HTML.tmp#AirportHeliportCommunicationServiceIndicator_serviceIndicatorAirportHeliportInformation ARINC424_22_HTML.tmp#AirportHeliportCommunicationServiceIndicator_serviceIndicatorAirportHeliportService
Used by
Model
Children serviceIndicatorAirportHeliportFrequency, serviceIndicatorAirportHeliportInformation, serviceIndicatorAirportHeliportService
Source

<xs:complexType name="AirportHeliportCommunicationServiceIndicator">
  <xs:annotation>
    <xs:documentation>The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="serviceIndicatorAirportHeliportFrequency" type="enum:ServiceIndicatorAirportHeliportFrequency" minOccurs="0" maxOccurs="1"/>
    <xs:element name="serviceIndicatorAirportHeliportInformation" type="enum:ServiceIndicatorAirportHeliportInformation" minOccurs="0" maxOccurs="1"/>
    <xs:element name="serviceIndicatorAirportHeliportService" type="enum:ServiceIndicatorAirportHeliportService" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:ServiceIndicatorAirportHeliportFrequency
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Service Indicator field is used to further define the use of the frequency for the specified Communication Type.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration ATF
Aerodrome Traffic Frequency (ATF)
enumeration CTAF
Common Traffic Advisory Frequency (CTAF)
enumeration MF
Mandatory Frequency (MF)
enumeration SF
Secondary Frequency
Used by
Source

<xs:simpleType name="ServiceIndicatorAirportHeliportFrequency">
  <xs:annotation>
    <xs:documentation>The Service Indicator field is used to further define the use of the frequency for the specified Communication Type.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="ATF">
      <xs:annotation>
        <xs:documentation>Aerodrome Traffic Frequency (ATF)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CTAF">
      <xs:annotation>
        <xs:documentation>Common Traffic Advisory Frequency (CTAF)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MF">
      <xs:annotation>
        <xs:documentation>Mandatory Frequency (MF)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SF">
      <xs:annotation>
        <xs:documentation>Secondary Frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ServiceIndicatorAirportHeliportInformation
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Service Indicator field is used to further define the use of the frequency for the specified Communication Type.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration VDF
VHF Direction Finding Service (VDF)
enumeration NotEnglish
Language other than English
enumeration MilitaryUseFreq
Military Use Frequency
enumeration PCL
Pilot Controlled Light (PCL)
Used by
Source

<xs:simpleType name="ServiceIndicatorAirportHeliportInformation">
  <xs:annotation>
    <xs:documentation>The Service Indicator field is used to further define the use of the frequency for the specified Communication Type.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="VDF">
      <xs:annotation>
        <xs:documentation>VHF Direction Finding Service (VDF)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NotEnglish">
      <xs:annotation>
        <xs:documentation>Language other than English</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MilitaryUseFreq">
      <xs:annotation>
        <xs:documentation>Military Use Frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PCL">
      <xs:annotation>
        <xs:documentation>Pilot Controlled Light (PCL)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ServiceIndicatorAirportHeliportService
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Service Indicator field is used to further define the use of the frequency for the specified Communication Type.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AAS
Airport Advisory Service (AAS)
enumeration CARC
Community Aerodrome Radio Station (CARS)
enumeration DepartureService
Departure Service (Other than Departure Control Unit)
enumeration FIS
Flight Information Service (FIS)
enumeration IC
Initial Contact (IC)
enumeration ArrivalService
Arrival Service (Other than Arrival Control Unit)
enumeration AFIS
Aerodrome Flight Information Service(AFIS)
enumeration TerminalAeraControl
Terminal Area Control (Other than dedicated Terminal Control Unit)
Used by
Source

<xs:simpleType name="ServiceIndicatorAirportHeliportService">
  <xs:annotation>
    <xs:documentation>The Service Indicator field is used to further define the use of the frequency for the specified Communication Type.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AAS">
      <xs:annotation>
        <xs:documentation>Airport Advisory Service (AAS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CARC">
      <xs:annotation>
        <xs:documentation>Community Aerodrome Radio Station (CARS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DepartureService">
      <xs:annotation>
        <xs:documentation>Departure Service (Other than Departure Control Unit)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FIS">
      <xs:annotation>
        <xs:documentation>Flight Information Service (FIS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IC">
      <xs:annotation>
        <xs:documentation>Initial Contact (IC)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ArrivalService">
      <xs:annotation>
        <xs:documentation>Arrival Service (Other than Arrival Control Unit)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AFIS">
      <xs:annotation>
        <xs:documentation>Aerodrome Flight Information Service(AFIS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TerminalAeraControl">
      <xs:annotation>
        <xs:documentation>Terminal Area Control (Other than dedicated Terminal Control Unit)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:AdditionalSectorization
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class is an abstraction used to represent the details for an Additional Sectorization used in Airport Communications.
Diagram
Diagram ARINC424_22_HTML.tmp#AdditionalSectorization_additionalSectorizationAltitude1 ARINC424_22_HTML.tmp#AdditionalSectorization_additionalSectorizationAltitude2 ARINC424_22_HTML.tmp#AdditionalSectorization_additionalSectorizationAltitudeDescription
Used by
Model
Children additionalSectorizationAltitude1, additionalSectorizationAltitude2, additionalSectorizationAltitudeDescription
Source

<xs:complexType name="AdditionalSectorization">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details for an Additional Sectorization used in Airport Communications.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="additionalSectorizationAltitude1" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
    <xs:element name="additionalSectorizationAltitude2" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
    <xs:element name="additionalSectorizationAltitudeDescription" type="enum:AltitudeDescription" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type Helipad
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Helipad_padDimensionX ARINC424_22_HTML.tmp#Helipad_padDimensionY ARINC424_22_HTML.tmp#Helipad_padRadius ARINC424_22_HTML.tmp#Helipad_helipadShape ARINC424_22_HTML.tmp#Helipad_maximumHelicopterWeight ARINC424_22_HTML.tmp#Helipad_helicopterPerformanceReq
Type extension of A424Point
Type hierarchy
Used by
Element Port/helipad
Model
Children custAreaCode, cycleDate, datumCode, firRef, helicopterPerformanceReq, helipadShape, icaoCode, identifier, location, magneticVariation, maximumHelicopterWeight, name, notes, padDimensionX, padDimensionY, padRadius, recordType, supplementalData, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Helipad">
  <xs:complexContent>
    <xs:extension base="A424Point">
      <xs:sequence>
        <xs:element name="padDimensionX" type="xs:int" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element is the X dimension of a rectanglular pad.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="padDimensionY" type="xs:int" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element is the Y dimension of a rectanglular pad.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="padRadius" type="xs:int" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides the pad radius if it is not a square or rectangle</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element maxOccurs="1" minOccurs="0" name="helipadShape" type="enum:HelipadShape">
          <xs:annotation>
            <xs:documentation>This element provides the shape of the helipad.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element maxOccurs="1" minOccurs="0" name="maximumHelicopterWeight" type="type:MaxHelicopterWeight">
          <xs:annotation>
            <xs:documentation>This element provides the maximum weight for helicopters using this helipad.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" name="helicopterPerformanceReq" type="enum:HelicopterPerformanceReq">
          <xs:annotation>
            <xs:documentation>This element provides performance requirements for helicopters using this helipad.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:HelipadShape
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Helipad Shape field defines the geometric shape of a helipad as being either circle, or rectangular.  If the object is a runway the port contains runway elements.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Circle
enumeration SqureAndOrRectangle
enumeration Undefined
Used by
Source

<xs:simpleType name="HelipadShape">
  <xs:annotation>
    <xs:documentation>The Helipad Shape field defines the geometric shape of a helipad as being either circle, or rectangular. If the object is a runway the port contains runway elements.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Circle"/>
    <xs:enumeration value="SqureAndOrRectangle"/>
    <xs:enumeration value="Undefined"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:MaxHelicopterWeight
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Maximum Allowable Helicopter Weight represents the maximum weight, expressed in hundreds of pounds, that a helipad or FATO can support
Diagram
Diagram
Type restriction of xs:int
Facets
maxInclusive 999
minInclusive 0
Used by
Source

<xs:simpleType name="MaxHelicopterWeight">
  <xs:annotation>
    <xs:documentation>The Maximum Allowable Helicopter Weight represents the maximum weight, expressed in hundreds of pounds, that a helipad or FATO can support</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int">
    <xs:maxInclusive value="999"/>
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:HelicopterPerformanceReq
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Helipad Performance Requirement is used to identify any restriction imposed on helicopter performance in order to use a given helipad.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration MultiEngine
enumeration SingleEngineOnly
enumeration Unkown
Used by
Source

<xs:simpleType name="HelicopterPerformanceReq">
  <xs:annotation>
    <xs:documentation>The Helipad Performance Requirement is used to identify any restriction imposed on helicopter performance in order to use a given helipad.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="MultiEngine"/>
    <xs:enumeration value="SingleEngineOnly"/>
    <xs:enumeration value="Unkown"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type AirportHeliportLocalizerMarker
Namespace No namespace
Annotations

The Airport and Heliport Localizer Marker File (PM) contains details of all markers and locators associated with all types of localizers.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_elevation ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_localizerReference ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_locatorClass ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_locatorFacilityCharacteristics ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_locatorFrequency ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_markerType ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_minorAxisBearing ARINC424_22_HTML.tmp#AirportHeliportLocalizerMarker_runwayIdentifier
Type extension of A424Point
Type hierarchy
Used by
Model
Children custAreaCode, cycleDate, datumCode, elevation, firRef, icaoCode, identifier, localizerReference, location, locatorClass, locatorFacilityCharacteristics, locatorFrequency, magneticVariation, markerType, minorAxisBearing, name, notes, recordType, runwayIdentifier, supplementalData, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="AirportHeliportLocalizerMarker">
  <xs:annotation>
    <xs:documentation>The Airport and Heliport Localizer Marker File (PM) contains details of all markers and locators associated with all types of localizers.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Point">
      <xs:sequence>
        <xs:element name="elevation" type="type:Elevation" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Facility Elevation field provides the elevation of navaids and communication transmitters.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="localizerReference" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Localizer/MLS/GLS Identifier” field identifies the localizer, MLS facility or GLS Ref Path defined in the record. In the Runway Record, two “Landing Systems” may be defined.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="locatorClass" type="LocatorClass" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense. The field is made up of five columns of codes that define this information.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="locatorFacilityCharacteristics" type="xs:string" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Facility Characteristics” field identifies the characteristics of the NAVAID facility.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="locatorFrequency" type="type:Frequency" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “VOR/NDB Frequency” field specifies the frequency of the NAVAID identified in the “VOR/NDB Identifier” field of the record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="markerType" type="enum:MarkerType" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Marker Type” field defines the type of marker.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="minorAxisBearing" type="type:MinorAxisBearing" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Minor Axis Bearing” field indicates the true bearing of the minor axis of marker beacons.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayIdentifier" type="type:RunwayIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Runway Identifier” fieldidentifies the runways described in runway records andrunways served by the ILS/MLS described in ILS/MLSrecords.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type LocatorClass
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerLocatorFacility1 ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerLocatorAddInfo ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerLocatorCollocation ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerLocatorCoverage ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerLocatorFacility2 ARINC424_22_HTML.tmp#LocatorClass_ahLocalizerMarkerWeatherInfo
Used by
Model
Children ahLocalizerMarkerLocatorAddInfo, ahLocalizerMarkerLocatorCollocation, ahLocalizerMarkerLocatorCoverage, ahLocalizerMarkerLocatorFacility1, ahLocalizerMarkerLocatorFacility2, ahLocalizerMarkerWeatherInfo
Source

<xs:complexType name="LocatorClass">
  <xs:sequence>
    <xs:element name="ahLocalizerMarkerLocatorFacility1" type="enum:AhLocalizerMarkerLocatorFacility1" minOccurs="0" maxOccurs="1"/>
    <xs:element name="ahLocalizerMarkerLocatorAddInfo" type="enum:AhLocalizerMarkerLocatorAddInfo" minOccurs="0" maxOccurs="1"/>
    <xs:element name="ahLocalizerMarkerLocatorCollocation" type="enum:AhLocalizerMarkerLocatorCollocation" minOccurs="0" maxOccurs="1"/>
    <xs:element name="ahLocalizerMarkerLocatorCoverage" type="enum:AhLocalizerMarkerLocatorCoverage" minOccurs="0" maxOccurs="1"/>
    <xs:element name="ahLocalizerMarkerLocatorFacility2" type="enum:AhLocalizerMarkerLocatorFacility2" minOccurs="0" maxOccurs="1"/>
    <xs:element name="ahLocalizerMarkerWeatherInfo" type="enum:NavaidWeatherInfo" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:AhLocalizerMarkerLocatorFacility1
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The field NDBNavaidFacility1 is the first character of the 5 character Navaid class,when used in NDB Navaid Record –NDBs and Terminal NDBs.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Ndb
NDB
enumeration Sabh
SABH
enumeration MarineBeacon
Marine Beacon.
Used by
Source

<xs:simpleType name="AhLocalizerMarkerLocatorFacility1">
  <xs:annotation>
    <xs:documentation>The field NDBNavaidFacility1 is the first character of the 5 character Navaid class,when used in NDB Navaid Record –NDBs and Terminal NDBs.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Ndb">
      <xs:annotation>
        <xs:documentation>NDB</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Sabh">
      <xs:annotation>
        <xs:documentation>SABH</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MarineBeacon">
      <xs:annotation>
        <xs:documentation>Marine Beacon.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:AhLocalizerMarkerLocatorAddInfo
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The field NDBNavaidAddInfo is the fourth character of the 5 character Navaid class, when used in NDB Navaid Record –NDBs and Terminal NDBs. It contains additional information on the Navaid.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration NoVoiceOnFrequency
No Voice on Frequency.The frequency of this Navaid is not used to support two-way communication between a ground station and aircraft.
enumeration VoiceOnFrequency
Voice on Frequency.The frequency of this Navaid is used to support two-way communication between a ground station and aircraft.
Used by
Source

<xs:simpleType name="AhLocalizerMarkerLocatorAddInfo">
  <xs:annotation>
    <xs:documentation>The field NDBNavaidAddInfo is the fourth character of the 5 character Navaid class, when used in NDB Navaid Record –NDBs and Terminal NDBs. It contains additional information on the Navaid.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="NoVoiceOnFrequency">
      <xs:annotation>
        <xs:documentation>No Voice on Frequency.The frequency of this Navaid is not used to support two-way communication between a ground station and aircraft.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VoiceOnFrequency">
      <xs:annotation>
        <xs:documentation>Voice on Frequency.The frequency of this Navaid is used to support two-way communication between a ground station and aircraft.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:AhLocalizerMarkerLocatorCollocation
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The field NDBNavaidCollocation is the fifth character of the 5 character Navaid class, when used in NDB Navaid Record –NDBs and Terminal NDBs. It contains additional information on the Navaid. It has information on the Navaid collocation.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration BfoOperation
BFO Operation. Use of Beat Frequency Oscillator type of equipment is required to received an aural identification signal.
enumeration LocatorMarkerCollocated
Locator/Marker Collocated. The latitude/longitude position of the Locator and Marker are identical.
enumeration LocatorMiddleMarkerNotCollocated
Locator/Middle Marker Not Collocated. The latitude/longitude position of Locator and Marker are not identical.
Used by
Source

<xs:simpleType name="AhLocalizerMarkerLocatorCollocation">
  <xs:annotation>
    <xs:documentation>The field NDBNavaidCollocation is the fifth character of the 5 character Navaid class, when used in NDB Navaid Record –NDBs and Terminal NDBs. It contains additional information on the Navaid. It has information on the Navaid collocation.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="BfoOperation">
      <xs:annotation>
        <xs:documentation>BFO Operation. Use of Beat Frequency Oscillator type of equipment is required to received an aural identification signal.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LocatorMarkerCollocated">
      <xs:annotation>
        <xs:documentation>Locator/Marker Collocated. The latitude/longitude position of the Locator and Marker are identical.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LocatorMiddleMarkerNotCollocated">
      <xs:annotation>
        <xs:documentation>Locator/Middle Marker Not Collocated. The latitude/longitude position of Locator and Marker are not identical.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:AhLocalizerMarkerLocatorCoverage
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The field NDBNavaidCoverage is the first character of the 5 character Navaid class, When used in NDB Navaid Record –NDBs and Terminal NDBs.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration HighPowerNdb
High-powered NDB. Generally usable within 75NM of the facility at all altitudes.
enumeration Ndb
NDB. Generally usable within 50NM of the facility at all altitude.
enumeration LowPowerNdb
Low-powered NDB. Generally usable within 25NM of the facility at all altitude.
enumeration Locator
Locator. Generally usable within 15NM of the facility at all altitudes.
Used by
Source

<xs:simpleType name="AhLocalizerMarkerLocatorCoverage">
  <xs:annotation>
    <xs:documentation>The field NDBNavaidCoverage is the first character of the 5 character Navaid class, When used in NDB Navaid Record –NDBs and Terminal NDBs.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="HighPowerNdb">
      <xs:annotation>
        <xs:documentation>High-powered NDB. Generally usable within 75NM of the facility at all altitudes.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Ndb">
      <xs:annotation>
        <xs:documentation>NDB. Generally usable within 50NM of the facility at all altitude.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LowPowerNdb">
      <xs:annotation>
        <xs:documentation>Low-powered NDB. Generally usable within 25NM of the facility at all altitude.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Locator">
      <xs:annotation>
        <xs:documentation>Locator. Generally usable within 15NM of the facility at all altitudes.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:AhLocalizerMarkerLocatorFacility2
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The field NDBNavaidFacility2 is the second character of the 5 character Navaid class, when used in NDB Navaid Record –NDBs and Terminal NDBs.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration InnerMarker
Inner Marker. There is an Inner Marker beacon at this location.
enumeration MiddleMarker
Middle Marker. There is a Middle Marker beacon at this location.
enumeration OuterMarker
Outer Marker. There is an Outer Marker beacon at this location.
enumeration BackMarker
Back Marker. There is a Backcourse Marker at this location.
Used by
Source

<xs:simpleType name="AhLocalizerMarkerLocatorFacility2">
  <xs:annotation>
    <xs:documentation>The field NDBNavaidFacility2 is the second character of the 5 character Navaid class, when used in NDB Navaid Record –NDBs and Terminal NDBs.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="InnerMarker">
      <xs:annotation>
        <xs:documentation>Inner Marker. There is an Inner Marker beacon at this location.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MiddleMarker">
      <xs:annotation>
        <xs:documentation>Middle Marker. There is a Middle Marker beacon at this location.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OuterMarker">
      <xs:annotation>
        <xs:documentation>Outer Marker. There is an Outer Marker beacon at this location.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BackMarker">
      <xs:annotation>
        <xs:documentation>Back Marker. There is a Backcourse Marker at this location.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:MarkerType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Marker Type” field defines the type of marker.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration IM
Inner Marker
enumeration MM
Middle Marker
enumeration OM
Outer Marker
enumeration BM
Back Marker
enumeration L
Locator at Marker
Used by
Source

<xs:simpleType name="MarkerType">
  <xs:annotation>
    <xs:documentation>The “Marker Type” field defines the type of marker.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="IM">
      <xs:annotation>
        <xs:documentation>Inner Marker</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MM">
      <xs:annotation>
        <xs:documentation>Middle Marker</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OM">
      <xs:annotation>
        <xs:documentation>Outer Marker</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BM">
      <xs:annotation>
        <xs:documentation>Back Marker</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="L">
      <xs:annotation>
        <xs:documentation>Locator at Marker</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:MinorAxisBearing
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Minor Axis Bearing” field indicates the true bearing of the minor axis of marker beacons.
Diagram
Diagram ARINC424_22_HTML.tmp#BearingValue
Type type:BearingValue
Type hierarchy
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Used by
Source

<xs:simpleType name="MinorAxisBearing">
  <xs:annotation>
    <xs:documentation>The “Minor Axis Bearing” field indicates the true bearing of the minor axis of marker beacons.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:BearingValue"/>
</xs:simpleType>
[ top ]
Complex Type LocalizerGlideslope
Namespace No namespace
Annotations

This following record contains the fields used in Localizer and Glideslope Records.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachAngle ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachCourseBearing ARINC424_22_HTML.tmp#PrecisionApproachNavaid_category ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayIdentifier ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayReference ARINC424_22_HTML.tmp#PrecisionApproachNavaid ARINC424_22_HTML.tmp#LocalizerGlideslope_approachRouteIdent ARINC424_22_HTML.tmp#LocalizerGlideslope_glideslopeBeamWidth ARINC424_22_HTML.tmp#LocalizerGlideslope_glideslopeHeightAtLandingThreshold ARINC424_22_HTML.tmp#LocalizerGlideslope_glideslopeLocation ARINC424_22_HTML.tmp#LocalizerGlideslope_glideslopePosition ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerPosition ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerPositionReference ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerTrueBearing ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerTrueBearingSource ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerWidth ARINC424_22_HTML.tmp#LocalizerGlideslope_stationDeclination ARINC424_22_HTML.tmp#LocalizerGlideslope_supportingFacilityReference ARINC424_22_HTML.tmp#LocalizerGlideslope_localizerGlideslopeFrequency ARINC424_22_HTML.tmp#LocalizerGlideslope_ilsBackCourse ARINC424_22_HTML.tmp#LocalizerGlideslope_ilsDmeLocation
Type extension of PrecisionApproachNavaid
Type hierarchy
Used by
Model
Children approachAngle, approachCourseBearing, approachRouteIdent, category, custAreaCode, cycleDate, datumCode, elevation, firRef, glideslopeBeamWidth, glideslopeHeightAtLandingThreshold, glideslopeLocation, glideslopePosition, icaoCode, identifier, ilsBackCourse, ilsDmeLocation, localizerGlideslopeFrequency, localizerPosition, localizerPositionReference, localizerTrueBearing, localizerTrueBearingSource, localizerWidth, location, magneticVariation, name, notes, portRef, recordType, runwayIdentifier, runwayReference, stationDeclination, supplementalData, supportingFacilityReference, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="LocalizerGlideslope">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Localizer and Glideslope Records.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="PrecisionApproachNavaid">
      <xs:sequence>
        <xs:element name="approachRouteIdent" type="type:CoreIdentifier" minOccurs="0" maxOccurs="4">
          <xs:annotation>
            <xs:documentation>The “Approach Route Identifier” field contains the identifier of the approach route to be flown. To facilitate the provision of multiple approach procedures of the same type to a given runway, the field also is used to provide a “multiple indicator.”</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="glideslopeBeamWidth" type="type:GlideslopeBeamWidth" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Glide Slope Beam Width” field specifies the glide path beam width of the Glide Slope defined in the record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="glideslopeHeightAtLandingThreshold" type="type:ThresholdCrossingHeight" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="glideslopeLocation" type="type:Location" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="glideslopePosition" type="type:BeamPosition" minOccurs="0" maxOccurs="1"/>
        <xs:element name="localizerPosition" type="type:BeamPosition" minOccurs="0" maxOccurs="1"/>
        <xs:element name="localizerPositionReference" type="enum:LocalizerAzimuthPositionReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Element which encapsulates the localizer details for the corresponding Runway. This element contains the localizer ident and localizer class.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="localizerTrueBearing" type="type:TrueBearing" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="localizerTrueBearingSource" type="enum:TrueBearingSource" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="localizerWidth" type="xs:decimal" minOccurs="0" maxOccurs="1"/>
        <xs:element name="stationDeclination" type="type:StationDeclination" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>For VHF NAVAIDS, the “Station Declination” field contains the angular difference between true north and the zero degree radial of the NAVAID at the time the NAVAID was last site checked. For ILS localizers, the field contains the angular difference between true north and magnetic north at the localizer antenna site at the time the magnetic bearing of the localizer course was established.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="supportingFacilityReference" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “VOR/NDB Identifier” field identifies the VHF/MF/LF facility defined in the record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="localizerGlideslopeFrequency" type="type:Frequency" minOccurs="1" maxOccurs="1"/>
        <xs:element name="ilsBackCourse" type="enum:ILSBackCourse" minOccurs="0" maxOccurs="1"/>
        <xs:element name="ilsDmeLocation" type="enum:ILSDMELocation" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type PrecisionApproachNavaid
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachAngle ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachCourseBearing ARINC424_22_HTML.tmp#PrecisionApproachNavaid_category ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayIdentifier ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayReference
Type extension of Navaid
Type hierarchy
Properties
abstract true
Used by
Complex Types GLS, LocalizerGlideslope, MLS
Model
Children approachAngle, approachCourseBearing, category, custAreaCode, cycleDate, datumCode, elevation, firRef, icaoCode, identifier, location, magneticVariation, name, notes, portRef, recordType, runwayIdentifier, runwayReference, supplementalData, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="PrecisionApproachNavaid" abstract="true">
  <xs:complexContent>
    <xs:extension base="Navaid">
      <xs:sequence>
        <xs:element name="approachAngle" type="type:PrecisionApproachAngle" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Glide Slope Angle” field defines the glide slope angle of an ILS facility/GLS approach. The “Minimum Elevation Angle” field defines the lowest elevation angle authorized for the MLS procedure.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="approachCourseBearing" type="type:Bearing" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Localizer Bearing” field defines the magnetic bearing of the localizer course of the ILS facility/GLS approach described in the record. The “MLS Azimuth Bearing” and the “MLS Back Azimuth Bearing” fields define the inbound magnetic final approach course assigned to the center of the Azimuth or Back Azimuth Coverage (see Section 6.172).</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="category" type="enum:PrecisionApproachCategory" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Localizer/MLS/GLS Performance Categories have established operating minimums and are listed as Category I, II, and III. The level of Performance Category does not imply that permission exists to use the facility for landing guidance to that level and does not limit minimal using designated classification. This field is also used to define the classification, non- ILS/MLS/GLS, and localizer installation such as IGS, LDA, or SDF. As used in the runway record, there are two fields, one labeled Localizer/MLS/GLS Category/Classification and the other labeled Second Localizer/MLS/GLS Category/Classification.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayIdentifier" type="type:RunwayIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Runway Identifier” field identifies the runways described in runway records and runways served by the ILS/MLS described in ILS/MLSrecords.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayReference" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:PrecisionApproachAngle
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Glide Slope Angle” field defines the glide slope angle of an ILS facility/GLS approach.

The “Minimum Elevation Angle” field defines the lowest elevation angle authorized for the MLS procedure.
Diagram
Diagram
Type xs:decimal
Used by
Source

<xs:simpleType name="PrecisionApproachAngle">
  <xs:annotation>
    <xs:documentation>The “Glide Slope Angle” field defines the glide slope angle of an ILS facility/GLS approach. The “Minimum Elevation Angle” field defines the lowest elevation angle authorized for the MLS procedure.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal"/>
</xs:simpleType>
[ top ]
Complex Type type:Bearing
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram ARINC424_22_HTML.tmp#Bearing_bearingValue ARINC424_22_HTML.tmp#Bearing_isTrueBearing
Used by
Model
Children bearingValue, isTrueBearing
Source

<xs:complexType name="Bearing">
  <xs:sequence>
    <xs:element name="bearingValue" type="type:BearingValue" minOccurs="1" maxOccurs="1"/>
    <xs:element name="isTrueBearing" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:PrecisionApproachCategory
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Localizer/MLS/GLS Performance Categories have established operating minimums and are listed as Category I, II, and III. The level of Performance Category does not imply that permission exists to use the facility for landing guidance to that level and does not limit minimal using designated classification. This field is also used to define the classification, non- ILS/MLS/GLS, and localizer installation such as IGS, LDA, or SDF. As used in the runway record, there are two fields, one labeled Localizer/MLS/GLS Category/Classification and the other labeled Second Localizer/MLS/GLS Category/Classification.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration IlsLocOnly
ILS Localizer Only, No Glideslope
enumeration IlsMlsGlsCat1
ILS Localizer/MLS/GLS Category I
enumeration IlsMlsGlsCat2
ILS Localizer/MLS/GLS Category II
enumeration IlsMlsGlsCat3
ILS Localizer/MLS/GLS Category III
enumeration Igs
IGS Facility
enumeration LdaGlideslope
LDA Facility with Glideslope
enumeration LdaNoGlideslope
LDA Facility, no Glideslope
enumeration SdfGlideslope
SDF Facility with Glideslope
enumeration SdfNoGlideSlope
SDF Facility, no Glideslope
Used by
Source

<xs:simpleType name="PrecisionApproachCategory">
  <xs:annotation>
    <xs:documentation>The Localizer/MLS/GLS Performance Categories have established operating minimums and are listed as Category I, II, and III. The level of Performance Category does not imply that permission exists to use the facility for landing guidance to that level and does not limit minimal using designated classification. This field is also used to define the classification, non- ILS/MLS/GLS, and localizer installation such as IGS, LDA, or SDF. As used in the runway record, there are two fields, one labeled Localizer/MLS/GLS Category/Classification and the other labeled Second Localizer/MLS/GLS Category/Classification.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="IlsLocOnly">
      <xs:annotation>
        <xs:documentation>ILS Localizer Only, No Glideslope</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IlsMlsGlsCat1">
      <xs:annotation>
        <xs:documentation>ILS Localizer/MLS/GLS Category I</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IlsMlsGlsCat2">
      <xs:annotation>
        <xs:documentation>ILS Localizer/MLS/GLS Category II</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IlsMlsGlsCat3">
      <xs:annotation>
        <xs:documentation>ILS Localizer/MLS/GLS Category III</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Igs">
      <xs:annotation>
        <xs:documentation>IGS Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LdaGlideslope">
      <xs:annotation>
        <xs:documentation>LDA Facility with Glideslope</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LdaNoGlideslope">
      <xs:annotation>
        <xs:documentation>LDA Facility, no Glideslope</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SdfGlideslope">
      <xs:annotation>
        <xs:documentation>SDF Facility with Glideslope</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SdfNoGlideSlope">
      <xs:annotation>
        <xs:documentation>SDF Facility, no Glideslope</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:GlideslopeBeamWidth
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Glide Slope Beam Width” field specifies the glide path beam width of the Glide Slope defined in the record.
Diagram
Diagram
Type xs:decimal
Used by
Source

<xs:simpleType name="GlideslopeBeamWidth">
  <xs:annotation>
    <xs:documentation>The “Glide Slope Beam Width” field specifies the glide path beam width of the Glide Slope defined in the record.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal"/>
</xs:simpleType>
[ top ]
Simple Type type:BeamPosition
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Beam Position” field defines the location of the facility antenna relative to one end of the runway or threshold.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 4
Used by
Source

<xs:simpleType name="BeamPosition">
  <xs:annotation>
    <xs:documentation>The Beam Position” field defines the location of the facility antenna relative to one end of the runway or threshold.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:LocalizerAzimuthPositionReference
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Localizer/Azimuth Position Reference” field indicates whether the antenna is situated beyond the stop end of the runway, ahead of or beyond the approach end of the runway. The “Back Azimuth Position Reference” field indicates whether the antenna is situated ahead of the approach end of the runway, ahead of or beyond the stop end of the runway.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration BeyondStopEnd
For Localizer and Azimuth positions the field is blank (@) when the antenna is situated beyond the stop end of the runway,
For Back Azimuth positions the field is blank (@) when the antenna is situated ahead of the approach end of the runway
enumeration BeforeApproachEnd
For Localizer and Azimuth positions the field contains a plus (+) sign when the antenna is situated ahead of the approach end of the runway
For Back Azimuth positions the field contains a plus (+) sign when the antenna is situated beyond the stop end of the runway
enumeration OffToSide
For Localizer and Azimuth positions the field contains a plus (-) sign when the antenna is located off to one side of the runway
For Back Azimuth positions the field contains a plus (-) sign when it is located off to one side of the runway.
Used by
Source

<xs:simpleType name="LocalizerAzimuthPositionReference">
  <xs:annotation>
    <xs:documentation>The “Localizer/Azimuth Position Reference” field indicates whether the antenna is situated beyond the stop end of the runway, ahead of or beyond the approach end of the runway. The “Back Azimuth Position Reference” field indicates whether the antenna is situated ahead of the approach end of the runway, ahead of or beyond the stop end of the runway.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="BeyondStopEnd">
      <xs:annotation>
        <xs:documentation>For Localizer and Azimuth positions the field is blank (@) when the antenna is situated beyond the stop end of the runway, For Back Azimuth positions the field is blank (@) when the antenna is situated ahead of the approach end of the runway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BeforeApproachEnd">
      <xs:annotation>
        <xs:documentation>For Localizer and Azimuth positions the field contains a plus (+) sign when the antenna is situated ahead of the approach end of the runway For Back Azimuth positions the field contains a plus (+) sign when the antenna is situated beyond the stop end of the runway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OffToSide">
      <xs:annotation>
        <xs:documentation>For Localizer and Azimuth positions the field contains a plus (-) sign when the antenna is located off to one side of the runway For Back Azimuth positions the field contains a plus (-) sign when it is located off to one side of the runway.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:TrueBearing
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.
Diagram
Diagram ARINC424_22_HTML.tmp#CompassValue
Type restriction of type:CompassValue
Type hierarchy
Facets
totalDigits 5
fractionDigits 2
maxInclusive 360
minInclusive 0
Used by
Source

<xs:simpleType name="TrueBearing">
  <xs:annotation>
    <xs:documentation>The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:CompassValue">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="2"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:TrueBearingSource
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Official
“True Bearing” is derived from official government sources.
enumeration Other
“True Bearing" is derived from other sources
Used by
Source

<xs:simpleType name="TrueBearingSource">
  <xs:annotation>
    <xs:documentation>The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Official">
      <xs:annotation>
        <xs:documentation>“True Bearing” is derived from official government sources.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Other">
      <xs:annotation>
        <xs:documentation>“True Bearing" is derived from other sources</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:StationDeclination
Namespace http://www.arinc424.com/xml/datatypes
Annotations

For VHF NAVAIDS, the “Station Declination” field contains the angular difference between true north and the zero degree radial of the NAVAID at the time the NAVAID was last site checked. For ILS localizers, the field contains the angular difference between true north and magnetic north at the localizer antenna site at the time the magnetic bearing of the localizer course was established.
Diagram
Diagram ARINC424_22_HTML.tmp#StationDeclination_stationDeclinationEWT ARINC424_22_HTML.tmp#StationDeclination_stationDeclinationValue
Used by
Model
Children stationDeclinationEWT, stationDeclinationValue
Source

<xs:complexType name="StationDeclination">
  <xs:annotation>
    <xs:documentation>For VHF NAVAIDS, the “Station Declination” field contains the angular difference between true north and the zero degree radial of the NAVAID at the time the NAVAID was last site checked. For ILS localizers, the field contains the angular difference between true north and magnetic north at the localizer antenna site at the time the magnetic bearing of the localizer course was established.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="stationDeclinationEWT" type="enum:StationDeclinationEWT" minOccurs="1" maxOccurs="1"/>
    <xs:element name="stationDeclinationValue" type="type:MagneticVariationValue" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:StationDeclinationEWT
Namespace http://www.arinc424.com/xml/enumerations
Annotations

For VHF NAVAIDS, the Station Declination field contains the angular difference between true north and the zero degree radial of the NAVAID at the time the NAVAID was last site checked. For ILS localizers, the field contains the angular difference between true north and magnetic north at the localizer antenna site at the time the magnetic bearing of the localizer course was established.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration East
Declination is East of True North
enumeration West
Declination is East of West North
enumeration True
Station is oriented to True North in an area in which the local variation is not zero.
enumeration Grid
Station is oriented to Grid North
Used by
Source

<xs:simpleType name="StationDeclinationEWT">
  <xs:annotation>
    <xs:documentation>For VHF NAVAIDS, the Station Declination field contains the angular difference between true north and the zero degree radial of the NAVAID at the time the NAVAID was last site checked. For ILS localizers, the field contains the angular difference between true north and magnetic north at the localizer antenna site at the time the magnetic bearing of the localizer course was established.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="East">
      <xs:annotation>
        <xs:documentation>Declination is East of True North</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="West">
      <xs:annotation>
        <xs:documentation>Declination is East of West North</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="True">
      <xs:annotation>
        <xs:documentation>Station is oriented to True North in an area in which the local variation is not zero.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Grid">
      <xs:annotation>
        <xs:documentation>Station is oriented to Grid North</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ILSBackCourse
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Facility Characteristics field identifies the characteristics of the NAVAID facility.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Usable
Usable
enumeration Unusable
Unusable
enumeration Restricted
Restricted
enumeration Undefined
Undefined
Used by
Source

<xs:simpleType name="ILSBackCourse">
  <xs:annotation>
    <xs:documentation>The Facility Characteristics field identifies the characteristics of the NAVAID facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Usable">
      <xs:annotation>
        <xs:documentation>Usable</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Unusable">
      <xs:annotation>
        <xs:documentation>Unusable</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Restricted">
      <xs:annotation>
        <xs:documentation>Restricted</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Undefined">
      <xs:annotation>
        <xs:documentation>Undefined</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ILSDMELocation
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “ILSDMELocation” field identifies the characteristics of the NAVAID facility.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration NotCollocated
Not collocated with Localizer or Glide Slope
enumeration CollocatedLocalizer
Collocated with localizer
enumeration CollocatedGlideSlope
Collocated with Glide Slope
Used by
Source

<xs:simpleType name="ILSDMELocation">
  <xs:annotation>
    <xs:documentation>The “ILSDMELocation” field identifies the characteristics of the NAVAID facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="NotCollocated">
      <xs:annotation>
        <xs:documentation>Not collocated with Localizer or Glide Slope</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CollocatedLocalizer">
      <xs:annotation>
        <xs:documentation>Collocated with localizer</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CollocatedGlideSlope">
      <xs:annotation>
        <xs:documentation>Collocated with Glide Slope</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type GLS
Namespace No namespace
Annotations

This record contains a sequential listing of all GNSS Landing Systems (GLS) approaches, including the slope, course and reference path idents of the GLS approach. A GLS approach is identified by its ident and channel. Note that several GLS approaches can be supported by a single differential GLS ground station.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachAngle ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachCourseBearing ARINC424_22_HTML.tmp#PrecisionApproachNavaid_category ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayIdentifier ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayReference ARINC424_22_HTML.tmp#PrecisionApproachNavaid ARINC424_22_HTML.tmp#GLS_serviceVolumneRadius ARINC424_22_HTML.tmp#GLS_stationElevationWGS84 ARINC424_22_HTML.tmp#GLS_stationType ARINC424_22_HTML.tmp#GLS_tdmaSlots ARINC424_22_HTML.tmp#GLS_glsChannel ARINC424_22_HTML.tmp#GLS_thresholdCrossingHeight
Type extension of PrecisionApproachNavaid
Type hierarchy
Used by
Element Port/gls
Model
Children approachAngle, approachCourseBearing, category, custAreaCode, cycleDate, datumCode, elevation, firRef, glsChannel, icaoCode, identifier, location, magneticVariation, name, notes, portRef, recordType, runwayIdentifier, runwayReference, serviceVolumneRadius, stationElevationWGS84, stationType, supplementalData, tdmaSlots, thresholdCrossingHeight, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="GLS">
  <xs:annotation>
    <xs:documentation>This record contains a sequential listing of all GNSS Landing Systems (GLS) approaches, including the slope, course and reference path idents of the GLS approach. A GLS approach is identified by its ident and channel. Note that several GLS approaches can be supported by a single differential GLS ground station.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="PrecisionApproachNavaid">
      <xs:sequence>
        <xs:element name="serviceVolumneRadius" type="type:ServiceVolumeRadius" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The service volume radius identifies the radius of the service volume around the transmitter in Nautical miles.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="stationElevationWGS84" type="type:StationElevationWGS84" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This field identifies the WGS84 elevation of the GLS ground station described in the record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="stationType" type="type:StationType" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The station type identifies the type of the differential ground station. The first character will be L for LAAS/GLS ground station, C for SCAT-1 station. The second and third character will be blank for the moment. They will indicate the interoperability standard to which the station conforms.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="tdmaSlots" type="type:TDMASlots" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The TDMA identifies the time slot(s) in which the ground station transmits the related approach. The high precision time source available through GPS permits utilization of Time division multiplexing or TDMA (Time Division Multiple Access), allowing multiple ground stations to share a common frequency by dividing it into eight time slots. An individual station may broadcast in one or more of eight slots.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="glsChannel" type="type:Channel" minOccurs="1" maxOccurs="1"/>
        <xs:element maxOccurs="1" minOccurs="0" name="thresholdCrossingHeight" type="type:ThresholdCrossingHeight"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:ServiceVolumeRadius
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The service volume radius identifies the radius of the service volume around the transmitter in Nautical miles.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceIntegerNMTwoDigits
Type type:DistanceIntegerNMTwoDigits
Type hierarchy
Facets
totalDigits 2
Used by
Source

<xs:simpleType name="ServiceVolumeRadius">
  <xs:annotation>
    <xs:documentation>The service volume radius identifies the radius of the service volume around the transmitter in Nautical miles.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceIntegerNMTwoDigits"/>
</xs:simpleType>
[ top ]
Simple Type type:StationElevationWGS84
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This field identifies the WGS84 elevation of the GLS ground station described in the record.
Diagram
Diagram ARINC424_22_HTML.tmp#Elevation
Type type:Elevation
Type hierarchy
Facets
maxInclusive 20000
minInclusive -1500
Used by
Source

<xs:simpleType name="StationElevationWGS84">
  <xs:annotation>
    <xs:documentation>This field identifies the WGS84 elevation of the GLS ground station described in the record.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:Elevation"/>
</xs:simpleType>
[ top ]
Simple Type type:StationType
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The station type identifies the type of the differential ground station. The first character will be L for LAAS/GLS ground station, C for SCAT-1 station. The second and third character will be blank for the moment. They will indicate the interoperability standard to which the station conforms.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 3
Used by
Element GLS/stationType
Source

<xs:simpleType name="StationType">
  <xs:annotation>
    <xs:documentation>The station type identifies the type of the differential ground station. The first character will be L for LAAS/GLS ground station, C for SCAT-1 station. The second and third character will be blank for the moment. They will indicate the interoperability standard to which the station conforms.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:TDMASlots
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The TDMA identifies the time slot(s) in which the ground station transmits the related approach. The high precision time source available through GPS permits utilization of Time division multiplexing or TDMA (Time Division Multiple Access), allowing multiple ground stations to share a common frequency by dividing it into eight time slots. An individual station may broadcast in one or more of eight slots.
Diagram
Diagram
Type restriction of xs:string
Facets
length 2
Used by
Element GLS/tdmaSlots
Source

<xs:simpleType name="TDMASlots">
  <xs:annotation>
    <xs:documentation>The TDMA identifies the time slot(s) in which the ground station transmits the related approach. The high precision time source available through GPS permits utilization of Time division multiplexing or TDMA (Time Division Multiple Access), allowing multiple ground stations to share a common frequency by dividing it into eight time slots. An individual station may broadcast in one or more of eight slots.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="2"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type MLS
Namespace No namespace
Annotations

This record represents a Microwave Landing System, including the Azimuth station, the Elevation station and the Back Azimuth station if installed.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachAngle ARINC424_22_HTML.tmp#PrecisionApproachNavaid_approachCourseBearing ARINC424_22_HTML.tmp#PrecisionApproachNavaid_category ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayIdentifier ARINC424_22_HTML.tmp#PrecisionApproachNavaid_runwayReference ARINC424_22_HTML.tmp#PrecisionApproachNavaid ARINC424_22_HTML.tmp#MLS_azimuthCoverageLeft ARINC424_22_HTML.tmp#MLS_azimuthCoverageRight ARINC424_22_HTML.tmp#MLS_azimuthPosition ARINC424_22_HTML.tmp#MLS_azimuthPositionReference ARINC424_22_HTML.tmp#MLS_azimuthProportionalAngleLeft ARINC424_22_HTML.tmp#MLS_azimuthProportionalAngleRight ARINC424_22_HTML.tmp#MLS_elevationAngleSpan ARINC424_22_HTML.tmp#MLS_elevationLocation ARINC424_22_HTML.tmp#MLS_elevationPosition ARINC424_22_HTML.tmp#MLS_mlsBackAzimuthDetails ARINC424_22_HTML.tmp#MLS_nominalElevationAngle ARINC424_22_HTML.tmp#MLS_supportingFacilityReference ARINC424_22_HTML.tmp#MLS_mlsChannel ARINC424_22_HTML.tmp#MLS_mlsDmeLocation ARINC424_22_HTML.tmp#MLS_mlsApproachAzimuthScanRate
Type extension of PrecisionApproachNavaid
Type hierarchy
Used by
Element Port/mls
Model
Children approachAngle, approachCourseBearing, azimuthCoverageLeft, azimuthCoverageRight, azimuthPosition, azimuthPositionReference, azimuthProportionalAngleLeft, azimuthProportionalAngleRight, category, custAreaCode, cycleDate, datumCode, elevation, elevationAngleSpan, elevationLocation, elevationPosition, firRef, icaoCode, identifier, location, magneticVariation, mlsApproachAzimuthScanRate, mlsBackAzimuthDetails, mlsChannel, mlsDmeLocation, name, nominalElevationAngle, notes, portRef, recordType, runwayIdentifier, runwayReference, supplementalData, supportingFacilityReference, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="MLS">
  <xs:annotation>
    <xs:documentation>This record represents a Microwave Landing System, including the Azimuth station, the Elevation station and the Back Azimuth station if installed.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="PrecisionApproachNavaid">
      <xs:sequence>
        <xs:element name="azimuthCoverageLeft" type="type:AzimuthCoverageSectorRightLeft" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="azimuthCoverageRight" type="type:AzimuthCoverageSectorRightLeft" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="azimuthPosition" type="type:BeamPosition" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Localizer/Azimuth Position” field defines the location of the facility antenna relative to one end of the runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="azimuthPositionReference" type="enum:LocalizerAzimuthPositionReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Localizer/Azimuth Position Reference” field indicates whether the antenna is situated beyond the stop end of the runway, ahead of or beyond the approach end of the runway. The “Back Azimuth Position Reference” field indicates whether the antenna is situated ahead of the approach end of the runway, ahead of or beyond the stop end of the runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="azimuthProportionalAngleLeft" type="type:AzimuthProportionalAngleRightLeft" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="azimuthProportionalAngleRight" type="type:AzimuthProportionalAngleRightLeft" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="elevationAngleSpan" type="type:ElevationAngleSpan" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Elevation Angle Span” field defines the scan of the elevation transmitter signal between the lower and upper limits</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="elevationLocation" type="type:Location" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Latitude and Longitude details of this point's elevation component.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="elevationPosition" type="type:BeamPosition" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Elevation Position” field defines the location of the antenna with respect to the approach end of the runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="mlsBackAzimuthDetails" type="MLSBackAzimuthDetails" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>MLS Back Azimuth Details</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="nominalElevationAngle" type="type:NominalElevationAngle" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Nominal Elevation Angle” field defines the normal glide path angle for the MLS installation.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="supportingFacilityReference" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “VOR/NDB Identifier” field identifies the VHF/MF/LF facility defined in the record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="mlsChannel" type="type:Channel" minOccurs="1" maxOccurs="1"/>
        <xs:element name="mlsDmeLocation" type="enum:MLSDMELocation" minOccurs="0" maxOccurs="1"/>
        <xs:element name="mlsApproachAzimuthScanRate" type="enum:MLSApproachAzimuthScanRate" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:AzimuthCoverageSectorRightLeft
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Used by
Source

<xs:simpleType name="AzimuthCoverageSectorRightLeft">
  <xs:annotation>
    <xs:documentation>The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:maxExclusive value="360"/>
    <xs:minInclusive value="0"/>
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:AzimuthProportionalAngleRightLeft
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Used by
Source

<xs:simpleType name="AzimuthProportionalAngleRightLeft">
  <xs:annotation>
    <xs:documentation>The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:maxExclusive value="360"/>
    <xs:minInclusive value="0"/>
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:ElevationAngleSpan
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Elevation Angle Span” field defines the scan of the elevation transmitter signal between the lower and upper limits
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
maxExclusive 360
minInclusive 0
Used by
Source

<xs:simpleType name="ElevationAngleSpan">
  <xs:annotation>
    <xs:documentation>The “Elevation Angle Span” field defines the scan of the elevation transmitter signal between the lower and upper limits</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:maxExclusive value="360"/>
    <xs:minInclusive value="0"/>
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type MLSBackAzimuthDetails
Namespace No namespace
Annotations

This following record contains the fields used in MLS Back Azimuth Details.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_azimuthTrueBearing ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_azimuthTrueBearingSource ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthBearing ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthCoverageLeft ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthCoverageRight ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthPosition ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthPositionReference ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthProportionalSectorLeft ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthProportionalSectorRight ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthTrueBearing ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_backAzimuthTrueBearingSource ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_glidePathHeightAtLandingThreshold ARINC424_22_HTML.tmp#MLSBackAzimuthDetails_mlsDatumPointLocation
Type extension of A424Point
Type hierarchy
Used by
Model
Children azimuthTrueBearing, azimuthTrueBearingSource, backAzimuthBearing, backAzimuthCoverageLeft, backAzimuthCoverageRight, backAzimuthPosition, backAzimuthPositionReference, backAzimuthProportionalSectorLeft, backAzimuthProportionalSectorRight, backAzimuthTrueBearing, backAzimuthTrueBearingSource, custAreaCode, cycleDate, datumCode, firRef, glidePathHeightAtLandingThreshold, icaoCode, identifier, location, magneticVariation, mlsDatumPointLocation, name, notes, recordType, supplementalData, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="MLSBackAzimuthDetails">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in MLS Back Azimuth Details.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Point">
      <xs:sequence>
        <xs:element name="azimuthTrueBearing" type="type:TrueBearing" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="azimuthTrueBearingSource" type="enum:TrueBearingSource" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="backAzimuthBearing" type="type:Bearing" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “MLS Azimuth Bearing” and the “MLS Back Azimuth Bearing” fields define the inbound magnetic final approach course assigned to the center of the Azimuth or Back Azimuth Coverage (see Section 6.172).</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="backAzimuthCoverageLeft" type="type:AzimuthCoverageSectorRightLeft" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="backAzimuthCoverageRight" type="type:AzimuthCoverageSectorRightLeft" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Azimuth Coverage Sector” fields define the limit of the azimuth transmitter signal on the right and left side of the MLS Bearing (Section 6.167). The Back Azimuth Coverage Sector is identical to the Azimuth Coverage Sector and also provides guidance for Missed Approach Procedures and departures.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="backAzimuthPosition" type="type:BeamPosition" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Localizer/Azimuth Position” field defines the location of the facility antenna relative to one end of the runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="backAzimuthPositionReference" type="enum:LocalizerAzimuthPositionReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Localizer/Azimuth Position Reference” field indicates whether the antenna is situated beyond the stop end of the runway, ahead of or beyond the approach end of the runway. The “Back Azimuth Position Reference” field indicates whether the antenna is situated ahead of the approach end of the runway, ahead of or beyond the stop end of the runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="backAzimuthProportionalSectorLeft" type="type:AzimuthProportionalAngleRightLeft" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="backAzimuthProportionalSectorRight" type="type:AzimuthProportionalAngleRightLeft" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The MLS Azimuth and Back Azimuth Proportional Angle fields define the limits of proportional guidance of the azimuth transmitter signal on the right and left side of the MLS Azimuth bearing (Section 6.167). The BAZ is identical to the AZ and also provides guidance for Missed Approach Procedures and departures. See figure under Section 6.172.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="backAzimuthTrueBearing" type="type:TrueBearing" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="backAzimuthTrueBearingSource" type="enum:TrueBearingSource" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="glidePathHeightAtLandingThreshold" type="type:ThresholdCrossingHeight" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="mlsDatumPointLocation" type="type:Location" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:NominalElevationAngle
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Nominal Elevation Angle” field defines the normal glide path angle for the MLS installation.
Diagram
Diagram
Type xs:unsignedInt
Used by
Source

<xs:simpleType name="NominalElevationAngle">
  <xs:annotation>
    <xs:documentation>The “Nominal Elevation Angle” field defines the normal glide path angle for the MLS installation.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt"/>
</xs:simpleType>
[ top ]
Simple Type enum:MLSDMELocation
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Facility Characteristics field identifies the characteristics of the NAVAID facility.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration CollocatedAzimuth
Collocated with Azimuth
enumeration CollocatedElevation
Collocated with Elevation.
enumeration NotCollocated
Not Collocated with Azimuth or Elevation
Used by
Source

<xs:simpleType name="MLSDMELocation">
  <xs:annotation>
    <xs:documentation>The Facility Characteristics field identifies the characteristics of the NAVAID facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="CollocatedAzimuth">
      <xs:annotation>
        <xs:documentation>Collocated with Azimuth</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CollocatedElevation">
      <xs:annotation>
        <xs:documentation>Collocated with Elevation.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NotCollocated">
      <xs:annotation>
        <xs:documentation>Not Collocated with Azimuth or Elevation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:MLSApproachAzimuthScanRate
Namespace http://www.arinc424.com/xml/enumerations
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AzimuthNotAvailable
Where a high-rate approach azimuth guidance is not available, enter blank.
enumeration AzimuthAvailable
Where a high-rate approach azimuth guidance is available, enter “H,”
Used by
Source

<xs:simpleType name="MLSApproachAzimuthScanRate">
  <xs:restriction base="xs:string">
    <xs:enumeration value="AzimuthNotAvailable">
      <xs:annotation>
        <xs:documentation>Where a high-rate approach azimuth guidance is not available, enter blank.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AzimuthAvailable">
      <xs:annotation>
        <xs:documentation>Where a high-rate approach azimuth guidance is available, enter “H,”</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type MSA
Namespace No namespace
Annotations

The Minimum Sector Altitude (MSA) file contains details relating to available sector MSA  Extension Class.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#MSA_referenceID ARINC424_22_HTML.tmp#MSA_centerFix ARINC424_22_HTML.tmp#MSA_icaoCode ARINC424_22_HTML.tmp#MSA_magneticTrueIndicator ARINC424_22_HTML.tmp#MSA_multipleCode ARINC424_22_HTML.tmp#MSA_sector ARINC424_22_HTML.tmp#MSA_centerFixRef
Type extension of A424Record
Type hierarchy
Used by
Element Port/msa
Model
Children centerFix, centerFixRef, custAreaCode, cycleDate, icaoCode, magneticTrueIndicator, multipleCode, notes, recordType, sector, supplementalData
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="MSA">
  <xs:annotation>
    <xs:documentation>The Minimum Sector Altitude (MSA) file contains details relating to available sector MSA Extension Class.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="centerFix" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>When used on Airport and Heliport MSA Records, the “Center Fix” field represents the MSA Center; that point (Navaid or Waypoint) on which the MSA is predicated. When used on Terminal Procedure Records, it can be used in three ways: 1. When the terminal procedure has an MSA defined, the field will contain the identifier of the fix on which the MSA is predicated. This will serve as a pointer to the specific MSA (PS) Record. This will be populated on the Final Approach Fix (FAF) Record only. 2. When the terminal procedure has a TAA defined, the field will contain the identifier of the fix on which the TAA Sector is predicated. This will serve as a pointer to the specific TAA (PK) Record. This will be populated on the first record for each approach transition. 3. When used in a terminal procedure record defined by an “RF” Path Terminator, the field will contain the fix that defines the center of the constant rate turn. If the RF Leg terminates at the FAF, where the MSA Center Fix information would normally be found, the RF Center Fix takes priority and the MSA Center Fix pointer will be moved to the FACF record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="icaoCode" type="type:IcaoCode" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “ICAO Code” field permits records to be categorized geographically within the limits of the categorization performed by the “Area Code” field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="magneticTrueIndicator" type="enum:MagneticTrueIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="multipleCode" type="type:MultipleCode" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Multiple Code” field will be used to indicate Restrictive Airspace Areas or MSA Centers having the same designator but subdivided or differently divided by lateral and/or vertical detail.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sector" type="type:Sector" minOccurs="1" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>This class represents the details for a MSA Sector.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="centerFixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
      <xs:attribute name="referenceID" use="required" type="xs:ID"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:MultipleCode
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Multiple Code” field will be used to indicate Restrictive Airspace Areas or MSA Centers having the same designator but subdivided or differently divided by lateral and/or vertical detail.
Diagram
Diagram
Type restriction of xs:string
Facets
length 1
Used by
Source

<xs:simpleType name="MultipleCode">
  <xs:annotation>
    <xs:documentation>The “Multiple Code” field will be used to indicate Restrictive Airspace Areas or MSA Centers having the same designator but subdivided or differently divided by lateral and/or vertical detail.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type FlightPlanningRecords
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#FlightPlanningRecords_flightPlanningRecord
Used by
Model
Children flightPlanningRecord
Source

<xs:complexType name="FlightPlanningRecords">
  <xs:sequence>
    <xs:element name="flightPlanningRecord" type="FlightPlanningRecord" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type FlightPlanningRecord
Namespace No namespace
Annotations

The Flight Planning Arrival/Departure Data Record (424 PR record) is used to provide the sub-set of data defining SIDs (PD), STARs (PE) and Approach Procedures (PF) from Section 4.1.9 required for the computer generation of Flight Plans which include Terminal Procedures. The file contains a sequential listing of published Arrival Procedures, Approach Procedures and Departure Procedures, the available Enroute and Runway Transitions for those procedures, the Transition waypoints, the appropriate along track distance fields and the intermediate fixes along those routes.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#FlightPlanningRecord_altitude ARINC424_22_HTML.tmp#FlightPlanningRecord_altitudeDescription ARINC424_22_HTML.tmp#FlightPlanningRecord_atcIdentifier ARINC424_22_HTML.tmp#FlightPlanningRecord_atcWeightCategory ARINC424_22_HTML.tmp#FlightPlanningRecord_commonSegmentDetails ARINC424_22_HTML.tmp#FlightPlanningRecord_enrouteDetails ARINC424_22_HTML.tmp#FlightPlanningRecord_intermediateFixDetails ARINC424_22_HTML.tmp#FlightPlanningRecord_timesOfOperation ARINC424_22_HTML.tmp#FlightPlanningRecord_initialCruiseTable ARINC424_22_HTML.tmp#FlightPlanningRecord_initialDepartureMagneticCourse ARINC424_22_HTML.tmp#FlightPlanningRecord_legTypeCode ARINC424_22_HTML.tmp#FlightPlanningRecord_numberOfEngines ARINC424_22_HTML.tmp#FlightPlanningRecord_port ARINC424_22_HTML.tmp#FlightPlanningRecord_procedureDescription ARINC424_22_HTML.tmp#FlightPlanningRecord_procedureType ARINC424_22_HTML.tmp#FlightPlanningRecord_reportingCode ARINC424_22_HTML.tmp#FlightPlanningRecord_rnavFlags ARINC424_22_HTML.tmp#FlightPlanningRecord_runwaySegmentDetails ARINC424_22_HTML.tmp#FlightPlanningRecord_sequenceNumber ARINC424_22_HTML.tmp#FlightPlanningRecord_sidSTARApproachIdentifier ARINC424_22_HTML.tmp#FlightPlanningRecord_speedLimit ARINC424_22_HTML.tmp#FlightPlanningRecord_speedLimitDescription ARINC424_22_HTML.tmp#FlightPlanningRecord_turbopropJetIndicator
Type extension of A424Record
Type hierarchy
Used by
Model
Children altitude, altitudeDescription, atcIdentifier, atcWeightCategory, commonSegmentDetails, custAreaCode, cycleDate, enrouteDetails, initialCruiseTable, initialDepartureMagneticCourse, intermediateFixDetails, legTypeCode, notes, numberOfEngines, port, procedureDescription, procedureType, recordType, reportingCode, rnavFlags, runwaySegmentDetails, sequenceNumber, sidSTARApproachIdentifier, speedLimit, speedLimitDescription, supplementalData, timesOfOperation, turbopropJetIndicator
Source

<xs:complexType name="FlightPlanningRecord">
  <xs:annotation>
    <xs:documentation>The Flight Planning Arrival/Departure Data Record (424 PR record) is used to provide the sub-set of data defining SIDs (PD), STARs (PE) and Approach Procedures (PF) from Section 4.1.9 required for the computer generation of Flight Plans which include Terminal Procedures. The file contains a sequential listing of published Arrival Procedures, Approach Procedures and Departure Procedures, the available Enroute and Runway Transitions for those procedures, the Transition waypoints, the appropriate along track distance fields and the intermediate fixes along those routes.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="altitude" type="type:FlightPlanningAltitude" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Altitude” field used on Flight Planning Arrival/Departure Data Records is a simplification of the altitude concept used in the full procedure records. It will provide an altitude indication in hundreds of feet, no AGL, MSL, FL etc indication provided.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="altitudeDescription" type="enum:AltitudeDescription" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="atcIdentifier" type="type:ATCIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “ATC Identifier” field used on Flight Planning Arrival/Departure Data Records is the indication of the officially published procedure designation which is required for Flight Planning.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="atcWeightCategory" type="enum:ATCWeightCategory" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “ATC Weight Category” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure included in the record is restricted to, or designed for, a specific aircraft weight grouping.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="commonSegmentDetails" type="type:CommonSegmentDetails" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This class is an abstraction used to represent a Common Segment.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="enrouteDetails" type="type:SegmentDetails" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This class is an abstraction used to represent the details for a segment.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="intermediateFixDetails" type="type:IntermediateFixDetails" minOccurs="0" maxOccurs="4">
          <!-- Can it be only 4 -->
          <xs:annotation>
            <xs:documentation>Representsthe details of an intermediate fix in the flight planning record</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="timesOfOperation" type="type:TimesOfOperation" minOccurs="0" maxOccurs="1"/>
        <xs:element name="initialCruiseTable" type="type:CruiseTableIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="initialDepartureMagneticCourse" type="type:Course" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>“Outbound Magnetic Course” is the published outbound magnetic course from the waypoint identified in the record’s “Fix Ident” field. In addition, this field is used for Course/Heading/Radials on SID/STAR Approach Records through requirements of the Path Terminator and coding rules contained in Attachment 5 of this specification.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="legTypeCode" type="type:LegTypeCode" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Leg Type Code” field used on Flight Planning Arrival/Departure Data Records is a simplification of the Path Terminator concept. It will provide the information on the path between intermediate waypoints as straight or curved and provide an indication of the change in direction of flight, expressed as left or right, at an intermediate waypoint.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="numberOfEngines" type="type:NumberofEnginesRestriction" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Number of Engines Restriction” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure, normally departure, is restricted to, or designed for, aircraft with a specific number of engines.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="port" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “port” references the airport or heliport to which the data contained in the record relates.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="procedureDescription" type="type:ProcedureDescription" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Procedure Description” field used on Flight Planning Arrival/Departure Data Records is the textual representation of the procedure name.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="procedureType" type="enum:ProcedureType" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Procedure Type” field used on Flight Planning Arrival/Departure Data Record is a single character code indication the type of procedure in the record, such as Arrival, Standard Instrument Arrival Route, Approach.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="reportingCode" type="enum:ReportingCode" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Reporting Code” field used on Flight Planning Arrival/Departure Data Records is a simplification of the Waypoint Description concept. It will provide the information on intermediate waypoints as either Position Report Required (Compulsory Report) or Position Report Not Required (On-Request Report).</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rnavFlags" type="enum:RNAVFlag" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “RNAV Flag” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure included in the record is restricted to, or designed for, aircraft capable of flying RNAV Procedures.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwaySegmentDetails" type="type:SegmentDetails" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This class is an abstraction used to represent the details for a segment.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sequenceNumber" type="type:SequenceNumber" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>For Record Types requiring more than one primary record to define the complete content – In a series of records used to define a complete condition, the “Sequence Number” is used to define each primary record in the sequence.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sidSTARApproachIdentifier" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This UML Class is the base class for SIDSTARRouteIdentifier and ApproachRouteIdentifier classes. this is used in Airport SID/STAR/Approach records. The base class is used so that any of the above mentioned classes can be used in the XML file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="speedLimit" type="type:SpeedLimit" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Speed Limit” field defines a speed, expressed in Knots, Indicated (K.I.A.S.), for a fix in a terminal procedure or for an airport or heliport terminal environment.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="speedLimitDescription" type="enum:SpeedLimitDescription" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The "Speed Limit Description" field will designate whether the speed limit coded at a fix in a terminal procedure description is a mandatory, minimum or maximum speed. For Maximum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit The STAR and Approach Procedure Record speed limit will be applied forward to the end of the arrival (excluding the missed approach procedure) or until superseded by another speed limit. For Minimum speeds: The SID Procedure Records and Missed Approach Procedures speed limit will be applied forward to the end of the SID or Missed Approach Procedure or until superseded by another speed limit. The STAR and Approach Procedure Record speed limit will apply to all legs up to and including the termination of the leg on which the speed is coded from the beginning of the procedure or a previous speed limit. If a different speed is coded on a subsequent leg, the limit will be applied for that leg and from that leg backwards to the previous terminator which contained a speed limit. For Mandatory speeds: The speed requirement shall be met at the fix. The speed will not be applied to previous legs or applied forward to the next legs of the procedure record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="turbopropJetIndicator" type="enum:TurbopropJetIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Turboprop/Jet Indicator” field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure, normally departure, is restricted to, or designed for, aircraft with a specific kind of engines.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:FlightPlanningAltitude
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Altitude” field used on Flight Planning Arrival/Departure Data Records is a simplification of the altitude concept used in the full procedure records. It will provide an altitude indication in hundreds of feet, no AGL, MSL, FL etc indication provided.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="FlightPlanningAltitude">
  <xs:annotation>
    <xs:documentation>The “Altitude” field used on Flight Planning Arrival/Departure Data Records is a simplification of the altitude concept used in the full procedure records. It will provide an altitude indication in hundreds of feet, no AGL, MSL, FL etc indication provided.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:ATCIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “ATC Identifier” field used on Flight Planning Arrival/Departure Data Records is the indication of the officially published procedure designation which is required for Flight Planning.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 7
Used by
Source

<xs:simpleType name="ATCIdentifier">
  <xs:annotation>
    <xs:documentation>The “ATC Identifier” field used on Flight Planning Arrival/Departure Data Records is the indication of the officially published procedure designation which is required for Flight Planning.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="7"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ATCWeightCategory
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The ATC Weight Category field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure included in the record is restricted to, or designed for, a specific aircraft weight grouping.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Heavy
Heavy, all aircraft types of 136,000kg (300000LB) or more.
enumeration Medium
Medium, aircraft types less than 136,000kg (300,000LB) and more than 7,000kg (155,000LB).
enumeration Light
Light, aircraft types of 7,000kg (155,000LB) or less
Used by
Source

<xs:simpleType name="ATCWeightCategory">
  <xs:annotation>
    <xs:documentation>The ATC Weight Category field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure included in the record is restricted to, or designed for, a specific aircraft weight grouping.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Heavy">
      <xs:annotation>
        <xs:documentation>Heavy, all aircraft types of 136,000kg (300000LB) or more.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Medium">
      <xs:annotation>
        <xs:documentation>Medium, aircraft types less than 136,000kg (300,000LB) and more than 7,000kg (155,000LB).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Light">
      <xs:annotation>
        <xs:documentation>Light, aircraft types of 7,000kg (155,000LB) or less</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:CommonSegmentDetails
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This type represents the details for a Common Segment.
Diagram
Diagram ARINC424_22_HTML.tmp#CommonSegmentDetails_alongTrackDistance ARINC424_22_HTML.tmp#CommonSegmentDetails_fix
Used by
Model
Children alongTrackDistance, fix
Source

<xs:complexType name="CommonSegmentDetails">
  <xs:annotation>
    <xs:documentation>This type represents the details for a Common Segment.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="alongTrackDistance" type="type:AlongTrackDistance" minOccurs="1" maxOccurs="1"/>
    <xs:element name="fix" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:AlongTrackDistance
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Along Track Distance field used on Flight Planning Arrival/Departure Data Records is the total distance for a given transition, from the initial fix to the ending fix in the transition. A single occurrence of a Flight Planning Arrival/Departure Data record can contain up to three Along Track Distance fields, one for each of the transition types that can make up a single terminal route in the Primary Record and up to four possible intermediate fix points in each Continuation Record. Collectively, the values equal the along track distance from the first fix in the first transition to the last fix in the last transition.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceIntegerNM
Type type:DistanceIntegerNM
Type hierarchy
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="AlongTrackDistance">
  <xs:annotation>
    <xs:documentation>The Along Track Distance field used on Flight Planning Arrival/Departure Data Records is the total distance for a given transition, from the initial fix to the ending fix in the transition. A single occurrence of a Flight Planning Arrival/Departure Data record can contain up to three Along Track Distance fields, one for each of the transition types that can make up a single terminal route in the Primary Record and up to four possible intermediate fix points in each Continuation Record. Collectively, the values equal the along track distance from the first fix in the first transition to the last fix in the last transition.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceIntegerNM"/>
</xs:simpleType>
[ top ]
Complex Type type:SegmentDetails
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This type represents the details for a segment.
Diagram
Diagram ARINC424_22_HTML.tmp#SegmentDetails_transitionIdentifier ARINC424_22_HTML.tmp#SegmentDetails_alongTrackDistance ARINC424_22_HTML.tmp#SegmentDetails_fix
Used by
Model
Children alongTrackDistance, fix, transitionIdentifier
Source

<xs:complexType name="SegmentDetails">
  <xs:annotation>
    <xs:documentation>This type represents the details for a segment.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="transitionIdentifier" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
    <xs:element name="alongTrackDistance" type="type:AlongTrackDistance" minOccurs="1" maxOccurs="1"/>
    <xs:element name="fix" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type type:IntermediateFixDetails
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This type represents the details of an intermediate Fix
Diagram
Diagram ARINC424_22_HTML.tmp#IntermediateFixDetails_fixRelatedTransitionCode ARINC424_22_HTML.tmp#IntermediateFixDetails_intermediateDistance ARINC424_22_HTML.tmp#IntermediateFixDetails_fix
Used by
Model
Children fix, fixRelatedTransitionCode, intermediateDistance
Source

<xs:complexType name="IntermediateFixDetails">
  <xs:annotation>
    <xs:documentation>This type represents the details of an intermediate Fix</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="fixRelatedTransitionCode" type="enum:FixRelatedTransitionCode" minOccurs="1" maxOccurs="1"/>
    <xs:element name="intermediateDistance" type="type:AlongTrackDistance" minOccurs="1" maxOccurs="1"/>
    <xs:element name="fix" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:FixRelatedTransitionCode
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Fix Related Transition Code is used on Flight Planning Arrival/Departure Data Continuation Records containing Intermediate Fix information and provides an indication, through use of the standard coding practices of separating the procedure into transitions, as to where in the procedure the intermediate fix is located.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
enumeration 1
Fix Located in SID Runway Transition
enumeration 2
Fix Located in SID Common Portion
enumeration 3
Fix Located in SID Enroute Transition
enumeration 4
Fix Located in STAR Enroute Transition
enumeration 5
Fix Located in STAR Common Portion
enumeration 6
Fix Located in STAR Runway Transition
Used by
Source

<xs:simpleType name="FixRelatedTransitionCode">
  <xs:annotation>
    <xs:documentation>The Fix Related Transition Code is used on Flight Planning Arrival/Departure Data Continuation Records containing Intermediate Fix information and provides an indication, through use of the standard coding practices of separating the procedure into transitions, as to where in the procedure the intermediate fix is located.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:enumeration value="1">
      <xs:annotation>
        <xs:documentation>Fix Located in SID Runway Transition</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2">
      <xs:annotation>
        <xs:documentation>Fix Located in SID Common Portion</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3">
      <xs:annotation>
        <xs:documentation>Fix Located in SID Enroute Transition</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4">
      <xs:annotation>
        <xs:documentation>Fix Located in STAR Enroute Transition</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="5">
      <xs:annotation>
        <xs:documentation>Fix Located in STAR Common Portion</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="6">
      <xs:annotation>
        <xs:documentation>Fix Located in STAR Runway Transition</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:CruiseTableIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.
Diagram
Diagram
Type restriction of xs:string
Facets
length 2
Used by
Source

<xs:simpleType name="CruiseTableIdentifier">
  <xs:annotation>
    <xs:documentation>A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="2"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:LegTypeCode
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Leg Type Code” field used on Flight Planning Arrival/Departure Data Records is a simplification of the Path Terminator concept. It will provide the information on the path between intermediate waypoints as straight or curved and provide an indication of the change in direction of flight, expressed as left or right, at an intermediate waypoint.
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#LegTypeCode_legTypeCodeSC ARINC424_22_HTML.tmp#LegTypeCode_legTypeTurnIndication
Type extension of type:Alpha
Type hierarchy
Used by
Model
Children legTypeCodeSC, legTypeTurnIndication
Source

<xs:complexType name="LegTypeCode">
  <xs:annotation>
    <xs:documentation>The “Leg Type Code” field used on Flight Planning Arrival/Departure Data Records is a simplification of the Path Terminator concept. It will provide the information on the path between intermediate waypoints as straight or curved and provide an indication of the change in direction of flight, expressed as left or right, at an intermediate waypoint.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="type:Alpha">
      <xs:sequence>
        <xs:element name="legTypeCodeSC" type="enum:LegTypeCodeSC" minOccurs="1" maxOccurs="1"/>
        <xs:element name="legTypeTurnIndication" type="enum:LegTypeTurnIndication" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:LegTypeCodeSC
Namespace http://www.arinc424.com/xml/enumerations
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration PointToPoint
Straight Point to Point
enumeration Curved
Curved line Flight Track
Used by
Source

<xs:simpleType name="LegTypeCodeSC">
  <xs:restriction base="xs:string">
    <xs:enumeration value="PointToPoint">
      <xs:annotation>
        <xs:documentation>Straight Point to Point</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Curved">
      <xs:annotation>
        <xs:documentation>Curved line Flight Track</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:LegTypeTurnIndication
Namespace http://www.arinc424.com/xml/enumerations
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Left
Left
enumeration Right
Right
Used by
Source

<xs:simpleType name="LegTypeTurnIndication">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Left">
      <xs:annotation>
        <xs:documentation>Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Right">
      <xs:annotation>
        <xs:documentation>Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:NumberofEnginesRestriction
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Number of Engines Restriction field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure, normally departure, is restricted to, or designed for, aircraft with a specific number of engines.
Diagram
Diagram
Type restriction of xs:string
Facets
length 4
Used by
Source

<xs:simpleType name="NumberofEnginesRestriction">
  <xs:annotation>
    <xs:documentation>The Number of Engines Restriction field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure, normally departure, is restricted to, or designed for, aircraft with a specific number of engines.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:ProcedureDescription
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Procedure Description” field used on Flight Planning Arrival/Departure Data Records is the textual representation of the procedure name.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 15
Used by
Source

<xs:simpleType name="ProcedureDescription">
  <xs:annotation>
    <xs:documentation>The “Procedure Description” field used on Flight Planning Arrival/Departure Data Records is the textual representation of the procedure name.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="15"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ProcedureType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Procedure Type field used on Flight Planning Arrival/Departure Data Record is a single character code indication the type of procedure in the record, such as Arrival, Standard Instrument Arrival Route, Approach.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration ArrivalInDb
Arrival Procedure, Available in Database
enumeration ArrivalNotInDb
Arrival Procedure, Not Available in Database
enumeration DepartureInDb
Departure Procedure, Available in Database
enumeration DepartureNotInDb
Departure Procedure, Not Available in Database
enumeration StarInDb
Standard Terminal Arrival Route (STAR), Available in Database
enumeration StarNotInDb
Standard Terminal Arrival Route (STAR), Not Available in Database
enumeration SidInDb
Standard Instrument Departure (SID), Available in Database
enumeration SidNotInDb
Standard Instrument Departure (SID), Not Available in Database
enumeration VectorSidInDb
Vector SID, Available in Database
enumeration VectorSidNotInDB
Vector SID, Not Available in Database
enumeration ApproachInDb
Approach Procedure, Available in Database
enumeration ApproachInDb
Approach Procedure, Not Available in Database
Used by
Source

<xs:simpleType name="ProcedureType">
  <xs:annotation>
    <xs:documentation>The Procedure Type field used on Flight Planning Arrival/Departure Data Record is a single character code indication the type of procedure in the record, such as Arrival, Standard Instrument Arrival Route, Approach.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="ArrivalInDb">
      <xs:annotation>
        <xs:documentation>Arrival Procedure, Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ArrivalNotInDb">
      <xs:annotation>
        <xs:documentation>Arrival Procedure, Not Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DepartureInDb">
      <xs:annotation>
        <xs:documentation>Departure Procedure, Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DepartureNotInDb">
      <xs:annotation>
        <xs:documentation>Departure Procedure, Not Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="StarInDb">
      <xs:annotation>
        <xs:documentation>Standard Terminal Arrival Route (STAR), Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="StarNotInDb">
      <xs:annotation>
        <xs:documentation>Standard Terminal Arrival Route (STAR), Not Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SidInDb">
      <xs:annotation>
        <xs:documentation>Standard Instrument Departure (SID), Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SidNotInDb">
      <xs:annotation>
        <xs:documentation>Standard Instrument Departure (SID), Not Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VectorSidInDb">
      <xs:annotation>
        <xs:documentation>Vector SID, Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VectorSidNotInDB">
      <xs:annotation>
        <xs:documentation>Vector SID, Not Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ApproachInDb">
      <xs:annotation>
        <xs:documentation>Approach Procedure, Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ApproachInDb">
      <xs:annotation>
        <xs:documentation>Approach Procedure, Not Available in Database</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ReportingCode
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Reporting Code field used on Flight Planning Arrival/Departure Data Records is a simplification of the Waypoint Description concept. It will provide the information on intermediate waypoints as either Position Report Required (Compulsory Report) or Position Report Not Required (On-Request Report).
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Required
Position Report Required
enumeration NotRequired
Position Report Not Required
Used by
Source

<xs:simpleType name="ReportingCode">
  <xs:annotation>
    <xs:documentation>The Reporting Code field used on Flight Planning Arrival/Departure Data Records is a simplification of the Waypoint Description concept. It will provide the information on intermediate waypoints as either Position Report Required (Compulsory Report) or Position Report Not Required (On-Request Report).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Required">
      <xs:annotation>
        <xs:documentation>Position Report Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NotRequired">
      <xs:annotation>
        <xs:documentation>Position Report Not Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:RNAVFlag
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The RNAV Flag field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure included in the record is restricted to, or designed for, aircraft capable of flying RNAV Procedures.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Yes
The field will indicate Yes, the procedure is an RNAV procedure
enumeration No
The field will indicate No, the procedure is NOT an RNAV procedure
Used by
Source

<xs:simpleType name="RNAVFlag">
  <xs:annotation>
    <xs:documentation>The RNAV Flag field used on Flight Planning Arrival/Departure Data Records is derived from government source and is included whenever a given procedure included in the record is restricted to, or designed for, aircraft capable of flying RNAV Procedures.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Yes">
      <xs:annotation>
        <xs:documentation>The field will indicate Yes, the procedure is an RNAV procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="No">
      <xs:annotation>
        <xs:documentation>The field will indicate No, the procedure is NOT an RNAV procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:TurbopropJetIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Turboprop/Jet Indicator” field used on Flight Planning Arrival/Departure Data Records is included whenever a given procedure, normally a departure, is restricted to, or designed for, aircraft with a specific kind of engines.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration All
All Aircraft
enumeration JetsAndTurboProps
Jets and Turbo Props
enumeration AllCruise250OrLess
All Aircraft, Cruise speed 250 kts or less
enumeration NonJetAndTurboProp
Non-jet and Turbo Prop
enumeration MultiEngineProps
Multi-Engine Props Only
enumeration Jets
Jets
enumeration NonJetNonTurboprop
Non-Jet, Non-Turbo Prop
enumeration TurboProp
Turbo Props
Used by
Source

<xs:simpleType name="TurbopropJetIndicator">
  <xs:annotation>
    <xs:documentation>The “Turboprop/Jet Indicator” field used on Flight Planning Arrival/Departure Data Records is included whenever a given procedure, normally a departure, is restricted to, or designed for, aircraft with a specific kind of engines.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="All">
      <xs:annotation>
        <xs:documentation>All Aircraft</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="JetsAndTurboProps">
      <xs:annotation>
        <xs:documentation>Jets and Turbo Props</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AllCruise250OrLess">
      <xs:annotation>
        <xs:documentation>All Aircraft, Cruise speed 250 kts or less</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NonJetAndTurboProp">
      <xs:annotation>
        <xs:documentation>Non-jet and Turbo Prop</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MultiEngineProps">
      <xs:annotation>
        <xs:documentation>Multi-Engine Props Only</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Jets">
      <xs:annotation>
        <xs:documentation>Jets</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NonJetNonTurboprop">
      <xs:annotation>
        <xs:documentation>Non-Jet, Non-Turbo Prop</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TurboProp">
      <xs:annotation>
        <xs:documentation>Turbo Props</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:CategoryDistance
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Category Radii” fields, expressed in tenths of nautical miles, specifies the obstacle clearance area for aircraft maneuvering to land on a runway which is not aligned with the FAC of the approach procedure. The limits of the circling area are defined to be an arc from the center of the end of each usable runway. The extremities of the adjacent arcs are joined by lines drawn tangent to the arcs. The area thus enclosed is the circling approach area.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceNMTwoDigits
Type type:DistanceNMTwoDigits
Type hierarchy
Facets
totalDigits 2
fractionDigits 1
Used by
Source

<xs:simpleType name="CategoryDistance">
  <xs:annotation>
    <xs:documentation>The “Category Radii” fields, expressed in tenths of nautical miles, specifies the obstacle clearance area for aircraft maneuvering to land on a runway which is not aligned with the FAC of the approach procedure. The limits of the circling area are defined to be an arc from the center of the end of each usable runway. The extremities of the adjacent arcs are joined by lines drawn tangent to the arcs. The area thus enclosed is the circling approach area.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceNMTwoDigits"/>
</xs:simpleType>
[ top ]
Simple Type type:DistanceNMTwoDigits
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceNM
Type restriction of type:DistanceNM
Type hierarchy
Facets
totalDigits 2
fractionDigits 1
Used by
Source

<xs:simpleType name="DistanceNMTwoDigits">
  <xs:restriction base="type:DistanceNM">
    <xs:totalDigits value="2"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ControlledASIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Controlled Airspace Indicator” field is used to indicate if an airport is associated with controlled airspace of a terminal type such as a Terminal Control Area (TMA or TCA) Radar Area or Class B or C Airspace within the USA.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration WithinOrBelowClassC
The Airport is within or below the lateral limits of Class C Airspace.
enumeration WithinOrBelowCta
The Airport is within or below the lateral limits of a CTA.
enumeration WithinOrBelowTmsTca
The Airport is within or below the lateral limits of a TMA or TCA.
enumeration WithinOrBelowRadarZone
The Airport is within or below the lateral limits Radar Zone
enumeration WithinOrBelowClassB
The Airport is within or below the lateral limits of Class B Airspace.
Used by
Source

<xs:simpleType name="ControlledASIndicator">
  <xs:annotation>
    <xs:documentation>The “Controlled Airspace Indicator” field is used to indicate if an airport is associated with controlled airspace of a terminal type such as a Terminal Control Area (TMA or TCA) Radar Area or Class B or C Airspace within the USA.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="WithinOrBelowClassC">
      <xs:annotation>
        <xs:documentation>The Airport is within or below the lateral limits of Class C Airspace.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="WithinOrBelowCta">
      <xs:annotation>
        <xs:documentation>The Airport is within or below the lateral limits of a CTA.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="WithinOrBelowTmsTca">
      <xs:annotation>
        <xs:documentation>The Airport is within or below the lateral limits of a TMA or TCA.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="WithinOrBelowRadarZone">
      <xs:annotation>
        <xs:documentation>The Airport is within or below the lateral limits Radar Zone</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="WithinOrBelowClassB">
      <xs:annotation>
        <xs:documentation>The Airport is within or below the lateral limits of Class B Airspace.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:LongestRunway
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Longest Runway field permits airport to be classified on
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 5
Used by
Source

<xs:simpleType name="LongestRunway">
  <xs:annotation>
    <xs:documentation>The Longest Runway field permits airport to be classified on</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="5"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:LongestRunwaySurfaceCode
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Longest Runway Surface Code” field is used to define whether or not there is a hard surface runway at the airport, the length of which is indicated in the Longest Runway field.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Hard
Hard Surface, for example, asphalt or concrete
enumeration Soft
Soft Surface, for example, gravel, grass or soil
enumeration Water
Water Runway
enumeration Undefined
Undefined, surface material not provided in source
Used by
Source

<xs:simpleType name="LongestRunwaySurfaceCode">
  <xs:annotation>
    <xs:documentation>The “Longest Runway Surface Code” field is used to define whether or not there is a hard surface runway at the airport, the length of which is indicated in the Longest Runway field.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Hard">
      <xs:annotation>
        <xs:documentation>Hard Surface, for example, asphalt or concrete</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Soft">
      <xs:annotation>
        <xs:documentation>Soft Surface, for example, gravel, grass or soil</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Water">
      <xs:annotation>
        <xs:documentation>Water Runway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Undefined">
      <xs:annotation>
        <xs:documentation>Undefined, surface material not provided in source</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type Runway
Namespace No namespace
Annotations

This following record contains the fields used in Runway Records
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Runway_displacedThresholdDistance ARINC424_22_HTML.tmp#Runway_landingThresholdElevation ARINC424_22_HTML.tmp#Runway_ltpEllipsoidHeight ARINC424_22_HTML.tmp#Runway_primaryApproachNavaidReference ARINC424_22_HTML.tmp#Runway_runwayBearing ARINC424_22_HTML.tmp#Runway_runwayTrueBearing ARINC424_22_HTML.tmp#Runway_runwayTrueBearingSource ARINC424_22_HTML.tmp#Runway_runwayDescription ARINC424_22_HTML.tmp#Runway_runwayGradient ARINC424_22_HTML.tmp#Runway_runwayIdentifier ARINC424_22_HTML.tmp#Runway_runwayLength ARINC424_22_HTML.tmp#Runway_runwayWidth ARINC424_22_HTML.tmp#Runway_secondaryApproachNavaidReference ARINC424_22_HTML.tmp#Runway_stopway ARINC424_22_HTML.tmp#Runway_tchValueIndicator ARINC424_22_HTML.tmp#Runway_tdzeLocation ARINC424_22_HTML.tmp#Runway_thresholdCrossingHeight ARINC424_22_HTML.tmp#Runway_touchDownZoneElevation ARINC424_22_HTML.tmp#Runway_starterExtension ARINC424_22_HTML.tmp#Runway_surfaceType ARINC424_22_HTML.tmp#Runway_maximumHelicopterWeight ARINC424_22_HTML.tmp#Runway_helicopterPerformanceReq ARINC424_22_HTML.tmp#Runway_takeOffRunwayAvailable ARINC424_22_HTML.tmp#Runway_takeOffDistanceAvailable ARINC424_22_HTML.tmp#Runway_accelerateStopDistanceAvailable ARINC424_22_HTML.tmp#Runway_landingDistanceAvailable ARINC424_22_HTML.tmp#Runway_runwayUsageIndicator ARINC424_22_HTML.tmp#Runway_runwayAccuracy
Type extension of A424Point
Type hierarchy
Used by
Element Airport/runway
Model
Children accelerateStopDistanceAvailable, custAreaCode, cycleDate, datumCode, displacedThresholdDistance, firRef, helicopterPerformanceReq, icaoCode, identifier, landingDistanceAvailable, landingThresholdElevation, location, ltpEllipsoidHeight, magneticVariation, maximumHelicopterWeight, name, notes, primaryApproachNavaidReference, recordType, runwayAccuracy, runwayBearing, runwayDescription, runwayGradient, runwayIdentifier, runwayLength, runwayTrueBearing, runwayTrueBearingSource, runwayUsageIndicator, runwayWidth, secondaryApproachNavaidReference, starterExtension, stopway, supplementalData, surfaceType, takeOffDistanceAvailable, takeOffRunwayAvailable, tchValueIndicator, tdzeLocation, thresholdCrossingHeight, touchDownZoneElevation, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Runway">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Runway Records</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Point">
      <xs:sequence>
        <xs:element name="displacedThresholdDistance" type="type:DisplacedThresholdDistance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The distance from the extremity of a runway to a threshold not located at that extremity of that runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="landingThresholdElevation" type="type:Elevation" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The elevation of the landing threshold of the runway described in a runway record is defined in the “Landing Threshold Elevation” field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ltpEllipsoidHeight" type="type:EllipsoidHeight" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Ellipsoidal Height” field is the height of a surveyed point in reference to the WGS-84 ellipsoid.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="primaryApproachNavaidReference" type="type:PrecisionApproachNavaidReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Element which encapsulates the ILS/MLS/GLS details for the corresponding Runway. This element contains the navaid reference and class.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayBearing" type="type:Bearing" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The bearing of the runway identified in the “runway identifier” or “pad ident” field of the record is specified in the “Runway Bearing” field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayTrueBearing" type="type:TrueBearing" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Magnetic Bearing” for ILS localizer, MLS Azimuth, MLS Back Azimuth and Runway records is given in the primary record. This field allows the true bearing to be entered independently of the magnetic variation.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayTrueBearingSource" type="enum:TrueBearingSource" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The content of the source field indicates whether the “True Bearing” is derived from official government sources or from other sources.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayDescription" type="type:RunwayDescription" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>If required, additional information concerning a runway can be included in a record in the “Runway Description” field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayGradient" type="type:RunwayGradient" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Runway Gradient field indicates an overall gradient in percent, measured from the start of take-off roll end of the runway designated in the record. The gradient is expressed as a positive or negative gradient; positive being an upward and negative being a downward gradient.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayIdentifier" type="type:RunwayIdentifier" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Runway Identifier” field identifies the runways described in runway records and runways served by the ILS/MLS described in ILS/MLS records.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayLength" type="type:RunwayLength" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Runway Length” field defines the total length of the runway surface declared suitable and available for ground operations of aircraft for the runway identified in the records’ Runway Identifier field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayWidth" type="type:RunwayWidth" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The width of the runway identified in the “Runway Identifier” field is specified in the “Runway Width” field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="secondaryApproachNavaidReference" type="type:PrecisionApproachNavaidReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Element which encapsulates the ILS/MLS/GLS details for the corresponding Runway. This element contains the navaid reference and class.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="stopway" type="type:StopWay" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>“Stopway” means the length of an area beyond the take-off runway, no less wide than the runway and centered upon the extended centerline of the runway, and designated for use in decelerating the airplane during an aborted takeoff.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="tchValueIndicator" type="enum:TCHValueIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “TCH Value Indicator” field will define which TCH value is provided in the runway record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="tdzeLocation" type="enum:TDZELocation" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The content of the “TDZE Location” field indicates whether the TDZ elevation was obtained from official government sources or from other sources.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="thresholdCrossingHeight" type="type:ThresholdCrossingHeight" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Threshold Crossing Height” specifies the height above the landing threshold on a normal glide path.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="touchDownZoneElevation" type="type:TouchDownZoneElevation" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Touchdown Zone Elevation” is the highest elevation in the first 3,000 feet of the landing surface beginning at the threshold.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="starterExtension" type="type:StarterExtension" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This data element describes a starter extension of a runway</xs:documentation>
          </xs:annotation>
        </xs:element>
        <!-- Runway continuation record fields -->
        <xs:element name="surfaceType" type="enum:SurfaceType" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides the surface type of the runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="maximumHelicopterWeight" type="type:MaxHelicopterWeight" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides the max weight for helicopters using this runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="helicopterPerformanceReq" type="enum:HelicopterPerformanceReq" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides a performance requirement for helicopters to use this runway.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="takeOffRunwayAvailable" type="type:DistanceFeetFiveDigits" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Take Off Run Available (TORA) is the declared distance value which is available for take-off ground roll. Starter extension distances are not included in the TORA distance and may be added if a starter extension is available. A value of 00000 indicates that the runway is not usable for take-off. A blank field means that no value is declared in source.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="takeOffDistanceAvailable" type="type:DistanceFeetFiveDigits" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Take Off Distance Available (TODA) is the declared distance value which is available for take-off over a 50 ft obstacle. Typically, the TODA equals the TORA plus clearway. Starter extension distances are not included in the TODA. A value of 00000 indicates that the runway is not usable for take-off. A blank field means that no value is declared in source.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="accelerateStopDistanceAvailable" type="type:DistanceFeetFiveDigits" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Accelerate Stop Distance Available (ASDA) is the declared distance value which is available in case of an aborted take-off. Typically, the ASDA equals the TORA plus stopway. Starter extension distances are not included in the TODA distance and may be added if a starter extension is available. A value of 00000 indicates that the runway is not usable for take-off. A blank field means that no value is declared in source.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="landingDistanceAvailable" type="type:DistanceFeetFiveDigits" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Landing Distance Available (LDA) is the declared distance value which is available for landing. Typically, the LDA equals the runway length minus the threshold displacement distance. A value of 00000 indicates that the runway is not usable for landing. A blank field means that no value is declared in source.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayUsageIndicator" type="enum:RunwayUsageIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Runway Usage Indicator field specifies if a Runway is usable for take-off, landing, or both operations.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayAccuracy" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element indicates runway data elements meet runway accuracy requirements by confirming they are consistent with a trustworthy independent data source.</xs:documentation>
          </xs:annotation>
          <xs:complexType>
            <xs:sequence>
              <xs:element name="runwayAccuracyCompliance" type="enum:RunwayAccuracyCompliance" minOccurs="0" maxOccurs="1"/>
              <xs:element name="landingThresholdElvationAccuracyCompliance" type="enum:LandingThresholdElvationAccuracyCompliance" minOccurs="0" maxOccurs="1"/>
            </xs:sequence>
          </xs:complexType>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:DisplacedThresholdDistance
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The distance from the extremity of a runway to a threshold not located at that extremity of that runway, in feet.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceFeet
Type type:DistanceFeet
Type hierarchy
Facets
totalDigits 4
Used by
Source

<xs:simpleType name="DisplacedThresholdDistance">
  <xs:annotation>
    <xs:documentation>The distance from the extremity of a runway to a threshold not located at that extremity of that runway, in feet.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceFeet"/>
</xs:simpleType>
[ top ]
Complex Type type:PrecisionApproachNavaidReference
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Element which encapsulates the localizer details for the corresponding Runway. This element contains the localizer ident and localizer class.
Diagram
Diagram ARINC424_22_HTML.tmp#PrecisionApproachNavaidReference_approachCategory ARINC424_22_HTML.tmp#PrecisionApproachNavaidReference_navaidReference
Used by
Model
Children approachCategory, navaidReference
Source

<xs:complexType name="PrecisionApproachNavaidReference">
  <xs:annotation>
    <xs:documentation>Element which encapsulates the localizer details for the corresponding Runway. This element contains the localizer ident and localizer class.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="approachCategory" type="enum:PrecisionApproachCategory" minOccurs="1" maxOccurs="1"/>
    <xs:element name="navaidReference" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:RunwayDescription
Namespace http://www.arinc424.com/xml/datatypes
Annotations

If required, additional information concerning a runway can be included in a record in the “Runway Description” field.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 22
Used by
Source

<xs:simpleType name="RunwayDescription">
  <xs:annotation>
    <xs:documentation>If required, additional information concerning a runway can be included in a record in the “Runway Description” field.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="22"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:RunwayGradient
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Runway Gradient field indicates an overall gradient in percent, measured from the start of take-off roll end of the runway designated in the record. The gradient is expressed as a positive or negative gradient; positive being an upward and negative being a downward gradient.
Diagram
Diagram
Type restriction of xs:decimal
Facets
maxInclusive 9.0
minInclusive -9.0
Used by
Source

<xs:simpleType name="RunwayGradient">
  <xs:annotation>
    <xs:documentation>The Runway Gradient field indicates an overall gradient in percent, measured from the start of take-off roll end of the runway designated in the record. The gradient is expressed as a positive or negative gradient; positive being an upward and negative being a downward gradient.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:maxInclusive value="9.0"/>
    <xs:minInclusive value="-9.0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:RunwayLength
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Runway Length” field defines the total length of the runway surface declared suitable and available for ground operations of aircraft for the runway identified in the records’ Runway Identifier field, in feet.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceFeetFiveDigits
Type type:DistanceFeetFiveDigits
Type hierarchy
Facets
totalDigits 5
Used by
Source

<xs:simpleType name="RunwayLength">
  <xs:annotation>
    <xs:documentation>The “Runway Length” field defines the total length of the runway surface declared suitable and available for ground operations of aircraft for the runway identified in the records’ Runway Identifier field, in feet.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceFeetFiveDigits"/>
</xs:simpleType>
[ top ]
Simple Type type:RunwayWidth
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The width of the runway identified in the “Runway Identifier” field is specified in the “Runway Width” field.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="RunwayWidth">
  <xs:annotation>
    <xs:documentation>The width of the runway identified in the “Runway Identifier” field is specified in the “Runway Width” field.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:StopWay
Namespace http://www.arinc424.com/xml/datatypes
Annotations

“Stopway” means the length of an area beyond the take-off runway, no less wide than the runway and centered upon the extended centerline of the runway, and designated for use in decelerating the airplane during an aborted takeoff.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceFeet
Type type:DistanceFeet
Type hierarchy
Facets
totalDigits 4
Used by
Element Runway/stopway
Source

<xs:simpleType name="StopWay">
  <xs:annotation>
    <xs:documentation>“Stopway” means the length of an area beyond the take-off runway, no less wide than the runway and centered upon the extended centerline of the runway, and designated for use in decelerating the airplane during an aborted takeoff.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceFeet"/>
</xs:simpleType>
[ top ]
Simple Type enum:TCHValueIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “TCH Value Indicator” field will define which TCH value is provided in the runway record.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration TchOfElectricGlideSlope
TCH provided in Runway Record is that of the electronic Glide Slope
enumeration TchRnavToRunway
TCH provided in Runway Record is that of an RNAV procedure to the runway
enumeration TchVgsi
TCH provided in the Runway Record is that of the VGSI for the runway
enumeration TchDefaulted
TCH provided in the Runway Record is the default value of 40 or 50 feet (See Section 5.67).
Used by
Source

<xs:simpleType name="TCHValueIndicator">
  <xs:annotation>
    <xs:documentation>The “TCH Value Indicator” field will define which TCH value is provided in the runway record.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="TchOfElectricGlideSlope">
      <xs:annotation>
        <xs:documentation>TCH provided in Runway Record is that of the electronic Glide Slope</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TchRnavToRunway">
      <xs:annotation>
        <xs:documentation>TCH provided in Runway Record is that of an RNAV procedure to the runway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TchVgsi">
      <xs:annotation>
        <xs:documentation>TCH provided in the Runway Record is that of the VGSI for the runway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TchDefaulted">
      <xs:annotation>
        <xs:documentation>TCH provided in the Runway Record is the default value of 40 or 50 feet (See Section 5.67).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:TDZELocation
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The content of the “TDZE Location” field indicates whether the TDZ elevation was obtained from official government sources or from other sources.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Official
Official Source
enumeration LandingThreshold
Landing Threshold
enumeration AirportElevation
Airport Elevation
Used by
Source

<xs:simpleType name="TDZELocation">
  <xs:annotation>
    <xs:documentation>The content of the “TDZE Location” field indicates whether the TDZ elevation was obtained from official government sources or from other sources.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Official">
      <xs:annotation>
        <xs:documentation>Official Source</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LandingThreshold">
      <xs:annotation>
        <xs:documentation>Landing Threshold</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AirportElevation">
      <xs:annotation>
        <xs:documentation>Airport Elevation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:TouchDownZoneElevation
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Touchdown Zone Elevation” is the highest elevation in the first 3,000 feet of the landing surface beginning at the threshold.
Diagram
Diagram
Type xs:int
Used by
Source

<xs:simpleType name="TouchDownZoneElevation">
  <xs:annotation>
    <xs:documentation>The “Touchdown Zone Elevation” is the highest elevation in the first 3,000 feet of the landing surface beginning at the threshold.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int"/>
</xs:simpleType>
[ top ]
Simple Type type:StarterExtension
Namespace http://www.arinc424.com/xml/datatypes
Annotations

An area made available for take-off, prior to the normal runway end at the beginning of the takeoff run.  Starter extensions are established where additional takeoff distance, takeoff run, or acelerated-stop distance is required, but physical limiations do not allow provision of the manditory runway strip or width.
Diagram
Diagram
Type restriction of xs:int
Facets
maxInclusive 9999
minInclusive 1
Used by
Source

<xs:simpleType name="StarterExtension">
  <xs:annotation>
    <xs:documentation>An area made available for take-off, prior to the normal runway end at the beginning of the takeoff run. Starter extensions are established where additional takeoff distance, takeoff run, or acelerated-stop distance is required, but physical limiations do not allow provision of the manditory runway strip or width.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int">
    <xs:maxInclusive value="9999"/>
    <xs:minInclusive value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:SurfaceType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Surface Type field defines the predominant surface type of the runway/helipad described in the record
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Asphalt
enumeration AsphaltAndGrass
enumeration BituminousTarOrAsphalt
Bituminous tar or asphalt and/or oil or bitumen bound, mix-in-place surfaces (often refered to as “earth cement”)
enumeration BrickisLaidOrMortared
enumeration Clay
enumeration Concrete
enumeration ConcreteAndAsphalt
enumeration ConcreteAndGrass
enumeration Coral
enumeration Dirt
enumeration Grass
enumeration Gravel
enumeration Ice
enumeration Laterite
enumeration Macadam
enumeration LandingMat
Usually made of aluminium
enumeration ProtectiveLaminate
Usually made of rubber
enumeration Metal
Steel or Aluminium
enumeration Mix
Non bituminous mix
enumeration Other
enumeration Paved
generic hard surface
enumeration PiercedSteelPlanking
enumeration Sand
enumeration Sealed
enumeration Silt
enumeration Snow
enumeration Soil
enumeration Stone
enumeration Tarmac
enumeration Treated
enumeration Turf
enumeration Unknown
enumeration Unpaved
enumeration Water
Used by
Source

<xs:simpleType name="SurfaceType">
  <xs:annotation>
    <xs:documentation>The Surface Type field defines the predominant surface type of the runway/helipad described in the record</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Asphalt"/>
    <xs:enumeration value="AsphaltAndGrass"/>
    <xs:enumeration value="BituminousTarOrAsphalt">
      <xs:annotation>
        <xs:documentation>Bituminous tar or asphalt and/or oil or bitumen bound, mix-in-place surfaces (often refered to as “earth cement”)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BrickisLaidOrMortared"/>
    <xs:enumeration value="Clay"/>
    <xs:enumeration value="Concrete"/>
    <xs:enumeration value="ConcreteAndAsphalt"/>
    <xs:enumeration value="ConcreteAndGrass"/>
    <xs:enumeration value="Coral"/>
    <xs:enumeration value="Dirt"/>
    <xs:enumeration value="Grass"/>
    <xs:enumeration value="Gravel"/>
    <xs:enumeration value="Ice"/>
    <xs:enumeration value="Laterite"/>
    <xs:enumeration value="Macadam"/>
    <xs:enumeration value="LandingMat">
      <xs:annotation>
        <xs:documentation>Usually made of aluminium</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ProtectiveLaminate">
      <xs:annotation>
        <xs:documentation>Usually made of rubber</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Metal">
      <xs:annotation>
        <xs:documentation>Steel or Aluminium</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Mix">
      <xs:annotation>
        <xs:documentation>Non bituminous mix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Other"/>
    <xs:enumeration value="Paved">
      <xs:annotation>
        <xs:documentation>generic hard surface</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PiercedSteelPlanking"/>
    <xs:enumeration value="Sand"/>
    <xs:enumeration value="Sealed"/>
    <xs:enumeration value="Silt"/>
    <xs:enumeration value="Snow"/>
    <xs:enumeration value="Soil"/>
    <xs:enumeration value="Stone"/>
    <xs:enumeration value="Tarmac"/>
    <xs:enumeration value="Treated"/>
    <xs:enumeration value="Turf"/>
    <xs:enumeration value="Unknown"/>
    <xs:enumeration value="Unpaved"/>
    <xs:enumeration value="Water"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:RunwayUsageIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Runway Usage Indicator field specifies if a Runway is usable for take-off, landing, or both operations.  A value of LandingOnly will require the TORA, TODA, and ASDA to be 0 and the LDA either blank or non-0. A field content  TakeoffOnly will require the TORA, TODA, and ASDA to be blank or non-0 and the LDA to be 0.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration LandingOnly
enumeration TakeoffOnly
enumeration TakeoffAndLanding
Used by
Source

<xs:simpleType name="RunwayUsageIndicator">
  <xs:annotation>
    <xs:documentation>The Runway Usage Indicator field specifies if a Runway is usable for take-off, landing, or both operations. A value of LandingOnly will require the TORA, TODA, and ASDA to be 0 and the LDA either blank or non-0. A field content TakeoffOnly will require the TORA, TODA, and ASDA to be blank or non-0 and the LDA to be 0.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="LandingOnly"/>
    <xs:enumeration value="TakeoffOnly"/>
    <xs:enumeration value="TakeoffAndLanding"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:RunwayAccuracyCompliance
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Accuracy of Runway Length (A424 PG 5.57) is 5 meters (compared to measured length of runway surface - stopways, aligned taxiways and starter extensions excluded, as per A424 runway length definition).  Accuracy of Runway Threshold Position (A424 PG 5.36 and 5.37) is 5 meters (compared to measured runway landing threshold location).  Accuracy of Runway Threshold Displacement Distance (A424 PG 5.69) is 5 meters (compared to measured length of displaced area).  Accuracy of Runway Magnetic Bearing (A424 PG 5.58) and Airport Magnetic Variation (A424 PA 5.39) is such that the runway true bearing accuracy is 0.5 degree (NDB Magnetic Runway Bearing will be converted in runway true bearing using NDB Airport Magnetic Variation, then will be validated by comparison with measured True Bearing of runway).
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Compliant
enumeration NotCompliant
enumeration NotEvaluated
Used by
Source

<xs:simpleType name="RunwayAccuracyCompliance">
  <xs:annotation>
    <xs:documentation>Accuracy of Runway Length (A424 PG 5.57) is 5 meters (compared to measured length of runway surface - stopways, aligned taxiways and starter extensions excluded, as per A424 runway length definition). Accuracy of Runway Threshold Position (A424 PG 5.36 and 5.37) is 5 meters (compared to measured runway landing threshold location). Accuracy of Runway Threshold Displacement Distance (A424 PG 5.69) is 5 meters (compared to measured length of displaced area). Accuracy of Runway Magnetic Bearing (A424 PG 5.58) and Airport Magnetic Variation (A424 PA 5.39) is such that the runway true bearing accuracy is 0.5 degree (NDB Magnetic Runway Bearing will be converted in runway true bearing using NDB Airport Magnetic Variation, then will be validated by comparison with measured True Bearing of runway).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Compliant"/>
    <xs:enumeration value="NotCompliant"/>
    <xs:enumeration value="NotEvaluated"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:LandingThresholdElvationAccuracyCompliance
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Difference between Runway Landing Threshold Elevation (A424 PG 5.68) and runway landing threshold elevation measured with an independent means is 5 meters or less.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Compliant
enumeration NotCompliant
enumeration NotEvaluated
Used by
Source

<xs:simpleType name="LandingThresholdElvationAccuracyCompliance">
  <xs:annotation>
    <xs:documentation>Difference between Runway Landing Threshold Elevation (A424 PG 5.68) and runway landing threshold elevation measured with an independent means is 5 meters or less.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Compliant"/>
    <xs:enumeration value="NotCompliant"/>
    <xs:enumeration value="NotEvaluated"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type AirportGate
Namespace No namespace
Annotations

This following record contains the fields used in Airport Gate Record.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point
Type extension of A424Point
Type hierarchy
Used by
Model
Children custAreaCode, cycleDate, datumCode, firRef, icaoCode, identifier, location, magneticVariation, name, notes, recordType, supplementalData, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="AirportGate">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Airport Gate Record.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Point">
      <xs:sequence/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Heliports
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Heliports_heliport
Used by
Model
Children heliport
Source

<xs:complexType name="Heliports">
  <xs:sequence>
    <xs:element name="heliport" type="Heliport" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type Heliport
Namespace No namespace
Annotations

This following record contains the fields used in Heliport Record
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Port_elevation ARINC424_22_HTML.tmp#Port_ataIATADesignator ARINC424_22_HTML.tmp#Port_daylightIndicator ARINC424_22_HTML.tmp#Port_ifrCapability ARINC424_22_HTML.tmp#Port_magneticTrueIndicator ARINC424_22_HTML.tmp#Port_publicMilitaryIndicator ARINC424_22_HTML.tmp#Port_recommendedNavaid ARINC424_22_HTML.tmp#Port_speedLimit ARINC424_22_HTML.tmp#Port_speedLimitAltitude ARINC424_22_HTML.tmp#Port_timeZone ARINC424_22_HTML.tmp#Port_transitionAltitude ARINC424_22_HTML.tmp#Port_transitionLevel ARINC424_22_HTML.tmp#Port_terminalNDB ARINC424_22_HTML.tmp#Port_terminalProcedures ARINC424_22_HTML.tmp#Port_terminalWaypoint ARINC424_22_HTML.tmp#Port_taa ARINC424_22_HTML.tmp#Port_portCommunication ARINC424_22_HTML.tmp#Port_helipad ARINC424_22_HTML.tmp#Port_localizerMarker ARINC424_22_HTML.tmp#Port_localizerGlideslope ARINC424_22_HTML.tmp#Port_gls ARINC424_22_HTML.tmp#Port_mls ARINC424_22_HTML.tmp#Port_msa ARINC424_22_HTML.tmp#Port_flightPlanningArrivalDepartureRecords ARINC424_22_HTML.tmp#Port_categoryDistance ARINC424_22_HTML.tmp#Port_maxHelicopterWeight ARINC424_22_HTML.tmp#Port ARINC424_22_HTML.tmp#Heliport_heliportType
Type extension of Port
Type hierarchy
Used by
Model
Children ataIATADesignator, categoryDistance, custAreaCode, cycleDate, datumCode, daylightIndicator, elevation, firRef, flightPlanningArrivalDepartureRecords, gls, helipad, heliportType, icaoCode, identifier, ifrCapability, localizerGlideslope, localizerMarker, location, magneticTrueIndicator, magneticVariation, maxHelicopterWeight, mls, msa, name, notes, portCommunication, publicMilitaryIndicator, recommendedNavaid, recordType, speedLimit, speedLimitAltitude, supplementalData, taa, terminalNDB, terminalProcedures, terminalWaypoint, timeZone, transitionAltitude, transitionLevel, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Heliport">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Heliport Record</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Port">
      <xs:sequence>
        <xs:element name="heliportType" type="enum:HeliportType" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provies information as to what type of heliport the facility is.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:HeliportType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

This field provides information on the type of heliport facility.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Hospital
enumeration OilRig
enumeration Other
enumeration NotProvided
Used by
Source

<xs:simpleType name="HeliportType">
  <xs:annotation>
    <xs:documentation>This field provides information on the type of heliport facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Hospital"/>
    <xs:enumeration value="OilRig"/>
    <xs:enumeration value="Other"/>
    <xs:enumeration value="NotProvided"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type Airways
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Airways_airway
Used by
Model
Children airway
Source

<xs:complexType name="Airways">
  <xs:sequence>
    <xs:element name="airway" type="Airway" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type Airway
Namespace No namespace
Annotations

This following record contains the fields used in Enroute Airway Records.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Airway_referenceID ARINC424_22_HTML.tmp#Airway_airwayRouteType ARINC424_22_HTML.tmp#Airway_custAreaCode ARINC424_22_HTML.tmp#Airway_airwaysMarker ARINC424_22_HTML.tmp#Airway_airwaysRescritionAltitudeExclusion ARINC424_22_HTML.tmp#Airway_airwaysRestrictionSeasonalClosure ARINC424_22_HTML.tmp#Airway_airwaysRestrictionCruisingTableReplacement ARINC424_22_HTML.tmp#Airway_airwaySegment
Type extension of A424ObjectWithId
Type hierarchy
Used by
Element Airways/airway
Model
Children airwayRouteType, airwaySegment, airwaysMarker, airwaysRescritionAltitudeExclusion, airwaysRestrictionCruisingTableReplacement, airwaysRestrictionSeasonalClosure, custAreaCode, identifier, supplementalData
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Airway">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Enroute Airway Records.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424ObjectWithId">
      <xs:sequence>
        <xs:element name="airwayRouteType" type="enum:EnrouteAirwayRouteType" minOccurs="1" maxOccurs="1"/>
        <xs:element name="custAreaCode" type="type:CustAreaCode" minOccurs="1" maxOccurs="1"/>
        <xs:element name="airwaysMarker" type="AirwaysMarker" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="airwaysRescritionAltitudeExclusion" type="EnrouteAirwaysRestrictionAltitudeExclusion" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="airwaysRestrictionSeasonalClosure" type="EnrouteAirwaysRestrictionSeasonalClosure" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="airwaysRestrictionCruisingTableReplacement" type="EnrouteAirwaysRestrictionCruisingTableReplacement" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="airwaySegment" type="AirwaySegment" minOccurs="1" maxOccurs="unbounded"/>
      </xs:sequence>
      <xs:attribute name="referenceID" use="required" type="xs:ID"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:EnrouteAirwayRouteType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The "Route Type" field defines the type of Enroute Airway (EA)
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Airline
Airline Airway (Tailored Data)
enumeration Control
Control
enumeration Direct
Direct Route
enumeration Helicopter
Helicopter Airways
enumeration OfficiallyDesignatedExceptRnavHelicpoter
Officially Designated Airways, except RNAV, RNP, or Helicopter Airways
enumeration RnavRNP
RNAV or RNP Airways (ICAO PBN Nav Spec)
enumeration Undesignated
Undesignated ATS Route
enumeration Tacan
TACAN Airway
Used by
Source

<xs:simpleType name="EnrouteAirwayRouteType">
  <xs:annotation>
    <xs:documentation>The "Route Type" field defines the type of Enroute Airway (EA)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Airline">
      <xs:annotation>
        <xs:documentation>Airline Airway (Tailored Data)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Control">
      <xs:annotation>
        <xs:documentation>Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Direct">
      <xs:annotation>
        <xs:documentation>Direct Route</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Helicopter">
      <xs:annotation>
        <xs:documentation>Helicopter Airways</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OfficiallyDesignatedExceptRnavHelicpoter">
      <xs:annotation>
        <xs:documentation>Officially Designated Airways, except RNAV, RNP, or Helicopter Airways</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RnavRNP">
      <xs:annotation>
        <xs:documentation>RNAV or RNP Airways (ICAO PBN Nav Spec)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Undesignated">
      <xs:annotation>
        <xs:documentation>Undesignated ATS Route</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Tacan">
      <xs:annotation>
        <xs:documentation>TACAN Airway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type AirwaysMarker
Namespace No namespace
Annotations

This following record contains the fields used in Airways Marker Records.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#AirwaysMarker_elevation ARINC424_22_HTML.tmp#AirwaysMarker_markerCode ARINC424_22_HTML.tmp#AirwaysMarker_markerPower ARINC424_22_HTML.tmp#AirwaysMarker_markerShape ARINC424_22_HTML.tmp#AirwaysMarker_minorAxis
Type extension of A424Point
Type hierarchy
Used by
Model
Children custAreaCode, cycleDate, datumCode, elevation, firRef, icaoCode, identifier, location, magneticVariation, markerCode, markerPower, markerShape, minorAxis, name, notes, recordType, supplementalData, uirRef
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="AirwaysMarker">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Airways Marker Records.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Point">
      <xs:sequence>
        <xs:element name="elevation" type="type:Elevation" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Facility Elevation field provides the elevation of navaids and communication transmitters.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="markerCode" type="type:MarkerCode" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Marker Code” field contains the coded ident that provides an aural and visual indication of station passage in the cockpit. The code shall be keyed so as to transmit dots or dashes, or both, in an appropriate sequence on a radio frequency of 75 MHz. The frequency of the modulating tone is 3000 Hz.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="markerPower" type="enum:HighLow" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “High/Low” field indicates the power of the enroute marker.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="markerShape" type="enum:MarkerShape" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Shape” field defines the radiation pattern of an airways marker as being either “bone” or “elliptical.”</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="minorAxis" type="type:MinorAxisBearing" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Minor Axis Bearing” field indicates the true bearing of the minor axis of marker beacons.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:MarkerCode
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Marker Code” field contains the coded ident that provides an aural and visual indication of station passage in the cockpit. The code shall be keyed so as to transmit dots or dashes, or both, in an appropriate sequence on a radio frequency of 75 MHz. The frequency of the modulating tone is 3000 Hz.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 4
Used by
Source

<xs:simpleType name="MarkerCode">
  <xs:annotation>
    <xs:documentation>The “Marker Code” field contains the coded ident that provides an aural and visual indication of station passage in the cockpit. The code shall be keyed so as to transmit dots or dashes, or both, in an appropriate sequence on a radio frequency of 75 MHz. The frequency of the modulating tone is 3000 Hz.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:HighLow
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The High/Low field indicates the power of the enroute marker.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Low
Low Power
enumeration High
High Power
Used by
Source

<xs:simpleType name="HighLow">
  <xs:annotation>
    <xs:documentation>The High/Low field indicates the power of the enroute marker.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Low">
      <xs:annotation>
        <xs:documentation>Low Power</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="High">
      <xs:annotation>
        <xs:documentation>High Power</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:MarkerShape
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Shape” field defines the radiation pattern of an airways marker as being either “bone” or “elliptical.”
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Bone
Bone Shape
enumeration Elliptical
Elliptical Shape
Used by
Source

<xs:simpleType name="MarkerShape">
  <xs:annotation>
    <xs:documentation>The “Shape” field defines the radiation pattern of an airways marker as being either “bone” or “elliptical.”</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Bone">
      <xs:annotation>
        <xs:documentation>Bone Shape</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Elliptical">
      <xs:annotation>
        <xs:documentation>Elliptical Shape</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type EnrouteAirwaysRestrictionAltitudeExclusion
Namespace No namespace
Annotations

This following record contains the fields used in Enroute Airways Restriction Altitude Exclusion Record.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionType ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_routeIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_fixReference ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_timesOfOperation ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionAltitudeExclusion_exclusionIndicator ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionAltitudeExclusion_restrictionAltitudeBlockIndicator ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionAltitudeExclusion_unitsofAltitude
Type extension of EnrouteAirwaysRestriction
Type hierarchy
Used by
Model
Children custAreaCode, cycleDate, endDate, endFixICAOCode, endFixIdentifier, exclusionIndicator, fixReference, notes, recordType, restrictionAltitudeBlockIndicator, restrictionIdentifier, restrictionType, routeIdentifier, startDate, startFixICAOCode, startFixIdentifier, supplementalData, timesOfOperation, unitsofAltitude
Source

<xs:complexType name="EnrouteAirwaysRestrictionAltitudeExclusion">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Enroute Airways Restriction Altitude Exclusion Record.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="EnrouteAirwaysRestriction">
      <xs:sequence>
        <xs:element name="exclusionIndicator" type="enum:ExclusionIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Exclusion Indicator” field is an indication of how the altitudes contained in the Cruising Table record referenced by the Airway segment(s) are restricted. This is an “all altitude” restriction, further defined by direction of flight. These codes will not be used when certain altitudes remain available in a direction of flight.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="restrictionAltitudeBlockIndicator" type="type:RestrictionAltitudeBlockIndicator" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>This class is an abstraction for Restriction Altitude and Block Indicator elements as they occur together in airways restriction records.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="unitsofAltitude" type="enum:UnitsofAltitude" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Units of Altitude” field is used to indicate the units of measurement for the values in the “Restriction Altitude” fields.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type EnrouteAirwaysRestriction
Namespace No namespace
Annotations

Enroute Airway Restriction Record Description
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionType ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_routeIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_fixReference ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_timesOfOperation
Type extension of A424Record
Type hierarchy
Used by
Model
Children custAreaCode, cycleDate, endDate, endFixICAOCode, endFixIdentifier, fixReference, notes, recordType, restrictionIdentifier, restrictionType, routeIdentifier, startDate, startFixICAOCode, startFixIdentifier, supplementalData, timesOfOperation
Source

<xs:complexType name="EnrouteAirwaysRestriction">
  <xs:annotation>
    <xs:documentation>Enroute Airway Restriction Record Description</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="endDate" type="type:AirwayRestrictionStartEndDate" minOccurs="0" maxOccurs="1"/>
        <xs:element name="endFixICAOCode" type="type:IcaoCode" minOccurs="0" maxOccurs="1"/>
        <xs:element name="endFixIdentifier" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1"/>
        <xs:element name="restrictionIdentifier" type="type:RestrictionIdentifier" minOccurs="0" maxOccurs="1"/>
        <xs:element name="restrictionType" type="enum:RestrictionRecordType" minOccurs="0" maxOccurs="1"/>
        <xs:element name="routeIdentifier" type="type:RouteIdentifier" minOccurs="0" maxOccurs="1"/>
        <xs:element name="startDate" type="type:AirwayRestrictionStartEndDate" minOccurs="0" maxOccurs="1"/>
        <xs:element name="startFixICAOCode" type="type:IcaoCode" minOccurs="0" maxOccurs="1"/>
        <xs:element name="startFixIdentifier" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1"/>
        <xs:element name="fixReference" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
        <xs:element name="timesOfOperation" type="type:TimesOfOperation" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Time of Operation field is used to indicate the times of operation of an airway restriction.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:AirwayRestrictionStartEndDate
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Airway Restriction Start Date field is used to indicate the earliest GMT date at which the restriction takes effect. The Airway Restriction End Date is used to indicate the latest GMT date at which the restriction is still in effect. This date information may be supplemented by Time of Operation information contained in an Airway Restriction Record, Type AE or TC. When no AE or TC record exists for the Restriction Identifier, the Start time is 0000 GMT and the end time is 2359 GMT of the dates indicated.
Diagram
Diagram
Type restriction of xs:string
Facets
length 7
Used by
Source

<xs:simpleType name="AirwayRestrictionStartEndDate">
  <xs:annotation>
    <xs:documentation>The Airway Restriction Start Date field is used to indicate the earliest GMT date at which the restriction takes effect. The Airway Restriction End Date is used to indicate the latest GMT date at which the restriction is still in effect. This date information may be supplemented by Time of Operation information contained in an Airway Restriction Record, Type AE or TC. When no AE or TC record exists for the Restriction Identifier, the Start time is 0000 GMT and the end time is 2359 GMT of the dates indicated.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="7"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:RestrictionIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Restriction Identifier” is used to assign a unique identifier to a restriction record and to multiple restrictions records for a particular route or route segment.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="RestrictionIdentifier">
  <xs:annotation>
    <xs:documentation>The “Restriction Identifier” is used to assign a unique identifier to a restriction record and to multiple restrictions records for a particular route or route segment.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:RestrictionRecordType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Restriction Record Type” field is used to define what type of a restriction is contained in the Enroute Airway Restriction Record in question.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AE
Altitude Exclusion. The record contains altitudes, normally available, that are excluded from use for the Enroute Airway Segment. May be further restricted by Time of Operation information.
enumeration TC
Cruising Table Replacement. The record contains only a reference to a Cruising Table Identifier. That Cruise Table will be in force, replacing the Cruise Table Identifier in the Enroute Airway segment records defined in the Start Fix/End Fix fields.
enumeration SC
Seasonal Restriction. Record is used to close an Airway or portion of an Airway on a seasonal basis.
enumeration NR
Note Restrictions. The record contains restrictions that do not fit the pattern of formatted information allowed by other Restriction Record Types.
Used by
Source

<xs:simpleType name="RestrictionRecordType">
  <xs:annotation>
    <xs:documentation>The “Restriction Record Type” field is used to define what type of a restriction is contained in the Enroute Airway Restriction Record in question.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AE">
      <xs:annotation>
        <xs:documentation>Altitude Exclusion. The record contains altitudes, normally available, that are excluded from use for the Enroute Airway Segment. May be further restricted by Time of Operation information.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TC">
      <xs:annotation>
        <xs:documentation>Cruising Table Replacement. The record contains only a reference to a Cruising Table Identifier. That Cruise Table will be in force, replacing the Cruise Table Identifier in the Enroute Airway segment records defined in the Start Fix/End Fix fields.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SC">
      <xs:annotation>
        <xs:documentation>Seasonal Restriction. Record is used to close an Airway or portion of an Airway on a seasonal basis.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NR">
      <xs:annotation>
        <xs:documentation>Note Restrictions. The record contains restrictions that do not fit the pattern of formatted information allowed by other Restriction Record Types.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:RouteIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Route Identifier” field identifies a route of flight or traffic orientation, using the coding employed on aeronautical navigation charts and related publications.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 10
Used by
Source

<xs:simpleType name="RouteIdentifier">
  <xs:annotation>
    <xs:documentation>The “Route Identifier” field identifies a route of flight or traffic orientation, using the coding employed on aeronautical navigation charts and related publications.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="10"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ExclusionIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Exclusion Indicator field is an indication of how the altitudes contained in the Cruising Table record referenced by the Airway segment(s) are restricted. This is an all altitude restriction, further defined by direction of flight. These codes will not be used when certain altitudes remain available in a direction of flight.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AllBoth
All altitudes in both directions of flight are restricted. This effectively closes the airway in both direction of flight.
enumeration AllOpposite
All altitudes in the opposite direction in which the Enroute Airway is coded are restricted. This effectively closes the airway in one direction of flight i.e., the opposite direction from that in which the airway is coded.
enumeration AllPerAirway
All altitudes in the direction in which the Enroute Airway is coded are restricted. This effectively closes the airway in one direction of flight i.e., the direction in which the airway is coded.
enumeration NotAll
The restriction is not an all altitude restriction.
Used by
Source

<xs:simpleType name="ExclusionIndicator">
  <xs:annotation>
    <xs:documentation>The Exclusion Indicator field is an indication of how the altitudes contained in the Cruising Table record referenced by the Airway segment(s) are restricted. This is an all altitude restriction, further defined by direction of flight. These codes will not be used when certain altitudes remain available in a direction of flight.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AllBoth">
      <xs:annotation>
        <xs:documentation>All altitudes in both directions of flight are restricted. This effectively closes the airway in both direction of flight.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AllOpposite">
      <xs:annotation>
        <xs:documentation>All altitudes in the opposite direction in which the Enroute Airway is coded are restricted. This effectively closes the airway in one direction of flight i.e., the opposite direction from that in which the airway is coded.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AllPerAirway">
      <xs:annotation>
        <xs:documentation>All altitudes in the direction in which the Enroute Airway is coded are restricted. This effectively closes the airway in one direction of flight i.e., the direction in which the airway is coded.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NotAll">
      <xs:annotation>
        <xs:documentation>The restriction is not an all altitude restriction.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:RestrictionAltitudeBlockIndicator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class is an abstraction for Restriction Altitude and Block Indicator elements as they occur together in airways restriction records.
Diagram
Diagram ARINC424_22_HTML.tmp#RestrictionAltitudeBlockIndicator_blockIndicator ARINC424_22_HTML.tmp#RestrictionAltitudeBlockIndicator_restrictionAltitude
Used by
Model
Children blockIndicator, restrictionAltitude
Source

<xs:complexType name="RestrictionAltitudeBlockIndicator">
  <xs:annotation>
    <xs:documentation>This class is an abstraction for Restriction Altitude and Block Indicator elements as they occur together in airways restriction records.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="blockIndicator" type="enum:BlockIndicator" minOccurs="0" maxOccurs="1"/>
    <xs:element name="restrictionAltitude" type="type:RestrictionAltitude" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:BlockIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Block Indicator” field is used to specify that the altitudes that follow in the restriction record are either “block” of altitudes that are restricted (not available for flight) or are individual altitudes that are restricted.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Block
indicating an altitude block
enumeration Individual
indicating individual altitudes
Used by
Source

<xs:simpleType name="BlockIndicator">
  <xs:annotation>
    <xs:documentation>The “Block Indicator” field is used to specify that the altitudes that follow in the restriction record are either “block” of altitudes that are restricted (not available for flight) or are individual altitudes that are restricted.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Block">
      <xs:annotation>
        <xs:documentation>indicating an altitude block</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Individual">
      <xs:annotation>
        <xs:documentation>indicating individual altitudes</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:RestrictionAltitude
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Restriction Altitude” fields are used to specify the altitude profile for a specific restriction.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="RestrictionAltitude">
  <xs:annotation>
    <xs:documentation>The “Restriction Altitude” fields are used to specify the altitude profile for a specific restriction.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:UnitsofAltitude
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Units of Altitude field is used to indicate the units of measurement for the values in the Restriction Altitude fields.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration HundredsFeet
Restriction Altitudes are expressed in hundreds of feet
enumeration MetricFlightLevel
Restriction Altitudes are expressed in metric Flight Levels
enumeration FeetFlightLevel
Restriction Altitudes are expressed in feet Flight Levels
enumeration TensOfMeters
Restriction Altitudes are expressed in tens of meters
Used by
Source

<xs:simpleType name="UnitsofAltitude">
  <xs:annotation>
    <xs:documentation>The Units of Altitude field is used to indicate the units of measurement for the values in the Restriction Altitude fields.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="HundredsFeet">
      <xs:annotation>
        <xs:documentation>Restriction Altitudes are expressed in hundreds of feet</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MetricFlightLevel">
      <xs:annotation>
        <xs:documentation>Restriction Altitudes are expressed in metric Flight Levels</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FeetFlightLevel">
      <xs:annotation>
        <xs:documentation>Restriction Altitudes are expressed in feet Flight Levels</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TensOfMeters">
      <xs:annotation>
        <xs:documentation>Restriction Altitudes are expressed in tens of meters</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type EnrouteAirwaysRestrictionSeasonalClosure
Namespace No namespace
Annotations

This following record contains the fields used in Enroute Airways Restriction Seasonal class.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionType ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_routeIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_fixReference ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_timesOfOperation ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionSeasonalClosure_cruiseTableIdentifier
Type extension of EnrouteAirwaysRestriction
Type hierarchy
Used by
Model
Children cruiseTableIdentifier, custAreaCode, cycleDate, endDate, endFixICAOCode, endFixIdentifier, fixReference, notes, recordType, restrictionIdentifier, restrictionType, routeIdentifier, startDate, startFixICAOCode, startFixIdentifier, supplementalData, timesOfOperation
Source

<xs:complexType name="EnrouteAirwaysRestrictionSeasonalClosure">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Enroute Airways Restriction Seasonal class.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="EnrouteAirwaysRestriction">
      <xs:sequence>
        <xs:element name="cruiseTableIdentifier" type="type:CruiseTableIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type EnrouteAirwaysRestrictionCruisingTableReplacement
Namespace No namespace
Annotations

This following record contains the fields used in Enroute Airways Restriction Cruising Table Replacement Primary Records.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_endFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_restrictionType ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_routeIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startDate ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixICAOCode ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_startFixIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_fixReference ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction_timesOfOperation ARINC424_22_HTML.tmp#EnrouteAirwaysRestriction ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionCruisingTableReplacement_cruiseTableIdentifier ARINC424_22_HTML.tmp#EnrouteAirwaysRestrictionCruisingTableReplacement_cruiseTableRef
Type extension of EnrouteAirwaysRestriction
Type hierarchy
Used by
Model
Children cruiseTableIdentifier, cruiseTableRef, custAreaCode, cycleDate, endDate, endFixICAOCode, endFixIdentifier, fixReference, notes, recordType, restrictionIdentifier, restrictionType, routeIdentifier, startDate, startFixICAOCode, startFixIdentifier, supplementalData, timesOfOperation
Source

<xs:complexType name="EnrouteAirwaysRestrictionCruisingTableReplacement">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Enroute Airways Restriction Cruising Table Replacement Primary Records.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="EnrouteAirwaysRestriction">
      <xs:sequence>
        <xs:element name="cruiseTableIdentifier" type="type:CruiseTableIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" name="cruiseTableRef" type="xs:IDREF"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type AirwaySegment
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#AirwaySegment_airwayLeg ARINC424_22_HTML.tmp#AirwaySegment_qualifier1 ARINC424_22_HTML.tmp#AirwaySegment_qualifier2 ARINC424_22_HTML.tmp#AirwaySegment_rnavPbnNavSpec ARINC424_22_HTML.tmp#AirwaySegment_rnpPbnNavSpec
Type extension of Route
Type hierarchy
Used by
Model
Children airwayLeg, identifier, qualifier1, qualifier2, rnavPbnNavSpec, rnpPbnNavSpec, supplementalData
Source

<xs:complexType name="AirwaySegment">
  <xs:complexContent>
    <xs:extension base="Route">
      <xs:sequence>
        <xs:element name="airwayLeg" type="AirwayLeg" minOccurs="2" maxOccurs="unbounded"/>
        <xs:element name="qualifier1" type="enum:AirwayQualifier1" minOccurs="0" maxOccurs="1"/>
        <xs:element name="qualifier2" type="enum:AirwayQualifier2" minOccurs="0" maxOccurs="1"/>
        <xs:element name="rnavPbnNavSpec" type="enum:AirwayRnavPbnNavSpec" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element indicates that an RNAV PBN navigation specification applies to this airway segment</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rnpPbnNavSpec" type="enum:AirwayRnpPbnNavSpec" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element indicates that an RNP PBN navigation specification applies to this airway segment</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type AirwayLeg
Namespace No namespace
Annotations

This following leg contains the fields used in Enroute Airway leg.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#AirwayLeg_boundaryCode ARINC424_22_HTML.tmp#AirwayLeg_cruiseTableIndicator ARINC424_22_HTML.tmp#AirwayLeg_directionRestriction ARINC424_22_HTML.tmp#AirwayLeg_routeDistanceFrom ARINC424_22_HTML.tmp#AirwayLeg_euIndicator ARINC424_22_HTML.tmp#AirwayLeg_fixRadiusTransitionIndicator ARINC424_22_HTML.tmp#AirwayLeg_inboundCourse ARINC424_22_HTML.tmp#AirwayLeg_waypointDescription ARINC424_22_HTML.tmp#AirwayLeg_level ARINC424_22_HTML.tmp#AirwayLeg_rho ARINC424_22_HTML.tmp#AirwayLeg_rnp ARINC424_22_HTML.tmp#AirwayLeg_rvsmMinimumLevel ARINC424_22_HTML.tmp#AirwayLeg_theta ARINC424_22_HTML.tmp#AirwayLeg_verticalScaleFactor ARINC424_22_HTML.tmp#AirwayLeg_vsfRVSMMaximumLevel ARINC424_22_HTML.tmp#AirwayLeg_outboundCourse ARINC424_22_HTML.tmp#AirwayLeg_minAltitude1 ARINC424_22_HTML.tmp#AirwayLeg_minAltitude2 ARINC424_22_HTML.tmp#AirwayLeg_maximumAltitude ARINC424_22_HTML.tmp#AirwayLeg_restrictiveAirspaceRef
Type extension of Leg
Type hierarchy
Used by
Model
Children boundaryCode, cruiseTableIndicator, custAreaCode, cycleDate, directionRestriction, euIndicator, fixIdent, fixRadiusTransitionIndicator, fixRef, inboundCourse, level, maximumAltitude, minAltitude1, minAltitude2, notes, outboundCourse, recNavaidIdent, recNavaidRef, recordType, restrictiveAirspaceRef, rho, rnp, routeDistanceFrom, rvsmMinimumLevel, sequenceNumber, supplementalData, theta, verticalScaleFactor, vsfRVSMMaximumLevel, waypointDescription
Source

<xs:complexType name="AirwayLeg">
  <xs:annotation>
    <xs:documentation>This following leg contains the fields used in Enroute Airway leg.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Leg">
      <xs:sequence>
        <xs:element name="boundaryCode" type="enum:BoundaryCode" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Routes of flight frequently cross geographical boundaries. The “Boundary Code” field identifies the area into, or from which a continuous route passes when such a crossing occurs.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="cruiseTableIndicator" type="type:CruiseTableIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="directionRestriction" type="enum:EnrouteAirwayDirectionalRestriction" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Direction Restriction” field will indicate the direction an Enroute Airway is to be flown</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="routeDistanceFrom" type="type:LegDistance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>In Enroute Airways, Route Distance From is the distance in nautical miles from the waypoint identified in the records Fix Ident field to the next waypoint of the route.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="euIndicator" type="enum:EUIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “EU Indicator” field is used to identify those Enroute Airway records that have an Airway Restriction record without identifying the restriction.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="fixRadiusTransitionIndicator" type="type:FixedRadiusTransitionIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Indicates that a specific turn radius from the inbound course to the outbound course is required by the airspace controlling agency.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="inboundCourse" type="type:Course" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>“Inbound Magnetic Course” is the published inbound magnetic course to the waypoint in the “Fix Ident” field of the records in which it is employed. The “HX” group of Path Terminator codes is used to provide racetrack type course reversal flight paths. Government publications for these course reversal include an “inbound magnetic bearing.” The SID/STAR/Approach Procedures records do not include a dedicated field for this inbound course. Instead, the information is included in the “Outbound Magnetic Course” field of such records.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="waypointDescription" type="type:AirwayWaypointDescription" minOccurs="1" maxOccurs="1"/>
        <xs:element name="level" type="enum:Level" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Level field defines the airway structure of which the record is an element.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rho" type="type:Rho" minOccurs="0" maxOccurs="1"/>
        <xs:element name="rnp" type="type:RequiredNavigationPerformance" minOccurs="0" maxOccurs="1"/>
        <xs:element name="rvsmMinimumLevel" type="type:FlightLevel" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>RVSM Minimum Level is the lowest defined cruising level for an airway or holding pattern.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="theta" type="type:Theta" minOccurs="0" maxOccurs="1"/>
        <xs:element name="verticalScaleFactor" type="type:VerticalScaleFactor" minOccurs="0" maxOccurs="1"/>
        <xs:element name="vsfRVSMMaximumLevel" type="type:FlightLevel" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>RVSM Maximum Level is the highest defined cruising level for an airway or holding pattern.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="outboundCourse" type="type:Course" minOccurs="0" maxOccurs="1"/>
        <xs:element name="minAltitude1" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
        <xs:element name="minAltitude2" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
        <xs:element name="maximumAltitude" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Maximum Altitude” field is used to indicate the maximum altitude allowed.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="restrictiveAirspaceRef" type="RestrictiveAirspaceReference" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:BoundaryCode
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Routes of flight frequently cross geographical boundaries. The “Boundary Code” field identifies the area into, or from which a continuous route passes when such a crossing occurs.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration U
USA (USA)
enumeration C
Canada and Alaska (CAN)
enumeration P
Pacific (PAC)
enumeration L
Latin America (LAM)
enumeration S
South America (SAM)
enumeration 1
South Pacific (SPA)
enumeration E
Europe (EUR)
enumeration 2
Eastern Europe (EEU)
enumeration M
Middle East South Asia (MES)
enumeration A
Africa (AFR
Used by
Source

<xs:simpleType name="BoundaryCode">
  <xs:annotation>
    <xs:documentation>Routes of flight frequently cross geographical boundaries. The “Boundary Code” field identifies the area into, or from which a continuous route passes when such a crossing occurs.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="U">
      <xs:annotation>
        <xs:documentation>USA (USA)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="C">
      <xs:annotation>
        <xs:documentation>Canada and Alaska (CAN)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="P">
      <xs:annotation>
        <xs:documentation>Pacific (PAC)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="L">
      <xs:annotation>
        <xs:documentation>Latin America (LAM)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="S">
      <xs:annotation>
        <xs:documentation>South America (SAM)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1">
      <xs:annotation>
        <xs:documentation>South Pacific (SPA)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="E">
      <xs:annotation>
        <xs:documentation>Europe (EUR)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2">
      <xs:annotation>
        <xs:documentation>Eastern Europe (EEU)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="M">
      <xs:annotation>
        <xs:documentation>Middle East South Asia (MES)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="A">
      <xs:annotation>
        <xs:documentation>Africa (AFR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:EnrouteAirwayDirectionalRestriction
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Direction Restriction field, when used on Enroute Airway records, will indicate the direction an Enroute Airway is to be flown. The Direction Restriction field, when used on Preferred Route records, will indicate whether the routing is available only in the direction of from initial fix to terminus fix or in both directions.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Oneway
One way in direction route is coded (Forward).
enumeration Backward
One way in opposite direction route is coded (backward).
enumeration NoRestrictions
No restrictions on direction.
Used by
Source

<xs:simpleType name="EnrouteAirwayDirectionalRestriction">
  <xs:annotation>
    <xs:documentation>The Direction Restriction field, when used on Enroute Airway records, will indicate the direction an Enroute Airway is to be flown. The Direction Restriction field, when used on Preferred Route records, will indicate whether the routing is available only in the direction of from initial fix to terminus fix or in both directions.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Oneway">
      <xs:annotation>
        <xs:documentation>One way in direction route is coded (Forward).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Backward">
      <xs:annotation>
        <xs:documentation>One way in opposite direction route is coded (backward).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NoRestrictions">
      <xs:annotation>
        <xs:documentation>No restrictions on direction.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:EUIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “EU Indicator” field is used to identify those Enroute Airway records that have an Airway Restriction record without identifying the restriction.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration NoRestriction
no restriction record exists.
enumeration Restriction
restriction for the segment is contained in the restriction file
Used by
Source

<xs:simpleType name="EUIndicator">
  <xs:annotation>
    <xs:documentation>The “EU Indicator” field is used to identify those Enroute Airway records that have an Airway Restriction record without identifying the restriction.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="NoRestriction">
      <xs:annotation>
        <xs:documentation>no restriction record exists.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Restriction">
      <xs:annotation>
        <xs:documentation>restriction for the segment is contained in the restriction file</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:FixedRadiusTransitionIndicator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Indicates that a specific turn radius from the inbound course to the outbound course is required by the airspace controlling agency.
Diagram
Diagram
Type xs:decimal
Used by
Source

<xs:simpleType name="FixedRadiusTransitionIndicator">
  <xs:annotation>
    <xs:documentation>Indicates that a specific turn radius from the inbound course to the outbound course is required by the airspace controlling agency.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal"/>
</xs:simpleType>
[ top ]
Complex Type type:AirwayWaypointDescription
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class represents the waypoint description information used by airway legs.
Diagram
Diagram ARINC424_22_HTML.tmp#AirwayWaypointDescription_isEssential ARINC424_22_HTML.tmp#AirwayWaypointDescription_isHolding ARINC424_22_HTML.tmp#AirwayWaypointDescription_isNonEssential ARINC424_22_HTML.tmp#AirwayWaypointDescription_isOceanicGateway ARINC424_22_HTML.tmp#AirwayWaypointDescription_isOffAirwayFloating ARINC424_22_HTML.tmp#AirwayWaypointDescription_isSourceProvidedEnrouteWaypoint ARINC424_22_HTML.tmp#AirwayWaypointDescription_isTransitionEssential ARINC424_22_HTML.tmp#AirwayWaypointDescription_isUnchartedIntersection ARINC424_22_HTML.tmp#AirwayWaypointDescription_isAtcCompulsoryReportingPoint
Used by
Model
Children isAtcCompulsoryReportingPoint, isEssential, isHolding, isNonEssential, isOceanicGateway, isOffAirwayFloating, isSourceProvidedEnrouteWaypoint, isTransitionEssential, isUnchartedIntersection
Source

<xs:complexType name="AirwayWaypointDescription">
  <xs:annotation>
    <xs:documentation>This class represents the waypoint description information used by airway legs.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="isEssential" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isHolding" type="xs:boolean" minOccurs="1" maxOccurs="1"/>
    <xs:element name="isNonEssential" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isOceanicGateway" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isOffAirwayFloating" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isSourceProvidedEnrouteWaypoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isTransitionEssential" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>A waypoint which normally would be classified as non-essential may be required to transition from the enroute structure to the terminal structure. Waypoints falling into this category are classified as Transition Essential Waypoints</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isUnchartedIntersection" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isAtcCompulsoryReportingPoint" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Compulsory Reporting Point: Essential or nonessential waypoints may be classified as ATC compulsory points. ATC requires the pilot to make a communications report at these waypoints. All other waypoints may be classified as non compulsory reporting points and are reported only when specifically requested by ATC</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:Level
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Level field defines the airway structure of which the record is an element.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AllAlt
All Altitudes
enumeration HighAlt
High Altitudes
enumeration LowAlt
Low Altitudes
Used by
Source

<xs:simpleType name="Level">
  <xs:annotation>
    <xs:documentation>The Level field defines the airway structure of which the record is an element.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AllAlt">
      <xs:annotation>
        <xs:documentation>All Altitudes</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HighAlt">
      <xs:annotation>
        <xs:documentation>High Altitudes</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LowAlt">
      <xs:annotation>
        <xs:documentation>Low Altitudes</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:FlightLevel
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type xs:int
Used by
Source

<xs:simpleType name="FlightLevel">
  <xs:restriction base="xs:int">
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:AltitudeLimit
Namespace http://www.arinc424.com/xml/datatypes
Annotations

See ARINC 424 section 5.121
Diagram
Diagram ARINC424_22_HTML.tmp#Altitude_isNotDefined ARINC424_22_HTML.tmp#Altitude_isUnknown ARINC424_22_HTML.tmp#Altitude_isFlightLevel ARINC424_22_HTML.tmp#Altitude_altitude ARINC424_22_HTML.tmp#Altitude ARINC424_22_HTML.tmp#AltitudeLimit_isGround ARINC424_22_HTML.tmp#AltitudeLimit_isMSL ARINC424_22_HTML.tmp#AltitudeLimit_isNotam ARINC424_22_HTML.tmp#AltitudeLimit_isNotSpecified ARINC424_22_HTML.tmp#AltitudeLimit_isUnlimited
Type extension of type:Altitude
Type hierarchy
Used by
Model
Children altitude, isFlightLevel, isGround, isMSL, isNotDefined, isNotSpecified, isNotam, isUnknown, isUnlimited
Source

<xs:complexType name="AltitudeLimit">
  <xs:annotation>
    <xs:documentation>See ARINC 424 section 5.121</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="type:Altitude">
      <xs:sequence>
        <xs:element name="isGround" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
        <xs:element name="isMSL" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
        <xs:element name="isNotam" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
        <xs:element name="isNotSpecified" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
        <xs:element name="isUnlimited" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type RestrictiveAirspaceReference
Namespace No namespace
Annotations

This class is a representation of restrictive airspace.
Diagram
Diagram ARINC424_22_HTML.tmp#RestrictiveAirspaceReference_restrictiveAirspaceDesignation ARINC424_22_HTML.tmp#RestrictiveAirspaceReference_restrictiveAirspaceICAOCode ARINC424_22_HTML.tmp#RestrictiveAirspaceReference_restrictiveAirspaceMultipleCode ARINC424_22_HTML.tmp#RestrictiveAirspaceReference_restrictiveAirspaceType
Used by
Model
Children restrictiveAirspaceDesignation, restrictiveAirspaceICAOCode, restrictiveAirspaceMultipleCode, restrictiveAirspaceType
Source

<xs:complexType name="RestrictiveAirspaceReference">
  <xs:annotation>
    <xs:documentation>This class is a representation of restrictive airspace.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="restrictiveAirspaceDesignation" type="type:RestrictiveAirspaceDesignation" minOccurs="1" maxOccurs="1"/>
    <xs:element name="restrictiveAirspaceICAOCode" type="type:IcaoCode" minOccurs="1" maxOccurs="1"/>
    <xs:element name="restrictiveAirspaceMultipleCode" type="type:MultipleCode" minOccurs="1" maxOccurs="1"/>
    <xs:element name="restrictiveAirspaceType" type="enum:RestrictiveAirspaceType" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:RestrictiveAirspaceDesignation
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Restrictive Airspace Designation” field contains the number or name that uniquely identifies the restrictive airspace.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 10
Used by
Source

<xs:simpleType name="RestrictiveAirspaceDesignation">
  <xs:annotation>
    <xs:documentation>The “Restrictive Airspace Designation” field contains the number or name that uniquely identifies the restrictive airspace.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="10"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:RestrictiveAirspaceType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Restrictive Airspace Type” field is used to indicate the type of Airspace in which the flight of aircraft is prohibited or restricted. The restriction may be continuous or specified for certain times.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Alert
Alert
enumeration Caution
Caution
enumeration Danger
Danger
enumeration MilitaryOps
Military Operations Area
enumeration NationalSecurity
National Security Area
enumeration Prohibited
Prohibited
enumeration Restricted
Restricted
enumeration Training
Training
enumeration Warning
Warning
enumeration Unspecified
Unspecified or Unknown
Used by
Source

<xs:simpleType name="RestrictiveAirspaceType">
  <xs:annotation>
    <xs:documentation>The “Restrictive Airspace Type” field is used to indicate the type of Airspace in which the flight of aircraft is prohibited or restricted. The restriction may be continuous or specified for certain times.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Alert">
      <xs:annotation>
        <xs:documentation>Alert</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Caution">
      <xs:annotation>
        <xs:documentation>Caution</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Danger">
      <xs:annotation>
        <xs:documentation>Danger</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MilitaryOps">
      <xs:annotation>
        <xs:documentation>Military Operations Area</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NationalSecurity">
      <xs:annotation>
        <xs:documentation>National Security Area</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Prohibited">
      <xs:annotation>
        <xs:documentation>Prohibited</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Restricted">
      <xs:annotation>
        <xs:documentation>Restricted</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Training">
      <xs:annotation>
        <xs:documentation>Training</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Warning">
      <xs:annotation>
        <xs:documentation>Warning</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Unspecified">
      <xs:annotation>
        <xs:documentation>Unspecified or Unknown</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:AirwayQualifier1
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Route Qualifier 1 for Enroute Airway records (424 section 5.7)
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration GnssRequired
GNSS required
enumeration GnssOrDmeDmeIruRequired
GNSS or DME/DME/IRU Required
enumeration GnssDmeDmeIruOrDmeDmeRequired
GNSS, DME/DME/IRU or DME/DME Required
enumeration EquipmentRequirementsUnspecified
Equipment requirements unspecified
Used by
Source

<xs:simpleType name="AirwayQualifier1">
  <xs:annotation>
    <xs:documentation>Route Qualifier 1 for Enroute Airway records (424 section 5.7)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="GnssRequired">
      <xs:annotation>
        <xs:documentation>GNSS required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GnssOrDmeDmeIruRequired">
      <xs:annotation>
        <xs:documentation>GNSS or DME/DME/IRU Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GnssDmeDmeIruOrDmeDmeRequired">
      <xs:annotation>
        <xs:documentation>GNSS, DME/DME/IRU or DME/DME Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EquipmentRequirementsUnspecified">
      <xs:annotation>
        <xs:documentation>Equipment requirements unspecified</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:AirwayQualifier2
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Route Qualifier 1 for Enroute Airway records (424 section 5.7)
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration FixRelatedTransitionRequired
Fix Related Transition (FRT) required
enumeration ParallelOffsetRequired
Parallel Offset Required
enumeration ToacRequired
TOAC Required
Used by
Source

<xs:simpleType name="AirwayQualifier2">
  <xs:annotation>
    <xs:documentation>Route Qualifier 1 for Enroute Airway records (424 section 5.7)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="FixRelatedTransitionRequired">
      <xs:annotation>
        <xs:documentation>Fix Related Transition (FRT) required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ParallelOffsetRequired">
      <xs:annotation>
        <xs:documentation>Parallel Offset Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ToacRequired">
      <xs:annotation>
        <xs:documentation>TOAC Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:AirwayRnavPbnNavSpec
Namespace http://www.arinc424.com/xml/enumerations
Annotations

This field provides information on the ICAO PBN Navigation Specification applicable to this airway segment
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Rnav5
enumeration Rnav4
enumeration Rnav2
enumeration Rnav1
enumeration BRnav
enumeration PRnav
enumeration PbnUnspecified
Used by
Source

<xs:simpleType name="AirwayRnavPbnNavSpec">
  <xs:annotation>
    <xs:documentation>This field provides information on the ICAO PBN Navigation Specification applicable to this airway segment</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Rnav5"/>
    <xs:enumeration value="Rnav4"/>
    <xs:enumeration value="Rnav2"/>
    <xs:enumeration value="Rnav1"/>
    <xs:enumeration value="BRnav"/>
    <xs:enumeration value="PRnav"/>
    <xs:enumeration value="PbnUnspecified"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:AirwayRnpPbnNavSpec
Namespace http://www.arinc424.com/xml/enumerations
Annotations

This field provides information on the ICAO PBN Navigation Specification appliable to this airway segment
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Rnp4
enumeration Rnp2
enumeration Rnp1
enumeration RnpAr
enumeration AdvRnp
enumeration Rnp0_3
enumeration PbnUnspecified
Used by
Source

<xs:simpleType name="AirwayRnpPbnNavSpec">
  <xs:annotation>
    <xs:documentation>This field provides information on the ICAO PBN Navigation Specification appliable to this airway segment</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Rnp4"/>
    <xs:enumeration value="Rnp2"/>
    <xs:enumeration value="Rnp1"/>
    <xs:enumeration value="RnpAr"/>
    <xs:enumeration value="AdvRnp"/>
    <xs:enumeration value="Rnp0_3"/>
    <xs:enumeration value="PbnUnspecified"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type EnrouteWaypoints
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#EnrouteWaypoints_waypoint
Used by
Model
Children waypoint
Source

<xs:complexType name="EnrouteWaypoints">
  <xs:sequence>
    <xs:element name="waypoint" type="Waypoint" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type Navaids
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Navaids_vhfNavaid
Used by
Model
Children vhfNavaid
Source

<xs:complexType name="Navaids">
  <xs:sequence>
    <xs:element name="vhfNavaid" type="Navaid" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type NDBs
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#NDBs_ndb
Used by
Model
Children ndb
Source

<xs:complexType name="NDBs">
  <xs:sequence>
    <xs:element name="ndb" type="NDB" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type CompanyRoutes
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CompanyRoutes_companyRoute
Used by
Model
Children companyRoute
Source

<xs:complexType name="CompanyRoutes">
  <xs:sequence>
    <xs:element name="companyRoute" type="CompanyRoute" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type CompanyRoute
Namespace No namespace
Annotations

This data type represents the company route.  It contains children starting with the letters via.  The company route is made up of references to other data. e.g., the company route is to proceed via a SID then via an enroute ...etc.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#CompanyRoute_referenceID ARINC424_22_HTML.tmp#CompanyRoute_alternateDistanace ARINC424_22_HTML.tmp#CompanyRoute_costIndex ARINC424_22_HTML.tmp#CompanyRoute_cruiseAltitude ARINC424_22_HTML.tmp#CompanyRoute_enrouteEmergencyPortRef ARINC424_22_HTML.tmp#CompanyRoute_fromPortFix ARINC424_22_HTML.tmp#CompanyRoute_identifier ARINC424_22_HTML.tmp#CompanyRoute_terminalAlternateAirport ARINC424_22_HTML.tmp#CompanyRoute_toPortFix ARINC424_22_HTML.tmp#CompanyRoute_viaSID ARINC424_22_HTML.tmp#CompanyRoute_viaEnrouteLegs ARINC424_22_HTML.tmp#CompanyRoute_viaSTAR ARINC424_22_HTML.tmp#CompanyRoute_viaApproachConnectorLegs ARINC424_22_HTML.tmp#CompanyRoute_viaApproach ARINC424_22_HTML.tmp#CompanyRoute_alternateRef
Type extension of A424Record
Type hierarchy
Used by
Model
Children alternateDistanace, alternateRef, costIndex, cruiseAltitude, custAreaCode, cycleDate, enrouteEmergencyPortRef, fromPortFix, identifier, notes, recordType, supplementalData, terminalAlternateAirport, toPortFix, viaApproach, viaApproachConnectorLegs, viaEnrouteLegs, viaSID, viaSTAR
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="CompanyRoute">
  <xs:annotation>
    <xs:documentation>This data type represents the company route. It contains children starting with the letters via. The company route is made up of references to other data. e.g., the company route is to proceed via a SID then via an enroute ...etc.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="alternateDistanace" type="type:AlternateDistance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This field is used to supply the distance in nautical miles from the “To Airport/Heliport/Fix” to the Alternate Airport/Heliport.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="costIndex" type="type:CostIndex" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Cost Index field is used to define the relative value of fuel-related costs and time-related costs for a particular route.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="cruiseAltitude" type="type:CruiseAltitude" minOccurs="0" maxOccurs="1"/>
        <xs:element name="enrouteEmergencyPortRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
        <xs:element name="fromPortFix" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>When used on Company Routes and Helicopter Operations Company Routes, the “From Airport/Heliport/Fix” is the fix from which the company route originates. The “To Airport/Heliport/Fix” is the fix at which the company route terminates. When used on Alternate Records, it is the Departure, Destination or Enroute Airport/Fix for which the alternate information is being provided.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="identifier" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
        <xs:element name="terminalAlternateAirport" type="type:TerminalAlternateAirport" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This field has two uses depending on the “VIA” field and File Code for “To Fix.” For “VIA” field content of “ALT” this field will contain the Alternate Airport Ident or Heliport Ident for this Company Route. If the file code for “To Fix” contains “P,” this field will contain the Airport Ident for REGN CODE (Section 5.41) of Terminal Waypoints (PC records) and Runway (PG records). If the file code for “To Fix” contains “H”, this field will contain the Heliport Ident for REGN CODE (Section 5.41) of Helicopter Terminal Waypoints (HC records).</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="toPortFix" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>When used on Company Routes and Helicopter Operations Company Routes, the “From Airport/Heliport/Fix” is the fix from which the company route originates. The “To Airport/Heliport/Fix” is the fix at which the company route terminates. When used on Alternate Records, it is the Departure, Destination or Enroute Airport/Fix for which the alternate information is being provided.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="viaSID" type="ViaSID" minOccurs="0" maxOccurs="1"/>
        <xs:element name="viaEnrouteLegs" type="ViaEnrouteLeg" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="viaSTAR" type="ViaSTAR" minOccurs="0" maxOccurs="1"/>
        <xs:element name="viaApproachConnectorLegs" type="ViaEnrouteLeg" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="viaApproach" type="ViaApproach" minOccurs="0" maxOccurs="1"/>
        <xs:element name="alternateRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
      <xs:attribute name="referenceID" use="required" type="xs:ID"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:AlternateDistance
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This field is used to supply the distance in nautical miles from the “To Airport/Heliport/Fix” to the Alternate Airport/Heliport.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceIntegerNMFourDigits
Type type:DistanceIntegerNMFourDigits
Type hierarchy
Facets
totalDigits 4
Used by
Source

<xs:simpleType name="AlternateDistance">
  <xs:annotation>
    <xs:documentation>This field is used to supply the distance in nautical miles from the “To Airport/Heliport/Fix” to the Alternate Airport/Heliport.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceIntegerNMFourDigits"/>
</xs:simpleType>
[ top ]
Simple Type type:CostIndex
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Cost Index field is used to define the relative value of fuel-related costs and time-related costs for a particular route.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="CostIndex">
  <xs:annotation>
    <xs:documentation>The Cost Index field is used to define the relative value of fuel-related costs and time-related costs for a particular route.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:CruiseAltitude
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This field will be used to establish an Enroute Cruise Altitude. It will be entered on Company Route records as specified by the customer.
Diagram
Diagram
Type restriction of xs:string
Facets
length 5
Used by
Source

<xs:simpleType name="CruiseAltitude">
  <xs:annotation>
    <xs:documentation>This field will be used to establish an Enroute Cruise Altitude. It will be entered on Company Route records as specified by the customer.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="5"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:TerminalAlternateAirport
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This field has two uses depending on the VIA field and File Code for To Fix. For VIA field content of ALT this field will contain the Alternate Airport Ident or Heliport Ident for this Company Route. If the file code for To Fix contains P, this field will contain the Airport Ident for REGN CODE (Section 5.41) of Terminal Waypoints (PC records) and Runway (PG records). If the file code for To Fix contains H, this field will contain the Heliport Ident for REGN CODE (Section 5.41) of Helicopter Terminal Waypoints (HC records).
Diagram
Diagram
Type restriction of xs:string
Facets
length 4
Used by
Source

<xs:simpleType name="TerminalAlternateAirport">
  <xs:annotation>
    <xs:documentation>This field has two uses depending on the VIA field and File Code for To Fix. For VIA field content of ALT this field will contain the Alternate Airport Ident or Heliport Ident for this Company Route. If the file code for To Fix contains P, this field will contain the Airport Ident for REGN CODE (Section 5.41) of Terminal Waypoints (PC records) and Runway (PG records). If the file code for To Fix contains H, this field will contain the Heliport Ident for REGN CODE (Section 5.41) of Helicopter Terminal Waypoints (HC records).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type ViaSID
Namespace No namespace
Annotations

This data type contains all of the information that is needed to identify parts of a SID used in the company route
Diagram
Diagram ARINC424_22_HTML.tmp#ViaSID_sidRef ARINC424_22_HTML.tmp#ViaSID_SIDSelectedRoutes ARINC424_22_HTML.tmp#ViaSID_cycleDate ARINC424_22_HTML.tmp#ViaSID_cruiseAltitude
Used by
Model
Children SIDSelectedRoutes, cruiseAltitude, cycleDate, sidRef
Source

<xs:complexType name="ViaSID">
  <xs:annotation>
    <xs:documentation>This data type contains all of the information that is needed to identify parts of a SID used in the company route</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="sidRef" type="xs:IDREF" minOccurs="1" maxOccurs="1"/>
    <xs:element name="SIDSelectedRoutes" type="SIDSTARSelectedRoutes" minOccurs="1" maxOccurs="1"/>
    <xs:element name="cycleDate" type="type:CycleDate" minOccurs="1" maxOccurs="1"/>
    <xs:element minOccurs="0" name="cruiseAltitude" type="type:Altitude"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type SIDSTARSelectedRoutes
Namespace No namespace
Annotations

This datatype contains the routes that are selected for ViaSIDs and ViaSTARs as part of the CompanyRoute.
Diagram
Diagram ARINC424_22_HTML.tmp#SIDSTARSelectedRoutes_viaEnroute ARINC424_22_HTML.tmp#SIDSTARSelectedRoutes_viaCommon ARINC424_22_HTML.tmp#SIDSTARSelectedRoutes_viaRunway
Used by
Model
Children viaCommon, viaEnroute, viaRunway
Source

<xs:complexType name="SIDSTARSelectedRoutes">
  <xs:annotation>
    <xs:documentation>This datatype contains the routes that are selected for ViaSIDs and ViaSTARs as part of the CompanyRoute.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="viaEnroute" type="ViaEnroute" minOccurs="0" maxOccurs="1"/>
    <xs:element name="viaCommon" type="ViaCommon" minOccurs="0" maxOccurs="1"/>
    <xs:element name="viaRunway" type="ViaRunway" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ViaEnroute
Namespace No namespace
Annotations

This data type defines the enroute portion of the SID/STAR selected for this company route.
Diagram
Diagram ARINC424_22_HTML.tmp#ViaEnroute_enrouteIdent ARINC424_22_HTML.tmp#ViaEnroute_toFixRef
Used by
Model
Children enrouteIdent, toFixRef
Source

<xs:complexType name="ViaEnroute">
  <xs:annotation>
    <xs:documentation>This data type defines the enroute portion of the SID/STAR selected for this company route.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="enrouteIdent" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
    <xs:element name="toFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ViaCommon
Namespace No namespace
Annotations

This data type defines the common portion of the SID/STAR selected for this company route.
Diagram
Diagram ARINC424_22_HTML.tmp#ViaCommon_commonIdent ARINC424_22_HTML.tmp#ViaCommon_toFixRef
Used by
Model
Children commonIdent, toFixRef
Source

<xs:complexType name="ViaCommon">
  <xs:annotation>
    <xs:documentation>This data type defines the common portion of the SID/STAR selected for this company route.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="commonIdent" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
    <xs:element name="toFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ViaRunway
Namespace No namespace
Annotations

This data type defines the runway portion of the SID/STAR selected for this company route.
Diagram
Diagram ARINC424_22_HTML.tmp#ViaRunway_runwayIdent ARINC424_22_HTML.tmp#ViaRunway_toFixRef
Used by
Model
Children runwayIdent, toFixRef
Source

<xs:complexType name="ViaRunway">
  <xs:annotation>
    <xs:documentation>This data type defines the runway portion of the SID/STAR selected for this company route.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="runwayIdent" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
    <xs:element name="toFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ViaEnrouteLeg
Namespace No namespace
Annotations

This data type is a child of Leg and allows for a choice between having the leg reference a fix or airway.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#ViaEnrouteLeg_selectedEnroute ARINC424_22_HTML.tmp#ViaEnrouteLeg_cruisingAltitude
Type extension of Leg
Type hierarchy
Used by
Model
Children cruisingAltitude, custAreaCode, cycleDate, fixIdent, fixRef, notes, recNavaidIdent, recNavaidRef, recordType, selectedEnroute, sequenceNumber, supplementalData
Source

<xs:complexType name="ViaEnrouteLeg">
  <xs:annotation>
    <xs:documentation>This data type is a child of Leg and allows for a choice between having the leg reference a fix or airway.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Leg">
      <xs:sequence>
        <xs:element name="selectedEnroute" type="SelectedEnroute" minOccurs="1" maxOccurs="1"/>
        <xs:element name="cruisingAltitude" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type SelectedEnroute
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SelectedEnroute_viaFix ARINC424_22_HTML.tmp#SelectedEnroute_viaAirway
Used by
Model
Children viaAirway, viaFix
Source

<xs:complexType name="SelectedEnroute">
  <xs:choice>
    <xs:element name="viaFix" type="ViaFix" minOccurs="1" maxOccurs="1"/>
    <xs:element name="viaAirway" type="ViaAirway" minOccurs="1" maxOccurs="1"/>
  </xs:choice>
</xs:complexType>
[ top ]
Complex Type ViaFix
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ViaFix_viaFixRef
Used by
Model
Children viaFixRef
Source

<xs:complexType name="ViaFix">
  <xs:sequence>
    <xs:element name="viaFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ViaAirway
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ViaAirway_viaAirwayRef ARINC424_22_HTML.tmp#ViaAirway_exitFixRef ARINC424_22_HTML.tmp#ViaAirway_entryFixRef
Used by
Model
Children entryFixRef, exitFixRef, viaAirwayRef
Source

<xs:complexType name="ViaAirway">
  <xs:sequence>
    <xs:element name="viaAirwayRef" type="xs:IDREF" minOccurs="1" maxOccurs="1"/>
    <xs:element name="exitFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
    <xs:element name="entryFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ViaSTAR
Namespace No namespace
Annotations

This data type contains all of the information that is needed to identify parts of a STAR used in the company route
Diagram
Diagram ARINC424_22_HTML.tmp#ViaSTAR_starRef ARINC424_22_HTML.tmp#ViaSTAR_STARselectedRoutes ARINC424_22_HTML.tmp#ViaSTAR_cycleDate ARINC424_22_HTML.tmp#ViaSTAR_cruiseAltitude
Used by
Model
Children STARselectedRoutes, cruiseAltitude, cycleDate, starRef
Source

<xs:complexType name="ViaSTAR">
  <xs:annotation>
    <xs:documentation>This data type contains all of the information that is needed to identify parts of a STAR used in the company route</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="starRef" type="xs:IDREF" minOccurs="1" maxOccurs="1"/>
    <xs:element name="STARselectedRoutes" type="SIDSTARSelectedRoutes" minOccurs="1" maxOccurs="1"/>
    <xs:element name="cycleDate" type="type:CycleDate" minOccurs="1" maxOccurs="1"/>
    <xs:element minOccurs="0" name="cruiseAltitude" type="type:Altitude"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ViaApproach
Namespace No namespace
Annotations

This data type contains all of the information that is needed to identify parts of an Approach used in the company route
Diagram
Diagram ARINC424_22_HTML.tmp#ViaApproach_approachRef ARINC424_22_HTML.tmp#ViaApproach_cycleDate ARINC424_22_HTML.tmp#ViaApproach_approachSelectedRoutes ARINC424_22_HTML.tmp#ViaApproach_cruiseAlt
Used by
Model
Children approachRef, approachSelectedRoutes, cruiseAlt, cycleDate
Source

<xs:complexType name="ViaApproach">
  <xs:annotation>
    <xs:documentation>This data type contains all of the information that is needed to identify parts of an Approach used in the company route</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="approachRef" type="xs:IDREF" minOccurs="1" maxOccurs="1"/>
    <xs:element name="cycleDate" type="type:CycleDate" minOccurs="1" maxOccurs="1"/>
    <xs:element name="approachSelectedRoutes" type="ApproachSelectedRoutes" minOccurs="1" maxOccurs="1"/>
    <xs:element name="cruiseAlt" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ApproachSelectedRoutes
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#ApproachSelectedRoutes_selectedFinal ARINC424_22_HTML.tmp#ApproachSelectedRoutes_selectedApproachTransition
Used by
Model
Children selectedApproachTransition, selectedFinal
Source

<xs:complexType name="ApproachSelectedRoutes">
  <xs:sequence>
    <xs:element name="selectedFinal" type="SelectedFinal" minOccurs="0" maxOccurs="1"/>
    <xs:element name="selectedApproachTransition" type="SelectedApproachTransition" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type SelectedFinal
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SelectedFinal_toFixRef ARINC424_22_HTML.tmp#SelectedFinal_ident
Used by
Model
Children ident, toFixRef
Source

<xs:complexType name="SelectedFinal">
  <xs:sequence>
    <xs:element name="toFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
    <xs:element name="ident" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type SelectedApproachTransition
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#SelectedApproachTransition_ident ARINC424_22_HTML.tmp#SelectedApproachTransition_toFixRef
Used by
Model
Children ident, toFixRef
Source

<xs:complexType name="SelectedApproachTransition">
  <xs:sequence>
    <xs:element name="ident" type="type:CoreIdentifier" minOccurs="1" maxOccurs="1"/>
    <xs:element name="toFixRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type Airspaces
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Airspaces_controlledAirspace ARINC424_22_HTML.tmp#Airspaces_restrictiveAirspace ARINC424_22_HTML.tmp#Airspaces_specialActivityArea ARINC424_22_HTML.tmp#Airspaces_firUIR
Used by
Model
Children controlledAirspace, firUIR, restrictiveAirspace, specialActivityArea
Source

<xs:complexType name="Airspaces">
  <xs:sequence>
    <xs:element name="controlledAirspace" type="ControlledAirspace" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="restrictiveAirspace" type="RestrictiveAirspace" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="specialActivityArea" type="SpecialActivityArea" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="firUIR" type="FIRUIR" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ControlledAirspace
Namespace No namespace
Annotations

This following record contains the fields used in Controlled Airspace Records.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#Airspace_airspaceName ARINC424_22_HTML.tmp#Airspace_multipleCode ARINC424_22_HTML.tmp#Airspace_timesOfOperation ARINC424_22_HTML.tmp#Airspace_unitIndicatorLower ARINC424_22_HTML.tmp#Airspace_unitIndicatorUpper ARINC424_22_HTML.tmp#Airspace_airspaceSegment ARINC424_22_HTML.tmp#Airspace_upperLimit ARINC424_22_HTML.tmp#Airspace_lowerLimit ARINC424_22_HTML.tmp#Airspace_controllingAgency ARINC424_22_HTML.tmp#Airspace ARINC424_22_HTML.tmp#ControlledAirspace_airspaceClassification ARINC424_22_HTML.tmp#ControlledAirspace_controlledAirspaceCenter ARINC424_22_HTML.tmp#ControlledAirspace_controlledAirspaceType ARINC424_22_HTML.tmp#ControlledAirspace_rnp ARINC424_22_HTML.tmp#ControlledAirspace_airspaceSpeedRestriction
Type extension of Airspace
Type hierarchy
Used by
Model
Children airspaceClassification, airspaceName, airspaceSegment, airspaceSpeedRestriction, controlledAirspaceCenter, controlledAirspaceType, controllingAgency, lowerLimit, multipleCode, rnp, supplementalData, timesOfOperation, unitIndicatorLower, unitIndicatorUpper, upperLimit
Source

<xs:complexType name="ControlledAirspace">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Controlled Airspace Records.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Airspace">
      <xs:sequence>
        <xs:element name="airspaceClassification" type="type:AirspaceClassification" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Controlled Airspace Classification” field will contain an alpha character indicating the published classification of the controlled airspace, when assigned.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="controlledAirspaceCenter" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Controlled Airspace Center” field is used to define the navigation element upon which the controlled airspace being defined is predicated, but not necessarily centered. Where the Airspace is not defined then the “Region Identifier” should be used. In this case, the Controlled Airspace Center will contain the ICAO Identification code for the Controlled Airspace to which the data contained in the record relates.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="controlledAirspaceType" type="enum:ControlledAirspaceType" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Controlled Airspace Type” field is used to indicate the type of controlled airspace, using codes from the table below.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rnp" type="type:RequiredNavigationPerformance" minOccurs="0" maxOccurs="1"/>
        <xs:element name="airspaceSpeedRestriction" type="type:AirspaceSpeedRestriction" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>When government source provides a speed restriction then this element will be provided.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Airspace
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#Airspace_airspaceName ARINC424_22_HTML.tmp#Airspace_multipleCode ARINC424_22_HTML.tmp#Airspace_timesOfOperation ARINC424_22_HTML.tmp#Airspace_unitIndicatorLower ARINC424_22_HTML.tmp#Airspace_unitIndicatorUpper ARINC424_22_HTML.tmp#Airspace_airspaceSegment ARINC424_22_HTML.tmp#Airspace_upperLimit ARINC424_22_HTML.tmp#Airspace_lowerLimit ARINC424_22_HTML.tmp#Airspace_controllingAgency
Type extension of A424Base
Type hierarchy
Properties
abstract true
Used by
Model
Children airspaceName, airspaceSegment, controllingAgency, lowerLimit, multipleCode, supplementalData, timesOfOperation, unitIndicatorLower, unitIndicatorUpper, upperLimit
Source

<xs:complexType name="Airspace" abstract="true">
  <xs:complexContent>
    <xs:extension base="A424Base">
      <xs:sequence>
        <xs:element name="airspaceName" type="type:Name" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Airspace Name” field will contain the name of the airspace when assigned.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="multipleCode" type="type:MultipleCode" minOccurs="0" maxOccurs="1"/>
        <xs:element name="timesOfOperation" type="type:TimesOfOperation" minOccurs="0" maxOccurs="1"/>
        <xs:element name="unitIndicatorLower" type="enum:UnitIndicator" minOccurs="0" maxOccurs="1"/>
        <xs:element name="unitIndicatorUpper" type="enum:UnitIndicator" minOccurs="0" maxOccurs="1"/>
        <xs:element name="airspaceSegment" type="AirspaceSegment" minOccurs="1" maxOccurs="unbounded"/>
        <xs:element name="upperLimit" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1"/>
        <xs:element name="lowerLimit" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1"/>
        <xs:element name="controllingAgency" type="type:ControllingAgency" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Some “Restrictive Airspace” areas are designated joint use and IFR operations in the area may be authorized by the controlling agency when it is not being utilized by the using agency.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:UnitIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Restrictive Airspace lower and upper limits are specified as above mean sea level (MSL) or above ground level (AGL). This field permits the unit of measurement to be indicated.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Msl
MSL
enumeration Agl
AGL
Used by
Source

<xs:simpleType name="UnitIndicator">
  <xs:annotation>
    <xs:documentation>Restrictive Airspace lower and upper limits are specified as above mean sea level (MSL) or above ground level (AGL). This field permits the unit of measurement to be indicated.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Msl">
      <xs:annotation>
        <xs:documentation>MSL</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Agl">
      <xs:annotation>
        <xs:documentation>AGL</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type AirspaceSegment
Namespace No namespace
Annotations

This following record contains the fields used in Airspace Record.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#AirspaceSegment_arcBearing ARINC424_22_HTML.tmp#AirspaceSegment_arcDistance ARINC424_22_HTML.tmp#AirspaceSegment_arcOriginLocation ARINC424_22_HTML.tmp#AirspaceSegment_boundaryVIA ARINC424_22_HTML.tmp#AirspaceSegment_isEndOfDescription ARINC424_22_HTML.tmp#AirspaceSegment_level ARINC424_22_HTML.tmp#AirspaceSegment_location ARINC424_22_HTML.tmp#AirspaceSegment_sequenceNumber
Type extension of A424Record
Type hierarchy
Used by
Model
Children arcBearing, arcDistance, arcOriginLocation, boundaryVIA, custAreaCode, cycleDate, isEndOfDescription, level, location, notes, recordType, sequenceNumber, supplementalData
Source

<xs:complexType name="AirspaceSegment">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Airspace Record.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="arcBearing" type="type:ArcBearing" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Arc Bearing field contains the true bearing from the Arc Origin position to the beginning of the arc</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="arcDistance" type="type:ArcDistance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Arc Distance” field is used to define the distance in nautical miles from the “ArcOrigin” position to the arc defining the lateral boundary of a FIR/UIR or Restrictive Airspace.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="arcOriginLocation" type="type:Location" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="boundaryVIA" type="enum:BoundaryVia" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Boundary VIA” defines the path of the boundary from the position identified in the record to the next defined position.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isEndOfDescription" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
        <xs:element name="level" type="enum:Level" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Level field defines the airway structure of which the record is an element.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="location" type="type:Location" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="sequenceNumber" type="type:SequenceNumber" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>For Boundary Type Records - A boundary is defined by a series of records taken in order. The “Sequence Number” field defines the location of the record in the sequence defining a boundary.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:ArcBearing
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Arc Bearing” field contains the true bearing from the “Arc Origin”  position to the beginning of the arc
Diagram
Diagram ARINC424_22_HTML.tmp#BearingValue
Type type:BearingValue
Type hierarchy
Facets
totalDigits 4
fractionDigits 1
maxInclusive 360
minInclusive 0
Used by
Source

<xs:simpleType name="ArcBearing">
  <xs:annotation>
    <xs:documentation>The “Arc Bearing” field contains the true bearing from the “Arc Origin” position to the beginning of the arc</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:BearingValue"/>
</xs:simpleType>
[ top ]
Simple Type type:ArcDistance
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Arc Distance” field is used to define the distance in nautical miles from the “ArcOrigin” position to the arc defining the lateral boundary of a FIR/UIR or Restrictive Airspace.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceNM
Type type:DistanceNM
Type hierarchy
Facets
totalDigits 4
fractionDigits 1
Used by
Source

<xs:simpleType name="ArcDistance">
  <xs:annotation>
    <xs:documentation>The “Arc Distance” field is used to define the distance in nautical miles from the “ArcOrigin” position to the arc defining the lateral boundary of a FIR/UIR or Restrictive Airspace.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceNM"/>
</xs:simpleType>
[ top ]
Simple Type enum:BoundaryVia
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Boundary VIA” defines the path of the boundary from the position identified in the record to the next defined position.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Circle
Circle
enumeration GreatCircle
Great Circle
enumeration RhumbLine
Rhumb Line
enumeration CounterClockwiseArc
Counter Clockwise ARC
enumeration ClockwiseArc
Clockwise ARC
Used by
Source

<xs:simpleType name="BoundaryVia">
  <xs:annotation>
    <xs:documentation>The “Boundary VIA” defines the path of the boundary from the position identified in the record to the next defined position.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Circle">
      <xs:annotation>
        <xs:documentation>Circle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GreatCircle">
      <xs:annotation>
        <xs:documentation>Great Circle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RhumbLine">
      <xs:annotation>
        <xs:documentation>Rhumb Line</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CounterClockwiseArc">
      <xs:annotation>
        <xs:documentation>Counter Clockwise ARC</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ClockwiseArc">
      <xs:annotation>
        <xs:documentation>Clockwise ARC</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:ControllingAgency
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Some “Restrictive Airspace” areas are designated joint use and IFR operations in the area may be authorized by the controlling agency when it is not being utilized by the using agency.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 25
Used by
Source

<xs:simpleType name="ControllingAgency">
  <xs:annotation>
    <xs:documentation>Some “Restrictive Airspace” areas are designated joint use and IFR operations in the area may be authorized by the controlling agency when it is not being utilized by the using agency.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="25"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:AirspaceClassification
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Controlled Airspace Classification” field will contain an alpha character indicating the published classification of the controlled airspace, when assigned.
Diagram
Diagram
Type restriction of xs:string
Facets
length 1
pattern [A-G]
Used by
Source

<xs:simpleType name="AirspaceClassification">
  <xs:annotation>
    <xs:documentation>The “Controlled Airspace Classification” field will contain an alpha character indicating the published classification of the controlled airspace, when assigned.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[A-G]"/>
    <xs:length value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ControlledAirspaceType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Controlled Airspace Type” field is used to indicate the type of controlled airspace, using codes from the table below.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration ClassC
Class C Airspace (Was ARSA within the USA).
enumeration Control
Control Area, ICAO Designation (CTA).
enumeration TerminalControl
Terminal Control Area, ICAO Designation (TMA or TCA).
enumeration Radar
Radar Zone or Radar Area (Was TRSA within the USA).
enumeration ClassB
Class B Airspace (Was TCA with the USA).
enumeration ClassD
Class D Airspace within the USA, Control Zone, ICAO Designation (CTR).
Used by
Source

<xs:simpleType name="ControlledAirspaceType">
  <xs:annotation>
    <xs:documentation>The “Controlled Airspace Type” field is used to indicate the type of controlled airspace, using codes from the table below.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="ClassC">
      <xs:annotation>
        <xs:documentation>Class C Airspace (Was ARSA within the USA).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Control">
      <xs:annotation>
        <xs:documentation>Control Area, ICAO Designation (CTA).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TerminalControl">
      <xs:annotation>
        <xs:documentation>Terminal Control Area, ICAO Designation (TMA or TCA).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Radar">
      <xs:annotation>
        <xs:documentation>Radar Zone or Radar Area (Was TRSA within the USA).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ClassB">
      <xs:annotation>
        <xs:documentation>Class B Airspace (Was TCA with the USA).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ClassD">
      <xs:annotation>
        <xs:documentation>Class D Airspace within the USA, Control Zone, ICAO Designation (CTR).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:AirspaceSpeedRestriction
Namespace http://www.arinc424.com/xml/datatypes
Annotations

When government source provides a speed restriction then this element will be provided
Diagram
Diagram ARINC424_22_HTML.tmp#AirspaceSpeedRestriction_speedRestriction ARINC424_22_HTML.tmp#AirspaceSpeedRestriction_speedAltitude
Used by
Model
Children speedAltitude, speedRestriction
Source

<xs:complexType name="AirspaceSpeedRestriction">
  <xs:annotation>
    <xs:documentation>When government source provides a speed restriction then this element will be provided</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="speedRestriction" type="type:SpeedLimit" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>When used on a Controlled Airspace record, the field is used to describe a speed restriction within the Airspace</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="speedAltitude" type="type:Altitude" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Speed Limit Altitude is the altitude below which speed limits may be imposed</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type RestrictiveAirspace
Namespace No namespace
Annotations

This following record contains the fields used in Restrictive Airspace Record.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#Airspace_airspaceName ARINC424_22_HTML.tmp#Airspace_multipleCode ARINC424_22_HTML.tmp#Airspace_timesOfOperation ARINC424_22_HTML.tmp#Airspace_unitIndicatorLower ARINC424_22_HTML.tmp#Airspace_unitIndicatorUpper ARINC424_22_HTML.tmp#Airspace_airspaceSegment ARINC424_22_HTML.tmp#Airspace_upperLimit ARINC424_22_HTML.tmp#Airspace_lowerLimit ARINC424_22_HTML.tmp#Airspace_controllingAgency ARINC424_22_HTML.tmp#Airspace ARINC424_22_HTML.tmp#RestrictiveAirspace_ICAOCode ARINC424_22_HTML.tmp#RestrictiveAirspace_restrictiveAirspaceDesignation ARINC424_22_HTML.tmp#RestrictiveAirspace_restrictiveAirspaceName ARINC424_22_HTML.tmp#RestrictiveAirspace_restrictiveAirspaceType
Type extension of Airspace
Type hierarchy
Used by
Model
Children ICAOCode, airspaceName, airspaceSegment, controllingAgency, lowerLimit, multipleCode, restrictiveAirspaceDesignation, restrictiveAirspaceName, restrictiveAirspaceType, supplementalData, timesOfOperation, unitIndicatorLower, unitIndicatorUpper, upperLimit
Source

<xs:complexType name="RestrictiveAirspace">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Restrictive Airspace Record.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Airspace">
      <xs:sequence>
        <xs:element name="ICAOCode" type="type:IcaoCode" minOccurs="0" maxOccurs="1"/>
        <xs:element name="restrictiveAirspaceDesignation" type="type:RestrictiveAirspaceDesignation" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Restrictive Airspace Designation” field contains the number or name that uniquely identifies the restrictive airspace.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="restrictiveAirspaceName" type="type:Name" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Restrictive Airspace Name” field will contain the name of the restrictive airspace when assigned.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="restrictiveAirspaceType" type="enum:RestrictiveAirspaceType" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Restrictive Airspace Type” field is used to indicate the type of Airspace in which the flight of aircraft is prohibited or restricted. The restriction may be continuous or specified for certain times.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type SpecialActivityArea
Namespace No namespace
Annotations

The Special Activity Area (SAA) file contains details relating to operation that could be hazardous to aeronautical navigation around a specified location
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#SpecialActivityArea_activityType ARINC424_22_HTML.tmp#SpecialActivityArea_communicationType ARINC424_22_HTML.tmp#SpecialActivityArea_communicationFrequency ARINC424_22_HTML.tmp#SpecialActivityArea_controllingAgency ARINC424_22_HTML.tmp#SpecialActivityArea_icaoCode ARINC424_22_HTML.tmp#SpecialActivityArea_location ARINC424_22_HTML.tmp#SpecialActivityArea_publicMilitaryIndicator ARINC424_22_HTML.tmp#SpecialActivityArea_saaIdentifier ARINC424_22_HTML.tmp#SpecialActivityArea_saaOperatingTimes ARINC424_22_HTML.tmp#SpecialActivityArea_saaSize ARINC424_22_HTML.tmp#SpecialActivityArea_saaVolume ARINC424_22_HTML.tmp#SpecialActivityArea_specialActivityAreaName ARINC424_22_HTML.tmp#SpecialActivityArea_unitIndicator ARINC424_22_HTML.tmp#SpecialActivityArea_upperLimit
Type extension of A424Record
Type hierarchy
Used by
Model
Children activityType, communicationFrequency, communicationType, controllingAgency, custAreaCode, cycleDate, icaoCode, location, notes, publicMilitaryIndicator, recordType, saaIdentifier, saaOperatingTimes, saaSize, saaVolume, specialActivityAreaName, supplementalData, unitIndicator, upperLimit
Source

<xs:complexType name="SpecialActivityArea">
  <xs:annotation>
    <xs:documentation>The Special Activity Area (SAA) file contains details relating to operation that could be hazardous to aeronautical navigation around a specified location</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="activityType" type="enum:ActivityType" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Activity Type is used to define the type of Special Activity that is occurring.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="communicationType" type="enum:CommunicationType" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Communication Type” is a three-character code indicating the type of communication service available on the frequency contained in the record. Decoding is available in the Communication Type Translation Table.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="communicationFrequency" type="xs:string" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Communication Frequency” field specifies either transmit or receive frequency of the communication service, dependent on in which column the frequency is located. Each communication record will contain both transmit and receive frequencies unless the service is published as a Transmit Only or Receive Only service. The content will be identical if the service transmits and receives on the same frequency. The fields will be left blank when the service provided is a digital service.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="controllingAgency" type="type:ControllingAgency" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Some “Restrictive Airspace” areas are designated joint use and IFR operations in the area may be authorized by the controlling agency when it is not being utilized by the using agency.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="icaoCode" type="type:IcaoCode" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “ICAO Code” field permits records to be categorized geographically within the limits of the categorization performed by the “Area Code” field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="location" type="type:Location" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Latitude and Longitude details of this point.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="publicMilitaryIndicator" type="enum:PublicMilitaryIndicator" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Airports can be classified into four categories, airports open to the general public, military airports, joint use civil and military, and airports closed to the public. This field permits these airports to be categorized by their use.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="saaIdentifier" type="type:SAAIdentifier" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Activity Identifier” field contains the number or name that uniquely identifies the Special Activity Area.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="saaOperatingTimes" type="type:SpecialActivityAreaOperatingTimes" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Special Activity Area Operating Times field contains the annual expected operation schedule of the Special Activity.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="saaSize" type="type:SpecialActivityAreaSize" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Special Activity Area Size field contains the radius around the center point where the Special Activity is expected to occur.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="saaVolume" type="type:SpecialActivityAreaVolume" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Special Activity Area Volume” field contains the expected annual level of intensity of the Special Activity.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="specialActivityAreaName" type="type:Name" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Restrictive Airspace Name” field will contain the name of the restrictive airspace when assigned.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="unitIndicator" type="enum:UnitIndicator" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Restrictive Airspace lower and upper limits are specified as above mean sea level (MSL) or above ground level (AGL). This field permits the unit of measurement to be indicated.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="upperLimit" type="type:AltitudeLimit" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Special Use Airspace is described by both lateral and vertical boundaries. The “Lower/Upper Limit” fields contain the lower and upper limits of the FIR/UIR or Restrictive Airspace being described.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:ActivityType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Activity Type is used to define the type of Special Activity that is occurring.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Parachute
Parachute Jump Area
enumeration Glider
Glider Operations
enumeration HangGlider
Hang Glider Activities
enumeration UltraLight
Ultra Light Activities
Used by
Source

<xs:simpleType name="ActivityType">
  <xs:annotation>
    <xs:documentation>The Activity Type is used to define the type of Special Activity that is occurring.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Parachute">
      <xs:annotation>
        <xs:documentation>Parachute Jump Area</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Glider">
      <xs:annotation>
        <xs:documentation>Glider Operations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HangGlider">
      <xs:annotation>
        <xs:documentation>Hang Glider Activities</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="UltraLight">
      <xs:annotation>
        <xs:documentation>Ultra Light Activities</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:SAAIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Activity Identifier” field contains the number or name that uniquely identifies the Special Activity Area.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 6
Used by
Source

<xs:simpleType name="SAAIdentifier">
  <xs:annotation>
    <xs:documentation>The “Activity Identifier” field contains the number or name that uniquely identifies the Special Activity Area.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="6"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:SpecialActivityAreaOperatingTimes
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Special Activity Area Operating Times field contains the annual expected operation schedule of the Special Activity.
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#SpecialActivityAreaOperatingTimes_holidayQualifier ARINC424_22_HTML.tmp#SpecialActivityAreaOperatingTimes_holidays ARINC424_22_HTML.tmp#SpecialActivityAreaOperatingTimes_timeOfUse
Type extension of type:Alpha
Type hierarchy
Used by
Model
Children holidayQualifier, holidays, timeOfUse
Source

<xs:complexType name="SpecialActivityAreaOperatingTimes">
  <xs:annotation>
    <xs:documentation>The Special Activity Area Operating Times field contains the annual expected operation schedule of the Special Activity.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="type:Alpha">
      <xs:sequence>
        <xs:element name="holidayQualifier" type="enum:HolidayQualifier" minOccurs="1" maxOccurs="1"/>
        <xs:element name="holidays" type="enum:Holidays" minOccurs="1" maxOccurs="1"/>
        <xs:element name="timeOfUse" type="enum:TimeOfUse" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:HolidayQualifier
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Special Activity Area Operating Times field contains the annual expected operation schedule of the Special Activity.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration IncludesHolidays
Including Holidays
enumeration ExcludesHolidays
Excluding Holidays
enumeration U
Unknown
Used by
Source

<xs:simpleType name="HolidayQualifier">
  <xs:annotation>
    <xs:documentation>The Special Activity Area Operating Times field contains the annual expected operation schedule of the Special Activity.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="IncludesHolidays">
      <xs:annotation>
        <xs:documentation>Including Holidays</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ExcludesHolidays">
      <xs:annotation>
        <xs:documentation>Excluding Holidays</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="U">
      <xs:annotation>
        <xs:documentation>Unknown</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:Holidays
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Special Activity Area Operating Times field contains the annual expected operation schedule of the Special Activity.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Continious
Continuous
enumeration Weekdays
Weekdays
enumeration Weekends
Weekends
enumeration Other
Other
enumeration Unkown
Unknown
enumeration WeekendsAndHolidays
Weekends and holidays
Used by
Source

<xs:simpleType name="Holidays">
  <xs:annotation>
    <xs:documentation>The Special Activity Area Operating Times field contains the annual expected operation schedule of the Special Activity.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Continious">
      <xs:annotation>
        <xs:documentation>Continuous</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Weekdays">
      <xs:annotation>
        <xs:documentation>Weekdays</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Weekends">
      <xs:annotation>
        <xs:documentation>Weekends</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Other">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Unkown">
      <xs:annotation>
        <xs:documentation>Unknown</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="WeekendsAndHolidays">
      <xs:annotation>
        <xs:documentation>Weekends and holidays</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:TimeOfUse
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Special Activity Area Operating Times field contains the annual expected operation schedule of the Special Activity.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration SrSs
SR-SS
enumeration Night
Night Use
enumeration Continious
Continous
enumeration ActiveByNotam
Active by NOTAM
Used by
Source

<xs:simpleType name="TimeOfUse">
  <xs:annotation>
    <xs:documentation>The Special Activity Area Operating Times field contains the annual expected operation schedule of the Special Activity.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="SrSs">
      <xs:annotation>
        <xs:documentation>SR-SS</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Night">
      <xs:annotation>
        <xs:documentation>Night Use</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Continious">
      <xs:annotation>
        <xs:documentation>Continous</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ActiveByNotam">
      <xs:annotation>
        <xs:documentation>Active by NOTAM</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:SpecialActivityAreaSize
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Special Activity Area Size field contains the radius around the center point where the Special Activity is expected to occur.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="SpecialActivityAreaSize">
  <xs:annotation>
    <xs:documentation>The Special Activity Area Size field contains the radius around the center point where the Special Activity is expected to occur.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:SpecialActivityAreaVolume
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Special Activity Area Volume” field contains the expected annual level of intensity of the Special Activity.
Diagram
Diagram
Type restriction of xs:string
Facets
length 1
Used by
Source

<xs:simpleType name="SpecialActivityAreaVolume">
  <xs:annotation>
    <xs:documentation>The “Special Activity Area Volume” field contains the expected annual level of intensity of the Special Activity.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type FIRUIR
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#FIRUIR_referenceID ARINC424_22_HTML.tmp#FIRUIR_cruiseTableIdentifier ARINC424_22_HTML.tmp#FIRUIR_entryReport ARINC424_22_HTML.tmp#FIRUIR_firUIRAddress ARINC424_22_HTML.tmp#FIRUIR_firUIRIdentifier ARINC424_22_HTML.tmp#FIRUIR_firUIRIndicator ARINC424_22_HTML.tmp#FIRUIR_firUIRSegment ARINC424_22_HTML.tmp#FIRUIR_firUIRName ARINC424_22_HTML.tmp#FIRUIR_firUpperLimit ARINC424_22_HTML.tmp#FIRUIR_uirUpperLimit ARINC424_22_HTML.tmp#FIRUIR_uirLowerLimit ARINC424_22_HTML.tmp#FIRUIR_firUIRATCReportingUnitsAltitude ARINC424_22_HTML.tmp#FIRUIR_firUIRATCReportingUnitsSpeed
Type extension of A424Record
Type hierarchy
Used by
Model
Children cruiseTableIdentifier, custAreaCode, cycleDate, entryReport, firUIRATCReportingUnitsAltitude, firUIRATCReportingUnitsSpeed, firUIRAddress, firUIRIdentifier, firUIRIndicator, firUIRName, firUIRSegment, firUpperLimit, notes, recordType, supplementalData, uirLowerLimit, uirUpperLimit
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="FIRUIR">
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="cruiseTableIdentifier" type="type:CruiseTableIdentifier" minOccurs="0" maxOccurs="1"/>
        <xs:element name="entryReport" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The FIR/UIR Entry Report field is used to indicate whether an entry report on ICAO flight plan is required for that specific FIR/UIR.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="firUIRAddress" type="type:FIRUIRAddress" minOccurs="1" maxOccurs="1"/>
        <xs:element name="firUIRIdentifier" type="type:FIRUIRIdentifier" minOccurs="1" maxOccurs="1"/>
        <xs:element name="firUIRIndicator" type="enum:FIRUIRIndicator" minOccurs="1" maxOccurs="1"/>
        <xs:element name="firUIRSegment" type="FIRUIRSegment" minOccurs="1" maxOccurs="unbounded"/>
        <xs:element name="firUIRName" type="type:FIRUIRName" minOccurs="0" maxOccurs="1"/>
        <xs:element name="firUpperLimit" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1"/>
        <xs:element name="uirUpperLimit" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1"/>
        <xs:element name="uirLowerLimit" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1"/>
        <xs:element name="firUIRATCReportingUnitsAltitude" type="enum:FIRUIRATCReportingUnitsAltitude" minOccurs="0" maxOccurs="1"/>
        <xs:element name="firUIRATCReportingUnitsSpeed" type="enum:FIRUIRATCReportingUnitsSpeed" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
      <xs:attribute name="referenceID" use="required" type="xs:ID"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:FIRUIRAddress
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “FIR/UIR Address” field contains the four character communication address of the FIR/UIR to supplement the FIR/UIR Ident.
Diagram
Diagram
Type restriction of xs:string
Facets
length 4
Used by
Source

<xs:simpleType name="FIRUIRAddress">
  <xs:annotation>
    <xs:documentation>The “FIR/UIR Address” field contains the four character communication address of the FIR/UIR to supplement the FIR/UIR Ident.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:FIRUIRIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “FIR/UIR Identifier” field identifies the Flight Information Region and Upper Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The Identifier is for the controlling Area Control Center or Flight Information Center.
Diagram
Diagram
Type restriction of xs:string
Facets
length 4
Used by
Source

<xs:simpleType name="FIRUIRIdentifier">
  <xs:annotation>
    <xs:documentation>The “FIR/UIR Identifier” field identifies the Flight Information Region and Upper Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The Identifier is for the controlling Area Control Center or Flight Information Center.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:FIRUIRIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

When used on Enroute Communication Records, the content definition above for the FIR/UIR Record is to be applied when ever the FIR/RDO (5.190) field of the Enroute Communication Record contains an Information Region Identifier. In all other cases, the Indicator field of the Enroute Communication Record will be blank.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Fir
FIR
enumeration Uir
UIR
enumeration Combined
Combined FIR/UIR
Used by
Source

<xs:simpleType name="FIRUIRIndicator">
  <xs:annotation>
    <xs:documentation>When used on Enroute Communication Records, the content definition above for the FIR/UIR Record is to be applied when ever the FIR/RDO (5.190) field of the Enroute Communication Record contains an Information Region Identifier. In all other cases, the Indicator field of the Enroute Communication Record will be blank.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Fir">
      <xs:annotation>
        <xs:documentation>FIR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Uir">
      <xs:annotation>
        <xs:documentation>UIR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Combined">
      <xs:annotation>
        <xs:documentation>Combined FIR/UIR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type FIRUIRSegment
Namespace No namespace
Annotations

The following record contains the fields used in FIR UIR Record.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#AirspaceSegment_arcBearing ARINC424_22_HTML.tmp#AirspaceSegment_arcDistance ARINC424_22_HTML.tmp#AirspaceSegment_arcOriginLocation ARINC424_22_HTML.tmp#AirspaceSegment_boundaryVIA ARINC424_22_HTML.tmp#AirspaceSegment_isEndOfDescription ARINC424_22_HTML.tmp#AirspaceSegment_level ARINC424_22_HTML.tmp#AirspaceSegment_location ARINC424_22_HTML.tmp#AirspaceSegment_sequenceNumber ARINC424_22_HTML.tmp#AirspaceSegment ARINC424_22_HTML.tmp#FIRUIRSegment_adjacentFIRIdentifier ARINC424_22_HTML.tmp#FIRUIRSegment_adjacentUIRIdentifier
Type extension of AirspaceSegment
Type hierarchy
Used by
Model
Children adjacentFIRIdentifier, adjacentUIRIdentifier, arcBearing, arcDistance, arcOriginLocation, boundaryVIA, custAreaCode, cycleDate, isEndOfDescription, level, location, notes, recordType, sequenceNumber, supplementalData
Source

<xs:complexType name="FIRUIRSegment">
  <xs:annotation>
    <xs:documentation>The following record contains the fields used in FIR UIR Record.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="AirspaceSegment">
      <xs:sequence>
        <xs:element name="adjacentFIRIdentifier" type="type:FIRUIRIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “FIR/UIR Identifier” field identifies the Flight Information Region and Upper Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The Identifier is for the controlling Area Control Center or Flight Information Center.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="adjacentUIRIdentifier" type="type:FIRUIRIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “FIR/UIR Identifier” field identifies the Flight Information Region and Upper Information Region of airspace with defined dimensions within which Flight Information Service and Alerting Service are provided. The Identifier is for the controlling Area Control Center or Flight Information Center.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:FIRUIRName
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “FIR/UIR Name” field contains the official name of the controlling agency of the FIR/UIR of which this record is an element.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 25
Used by
Source

<xs:simpleType name="FIRUIRName">
  <xs:annotation>
    <xs:documentation>The “FIR/UIR Name” field contains the official name of the controlling agency of the FIR/UIR of which this record is an element.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="25"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:FIRUIRATCReportingUnitsAltitude
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “FIR/UIR ATC Reporting Units Altitude" is used to indicate the units of measurement concerning Altitude in the specific FIR/UIR to fulfill the requirements of ICAO flight plan.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration NotSpecified
Not specified
enumeration FlightLevel
ALT in Flight Level
enumeration Meters
ALT in Meters
enumeration Feet
TAS in Feet
Used by
Source

<xs:simpleType name="FIRUIRATCReportingUnitsAltitude">
  <xs:annotation>
    <xs:documentation>The “FIR/UIR ATC Reporting Units Altitude" is used to indicate the units of measurement concerning Altitude in the specific FIR/UIR to fulfill the requirements of ICAO flight plan.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="NotSpecified">
      <xs:annotation>
        <xs:documentation>Not specified</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FlightLevel">
      <xs:annotation>
        <xs:documentation>ALT in Flight Level</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Meters">
      <xs:annotation>
        <xs:documentation>ALT in Meters</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Feet">
      <xs:annotation>
        <xs:documentation>TAS in Feet</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:FIRUIRATCReportingUnitsSpeed
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The FIR/UIR ATC Reporting Units Speed is used to indicate the units of measurement concerning True Air Speed used in the specific FIR/UIR to fulfill the requirements of ICAO flight plan.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration NotSpecified
Not specified
enumeration Knots
TAS in Knots
enumeration Mach
TAS in Mach
enumeration KilometersHr
TAS in Kilometers/hr
Used by
Source

<xs:simpleType name="FIRUIRATCReportingUnitsSpeed">
  <xs:annotation>
    <xs:documentation>The FIR/UIR ATC Reporting Units Speed is used to indicate the units of measurement concerning True Air Speed used in the specific FIR/UIR to fulfill the requirements of ICAO flight plan.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="NotSpecified">
      <xs:annotation>
        <xs:documentation>Not specified</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Knots">
      <xs:annotation>
        <xs:documentation>TAS in Knots</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Mach">
      <xs:annotation>
        <xs:documentation>TAS in Mach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="KilometersHr">
      <xs:annotation>
        <xs:documentation>TAS in Kilometers/hr</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type Alternates
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#Alternates_alternate
Used by
Model
Children alternate
Source

<xs:complexType name="Alternates">
  <xs:sequence>
    <xs:element name="alternate" type="Alternate" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type Alternate
Namespace No namespace
Annotations

The Alternate Record file contains a listing of up to six Alternate Airport Identifiers or, up to six Alternate Company Route Identifiers or any combination of Alternate Airport or Alternate Route Identifiers for a given departure airport, destination airport or enroute fix. The data content of the record is customer defined.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Alternate_referenceID ARINC424_22_HTML.tmp#Alternate_alternateDetails ARINC424_22_HTML.tmp#Alternate_departureOrArrivalPort
Type extension of A424Record
Type hierarchy
Used by
Model
Children alternateDetails, custAreaCode, cycleDate, departureOrArrivalPort, notes, recordType, supplementalData
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Alternate">
  <xs:annotation>
    <xs:documentation>The Alternate Record file contains a listing of up to six Alternate Airport Identifiers or, up to six Alternate Company Route Identifiers or any combination of Alternate Airport or Alternate Route Identifiers for a given departure airport, destination airport or enroute fix. The data content of the record is customer defined.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="alternateDetails" type="type:AlternateDetails" minOccurs="1" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>This class is an abstraction used to represent the details of an Alternate.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="departureOrArrivalPort" type="DepatureOrArrivalPort" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
      <xs:attribute name="referenceID" use="required" type="xs:ID"/>
      <!-- Do we need this? -->
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type type:AlternateDetails
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class is an abstraction used to represent the details of an Alternate.
Diagram
Diagram ARINC424_22_HTML.tmp#AlternateDetails_alternateIdentifier ARINC424_22_HTML.tmp#AlternateDetails_distanceToAlternate
Used by
Model
Children alternateIdentifier, distanceToAlternate
Source

<xs:complexType name="AlternateDetails">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details of an Alternate.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="alternateIdentifier" type="type:PointReference" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>This element points to the airport or heliport element.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="distanceToAlternate" type="type:DistanceIntegerNM" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Distance To Alternate” field defines either the direct (geodesic) distance from the Destination Airport or Fix to the Alternate Airport or the along track distance of an alternate Company Routein nautical miles.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type DepatureOrArrivalPort
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#DepatureOrArrivalPort_arrivalPortRef ARINC424_22_HTML.tmp#DepatureOrArrivalPort_depaturePortReference
Used by
Model
Children arrivalPortRef, depaturePortReference
Source

<xs:complexType name="DepatureOrArrivalPort">
  <xs:choice minOccurs="1" maxOccurs="1">
    <xs:element name="arrivalPortRef" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
    <xs:element name="depaturePortReference" type="type:PointReference" minOccurs="1" maxOccurs="1"/>
  </xs:choice>
</xs:complexType>
[ top ]
Complex Type CruisingTables
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#CruisingTables_cruisingTable
Used by
Model
Children cruisingTable
Source

<xs:complexType name="CruisingTables">
  <xs:sequence>
    <xs:element name="cruisingTable" type="CruisingTable" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type CruisingTable
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#CruisingTable_referenceID ARINC424_22_HTML.tmp#CruisingTable_cruiseTableIdentifier ARINC424_22_HTML.tmp#CruisingTable_cruisingTableLeg
Type extension of A424Base
Type hierarchy
Used by
Model
Children cruiseTableIdentifier, cruisingTableLeg, supplementalData
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="CruisingTable">
  <xs:complexContent>
    <xs:extension base="A424Base">
      <xs:sequence>
        <xs:element name="cruiseTableIdentifier" type="type:CruiseTableIdentifier" minOccurs="1" maxOccurs="1"/>
        <xs:element name="cruisingTableLeg" type="CruisingTableLeg" minOccurs="1" maxOccurs="unbounded"/>
      </xs:sequence>
      <xs:attribute name="referenceID" type="xs:ID" use="required"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type CruisingTableLeg
Namespace No namespace
Annotations

The Cruising Tables file contains details relating to available Cruising Levels for IFR flights.
Diagram
Diagram ARINC424_22_HTML.tmp#CruisingTableLeg_cruiseDetails ARINC424_22_HTML.tmp#CruisingTableLeg_cruiseTableIdentifier ARINC424_22_HTML.tmp#CruisingTableLeg_magneticTrueIndicator ARINC424_22_HTML.tmp#CruisingTableLeg_sequenceNumber
Used by
Model
Children cruiseDetails, cruiseTableIdentifier, magneticTrueIndicator, sequenceNumber
Source

<xs:complexType name="CruisingTableLeg">
  <xs:annotation>
    <xs:documentation>The Cruising Tables file contains details relating to available Cruising Levels for IFR flights.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="cruiseDetails" type="type:CruiseDetails" minOccurs="0" maxOccurs="4">
      <xs:annotation>
        <xs:documentation>This class is an abstraction used to represent the details of Cruise Level.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cruiseTableIdentifier" type="type:CruiseTableIdentifier" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>A standard cruising level table is established by ICAO and is to be observed except when, on the basis of regional air navigation agreements, a modified table of cruising levels is prescribed for use. This field permits the enroute airway record to identify the Cruise Table record that is to be used for cruise levels.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="magneticTrueIndicator" type="enum:MagneticTrueIndicator" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The field has multiple definitions. For Airport and Heliport Primary Records, it is used to indicate that all bearing and course detail for that airport are included in the data base with a reference to either Magnetic North or to True North. The field is blank in Airport Record when the data base contains a mix of magnetic and true bearing or course information for the airport. The Magnetic/True Indicator field is also used to indicate if the Course From and Course To fields of the Cruise Table record and the Sector Bearing fields of the MSA and TAA record are in magnetic or true degrees.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sequenceNumber" type="type:SequenceNumber" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>For Record Types requiring more than one primary record to define the complete content – In a series of records used to define a complete condition, the “Sequence Number” is used to define each primary record in the sequence.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type type:CruiseDetails
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class is an abstraction used to represent the details of Cruise Level.
Diagram
Diagram ARINC424_22_HTML.tmp#CruiseDetails_cruiseLevelTo ARINC424_22_HTML.tmp#CruiseDetails_cuiseLevelFrom ARINC424_22_HTML.tmp#CruiseDetails_verticalSeparation
Used by
Model
Children cruiseLevelTo, cuiseLevelFrom, verticalSeparation
Source

<xs:complexType name="CruiseDetails">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details of Cruise Level.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="cruiseLevelTo" type="type:CruiseLevelFromTo" minOccurs="1" maxOccurs="1"/>
    <xs:element name="cuiseLevelFrom" type="type:CruiseLevelFromTo" minOccurs="1" maxOccurs="1"/>
    <xs:element name="verticalSeparation" type="type:VerticalSeparation" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:CruiseLevelFromTo
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Cruise Level From field is used to indicate the lowest cruising level prescribed for use within the Course From/To fields. The Cruise Level To field is used to indicate the highest cruising level prescribed for use within the Course From/To fields.
Diagram
Diagram
Type restriction of xs:string
Facets
length 5
Used by
Source

<xs:simpleType name="CruiseLevelFromTo">
  <xs:annotation>
    <xs:documentation>The Cruise Level From field is used to indicate the lowest cruising level prescribed for use within the Course From/To fields. The Cruise Level To field is used to indicate the highest cruising level prescribed for use within the Course From/To fields.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="5"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:VerticalSeparation
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Vertical Separation field is used to indicate the minimum separation prescribed to be maintained between the cruising levels.
Diagram
Diagram
Type restriction of xs:string
Facets
length 5
Used by
Source

<xs:simpleType name="VerticalSeparation">
  <xs:annotation>
    <xs:documentation>The Vertical Separation field is used to indicate the minimum separation prescribed to be maintained between the cruising levels.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="5"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type PreferedRoutes
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#PreferedRoutes_preferedRoute
Used by
Model
Children preferedRoute
Source

<xs:complexType name="PreferedRoutes">
  <xs:sequence>
    <xs:element name="preferedRoute" type="PreferedRoute" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type PreferedRoute
Namespace No namespace
Annotations

This following record contains the fields used in Preferred Route Record.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424ObjectWithId_identifier ARINC424_22_HTML.tmp#A424ObjectWithId ARINC424_22_HTML.tmp#Route ARINC424_22_HTML.tmp#PreferedRoute_preferedRouteRouteType ARINC424_22_HTML.tmp#PreferedRoute_timesOfOperation ARINC424_22_HTML.tmp#PreferedRoute_preferedRouteLeg
Type extension of Route
Type hierarchy
Used by
Model
Children identifier, preferedRouteLeg, preferedRouteRouteType, supplementalData, timesOfOperation
Source

<xs:complexType name="PreferedRoute">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Preferred Route Record.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Route">
      <xs:sequence>
        <xs:element name="preferedRouteRouteType" type="enum:PreferedRouteRouteType" minOccurs="1" maxOccurs="1"/>
        <xs:element name="timesOfOperation" type="type:TimesOfOperation" minOccurs="0" maxOccurs="1"/>
        <xs:element name="preferedRouteLeg" type="PreferedRouteLeg" minOccurs="1" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:PreferedRouteRouteType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The "Route Type" field defines the type of Preferred Route Records(ET)
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration NorthAmericanNorthAtlantic
North American Route for North Atlantic Traffic
enumeration Common
Common Portion
enumeration Preferntial
Preferential Route
enumeration PacificOceanTransition
Pacific Oceanic Transition Routes (PACOTS)
enumeration TacanAustralia
TACAN Route - Australia
enumeration NatNonCommon
North American Routes for North Atlantic Traffic - Non-common Portion
enumeration PeferredPreferentialOverfly
Preferred/Preferential Overfly Routes
enumeration Preferred
Preferred Routes
enumeration Tos
Traffic Orientation System Routes (TOS)
enumeration Tec
Tower Enroute Control Routes (TEC)
Used by
Source

<xs:simpleType name="PreferedRouteRouteType">
  <xs:annotation>
    <xs:documentation>The "Route Type" field defines the type of Preferred Route Records(ET)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="NorthAmericanNorthAtlantic">
      <xs:annotation>
        <xs:documentation>North American Route for North Atlantic Traffic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Common">
      <xs:annotation>
        <xs:documentation>Common Portion</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Preferntial">
      <xs:annotation>
        <xs:documentation>Preferential Route</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PacificOceanTransition">
      <xs:annotation>
        <xs:documentation>Pacific Oceanic Transition Routes (PACOTS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TacanAustralia">
      <xs:annotation>
        <xs:documentation>TACAN Route - Australia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NatNonCommon">
      <xs:annotation>
        <xs:documentation>North American Routes for North Atlantic Traffic - Non-common Portion</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PeferredPreferentialOverfly">
      <xs:annotation>
        <xs:documentation>Preferred/Preferential Overfly Routes</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Preferred">
      <xs:annotation>
        <xs:documentation>Preferred Routes</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Tos">
      <xs:annotation>
        <xs:documentation>Traffic Orientation System Routes (TOS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Tec">
      <xs:annotation>
        <xs:documentation>Tower Enroute Control Routes (TEC)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type PreferedRouteLeg
Namespace No namespace
Annotations

This following record contains the fields used in Preferred Route Leg.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#PreferedRouteLeg_aircraftUsageGroup ARINC424_22_HTML.tmp#PreferedRouteLeg_altitudeDescription ARINC424_22_HTML.tmp#PreferedRouteLeg_areaCode ARINC424_22_HTML.tmp#PreferedRouteLeg_directionRestriction ARINC424_22_HTML.tmp#PreferedRouteLeg_intialAirportFix ARINC424_22_HTML.tmp#PreferedRouteLeg_level ARINC424_22_HTML.tmp#PreferedRouteLeg_maximumAltitude ARINC424_22_HTML.tmp#PreferedRouteLeg_minimumAltitude ARINC424_22_HTML.tmp#PreferedRouteLeg_preferedRouteUseIndicator ARINC424_22_HTML.tmp#PreferedRouteLeg_routeType ARINC424_22_HTML.tmp#PreferedRouteLeg_terminusAirportFix ARINC424_22_HTML.tmp#PreferedRouteLeg_viaCode ARINC424_22_HTML.tmp#PreferedRouteLeg_airwayRef ARINC424_22_HTML.tmp#PreferedRouteLeg_procedureRef ARINC424_22_HTML.tmp#PreferedRouteLeg_alt1 ARINC424_22_HTML.tmp#PreferedRouteLeg_alt2 ARINC424_22_HTML.tmp#PreferedRouteLeg_initialAirportFixRef ARINC424_22_HTML.tmp#PreferedRouteLeg_toTerminusFixRef
Type extension of Leg
Type hierarchy
Used by
Model
Children aircraftUsageGroup, airwayRef, alt1, alt2, altitudeDescription, areaCode, custAreaCode, cycleDate, directionRestriction, fixIdent, fixRef, initialAirportFixRef, intialAirportFix, level, maximumAltitude, minimumAltitude, notes, preferedRouteUseIndicator, procedureRef, recNavaidIdent, recNavaidRef, recordType, routeType, sequenceNumber, supplementalData, terminusAirportFix, toTerminusFixRef, viaCode
Source

<xs:complexType name="PreferedRouteLeg">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Preferred Route Leg.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Leg">
      <xs:sequence>
        <xs:element name="aircraftUsageGroup" type="type:AircraftUsageGroup" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Aircraft Use Group” field provides information on what aircraft or groups of aircraft are permitted to use a certain route.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="altitudeDescription" type="enum:AltitudeDescription" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The "Altitude Description" field will designate whether a waypoint should be crossed "at," "at or above," "at or below" or "at or above to at or below" specified altitudes. The field is also used to designate recommended altitudes and cases where two distinct altitudes are provided at a single fix.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="areaCode" type="enum:AreaCode" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Customer Area Code” field permits the categorization of standard records by geographical area and of tailored records by the airlines for whom they are provided in the master file. Several record types do not adhere to the established geographical boundaries. There is no “AREA” in such records.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="directionRestriction" type="enum:PrefferedRouteDirectionalRestriction" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Direction Restriction” field will indicate whether the routing is available only in the direction of “from initial fix to terminus fix” or in both directions.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="intialAirportFix" type="type:InitialTerminusAirportFix" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Initial Fix” and the “Terminus Fix” fields are used to define the departure airport or initial fix and the destination airport or terminus fix of a preferred route.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="level" type="enum:Level" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Level field defines the airway structure of which the record is an element.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="maximumAltitude" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Maximum Altitude” field is used to indicate the maximum altitude allowed.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="minimumAltitude" type="type:Altitude" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Altitude/Minimum Altitude” field indicates the reference altitude associated with (1) Enroute Airways (MEA, MFA or other minimum altitudes as defined by source), (2) holding pattern path of Holding Pattern record, (3) altitudes at fixes in terminal procedures and terminal procedure path termination defined by the Path Terminator in the Airport or Heliport SID/STAR/Approach Record and (4) lowest altitude of the “blocked altitudes” for a Preferred Route.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="preferedRouteUseIndicator" type="type:PreferedRouteUseIndicator" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Preferred Route Use Indicator” provides information on whether the route in question is point-to-point and therefore usable for navigation, or area-to-area and usable only as advisory information which requires further processing. The field will also provide information on whether or not RNAV equipment is required to use the route.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="routeType" type="xs:string" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Route Type” field defines the type of Enroute Airway, Preferred Route, Airport and Heliport SID/STAR/Approach Routes of which the record is an element. For Airport and Heliport SID/STAR/Approach Routes, “Route Type” includes a “primary route type,” and up to two “route type qualifiers.”</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="terminusAirportFix" type="type:InitialTerminusAirportFix" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Initial Fix” and the “Terminus Fix” fields are used to define the departure airport or initial fix and the destination airport or terminus fix of a preferred route.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="viaCode" type="enum:PreferredRouteVIACodes" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The "VIA Code" field is used to define the type of route used in the SID/STAR/Approach/Airways field (Section 5.78) on Company Route records and defines the type of route used in the AWY Identifier on Preferred Route records. On the Preferred Route records, some codes define the use, or restriction to use, of a fix or routing.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="airwayRef" type="xs:IDREF" minOccurs="0" maxOccurs="1"/>
        <xs:element name="procedureRef" type="xs:IDREF" minOccurs="0" maxOccurs="1"/>
        <xs:element name="alt1" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
        <xs:element name="alt2" type="type:Altitude" minOccurs="0" maxOccurs="1"/>
        <xs:element name="initialAirportFixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
        <xs:element name="toTerminusFixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type type:AircraftUsageGroup
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Aircraft Use Group field provides information on what aircraft or groups of aircraft are permitted to use a certain route.
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#AircraftUsageGroup_aircraftOrAircraftGroup ARINC424_22_HTML.tmp#AircraftUsageGroup_alternateAircraftorAircraftGroup
Type extension of type:Alpha
Type hierarchy
Used by
Model
Children aircraftOrAircraftGroup, alternateAircraftorAircraftGroup
Source

<xs:complexType name="AircraftUsageGroup">
  <xs:annotation>
    <xs:documentation>The Aircraft Use Group field provides information on what aircraft or groups of aircraft are permitted to use a certain route.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="type:Alpha">
      <xs:sequence>
        <xs:element name="aircraftOrAircraftGroup" type="enum:AircraftOrAircraftGroup" minOccurs="1" maxOccurs="1"/>
        <xs:element name="alternateAircraftorAircraftGroup" type="type:AircraftUsageFieldContent2" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:AircraftOrAircraftGroup
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Aircraft Use Group field provides information on what aircraft or groups of aircraft are permitted to use a certain route.
This enumeration gives the Aircraft  or Aircraft Group Code valid for Routing (Field 1)
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration All
All Aircraft
enumeration AllSpeed250OrLess
All Aircraft, Cruise speed 250 kts or less
enumeration NonJetAndTurboProp
Non-Jet and Turbo Prop
enumeration MultiEnginePropsOnly
Multi-Engine Props Only
enumeration JetsTurbopropsSpecialCruise190OrGreater
Jets and Turbo Props/Special, Cruise Speed 190 kts or greater
enumeration Helicopter
Helicopter Only
enumeration JetPower
Jet Power
enumeration TurbopropSpecialCruise190orGreater
Turbo-Prop/Special, Cruise Speed 190 kts or greater
enumeration NonJetNonTurboprop
Non-Jet, Non-Turbo Prop
enumeration NonJetCruise190OrGreater
Non-Jet, Cruise speed 190 kts or greater
enumeration NonJetCruise190OrLess
Non-Jet, Cruise speed 189 kts or less
enumeration AircraftAsDefinedInNotes
Aircraft as defined in a Notes Continuation Record
enumeration SingleEngine
Single Engine
enumeration TwinEngine
Twin Engine
Used by
Source

<xs:simpleType name="AircraftOrAircraftGroup">
  <xs:annotation>
    <xs:documentation>The Aircraft Use Group field provides information on what aircraft or groups of aircraft are permitted to use a certain route. This enumeration gives the Aircraft or Aircraft Group Code valid for Routing (Field 1)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="All">
      <xs:annotation>
        <xs:documentation>All Aircraft</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AllSpeed250OrLess">
      <xs:annotation>
        <xs:documentation>All Aircraft, Cruise speed 250 kts or less</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NonJetAndTurboProp">
      <xs:annotation>
        <xs:documentation>Non-Jet and Turbo Prop</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MultiEnginePropsOnly">
      <xs:annotation>
        <xs:documentation>Multi-Engine Props Only</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="JetsTurbopropsSpecialCruise190OrGreater">
      <xs:annotation>
        <xs:documentation>Jets and Turbo Props/Special, Cruise Speed 190 kts or greater</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Helicopter">
      <xs:annotation>
        <xs:documentation>Helicopter Only</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="JetPower">
      <xs:annotation>
        <xs:documentation>Jet Power</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TurbopropSpecialCruise190orGreater">
      <xs:annotation>
        <xs:documentation>Turbo-Prop/Special, Cruise Speed 190 kts or greater</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NonJetNonTurboprop">
      <xs:annotation>
        <xs:documentation>Non-Jet, Non-Turbo Prop</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NonJetCruise190OrGreater">
      <xs:annotation>
        <xs:documentation>Non-Jet, Cruise speed 190 kts or greater</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NonJetCruise190OrLess">
      <xs:annotation>
        <xs:documentation>Non-Jet, Cruise speed 189 kts or less</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AircraftAsDefinedInNotes">
      <xs:annotation>
        <xs:documentation>Aircraft as defined in a Notes Continuation Record</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SingleEngine">
      <xs:annotation>
        <xs:documentation>Single Engine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TwinEngine">
      <xs:annotation>
        <xs:documentation>Twin Engine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:AircraftUsageFieldContent2
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Aircraft Use Group field provides information on what aircraft or groups of aircraft are permitted to use a certain route.
Diagram
Diagram
Type restriction of xs:string
Facets
length 1
Used by
Source

<xs:simpleType name="AircraftUsageFieldContent2">
  <xs:annotation>
    <xs:documentation>The Aircraft Use Group field provides information on what aircraft or groups of aircraft are permitted to use a certain route.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:PrefferedRouteDirectionalRestriction
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Direction Restriction field, when used on Enroute Airway records, will indicate the direction an Enroute Airway is to be flown. The Direction Restriction field, when used on Preferred Route records, will indicate whether the routing is available only in the direction of from initial fix to terminus fix or in both directions.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration UniDirectional
Uni-directional Preferred Route, usable only from Initial Fix to Terminus Fix.
enumeration BiDirectional
Bi-directional Preferred Route, usable from Initial Fix to Terminus Fix or from Terminus Fix to Initial Fix.
Used by
Source

<xs:simpleType name="PrefferedRouteDirectionalRestriction">
  <xs:annotation>
    <xs:documentation>The Direction Restriction field, when used on Enroute Airway records, will indicate the direction an Enroute Airway is to be flown. The Direction Restriction field, when used on Preferred Route records, will indicate whether the routing is available only in the direction of from initial fix to terminus fix or in both directions.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="UniDirectional">
      <xs:annotation>
        <xs:documentation>Uni-directional Preferred Route, usable only from Initial Fix to Terminus Fix.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="BiDirectional">
      <xs:annotation>
        <xs:documentation>Bi-directional Preferred Route, usable from Initial Fix to Terminus Fix or from Terminus Fix to Initial Fix.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:InitialTerminusAirportFix
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Initial Fix” and the “Terminus Fix” fields are used to define the departure airport or initial fix and the destination airport or terminus fix of a preferred route.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 5
Used by
Source

<xs:simpleType name="InitialTerminusAirportFix">
  <xs:annotation>
    <xs:documentation>The “Initial Fix” and the “Terminus Fix” fields are used to define the departure airport or initial fix and the destination airport or terminus fix of a preferred route.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="5"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:PreferedRouteUseIndicator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Preferred Route Use Indicator” provides information on whether the route in question is point-to-point and therefore usable for navigation, or area-to-area and usable only as advisory information which requires further processing. The field will also provide information on whether or not RNAV equipment is required to use the route.
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#PreferedRouteUseIndicator_preferredRouteUseIndicatorPointArea ARINC424_22_HTML.tmp#PreferedRouteUseIndicator_preferredRouteUseIndicatorRNAV
Type extension of type:Alpha
Type hierarchy
Used by
Model
Children preferredRouteUseIndicatorPointArea, preferredRouteUseIndicatorRNAV
Source

<xs:complexType name="PreferedRouteUseIndicator">
  <xs:annotation>
    <xs:documentation>The “Preferred Route Use Indicator” provides information on whether the route in question is point-to-point and therefore usable for navigation, or area-to-area and usable only as advisory information which requires further processing. The field will also provide information on whether or not RNAV equipment is required to use the route.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="type:Alpha">
      <xs:sequence>
        <xs:element name="preferredRouteUseIndicatorPointArea" type="enum:PreferredRouteUseIndicatorPointArea" minOccurs="1" maxOccurs="1"/>
        <xs:element name="preferredRouteUseIndicatorRNAV" type="enum:PreferredRouteUseIndicatorRNAV" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type enum:PreferredRouteUseIndicatorPointArea
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Preferred Route Use Indicator” provides information on whether the route in question is point-to-point and therefore usable for navigation, or area-to-area and usable only as advisory information which requires further processing. The field will also provide information on whether or not RNAV equipment is required to use the route.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration P
the route is point-to-point
enumeration A
the route is area-to-area
Used by
Source

<xs:simpleType name="PreferredRouteUseIndicatorPointArea">
  <xs:annotation>
    <xs:documentation>The “Preferred Route Use Indicator” provides information on whether the route in question is point-to-point and therefore usable for navigation, or area-to-area and usable only as advisory information which requires further processing. The field will also provide information on whether or not RNAV equipment is required to use the route.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="P">
      <xs:annotation>
        <xs:documentation>the route is point-to-point</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="A">
      <xs:annotation>
        <xs:documentation>the route is area-to-area</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:PreferredRouteUseIndicatorRNAV
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Preferred Route Use Indicator” provides information on whether the route in question is point-to-point and therefore usable for navigation, or area-to-area and usable only as advisory information which requires further processing. The field will also provide information on whether or not RNAV equipment is required to use the route.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration RnavEquipRequired
RNAV equipment is required
enumeration RnavEquipNotRequired
RNAV equipment is NOT required
Used by
Source

<xs:simpleType name="PreferredRouteUseIndicatorRNAV">
  <xs:annotation>
    <xs:documentation>The “Preferred Route Use Indicator” provides information on whether the route in question is point-to-point and therefore usable for navigation, or area-to-area and usable only as advisory information which requires further processing. The field will also provide information on whether or not RNAV equipment is required to use the route.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="RnavEquipRequired">
      <xs:annotation>
        <xs:documentation>RNAV equipment is required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RnavEquipNotRequired">
      <xs:annotation>
        <xs:documentation>RNAV equipment is NOT required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:PreferredRouteVIACodes
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The "VIA Code" field is used to define the type of route used in the SID/STAR/Approach/Airways field (Section 5.78) on Company Route records and defines the type of route used in the AWY Identifier on Preferred Route records. On the Preferred Route records, some codes define the use, or restriction to use, of a fix or routing.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AWY
Designated Airway
enumeration DIR
Direct to Fix
enumeration INT
Initial Fix
enumeration RVF
Route via Fix
enumeration RNF
Route via Fix not permitted
enumeration SID
Standard Instrument Departure
enumeration STR
Standard Terminal Arrival and Profile Descent
Used by
Source

<xs:simpleType name="PreferredRouteVIACodes">
  <xs:annotation>
    <xs:documentation>The "VIA Code" field is used to define the type of route used in the SID/STAR/Approach/Airways field (Section 5.78) on Company Route records and defines the type of route used in the AWY Identifier on Preferred Route records. On the Preferred Route records, some codes define the use, or restriction to use, of a fix or routing.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AWY">
      <xs:annotation>
        <xs:documentation>Designated Airway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DIR">
      <xs:annotation>
        <xs:documentation>Direct to Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="INT">
      <xs:annotation>
        <xs:documentation>Initial Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RVF">
      <xs:annotation>
        <xs:documentation>Route via Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="RNF">
      <xs:annotation>
        <xs:documentation>Route via Fix not permitted</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SID">
      <xs:annotation>
        <xs:documentation>Standard Instrument Departure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="STR">
      <xs:annotation>
        <xs:documentation>Standard Terminal Arrival and Profile Descent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type EnrouteCommunications
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#EnrouteCommunications_enrouteCommunication
Used by
Model
Children enrouteCommunication
Source

<xs:complexType name="EnrouteCommunications">
  <xs:sequence>
    <xs:element name="enrouteCommunication" type="EnrouteCommunication" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type EnrouteCommunication
Namespace No namespace
Annotations

This following record contains the fields used in Enroute Communication Records.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Communication_location ARINC424_22_HTML.tmp#Communication_altitudeDescription ARINC424_22_HTML.tmp#Communication_communicationAltitude1 ARINC424_22_HTML.tmp#Communication_communicationAltitude2 ARINC424_22_HTML.tmp#Communication_callSign ARINC424_22_HTML.tmp#Communication_communicationClass ARINC424_22_HTML.tmp#Communication_communicationType ARINC424_22_HTML.tmp#Communication_frequencyUnits ARINC424_22_HTML.tmp#Communication_radarService ARINC424_22_HTML.tmp#Communication_h24Indicator ARINC424_22_HTML.tmp#Communication_modulation ARINC424_22_HTML.tmp#Communication_sequenceNumber ARINC424_22_HTML.tmp#Communication_signalEmission ARINC424_22_HTML.tmp#Communication_transmitFrequency ARINC424_22_HTML.tmp#Communication_receiveFrequency ARINC424_22_HTML.tmp#Communication_communicationDetails ARINC424_22_HTML.tmp#Communication_guardTransmit ARINC424_22_HTML.tmp#Communication ARINC424_22_HTML.tmp#EnrouteCommunication_firRDOIdent ARINC424_22_HTML.tmp#EnrouteCommunication_firUirRef ARINC424_22_HTML.tmp#EnrouteCommunication_positionNarrative ARINC424_22_HTML.tmp#EnrouteCommunication_serviceIndicator ARINC424_22_HTML.tmp#EnrouteCommunication_assignedSectorName
Type extension of Communication
Type hierarchy
Used by
Model
Children altitudeDescription, assignedSectorName, callSign, communicationAltitude1, communicationAltitude2, communicationClass, communicationDetails, communicationType, custAreaCode, cycleDate, firRDOIdent, firUirRef, frequencyUnits, guardTransmit, h24Indicator, location, modulation, notes, positionNarrative, radarService, receiveFrequency, recordType, sequenceNumber, serviceIndicator, signalEmission, supplementalData, transmitFrequency
Source

<xs:complexType name="EnrouteCommunication">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Enroute Communication Records.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Communication">
      <xs:sequence>
        <xs:element name="firRDOIdent" type="type:FIRRDOIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “FIR/RDO Identifier” field used on Enroute Communication records is the source provided identifier for a communication service as used in message addressing. For Information Regions (FIR/UIR) it is the four-character identifier assigned to the Information Region as published in ICAO Document 7910, Location Indicators. For Flight Service Stations, it is the three or four character identifier assigned to the station by the relevant authority. For other communication services established for enroute use and not addressable under the Information Region, Flight Service Station concept, it is the identifier assigned by the relevant authority to that station for the purpose of addressing message traffic.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="firUirRef" type="xs:IDREF" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This element provides an IDREF to identify the FIRUIR element for the parent enrouteCommunication element.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="positionNarrative" type="type:PositionNarrative" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Position Narrative” field is a textual description of the location of a communication transmitter. This may be the name of a Remote Communication Outlet, a Remote Communication Air/Ground Station or the place name of the geographical location of the transmitter site.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="serviceIndicator" type="type:EnrouteCommunicationServiceIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type (5.101).</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="assignedSectorName" type="type:AssignedSectorName" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Associated Sector Name” field is used to indicate the published name of an Enroute Communication Sector.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:FIRRDOIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “FIR/RDO Identifier” field used on Enroute Communication records is the source provided identifier for a communication service as used in message addressing. For Information Regions (FIR/UIR) it is the four-character identifier assigned to the Information Region as published in ICAO Document 7910, Location Indicators. For Flight Service Stations, it is the three or four character identifier assigned to the station by the relevant authority. For other communication services established for enroute use and not addressable under the Information Region, Flight Service Station concept, it is the identifier assigned by the relevant authority to that station for the purpose of addressing message traffic.
Diagram
Diagram
Type xs:string
Used by
Source

<xs:simpleType name="FIRRDOIdentifier">
  <xs:annotation>
    <xs:documentation>The “FIR/RDO Identifier” field used on Enroute Communication records is the source provided identifier for a communication service as used in message addressing. For Information Regions (FIR/UIR) it is the four-character identifier assigned to the Information Region as published in ICAO Document 7910, Location Indicators. For Flight Service Stations, it is the three or four character identifier assigned to the station by the relevant authority. For other communication services established for enroute use and not addressable under the Information Region, Flight Service Station concept, it is the identifier assigned by the relevant authority to that station for the purpose of addressing message traffic.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Simple Type type:PositionNarrative
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Position Narrative” field is a textual description of the location of a communication transmitter. This may be the name of a Remote Communication Outlet, a Remote Communication Air/Ground Station or the place name of the geographical location of the transmitter site.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 25
Used by
Source

<xs:simpleType name="PositionNarrative">
  <xs:annotation>
    <xs:documentation>The “Position Narrative” field is a textual description of the location of a communication transmitter. This may be the name of a Remote Communication Outlet, a Remote Communication Air/Ground Station or the place name of the geographical location of the transmitter site.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="25"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:EnrouteCommunicationServiceIndicator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Service Indicator field is used to further define the use of the frequency for the specified Communication Type (5.101).
Diagram
Diagram ARINC424_22_HTML.tmp#EnrouteCommunicationServiceIndicator_serviceIndicatorEnrouteFrequency ARINC424_22_HTML.tmp#EnrouteCommunicationServiceIndicator_serviceIndicatorEnrouteInformation ARINC424_22_HTML.tmp#EnrouteCommunicationServiceIndicator_serviceIndicatorEnrouteService
Used by
Model
Children serviceIndicatorEnrouteFrequency, serviceIndicatorEnrouteInformation, serviceIndicatorEnrouteService
Source

<xs:complexType name="EnrouteCommunicationServiceIndicator">
  <xs:annotation>
    <xs:documentation>The Service Indicator field is used to further define the use of the frequency for the specified Communication Type (5.101).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="serviceIndicatorEnrouteFrequency" type="enum:ServiceIndicatorEnrouteFrequency" minOccurs="0" maxOccurs="1"/>
    <xs:element name="serviceIndicatorEnrouteInformation" type="enum:ServiceIndicatorEnrouteInformation" minOccurs="0" maxOccurs="1"/>
    <xs:element name="serviceIndicatorEnrouteService" type="enum:ServiceIndicatorEnrouteService" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:ServiceIndicatorEnrouteFrequency
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Service Indicator field is used to further define the use of the frequency for the specified Communication Type.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AirGround
Air/Ground
enumeration Distance
Discrete Frequency
enumeration MF
Mandatory Frequency (MF)
enumeration SF
Secondary Frequency
Used by
Source

<xs:simpleType name="ServiceIndicatorEnrouteFrequency">
  <xs:annotation>
    <xs:documentation>The Service Indicator field is used to further define the use of the frequency for the specified Communication Type.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AirGround">
      <xs:annotation>
        <xs:documentation>Air/Ground</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Distance">
      <xs:annotation>
        <xs:documentation>Discrete Frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MF">
      <xs:annotation>
        <xs:documentation>Mandatory Frequency (MF)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SF">
      <xs:annotation>
        <xs:documentation>Secondary Frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ServiceIndicatorEnrouteInformation
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Service Indicator field is used to further define the use of the frequency for the specified Communication Type.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Vdf
VHF Direction Finding Service (VDF)
enumeration NotEnglish
Language other than English
enumeration MilitaryUseFreq
Military Use Frequency
Used by
Source

<xs:simpleType name="ServiceIndicatorEnrouteInformation">
  <xs:annotation>
    <xs:documentation>The Service Indicator field is used to further define the use of the frequency for the specified Communication Type.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Vdf">
      <xs:annotation>
        <xs:documentation>VHF Direction Finding Service (VDF)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NotEnglish">
      <xs:annotation>
        <xs:documentation>Language other than English</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MilitaryUseFreq">
      <xs:annotation>
        <xs:documentation>Military Use Frequency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ServiceIndicatorEnrouteService
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AEI
Aeronautical Enroute Information
enumeration FIS
Flight Information Service (FIS)
Used by
Source

<xs:simpleType name="ServiceIndicatorEnrouteService">
  <xs:annotation>
    <xs:documentation>The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AEI">
      <xs:annotation>
        <xs:documentation>Aeronautical Enroute Information</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FIS">
      <xs:annotation>
        <xs:documentation>Flight Information Service (FIS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:AssignedSectorName
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Associated Sector Name” field is used to indicate the published name of an Enroute Communication Sector.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 25
Used by
Source

<xs:simpleType name="AssignedSectorName">
  <xs:annotation>
    <xs:documentation>The “Associated Sector Name” field is used to indicate the published name of an Enroute Communication Sector.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="25"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type GeographicalReferences
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#GeographicalReferences_geographicalReference
Used by
Model
Children geographicalReference
Source

<xs:complexType name="GeographicalReferences">
  <xs:sequence>
    <xs:element name="geographicalReference" type="GeographicalReference" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type GeographicalReference
Namespace No namespace
Annotations

The Geographical Reference Table file contains information that permits the cross referencing of otherwise undefined geographical entities and Route Identifiers in the Preferred Route file. The contents are not standardized and may vary from data supplier to data supplier. The contents of such a file can only be used in conjunction with the Preferred Route file of the same database in which the file is presented.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#GeographicalReference_geographicalEntity ARINC424_22_HTML.tmp#GeographicalReference_GeographicalRefTableID ARINC424_22_HTML.tmp#GeographicalReference_preferredRouteDetails
Type extension of A424Record
Type hierarchy
Used by
Model
Children GeographicalRefTableID, custAreaCode, cycleDate, geographicalEntity, notes, preferredRouteDetails, recordType, supplementalData
Source

<xs:complexType name="GeographicalReference">
  <xs:annotation>
    <xs:documentation>The Geographical Reference Table file contains information that permits the cross referencing of otherwise undefined geographical entities and Route Identifiers in the Preferred Route file. The contents are not standardized and may vary from data supplier to data supplier. The contents of such a file can only be used in conjunction with the Preferred Route file of the same database in which the file is presented.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="geographicalEntity" type="type:GeographicalEntity" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Geographical Reference Table will be used to identify “Geographical Entities” not definable by other established encoding systems. For established systems refer to Section 7 of this document.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="GeographicalRefTableID" type="type:GeographicalReferenceTableIdentifier" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Geographical Reference Table Identifier” will be used to provide a unique identification for each Geographical Entity. As the “Geographical Entity” field is a large field with no established content, this two character code will act as a pseudo key for the record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="preferredRouteDetails" type="type:PreferredRouteDetails" minOccurs="1" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>This class is an abstraction used to represent the details Preferred Route Identifier and Preferred Route Use Indicator.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:GeographicalEntity
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Geographical Reference Table will be used to identify “Geographical Entities” not definable by other established encoding systems. For established systems refer to Section 7 of this document.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 29
Used by
Source

<xs:simpleType name="GeographicalEntity">
  <xs:annotation>
    <xs:documentation>The Geographical Reference Table will be used to identify “Geographical Entities” not definable by other established encoding systems. For established systems refer to Section 7 of this document.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="29"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:GeographicalReferenceTableIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Geographical Reference Table Identifier” will be used to provide a unique identification for each Geographical Entity. As the “Geographical Entity” field is a large field with no established content, this two character code will act as a pseudo key for the record.
Diagram
Diagram ARINC424_22_HTML.tmp#GeographicalReferenceTableIdentifier_geographicalReferenceTableIdentifierPos1 ARINC424_22_HTML.tmp#GeographicalReferenceTableIdentifier_geographicalReferenceTableIdentifierPos2
Used by
Model
Children geographicalReferenceTableIdentifierPos1, geographicalReferenceTableIdentifierPos2
Source

<xs:complexType name="GeographicalReferenceTableIdentifier">
  <xs:annotation>
    <xs:documentation>The “Geographical Reference Table Identifier” will be used to provide a unique identification for each Geographical Entity. As the “Geographical Entity” field is a large field with no established content, this two character code will act as a pseudo key for the record.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="geographicalReferenceTableIdentifierPos1" type="type:GeographicalReferenceTableIdentifierPos1" minOccurs="1" maxOccurs="1"/>
    <xs:element name="geographicalReferenceTableIdentifierPos2" type="type:GeographicalReferenceTableIdentifierPos2" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:GeographicalReferenceTableIdentifierPos1
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type restriction of xs:string
Facets
length 1
Used by
Source

<xs:simpleType name="GeographicalReferenceTableIdentifierPos1">
  <xs:restriction base="xs:string">
    <xs:length value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:GeographicalReferenceTableIdentifierPos2
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 1
Used by
Source

<xs:simpleType name="GeographicalReferenceTableIdentifierPos2">
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:PreferredRouteDetails
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class is an abstraction used to represent the details Preferred Route Identifier and Preferred Route Use Indicator.
Diagram
Diagram ARINC424_22_HTML.tmp#PreferredRouteDetails_preferedRouteIdentifier ARINC424_22_HTML.tmp#PreferredRouteDetails_preferredRouteUseIndicator
Used by
Model
Children preferedRouteIdentifier, preferredRouteUseIndicator
Source

<xs:complexType name="PreferredRouteDetails">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details Preferred Route Identifier and Preferred Route Use Indicator.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="preferedRouteIdentifier" type="type:RouteIdentifier" minOccurs="0" maxOccurs="1"/>
    <xs:element name="preferredRouteUseIndicator" type="type:PreferedRouteUseIndicator" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type GridMoras
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#GridMoras_gridMora
Used by
Model
Children gridMora
Source

<xs:complexType name="GridMoras">
  <xs:sequence>
    <xs:element name="gridMora" type="GridMora" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type GridMora
Namespace No namespace
Annotations

This following record contains the fields used in Grid Mora Record.  The Grid MORA table will contain records describing the MORA for each Latitude and Longitude block. Each record will contain thirty blocks and the “Starting Longitude” field defines the lower left corner for the first block of each record.  Grid MORA values clear all terrain and obstructions by 1000 feet in areas where the highest elevations are 5000 feet MSL or lower. MORA values clear all terrain by 2000 feet in areas where the highest elevations are 5001 feet MSL or higher.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#GridMora_startingPosition ARINC424_22_HTML.tmp#GridMora_mora
Type extension of A424Record
Type hierarchy
Used by
Model
Children custAreaCode, cycleDate, mora, notes, recordType, startingPosition, supplementalData
Source

<xs:complexType name="GridMora">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Grid Mora Record. The Grid MORA table will contain records describing the MORA for each Latitude and Longitude block. Each record will contain thirty blocks and the “Starting Longitude” field defines the lower left corner for the first block of each record. Grid MORA values clear all terrain and obstructions by 1000 feet in areas where the highest elevations are 5000 feet MSL or lower. MORA values clear all terrain by 2000 feet in areas where the highest elevations are 5001 feet MSL or higher.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="startingPosition" type="type:Location" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Latitude and Longitude details of the lower left corner of the block of MORAs.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="mora" type="type:GridMORA" minOccurs="30" maxOccurs="30">
          <xs:annotation>
            <xs:documentation>Grid Minimum Off-route Altitude (MORA) provides terrain and obstruction clearance within a one degree of latitude by one degree of longitude block. The first MORA in the list is for the block whose lower left corner is given by the startingPosition field. Each successive block is one degree of longitude east of the prior block. Within a single record, each MORA has the same latitude.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type type:GridMORA
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Grid Minimum Off-route Altitudes (MORA) provides terrain and obstruction clearance within the section defined by the enclosing record.  For unknown MORAs, the isUnknown flag will be set to true, and the altitude field will not be set.
Diagram
Diagram ARINC424_22_HTML.tmp#GridMORA_isUnknown ARINC424_22_HTML.tmp#GridMORA_altitude
Used by
Element GridMora/mora
Model
Children altitude, isUnknown
Source

<xs:complexType name="GridMORA">
  <xs:annotation>
    <xs:documentation>Grid Minimum Off-route Altitudes (MORA) provides terrain and obstruction clearance within the section defined by the enclosing record. For unknown MORAs, the isUnknown flag will be set to true, and the altitude field will not be set.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="isUnknown" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="altitude" type="type:AltitudeValue" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type HoldingPatterns
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#HoldingPatterns_holdingPattern
Used by
Model
Children holdingPattern
Source

<xs:complexType name="HoldingPatterns">
  <xs:sequence>
    <xs:element name="holdingPattern" type="HoldingPattern" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type HoldingPattern
Namespace No namespace
Annotations

This following record contains the fields used in Holding Pattern Records.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#HoldingPattern_isEnroute ARINC424_22_HTML.tmp#HoldingPattern_arcRadius ARINC424_22_HTML.tmp#HoldingPattern_duplicateIndicator ARINC424_22_HTML.tmp#HoldingPattern_holdingPatternName ARINC424_22_HTML.tmp#HoldingPattern_holdingSpeed ARINC424_22_HTML.tmp#HoldingPattern_holdingTime ARINC424_22_HTML.tmp#HoldingPattern_holdingDistance ARINC424_22_HTML.tmp#HoldingPattern_inboundHoldingCourse ARINC424_22_HTML.tmp#HoldingPattern_legInboundOutboundIndicator ARINC424_22_HTML.tmp#HoldingPattern_maximumAltitude ARINC424_22_HTML.tmp#HoldingPattern_minimumAltitude ARINC424_22_HTML.tmp#HoldingPattern_RNP ARINC424_22_HTML.tmp#HoldingPattern_rvsmMaximumLevel ARINC424_22_HTML.tmp#HoldingPattern_rvsmMinimumLevel ARINC424_22_HTML.tmp#HoldingPattern_turnDirection ARINC424_22_HTML.tmp#HoldingPattern_verticalScaleFactor ARINC424_22_HTML.tmp#HoldingPattern_fixIdentifier ARINC424_22_HTML.tmp#HoldingPattern_fixRef ARINC424_22_HTML.tmp#HoldingPattern_portRef
Type extension of A424Record
Type hierarchy
Used by
Model
Children RNP, arcRadius, custAreaCode, cycleDate, duplicateIndicator, fixIdentifier, fixRef, holdingDistance, holdingPatternName, holdingSpeed, holdingTime, inboundHoldingCourse, isEnroute, legInboundOutboundIndicator, maximumAltitude, minimumAltitude, notes, portRef, recordType, rvsmMaximumLevel, rvsmMinimumLevel, supplementalData, turnDirection, verticalScaleFactor
Source

<xs:complexType name="HoldingPattern">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Holding Pattern Records.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="A424Record">
      <xs:sequence>
        <xs:element name="isEnroute" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
        <xs:element name="arcRadius" type="type:ARCRadius" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “ARC Radius” field is used to define the radius of a precision turn. In Terminal Procedures, this is the “Constant Radius To A Fix” Path and Termination, for “RF” Leg. In Holding Patterns, this is the turning radius, inbound to outbound leg, for RNP Holding. The ARC Radius field is also used to specify the turn radius of RNP holding patterns included in SID, STAR, and Approach Records as HA, HF, and HM legs.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="duplicateIndicator" type="type:DuplicateIndicator" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Duplicate Identifier” field is used to further define holding patterns when official government source has designated more than one Holding Pattern on a Navaid or Waypoint.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="holdingPatternName" type="type:Name" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Name” field defines the name commonly applied to the navigation entity defined in the record.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="holdingSpeed" type="type:HoldingSpeed" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Holding Speed” will be the maximum speed in a holding pattern.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="holdingTime" type="xs:duration" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Leg Time field specifies the length of the inbound leg or outbound of a holding pattern in units of time. The determination of inbound or outbound is identified by the content of Section 5.298 of the applicable record. Inbound is defined as the timing between the point at which the aircraft rolls out on the inbound leg of the holding pattern and the fix at which the holding pattern is defined. Outbound is defined as the timing from a point abeam the holding fix to the beginning of the inbound turn.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="holdingDistance" type="type:HoldingLegLength" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Leg Length field specifies the distance of either the inbound leg or the outbound leg of the holding pattern. The determination of inbound or outbound is identified by the content of Section 5.298 of the applicable record. Inbound is defined as the distance between the point at which the aircraft rolls out on the inbound leg of the holding pattern and the fix at which the holding pattern is defined. Outbound is defined as the distance from a point abeam the holding fix to the beginning of the inbound turn.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="inboundHoldingCourse" type="type:Course" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Inbound Holding Course field defines the inbound course to the holding waypoint.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="legInboundOutboundIndicator" type="enum:LegInboundOutboundIndicator" minOccurs="0" maxOccurs="1"/>
        <xs:element name="maximumAltitude" type="type:AltitudeLimit" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Maximum Altitude” field is used to indicate the maximum altitude allowed.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="minimumAltitude" type="type:Altitude" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Altitude/Minimum Altitude” field indicates the reference altitude associated with (1) Enroute Airways (MEA, MFA or other minimum altitudes as defined by source), (2) holding pattern path of Holding Pattern record, (3) altitudes at fixes in terminal procedures and terminal procedure path termination defined by the Path Terminator in the Airport or Heliport SID/STAR/Approach Record and (4) lowest altitude of the “blocked altitudes” for a Preferred Route.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="RNP" type="type:RequiredNavigationPerformance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Required Navigation Performance (RNP) is a statement of the Navigation Performance necessary for operation within a defined airspace in accordance with ICAO Annex 15 and/or State published rules.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rvsmMaximumLevel" type="type:FlightLevel" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>RVSM Maximum Level is the highest defined cruising level for an airway or holding pattern.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rvsmMinimumLevel" type="type:FlightLevel" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>RVSM Minimum Level is the lowest defined cruising level for an airway or holding pattern.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="turnDirection" type="enum:Turn" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Turn” field specifies the direction in which holding pattern turns are to be made.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="verticalScaleFactor" type="type:VerticalScaleFactor" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Vertical Scale Factor (VSF) is used to set the vertical deviation scale.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="fixIdentifier" type="type:CoreIdentifier" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Fix Identifier” field contains the five-character-name-code, or other series of characters, with which the fix is identified. This includes Waypoint Identifiers, VHF NAVAID Identifiers, NDB NAVAID identifier, Airport Identifiers, and Runway Identifiers</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="fixRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
        <xs:element name="portRef" type="type:PointReference" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type type:DuplicateIndicator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Duplicate Indicator” field is used to further define holding patterns when official government source has designated more than one Holding Pattern on a Navaid or Waypoint.
Diagram
Diagram ARINC424_22_HTML.tmp#Numeric ARINC424_22_HTML.tmp#DuplicateIndicator_duplicatorIndicatorPos1 ARINC424_22_HTML.tmp#DuplicateIndicator_duplicatorIndicatorPos2
Type extension of type:Numeric
Type hierarchy
Used by
Model
Children duplicatorIndicatorPos1, duplicatorIndicatorPos2
Source

<xs:complexType name="DuplicateIndicator">
  <xs:annotation>
    <xs:documentation>The “Duplicate Indicator” field is used to further define holding patterns when official government source has designated more than one Holding Pattern on a Navaid or Waypoint.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="type:Numeric">
      <xs:sequence>
        <xs:element name="duplicatorIndicatorPos1" type="enum:DuplicateIndicatorPos1" minOccurs="1" maxOccurs="1"/>
        <xs:element name="duplicatorIndicatorPos2" type="type:DuplicateIndicatorPos2" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type type:Numeric
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This Class represents the "Numeric" character type of the Arinc 424 data.
Diagram
Diagram
Used by
Model
Source

<xs:complexType name="Numeric">
  <xs:annotation>
    <xs:documentation>This Class represents the "Numeric" character type of the Arinc 424 data.</xs:documentation>
  </xs:annotation>
  <xs:sequence/>
</xs:complexType>
[ top ]
Simple Type enum:DuplicateIndicatorPos1
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Duplicate Indicator” field is used to further define holding patterns when official government source has designated more than one Holding Pattern on a Navaid or Waypoint.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Undefined
Undefined (None Defined)
enumeration HighAlt
High Altitude
enumeration LowAlt
Low Altitude
enumeration Sid
SID
enumeration Star
STAR
enumeration Approach
Approach
enumeration MissedApproach
Missed Approach
enumeration Undefined
Undefined (with other defined)
enumeration AllAlt
All Altitude
Used by
Source

<xs:simpleType name="DuplicateIndicatorPos1">
  <xs:annotation>
    <xs:documentation>The “Duplicate Indicator” field is used to further define holding patterns when official government source has designated more than one Holding Pattern on a Navaid or Waypoint.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Undefined">
      <xs:annotation>
        <xs:documentation>Undefined (None Defined)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HighAlt">
      <xs:annotation>
        <xs:documentation>High Altitude</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LowAlt">
      <xs:annotation>
        <xs:documentation>Low Altitude</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Sid">
      <xs:annotation>
        <xs:documentation>SID</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Star">
      <xs:annotation>
        <xs:documentation>STAR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Approach">
      <xs:annotation>
        <xs:documentation>Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MissedApproach">
      <xs:annotation>
        <xs:documentation>Missed Approach</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Undefined">
      <xs:annotation>
        <xs:documentation>Undefined (with other defined)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AllAlt">
      <xs:annotation>
        <xs:documentation>All Altitude</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:DuplicateIndicatorPos2
Namespace http://www.arinc424.com/xml/datatypes
Annotations

Position Two Multiple

If there is only one holding pattern on a given fix within an airspace structure, position 2 will contain a 0.  For additional (multiple) holdings on that same fix within the same airspace structure, position 2 will be incremented by 1, e.g. 0 for the first 1 for the second, etc.
Diagram
Diagram
Type xs:unsignedInt
Used by
Source

<xs:simpleType name="DuplicateIndicatorPos2">
  <xs:annotation>
    <xs:documentation>Position Two Multiple If there is only one holding pattern on a given fix within an airspace structure, position 2 will contain a 0. For additional (multiple) holdings on that same fix within the same airspace structure, position 2 will be incremented by 1, e.g. 0 for the first 1 for the second, etc.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt"/>
</xs:simpleType>
[ top ]
Simple Type type:HoldingSpeed
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Holding Speed” will be the maximum speed in a holding pattern.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="HoldingSpeed">
  <xs:annotation>
    <xs:documentation>The “Holding Speed” will be the maximum speed in a holding pattern.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:HoldingLegLength
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Leg Length field specifies the distance of either the inbound leg or the outbound leg of the holding pattern. The determination of inbound or outbound is identified by the content of Section 5.298 of the applicable record. Inbound is defined as the distance between the point at which the aircraft rolls out on the inbound leg of the holding pattern and the fix at which the holding pattern is defined. Outbound is defined as the distance from a point abeam the holding fix to the beginning of the inbound turn (Figure 5-4).
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceNM
Type restriction of type:DistanceNM
Type hierarchy
Facets
totalDigits 3
fractionDigits 1
Used by
Source

<xs:simpleType name="HoldingLegLength">
  <xs:annotation>
    <xs:documentation>The Leg Length field specifies the distance of either the inbound leg or the outbound leg of the holding pattern. The determination of inbound or outbound is identified by the content of Section 5.298 of the applicable record. Inbound is defined as the distance between the point at which the aircraft rolls out on the inbound leg of the holding pattern and the fix at which the holding pattern is defined. Outbound is defined as the distance from a point abeam the holding fix to the beginning of the inbound turn (Figure 5-4).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceNM">
    <xs:totalDigits value="3"/>
    <xs:fractionDigits value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:Turn
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Turn field specifies the direction in which holding pattern turns are to be made.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Left
Left
enumeration Right
Right
Used by
Source

<xs:simpleType name="Turn">
  <xs:annotation>
    <xs:documentation>The Turn field specifies the direction in which holding pattern turns are to be made.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Left">
      <xs:annotation>
        <xs:documentation>Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Right">
      <xs:annotation>
        <xs:documentation>Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:UUID
Namespace http://www.arinc424.com/xml/datatypes
Annotations

A Universally Unique Identifier (UUID) consists of 32 hexadecimal digits, displayed in 5 groups separated by hyphens, in the form 8-4-4-4-12 for a total of 36 characters (32 digits and 4 hyphens). For example: 550e8400-e29b-41d4-a716-446655440000. See RFC 4122 for further details
Diagram
Diagram
Type restriction of xs:string
Facets
length 36
pattern [0-9a-fA-F]{8}-[0-9a-fA-F]{4}-[0-9a-fA-F]{4}-[0-9a-fA-F]{4}-[0-9a-fA-F]{12}
Used by
Source

<xs:simpleType name="UUID">
  <xs:annotation>
    <xs:documentation>A Universally Unique Identifier (UUID) consists of 32 hexadecimal digits, displayed in 5 groups separated by hyphens, in the form 8-4-4-4-12 for a total of 36 characters (32 digits and 4 hyphens). For example: 550e8400-e29b-41d4-a716-446655440000. See RFC 4122 for further details</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[0-9a-fA-F]{8}-[0-9a-fA-F]{4}-[0-9a-fA-F]{4}-[0-9a-fA-F]{4}-[0-9a-fA-F]{12}"/>
    <xs:length value="36"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:HelicopterProcedureCourse
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Helicopter Procedure Course field is used on Path Point Continuation Records to define the final approach course of procedures designed for helicopter operations to runways, to helipads, and to points in space..
Diagram
Diagram ARINC424_22_HTML.tmp#CourseValue
Type restriction of type:CourseValue
Type hierarchy
Facets
totalDigits 3
fractionDigits 0
maxInclusive 360
minInclusive 0
Source

<xs:simpleType name="HelicopterProcedureCourse">
  <xs:annotation>
    <xs:documentation>The Helicopter Procedure Course field is used on Path Point Continuation Records to define the final approach course of procedures designed for helicopter operations to runways, to helipads, and to points in space..</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:CourseValue">
    <xs:totalDigits value="3"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:ILSDMEBias
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This field is used to specify the DME offset
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceNMTwoDigits
Type type:DistanceNMTwoDigits
Type hierarchy
Facets
totalDigits 2
fractionDigits 1
Used by
Source

<xs:simpleType name="ILSDMEBias">
  <xs:annotation>
    <xs:documentation>This field is used to specify the DME offset</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceNMTwoDigits"/>
</xs:simpleType>
[ top ]
Simple Type type:FrequencyProtectionDistance
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Frequency Protection Distance” field provides an indication of the distance to the next nearest NAVAID on the same frequency.
Diagram
Diagram ARINC424_22_HTML.tmp#DistanceIntegerNM
Type restriction of type:DistanceIntegerNM
Type hierarchy
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="FrequencyProtectionDistance">
  <xs:annotation>
    <xs:documentation>The “Frequency Protection Distance” field provides an indication of the distance to the next nearest NAVAID on the same frequency.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="type:DistanceIntegerNM">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:WaypointNameDescription
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Waypoint Name/Description” field sets the unabbreviated name of a named waypoint or a definition of an unnamed waypoint.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 25
Source

<xs:simpleType name="WaypointNameDescription">
  <xs:annotation>
    <xs:documentation>The “Waypoint Name/Description” field sets the unabbreviated name of a named waypoint or a definition of an unnamed waypoint.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="25"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:ApproachWaypointDescription
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class represents the additional waypoint description information used by approach procedure legs.
Diagram
Diagram ARINC424_22_HTML.tmp#ApproachWaypointDescription_isEngineOutDisarmPoint ARINC424_22_HTML.tmp#ApproachWaypointDescription_isFACF ARINC424_22_HTML.tmp#ApproachWaypointDescription_isMissedApproachPoint ARINC424_22_HTML.tmp#ApproachWaypointDescription_isFAF ARINC424_22_HTML.tmp#ApproachWaypointDescription_isFinalEndPoint ARINC424_22_HTML.tmp#ApproachWaypointDescription_isFixTurningFinalApproach ARINC424_22_HTML.tmp#ApproachWaypointDescription_isInitialApproachFix ARINC424_22_HTML.tmp#ApproachWaypointDescription_isIntermediateApproachFix ARINC424_22_HTML.tmp#ApproachWaypointDescription_stepDownFix
Used by
Model
Children isEngineOutDisarmPoint, isFACF, isFAF, isFinalEndPoint, isFixTurningFinalApproach, isInitialApproachFix, isIntermediateApproachFix, isMissedApproachPoint, stepDownFix
Source

<xs:complexType name="ApproachWaypointDescription">
  <xs:annotation>
    <xs:documentation>This class represents the additional waypoint description information used by approach procedure legs.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="isEngineOutDisarmPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFACF" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isMissedApproachPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFAF" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFinalEndPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isFixTurningFinalApproach" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Step-down fix on the final approach coding indicating a segment course change that is greater than or equal to one degree different than the next leg. All RF non-procedure fixes on the final approach coding meet this requirement. This code will take precedence over a step-down fix code at the same fix.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isInitialApproachFix" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>An Initial Approach Fix is that fix designated by the government source documentations as the fix at which the Initial Approach segment begins. An Approach Procedure may have no IAF or multiple IAFs waypoints.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isIntermediateApproachFix" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>An Intermediate Fix is a fix designated by government source documentation as the fix at which the Intermediate Approach Segment of the approach begins</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="stepDownFix" type="enum:StepDownFix" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:StepDownFix
Namespace http://www.arinc424.com/xml/enumerations
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration unnamedInFinalApproachSegment
enumeration unnamedInIntermediateApproachSegment
enumeration named
Used by
Source

<xs:simpleType name="StepDownFix">
  <xs:restriction base="xs:string">
    <xs:enumeration value="unnamedInFinalApproachSegment"/>
    <xs:enumeration value="unnamedInIntermediateApproachSegment"/>
    <xs:enumeration value="named"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:VerticalAngle
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Vertical Angle” field defines the angular portion of vertical navigation path in STAR Route and Approach Procedure Route records. The Vertical Angle should cause the aircraft to fly at the last coded altitude and then descend on the VNAV path, projected back from the fix and altitude contained in the route sequence that contains the Vertical Angle.
Diagram
Diagram
Type restriction of xs:decimal
Facets
maxExclusive 15
minInclusive 0
Used by
Source

<xs:simpleType name="VerticalAngle">
  <xs:annotation>
    <xs:documentation>The “Vertical Angle” field defines the angular portion of vertical navigation path in STAR Route and Approach Procedure Route records. The Vertical Angle should cause the aircraft to fly at the last coded altitude and then descend on the VNAV path, projected back from the fix and altitude contained in the route sequence that contains the Vertical Angle.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:maxExclusive value="15"/>
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:DecisionHeight
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Decision Height” fields are used to specify a specific height in the precision approach at which a missed approach must be initiated if the required visual reference to continue the approach has not been established
Diagram
Diagram
Type xs:int
Used by
Source

<xs:simpleType name="DecisionHeight">
  <xs:annotation>
    <xs:documentation>The “Decision Height” fields are used to specify a specific height in the precision approach at which a missed approach must be initiated if the required visual reference to continue the approach has not been established</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int"/>
</xs:simpleType>
[ top ]
Simple Type type:MinimumDescentHeight
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Minimum Descent Height fields specify the lowest height, expressed in feet, to which descent is authorized on final approach or during circle-toland maneuvering in execution of a standard instrument approach procedure where no electric glide slope is provided.
Diagram
Diagram
Type xs:int
Used by
Source

<xs:simpleType name="MinimumDescentHeight">
  <xs:annotation>
    <xs:documentation>The Minimum Descent Height fields specify the lowest height, expressed in feet, to which descent is authorized on final approach or during circle-toland maneuvering in execution of a standard instrument approach procedure where no electric glide slope is provided.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:int"/>
</xs:simpleType>
[ top ]
Simple Type type:EnrouteAlternateAirportHeliport
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Enroute Alternate Airport/Heliport” field identifies the most suitable emergency airport or heliport along a Company Route or Helicopter Operations Company Route.
Diagram
Diagram
Type restriction of xs:string
Facets
length 4
Source

<xs:simpleType name="EnrouteAlternateAirportHeliport">
  <xs:annotation>
    <xs:documentation>The “Enroute Alternate Airport/Heliport” field identifies the most suitable emergency airport or heliport along a Company Route or Helicopter Operations Company Route.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:RegionCode
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Region Code” permits the categorization of waypoints and holding patterns as either enroute or terminal area waypoints. In the latter case the terminal area airport is identified in the field.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 4
Source

<xs:simpleType name="RegionCode">
  <xs:annotation>
    <xs:documentation>The “Region Code” permits the categorization of waypoints and holding patterns as either enroute or terminal area waypoints. In the latter case the terminal area airport is identified in the field.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:NavaidLimitation
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class represends the information in the 424 navaid limitation continuation record.
Diagram
Diagram ARINC424_22_HTML.tmp#NavaidLimitation_navaidLimitationCode ARINC424_22_HTML.tmp#NavaidLimitation_componentAffectedIndicator ARINC424_22_HTML.tmp#NavaidLimitation_sectorDetails ARINC424_22_HTML.tmp#NavaidLimitation_sequenceEndIndicator
Used by
Model
Children componentAffectedIndicator, navaidLimitationCode, sectorDetails, sequenceEndIndicator
Source

<xs:complexType name="NavaidLimitation">
  <xs:annotation>
    <xs:documentation>This class represends the information in the 424 navaid limitation continuation record.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="navaidLimitationCode" type="enum:NavaidLimitationCode" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Navaid Limitation Codes” field is used to define the type of limitation to be expected with a VHF Navaid.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="componentAffectedIndicator" type="enum:ComponentAffectedIndicator" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The VHF Navaid File contains navaids that have one or two components - azimuth and/or distance. Published limitations may apply to one or both of the components. The “Component Affected Indicator” defines which component(s) are affected by the limitation.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sectorDetails" type="type:SectorDetails" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>This class is an abstraction used to represent the details for a Sector.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sequenceEndIndicator" type="type:SequenceEndIndicator" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Sequence End Indicator” field is used to define the end of a set of sequences defining a given limitation to a given VHF Navaid Component or Component pair.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:NavaidLimitationCode
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Navaid Limitation Codes field is used to define the type of limitation to be expected with a VHF Navaid.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Coverage
Coverage, the limitations are expressed as maximum reception reliability
enumeration Fluctuations
Fluctuations, radial(s) are affected by course fluctuations.
enumeration Roughness
Roughness, signal roughness experienced in the sector(s) defined.
enumeration Unreliable
Unreliable in the sector(s), at the altitude(s), at the distance(s) defined.
enumeration Restricted
Restricted in the sector(s), at the altitude(s), at the distance(s) defined
enumeration Unusable
Unusable in the sector(s), at the altitude(s), at the distance(s) defined.
enumeration OutOfTollerance
Out of Tolerance in the sector(s), at the altitude(s), at the distance(s) defined.
Used by
Source

<xs:simpleType name="NavaidLimitationCode">
  <xs:annotation>
    <xs:documentation>The Navaid Limitation Codes field is used to define the type of limitation to be expected with a VHF Navaid.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Coverage">
      <xs:annotation>
        <xs:documentation>Coverage, the limitations are expressed as maximum reception reliability</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Fluctuations">
      <xs:annotation>
        <xs:documentation>Fluctuations, radial(s) are affected by course fluctuations.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Roughness">
      <xs:annotation>
        <xs:documentation>Roughness, signal roughness experienced in the sector(s) defined.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Unreliable">
      <xs:annotation>
        <xs:documentation>Unreliable in the sector(s), at the altitude(s), at the distance(s) defined.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Restricted">
      <xs:annotation>
        <xs:documentation>Restricted in the sector(s), at the altitude(s), at the distance(s) defined</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Unusable">
      <xs:annotation>
        <xs:documentation>Unusable in the sector(s), at the altitude(s), at the distance(s) defined.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OutOfTollerance">
      <xs:annotation>
        <xs:documentation>Out of Tolerance in the sector(s), at the altitude(s), at the distance(s) defined.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ComponentAffectedIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The VHF Navaid File contains navaids that have one or two components - azimuth and/or distance. Published limitations may apply to one or both of the components. The “Component Affected Indicator” defines which component(s) are affected by the limitation.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration TacanOrVortacAzimuth
TACAN or VORTAC, TACAN azimuth component only affected.
enumeration VorDmeOrVortacAzimuthAndDistance
VORDME or VORTAC, both azimuth and distance component affected.
enumeration VordmeOrDmeDistance
VORDME or DME, distance component only affected.
enumeration VortacOrTacanAzimth
VORTAC or TACAN, TACAN azimuth and distance component affected.
enumeration TacanVortacDistance
TACAN or VORTAC, distance component affected.
enumeration VorOrVordmeOrVorAzimuth
VOR, VORDME or VORDME, VOR azimuth component affected
enumeration VorOrVordmeOrTacanOrVortacanAzimuth
VOR, VORDME or TACAN, VOR and TACAN azimuth and distance component affected.
Used by
Source

<xs:simpleType name="ComponentAffectedIndicator">
  <xs:annotation>
    <xs:documentation>The VHF Navaid File contains navaids that have one or two components - azimuth and/or distance. Published limitations may apply to one or both of the components. The “Component Affected Indicator” defines which component(s) are affected by the limitation.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="TacanOrVortacAzimuth">
      <xs:annotation>
        <xs:documentation>TACAN or VORTAC, TACAN azimuth component only affected.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VorDmeOrVortacAzimuthAndDistance">
      <xs:annotation>
        <xs:documentation>VORDME or VORTAC, both azimuth and distance component affected.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VordmeOrDmeDistance">
      <xs:annotation>
        <xs:documentation>VORDME or DME, distance component only affected.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VortacOrTacanAzimth">
      <xs:annotation>
        <xs:documentation>VORTAC or TACAN, TACAN azimuth and distance component affected.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="TacanVortacDistance">
      <xs:annotation>
        <xs:documentation>TACAN or VORTAC, distance component affected.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VorOrVordmeOrVorAzimuth">
      <xs:annotation>
        <xs:documentation>VOR, VORDME or VORDME, VOR azimuth component affected</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VorOrVordmeOrTacanOrVortacanAzimuth">
      <xs:annotation>
        <xs:documentation>VOR, VORDME or TACAN, VOR and TACAN azimuth and distance component affected.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:SectorDetails
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class is an abstraction used to represent the details for a Sector.
Diagram
Diagram ARINC424_22_HTML.tmp#SectorDetails_altitudeDescription ARINC424_22_HTML.tmp#SectorDetails_altitudeLimitation ARINC424_22_HTML.tmp#SectorDetails_distanceDescription ARINC424_22_HTML.tmp#SectorDetails_distanceLimitationBegin ARINC424_22_HTML.tmp#SectorDetails_distanceLimitationEnd ARINC424_22_HTML.tmp#SectorDetails_sectorFrom ARINC424_22_HTML.tmp#SectorDetails_sectorTo
Used by
Model
Children altitudeDescription, altitudeLimitation, distanceDescription, distanceLimitationBegin, distanceLimitationEnd, sectorFrom, sectorTo
Source

<xs:complexType name="SectorDetails">
  <xs:annotation>
    <xs:documentation>This class is an abstraction used to represent the details for a Sector.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="altitudeDescription" type="enum:AltitudeDescription" minOccurs="1" maxOccurs="1"/>
    <xs:element name="altitudeLimitation" type="type:AltitudeLimitation" minOccurs="1" maxOccurs="1"/>
    <xs:element name="distanceDescription" type="enum:DistanceDescription" minOccurs="1" maxOccurs="1"/>
    <xs:element name="distanceLimitationBegin" type="type:DistanceIntegerNM" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Distance Limitation” fields are used to define the distance range from the navaid at which the limitation applies.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="distanceLimitationEnd" type="type:DistanceIntegerNM" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Distance Limitation” fields are used to define the distance range from the navaid at which the limitation applies.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sectorFrom" type="enum:SectorCodes" minOccurs="1" maxOccurs="1"/>
    <xs:element name="sectorTo" type="enum:SectorCodes" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:AltitudeLimitation
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Altitude Limitation” field is used to define the altitude(s) at which the limitation applies.
Diagram
Diagram
Type restriction of xs:string
Facets
length 6
Used by
Source

<xs:simpleType name="AltitudeLimitation">
  <xs:annotation>
    <xs:documentation>The “Altitude Limitation” field is used to define the altitude(s) at which the limitation applies.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="6"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:SectorCodes
Namespace http://www.arinc424.com/xml/enumerations
Annotations

Sector Codes
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 000To015
from 000 to 015
enumeration 015To030
From 015 to 030
enumeration 030To045
From 030 to 045
enumeration 045To060
From 045 to 060
enumeration 060To075
From 060 to 075
enumeration 075To090
From 075 to 090
enumeration 090To105
From 090 to 105
enumeration 105To120
From 105 to 120
enumeration 120To135
From 120 to 135
enumeration 135to150
From 135 to 150
enumeration 150To165
From 150 to 165
enumeration 165To180
From 165 to 180
enumeration 180To195
From 180 to 195
enumeration 195To210
From 195 to 210
enumeration 210To225
From 210 to 225
enumeration 225To240
From 225 to 240
enumeration 240To225
From 240 to 255
enumeration 225To270
From255 to 270
enumeration 270To285
From 270 to 285
enumeration 285To300
From 285 to 300
enumeration 300To315
From 300 to 315
enumeration 315To330
From 315 to 330
enumeration 330To345
From 330 to 345
enumeration 345To000
From 345 to 000
Used by
Source

<xs:simpleType name="SectorCodes">
  <xs:annotation>
    <xs:documentation>Sector Codes</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="000To015">
      <xs:annotation>
        <xs:documentation>from 000 to 015</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="015To030">
      <xs:annotation>
        <xs:documentation>From 015 to 030</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="030To045">
      <xs:annotation>
        <xs:documentation>From 030 to 045</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="045To060">
      <xs:annotation>
        <xs:documentation>From 045 to 060</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="060To075">
      <xs:annotation>
        <xs:documentation>From 060 to 075</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="075To090">
      <xs:annotation>
        <xs:documentation>From 075 to 090</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="090To105">
      <xs:annotation>
        <xs:documentation>From 090 to 105</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="105To120">
      <xs:annotation>
        <xs:documentation>From 105 to 120</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="120To135">
      <xs:annotation>
        <xs:documentation>From 120 to 135</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="135to150">
      <xs:annotation>
        <xs:documentation>From 135 to 150</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="150To165">
      <xs:annotation>
        <xs:documentation>From 150 to 165</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="165To180">
      <xs:annotation>
        <xs:documentation>From 165 to 180</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="180To195">
      <xs:annotation>
        <xs:documentation>From 180 to 195</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="195To210">
      <xs:annotation>
        <xs:documentation>From 195 to 210</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="210To225">
      <xs:annotation>
        <xs:documentation>From 210 to 225</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="225To240">
      <xs:annotation>
        <xs:documentation>From 225 to 240</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="240To225">
      <xs:annotation>
        <xs:documentation>From 240 to 255</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="225To270">
      <xs:annotation>
        <xs:documentation>From255 to 270</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="270To285">
      <xs:annotation>
        <xs:documentation>From 270 to 285</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="285To300">
      <xs:annotation>
        <xs:documentation>From 285 to 300</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="300To315">
      <xs:annotation>
        <xs:documentation>From 300 to 315</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="315To330">
      <xs:annotation>
        <xs:documentation>From 315 to 330</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="330To345">
      <xs:annotation>
        <xs:documentation>From 330 to 345</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="345To000">
      <xs:annotation>
        <xs:documentation>From 345 to 000</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:SequenceEndIndicator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Sequence End Indicator” field is used to define the end of a set of sequences defining a given limitation to a given VHF Navaid Component or Component pair.
Diagram
Diagram
Type restriction of xs:string
Facets
length 1
Used by
Source

<xs:simpleType name="SequenceEndIndicator">
  <xs:annotation>
    <xs:documentation>The “Sequence End Indicator” field is used to define the end of a set of sequences defining a given limitation to a given VHF Navaid Component or Component pair.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="1"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:ServiceIndicator
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type.
Diagram
Diagram ARINC424_22_HTML.tmp#Alpha ARINC424_22_HTML.tmp#ServiceIndicator_airportHeliportCommunicationServiceIndicator ARINC424_22_HTML.tmp#ServiceIndicator_enrouteCommunicationServiceIndicator
Type extension of type:Alpha
Type hierarchy
Model
Children airportHeliportCommunicationServiceIndicator, enrouteCommunicationServiceIndicator
Source

<xs:complexType name="ServiceIndicator">
  <xs:annotation>
    <xs:documentation>The “Service Indicator” field is used to further define the use of the frequency for the specified Communication Type.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="type:Alpha">
      <xs:choice>
        <xs:element name="airportHeliportCommunicationServiceIndicator" type="type:AirportHeliportCommunicationServiceIndicator" minOccurs="1" maxOccurs="1"/>
        <xs:element name="enrouteCommunicationServiceIndicator" type="type:EnrouteCommunicationServiceIndicator" minOccurs="1" maxOccurs="1"/>
      </xs:choice>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Simple Type type:FinalApproachCourseAsRunway
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Final Approach Course as Runway field is a method of providing data for Point in Space approach procedure that are not to a runway.
Diagram
Diagram
Type restriction of xs:string
Facets
length 5
Source

<xs:simpleType name="FinalApproachCourseAsRunway">
  <xs:annotation>
    <xs:documentation>The Final Approach Course as Runway field is a method of providing data for Point in Space approach procedure that are not to a runway.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="5"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:TypeOfApproachAlphaCharacter
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type xs:string
Source

<xs:simpleType name="TypeOfApproachAlphaCharacter">
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Simple Type type:MultipleIndicatorAlphanumeric
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type xs:string
Source

<xs:simpleType name="MultipleIndicatorAlphanumeric">
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Simple Type type:RestrictionNotes
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Restriction Notes” field may contain any restriction not otherwise covered by the altitude or time restriction.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 104
Source

<xs:simpleType name="RestrictionNotes">
  <xs:annotation>
    <xs:documentation>The “Restriction Notes” field may contain any restriction not otherwise covered by the altitude or time restriction.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="104"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:AircraftCategory
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type xs:string
Used by
Source

<xs:simpleType name="AircraftCategory">
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Simple Type type:RNPLevelOfService
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Level of Service field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for RNP.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 3
Used by
Source

<xs:simpleType name="RNPLevelOfService">
  <xs:annotation>
    <xs:documentation>The Level of Service field identifies the official procedure level of service based on published procedure operating minimums information for Approach Procedures authorized for RNP.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="3"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:PrimaryandAdditionalAlternateIdentifier
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The Primary Alternate Identifier and the Additional Alternate Identifiers (two through five) uniquely identify either an Alternate Airport or an Alternate Company Route. The determination of whether the content is an Airport Identifier or a Company Route Identifier is accomplished through the Alternate Type field.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 10
Source

<xs:simpleType name="PrimaryandAdditionalAlternateIdentifier">
  <xs:annotation>
    <xs:documentation>The Primary Alternate Identifier and the Additional Alternate Identifiers (two through five) uniquely identify either an Alternate Airport or an Alternate Company Route. The determination of whether the content is an Airport Identifier or a Company Route Identifier is accomplished through the Alternate Type field.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="10"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type type:Translation
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Translation” field is used to provide a decoding of a three character Communication Type (5.101).
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 80
Used by
Source

<xs:simpleType name="Translation">
  <xs:annotation>
    <xs:documentation>The “Translation” field is used to provide a decoding of a three character Communication Type (5.101).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="80"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:Minimums
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class encapsulates the various minimum values, depending on the aircraft category
Diagram
Diagram ARINC424_22_HTML.tmp#Minimums_aircraftCategory ARINC424_22_HTML.tmp#Minimums_decisionHeight ARINC424_22_HTML.tmp#Minimums_minimumDescentHeight ARINC424_22_HTML.tmp#Minimums_radii
Used by
Model
Children aircraftCategory, decisionHeight, minimumDescentHeight, radii
Source

<xs:complexType name="Minimums">
  <xs:annotation>
    <xs:documentation>This class encapsulates the various minimum values, depending on the aircraft category</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="aircraftCategory" type="type:AircraftCategory" minOccurs="1" maxOccurs="1"/>
    <xs:element name="decisionHeight" type="type:DecisionHeight" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Decision Height” fields are used to specify a specific height in the precision approach at which a missed approach must be initiated if the required visual reference to continue the approach has not been established</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="minimumDescentHeight" type="type:MinimumDescentHeight" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The Minimum Descent Height fields specify the lowest height, expressed in feet, to which descent is authorized on final approach or during circle-toland maneuvering in execution of a standard instrument approach procedure where no electric glide slope is provided.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="radii" type="type:CategoryDistance" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The Category Radii fields, expressed in tenths of nautical miles, specifies the obstacle clearance area for aircraft maneuvering to land on a runway which is not aligned with the FAC of the approach procedure. The limits of the circling area are defined to be an arc from the center of the end of each usable runway. The extremities of the adjacent arcs are joined by lines drawn tangent to the arcs. The area thus enclosed is the circling approach area.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type type:OperationalConditions
Namespace http://www.arinc424.com/xml/datatypes
Annotations

OperationalConditions is a class used to encapsulate the attributes related to RNP, and minimums.
Diagram
Diagram ARINC424_22_HTML.tmp#OperationalConditions_climbGradient ARINC424_22_HTML.tmp#OperationalConditions_minimums ARINC424_22_HTML.tmp#OperationalConditions_minType ARINC424_22_HTML.tmp#OperationalConditions_rnp
Model
Children climbGradient, minType, minimums, rnp
Source

<xs:complexType name="OperationalConditions">
  <xs:annotation>
    <xs:documentation>OperationalConditions is a class used to encapsulate the attributes related to RNP, and minimums.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="climbGradient" type="type:ClimbGradient" minOccurs="1" maxOccurs="1"/>
    <xs:element name="minimums" type="type:Minimums" minOccurs="1" maxOccurs="1"/>
    <xs:element name="minType" type="type:MinType" minOccurs="1" maxOccurs="1"/>
    <xs:element name="rnp" type="type:RequiredNavigationPerformance" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Required Navigation Performance (RNP) is a statement of the Navigation Performance necessary for operation within a defined airspace in accordance with ICAO Annex 15 and/or State published rules.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:ClimbGradient
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type xs:string
Used by
Source

<xs:simpleType name="ClimbGradient">
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Simple Type type:MinType
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type list of xs:string
Used by
Source

<xs:simpleType name="MinType">
  <xs:list itemType="xs:string"/>
</xs:simpleType>
[ top ]
Simple Type type:Visibility
Namespace http://www.arinc424.com/xml/datatypes
Diagram
Diagram
Type xs:string
Source

<xs:simpleType name="Visibility">
  <xs:restriction base="xs:string"/>
</xs:simpleType>
[ top ]
Complex Type type:RNPLevelOfServiceDetails
Namespace http://www.arinc424.com/xml/datatypes
Annotations

This class contains the RNP Level of service details.
Diagram
Diagram ARINC424_22_HTML.tmp#RNPLevelOfServiceDetails_rnpAuthorised ARINC424_22_HTML.tmp#RNPLevelOfServiceDetails_rnpLevelOfService
Model
Children rnpAuthorised, rnpLevelOfService
Source

<xs:complexType name="RNPLevelOfServiceDetails">
  <xs:annotation>
    <xs:documentation>This class contains the RNP Level of service details.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="rnpAuthorised" type="enum:LevelOfServiceAuthorised" minOccurs="1" maxOccurs="1"/>
    <xs:element name="rnpLevelOfService" type="type:RNPLevelOfService" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type type:LocalizerWidth
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Localizer Width” field specifies the localizer course width of the ILS facility defined in the record.
Diagram
Diagram
Type restriction of xs:unsignedInt
Facets
totalDigits 4
Source

<xs:simpleType name="LocalizerWidth">
  <xs:annotation>
    <xs:documentation>The “Localizer Width” field specifies the localizer course width of the ILS facility defined in the record.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:unsignedInt">
    <xs:totalDigits value="4"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type type:VhfNavaidClass
Namespace http://www.arinc424.com/xml/datatypes
Annotations

The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense. The field is made up of five columns of codes that define this information.
Diagram
Diagram ARINC424_22_HTML.tmp#VhfNavaidClass_vhfNavaidCoverage ARINC424_22_HTML.tmp#VhfNavaidClass_vhfNavaidWeatherInfo ARINC424_22_HTML.tmp#VhfNavaidClass_isNotCollocated ARINC424_22_HTML.tmp#VhfNavaidClass_isBiased ARINC424_22_HTML.tmp#VhfNavaidClass_isNoVoice
Used by
Model
Children isBiased, isNoVoice, isNotCollocated, vhfNavaidCoverage, vhfNavaidWeatherInfo
Source

<xs:complexType name="VhfNavaidClass">
  <xs:annotation>
    <xs:documentation>The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense. The field is made up of five columns of codes that define this information.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="vhfNavaidCoverage" type="enum:VhfNavaidCoverage" minOccurs="0" maxOccurs="1"/>
    <xs:element name="vhfNavaidWeatherInfo" type="enum:NavaidWeatherInfo" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isNotCollocated" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isBiased" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isNoVoice" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type enum:VhfNavaidCoverage
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The field VHFNavaidCoverage is the first character of the 5 character Navaid class.  When used in VHF Navaid Record – Includes VOR, VORDME, VORTAC, TACAN, ILSDME and MLSDME type navaids.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Terminal
Terminal. Generally usable within 25NM of the facility and below 12000 feet
enumeration Low
Low Altitude.Generally usable within 40NM of the facility and up to 18000 feet.
enumeration High
High Altitude. Generally usable Within 130NM of the facility and up 60000 feet.
enumeration Undefined
Undefined. Coverage not defined by government source.
enumeration IlsTacan
ILS/TACAN. Full TACAN facility frequency-paired and operating with the same identifier as an ILS Localizer. Coverage is Terminal.
Used by
Source

<xs:simpleType name="VhfNavaidCoverage">
  <xs:annotation>
    <xs:documentation>The field VHFNavaidCoverage is the first character of the 5 character Navaid class. When used in VHF Navaid Record – Includes VOR, VORDME, VORTAC, TACAN, ILSDME and MLSDME type navaids.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Terminal">
      <xs:annotation>
        <xs:documentation>Terminal. Generally usable within 25NM of the facility and below 12000 feet</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Low">
      <xs:annotation>
        <xs:documentation>Low Altitude.Generally usable within 40NM of the facility and up to 18000 feet.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="High">
      <xs:annotation>
        <xs:documentation>High Altitude. Generally usable Within 130NM of the facility and up 60000 feet.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Undefined">
      <xs:annotation>
        <xs:documentation>Undefined. Coverage not defined by government source.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IlsTacan">
      <xs:annotation>
        <xs:documentation>ILS/TACAN. Full TACAN facility frequency-paired and operating with the same identifier as an ILS Localizer. Coverage is Terminal.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:StepClimbIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “Step Climb Indicator” field is used to indicate if step climb up or down is permitted.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration StepUpDownPermitted
Step climb up or down is permitted
enumeration StepDownPermitted
Only step climb down is permitted
enumeration NoStepPermitted
No step climb is permitted
enumeration OnlyStepUpPermitted
Only step climb up is permitted
Source

<xs:simpleType name="StepClimbIndicator">
  <xs:annotation>
    <xs:documentation>The “Step Climb Indicator” field is used to indicate if step climb up or down is permitted.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="StepUpDownPermitted">
      <xs:annotation>
        <xs:documentation>Step climb up or down is permitted</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="StepDownPermitted">
      <xs:annotation>
        <xs:documentation>Only step climb down is permitted</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NoStepPermitted">
      <xs:annotation>
        <xs:documentation>No step climb is permitted</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OnlyStepUpPermitted">
      <xs:annotation>
        <xs:documentation>Only step climb up is permitted</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:RestrictiveAirspaceLink
Namespace http://www.arinc424.com/xml/enumerations
Annotations
Diagram
Type restriction of xs:string
Facets
Source
[ top ]
Simple Type enum:FigureOfMerit
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Figure of Merit field is used to denote those situations where information has been made available that indicate a VHF Navaid facility is usable beyond the range value that is specified through the Class field. It is also used to denote when a VHF Navaid contained in the database is not available for operational use, i.e., is out of service and to flag a VHF Navaid that is not included in a civilian international NOTAM system.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration TerminalUse
Terminal Use (generally within 25NM)
enumeration LowAlt
Low Altitude Use (generally within 40NM)
enumeration HighAlt
High Altitude Use (generally within 130NM)
enumeration ExtendedHighAlt
Extended High Altitude Use (generally beyond 130NM)
enumeration NotNOTAMd
Navaid Not included in a civil international NOTAM system
enumeration OutOfService
Navaid Out of Service
Used by
Source

<xs:simpleType name="FigureOfMerit">
  <xs:annotation>
    <xs:documentation>The Figure of Merit field is used to denote those situations where information has been made available that indicate a VHF Navaid facility is usable beyond the range value that is specified through the Class field. It is also used to denote when a VHF Navaid contained in the database is not available for operational use, i.e., is out of service and to flag a VHF Navaid that is not included in a civilian international NOTAM system.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="TerminalUse">
      <xs:annotation>
        <xs:documentation>Terminal Use (generally within 25NM)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LowAlt">
      <xs:annotation>
        <xs:documentation>Low Altitude Use (generally within 40NM)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HighAlt">
      <xs:annotation>
        <xs:documentation>High Altitude Use (generally within 130NM)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ExtendedHighAlt">
      <xs:annotation>
        <xs:documentation>Extended High Altitude Use (generally beyond 130NM)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NotNOTAMd">
      <xs:annotation>
        <xs:documentation>Navaid Not included in a civil international NOTAM system</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OutOfService">
      <xs:annotation>
        <xs:documentation>Navaid Out of Service</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ProcedureCategory
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Airport and Heliport SID/STAR/Approach Procedure Route Type supports the “All Sensor RNAV” Approach procedure. This kind of approach will have multiple sets of weather minimums (DH and NDA) associated with it. This field identifies the Procedure Categories for which these minimums apply.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration LAAS
Local Area Differencial Augmentation System
enumeration WAAS
Wide Area Differencial Augmentation System
enumeration FMS
Flight Managment System
enumeration GPS
Global Positioning System, no Augmentation
enumeration VDME
VORDME, VORTACAN
enumeration CIRC
Circle-to-Land
Source

<xs:simpleType name="ProcedureCategory">
  <xs:annotation>
    <xs:documentation>The Airport and Heliport SID/STAR/Approach Procedure Route Type supports the “All Sensor RNAV” Approach procedure. This kind of approach will have multiple sets of weather minimums (DH and NDA) associated with it. This field identifies the Procedure Categories for which these minimums apply.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="LAAS">
      <xs:annotation>
        <xs:documentation>Local Area Differencial Augmentation System</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="WAAS">
      <xs:annotation>
        <xs:documentation>Wide Area Differencial Augmentation System</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="FMS">
      <xs:annotation>
        <xs:documentation>Flight Managment System</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GPS">
      <xs:annotation>
        <xs:documentation>Global Positioning System, no Augmentation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VDME">
      <xs:annotation>
        <xs:documentation>VORDME, VORTACAN</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CIRC">
      <xs:annotation>
        <xs:documentation>Circle-to-Land</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:DMEOperationalServiceVolume
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The DME Operational Service Volume field is used to specify the service volume information of DME Navaids to support using DMEDME and DME-DME-IRU FMS capabilities in RNAV procedures and routes.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 40OrLess
40NM or less
enumeration 70OrLess
70NM or less
enumeration 130OrLess
130NM or less
enumeration GreaterThan130
Greater than 130NM
enumeration Unspecified
Unspecified
Used by
Source

<xs:simpleType name="DMEOperationalServiceVolume">
  <xs:annotation>
    <xs:documentation>The DME Operational Service Volume field is used to specify the service volume information of DME Navaids to support using DMEDME and DME-DME-IRU FMS capabilities in RNAV procedures and routes.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="40OrLess">
      <xs:annotation>
        <xs:documentation>40NM or less</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="70OrLess">
      <xs:annotation>
        <xs:documentation>70NM or less</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="130OrLess">
      <xs:annotation>
        <xs:documentation>130NM or less</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GreaterThan130">
      <xs:annotation>
        <xs:documentation>Greater than 130NM</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Unspecified">
      <xs:annotation>
        <xs:documentation>Unspecified</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:ProcedureDesignMagVarIndicator
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Procedure Design Mag Var Indicator field is an indication of how procedure design magnetic variation was provided in official source data for the procedure defined in the record/record set.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AppliesToAllProcedure
procedure mag var applies to all the proceure
enumeration AppliesToLeg
procedure mag var applies to the associated leg
Source

<xs:simpleType name="ProcedureDesignMagVarIndicator">
  <xs:annotation>
    <xs:documentation>The Procedure Design Mag Var Indicator field is an indication of how procedure design magnetic variation was provided in official source data for the procedure defined in the record/record set.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AppliesToAllProcedure">
      <xs:annotation>
        <xs:documentation>procedure mag var applies to all the proceure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AppliesToLeg">
      <xs:annotation>
        <xs:documentation>procedure mag var applies to the associated leg</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:CompanyRouteVIACodes
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The "VIA Code" field is used to define the type of route used in the SID/STAR/Approach/Airways field (Section 5.78) on Company Route records and defines the type of route used in the AWY Identifier on Preferred Route records. On the Preferred Route records, some codes define the use, or restriction to use, of a fix or routing.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration ALT
Alternate Airport
enumeration APP
Approach Route
enumeration APT
Approach Transition
enumeration AWY
Designated Airway
enumeration DIR
Direct to Fix
enumeration INT
Initial Fix
enumeration PRE
Preferred Route
enumeration SID
Standard Instrument Departure
enumeration SDE
Standard Instrument Departure - Enroute Transition
enumeration SDY
Standard Instrument Departure - Runway Transition
enumeration STR
Standard Terminal Arrival and Profile Descent
enumeration STE
Standard Terminal Arrival and Profile Descent - Enroute Transition
enumeration STY
Standard Terminal Arrival and Profile Descent - Runway Transition
Source

<xs:simpleType name="CompanyRouteVIACodes">
  <xs:annotation>
    <xs:documentation>The "VIA Code" field is used to define the type of route used in the SID/STAR/Approach/Airways field (Section 5.78) on Company Route records and defines the type of route used in the AWY Identifier on Preferred Route records. On the Preferred Route records, some codes define the use, or restriction to use, of a fix or routing.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="ALT">
      <xs:annotation>
        <xs:documentation>Alternate Airport</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="APP">
      <xs:annotation>
        <xs:documentation>Approach Route</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="APT">
      <xs:annotation>
        <xs:documentation>Approach Transition</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AWY">
      <xs:annotation>
        <xs:documentation>Designated Airway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DIR">
      <xs:annotation>
        <xs:documentation>Direct to Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="INT">
      <xs:annotation>
        <xs:documentation>Initial Fix</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="PRE">
      <xs:annotation>
        <xs:documentation>Preferred Route</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SID">
      <xs:annotation>
        <xs:documentation>Standard Instrument Departure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SDE">
      <xs:annotation>
        <xs:documentation>Standard Instrument Departure - Enroute Transition</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="SDY">
      <xs:annotation>
        <xs:documentation>Standard Instrument Departure - Runway Transition</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="STR">
      <xs:annotation>
        <xs:documentation>Standard Terminal Arrival and Profile Descent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="STE">
      <xs:annotation>
        <xs:documentation>Standard Terminal Arrival and Profile Descent - Enroute Transition</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="STY">
      <xs:annotation>
        <xs:documentation>Standard Terminal Arrival and Profile Descent - Runway Transition</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:NavaidSynchronization
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “NavaidSynchronization” field identifies the characteristics of the NAVAID facility.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Synchronous
Synchronous
enumeration Asynchronous
ASynchronous
enumeration Unknown
Unknown
Used by
Source

<xs:simpleType name="NavaidSynchronization">
  <xs:annotation>
    <xs:documentation>The “NavaidSynchronization” field identifies the characteristics of the NAVAID facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Synchronous">
      <xs:annotation>
        <xs:documentation>Synchronous</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Asynchronous">
      <xs:annotation>
        <xs:documentation>ASynchronous</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Unknown">
      <xs:annotation>
        <xs:documentation>Unknown</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:NavaidVoice
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The “NavaidVoice” field identifies the characteristics of the NAVAID facility.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration VoiceIdent
Voice Ident
enumeration NoVoiceIdent
No Voice Ident
enumeration Undefined
Undefined
Source

<xs:simpleType name="NavaidVoice">
  <xs:annotation>
    <xs:documentation>The “NavaidVoice” field identifies the characteristics of the NAVAID facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="VoiceIdent">
      <xs:annotation>
        <xs:documentation>Voice Ident</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NoVoiceIdent">
      <xs:annotation>
        <xs:documentation>No Voice Ident</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Undefined">
      <xs:annotation>
        <xs:documentation>Undefined</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:AlternateRecordType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Alternate Record Type field identifiers the record as being applicable to the departure airport (take-off alternate), destination airport (arrival alternate) or a fix along the route (enroute alternate).
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AA
The Airport identifier in Columns 7 through 11 of the Primary Record are the identifier of the Arrival Airport.
enumeration DA
The Airport identifier in Columns 7 through 11 of the Primary Record are the identifier of the Departure Airport.
enumeration EA
The end fix of a Company Route is identified in Columns 7 through 15 of the Primary Record.
Source

<xs:simpleType name="AlternateRecordType">
  <xs:annotation>
    <xs:documentation>The Alternate Record Type field identifiers the record as being applicable to the departure airport (take-off alternate), destination airport (arrival alternate) or a fix along the route (enroute alternate).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AA">
      <xs:annotation>
        <xs:documentation>The Airport identifier in Columns 7 through 11 of the Primary Record are the identifier of the Arrival Airport.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DA">
      <xs:annotation>
        <xs:documentation>The Airport identifier in Columns 7 through 11 of the Primary Record are the identifier of the Departure Airport.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EA">
      <xs:annotation>
        <xs:documentation>The end fix of a Company Route is identified in Columns 7 through 15 of the Primary Record.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:AlternateType
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Alternate Type field is an information processing indicator. The Alternate Destination can be defined as an airport or an airport and route to an airport. This field defines that an alternate airport or, an company route is defined in the Alternate Identifier fields.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Airport
Airport is provided
enumeration CompanyRoute
Company Route is provided
Source

<xs:simpleType name="AlternateType">
  <xs:annotation>
    <xs:documentation>The Alternate Type field is an information processing indicator. The Alternate Destination can be defined as an airport or an airport and route to an airport. This field defines that an alternate airport or, an company route is defined in the Alternate Identifier fields.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Airport">
      <xs:annotation>
        <xs:documentation>Airport is provided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CompanyRoute">
      <xs:annotation>
        <xs:documentation>Company Route is provided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:TypeRecognizedBy
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Type Recognized By field is used to provide an indication of the provider of a given Communication Type (5.101).
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Icao
The Communication Type is found in government source provided in accordance with ICAO standards.
enumeration Faa
The Communication Type is found in government source provided in accordance with US FAA standards.
enumeration IcaoAndFaa
The Communication Type is found in government source provided in accordance with both ICAO and US FAA standards.
enumeration LocalCountry
The Communication Type is found in government source provided by the country in which the communication is used.
enumeration OtherLocalCountry
The Communication Type is found in government source provided by the country in which the communication is used.
enumeration MadeUp
The Communication Type has been established by the data supplier.
Used by
Source

<xs:simpleType name="TypeRecognizedBy">
  <xs:annotation>
    <xs:documentation>The Type Recognized By field is used to provide an indication of the provider of a given Communication Type (5.101).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Icao">
      <xs:annotation>
        <xs:documentation>The Communication Type is found in government source provided in accordance with ICAO standards.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Faa">
      <xs:annotation>
        <xs:documentation>The Communication Type is found in government source provided in accordance with US FAA standards.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="IcaoAndFaa">
      <xs:annotation>
        <xs:documentation>The Communication Type is found in government source provided in accordance with both ICAO and US FAA standards.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="LocalCountry">
      <xs:annotation>
        <xs:documentation>The Communication Type is found in government source provided by the country in which the communication is used.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="OtherLocalCountry">
      <xs:annotation>
        <xs:documentation>The Communication Type is found in government source provided by the country in which the communication is used.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MadeUp">
      <xs:annotation>
        <xs:documentation>The Communication Type has been established by the data supplier.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:UsedOn
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The Used On field provides an indication of what kind of communication records a particular Communication Type is used on.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration AirportComms
Type is used on Airport Communication Records only
enumeration EnrouteComms
Type is used on Enroute Communication Records only
enumeration HeliportComms
Type is used on Heliport Communication Records only
enumeration AirportHeliportEnrouteComms
Type is used on Airport, Heliport and Enroute Communication Records
enumeration AiportHeliportComms
Type is used on Airport and Heliport Communication Records
Used by
Source

<xs:simpleType name="UsedOn">
  <xs:annotation>
    <xs:documentation>The Used On field provides an indication of what kind of communication records a particular Communication Type is used on.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AirportComms">
      <xs:annotation>
        <xs:documentation>Type is used on Airport Communication Records only</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="EnrouteComms">
      <xs:annotation>
        <xs:documentation>Type is used on Enroute Communication Records only</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="HeliportComms">
      <xs:annotation>
        <xs:documentation>Type is used on Heliport Communication Records only</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AirportHeliportEnrouteComms">
      <xs:annotation>
        <xs:documentation>Type is used on Airport, Heliport and Enroute Communication Records</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="AiportHeliportComms">
      <xs:annotation>
        <xs:documentation>Type is used on Airport and Heliport Communication Records</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type enum:NDBNavaidAddInfo
Namespace http://www.arinc424.com/xml/enumerations
Annotations

The field NDBNavaidAddInfo is the fourth character of the 5 character Navaid class, when used in NDB Navaid Record (NDBs and Terminal NDBs). It contains additional information on the Navaid.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Automatic
Automatic Transcribed Weather Broadcast.The frequency of this Navaid is used for the continuous broadcast of some sort of automated weather system such as AWOS, ASOS, TWEB, AWIB, AWIS.
enumeration Scheduled
Scheduled Weather Broadcast.The frequency of this Navaid is used for the scheduled, non-continuous broadcast of some sort of automated weather system such as VOLMET.
enumeration NoVoice
No Voice on Frequency.The frequency of this Navaid is not used to support two-way communication between a ground station and aircraft.
enumeration VoiceTwoWay
Voice on Frequency.The frequency of this Navaid is used to support two-way communication between a ground station and aircraft.
Source

<xs:simpleType name="NDBNavaidAddInfo">
  <xs:annotation>
    <xs:documentation>The field NDBNavaidAddInfo is the fourth character of the 5 character Navaid class, when used in NDB Navaid Record (NDBs and Terminal NDBs). It contains additional information on the Navaid.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Automatic">
      <xs:annotation>
        <xs:documentation>Automatic Transcribed Weather Broadcast.The frequency of this Navaid is used for the continuous broadcast of some sort of automated weather system such as AWOS, ASOS, TWEB, AWIB, AWIS.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Scheduled">
      <xs:annotation>
        <xs:documentation>Scheduled Weather Broadcast.The frequency of this Navaid is used for the scheduled, non-continuous broadcast of some sort of automated weather system such as VOLMET.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="NoVoice">
      <xs:annotation>
        <xs:documentation>No Voice on Frequency.The frequency of this Navaid is not used to support two-way communication between a ground station and aircraft.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="VoiceTwoWay">
      <xs:annotation>
        <xs:documentation>Voice on Frequency.The frequency of this Navaid is used to support two-way communication between a ground station and aircraft.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type ApproachLeg
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#ProcedureLeg_altitudeDescription ARINC424_22_HTML.tmp#ProcedureLeg_arcRadius ARINC424_22_HTML.tmp#ProcedureLeg_atcIndicator ARINC424_22_HTML.tmp#ProcedureLeg_distance ARINC424_22_HTML.tmp#ProcedureLeg_holdTime ARINC424_22_HTML.tmp#ProcedureLeg_waypointDescriptor ARINC424_22_HTML.tmp#ProcedureLeg_legDistance ARINC424_22_HTML.tmp#ProcedureLeg_legInboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_legInboundOutboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_pathAndTermination ARINC424_22_HTML.tmp#ProcedureLeg_procedureDesignMagVar ARINC424_22_HTML.tmp#ProcedureLeg_rho ARINC424_22_HTML.tmp#ProcedureLeg_rnp ARINC424_22_HTML.tmp#ProcedureLeg_speedLimit ARINC424_22_HTML.tmp#ProcedureLeg_speedLimitDescription ARINC424_22_HTML.tmp#ProcedureLeg_theta ARINC424_22_HTML.tmp#ProcedureLeg_transitionsAltitudeLevel ARINC424_22_HTML.tmp#ProcedureLeg_turnDirection ARINC424_22_HTML.tmp#ProcedureLeg_turnDirectionValid ARINC424_22_HTML.tmp#ProcedureLeg_verticalScaleFactor ARINC424_22_HTML.tmp#ProcedureLeg_alt1 ARINC424_22_HTML.tmp#ProcedureLeg_alt2 ARINC424_22_HTML.tmp#ProcedureLeg_course ARINC424_22_HTML.tmp#ProcedureLeg_centerFix ARINC424_22_HTML.tmp#ProcedureLeg_centerFixRef ARINC424_22_HTML.tmp#ProcedureLeg ARINC424_22_HTML.tmp#ApproachLeg_approachWaypointDescription ARINC424_22_HTML.tmp#ApproachLeg_verticalAngle
Type extension of ProcedureLeg
Type hierarchy
Model
Children alt1, alt2, altitudeDescription, approachWaypointDescription, arcRadius, atcIndicator, centerFix, centerFixRef, course, custAreaCode, cycleDate, distance, fixIdent, fixRef, holdTime, legDistance, legInboundIndicator, legInboundOutboundIndicator, notes, pathAndTermination, procedureDesignMagVar, recNavaidIdent, recNavaidRef, recordType, rho, rnp, sequenceNumber, speedLimit, speedLimitDescription, supplementalData, theta, transitionsAltitudeLevel, turnDirection, turnDirectionValid, verticalAngle, verticalScaleFactor, waypointDescriptor
Source

<xs:complexType name="ApproachLeg">
  <xs:complexContent>
    <xs:extension base="ProcedureLeg">
      <xs:sequence>
        <xs:element name="approachWaypointDescription" type="type:ApproachWaypointDescription" minOccurs="1" maxOccurs="1"/>
        <xs:element name="verticalAngle" type="type:VerticalAngle" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type SidStarLeg
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#ProcedureLeg_altitudeDescription ARINC424_22_HTML.tmp#ProcedureLeg_arcRadius ARINC424_22_HTML.tmp#ProcedureLeg_atcIndicator ARINC424_22_HTML.tmp#ProcedureLeg_distance ARINC424_22_HTML.tmp#ProcedureLeg_holdTime ARINC424_22_HTML.tmp#ProcedureLeg_waypointDescriptor ARINC424_22_HTML.tmp#ProcedureLeg_legDistance ARINC424_22_HTML.tmp#ProcedureLeg_legInboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_legInboundOutboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_pathAndTermination ARINC424_22_HTML.tmp#ProcedureLeg_procedureDesignMagVar ARINC424_22_HTML.tmp#ProcedureLeg_rho ARINC424_22_HTML.tmp#ProcedureLeg_rnp ARINC424_22_HTML.tmp#ProcedureLeg_speedLimit ARINC424_22_HTML.tmp#ProcedureLeg_speedLimitDescription ARINC424_22_HTML.tmp#ProcedureLeg_theta ARINC424_22_HTML.tmp#ProcedureLeg_transitionsAltitudeLevel ARINC424_22_HTML.tmp#ProcedureLeg_turnDirection ARINC424_22_HTML.tmp#ProcedureLeg_turnDirectionValid ARINC424_22_HTML.tmp#ProcedureLeg_verticalScaleFactor ARINC424_22_HTML.tmp#ProcedureLeg_alt1 ARINC424_22_HTML.tmp#ProcedureLeg_alt2 ARINC424_22_HTML.tmp#ProcedureLeg_course ARINC424_22_HTML.tmp#ProcedureLeg_centerFix ARINC424_22_HTML.tmp#ProcedureLeg_centerFixRef ARINC424_22_HTML.tmp#ProcedureLeg
Type extension of ProcedureLeg
Type hierarchy
Properties
abstract true
Used by
Complex Types SidLeg, StarLeg
Model
Children alt1, alt2, altitudeDescription, arcRadius, atcIndicator, centerFix, centerFixRef, course, custAreaCode, cycleDate, distance, fixIdent, fixRef, holdTime, legDistance, legInboundIndicator, legInboundOutboundIndicator, notes, pathAndTermination, procedureDesignMagVar, recNavaidIdent, recNavaidRef, recordType, rho, rnp, sequenceNumber, speedLimit, speedLimitDescription, supplementalData, theta, transitionsAltitudeLevel, turnDirection, turnDirectionValid, verticalScaleFactor, waypointDescriptor
Source

<xs:complexType name="SidStarLeg" abstract="true">
  <xs:complexContent>
    <xs:extension base="ProcedureLeg">
      <xs:sequence/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type StarLeg
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#ProcedureLeg_altitudeDescription ARINC424_22_HTML.tmp#ProcedureLeg_arcRadius ARINC424_22_HTML.tmp#ProcedureLeg_atcIndicator ARINC424_22_HTML.tmp#ProcedureLeg_distance ARINC424_22_HTML.tmp#ProcedureLeg_holdTime ARINC424_22_HTML.tmp#ProcedureLeg_waypointDescriptor ARINC424_22_HTML.tmp#ProcedureLeg_legDistance ARINC424_22_HTML.tmp#ProcedureLeg_legInboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_legInboundOutboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_pathAndTermination ARINC424_22_HTML.tmp#ProcedureLeg_procedureDesignMagVar ARINC424_22_HTML.tmp#ProcedureLeg_rho ARINC424_22_HTML.tmp#ProcedureLeg_rnp ARINC424_22_HTML.tmp#ProcedureLeg_speedLimit ARINC424_22_HTML.tmp#ProcedureLeg_speedLimitDescription ARINC424_22_HTML.tmp#ProcedureLeg_theta ARINC424_22_HTML.tmp#ProcedureLeg_transitionsAltitudeLevel ARINC424_22_HTML.tmp#ProcedureLeg_turnDirection ARINC424_22_HTML.tmp#ProcedureLeg_turnDirectionValid ARINC424_22_HTML.tmp#ProcedureLeg_verticalScaleFactor ARINC424_22_HTML.tmp#ProcedureLeg_alt1 ARINC424_22_HTML.tmp#ProcedureLeg_alt2 ARINC424_22_HTML.tmp#ProcedureLeg_course ARINC424_22_HTML.tmp#ProcedureLeg_centerFix ARINC424_22_HTML.tmp#ProcedureLeg_centerFixRef ARINC424_22_HTML.tmp#ProcedureLeg ARINC424_22_HTML.tmp#SidStarLeg ARINC424_22_HTML.tmp#StarLeg_verticalAngle
Type extension of SidStarLeg
Type hierarchy
Model
Children alt1, alt2, altitudeDescription, arcRadius, atcIndicator, centerFix, centerFixRef, course, custAreaCode, cycleDate, distance, fixIdent, fixRef, holdTime, legDistance, legInboundIndicator, legInboundOutboundIndicator, notes, pathAndTermination, procedureDesignMagVar, recNavaidIdent, recNavaidRef, recordType, rho, rnp, sequenceNumber, speedLimit, speedLimitDescription, supplementalData, theta, transitionsAltitudeLevel, turnDirection, turnDirectionValid, verticalAngle, verticalScaleFactor, waypointDescriptor
Source

<xs:complexType name="StarLeg">
  <xs:complexContent>
    <xs:extension base="SidStarLeg">
      <xs:sequence>
        <xs:element name="verticalAngle" type="type:VerticalAngle" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type SidLeg
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#Leg_sequenceNumber ARINC424_22_HTML.tmp#Leg_fixRef ARINC424_22_HTML.tmp#Leg_fixIdent ARINC424_22_HTML.tmp#Leg_recNavaidIdent ARINC424_22_HTML.tmp#Leg_recNavaidRef ARINC424_22_HTML.tmp#Leg ARINC424_22_HTML.tmp#ProcedureLeg_altitudeDescription ARINC424_22_HTML.tmp#ProcedureLeg_arcRadius ARINC424_22_HTML.tmp#ProcedureLeg_atcIndicator ARINC424_22_HTML.tmp#ProcedureLeg_distance ARINC424_22_HTML.tmp#ProcedureLeg_holdTime ARINC424_22_HTML.tmp#ProcedureLeg_waypointDescriptor ARINC424_22_HTML.tmp#ProcedureLeg_legDistance ARINC424_22_HTML.tmp#ProcedureLeg_legInboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_legInboundOutboundIndicator ARINC424_22_HTML.tmp#ProcedureLeg_pathAndTermination ARINC424_22_HTML.tmp#ProcedureLeg_procedureDesignMagVar ARINC424_22_HTML.tmp#ProcedureLeg_rho ARINC424_22_HTML.tmp#ProcedureLeg_rnp ARINC424_22_HTML.tmp#ProcedureLeg_speedLimit ARINC424_22_HTML.tmp#ProcedureLeg_speedLimitDescription ARINC424_22_HTML.tmp#ProcedureLeg_theta ARINC424_22_HTML.tmp#ProcedureLeg_transitionsAltitudeLevel ARINC424_22_HTML.tmp#ProcedureLeg_turnDirection ARINC424_22_HTML.tmp#ProcedureLeg_turnDirectionValid ARINC424_22_HTML.tmp#ProcedureLeg_verticalScaleFactor ARINC424_22_HTML.tmp#ProcedureLeg_alt1 ARINC424_22_HTML.tmp#ProcedureLeg_alt2 ARINC424_22_HTML.tmp#ProcedureLeg_course ARINC424_22_HTML.tmp#ProcedureLeg_centerFix ARINC424_22_HTML.tmp#ProcedureLeg_centerFixRef ARINC424_22_HTML.tmp#ProcedureLeg ARINC424_22_HTML.tmp#SidStarLeg ARINC424_22_HTML.tmp#SidLeg_isEngineOutDisarmPoint ARINC424_22_HTML.tmp#SidLeg_isInitialDepartureFix
Type extension of SidStarLeg
Type hierarchy
Model
Children alt1, alt2, altitudeDescription, arcRadius, atcIndicator, centerFix, centerFixRef, course, custAreaCode, cycleDate, distance, fixIdent, fixRef, holdTime, isEngineOutDisarmPoint, isInitialDepartureFix, legDistance, legInboundIndicator, legInboundOutboundIndicator, notes, pathAndTermination, procedureDesignMagVar, recNavaidIdent, recNavaidRef, recordType, rho, rnp, sequenceNumber, speedLimit, speedLimitDescription, supplementalData, theta, transitionsAltitudeLevel, turnDirection, turnDirectionValid, verticalScaleFactor, waypointDescriptor
Source

<xs:complexType name="SidLeg">
  <xs:complexContent>
    <xs:extension base="SidStarLeg">
      <xs:sequence>
        <xs:element name="isEngineOutDisarmPoint" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
        <xs:element name="isInitialDepartureFix" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Initial Departure Fix indication, P in column 43, is coded for the first published fix/waypoint of an RNAV departure.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type CommunicationTypeTranslation
Namespace No namespace
Annotations

This following record contains the fields used in Communication Type Translation Record.
Diagram
Diagram ARINC424_22_HTML.tmp#CommunicationTypeTranslation_communicationType ARINC424_22_HTML.tmp#CommunicationTypeTranslation_communicationClass ARINC424_22_HTML.tmp#CommunicationTypeTranslation_translation ARINC424_22_HTML.tmp#CommunicationTypeTranslation_typeRecognizedBy ARINC424_22_HTML.tmp#CommunicationTypeTranslation_usedOn
Model
Children communicationClass, communicationType, translation, typeRecognizedBy, usedOn
Source

<xs:complexType name="CommunicationTypeTranslation">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in Communication Type Translation Record.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="communicationType" type="enum:CommunicationType" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Communication Type” is a three-character code indicating the type of communication service available on the frequency contained in the record. Decoding is available in the Communication Type Translation Table.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="communicationClass" type="enum:CommunicationClass" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Communication Class” field will designate the major grouping of the Communication Types contained in the record.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="translation" type="type:Translation" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Translation” field is used to provide a decoding of a three character Communication Type (5.101).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="typeRecognizedBy" type="enum:TypeRecognizedBy" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Type Recognized By” field is used to provide an indication of the provider of a given Communication Type (5.101).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="usedOn" type="enum:UsedOn" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The “Used On” field provides an indication of what kind of communication records a particular Communication Type is used on.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type Vor
Namespace No namespace
Annotations

This following record contains the fields used in VOR Records.
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#Vor_vorFrequency ARINC424_22_HTML.tmp#Vor_navaidClass ARINC424_22_HTML.tmp#Vor_dmeRef ARINC424_22_HTML.tmp#Vor_stationDeclination ARINC424_22_HTML.tmp#Vor_figureOfMerit ARINC424_22_HTML.tmp#Vor_frequencyProtection ARINC424_22_HTML.tmp#Vor_navaidSynchronization ARINC424_22_HTML.tmp#Vor_navaidLimitations
Type extension of Navaid
Type hierarchy
Model
Children custAreaCode, cycleDate, datumCode, dmeRef, elevation, figureOfMerit, firRef, frequencyProtection, icaoCode, identifier, location, magneticVariation, name, navaidClass, navaidLimitations, navaidSynchronization, notes, portRef, recordType, stationDeclination, supplementalData, uirRef, vorFrequency
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Vor">
  <xs:annotation>
    <xs:documentation>This following record contains the fields used in VOR Records.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Navaid">
      <xs:sequence>
        <xs:element name="vorFrequency" type="type:Frequency" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This data element identifies frequency information on the navaid.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="navaidClass" type="type:VhfNavaidClass" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="dmeRef" type="type:PointReference" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This field idenifies a reference to a DME navaid which originated in the same source data record as the VOR (i.e. is paired with the VOR)</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="stationDeclination" type="type:StationDeclination" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>For VHF NAVAIDS, the “Station Declination” field contains the angular difference between true north and the zero degree radial of the NAVAID at the time the NAVAID was last site checked. For ILS localizers, the field contains the angular difference between true north and magnetic north at the localizer antenna site at the time the magnetic bearing of the localizer course was established.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="figureOfMerit" type="enum:FigureOfMerit" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Figure of Merit field is used to denote those situations where information has been made available that indicate a VHF Navaid facility is usable beyond the range value that is specified through the Class field. It is also used to denote when a VHF Navaid contained in the database is not available for operational use, i.e., is out of service and to flag a VHF Navaid that is not included in a civilian international NOTAM system.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="frequencyProtection" type="type:FrequencyProtectionDistance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Frequency Protection” field provides an indication of the distance to the next nearest NAVAID on the same frequency.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <!-- Continuation records -->
        <!-- Flight planning continuation records require: FIR, UIR.  See A424Point -->
        <!-- Simulation continuation records require:
							- Mag var -  in AeroPoint,
							- Elevation - in Navaid
							- Facility Characteristics -->
        <!--navaidSynchronization and voice ident are the only facility characteristics subfields that apply to VHF Navaid/VOR -->
        <xs:element name="navaidSynchronization" type="enum:NavaidSynchronization" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This field identifies if the navaid is synchronized.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <!-- Navigation Limitation Continuation Record (see section 4.1.2.6) -->
        <xs:element name="navaidLimitations" type="type:NavaidLimitation" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This field represents the navaid limitations.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type DmeTacan
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#DmeTacan_vorFrequency ARINC424_22_HTML.tmp#DmeTacan_navaidClass ARINC424_22_HTML.tmp#DmeTacan_dmeOperationalServiceVolume ARINC424_22_HTML.tmp#DmeTacan_ilsDmeLocation ARINC424_22_HTML.tmp#DmeTacan_ilsDMEBias ARINC424_22_HTML.tmp#DmeTacan_routeInappropriateDME ARINC424_22_HTML.tmp#DmeTacan_figureOfMerit ARINC424_22_HTML.tmp#DmeTacan_isPaired ARINC424_22_HTML.tmp#DmeTacan_isMlsP ARINC424_22_HTML.tmp#DmeTacan_frequencyProtection ARINC424_22_HTML.tmp#DmeTacan_navaidLimitations
Type extension of Navaid
Type hierarchy
Properties
abstract true
Used by
Complex Types Dme, MilitaryTacan, Tacan
Model
Children custAreaCode, cycleDate, datumCode, dmeOperationalServiceVolume, elevation, figureOfMerit, firRef, frequencyProtection, icaoCode, identifier, ilsDMEBias, ilsDmeLocation, isMlsP, isPaired, location, magneticVariation, name, navaidClass, navaidLimitations, notes, portRef, recordType, routeInappropriateDME, supplementalData, uirRef, vorFrequency
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="DmeTacan" abstract="true">
  <xs:complexContent>
    <xs:extension base="Navaid">
      <xs:sequence>
        <xs:element name="vorFrequency" type="type:Frequency" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This data element identifies VHF frequency that corresponds to the actual DME or TACAN frequency.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="navaidClass" type="type:VhfNavaidClass" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Navaid Class” field provides information in coded format on the type of navaid, the coverage of the navaid, information carried on the navaid signal and collocation of navaids in both an electronic and aeronautical sense.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="dmeOperationalServiceVolume" type="enum:DMEOperationalServiceVolume" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The DME Operational Service Volume field is used to specify the service volume information of DME Navaids to support using DMEDME and DME-DME-IRU FMS capabilities in RNAV procedures and routes.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ilsDmeLocation" type="enum:ILSDMELocation" minOccurs="0" maxOccurs="1">
          <!-- Part of facility characteristics -->
          <xs:annotation>
            <xs:documentation>This field identifies information about co-location with ILS facilities if the field is related to an ILS facility.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ilsDMEBias" type="type:ILSDMEBias" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This field is used to specify the DME offset</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="routeInappropriateDME" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>A “Route Inappropriate Navaid Indicator” is used when a DME navaid has source provided information identifying the navaid as inappropriate for use in navigation solutions for one or more RNAV 1 and RNAV 2 routes.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="figureOfMerit" type="enum:FigureOfMerit" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Figure of Merit field is used to denote those situations where information has been made available that indicate a VHF Navaid facility is usable beyond the range value that is specified through the Class field. It is also used to denote when a VHF Navaid contained in the database is not available for operational use, i.e., is out of service and to flag a VHF Navaid that is not included in a civilian international NOTAM system.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isPaired" type="xs:boolean" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Indicates whether this DME or TACAN originates from the same source record as a VOR with the same identifier.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="isMlsP" type="xs:boolean" minOccurs="0">
          <xs:annotation>
            <xs:documentation>This field identifies if the navaid is part of a Precision MLS.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="frequencyProtection" type="type:FrequencyProtectionDistance" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The “Frequency Protection” field provides an indication of the distance to the next nearest NAVAID on the same frequency.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <!-- Navigation Limitation Continuation Record (see section 4.1.2.6) -->
        <xs:element name="navaidLimitations" type="type:NavaidLimitation" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>This field represents the navaid limitations.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Dme
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#DmeTacan_vorFrequency ARINC424_22_HTML.tmp#DmeTacan_navaidClass ARINC424_22_HTML.tmp#DmeTacan_dmeOperationalServiceVolume ARINC424_22_HTML.tmp#DmeTacan_ilsDmeLocation ARINC424_22_HTML.tmp#DmeTacan_ilsDMEBias ARINC424_22_HTML.tmp#DmeTacan_routeInappropriateDME ARINC424_22_HTML.tmp#DmeTacan_figureOfMerit ARINC424_22_HTML.tmp#DmeTacan_isPaired ARINC424_22_HTML.tmp#DmeTacan_isMlsP ARINC424_22_HTML.tmp#DmeTacan_frequencyProtection ARINC424_22_HTML.tmp#DmeTacan_navaidLimitations ARINC424_22_HTML.tmp#DmeTacan
Type extension of DmeTacan
Type hierarchy
Model
Children custAreaCode, cycleDate, datumCode, dmeOperationalServiceVolume, elevation, figureOfMerit, firRef, frequencyProtection, icaoCode, identifier, ilsDMEBias, ilsDmeLocation, isMlsP, isPaired, location, magneticVariation, name, navaidClass, navaidLimitations, notes, portRef, recordType, routeInappropriateDME, supplementalData, uirRef, vorFrequency
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Dme">
  <xs:complexContent>
    <xs:extension base="DmeTacan">
      <xs:sequence>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type Tacan
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#DmeTacan_vorFrequency ARINC424_22_HTML.tmp#DmeTacan_navaidClass ARINC424_22_HTML.tmp#DmeTacan_dmeOperationalServiceVolume ARINC424_22_HTML.tmp#DmeTacan_ilsDmeLocation ARINC424_22_HTML.tmp#DmeTacan_ilsDMEBias ARINC424_22_HTML.tmp#DmeTacan_routeInappropriateDME ARINC424_22_HTML.tmp#DmeTacan_figureOfMerit ARINC424_22_HTML.tmp#DmeTacan_isPaired ARINC424_22_HTML.tmp#DmeTacan_isMlsP ARINC424_22_HTML.tmp#DmeTacan_frequencyProtection ARINC424_22_HTML.tmp#DmeTacan_navaidLimitations ARINC424_22_HTML.tmp#DmeTacan
Type extension of DmeTacan
Type hierarchy
Model
Children custAreaCode, cycleDate, datumCode, dmeOperationalServiceVolume, elevation, figureOfMerit, firRef, frequencyProtection, icaoCode, identifier, ilsDMEBias, ilsDmeLocation, isMlsP, isPaired, location, magneticVariation, name, navaidClass, navaidLimitations, notes, portRef, recordType, routeInappropriateDME, supplementalData, uirRef, vorFrequency
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="Tacan">
  <xs:complexContent>
    <xs:extension base="DmeTacan">
      <xs:sequence>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Complex Type MilitaryTacan
Namespace No namespace
Diagram
Diagram ARINC424_22_HTML.tmp#A424Base_supplementalData ARINC424_22_HTML.tmp#A424Base ARINC424_22_HTML.tmp#A424Record_custAreaCode ARINC424_22_HTML.tmp#A424Record_cycleDate ARINC424_22_HTML.tmp#A424Record_notes ARINC424_22_HTML.tmp#A424Record_recordType ARINC424_22_HTML.tmp#A424Record ARINC424_22_HTML.tmp#A424Point_referenceID ARINC424_22_HTML.tmp#A424Point_datumCode ARINC424_22_HTML.tmp#A424Point_icaoCode ARINC424_22_HTML.tmp#A424Point_identifier ARINC424_22_HTML.tmp#A424Point_location ARINC424_22_HTML.tmp#A424Point_magneticVariation ARINC424_22_HTML.tmp#A424Point_name ARINC424_22_HTML.tmp#A424Point_uirRef ARINC424_22_HTML.tmp#A424Point_firRef ARINC424_22_HTML.tmp#A424Point ARINC424_22_HTML.tmp#Navaid_portRef ARINC424_22_HTML.tmp#Navaid_elevation ARINC424_22_HTML.tmp#Navaid ARINC424_22_HTML.tmp#DmeTacan_vorFrequency ARINC424_22_HTML.tmp#DmeTacan_navaidClass ARINC424_22_HTML.tmp#DmeTacan_dmeOperationalServiceVolume ARINC424_22_HTML.tmp#DmeTacan_ilsDmeLocation ARINC424_22_HTML.tmp#DmeTacan_ilsDMEBias ARINC424_22_HTML.tmp#DmeTacan_routeInappropriateDME ARINC424_22_HTML.tmp#DmeTacan_figureOfMerit ARINC424_22_HTML.tmp#DmeTacan_isPaired ARINC424_22_HTML.tmp#DmeTacan_isMlsP ARINC424_22_HTML.tmp#DmeTacan_frequencyProtection ARINC424_22_HTML.tmp#DmeTacan_navaidLimitations ARINC424_22_HTML.tmp#DmeTacan
Type extension of DmeTacan
Type hierarchy
Model
Children custAreaCode, cycleDate, datumCode, dmeOperationalServiceVolume, elevation, figureOfMerit, firRef, frequencyProtection, icaoCode, identifier, ilsDMEBias, ilsDmeLocation, isMlsP, isPaired, location, magneticVariation, name, navaidClass, navaidLimitations, notes, portRef, recordType, routeInappropriateDME, supplementalData, uirRef, vorFrequency
Attributes
QName Type Use
referenceID xs:ID required
Source

<xs:complexType name="MilitaryTacan">
  <xs:complexContent>
    <xs:extension base="DmeTacan">
      <xs:sequence>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
[ top ]
Attribute A424Point / @referenceID
Namespace No namespace
Type xs:ID
Properties
use required
Used by
Complex Type A424Point
Source

<xs:attribute name="referenceID" use="required" type="xs:ID"/>
[ top ]
Attribute Procedure / @referenceID
Namespace No namespace
Type xs:ID
Properties
use required
Used by
Complex Type Procedure
Source

<xs:attribute name="referenceID" use="required" type="xs:ID"/>
[ top ]
Attribute TAA / @referenceID
Namespace No namespace
Type xs:ID
Properties
use required
Used by
Complex Type TAA
Source

<xs:attribute name="referenceID" use="required" type="xs:ID"/>
[ top ]
Attribute MSA / @referenceID
Namespace No namespace
Type xs:ID
Properties
use required
Used by
Complex Type MSA
Source

<xs:attribute name="referenceID" use="required" type="xs:ID"/>
[ top ]
Attribute Airway / @referenceID
Namespace No namespace
Type xs:ID
Properties
use required
Used by
Complex Type Airway
Source

<xs:attribute name="referenceID" use="required" type="xs:ID"/>
[ top ]
Attribute CompanyRoute / @referenceID
Namespace No namespace
Type xs:ID
Properties
use required
Used by
Complex Type CompanyRoute
Source

<xs:attribute name="referenceID" use="required" type="xs:ID"/>
[ top ]
Attribute FIRUIR / @referenceID
Namespace No namespace
Type xs:ID
Properties
use required
Used by
Complex Type FIRUIR
Source

<xs:attribute name="referenceID" use="required" type="xs:ID"/>
[ top ]
Attribute Alternate / @referenceID
Namespace No namespace
Type xs:ID
Properties
use required
Used by
Complex Type Alternate
Source

<xs:attribute name="referenceID" use="required" type="xs:ID"/>
[ top ]
Attribute CruisingTable / @referenceID
Namespace No namespace
Type xs:ID
Properties
use required
Used by
Complex Type CruisingTable
Source

<xs:attribute name="referenceID" type="xs:ID" use="required"/>
[ top ]
Attribute MetaData / @creationDateTime
Namespace No namespace
Annotations

Contains the date when the file was created. Format is DD-MMMYYYY. Where DD is the two-digit decimal day of month, MMM is a three-character month abbreviation, and YYYY is the four-digit decimal year. Contains the UTC time when the file was created. The format is two decimal digits each for hours, minutes, and seconds, separated by colons.
Type xs:dateTime
Properties
use required
Used by
Attribute Group MetaData
Source

<xs:attribute name="creationDateTime" use="required" type="xs:dateTime">
  <xs:annotation>
    <xs:documentation>Contains the date when the file was created. Format is DD-MMMYYYY. Where DD is the two-digit decimal day of month, MMM is a three-character month abbreviation, and YYYY is the four-digit decimal year. Contains the UTC time when the file was created. The format is two decimal digits each for hours, minutes, and seconds, separated by colons.</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @cycleDate
Namespace No namespace
Annotations

Contains Cycle Date
Type xs:int
Properties
use optional
Used by
Attribute Group MetaData
Source

<xs:attribute name="cycleDate" use="optional" type="xs:int">
  <xs:annotation>
    <xs:documentation>Contains Cycle Date</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @databasePartNumber
Namespace No namespace
Annotations

Unique part number for database
Type xs:string
Properties
use optional
Used by
Attribute Group MetaData
Source

<xs:attribute name="databasePartNumber" use="optional" type="xs:string">
  <xs:annotation>
    <xs:documentation>Unique part number for database</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @dataSupplierIdent
Namespace No namespace
Annotations

Contains information to identify the data supplier. Content defined by the data supplier.
Type xs:string
Properties
use optional
Used by
Attribute Group MetaData
Source

<xs:attribute name="dataSupplierIdent" use="optional" type="xs:string">
  <xs:annotation>
    <xs:documentation>Contains information to identify the data supplier. Content defined by the data supplier.</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @desupplierTextField
Namespace No namespace
Annotations

Contains description of file contents, or other information agreed upon by data supplier and customer.
Type xs:string
Properties
use optional
Used by
Attribute Group MetaData
Source

<xs:attribute name="desupplierTextField" use="optional" type="xs:string">
  <xs:annotation>
    <xs:documentation>Contains description of file contents, or other information agreed upon by data supplier and customer.</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @endOfValidity
Namespace No namespace
Annotations

This XML Attribute represents the end date of the validity of the data.
Type xs:dateTime
Properties
use required
Used by
Attribute Group MetaData
Source

<xs:attribute name="endOfValidity" use="required" type="xs:dateTime">
  <xs:annotation>
    <xs:documentation>This XML Attribute represents the end date of the validity of the data.</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @fileCRC
Namespace No namespace
Annotations

This field contains the 32 bit CRC value for the ARINC data file (including data and header records).ARINC Report 665, Loadable Software Standards, Section 4.0 defines the use of CRC codes.
The CRC Polynomial used to calculate the CRC of the ARINC 424 data file shall be the 32-bit CRC (0x04C11DB7), calculated as described in ARINC Report 665
Type xs:int
Properties
use optional
Used by
Attribute Group MetaData
Source

<xs:attribute name="fileCRC" use="optional" type="xs:int">
  <xs:annotation>
    <xs:documentation>This field contains the 32 bit CRC value for the ARINC data file (including data and header records).ARINC Report 665, Loadable Software Standards, Section 4.0 defines the use of CRC codes. The CRC Polynomial used to calculate the CRC of the ARINC 424 data file shall be the 32-bit CRC (0x04C11DB7), calculated as described in ARINC Report 665</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @headerIdent
Namespace No namespace
Annotations

Contains HDR
Type xs:string
Properties
use optional
Used by
Attribute Group MetaData
Source

<xs:attribute name="headerIdent" use="optional" type="xs:string">
  <xs:annotation>
    <xs:documentation>Contains HDR</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @language
Namespace No namespace
Type xs:language
Properties
use optional
Used by
Attribute Group MetaData
Source

<xs:attribute name="language" use="optional" type="xs:language"/>
[ top ]
Attribute MetaData / @recordCount
Namespace No namespace
Annotations

Contains the decimal count of the number of XML data Elements in the file.
Type xs:int
Properties
use optional
Used by
Attribute Group MetaData
Source

<xs:attribute name="recordCount" use="optional" type="xs:int">
  <xs:annotation>
    <xs:documentation>Contains the decimal count of the number of XML data Elements in the file.</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @startOfValidity
Namespace No namespace
Annotations

This XML Attribute field is used to represent the effective date of the data.
Type xs:dateTime
Properties
use required
Used by
Attribute Group MetaData
Source

<xs:attribute name="startOfValidity" use="required" type="xs:dateTime">
  <xs:annotation>
    <xs:documentation>This XML Attribute field is used to represent the effective date of the data.</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @supplierTextField
Namespace No namespace
Annotations

Contains information specific to data supplier, contents to be defined by data supplier
Type xs:string
Properties
use optional
Used by
Attribute Group MetaData
Source

<xs:attribute name="supplierTextField" use="optional" type="xs:string">
  <xs:annotation>
    <xs:documentation>Contains information specific to data supplier, contents to be defined by data supplier</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @targetCustomerIdent
Namespace No namespace
Annotations

Contains information to identify the data user/customer (for example, the customer name(s), file codes). Content defined by the data supplier and/or customer.
Type xs:string
Properties
use optional
Used by
Attribute Group MetaData
Source

<xs:attribute name="targetCustomerIdent" use="optional" type="xs:string">
  <xs:annotation>
    <xs:documentation>Contains information to identify the data user/customer (for example, the customer name(s), file codes). Content defined by the data supplier and/or customer.</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @uuid
Namespace No namespace
Type type:UUID
Properties
use optional
Facets
length 36
pattern [0-9a-fA-F]{8}-[0-9a-fA-F]{4}-[0-9a-fA-F]{4}-[0-9a-fA-F]{4}-[0-9a-fA-F]{12}
Used by
Attribute Group MetaData
Source

<xs:attribute name="uuid" use="optional" type="type:UUID"/>
[ top ]
Attribute MetaData / @versionNumber
Namespace No namespace
Annotations

Contains 3 decimal numbers to uniquely identify revision of this file. Initially set to 001, but will be incremented if the file is created more than once in the same cycle.
Type xs:int
Properties
use optional
Used by
Attribute Group MetaData
Source

<xs:attribute name="versionNumber" use="optional" type="xs:int">
  <xs:annotation>
    <xs:documentation>Contains 3 decimal numbers to uniquely identify revision of this file. Initially set to 001, but will be incremented if the file is created more than once in the same cycle.</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute MetaData / @codingRuleVersion
Namespace No namespace
Annotations

This contains a version number of the coding rule specification used to capture this data set.
Type type:UUID
Properties
content simple
Facets
length 36
pattern [0-9a-fA-F]{8}-[0-9a-fA-F]{4}-[0-9a-fA-F]{4}-[0-9a-fA-F]{4}-[0-9a-fA-F]{12}
Used by
Attribute Group MetaData
Source

<xs:attribute name="codingRuleVersion" type="type:UUID">
  <xs:annotation>
    <xs:documentation>This contains a version number of the coding rule specification used to capture this data set.</xs:documentation>
  </xs:annotation>
</xs:attribute>
[ top ]
Attribute Group MetaData
Namespace No namespace
Annotations

Basic Attribute Group which contains the start, end dates of the Cycle and other header Information.
Diagram
Diagram ARINC424_22_HTML.tmp#MetaData_creationDateTime ARINC424_22_HTML.tmp#MetaData_cycleDate ARINC424_22_HTML.tmp#MetaData_databasePartNumber ARINC424_22_HTML.tmp#MetaData_dataSupplierIdent ARINC424_22_HTML.tmp#MetaData_desupplierTextField ARINC424_22_HTML.tmp#MetaData_endOfValidity ARINC424_22_HTML.tmp#MetaData_fileCRC ARINC424_22_HTML.tmp#MetaData_headerIdent ARINC424_22_HTML.tmp#MetaData_language ARINC424_22_HTML.tmp#MetaData_recordCount ARINC424_22_HTML.tmp#MetaData_startOfValidity ARINC424_22_HTML.tmp#MetaData_supplierTextField ARINC424_22_HTML.tmp#MetaData_targetCustomerIdent ARINC424_22_HTML.tmp#MetaData_uuid ARINC424_22_HTML.tmp#MetaData_versionNumber ARINC424_22_HTML.tmp#MetaData_codingRuleVersion
Used by
Element AeroPublication
Attributes
QName Type Use Annotation
codingRuleVersion type:UUID optional
This contains a version number of the coding rule specification used to capture this data set.
creationDateTime xs:dateTime required
Contains the date when the file was created. Format is DD-MMMYYYY. Where DD is the two-digit decimal day of month, MMM is a three-character month abbreviation, and YYYY is the four-digit decimal year. Contains the UTC time when the file was created. The format is two decimal digits each for hours, minutes, and seconds, separated by colons.
cycleDate xs:int optional
Contains Cycle Date
dataSupplierIdent xs:string optional
Contains information to identify the data supplier. Content defined by the data supplier.
databasePartNumber xs:string optional
Unique part number for database
desupplierTextField xs:string optional
Contains description of file contents, or other information agreed upon by data supplier and customer.
endOfValidity xs:dateTime required
This XML Attribute represents the end date of the validity of the data.
fileCRC xs:int optional
This field contains the 32 bit CRC value for the ARINC data file (including data and header records).ARINC Report 665, Loadable Software Standards, Section 4.0 defines the use of CRC codes.
The CRC Polynomial used to calculate the CRC of the ARINC 424 data file shall be the 32-bit CRC (0x04C11DB7), calculated as described in ARINC Report 665
headerIdent xs:string optional
Contains HDR
language xs:language optional
recordCount xs:int optional
Contains the decimal count of the number of XML data Elements in the file.
startOfValidity xs:dateTime required
This XML Attribute field is used to represent the effective date of the data.
supplierTextField xs:string optional
Contains information specific to data supplier, contents to be defined by data supplier
targetCustomerIdent xs:string optional
Contains information to identify the data user/customer (for example, the customer name(s), file codes). Content defined by the data supplier and/or customer.
uuid type:UUID optional
versionNumber xs:int optional
Contains 3 decimal numbers to uniquely identify revision of this file. Initially set to 001, but will be incremented if the file is created more than once in the same cycle.
Source

<xs:attributeGroup name="MetaData">
  <xs:annotation>
    <xs:documentation>Basic Attribute Group which contains the start, end dates of the Cycle and other header Information.</xs:documentation>
  </xs:annotation>
  <xs:attribute name="creationDateTime" use="required" type="xs:dateTime">
    <xs:annotation>
      <xs:documentation>Contains the date when the file was created. Format is DD-MMMYYYY. Where DD is the two-digit decimal day of month, MMM is a three-character month abbreviation, and YYYY is the four-digit decimal year. Contains the UTC time when the file was created. The format is two decimal digits each for hours, minutes, and seconds, separated by colons.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="cycleDate" use="optional" type="xs:int">
    <xs:annotation>
      <xs:documentation>Contains Cycle Date</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="databasePartNumber" use="optional" type="xs:string">
    <xs:annotation>
      <xs:documentation>Unique part number for database</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="dataSupplierIdent" use="optional" type="xs:string">
    <xs:annotation>
      <xs:documentation>Contains information to identify the data supplier. Content defined by the data supplier.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="desupplierTextField" use="optional" type="xs:string">
    <xs:annotation>
      <xs:documentation>Contains description of file contents, or other information agreed upon by data supplier and customer.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="endOfValidity" use="required" type="xs:dateTime">
    <xs:annotation>
      <xs:documentation>This XML Attribute represents the end date of the validity of the data.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="fileCRC" use="optional" type="xs:int">
    <xs:annotation>
      <xs:documentation>This field contains the 32 bit CRC value for the ARINC data file (including data and header records).ARINC Report 665, Loadable Software Standards, Section 4.0 defines the use of CRC codes. The CRC Polynomial used to calculate the CRC of the ARINC 424 data file shall be the 32-bit CRC (0x04C11DB7), calculated as described in ARINC Report 665</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="headerIdent" use="optional" type="xs:string">
    <xs:annotation>
      <xs:documentation>Contains HDR</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="language" use="optional" type="xs:language"/>
  <xs:attribute name="recordCount" use="optional" type="xs:int">
    <xs:annotation>
      <xs:documentation>Contains the decimal count of the number of XML data Elements in the file.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="startOfValidity" use="required" type="xs:dateTime">
    <xs:annotation>
      <xs:documentation>This XML Attribute field is used to represent the effective date of the data.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="supplierTextField" use="optional" type="xs:string">
    <xs:annotation>
      <xs:documentation>Contains information specific to data supplier, contents to be defined by data supplier</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="targetCustomerIdent" use="optional" type="xs:string">
    <xs:annotation>
      <xs:documentation>Contains information to identify the data user/customer (for example, the customer name(s), file codes). Content defined by the data supplier and/or customer.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="uuid" use="optional" type="type:UUID"/>
  <xs:attribute name="versionNumber" use="optional" type="xs:int">
    <xs:annotation>
      <xs:documentation>Contains 3 decimal numbers to uniquely identify revision of this file. Initially set to 001, but will be incremented if the file is created more than once in the same cycle.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="codingRuleVersion" type="type:UUID">
    <xs:annotation>
      <xs:documentation>This contains a version number of the coding rule specification used to capture this data set.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>
[ top ]
